jbc CLMU User manual

CLMU / CLMUP
Automatic Tip Cleaner with
Metal/Fiber Brushes
INSTRUCTION MANUAL

Automatic Tip Cleaner with
Metal/Fiber Brushes ................................... 1 unit
according purchased reference
AC Adapter .................................................. 1 unit
0028084
Manual ......................................................... 1 unit
0 0 274 9 6
EU US

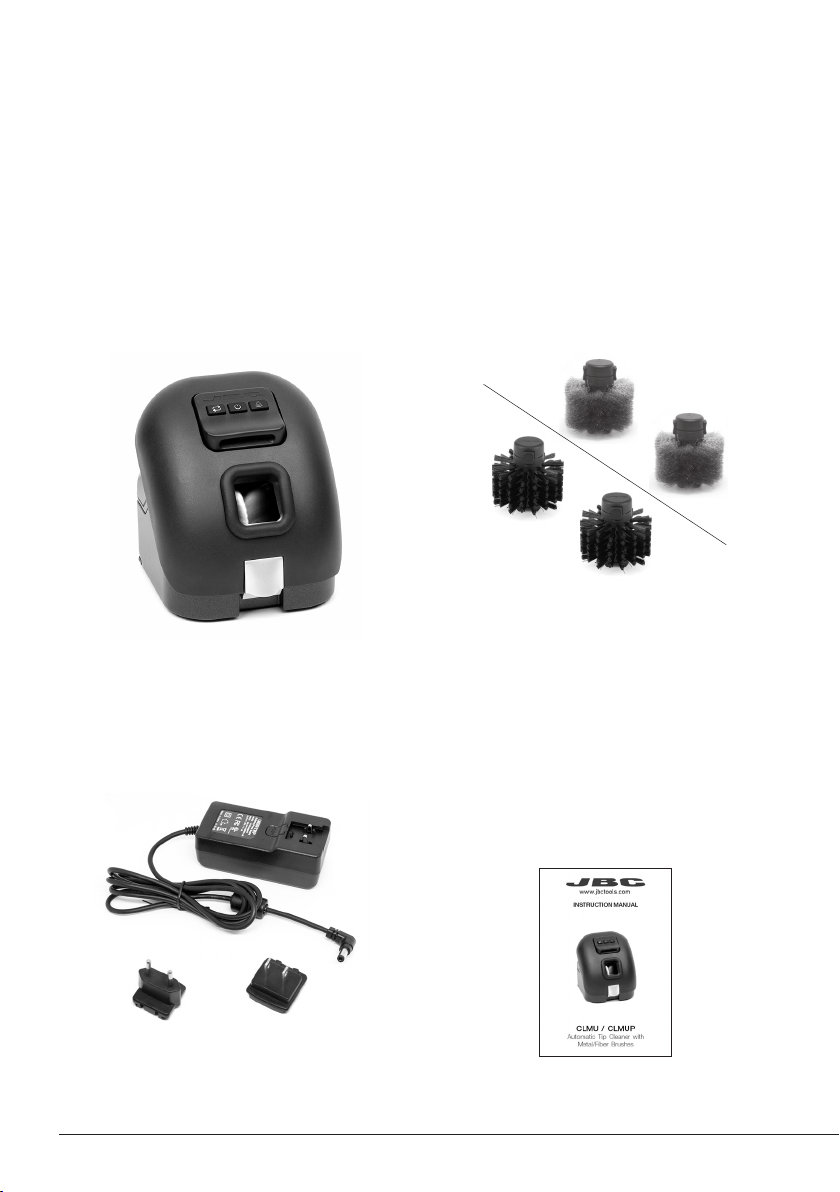

Packing List
The following items are included:
This manual corresponds to the following references:
CLMU-A with metal brushes
CLMU-PB with fiber brushes (non-metal)
Brush reference according purchased cleaner
model. Brushes already installed inside the cleaner.
Metal Brushes for
Automatic Tip Cleaner .......................... 2 units
Ref. CL10 0 8
Fiber Brushes for
Automatic Tip Cleaner ......................... 2 units
Ref. CL2008
Metal
Brushes
Fiber
Brushes
2

Features and Connections
Locking Tab
Splashguard
Feets for Vertical
Access
Power Cord
Socket ESD Connector
(connect to ESD Common
Grounding Point)
USB-B
Connector
Sensor Window
Switch Panel
Window
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

OK
OK
CLMUP/
CLMU
CLMS
CL
ANTISPLASH MEMBRANE
ON OFF
SWITCH
OFFON
SWITCH
Sensor
Mode
Continuous
Mode
On / Off
Led status
- White: Off
- Blue: Standby
- Green: Brushes activated
- Blinking Red: Brushes jammed
Operation
For best cleaning results, we recommend placing the tip between the two brushes for just 1 second.
Longer exposure time would lead to dewetting of tip surface causing oxidation.
If excessive pressure is applied with the tool against any of the brushes, the cleaner stops automatically
in order to protect the motors. Putting the tool out of the sensor detection area automatically
deactivates the cleaner.
The tip cleaner is automatically switched off if the splashguard is opened during operation.
just 1 second
Keypad
4

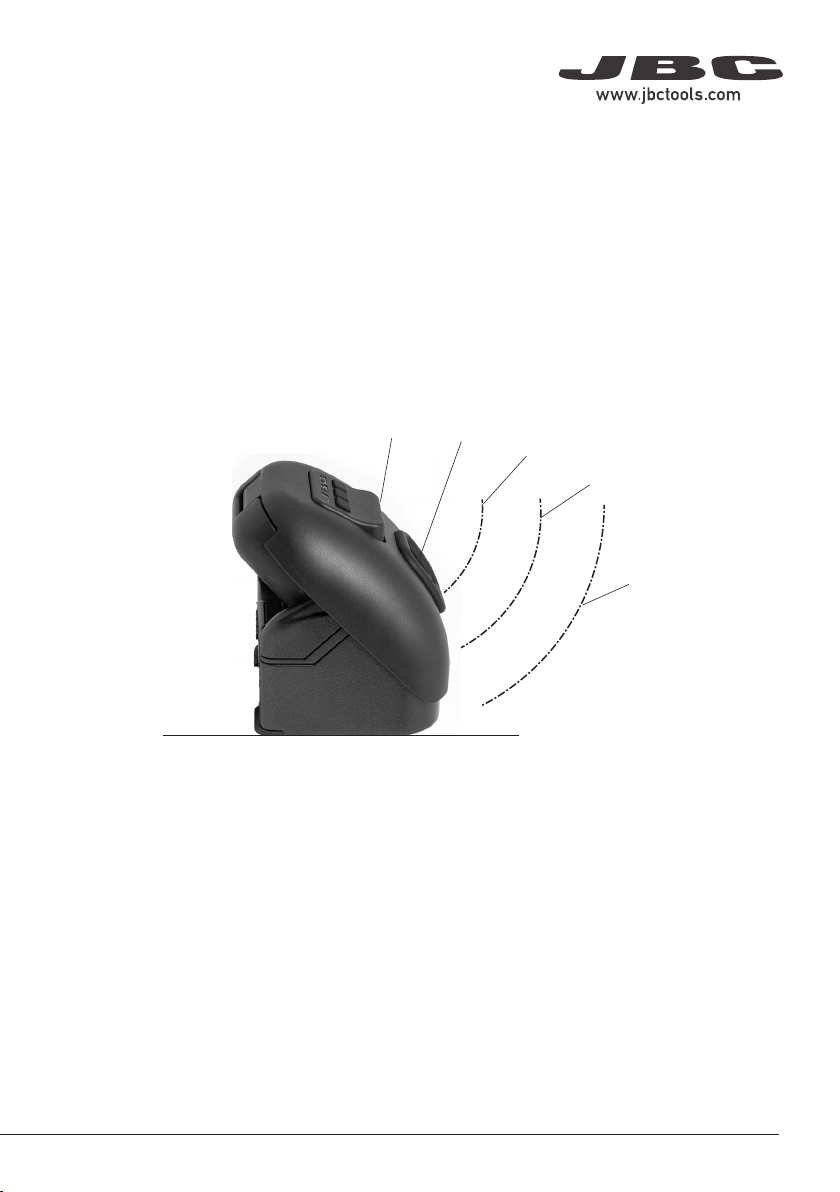

Set Up
CLMU/CLMUP allows you to choose between continuous operation and sensor operation.
The tip cleaner contains a sensor that detects when the soldering cartridge approaches the window
and automatically starts the brush rotation.
You can choose between 3 different settings for sensor operation:
Level 1 - for a short detection distance
Level 2 - for a medium detection distance (default)
Level 3 - for a long detection distance
Levels can be selected as follows:
1. Turn on the tip cleaner by pressing the On / Off key.
2. Push the “Sensor Mode” key until the interior light and keypad LEDs make one, two or three
blinks. The number of blinks indicates the selected level.
3. Push the sensor mode button to change to the next level. If the button is held down, the level
changes continuously to the next one until the button is released (changes from level 1 to 2, from 2
to 3 and from 3 to 1).
The level configuration is saved by the tip cleaner and will not be changed after the device is
restarted.
short
distance medium
distance
long
distance
Sensor Window Window
5
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

OK
OK
CLMUP/
CLMU
CLMS
CL
ANTISPLASH MEMBRANE
ON OFF
SWITCH
OFFON
SWITCH
OK
OK
CLMUP/
CLMU
CLMS
CL
ANTISPLASH MEMBRANE
ON OFF
SWITCH
OFFON
SWITCH
SFR-B
GSFR
TRA
CLR
EXTRACCIÓN
22220
EXTRACCIÓN
26842
26843
EXTRACCIÓN
26846
26847
26848
EXTRACCIÓN
26844
VERMELL
NEGRE GROC
VERMELL
BLAU
VERMELL
BLAU
BLAU
VERD
VERMELL
BLAU
VERD
VERMELL
NEGRE GROC
VERMELL
BLAU
BLAU
VERD
Lorem ipsum
2
2
SFR-B
GSFR
TRA
CLR
EXTRACCIÓN
22220
EXTRACCIÓN
26842
26843
EXTRACCIÓN
26846
26847
26848
EXTRACCIÓN
26844
VERMELL
NEGRE GROC
VERMELL
BLAU
VERMELL
BLAU
BLAU
VERD
VERMELL
BLAU
VERD
VERMELL
NEGRE GROC
VERMELL
BLAU
BLAU
VERD
Lorem ipsum
1
4
5
Locking
Tab
Changing Brushes
Before opening the tip cleaner, unplug it from the mains.
Press the brush buttons (2) to remove the
brushes (3).
Solder
Collection
Tray
Pull the locking tab (1) to open the splashguard.
The tip cleaner features a solder collection tray.
After cleaning place it back in its position (5).
Open Splashguard
Removing / Inserting Brushes
Cleaning Solder Collection Tray
Align the brushes with the axis and push them
in until a click is heard (4). Check if the brushes
are properly fixed.
3
6

CL1008 CL1007 CL2008 CL2007
Material Metal Metal Fiber Fiber
Cleaning Intensive Intensive Gentle Gentle
Max. time use 10 s 10 s 5 s 5 s
Recommended
time use 1-2 s 1-2 s 1-2 s 1-2 s
Life cycle Long Long Extended Extended
Core Black Blue Black Blue
Accessories: Brush Range
*Only use the non-metal brushes when they are rotating. Incorrect use will damage them.
All brushes are offered with black and blue core, to distingish them when working with lead-free and
leaded solder.
Note: As a refereance, the cleaning process should last around 1 second.
7
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

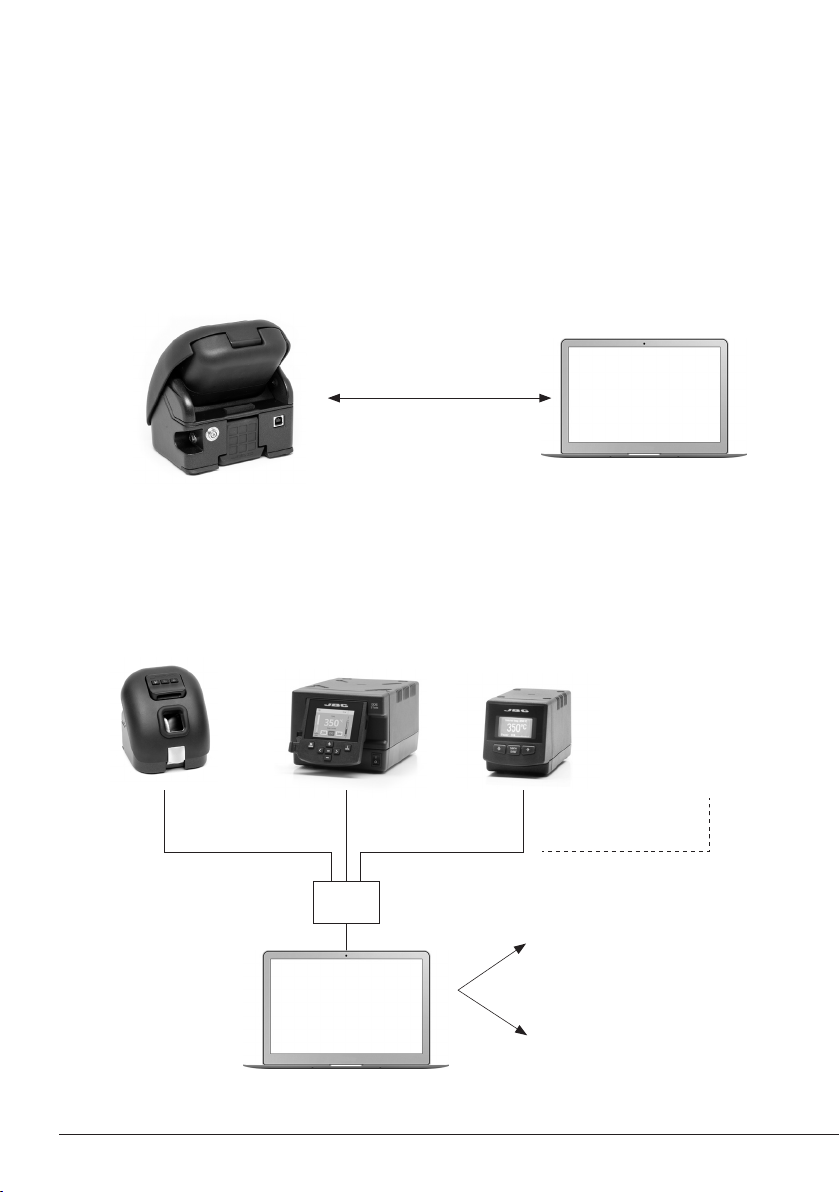

JBC
Manager
USB Connector
JBC Updater
www.jbctools.com/software.html
Update the tip cleaner software via USB connection:
JBC Manager
www.jbctools.com/manager.html
Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can
export data to another PC.
Download the latest software from our website to improve your tip cleaner.
Register Settings
Create graphs of the
soldering process in
real time with power and
temperature data.
Manager Settings
Change settings for a
group of JBC stations at
the same time.
any JBC
Station
USB
Hub
USB AB Cable
USB AB Cable JBC
Updater
8

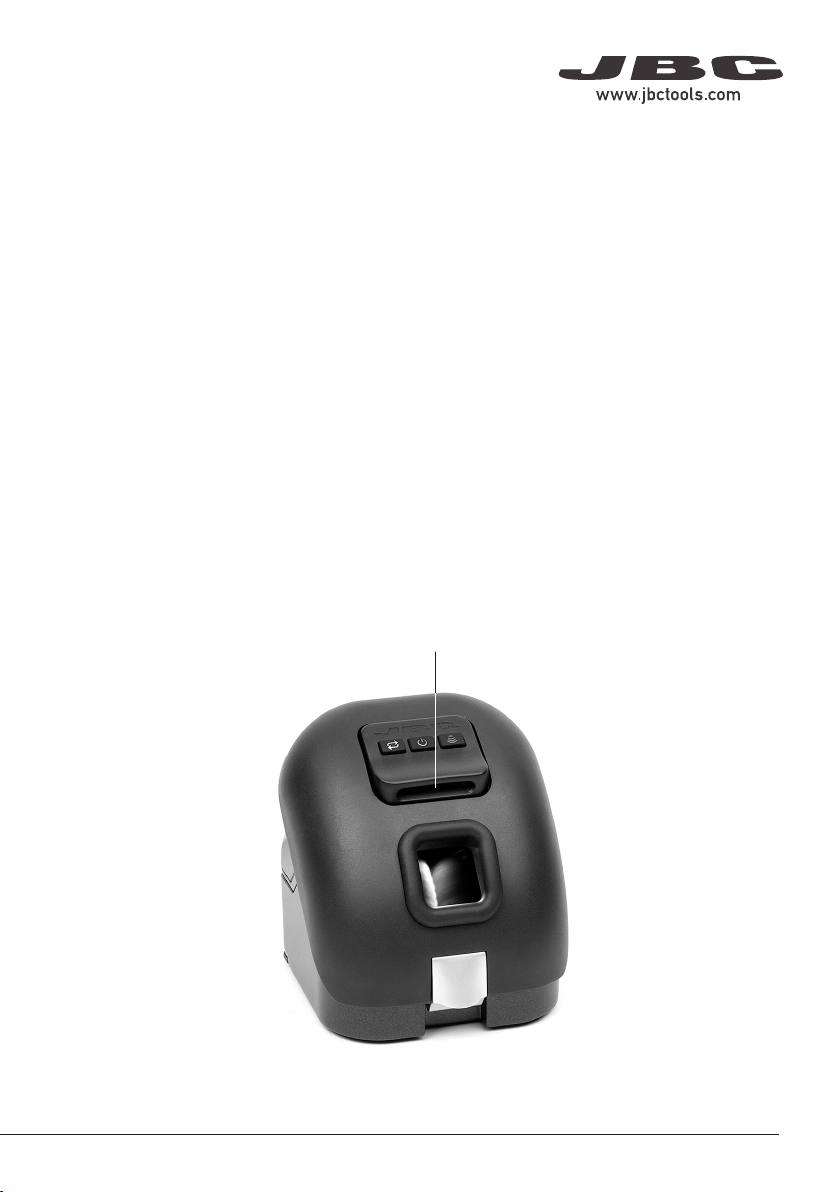

Sensor Window
Maintenance
Before carrying out maintenance or storage, always unplug the equipment from the mains.
- Use a damp cloth to clean the splashguard outside and inside.
- Check periodically that the sensors window is clean. Use a cotton bud with alcohol to clean it.
- Maintain the brushes and the solder collection tray clean.
- Brushes (Metal and Fiber Brushes ) can be cleaned by immersing them in isopropyl alcohol. They
must be allowed to dry before use.
- Replace any defective or damaged piece. Use original JBC spare parts only.
- Repairs should be performed only by a JBC authorized technical service.
9
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Safety
- Do not use the appliance for any purpose other than tip cleaning. It is not a tool stand.
- The AC Adapter power supply must be plugged into approved bases.
- Do not leave the appliance unattended when it is running.
- Remove power cord by holding the plug, not the wire.
- Avoid contact with moving parts.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid harm.
- This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children must not play with the appliance. Cleaning and user maintenance must not be
carried out by children without supervision.
- Utmost care must be taken with liquid tin waste which can cause burns.
- Be careful with the fumes produced when soldering.
It is imperative to follow safety guidelines to prevent electric shock,
injury, fire or explosion.
10

Specifications
CLMU / CLMUP
Automatic Tip Cleaner with Metal/Fiber Brushes
Ref.: CLMU-A with metal brushes
Ref.: CLMU-PB with fiber brushes
- AC Adapter: Input: 100-240 V, 5/60 Hz
Output: DC 24 V, 2 A
- ESD safe Connector
- Ambient Operating Temperature: 10 to 40 ºC / 50 to 104 ºF
- Brush diameter: 50 mm / 2.0 in
- Cleaner Unit Dimension: 131 x 129 x 136 mm /
(L x W x H)
- Total Net Weight: 2100 g / 6.03 lb
- Package Dimensions/Weight: 220 x 213 x 160 mm / 2320g
(L x W x H) 8.70 x 5.35 x 4.96 in / 6.75 lb
Complies with CE standards.
ESD safe.
11
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
