JBL Synthesis SDEC-3000 User guide

SYNTHESIS
®
SDEC-3000
SDEC-4000
DIGITAL
EQUALIZER
INSTALLER’S
MANUAL
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 1

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
INTRODUCTION AND FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
DETAILED DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
FRONT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
REAR PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
INPUT/OUTPUT ASSIGNMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
SDEC-3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
SDEC-4000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
SDEC-4000 WITH BI-AMPLIFIED FRONT SPEAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
SDEC-4000 WITH FULL-RANGE FRONT SPEAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
CONNECTION TO THE REST OF THE JBL SYNTHESIS SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
SDEC-3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
SDEC-4000 WITH BI-AMPLIFIED SPEAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SDEC-4000 WITH FULL-RANGE FRONT SPEAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
CONTENTS
2
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 2

3
IMPORTANT SAFETY PRECAUTIONS!
PLEASE READ CAREFULLY ALL OF THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE
APPLICABLE TO YOUR EQUIPMENT
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,stoves or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod,bracket or table specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
16. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply
to your home, consult your product dealer or local power company. For products intended to operate from battery power,or other sources, refer to
the operating instructions.
17. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection
against voltage surges and built-up static charges.Article 810 of the National Electrical Code,ANSI/NFPA 70, provides information with regard to
proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit,size of grounding conductors,
location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.
18. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall
into such power lines or circuits.When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or
circuits, as contact with them might be fatal.
19. Do not overload wall outlets, extension cords,or integral convenience receptacles, as this can result in a risk of fire or electric shock.
20. Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-out parts that could result in
a fire or electric shock. Never spill liquid of any kind on the product.
21. The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.
22. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
23. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same
characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
24. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in
proper operating condition.
25. The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-22 of the NEC that provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable
entry as practical.
Figure A.
Example of Antenna Grounding as per
National ElectricalCode ANSI/NFPA 70
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 3

4
INTRODUCTION
Congratulations on your purchase of this JBL Synthesis®SDEC Digital Equalizer! You have chosen a product that
embodies the best of what JBL®has discovered about the emotional power of audio reproduction in more than sixty
years of preeminence in the field. This Digital Equalizer has been designed and crafted to provide the user with a
high level of sonic performance; special attention has been paid to minimize the number of components in the audio
signal path, resulting in extremely low distortion, excellent transient response and wide dynamic range. Synthesis
products set new benchmarks in audio technology, and, when used as part of a complete JBL Synthesis system,
will bring the ambience and acoustics of some of the world’s greatest concert halls and theaters into your home.
To obtain the best performance from this Digital Equalizer, please be sure to completely read this user’s manual
and use the SDEC Digital Equalizer only in accordance with its instructions.
From its inception, JBL Synthesis has been the answer to the questions: “How do you build a state-of-the-art
home theater system and make it sound superb in every installation? How can you be sure all the hardware is
compatible?” These were the big questions fifteen years ago; Synthesis was the answer. Once again, JBL Synthesis
moves beyond the competition and is the answer. The JBL Synthesis Digital Equalizer (SDEC) is a (up to) 12-channel-
in/20-channel-out 24-bit, 96kHz digital audio signal processor. Unlike nearly all other audio components on the
market, the SDEC has been designed to work specifically with other Synthesis System components. This narrow
application focus has allowed our engineers to design a product with far fewer compromises, resulting in
unequalled system performance. By reading the following pages, you will become familiar with the technological
features and unique capabilities incorporated within the SDEC and available nowhere else.
Until now, anything beyond the most basic equalization has been impossible without expensive acoustical instru-
mentation and the knowledge to use it. This is why, traditionally, equalizers have been general-purpose devices,
designed to be applicable to any audio system, usually of doing more harm than good! Add to this situation the fact
that equalizing a speaker system by ear is truly a futile exercise. This helps to account for the generally low
acceptance of equalizers outside of professional audio applications.
FEATURES
• Up to 120 bands of fully parametric EQ
• Built-in crossover for bi-amp outputs (SDEC-4000 only)
• Delay adjustment for each output
• Delay adjustment for driver compensation
• Four subwoofer outputs (SDEC-4000 only)
• Two pairs of side speaker outputs for large rooms with multiple rows of seating (SDEC-4000 only)
• 24-Bit DSP
• 96kHz sample rate on all inputs and outputs
• Balanced or Single-Ended (unbalanced) inputs and outputs
INTRODUCTION AND FEATURES
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 4

5
01
23456
DETAILED DIAGRAM –FRONT PANEL
0INPUT/OUTPUT CARD MONITORING
Each channel has three LED indicators showing:
CLIP
Illuminated – Indicates clipping in the analog domain for each channel of the fitted Input or Output card.
The LED will light at +18.5dB.
SIGNAL
Illuminated – The Signal LED will light for each channel of a fitted Input or Output card when the signal
reaches or exceeds the signal threshold of –20dB.
PHANTOM
This feature is currently not supported by JBL Synthesis (lights to indicate +48V phantom power has
been activated for the relevant channel of a fitted input card).
1USB
This is currently for future use and is not supported.
2DATA ACTIVITY
The Data Activity LED will flash to indicate that the device is communicating with another control device, either
on the network or via the USB, serial or control ports.
3NETWORK LINK
The Network Link indicates the presence of Cat. 5 Ethernet cables. If no cables are connected, the LED is unlit;
the LED flashes if either a control or CobraNet®cable is fitted, and remains illuminated if both cables are connected.
The network link is used for configuring and calibrating the Synthesis System when using the DACS calibration,
and for system status when using the SDEC-4000.
4LCD (LIQUID CRYSTAL DISPLAY)
Indicates the name/ID and IP address of the unit.
5CONTRAST (HOLD)
Pressing and holding the Locate switch will cycle the LCD through its contrast range.
6LOCATE
Pressing the Locate switch on the front of the unit will illuminate the Locate switch on the rear and identify the
device within the DACS software.
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 5

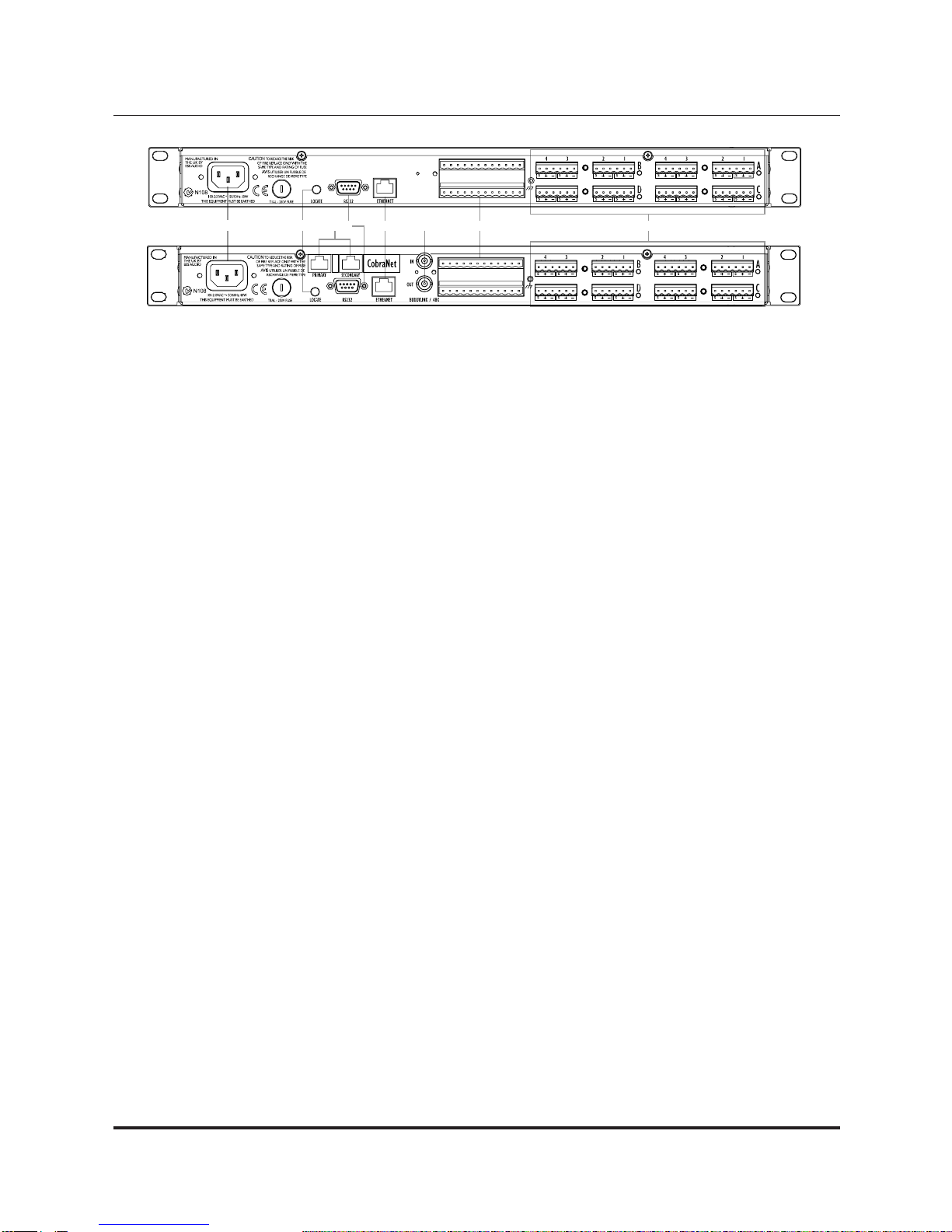

6
79
8ABCDE
SDEC-3000
SDEC-4000P and
SDEC-4000X
7AC MAINS
AC Mains input to the universal switched-mode power supply, operates over a wide range of AC input voltages
from 85V to 270V, 50/60Hz.
8LOCATE
Pressing the Locate switch on the rear of the unit will illuminate the Locate switch on the front and identify the
device within the DACS software.
9COBRANET CONNECTORS
Primary/Secondary: The SDEC-4000P and SDEC-4000X use CobraNet to send and receive audio data. During normal
operation, the Primary port only receives audio data from and transmits audio data to the network. Should the
Primary port or connection fail, the CobraNet module automatically switches to receive from and transmit with the
Secondary port. This is an optional connection.
Please Note: When using the SDEC-4000, you must connect the two units through the CobraNet connection, using
a Cat. 5e crossover cable.
ARS-232
Serial port for connection of external calibration and configuration equipment not used at this time.
BETHERNET
The main connection for the proprietary system control network, and for third-party Ethernet control. The SDEC-4000
must be connected to an Ethernet hub during the calibration process. The SDEC-3000 can be connected directly to
a PC using a crossover Cat. 5 Ethernet cable.
CBUDDYLINK/48K
This connection is not supported at this time.

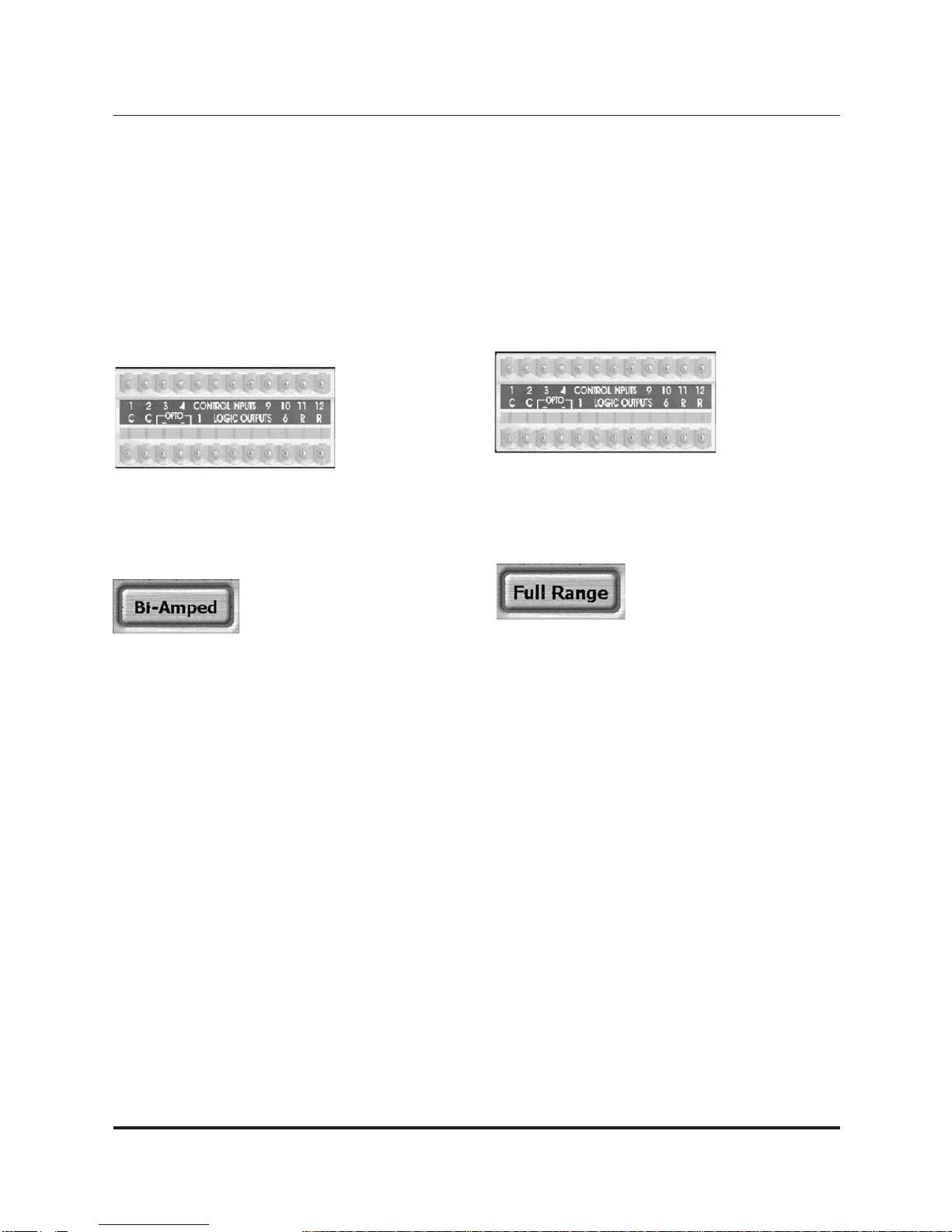

DCONTROL INPUTS
The SDEC-4000 can be configured for full-range or bi-amp operation by using these control inputs. The SDEC-3000
does not need or use this connection.
EI/O CARD POSITIONS A, B, C AND D
These connectors provide the balanced and unbalanced connections for the I/O card fitted in the four card
slots in a JBL Synthesis SDEC device. A green LED next to the slot assignment letter A, B, C or D indicates that an
Input card is fitted and an amber LED when an output card is fitted. The analog connections are balanced/unbal-
anced, on Phoenix/Combicon connectors. Depending on which model and configuration you have purchased will
determine which I/O card has been installed at the factory. Please make sure to order the correct wiring kit, either
S3000IC or S4000IC, with your system.
DETAILED DIAGRAM –REAR PANEL
SDEC-3000 has no CobraNet or Word Clock connections, but is otherwise identical to the SDEC-4000P and SDEC-4000X.
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 6

7
SDEC-3000
The SDEC-3000 supports up to 7.1 input with up to 7.1 output. The input and output assignments are as described
in the below chart. You must make the correct connections from the surround processor output to the amplifier input
for the system to work correctly. Please refer to the connection diagram for more information.
The correct Synthesis Interconnect kit includes all the necessary connections for using the SDEC in the Synthesis
system. Please be sure to order the S3000IC for use with SDEC-3000 and S4000IC for use with SDEC-4000. Retrofit kits
are also available. Please contact JBL Synthesis Technical Support for more information at [phone] (USA only).
CONNECTION NOTES
• Please follow the wiring diagram and the Input/Output Assignments chart for correct connections.
• You will need to use the Ethernet network port on the rear panel of the unit for the final calibration process.
You can use a crossover network cable if you plan to connect directly to the SDEC-3000 from a computer.
Alternatively, you can connect the SDEC-3000 through any standard Ethernet hub.
• When using the SDP-40 processor, make sure the subwoofer (in speaker setup) is set to Mono output and connect
to the Subwoofer Left output.
INPUT/OUTPUT ASSIGNMENTS
SSDDEECC--33000000OOuuttppuuttssttooAAmmpplliiffiieerrss
SS33000000IICC
NNuummbbeerrCChhaannnneellSSDDEECC--33000000
9 LEFT FRONT C1
10 RIGHT FRONT C2
11 CENTER FRONT C3
12 LEFT SIDE C4
13 RIGHT SIDE D1
14 LEFT REAR D2
15 RIGHT REAR D3
16 SUBWOOFER D4
SSuurrrroouunnddPPrroocceessssoorrttooSSDDEECC--33000000IInnppuuttss
SS33000000IICC
NNuummbbeerrCChhaannnneellSSDDEECC--33000000
1 LEFT FRONT A1
2 RIGHT FRONT A2
3 CENTER FRONT A3
4 LEFT SIDE A4
5 RIGHT SIDE B1
6 LEFT REAR B2
7 RIGHT REAR B3
8 SUBWOOFER B4
(Mono Sub Left)
Input/Output Assignments
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 7

8
SDEC-4000
The SDEC-4000 comprises two units. Both the SDEC-4000P and SDEC-4000X are required for the digital equalizer
to function properly in the Synthesis system. Please be sure to connect both units correctly according to the
Input/Output Assignments chart.
The correct Synthesis Interconnect kit includes all the necessary connections for using the SDEC in the Synthesis
System. Please be sure to order the S3000IC for use with SDEC-3000 and S4000IC for use with SDEC-4000. Retrofit kits
are also available. Please contact JBL Synthesis Technical Support for more information at [phone] (USA only).
The SDEC-4000 is capable of processing up to 12 inputs and up to 20 outputs. Depending on the type and number
of outputs will determine which connections you should use to connect the SDEC to the rest of your system. Please
refer to the connection diagram for more information.
CONNECTION NOTES
• The SDEC-4000 can process two outputs for the front left, center and right channels to output to an amplifier
for a Bi-amplified system. There are discrete outputs for a single high-frequency horn speaker (SAM1HF) and
low-frequency (SAM2LF) speakers. These outputs can only be used with speakers designed to be used with an
external crossover. Do not use the SDEC Digital Equalizer for any speakers other than the recommended
Synthesis speaker packages.
• There are two pairs of outputs for side speakers. If you are only using one pair of side speakers you may leave
the second pair of outputs with no connection. If you are using a second pair of side speakers, you should connect
the pair closest to the front speakers to output 1 and the pair closest to the rear speakers to output 2.
• There are up to four subwoofer outputs. You should use them in pairs so that you either have two or four
subwoofers. All Synthesis systems are designed for at least two subwoofers.
• You
must connect the SDEC-4000P and the SDEC-4000X using the CobraNet connection, using an Ethernet
network crossover cable, Cat. 5e minimum.
• The two units must be connected to an Ethernet network hub for the final calibration process. Both units need
to be connected to the same hub or router, and an open port needs to be accessible for the calibration computer.
• When using the SDP-40 processor, make sure the subwoofer (in speaker setup) is set to Mono output and connect
to the Subwoofer Left output.
INPUT/OUTPUT ASSIGNMENTS
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 8

SDEC-4000 WITH BI-AMPLIFIED FRONT SPEAKERS
This configuration requires the selection of bi-amplified operation, as noted on page 11.
SSDDEECC--44000000XXOOuuttppuuttssttooAAmmpplliiffiieerrss
SS44000000IICC
NNuummbbeerrCChhaannnneellSSDDEECC--44000000XXAAmmpplliiffiieerrIInnppuuttCChhaannnneell
9 LEFT FRONT-LOW A1 S5160 #1 CH1
10 LEFT FRONT-HI A2 S5160 #1 CH2
11 RIGHT FRONT-LOW A3 S5160 #1 CH3
12 RIGHT FRONT-HI A4 S5160 #1 CH4
13 CENTER FRONT-LOW B1 S5160 #2 CH1
14 CENTER FRONT-HI B2 S5160 #2 CH2
15 LEFT SIDE 1 B3 S5160 #2 CH3
16 LEFT SIDE 2 B4 optional –
N/C C1 – –
N/C C2 – –
17 RIGHT SIDE 1 C3 S5160 #2 CH4
18 RIGHT SIDE 2 C4 optional –
N/C D1 – –
N/C D2 – –
19 LEFT REAR D3 S5160 #1 CH5
20 RIGHT REAR D4 S5160 #2 CH5
SSuurrrroouunnddPPrroocceessssoorrttooSSDDEECC--44000000PPIInnppuuttss
SS44000000IICC
NNuummbbeerrCChhaannnneellSSDDEECC--44000000PP
1 FRONT LEFT A1
2 FRONT RIGHT A2
3 CENTER FRONT A3
4 LEFT SIDE A4
5 RIGHT SIDE B1
6 LEFT REAR B2
7 RIGHT REAR B3
8 SUBWOOFER B4
(Mono Sub L)
N/C C1
N/C C2
N/C C3
N/C C4
9
INPUT/OUTPUT ASSIGNMENTS
SSDDEECC--44000000PPOOuuttppuuttssttooAAmmpplliiffiieerrss
NNuummbbeerrCChhaannnneellSSDDEECC--44000000PP
21 SUBWOOFER 1 D1 S800 #1 CH1 (bridged)
22 SUBWOOFER 2 D2 S800 #2 CH1 (bridged)
23 SUBWOOFER 3 D3 S800 #3 (optional) CH1 (bridged)
24 SUBWOOFER 4 D4 S800 #4 (optional) CH1 (bridged)
Input/Output Assignments
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 9

SDEC-4000 WITH FULL-RANGE FRONT SPEAKERS
This is the default configuration.
SSDDEECC--44000000PPOOuuttppuuttssttooAAmmpplliiffiieerrss
SS44000000IICC
NNuummbbeerrCChhaannnneellSSDDEECC--44000000PP
21 SUBWOOFER 1 D1 S800 #4 CH1 (bridged)
22 SUBWOOFER 2 D2 S800 #5 CH1 (bridged)
23 SUBWOOFER 3 D3 S800 #6 CH1 (bridged)
24 SUBWOOFER 4 D4 S800 #7 CH1 (bridged)
SSDDEECC--44000000XXOOuuttppuuttssttooAAmmpplliiffiieerrss
SS44000000IICC
NNuummbbeerrCChhaannnneellSSDDEECC--44000000XXAAmmpplliiffiieerrIInnppuuttCChhaannnneell
9 LEFT FRONT A1 S800 #1 CH1 (bridged)
10 N/C A2 – –
11 RIGHT FRONT A3 S800 #2 CH1 (bridged)
12 N/C A4 – –
13 CENTER FRONT B1 S800 #3 CH1 (bridged)
14 N/C B2 – –
15 LEFT SIDE 1 B3 S7150 #1 CH1
16 LEFT SIDE 2 B4 S7150 #1 CH2
N/C C1 – –
N/C C2 – –
17 RIGHT SIDE 1 C3 S7150 #1 CH3
18 RIGHT SIDE 2 C4 S7150 #1 CH4
N/C D1 – –
N/C D2 – –
19 LEFT REAR D3 S7150 #1 CH5
20 RIGHT REAR D4 S7150 #1 CH6
SSuurrrroouunnddPPrroocceessssoorrttooSSDDEECC--44000000PPIInnppuuttss
SS44000000IICC
NNuummbbeerrCChhaannnneellSSDDEECC--44000000PP
1 FRONT LEFT A1
2 FRONT RIGHT A2
3 CENTER FRONT A3
4 LEFT SIDE A4
5 RIGHT SIDE B1
6 LEFT REAR B2
7 RIGHT REAR B3
8 SUBWOOFER B4
(Mono Sub L)
N/C C1
N/C C2
N/C C3
N/C C4
INPUT/OUTPUT ASSIGNMENTS
10
Input/Output Assignments
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 10

11
SELECTING FULL-RANGE CONFIGURATION
There Are Two Ways to Select Full-Range LCR Operation.
Please Note: Only Method One can be done on the control ports
(without a computer). Method Two requires a computer running
the appropriate configuration software. Please contact JBL
Synthesis Technical Support for more information.
METHOD ONE:
With the unit powered up and running, connect Control Input 1
to “C” (common) on the back of the unit for full-range.
METHOD TWO:
While online and in operate mode from within London
Architect, select the “Main” page and then click on the
full-range button.
SELECTING BI-AMPED CONFIGURATION
There Are Two Ways to Select Bi-Amped LCR Operation.
Please Note: Only Method One can be done on the control ports
(without a computer). Method Two requires a computer running
the appropriate configuration software. Please contact JBL
Synthesis Technical Support for more information.
METHOD ONE:
With the unit powered up and running, connect Control
Input 2 to “C” for bi-amped.
METHOD TWO:
While online and in operate mode from within London
Architect™
, select the “Main” page and then click on the
bi-amped button.
INPUT/OUTPUT ASSIGNMENTS
NOTE: The full-range configuration is the default and will
not require selection during normal use.
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 11

WARNING; WARNING;
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION:
VOIR LE CAHIER D'
INSTRUCTION
WARNING:
HAZARDOUS ENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEERED AND MANUFACTURED
IN THE UNITED STATES OF AMERICA
S800 POWER AMPLIFIER
JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVI S :
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;
WARNING;
To reduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S7150
WARNING:
serial number
ATTENTION:
VOIR LE CAHIER D'
INSTRUCTION
15A
120V
50/60Hz
1800W
Ch. 1 Output
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
SPKR-1 SPKR-2
:SIVA R
IR
VUO
SAP
EN
E
UQIR
T
CE
L
E
C
OHC
E
D
E
U
QSI
R
N
OITU
AC
KC
OHSCIRTCELEF
O
K
SI
R
NEPOT
ONO
D
~
DESIGNED, ENGINEERED AND MANUFACTURED
IN THE UNITED STATES OF AMERICA
S5160 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
+
-Ch. 2 Output
+
-Ch. 3 Output
+
-Ch. 4 Output
+
-Ch. 5 Output
+
-Ch. 6 Output
+
-Ch. 7 Output
+
-
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture
HAZARDOUS ENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PERSONNEL
SDP-5
Ch. 1
Input
Ch. 2
Input
Ch. 3
Input
Ch. 4
Input
Ch. 5
Input
Ch. 6
Input
Ch. 7
Input
SDEC-3000
S/PDIF INPUTS
IR IN
TRIGGER
OUTPUTS
OUT
S/PDIF
S/N
RS-232
2
1
VIDEO
S-VIDEOAUDI O
INPUTS
(L)
(R)
(C)
(SUB)
(LS)
(RS)
L
R
(L)
(R)
(C)
(SUB)
(LS)
(RS)
YPR PB
YPR PB
YPR PB
INPUT 1
INPUT 3
INPUT 2
YPR PB
OUTPUT
12
34
1212
34
12345
123 45678 CENTER
FRONT SIDE REAR
L
R
L
R
SUBWOOFER
MAIN
VIDEO
ZONE 2
VIDEO
AUDI O
1
SDP-5 Digital Surround Processor/Controller
JBL, Inc. Northridge, CA
Assembled in USA
AC 100-240V ~ 50-60 HZ, 60W
OUTPUTS 2
TUV
US
C
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC
ELECTRIQUE
NE PASOUVRIR
CAUTION
To Ethernet hub
(for system calibration)
12
CONNECTION TO THE REST OF THE JBL SYNTHESIS SYSTEM
SDEC-3000
NOTE: Although the
SDP-5 is shown here,
connections for the
SDP-40 are similar.
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 12

13
CONNECTION TO THE REST OF THE JBL SYNTHESIS SYSTEM
SDEC-4000 With Bi-Amplified Speakers
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNING: HAZARDOUS ENERGY,MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEERED AND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVI S: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;WARNING; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNI NG: HAZARDOUS ENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEERED AND MANUFACTURED
IN THE UNITED STATES OF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVI S: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNI NG;WARNING; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S5160
WARNING:
serial number
ATTENTION:
VOIR LE CAHIER D'
INSTRUCTION
15A
120V
50/60Hz
1800W
Ch. 1 Output Ch. 2 Output Ch. 3 Output Ch. 4 Output Ch. 5 Output
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
SPKR-1 SPKR-2
Ch. 1
Input
Ch. 2
Input
Ch. 3
Input
Ch. 4
Input
Ch. 5
Input
:SIVA R
I
R
V
UO
SA
P
EN
E
UQI
RTCE
LE
COHC
ED
EU
Q
S
IR
NO
ITUAC
K
C
OH
SCIR
TCEL
EF
O
KSIR
NEPOTONOD
~
DESIGNED, ENGINEERED AND MANUFACTURED
IN THE UNITED STATES OF AMERICA
S5160 POWER AMPLIFIER
JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
+
-+
-+
-
+
-
+
-
WARNING: Toreduce the risk of fire or electric shock, do not expose this appliance to rain or moisture
HAZARDOUS ENERGY,MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PERSONNEL
S5160
WARNING:
serial number
ATTENTION:
VOIR LE CAHIER D'
INSTRUCTION
15A
120V
50/60Hz
1800W
Ch. 1 Output Ch. 2 Output Ch. 3 Output Ch. 4 Output Ch. 5 Output
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
SPKR-1 SPKR-2
Ch. 1
Input
Ch. 2
Input
Ch. 3
Input
Ch. 4
Input
Ch. 5
Input
:SIVA R
I
R
V
UO
SA
P
EN
E
UQI
RTCE
LE
COHC
ED
EU
Q
S
IR
NO
ITUAC
K
C
OH
SCIR
TCEL
EF
O
KSIR
NEPOTONOD
~
DESIGNED, ENGINEERED AND MANUFACTURED
IN THE UNITED STATES OF AMERICA
S5160 POWER AMPLIFIER
JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
+
-+
-+
-
+
-
+
-
WARNING: Toreduce the risk of fire or electric shock, do not expose this appliance to rain or moisture
HAZARDOUS ENERGY,MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PERSONNEL
SDP-5
SDEC-4000P
SDEC-4000X
S/PDIF INPUTS
IR IN
TRIGGER
OUTPUTS
OUT
S/PDIF
S/N
RS-232
2
1
VIDEO
S-VIDEOAUDIO
INPUTS
(L)
(R)
(C)
(SUB)
(LS)
(RS)
L
R
(L)
(R)
(C)
(SUB)
(LS)
(RS)
YPR PB
YPR PB
YPR PB
INPUT 1
INPUT 3
INPUT 2
YPR PB
OUTPUT
12
34
1212
34
12345
12345 678 CENTER
FRONT SIDE REAR
L
R
L
R
SUBWOOFER
MAIN
VIDEO
ZONE 2
VIDEO
AUDIO
1
SDP-5 Digital Surround Processor/Controller
JBL, Inc. Northridge, CA
Assembled in USA
AC 100-240V ~ 50-60 HZ, 60W
OUTPUTS 2
TUV
US
C
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC
ELECTRIQUE
NE PASOUVRIR
CAUTION
To Ethernet hub
(for system calibration)
To Ethernet hub
(for system calibration)
NOTE: Although the
SDP-5 is shown here,
connections for the
SDP-40 are similar.
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 13

14
CONNECTION TO THE REST OF THE JBL SYNTHESIS SYSTEM
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNING: HAZARDOUSENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEEREDAND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVIS: RISQUEDE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;WARNING ; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S7150
WARNING:
serial number
ATTENTION:
VOIRLE CAHIER D'
INSTRUCTION
15A
120V
50/60Hz
1800W
Ch. 1 Output
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
SPKR-1 SPKR-2
:SIVA RIRVUOSAPENEUQIRTCELECOHCEDEUQSIR
N
OITU
AC
KCOHSCIRTCELEFOKSIR
NEPOTONOD
~
DESIGNED, ENGINEEREDAND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S5160 POWER AMPLIFIER JBLSYNTHESIS
NORTHRIDGE, CA TRIGGERS
+
-Ch. 2 Output
+
-Ch. 3 Output
+
-Ch. 4 Output
+
-Ch. 5 Output
+
-Ch. 6 Output
+
-Ch. 7 Output
+
-
WARNING: Toreduce the risk of fire or electric shock, do not expose this appliance to rain or moisture
HAZARDOUS ENERGY,MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
NO USER SERVICEABLE PARTSINSIDE. REFER
SERVICINGTO QUALIFIED PERSONNEL
Ch. 1
Input
Ch. 2
Input
Ch. 3
Input
Ch. 4
Input
Ch. 5
Input
Ch. 6
Input
Ch. 7
Input
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNING: HAZARDOUSENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEEREDAND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVIS: RISQUEDE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;WARNING; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNING: HAZARDOUSENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEEREDAND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVIS: RISQUEDE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;WARNING ; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNING: HAZARDOUSENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEEREDAND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVIS: RISQUEDE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;WARNING; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNING: HAZARDOUSENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEEREDAND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVIS: RISQUEDE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;WARNING ; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNING: HAZARDOUSENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEEREDAND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVIS: RISQUEDE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;WARNING; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
S800
10A
120V
50/60Hz
1200W
ON
OFF
MANUAL
ON
AUTO
ON
IN
OUT
Ch. 2 Output
Ch. 1
BRIDGED
Input
Ch. 2
Input
ATTENTION: VOIRLE CAHIER D'
INSTRUCTION
WARNING: HAZARDOUSENERGY, MAKE PROPER SPEAKER CONNECTIONS; SEE OWNERS MANUAL BEFORE USING.
serial number
STEREOMONO
BRIDGED
Ch. 1 Output
BRIDGED
+-
+- +
-
DESIGNED, ENGINEEREDAND MANUFACTURED
IN THE UNITED STATESOF AMERICA
S800 POWER AMPLIFIER JBL SYNTHESIS
NORTHRIDGE, CA TRIGGERS
AVIS: RISQUEDE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION
RISKOF ELECTRIC SHOCK
DONOT OPEN
~
No user serviceable parts inside. Refer
servicing to qualified personnel.
WARNING;WARNING; Toreduce the risk of fire or
electric shock, do not expose
this appliance to rain or moisture
SDEC-4000P
SDEC-4000X
SDP-40
MICROPHONE INPUTS
1 2
21
12
1 (OSD) 2
Fix VarFix Var
RS 232
IR IN
TRIGGER OUTPUTS
3 4
RECORD OUTPUTS
MAIN OUTPUTS
VIDEOVIDEO
CENTER SUBWOOFER
LFE MAIN AUDIO OUTPUTS
SIDE REAR AUX FRONT ZONE 2
ZONE 2
AUDIO
AUDIO
S/PDIF
MAIN
AUDIO
OUTPUTS
AUDIO VIDEOS-VIDEO
AES/EBU
S/PDIF
FRONT LFECENTER SUBWOOFER SIDE AUX
REAR
L R L R L R L R L R L R
L
R
L
R
L
R
L
R
L
R
L
R
(C)
(SUB)
(LS)
(RS)
(L)
(R)
L
R
1 2 3 4 5
1 2 3
4 5 6
1 2 3
4 5 6
1 2 3 4 5 6 7 8
INPUTS COMPONENT VIDEO
INPUT 1 INPUT 2
INPUT 4
INPUT 3
OUTPUT
Y PR PB Y PR PB
Y PR PB Y PR PB
Y PR PB
To Ethernet hub
(for system calibration)
To Ethernet hub
(for system calibration)
SDEC-4000 With Full-Range Front Speakers
NOTE: Although the
SDP-40 is shown here,
connections for the
SDP-5 are similar.
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 14

15
INPUTS UP TO 12 ANALOG; ELECTRONICALLY BALANCED ON PHOENIX/COMBICON REMOVABLE SCREW CONNECTORS
MIC/LINE INPUTS: NOMINAL GAIN 0DB, ELECTRONICALLY SWITCHABLE UP TO +48DB, IN +6DB STEPS,
INPUT IMPEDANCE 3.5K OHMS
MAXIMUM INPUT LEVEL: +20DBU WITH 0DB INPUT GAIN (+8DBU WITH 12DB GAIN)
CMRR: >75DB AT 1KHZ
EQUIV. INPUT NOISE (EIN): <–128DBU TYPICAL WITH 150 OHMS SOURCE
OUTPUTS UP TO 20 ANALOG; ELECTRONICALLY BALANCED ON PHOENIX/COMBICON REMOVABLE SCREW CONNECTORS
MAXIMUM OUTPUT LEVEL: +19DBU
FREQUENCY RESPONSE: 20HZTO20KHZ(+0.5/–1DB)
THD: <0.01% (20HZTO20KHZ, +10DBU OUTPUT)
DYNAMIC RANGE: 108DB TYPICAL (22HZTO22KHZ UNWEIGHTED)
CROSSTALK: <–75DB
CONTROL NETWORK
COBRANET: RJ45 CONNECTOR (SDEC-4000P, SDEC-4000X)
MAXIMUM CABLE LENGTH: 100M/300 FT. BETWEEN DEVICE AND ETHERNET SWITCH
ETHERNET: 2 XRJ45 CONNECTORS
MAXIMUM CABLE LENGTH: 100M/300 FT. BETWEEN DEVICE AND ETHERNET SWITCH
PANEL LED INDICATORS: SIGNAL PRESENT (PER INPUT), CLIP (PER INPUT), SYNC/48V (PER INPUT),
LCD, CONDUCTOR ACTIVE, NET LINK ACTIVE, DATA ACTIVITY
MAINS VOLTAGE: 85-270V AC, 50/60HZ
POWER CONSUMPTION: <35VA
GENERAL SDEC-3000 SDEC-4000
DIMENSIONS (H XW XD): 1-3/4" X19" X9-1/4" (44MM X 483MM X 235MM) 3-1/2" X19" X9-1/4" (89MM X 483MMX235MM)
WEIGHT: 6.5 LB (3KG) 13 LB (6KG)
SPECIFICATIONS
All features and specifications are subject to change without notice.
JBL, JBL Synthesis and Synthesis are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.
London Architect is a trademark of Harman International Industries, Incorporated.
THX Ultra2 is a trademark of THXLtd. All rights reserved.
CobraNet is a registered trademark of Peak Audio, a division of Cirrus Logic, Inc.
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 15

Harman Consumer Group, Inc.
250 Crossways Park Drive
Woodbury, NY 11797
8500 Balboa Boulevard
Northridge, CA 91329
818.830.8757
www.jblsynthesis.com
Part No. SDEC3000/4000 OM 10/06
Declaration of Conformity
We, Harman Consumer Group International
2, route de Tours
72500 Château du Loir
France
declare in own responsibility that the products
described in this owner’s manual are in compliance
with technical standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Luc Guillaume
Harman Consumer Group International
Château du Loir, France 10/06
SDEC3000.4000.om.qxd 11/8/06 4:06 PM Page 16
