JBL Balboa SUB10 User manual

BALBOA SUB10 (120V)
JBL BALBOA™
OWNER’S GUIDE
®
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 2

2
READ FIRST! Important Safety Precautions!
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding-type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety .
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles and the point
where they exit from the apparatus.
11.
Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specified by the
manufacturer or sold with the
apparatus. When a cart is used,
use caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. Do not use attachments not recommended
by the product manufacturer, as they may
cause hazards.
16. This product should be operated only
from the type of power source indicated on
the marking label. If you are not sure of the
type of power supply to your home, consult
your product dealer or local power company.
For products intended to operate from battery
power or other sources, refer to the
operating instructions.
17. If an outside antenna or cable system
is connected to the product, be sure the
antenna or cable system is grounded so as
to provide some protection against voltage
surges and built-up static charges. Article
810 of the National Electrical Code, ANSI/
NFPA 70, provides information with regard to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna-discharge
unit, connection to grounding electrodes, and
requirements for the grounding electrode.
See Figure A.
18. An outside antenna system should not be
located in the vicinity of overhead power
lines or other electric light or power circuits,
or where it can fall into such power lines or
circuits. When installing an outside antenna
system, extreme care should be taken to keep
from touching such power lines or circuits, as
contact with them might be fatal.
19. Do not overload wall outlets, extension
cords, or integral convenience receptacles,
as this can result in a risk of fire or electric
shock.
20. Never push objects of any kind into this
product through openings, as they may touch
dangerous voltage points or short-out parts,
which could result in a fire or electric shock.
Never spill liquid of any kind on the product.
21. The apparatus shall not be exposed to
dripping or splashing, and no objects filled
with liquids, such as vases, shall be placed
on the apparatus.
22. Do not attempt to service this product
yourself, as opening or removing covers may
expose you to dangerous voltage or other
hazards. Refer all servicing to qualified
service personnel.
23. When replacement parts are required,
be sure the service technician has used
replacement parts specified by the
manufacturer or that have the same
characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
24. Upon completion of any service or repairs
to this product, ask the service technician to
perform safety checks to determine that the
product is in proper operating condition.
25. The product should be mounted to a
wall or ceiling only as recommended by
the manufacturer.

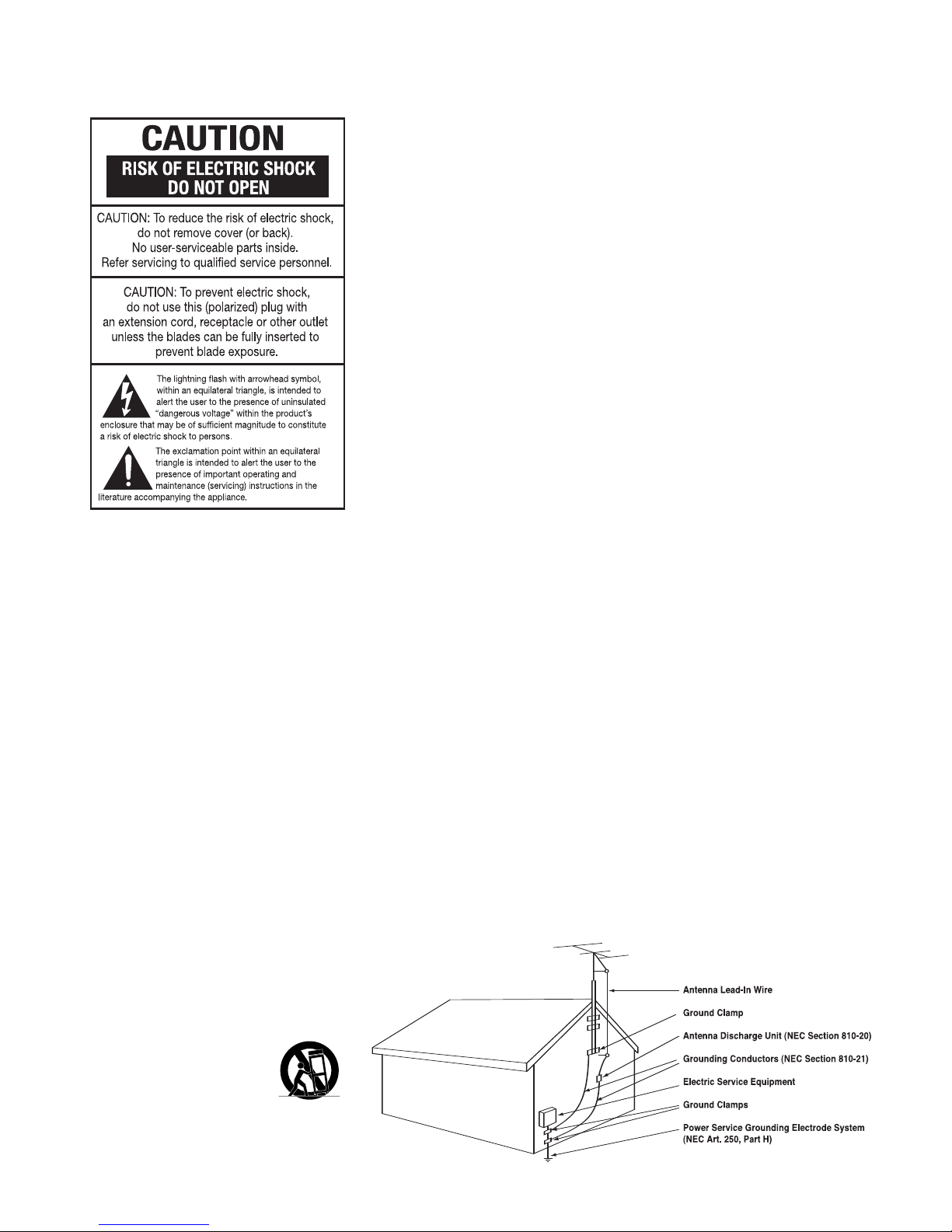

Figure A.
Example of Antenna Grounding as per National
Electrical Code ANSI/NFPA 70
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 3

INTRODUCTION
JBL Balboa™SUB10 Powered
Subwoofer
For more than 60 years, JBL®has been providing audio equipment
to concert halls, recording studios and movie theaters around the
world, and has become the hands-down choice of leading recording
artists and sound engineers.
With the JBL Balboa Series, innovative technologies such as
titanium-laminate-dome tweeters, EOS waveguides and high-
performance transducers are available to you. Enjoy!
Unpacking the Subwoofer
If you suspect damage from transit, report it immediately to your
dealer. Keep the shipping carton and packing materials for future use.
PLACEMENT
Since the installation of a subwoofer can be somewhat more
complicated than installing full-range speakers, it is essential
that you read this section very carefully prior to connecting the
subwoofer to your system. Should you have questions relating to
your installation, it is advisable to contact either your dealer or
distributor, or visit www.jbl.com, for advice.
The performance of the subwoofer is directly related to its
placement in the listening room and how you align the subwoofer
with its satellite speakers. Setting the volume of the subwoofer
in relation to the left and right speakers is also of critical importance
because it is essential that the subwoofer integrate smoothly with the
entire system. Setting the subwoofer’s volume level too high will
result in an overpowering, boomy bass. Settingthe volume level too
low will negate the benefits of the subwoofer.
Here are several additional facts on installation that may prove
useful. It is generally believed by most audio authorities that low
frequencies (below 125Hz) are nondirectional and, therefore,
placement of a subwoofer within any listening room is not critical.
While in theory it is true that the larger wavelengths of extremely
low frequencies are basically nondirectional, the fact is that,
when installing a subwoofer within the limited confines of a room,
reflections, standing waves and absorptions generated within the
room will strongly influence the performance of any subwoofer
system. As a result, specific location of the subwoofer becomes
important, and we strongly recommend that you experiment with
placement before choosing a final location.
Placement will depend upon your room and the amount and quality
of bass required (for example, whether or not your room permits
placement of the subwoofer near either satellite). Be sure to leave a
minimum of six inches between the wall and the port on the subwoofer.
3
Figure 1. This example shows the subwoofer positioned in the
corner to maximize bass output.
SUB
RIGHT-
CHANNEL
SPEAKER
PRIMARY
LISTENING
AREA
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 4

4

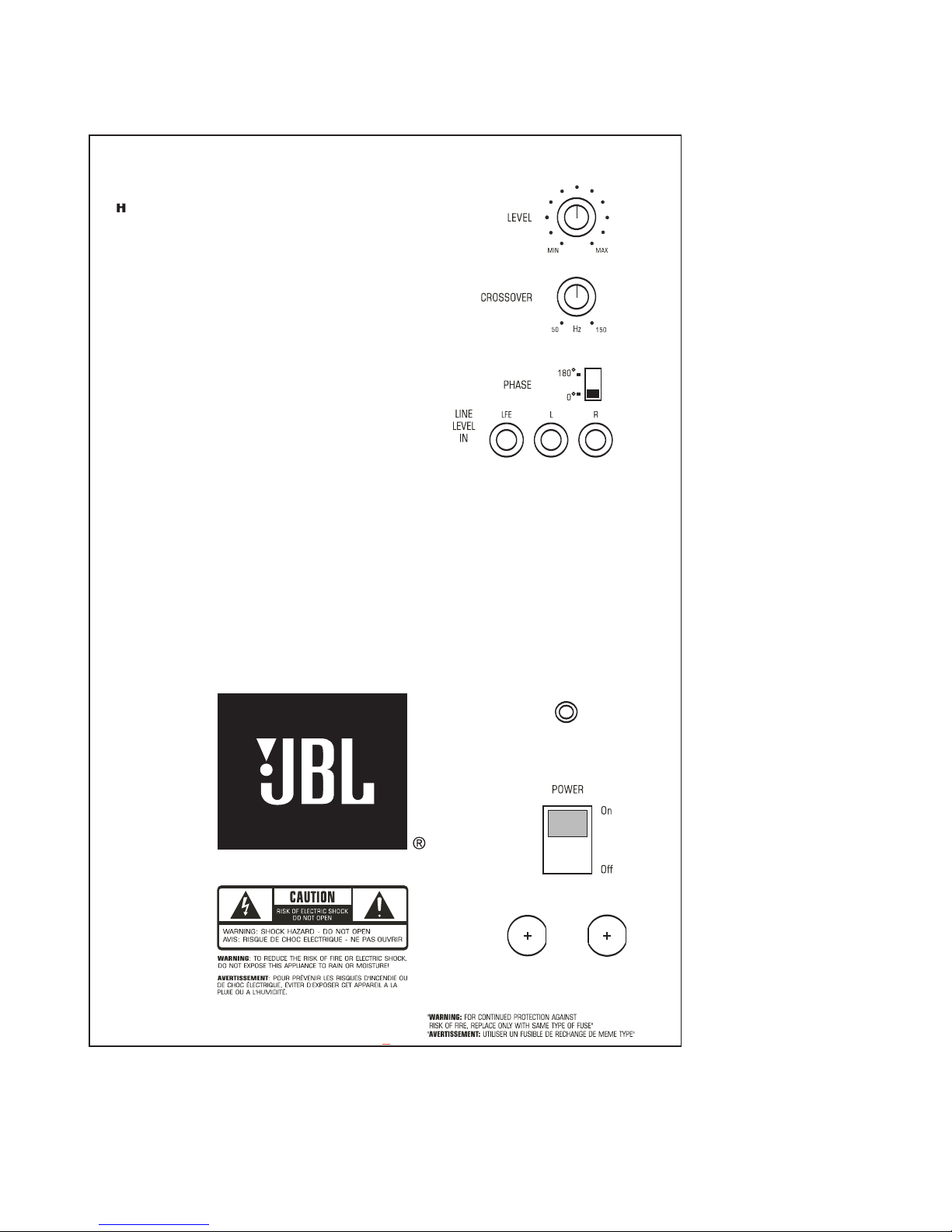

CONTROLS AND CONNECTIONS
Rear Panel
¶
¡
™
£
∞
¢
FUSE
T 2.5A L 250V
TYPE
AC
~
120V
60HZ
200 Watts
A Harman International
®
Company
§
0Subwoofer-Level Control
1Crossover Adjustment
2Phase Switch
3LFE Input
4Line-Level Inputs
5Power Indicator LED
6Power Switch
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 5

5

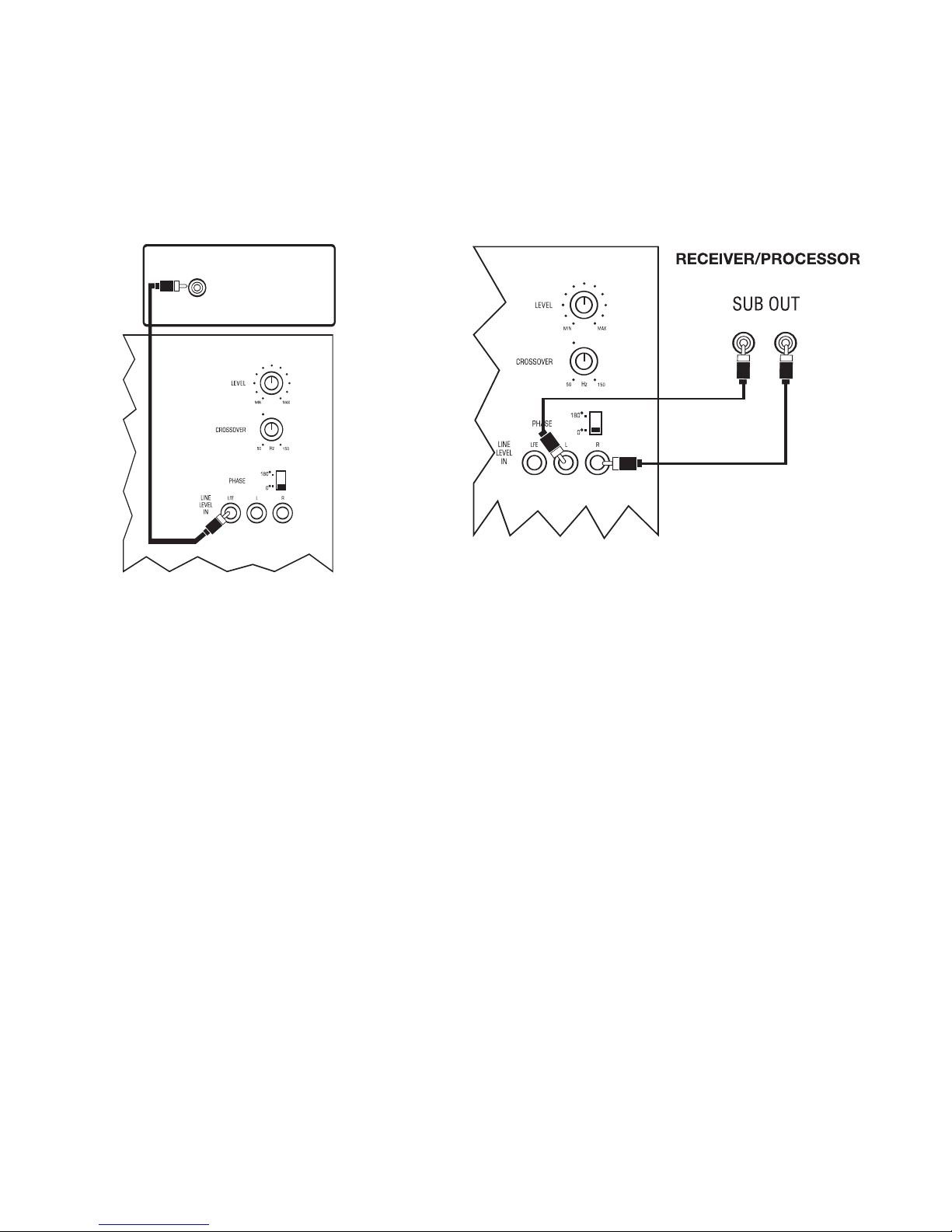

SUBWOOFER CONNECTIONS
Choose the Subwoofer Connection
That Is Most Suitable for Your
Receiver/Processor
If you have a Dolby®Digital or DTS®receiver/processor with a
low-frequency-effects (LFE) or subwoofer output: If your receiver/processor does not contain a Dolby Digital or DTS
processor but has a subwoofer output:
SUBWOOFER OR
LFE OUTPUT
L R
NOTE: Some receivers have one subwoofer output.
In that case, it is recommended that you use a Y connector
(not included) to maximize performance.
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 6

6
Power On
Plug your subwoofer’s AC cord into a wall outlet. Do not use the
outlets on the back of the receiver.
Initially set the Subwoofer-Level Control ¡tothe “min” position.
Turn on your sub by pressing the Power Switch ¶on the rear panel.
Turn on your entire audio system and start a CD or movie soundtrack
at a moderate level.
Auto On/Standby
With the Power Switch ¶in the ON position, the LED §on the rear
panel will remain lit in red or green to indicate the On/Standby mode
of the subwoofer.
RED = STANDBY (no signal detected, amp off)
GREEN = ON (signal detected, amp on)
The subwoofer will automatically enter the Standby mode after
approximately 10 minutes when no signal is detected from your
system. The subwoofer will then power ON instantly when a signal
is detected. During periods of normal use, the Power Switch ¶
can be left on. You may turn off the Power Switch ¶for extended
periods of nonoperation, e.g., when you are away on vacation.
Adjust Level
Turn your Subwoofer-Level Control ¡up to the “5” position
(halfway). If no sound emanates from the subwoofer,check the
AC-line cord and input cables. Are the connectors on the cables
making proper contact? Is the AC plug connected to a “live”
receptacle? Has the Power Switch ¶been pressed to the “On”
position? Once you have confirmed that the subwoofer is active,
proceed by playing a CD, record or cassette. Use a selection that
has ample bass information.
Set the overall volume control of the preamplifier or stereo to a
comfortable level. Adjust the Subwoofer-Level Control ¡until
you obtain a pleasing blend of bass. Bass response should not
overpower the room but rather be adjusted so there is a harmonious
blend across the entire musical range. Many users have a tendency
to set the subwoofer volume too loud, adhering to the belief that a
subwoofer is there to produce lots of bass. This is not entirely true.
Asubwoofer is there to enhance bass, extending the response of
the entire system so the bass can be felt as well as heard. However,
overall balance must be maintained or the music will not sound
natural. An experienced listener will set the volume of the subwoofer
so its impact on bass response is always there but never obtrusive.
Phase Control
The Phase Switch £determines whether the subwoofer speaker’s
piston-like action moves in and out with the main speakers (0˚), or
opposite the main speakers (180˚). Proper phase adjustment depends
on several variables such as room size, subwoofer placement and
listener position. Adjust the phase switch to maximize bass output
atthe listening position.
Crossover Adjustments
The Crossover Adjustment Control ™determines the highest
frequency at which the subwoofer reproduces sounds. If your main
speakers can comfortably reproduce some low-frequency sounds,
set this control to a lower frequency setting, between 50Hz and
100Hz. This will concentrate the subwoofer’sefforts on the ultradeep
bass sounds required by today’s films and music. If you are using
smaller bookshelf speakers that do not extend to the lower bass
frequencies, set the Crossover Adjustment Control to a higher
setting, between 120Hz and 150Hz.
N
NO OT TE E: This control will have no effect if the LFE Input ¢is used. If
you have a Dolby Digital or DTS processor/receiver, the Low-Pass
Frequency is set by the processor/receiver. Consult your owner’s
manual to learn how to view or change this setting.
OPERATION
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 7

The enclosure may be cleaned using a soft cloth to remove
fingerprints or to wipe off dust.
The grille may be gently vacuumed. Stains may be removed with an
aerosol cleaner, following its instructions. Do not use any solvents
on the grille.
All wiring connections should be inspected and cleaned or remade
periodically. The frequency of maintenance depends on the metals
involved in the connections, atmospheric conditions, and other
factors, but once per year is the minimum.
If a problem occurs, make sure that all connections are properly
made and clean. If a problem exists in one loudspeaker, reverse the
connection wires to the left and right system. If the problem remains
in the same speaker, then the fault is with the loud-speaker. If the
problem appears in the opposite speaker, the cause is in another
component or cable. In the event that your subwoofer ever needs
service, contact your local JBL dealer or distributor or www.jbl.com
for a service center near you.
MAINTENANCE AND SERVICE
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 8

All features and specifications are subject to change without notice.
All dimensions include grilles and feet.
JBL and Harman International are registered trademarks, and Balboa Series and Pro Sound
Comes Home are trademarks, of Harman International Industries, Incorporated.
Dolby is a registered trademark of Dolby Laboratories.
DTS is a registered trademark of DTS, Inc.
*The Peak Dynamic Power is measured by recording the highest center-to-peak voltage measured
across the output of a resistive load equal to minimum impedance of the transducer,using a 50Hz
sine wave burst, 3 cycles on, 17 cycles off.
©2006 Harman International Industries, Incorporated. All rights reserved.
Part No.
406-000-05480-E
PRO SOUND COMES HOME™
Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA
8500 Balboa Boulevard, Northridge, CA 91329 USA
2, route de Tours, 72500 Château du Loir,France
www.jbl.com 516.255.4JBL (4525) (USA only)
Balboa SUB10
Frequency Response: 30Hz – 150Hz (–6dB)
Amplifier Output: 100 watts RMS
(20Hz – 150Hz,
with no more than 0.1% THD)
Peak Dynamic Power*: 225 watts
Crossover Frequency: 50Hz – 150Hz,
24dB/octave, continuously variable
Driver: 10" (250mm)
Dimensions (H x W x D): 20-1/4" x 14-1/16" x 15-13/16"
(514mm x 357mm x 402mm)
Weight: 35lb (16kg)
SPECIFICATIONS
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 1
