JCM UBA Pro RQ Series Quick setup guide

© 2019, JAPAN CASH MACHINE CO., LTD.
D
= A-66 Image1
Website: http://www.jcmglobal.com
Issue #4115-IGE-01-00
UBA Pro RT/RQ™ Series
Banknote Recycler
Integration Guide
Revision A, October 23, 2019
P/N 960-000209R_Rev. A

This product document (hereinafter referred to as “Manual”) is fully covered by legal Copyrights owned by the JAPAN
CASH MACHINE CO., LTD. (hereinafter referred to as “JCM”) under Japanese laws and other Foreign Countries.
This Manual contains many copyrighted, patented or properly registered equipment items manufactured by JCM, that
are prohibited and illegal to duplicate, replicate, copy in whole, or in part, without the express authorization by JCM with
the following exceptions:
1. When an authorized JCM agency or distributor duplicates the Manual for sales promotion and/or service
maintenance of the product, or technical service personnel education as required; and
2. When an end user duplicates the Manual to maintain operation of the product or operate the product in general.
JCM retains all rights to amend, alter, change or delete any portion of this Manual in whole, or in part, or add items
thereto without notice regarding the product or its related products.
JCM is a registered trademark of JAPAN CASH MACHINE CO., LTD. All other product names mentioned herein may be
registered trademarks or trademarks of their respective companies. Furthermore, ™, ®and © are not always mentioned
in each case throughout this publication.
Copyright © 2019 By JAPAN CASH MACHINE CO., LTD.
UBA Pro RT/RQ™ Series Banknote Recycler Integration Guide
International Compliance
• RoHS Directives
• UL & c-UL Marks
• CE Mark
• CB Scheme
• FCC & ISED Regulations
NOTE: All the compliance confirmations above are currently being examined for approval.
Electrical Current Symbol
Direct Current: indicates Direct Current values on product labels.
REVISION HISTORY
Rev №.Date Reason for Update Comment
A Oct. 23, 2019 Initial Document
See Below.
See Below.
See Below.
See Below.
See Below.
Issue #4115-IGE-01-00

UBA Pro RT/RQ™ Series
Banknote Recycler
Table of Contents
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
i
Page
1 GENERAL INFORMATION ........................................................................................1
RT and RQ Units.................................................................................................................1
Model Descriptions ............................................................................................................2
Type Descriptions ..............................................................................................................2
Software Descriptions .......................................................................................................2
Precautions.........................................................................................................................2
User Cautions ......................................................................................................................3
Installation Cautions........................................................................................................................ 3
Mounting, Dismounting & Transportation........................................................................................ 3
Operation Cautions ......................................................................................................................... 3
Preventive Maintenance.......................................................................................................3
Disposal Considerations ......................................................................................................4
Banknote Fitness Requirements ..........................................................................................4
Primary Features................................................................................................................4
Transport UnitComponent Names....................................................................................5
2 SPECIFICATIONS ......................................................................................................7
Technical Specifications ......................................................................................................7
Environmental Specifications ......................................................................................................... 8
Electrical Specifications .......................................................................................................8
Structural Specifications.......................................................................................................8
3 INSTALLATION ..........................................................................................................9
Installation Procedure .......................................................................................................9
Grounding ...........................................................................................................................9
Side Installation (For Standard and Stacking Up (SU) Installation types)............................9
Bottom Installation (For Standard Installation Type Only)..................................................10
Bezel Installation ................................................................................................................10
External Harness Installation .............................................................................................10
Cash Box Lock Installation.................................................................................................10
Unlock Procedure...............................................................................................................11
DIP Switch Configurations ..............................................................................................11
Denomination Acceptance Settings (DIP Switches at the front) ........................................11
SW1 and SW2 Configurations ...........................................................................................11
Interface and Recycler Settings (Sub Board 2)..................................................................12
LED Flashing Patterns.....................................................................................................13
4 CONNECTOR PIN ASSIGNMENTS.........................................................................14
USB Interface Connector Pin Assignments (UBA Pro Side)..............................................14
Photo Coupler Interface Connector Pin Assignments (UBA Pro Side) ..............................15
RS232C Interface Connector Pin Assignments (UBA Pro Side)........................................16
cc-Talk Interface Connector Pin Assignments (UBA Pro Side)..........................................17
Power Supply Connector Pin Assignments (RT/RQ Side).................................................18
Interface Connector Pin Assignments (RT/RQ Side) .........................................................18
Bezel Connector Pin Assignments (UBA Pro Side) ...........................................................18
5 PREVENTIVE MAINTENANCE ................................................................................19

Table of Contents
Page
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
ii
UBA Pro RT/RQ™ Series Banknote Recycler
Refilling Banknotes..........................................................................................................19
Collecting Banknotes ......................................................................................................19
Collecting Banknotes into the Cash Box by the Button......................................................19
Collecting Banknotes into the Cash Box by Command......................................................19
Dispense Settings ..............................................................................................................19
Clearing a Banknote Jam ................................................................................................20
Find where a Banknote Jam occurred ...............................................................................20
Jammed in UBA Pro Unit ...................................................................................................20
Jammed in RT Transport Banknote ...................................................................................20
Jammed in RQ Transport...................................................................................................21
Jammed in Recycler Drum.................................................................................................22
Jammed in Cash Box .........................................................................................................22
Cleaning Procedure .........................................................................................................22
Sensor Cleaning Procedure ...............................................................................................22
Sensor, Roller and Belt Cleaning Locations.......................................................................24
6 STANDARD INTERFACE CIRCUIT SCHEMATICS................................................ 27
Bezel Connector Interface Circuit Schematics...................................................................27
RT/RQ Interface Circuit Schematics (Sub Board 2)...........................................................28
7 OPERATIONAL FLOWCHART ............................................................................... 29
RT/RQ Main Flow Process.................................................................................................29
RT/RQ Accepting Banknotes Flow Process.......................................................................30
RT/RQ Transporting to Recycler Flow Process .................................................................31
RT/RQ Transporting to Cash Box Flow Process................................................................32
RT/RQ Dispensing Flow Process (Normal)........................................................................33
RT/RQ Dispensing Flow Process (Abnormal)....................................................................34
RT/RQ Collecting in Cash Box Flow Process1 ..................................................................34
RT/RQ Collecting in Cash Box Flow Process 2 .................................................................35
8 TROUBLESHOOTING ............................................................................................. 36
Introduction ......................................................................................................................36
Troubleshooting Overview..............................................................................................36
LED Error Codes ..............................................................................................................36
9 UNIT DIMENSIONS.................................................................................................. 39
RT Unit With SH2 Box Outside Dimensions and Installation/Maintenance Space
Requirement.......................................................................................................................39
RT Unit With SH2 Box Outside Dimensions and Installation/Maintenance Space
Requirement.......................................................................................................................40
RQ Unit With SH2 Box Outside Dimensions and Installation/Maintenance Space
Requirement.......................................................................................................................41
RQ Unit With Large Box Outside Dimensions and Installation/Maintenance Space
Requirement.......................................................................................................................42
Bezel Outside Dimensions .................................................................................................43
10 TECHNICAL CONTACT INFORMATION ................................................................ 44
Americas ............................................................................................................................44
JCM American ...............................................................................................................................44
Europe, Middle East, Africa & Russia ................................................................................44

Table of Contents
Page
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
iii
UBA Pro RT/RQ™ Series Banknote Recycler
JCM Europe GmbH....................................................................................................................... 44
UK & Ireland.......................................................................................................................44
JCM Europe (UK Office) ............................................................................................................... 44
Asia and Oceania...............................................................................................................44
JCM Gold (HK) Ltd........................................................................................................................ 44
JAPAN CASH MACHINE CO., LTD. (HQ).................................................................................... 44
11 INDEX .......................................................................................................................45

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
iv
THIS PAGE INTENTIONALLY LEFT BLANK

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
v
UBA Pro RT/RQ™ Series
Banknote Recycler
List of Figures Page

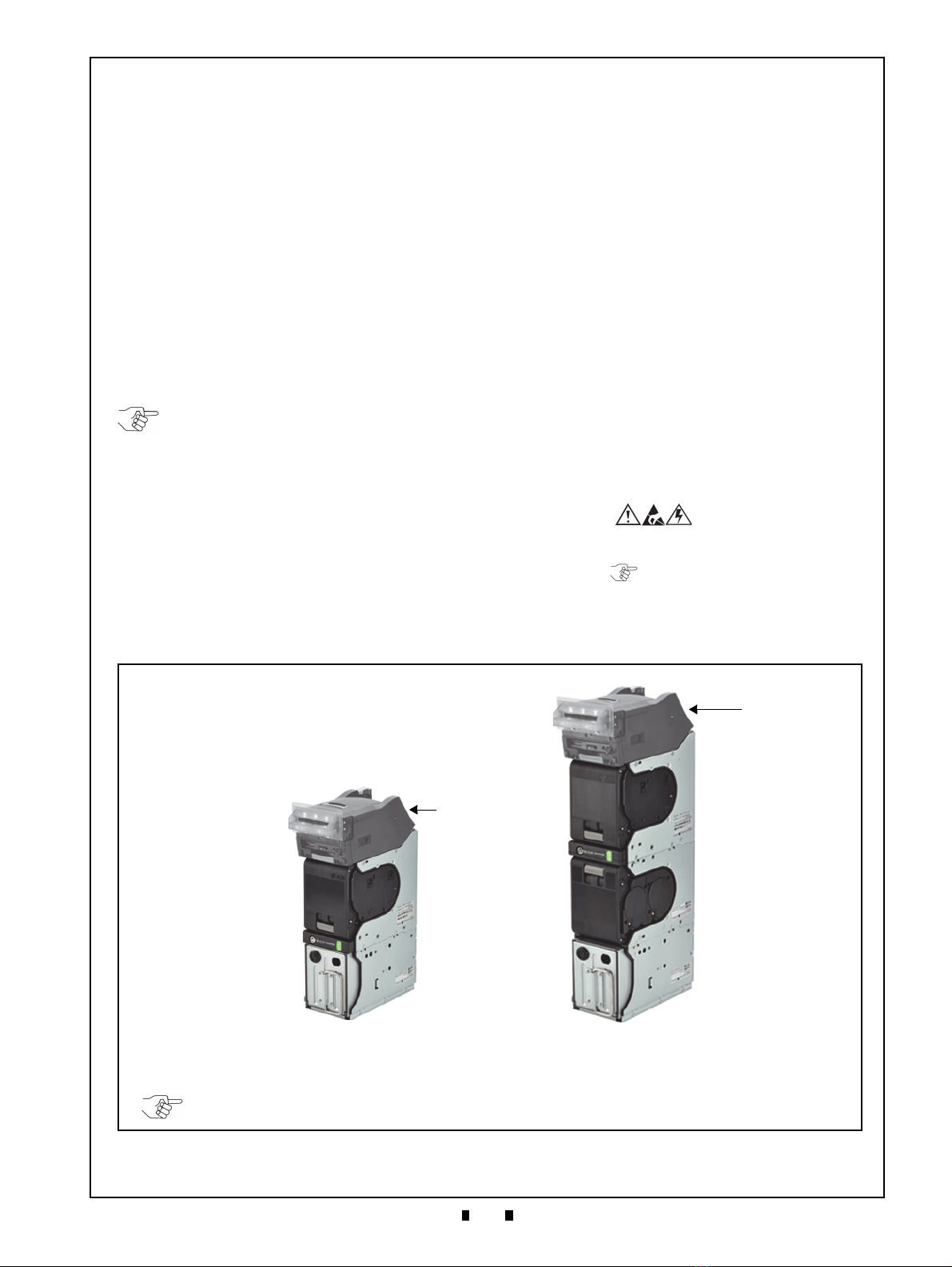

Figure 1 RQ and RT Units ........................................................................................1
Figure 2 Precautionary Symbols ..............................................................................2

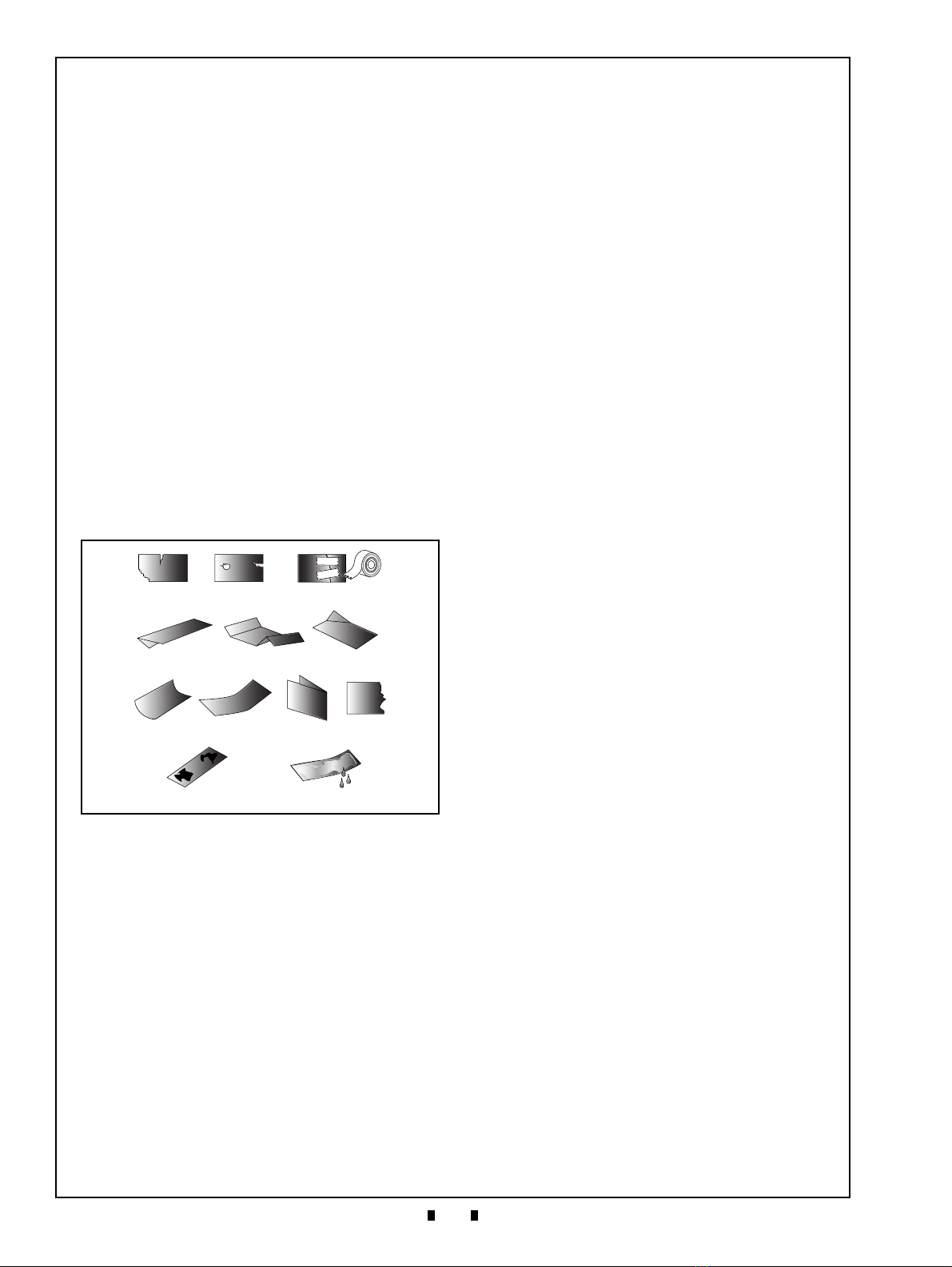

Figure 3 Unacceptable Banknotes ...........................................................................4

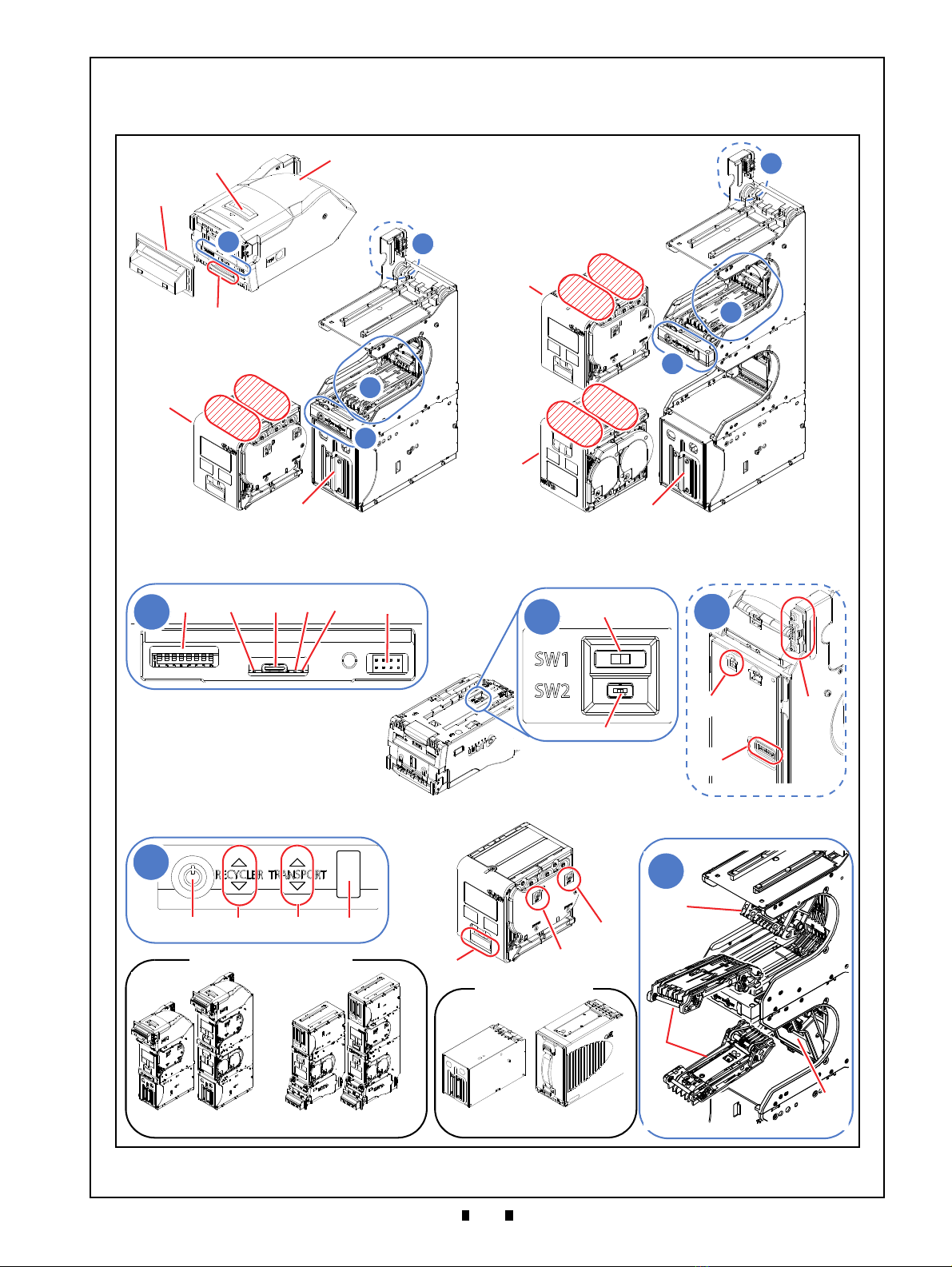

Figure 4 RT/RQ Component Locations ....................................................................5
Figure 5 Grounding ..................................................................................................9
Figure 6 Side Installation (Standard and SU Installation Types) ..............................9
Figure 7 Bottom Installation (Standard Installation Type) ......................................10
Figure 8 Bezel Installation ......................................................................................10
Figure 9 External Harness Installation ...................................................................10
Figure 10 Key Hole Location ....................................................................................10
Figure 11 Key Hole Dimension & Cylinder Length ...................................................11
Figure 12 Key Lock Rotation Requirement ..............................................................11
Figure 13 Key Cap Installation .................................................................................11
Figure 14 SW1 and SW2 Switches ..........................................................................11
Figure 15 Refilling Banknotes ..................................................................................19
Figure 16 Collecting Banknotes 1 ............................................................................19
Figure 17 Collecting Banknotes 2 ............................................................................19
Figure 18 UBA Pro Unit Banknote Jam Clear ..........................................................20
Figure 19 RT Transport Banknote Jam Clear 1 .......................................................20
Figure 20 RT Transport Banknote Jam Clear 2 .......................................................20
Figure 21 RT Transport Banknote Jam Clear 3 .......................................................20
Figure 22 RT Transport Banknote Jam Clear 4 .......................................................20
Figure 23 RT Transport Banknote Jam Clear 5 .......................................................21
Figure 24 RQ Transport Banknote Jam Clear 1 .......................................................21
Figure 25 RQ Transport Banknote Jam Clear 2 .......................................................21
Figure 26 RQ Transport Banknote Jam Clear 3 .......................................................21
Figure 27 RQ Transport Banknote Jam Clear 4 .......................................................21
Figure 28 RQ Transport Banknote Jam Clear 5 .......................................................21
Figure 29 Recycler Drum Banknote Jam Clear 1 .....................................................22
Figure 30 Recycler Drum Banknote Jam Clear 2 .....................................................22
Figure 31 Recycler Drum Banknote Jam Clear 3 .....................................................22
Figure 32 Cash Box Banknote Jam Clear ................................................................22
Figure 33 Sensor and Roller Cleaning .....................................................................23
Figure 34 RT/RQ Sensor, Roller and Belt Cleaning Locations ................................24
Figure 35 Bezel Connector Interface Circuit Schematics .........................................27
Figure 36 RT/RQ Interface Circuit Schematics (Sub Board 2) .................................28
Figure 37 RT/RQ Main Flow Process .......................................................................29
Figure 38 RT/RQ Accepting Banknotes Flow Process .............................................30
Figure 39 RT/RQ Transporting to Recycler Flow Process .......................................31
Figure 40 RT/RQ Transporting to Cash Box Flow Process ......................................32
Figure 41 RT/RQ Normal Dispensing Flow Process ................................................33
Figure 42 RT/RQ Abnormal Dispensing Flow Process ............................................34
Figure 43 RT/RQ Collecting in Cash Box Flow Process 1 .......................................34

List of Figures
Page
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
vi
UBA Pro RT/RQ™ Series Banknote Recycler
Figure 44 RT/RQ Collecting in Cash Box Flow Process 2 ....................................... 35
Figure 45 RT Unit With SH2 Box Outside Dimension and Installation/
Maintenance Space Requirement ........................................................... 39
Figure 46 RT Unit With Large Box Outside Dimension and Installation/
Maintenance Space Requirement ........................................................... 40
Figure 47 RQ Unit With SH2 Box Outside Dimension and Installation/
Maintenance Space Requirement ........................................................... 41
Figure 48 RQ Unit With Large Box Outside Dimension and Installation/
Maintenance Space Requirement ........................................................... 42
Figure 49 Bezel Outside Dimensions ...................................................................... 43

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
vii
UBA Pro RT/RQ™ Series
Banknote Recycler
List of Tables Page
Table 1 RT/RQ Product Model Number Specifications............................................2
Table 2 RT/RQ Type Number Specifications ...........................................................2
Table 3 RT/RQ Software Number Specifications.....................................................2
Table 4 RT/RQ Component Names .........................................................................6
Table 5 RT/RQ Technical Specifications .................................................................7
Table 6 RT/RQ Environmental Specifications..........................................................8
Table 7 RT/RQ Electrical Specifications ..................................................................8
Table 8 RT/RQ Structural Specifications .................................................................8
Table 9 Denomination Acceptance Settings ..........................................................11
Table 10 Sub Board 2 Interface Settings .................................................................12
Table 11 Recycler and Transport LEDs Flashing Patterns ......................................13
Table 12 Status LED Flashing Patterns ...................................................................13
Table 13 USB Interface Connector Pin Assignments (UBA Pro Side).....................14
Table 14 Photo Coupler Interface Connector Pin Assignments (UBA Pro Side) .....15
Table 15 RS232C Connector Pin Assignments (UBA Pro Side)..............................16
Table 16 cc-Talk Interface Connector Pin Assignments (UBA Pro Side).................17
Table 17 Power Supply Connector Pin Assignments (RT/RQ Side)........................18
Table 18 Interface Connector Pin Assignments (RT/RQ Side) ................................18
Table 19 Bezel Connector Pin Assignments (UBA Pro Side) ..................................18
Table 20 RT/RQ Sensor Cleaning Methods.............................................................25
Table 21 LED Error Codes.......................................................................................36

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
viii
THIS PAGE INTENTIONALLY LEFT BLANK

UBA Pro RT/RQ™ Series
Banknote Recycler
Integration Guide
Revision A
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
1
This section provides a general overview of the
UBA Pro RT/RQ™ Series Banknote Recycler (RT/
RQ) pictured in Figure 1.
The RT/RQ Unit is a Banknote Recycler compati-
ble with the UBA Pro Series Universal Banknote
Acceptor.
This section is designed to help you navigate
through this guide with ease, and provides the fol-
lowing information:
• RT and RQ Units
• Model Descriptions
• Type Descriptions
• Software Descriptions
• Precautions
• Primary Features
• Component Names
• Specifications
• Unit Dimensions
• Technical Contact Information
In order to make operation of this device easier and
make navigation within this manual simpler, the
following illustrations were used within the text:
• Safety Instructions need to be observed in order to
protect the operators and the equipment; these are
identified with Bold text and the following
pictographs:
• Special Notes affect the use of the RT/RQ Unit;
these are identified with italic text and the following
pictograph:
• Steps require the operator to perform specific
actions; these are identified with sequential
numbers (1, 2, 3, etc.).
1 GENERAL INFORMATION
NOTE: Refer to the UBA Pro Series
Universal Banknote Acceptor Integration
Guide for the UBA Pro product‘s details.
RT and RQ Units
Figure 1 RQ and RT Units
Figure 1 RQ and RT Units
RT Unit RQ Unit
UBA Pro
(1 Recycler, Twin Drums) (2 Recyclers, Quad Drums)
NOTE: The Stacking Up (SU) installation is also available by using a specified SU Bezel.
UBA Pro

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
2
Section 1 UBA Pro RT/RQ™ Series Banknote Recycler General Information
Model Descriptions
Table 1 lists the RT/RQ Product Model Num-
ber Descriptions.
Type Descriptions
Table 2 lists the RT/RQ Type Number Descrip-
tions.
Software Descriptions
Table 3 lists the RT/RQ Software Number
Descriptions.
Precautions
The Figure 2 symbols are defined as follows:
1. (Type 1) Do not insert a damaged or exhibited
unfit condition Banknote; it may cause a jam
inside the unit.
2. (Type 2) Do not expose the unit to water. The unit
contains several precision electronic devices that
can be damaged if water or any liquid is sprayed
or spilled into the unit.
3. (Type 3) Do not install the unit in a dusty
environment. Dust may damage the unit or
degrade its performance.
Table 1 RT/RQ Product Model Number
Specifications
No
(1) Model Name (UBA Pro Series)*
*. Refer to the UBA Pro Series Universal Banknote Acceptor Integration Guide for
the UBA Pro Unit’s details.
(2) Validation Sensor
5 = World Wide Type 1 (Standard)
6 = Reserved
(3) Barcode Sensor Board (Optional)
0 = Upper only (Standard)
1 = Upper and Lower
(4) Acceptor Head Unit Type
0 = Centering Type (Banknote Short Side: 62mm - 85mm)†
1 = Reserved
†. The acceptable Banknote width depends on the Cash Box. Refer to “Technical
Specifications” on page 7 for each Cash Box’s acceptable Banknote size.
(5) Input Section Unit (Optional)
None = Standard
(6) Stacking Type
SH2 = Horizontal Down (82mm, SH2 Box)
SS = Vertical Down (85mm, Large Box)
(7) Cash Box Access
None = Front Access (Standard)
(8) Recycler Type
RT = 1 Recycler (Twin Drums)
RQ = 2 Recyclers (Quad Drums)
Table 2 RT/RQ Type Number Specifications
No
(1) Cash Box Capacity
4 = 400 notes, SH2 Box (New Banknote)
8 = 800 notes, Large Box, (New Banknote)
(2) Cash Box Type
0 = Standard
(3) Cash Box Handle
0 = Standard
(4)
Sub Board Type
0 = Reserved
1 = Reserved
2 = Sub Board 2 (RS232/Photo-Coupler Isolation/TTL/ccTalk/1 USB)
3 = Reserved
4 = Reserved
(5) Acceptor Head Unit Cover
0 = Black (Standard)
(6)
Bezel
0 = No Bezel
1 = Black/2 Green LEDs (Bezel 85) (Standard Installation)
2 = Reserved
8 = Reserved
9 = Reserved
A = Reserved
B = Black/2 Blue LEDs (SU Installation)
(7) Bezel Spacer*
0 = No Bezel Spacer
1 = With Bezel Spacer
(8) Optional Circuit Board
0 = Reserved
Model: UBA - 5 * 0 - (*) * * (*) - * *
(1) (2)(3)(4) (6) (7) (8)(5)
Type: * * * - * * - * * * * * * *
(1)(2)(3) (4) (6)(7)(8)(9)(10)(11)(12)
(5)
(9) Interface Setting (Factory Default)†
P = Photo-Coupler Isolation
R = RS232C
(10)
External Harness
0 = Reserved
1 = Standard Harness (with power cord)
2 = USB I/F Harness (with power cord)
(11) Cash Box Faster/Lock (Optional)
0 = None
1 = Thumb Twist Lock Fastener for the Cash Box
(12) Battery (For Recycler Detection)
0 = No Battery
1 = Battery Equipped
*. Small pieces of paper or receipts might accidentally be inserted into the UBA Pro
Unit. The Bezel Spacer makes the distance to the Sensor longer and the Sensor
may not detect such foreign objects. Also, small pieces of paper or receipts are dif-
ficult to detect and remove.
†. Refer to “SW1 and SW2 Configurations” on page 11 for details.
Table 3 RT/RQ Software Number Specifications
No
(A) Software Model Name
(B) Country Code (Denomination)*
*. The Country Code is indicated by three (3) Alphabetical Characters following the
JIS Standard.
(C) Interface Protocol Name
(D) Software Version
Table 2 RT/RQ Type Number Specifications
No
Type: * * * - * * - * * * * * * *
(1)(2)(3) (4) (6)(7)(8)(9)(10)(11)(12)
(5)
(A) (D)
UBA-5**-(*)**(*)-RC-T/Q * * * - 0 * * - V * .**
(B) (C)
Caution: User cautions should be
included in any user guides or manuals.
Figure 2 Precautionary Symbols
Type1 Type2 Type3
Figure 2 Precautionary Symbols
NOTE: Refer to “Banknote Fitness
Requirements” on page 4.

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
3
General Information UBA Pro RT/RQ™ Series Banknote Recycler Section 1
User Cautions
Careful measures are taken in the design of this
product to ensure its quality; however, the follow-
ing cautions should be read and understood by all
users in order to confirm safe operation.
Installation Cautions
The Installation Cautions are defined as follows:
1. Do not allow the Unit to endure or operate at a
high temperature, in high humidity and/or in a
dusty environment.
2. Do not install the Unit into an area where exces-
sive vibration or shock are present.
3. The Unit is not designed for outside installation.
Be sure that the Host Machine contains enough
protection to avoid wet or dusty conditions when
installing in either an indoor or open-air space.
4. Avoid exposing the Unit to direct Sunlight and/or
Incandescent Lamp illumination having a
Gradient Angle of 15 Degree or more, and an
illumination index of 3000 Lux or less.
5. Ensure that the Host Machine is designed for
daily operational access for maintenance and/or
clearing a Banknote jam (refer to “Unit Dimen-
sions” on page 39).
6. When installing the equipment, connect the
Frame Housing to the Frame Ground of the Host
Machine.
7. If an unused Interface Harness exists, cut the
Harness off short to avoid attracting static elec-
tricity or a short circuit possibility that may cause
damage to the Unit.
8. Because this equipment is a component product,
close the Host Machine’s door before using it.
9. Do not operate the RT/RQ Unit without the Cash
Box and/or the Recycler or while the Cash Box
and/or the Recycler’s door is open.
10. This Unit is designed to use a Limited Power
Source. Be sure that the Host Machine’s cabinet
material design meets local safety standards.
11. Do not use the Unit where it may be exposed to
airborne evaporated or sporadic chemicals and/or
oil.
12. Ensure that the Host Machine is designed consid-
ering the risk of electronic components that can
cause induced noise. The noise generated by the
components on the Host Machine may affect and
degrade the Validation performance.
Mounting, Dismounting & Transportation
Methods for Mounting, Dismounting, and Trans-
porting the Unit are as follows:
1. Be sure to remove the Power from the RT/RQ
Unit before attaching or unplugging Connector
Plugs to avoid the risk of damage to the Unit.
2. Be sure to carry the Unit by both hands when
transporting it. Holding the Unit by one hand
may cause personal injury if the Unit accidentally
becomes disassembled and falls away from the
Frame housing.
3. Be careful not to use excessive outside pressure
on the Recycler, or subject it to excessive vibra-
tion during transportation.
4. Check that the UBA Pro Unit does not drop off
the Unit Frame while pulling the Recycler for-
ward from the Frame.
Operation Cautions
The Operation Cautions are defined as follows:
1. When closing the UBA Pro Unit, ensure it firmly
clicks into place.
2. When installing the Recycler, ensure it firmly
clicks into place.
3. Do not remove the Recycler and/or the Cash Box
during operation.
4. Do not throw or pound hard on the Recycler.
5. Be sure to follow the specified measures when
removing or re-seating any removal unit of the
RT/RQ Unit. Improper handling may cause per-
sonal injury and/or damage to the equipment.
6. The Recycler is not protected by a key. Caution is
advised for cash handling.
Preventive Maintenance
The Preventive Maintenance requirements are
defined as follows:
1. Be sure to remove the Power from the RT/RQ
Unit before beginning a maintenance procedure,
except for the Recycler and the Cash Box. The
equipment produces improper operating signals
while in maintenance mode that may cause per-
sonal injury.
2. If the Transport Path and/or Sensors are dirty due
to dust, foreign objects or other such debris
adhering to it, the Banknote acceptance rate will
degrade. Clean the Unit once a month to keep its
performance optimal.
3. Use a soft, lint-free cloth, cotton swab or a com-
pressed air spray to clean dust and debris from
the Banknote path and the inside areas of the
Recycler.
4. Do not redesign or disassemble the Recycler.
Unauthorized use by inadequately-trained
personnel, or use outside the original manufac-
turer’s intent for operation voids the warranty.
Caution: DO NOT use any alcohol,
solvents, abrasive cleaning agents,
or citrus-based cleaners that can
damage the plastic surface of the
device when cleaning it.
WARNING: This Unit is designed
for use with a Limited Power
Source! Design the Host Cabinet
space to meet all local related
safety standards.
Caution: Make Interface Harness
connections to the Host Machine
shorter than 9.84 Feet (3 Meters) in
length. Cut off all unused portions
of the Interface Harness wiring to
avoid static electrical effects or
short circuit possibilities that
could cause damage to the Unit.

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
4
Section 1 UBA Pro RT/RQ™ Series Banknote Recycler General Information
Disposal Considerations
The battery disposal requirements are defined as
follows:
1. Do not allow positive (+) and negative (-) battery
terminals to touch each other.
2. Use caution so that batteries stored or transported
together do not short circuit.
3. Follow federal, state and local regulations for
battery disposal.
Banknote Fitness Requirements
The following Banknote types may not validate
correctly, or can cause a Banknote jam and/or dam-
age to the Unit’s Transport path. Banknotes exhib-
iting the conditions listed below and illustrated in
Figure 3 should be avoided:
• Torn
• Worn
• Taped
• Excessive folds or wrinkles
• Dirty
• Wet
• Adhering foreign objects and/or oil
• Excessive miscuts, misaligns and/or misprints
Primary Features
The RT/RQ Unit contains the following primary
features:
• The RT Unit is equipped with one high capacity
compact Recycler, containing two drums for
recycling two denominations of Banknotes.
• The RQ Unit is equipped with two high capacity
compact Recyclers, each containing two drums for
recycling four denominations of Banknotes.
• Each Recycler’s Drum can store up to 30
Banknotes.
• The Recycler is lockable and removal, and contains
a memory device to assure safe and secure cash
handling.
• Processing speed is approximately double or
greater than the previous UBA-RC Series Units.
• The Automatic Centering Mechanism allows the
Unit to read Banknotes ranging from 62 to 85mm in
width, and it will automatically center Banknotes
inserted obliquely to help improve the acceptance
rate (the acceptable Banknote width depends on the
Cash Box).
• Easily access to all the note paths for maintenance
efficiency.
• Able to stack up to 800 Banknotes in the plastic
Cash Box (only Large Box).
• The JCM patented Anti-Pullback Mechanism
provides powerful protection against Banknote
stringing operations.
Figure 3 Unacceptable Banknotes
Figure 3 Unacceptable Banknotes
Damaged or Taped Banknotes
Wrinkled or Folded Banknotes
Curled, Folded or Partial Banknotes
Dirty Banknotes Wet or Oiled Banknotes

General Information UBA Pro RT/RQ™ Series Banknote Recycler Section 1
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
5
Transport UnitComponent Names
Figure 4 illustrates the RT/RQ component names and locations.
Figure 4 RT/RQ Component Locations
Figure 4 RT/RQ Component Locations
Standard Stacking Up (SU) SH2 Box Large Box
RQ Unit
RT Unit
Recycler Direction
for RT Transport
Recycler Direction
H1
H1
I I
Drum1
Drum2
L
M
}
}
L
}
H2
Drum2
Drum1
Drum1
Drum2
34
1
K
2
G
G
K
K
for RQ Transport (flipped)
A
B
C
D
E
J
J
Recycler
N
P
O
Installation Type
Cash Box
UBA Pro Bottom View
56
4
3
12
E
1
2
F
1
2
G
3
J
1
2
2

Section 1 UBA Pro RT/RQ™ Series Banknote Recycler General Information
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
6
Table 4 RT/RQ Component Names
Sym. Description Sym. Description
A Acceptor Head Unit (UBA Pro) H1Recycler (RT Transport)
B Upper Guide Access Lever H2Recycler (RQ Transport)
C Bezel I Cash Box
D Acceptor Head Unit Release Lever J1 Transport Unit
E
1 DIP Switches (Front) 2 Front Transport Unit
2 UBA Pro Status LED (Orange)
K
1 Recycler Lock
3 USB Type-C Connector (Maintenance) 2 Recycler LED
4 UBA Pro Status LED (Green) 3 Transport LED
5 UBA Pro Status LED (Red) 4 Status LED/Collect Button*
*. With the Collect Button (Status LED), the Banknotes are sent from the Recycler into the Cash Box. Refer to “Collecting Banknotes into the Cash Box by the Button” on
page 19.
6 Bezel Connector L RT Transport
F1 SW1 (Bottom) M RQ Transport
2 SW2 (Bottom) N Recycler Release Lever
G
1 Interface Connector O Drum 1 Shaft
2 Power Connector P Drum 2 Shaft
3 DIP Switches (Rear) -

Specifications UBA Pro RT/RQ™ Series Banknote Recycler Section 2
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
7
2 SPECIFICATIONS
This section provides specifications of the UBA Pro RT/RQ™ Series Banknote Recycler (RT/RQ).
Technical Specifications
Table 5 RT/RQ Technical Specifications
Acceptance Rate:
98% or greater*
The following Banknote Types are excluded:
•Banknotes with excess or unclear graphics
•Double (dual) Banknotes
•Worn, dirty, wet, stained, torn or excessively-wrinkled Banknotes
•Banknotes having folded corners or edges
•Banknotes having the wrong cut dimensions or a printing displacement
Banknote Types Accepted:
RT/RQ Unit with SH2 Box
•Length: 120-170mm (4.72-6.69in.)
•Width: 62-82mm (2.44-3.22in.)
RT/RQ Unit with Large Box
•Length: 120-165mm (4.72-6.49in.)
•Width (for Recycler): 62-82mm (2.44-3.22in.)
•Width (for Cash Box): 62-85mm (2.44-3.44in.)
Barcode Coupon†:
Standard Specification
•Interleaved Barcode Read: 2 of 5
•Narrow Bar Width: 0.5mm-0.6mm (0.019-0.023 in.)
•Wide Bar to Narrow Bar ratio = 3:1
•Characters: 18 Characters
•Print Position: Middle (Divides a Coupon equally to the left, right, top and bottom
of the Coupon’s center line)
•Print Width: Wider than 10mm (0.39 in.)
Insertion Direction: Banknote: Refer to the specific Country’s “Software Information Sheet”
Barcode Coupon: Four-way with Upper and Lower Barcode Sensor option
Processing Speed‡:
From Banknote insertion to stacking operation completion**:
From Recycler to completion of dispensing operation**:
From Recycler to completion of collecting operation (into Cash box):
Escrow: 1 Note
Validation Method: Optical
Anti-Pullback Mechanism: Pull-Back (PB) Unit (Anti-pullback System - JCM Patented)
Diagnostic Indicators: Acceptor Head Unit (UBA Pro): Status LEDs (Red/Green)
RT/TQ Unit: Full-color LEDs (White/Yellow/Red/Green/Magenta/Cyan/Blue)
Cash Box††:SH2 Box (Metal): Secure Type
Large Box (Plastic): Secure Type
Cash Box Capacity‡‡:SH2 Box (Metal): 400 Notes (New Banknotes Only)
Large Box (Plastic): 800 Notes (New Banknotes Only)
Recycler: 2 Denomination Integral Recycler
Drum Type (2 Drums are equipped in a Recylcer Unit)
NOTE: In case of Large Box, a Banknote wider than 82mm (3.22in.)
up to 85mm (3.44in.) is directly transported to the Cash Box.
Destination RT RQ
Collect to Recycler Approx. 2 seconds (to Drum 1) Approx. 2 seconds (to Drum 3)
Collect to Cash Box Approx. 2.9 seconds Approx. 3.2 seconds
RT RQ
Approx. 2 seconds (from Drum 1) Approx. 2 seconds (from Drum 1)
RT RQ
Approx. 2.4 seconds (from Drum 1) Approx. 2.7 seconds (from Drum 1)

Section 2 UBA Pro RT/RQ™ Series Banknote Recycler Specifications
P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
8

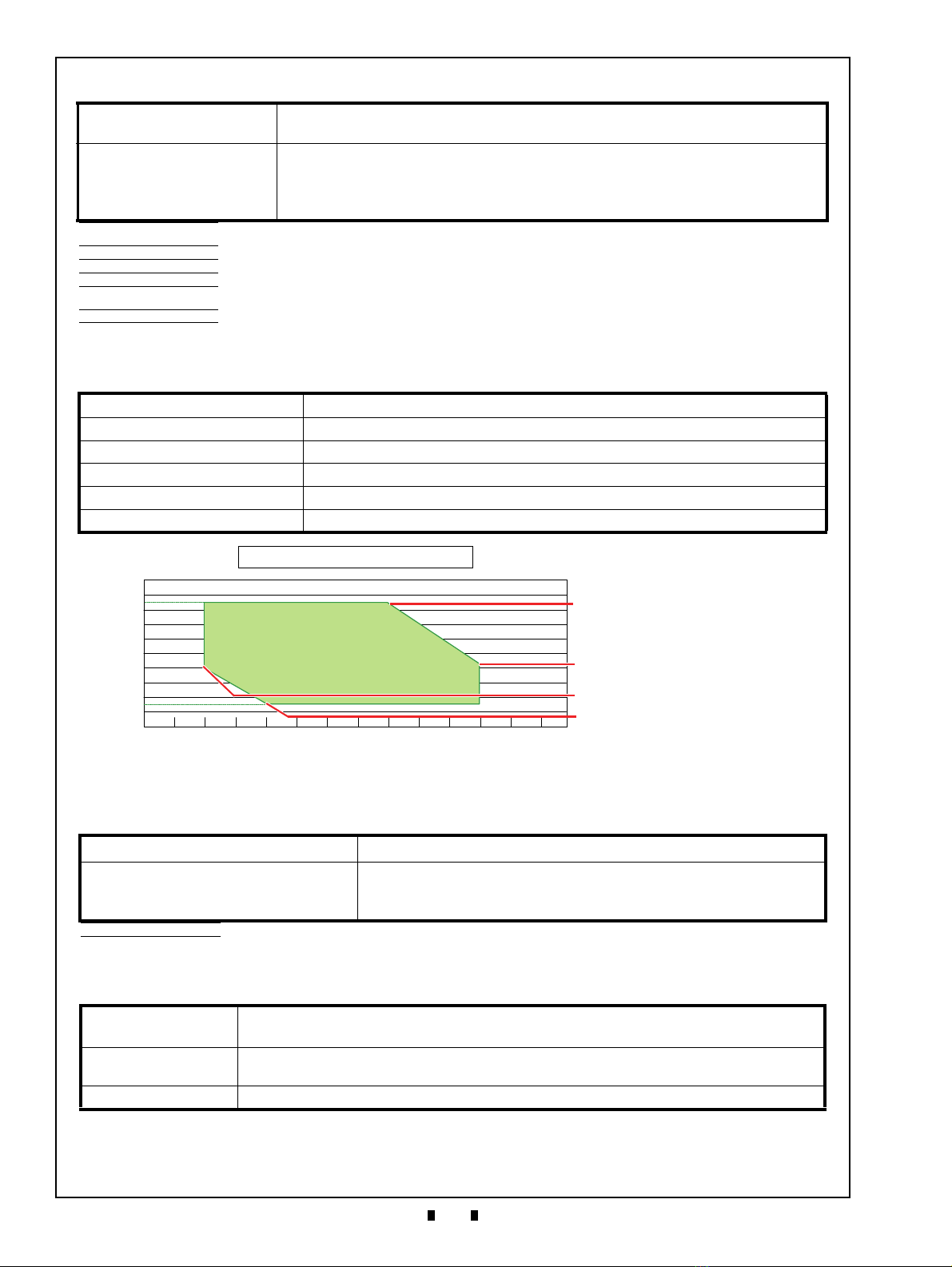

Environmental Specifications
Electrical Specifications
Structural Specifications
Recycler Capacity***:RT Unit: Max. 60 Notes (Max. 30 Notes x 2 Drums)
RQ Unit: Max. 120 Notes (Max. 30 Notes x 4 Drums)
Interfaces:
USB (USB Specification Rev. 2.0 Compliance) (Full Speed/12Mbps)
Photo-Coupler Isolation
RS232C
cc-Talk
*. The Banknotes accepted on the second attempt are included. The Acceptance Rate Test was conducted on more than 100 Banknotes. Refer to the “Software Information
Sheet” for each Country’s Acceptance Rate parameters.
†. Refer to the specific Country’s Barcode Ticket Specification for more details.
‡. Excludes the time lag associated with Host Communication (Power Supply: +24V DC, Temperature: 25º C ±5º C).
**. The average per note when 10 notes are inserted.
††.A key and lock are not included (A tang is provided). Refer to “Cash Box Lock Installation” on page 10 for the installation. (2 Key Hole Caps are fitted in place to cover existing
holes when shipped).
‡‡.The number of Polymer Banknotes stacked depends on the Banknote’s condition and denomination.
***.150mm New Banknote Only
Table 6 RT/RQ Environmental Specifications
Operating Temperature: 5ºC to +50ºC (41ºF to 122ºF) *Depends on hydrothermal conditions
Storage Temperature: -20ºC to +60ºC (-4ºF to 140ºF) *Depends on hydrothermal conditions
Relative Operating Humidity: 15% to 85% RH (non-condensing)
Relative Storage Humidity: 30% to 85% RH (non-condensing)
Visible Light Sensitivity: Avoid contact with direct Sunlight
Installation: Indoors Only
Table 7 RT/RQ Electrical Specifications*
*. Measured on a new and factory default RQ Unit.
Supply Voltage†:
†. Use a Limited Power Source.
24V DC (±5%) (6A or higher Recommended)
Current Consumption:
Standby: 0.4A
Operation: 2.0A
Peak: 3.8A
Table 8 RT/RQ Structural Specifications
Weight Empty: RT (with SH2 Box): 8kg (17.63lbs)
RQ (with SH2 Box): 11.4kg (25.13lbs)
Mounting: Horizontal, 0 degrees, ±0 degrees angle
(Stacking Up (SU) installation is available. Refer to “Installation Procedure” on page 9.)
Outside Dimensions: Refer to “Unit Dimensions” on page 39 of this Service Manual Section.
Table 5 RT/RQ Technical Specifications (Continued)
100
90
80
70
60
50
40
30
20
10
00 5 10 15 20 25 30 35 40 45 50 55 60
Hydrothermal Condition Table
Humidity [%RH]
Allowable
and Humidity Range
35ºC/85RH%
50ºC/40RH%
Operating Temperature
15ºC/15RH%
5ºC/40RH%
Temperature [°C]

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
9
Installation UBA Pro RT/RQ™ Series Banknote Recycler Section 3
This section provides installation and operating
instructions for the UBA Pro RT/RQ™ Series
Banknote Recycler (RT/RQ). The information
within contains the following features:
• Installation Procedure
• Cable Interconnection
• DIP Switch Configuration
• LED Flashing Patterns
Installation Procedure
Holes are provided in each Frame Unit to accom-
modate mounting the RT/RQ Unit during installa-
tion. Select and perform the following steps
required to install the RT/RQ Unit.
Grounding
1. Install the Toothed Washer (Figure 5 a), the
Grounding Wire (Figure 5 b) and then the Screw
(Figure 5 c) into the Frame Ground (Figure 5 d)
in order.
2. Tighten the Screw to secure the Wire and Washer.
Side Installation (For Standard and
Stacking Up (SU) Installation types)
When a side mounting configuration is preferred, per-
form the following procedure:
1. Secure the left and right side of the RT/RQ Frame
into its intended location using 8 (eight) M4
Screws from each side of the Frame (Figure 6 a1
through a8).
3 INSTALLATION
NOTE: Do Not exert external pressure
on the UBA Pro Unit. Strong pressure
on the Unit may cause the Unit‘s
performance to degrade.
NOTE: Ensure that there is sufficient
space to open, clean and maintain a UBA
Pro Unit. (Refer to “Unit Dimensions” on
page 39).
Caution: Be sure to use specified Screw
Holes when installing the Unit.
Caution: To keep the Unit’ performance
optimal, ensure that the mounting
location is horizontally at 0 degrees on a
flat surface and strong enough to
ensure the Unit weight.
Caution: Be sure to connect the Frame
Housing to the Frame Ground of the
Host Machine.
NOTE: Prepare the following Grounding
Wire, Screw and Washer for grounding:
• Grounding Cable with Conductor Diameter
1.6mm or lager
• M4 W Washer (Large) Pan Head, Iron/
Chromium (III), 12mm or shorter
• Toothed Washer
• Tightening Torque: 120N·cm
NOTE: Refer to “Unit Dimensions” on
page 39) for each Frame Ground
location.
Figure 5 Grounding
Figure 5 Grounding
Edge Side
Round Side
ab
c
d
NOTE: Prepare the following Screw:
• M4 Screw (the length of each M4 Screw
should not extend more than 6mm long
from the inside of the Frame)
• Tightening Torque: 120N·cm
Figure 6 Side Installation (Standard and SU
Figure 6 Side Installation (Standard and SU
Installation Types)
a1
a2
a3
a4
a5
a6
a7
a8
a1
a2
a3
a4
a5
a6
a7
a8
SH2 Box Frame Large Box Frame

P/N 960-000209R_Rev. A © 2019, JAPAN CASH MACHINE CO., LTD.
10
Section 3 UBA Pro RT/RQ™ Series Banknote Recycler Installation
Bottom Installation (For Standard
Installation Type Only)
When a bottom mounting configuration is preferred,
perform the following procedure:
1. From Inside:
Secure the inside of the RT/RQ Bottom Frame
into its intended location using four (4) M4
Screws (Figure 7 a1through a4).
From Outside:
Secure the outside of the RT/RQ Bottom Frame
into its intended location using the four (4)
threaded φ4 Studs (Figure 7 b1through b4).
Bezel Installation
1. Secure the Bezel (Figure 8 a) using two (2) speci-
fied Screws (Figure 8 b1& b2).
External Harness Installation
1. Pug in the Power Cable (Figure 9 a) and the
Interface Harness (Figure 9 b) into each Connec-
tor.
2. Secure the Connector (Figure 9 c) using two (2)
specified Screws (Figure 9 d1& d2).
Cash Box Lock Installation
One or two security locks can be installed onto a
Cash Box. When installing a security lock, the fol-
lowing attachment accessories may be required:
• Two Key Spacers
• Plate Lock Keys
• Key Cap Attachment.
Caution: This installation is allowed only
when the RT/RQ unit is used as Standard
installation.
NOTE: Prepare the following Screw:
• From Inside: M4 Screw
• From Outside: φ4 Stud (the maximum length
of each Stud should not extend more than
10mm long from the inside of the Bottom
Frame
• Tightening Torque: 120N·cm
Figure 7 Bottom Installation (Standard Installa-
Figure 7 Bottom Installation (Standard Installation
Type)
a1
a2
a3
a4
b1b2
b3b4
NOTE: Prepare the following Screw:
• M3x16 Screw (provided)
• Tightening Torque: 60N·cm
Figure 8 Bezel Installation
Figure 8 Bezel Installation
b1
a
b2
NOTE: Prepare the following Screw:
• M3x12 Screw (provided)
• Tightening Torque: 80N·cm
Figure 9 External Harness Installation
Figure 9 External Harness Installation
d1
d2
a
b
c
Figure 10 Key Hole Location
Figure 10 Key Hole Location
Key Holes
