Electric Convertible CooktopI: JENN-AIR 1
Models JED8130, JED8230& JED8345 _WESTFOURTHSTREET, NORTH" NEWTON, IA50208
DIMENSIONS SHOWN IN BOTH INCHES AND CENTIMETERS
*Blowermay be rotated forhorizontalorverticaldirectionby looseningnuts aroundblowerinlet.Accessibleinsideventilation
chamber.
TIE DOWN BOLT
ON EACH
:'ASE
CONTAINER
• NOTICE TO INSTALLER: Leave these instructions
withthe appliance.
•NOTICE TO CONSUMER: Retain these instructions
for future reference.
23.8t cm
MODEL SERIES: JED8345 TRIPLE BAY
ql
Typ. for Container Supplied,
6 1/4" (1,5,88 cm) is required for removal.
13 t5/]6"
35. I ¢m
1
CONTAINER
!
2718 °_'
7,3 crn
"_= "=,_ 27/8"
68.0 cm 7.3 cm 34.9 o"a 30.0 cm
ONLY MODELS WITH GRILLING FEATURE HAVE BEEN ILLUSTRATED
INSTRUCTIONSTO INSTALLER,
•Dimension "B" -Provide 2" min. (5.08 cm) cabinet clearance to motor for cooling purpose,
• Installer -Where possible, 6" (15.24 cm) is recommended for motor/blower service.
•Side Clearance - Grill models installed near a side wall must allow a minimum clearance of 6" (15,24 cm) for
maximum performance.
°Electrical Hook UP - The unit should be properly circuit protected andwired according to local electrical codes. See
electrical wiring information on back, Unit power requirements are located on the data plate.
• ** Access must be provided to remove and empty grease container(s). 8101 P421 ..60
(10-01-oo)
A INCHES CM
Double Bay 29 + 1/16" 73.66
TriPle Bay 43 1/4 + 1/i6 109.86 + 116
MODEL SERIES: JED8130 & JED8230 DOUBLE BAY
_EASE

Installing Cabinetry Over Your Jenn-Air Grill
A* = 30" (76.2 cm) minimumclearancebetween thetop of
thecookingplatformandthebottomofanunprotected
woodor metal cabinet.
A* = 24" (60.96 cm) minimum clearance when bottom of
wood or metal cabinet is protected by not less than
114" (0.635 cm) FLAME RETARDANT millboard
covered with no less than no. 28 MSG sheet steel,
0.015" (0.038 cm) stainless steel, 0.024" (0.061 cm)
aluminumor copper.
Dottedlines
indicate
rangehood
construction
L i "A_" r.........d
I
*To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located
above the surface units should be avoided. If cabinet
storage is to be provided, the risk can be reduced by
installing a range hood that projects horizontally a
minimum of 5 inchesbeyond the bottom of the cabinets.
Installer Installation Suggestions
1. Chamfer all exposed edges of decorative laminate to
prevent damage from chipping.
2. Radius comers of cutout and file to insure smooth
edges and prevent corner cracking. Recommend
1/4" or 3/8" diameter drill in each comer.
3. Rough edges, inside corners which have not been
rounded and forced fits can contribute to cracking of the
counter top laminate.
4. Countertop must be supported within 3" of cutout.
ElectricalWiring Information
The neutralofthisunitis groundedto theframe throughthe
green groundingwire. If local conditionsdo not permit
grounding of theneutral, untwist or disconnectthe green
wire and connect the green wire to ground in accordance
with localcodes. Connect the white neutral to the service
neutral.
Proper Electric Supply
You must providean adequate electrical supplysystem as
required for yourcooktop.All wire connectionsmust be in
accordance withlocalcodes and properlyinsulated.Check
with local utility for governing electrical codes and
ordinances. In the absence of local electrical codes, the
National ElectricalCode, NFPA No. 70, governingelectric
rangeinstallations mustbefollowed.A copy oftheNational
Electrical Code, NFPA No.70, canbeobtainedbywritingto:
NATIONAL FIRE PROTECTION ASSOC.
Batterymarch Park
Quincy, Massachusetts 02269
Athree-wire, single phase, A.C. 1201240 volt 60 cycle
electrical system (properly circuit protected to meet Local
Codes of NFPA No. 70) must be provided. Unit must be
propedy grounded in accordance with localwiring code. The
chart below recommends the minimum circuitprotector and
wire size if the appliance is the only unit on the circuit, If
smaller sizes of wire are used, the unit efficiency will be
reduced and a fire hazard may be created. It is advisable
that the electrical widng and hookup be accomplished by a
competent electrician,
RECOMMENDED MINIMUM
K.W.RATING CIRCUITPROTECTION WIRESIZE, REMOVE
ONSERIALPLATE INAMPERES AWG KNOCKOUT
0- 4.9 20 12 NO
5.0 - 6.9 30 10 NO
7.0 - 9.9 40 8 NO
10.0 - 11.9 50 8 **YES
12.0 - 14.9 60 6 **YES
SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE

240EdwardsStreet, SE
Cleve!an&Tennessee37311
Tel:[phone]
Fax:[phone]
4. FREE-STANDING CUTOUT
- 30 I/8"(76.52cm) minimum clearanceisrequired.
- Carefullymark thecountertop,recheckyourdimensionsandmake thecutout.
- NOTE: Rangesidepanelsmay bedesirableifthecutoutistoolargeorcabinetsareon oneside
oftherangeonly.
MEASURE FOR SLIDE-IN CUTOUT
-Most standard counters are 25 _ (63.50 cm) deep, 36" (91.44 era) high, and extend I" (2.54 cm)
over the cabinet front.
- Measure the countertop and overhang. 1. r
,I 1
J
OVERHANG
DIMENSION
.SLIDE-IN CUTOUT
- Use the overhang measurement to figure the "A" dimension:
Overhang 1f2" (I.27 cm) to 1" (2.54 cm) "A"--22 718" (58.1 lcm)
Overhang 1" (2.54 era) to 1 3/4" (4.45 era) "A'= 23 3/16" (58.90 cm)
- Carefully mark the countertop and recheck your dimensions.
- Before you cut, check the rear countertop dimensions. (See#7).

2.40EdwardsStreet,SE
Cevetand.Tennessee3721l
Te,l: 422-472-3333
Fax:[phone]
7. SLIDE-IN CUTOUT
- Check your marked-up dimensions carefully.The reardimensionsshown intheillustrationmust
be maintained.
- NOTE: Where thisisnot done, itwillbe necessarytorelieveaportionoftheundersideofthe
countertopand/orsupportmembers toclearthe range mar panel.
- Cuttingtoleranceis 4- 1/16"(.16cm).
- Carefully mark the cutout. _mt TOt= "-.,
.
{443 cm)
OVER-RANGE CABINETS
- To eliminate the hazard of reaching over a heated surface unit, cabinet storage space above the
range should be avoided. However, if over-range cabinets are necessary, observe the following:
B = 30" (76.2 cm) minimum clearance between the top of the cooking platform and the
bottom of an unprotected wood or metal cabinet.
B=24" (60.96 cm) minimum when bottom of wood or metal cabinet is protected by not
less than I/4" (0.635 cm) FLAME RETARDANT millboard covered with not less than
No. 28 MSG sheet steel, 0.015" (0.038 cm) stainless steel, 0.024" (0.061 cm) aluminum
or copper.
9. MEASURE FOR FLOOR VENT
- If unit will be vented through the wall, go to #12.
- Using a square and marking pen, draw the _T" cutout line on the floor (see illustration). Recheck
your dimensions.
- if floor will be concrete slab, see enclosed ducting instructions.
o For left and right hand venting through cabinet toe space, see enclosed ducting instructions.

C_.stomer SeP:ic_
Z40EawardsSLreet,SE
C1eve!and,Tennessee37311
Tei:_22-472-3333
Fax:_23-478-6710
I0. FLOOR VENT CUTOUT (JOISTS AS SHOWN)
- Check the direction of the floor joists (see illustration), tf the joists' direction is as shown, locate
the cutout on the '7" as illustrated. The cutout must miss the floarjoists!
- Cutout may be moved from side to side on line to clear floor joist.
- Recheck your dimensions and make the cutout.
11. FLOOR VENT CUTOUT (JOISTS AS SHOWN)
- Check the direction of the floor joists (see illustration). If the joists' direction is as shown, locate
the cutout on the T as illustrated. The cutout must miss the floor joist!!
- Cutout may be moved from front to back on line to clear floor joist.
- Recheck your dimensions and make the cutout. !
12. WALL VENT CUTOUT
-Locate the vertical studs in the rear wall. Studs are usually t6 _ (40.64 cm) center to center.
-Wil! the vent duct be 6" (15.24 cm) round throug.h the wall or 3 1t4" x 10" (8.26 cmx 25.4 era)
rectangle, vertically inside the wall?
- See Ducting Instructions for rear duct inside the wall. NOTE: Cutout in walt must clear 3 1/4" x
10" (8.26 cm x 25.4 era) transition elbow.
-Locate the closest stud to your proposed vent hole location. Use the following chart to figure the
_X" dimension. See the illustration for the other dimensions.
)"X" MINIMUM
iVERTICAL DUCT INSIDE WALL
6" Round (15.24 era) 3¼" x10"
(8-26 cm x 25.4 era)
}. 4" (10.16 cm) 6" (15.24 era)
- A 1" (2.54 cm) length of duct must protrude through the wall for connection to the Blower.
{_|c:.os_sTt
8'h" 61t_-
t43._ crop q
._4,_,'/I,\G Admiral 7! -'ttvl'_jl::NN-.A;l::t "_iI!,1_i€ C,_.e_

2J-gEawa_dsStreeLSE
C;eveiand,Tennessee37311
Tel:423-477.-;333
Fax:'_23-J-78-67!0
13.
14.
I5.

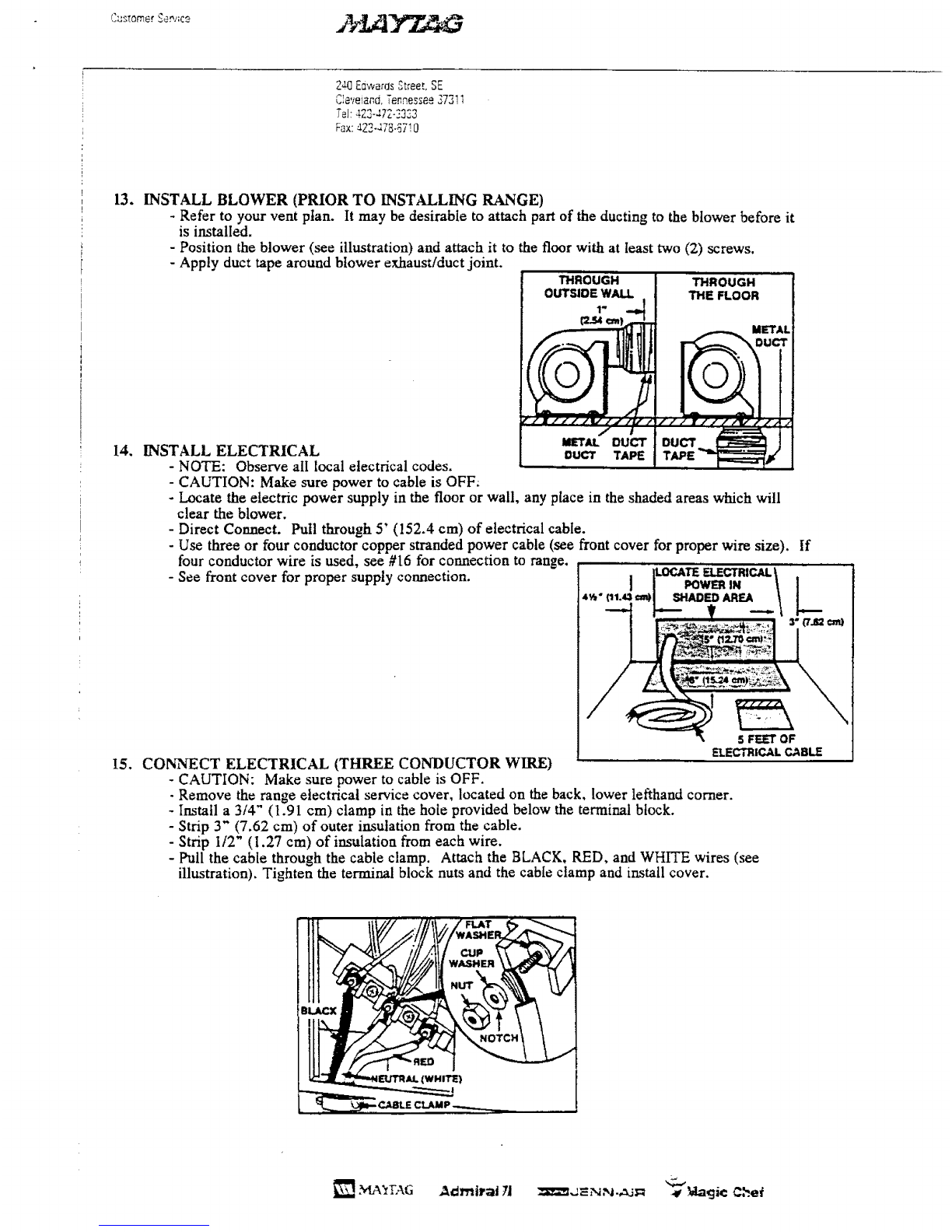

INSTALL BLOWER (PRIOR TO INSTALLING RANGE)
- Refer to your vent plan. It may be desirable to attach part of the ducting to the blower before it
is installed.
- Position the blower (see illustration) and attach it to the floor with at least two (2) screws.
-Apply duct tape around blower exhaust/duct joint. THROUGH THROUGH
OUTSIDE WALl. THE FLOOR
r It .---.
rfZfTflVfl_l/ ff¢ ffJ'--J_ E.Z .."
j I
METAL DUCT
INSTALL ELECTRICAL oucr TAPE
- NOTE: Observe all local electrical codes.
- CAUTION: Make sure power to cable is OFF:
- Locate the electric power supply in the floor or wall, any place in the shaded areas which will
clear the blower.
- Direct Connect. Pull through 5' (152.4 cm) of electrical cable.
- Use three or four conductor copper stranded power cable (see front cover for proper wire size). If
four conductor wire is used, see #16 for connection to range.
-See front cover for proper supply connection. . _1"[ _eTRIC,_t.k
I \I
4,/,"(_1._=_ SHADEDAREA \i
---,4 ----- V
/ i _L_,._ _._ :-o_.tt.1$" (782 ¢m}
1 I
ELECTRICAL CAI_
CONNECT ELECTRICAL (THREE CONDUCTOR WIRE)
- CAUTION: Make sure power to cable is OFF.
- Remove the range electrical service cover, located on the back, lower lefthand corner.
- [nstatl a 3/4" (I.91 cm) clamp in the hole provided below the terminal block.
- Strip 3" (7.62 cm) of outer insulation from the cable.
- Strip It2" (I .27 era) of insulation from each wire.
- Pull the cable through the cable clamp. Attach the BLACK, RED, and WHITE wires (see
illustration). Tighten the terminal block nuts and the cable clamp and install cover.

Custcmef Serwc8
240EdwardsStreet SE
Ceveiand.Ten_esse_37211
T_: 473-472-2223
Fax:_23-478-87t0
16. CONNECT ELECTRICAL (FOUR CONDUCTOR WIRE)
- CAUTION: Make sure power to cable is OFF.
-Remove the range electrical service cover located on the back, lower left-hand corner. Remove the
ground strap,,screw and bend the strap up as shown.
- Install a 3/4 (1.19 cm) cable clamp in the hole provided, below the terminal block.
-Strip 3_ (7.62 cm) of outer insulation from the cable.
-Strip 1/2" (1.27 era) of insulation from each wire.
-Pull the cable through the cable clamp.
- Make a loop in the bare groundwire and attach it to the range with the screw that held the ground
strap.
- Attach the BLACK, RED, and WHITE wires (see #15). Tighten the terminal block nuts and the
cable clamp.
- Tape the ground strap to the WHITE wire as shown. Install electrical cover.
17. INSTALL OPTIONS
@'
...............\ ,_R_
-[f a backsplash or side panels are to be used, install according to instructions included with those
accessories.
18. POSITION RANGE
- Free-Standing: Adjust the range feet so the range and cabinet height wil! be approximately the
same. Slide the range into place, taking care not to damage floor covering.
-Slide-In: Carefully lift and place the range on the cabinet top.
",,r-,'Xqla.

Cus[ome r_ePdc_
2_0EdwardsStreet, SE
Ceveian_.Tennessee373II
Te!:a22-'72-3333
t9. ANTI-TIP BRACKET INSTALLATION
- With the unit installed in the final location, establish left side and back of the unit.
- Locate left bracket 5/8" (1.58 cm) in from the left of the unit.
- Locate the right bracket 27 718" (70.80 cm) to the right of the left bracket.
-Locate the rear of both brackets flush to the back of the unit if a backsplash is not used.
* Ira lighted backsptash is used, move back of brackets forward 1/8" (.3t8 cm). Ira non-lighted
backsp|ash is used, move back of brackets forward 1/4" (.635 cm).
- NOTE: I._g levelers must be screwed out II/2 turns. If the floor will not accept the wood
screws supplied, alternate fasteners must be supplied by the installer.
20.
mt_ot t.zQ_
_ii/iii/iiiiiiiiltli!/i/#il#'i//_ti7!&
AL_TE SCREW_t.E TFWCX_0
GRAINIS1NWRONGOII_.b'-I'IQN
z
0
£2-,",/,-ffo.8o_m) _!
_),. %" (1.5_1cm)
., J ,_
LEVEL RANGE
- Free-Standing: Adjust the leveler feet to level range with the countertop.
- Slide-in: Adjust the leveler feet to take some of the weight off of the countertop.
-Unit must be level for optimum baking _erformance.
21. CONNECT BLOWER ELECTRICAL
- Connect the blower power cord to the power cord on the range. (See illustration).

24(3EdwardsStree[.SE
C[eveiane.Tennessee3731'[
Tel:423-472_-3333
Fax:_23-47_,.,_710

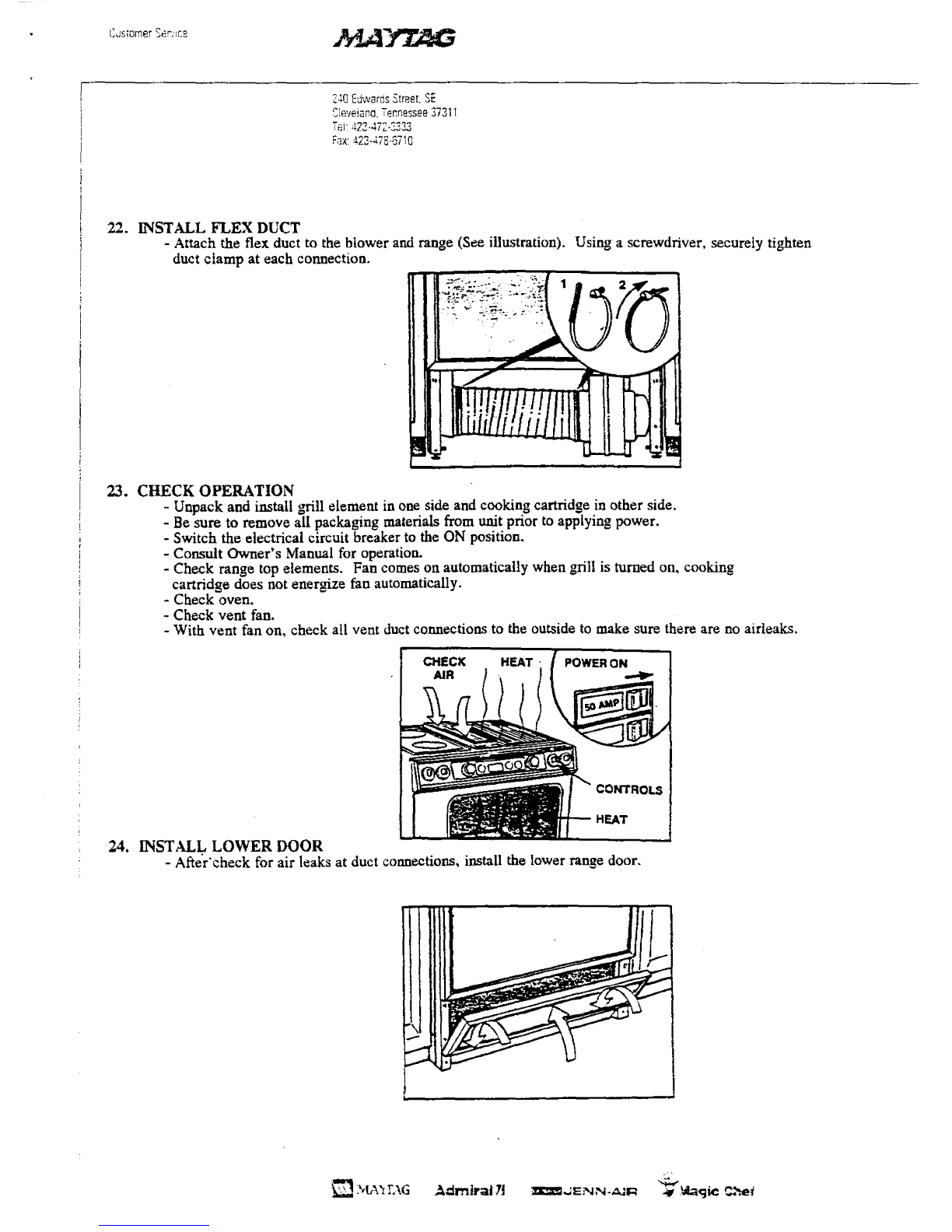

22. INSTALL FLEX DUCT
- Attach the flex duct to the blower and range (See illustration). Using a screwdriver, securely tighten
duct clamp at each connection,
23. CHECK OPERATION
-Unpack and install grill element in one side and cooking cartridge in other side,
- Be sure to remove all packaging materials from unit prior to applying power.
- Switch the electrical circuit breaker to the ON position.
- Consult Owner's Manual for operation.
- Check range top elements. Fan comes on automatically when grill is turned on, cooking
cartridge does not energize fan automatically.
- Check oven.
- Check vent fan.
- With vent fan on, check all vent duct connections to the outside to make sure there are no airleaks.
CHECX HEAT '
AIR
CONTROLS
HEAT
INSTALL. LOWER DOOR
- After'check for air leaks at duct connections, install the lower range door.
3,bvtrAG A_miral 71 _,JE_'qN-Z4_ -i' .'_,agicC,hef
