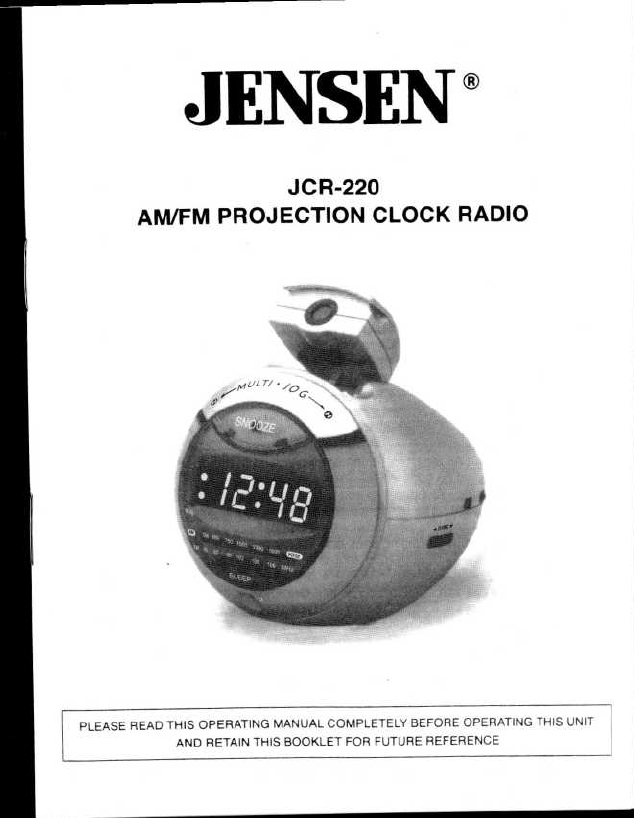

Jensen JCR-220 User manual

JENSEN®
JCR-220
AM/FM PROJECTION CLOCK RADIO
PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE OPERATING THIS UNIT
AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE

The lightning flash and
arrow head within the
triangle is a warning
sign alerting you of
"dangerous voltage"
inside the product
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL
A
The exclamation point
within the triangle is a
warning sign alerting you
of important instructions
accompanying the
product

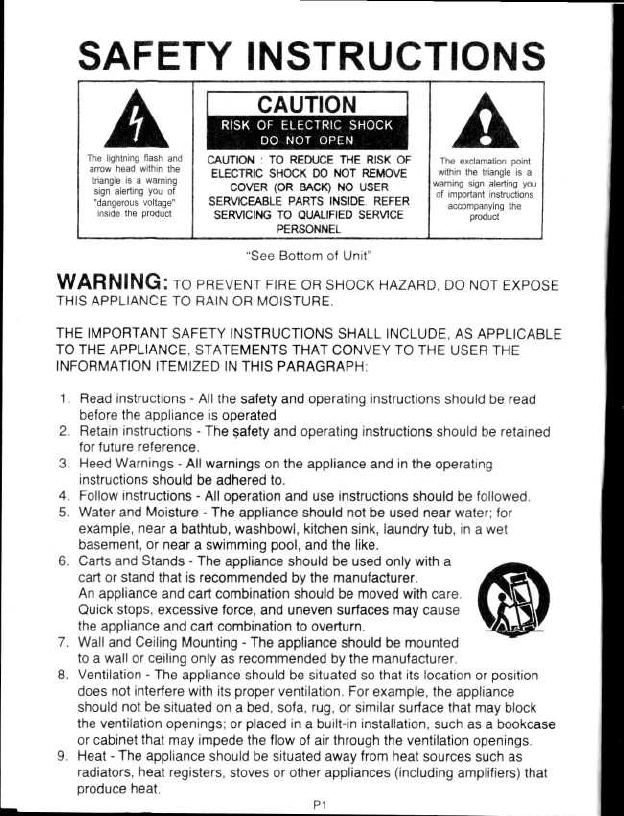

SAFETY INSTRUCTIONS
"See Bottom of Unit"
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
THE IMPORTANT SAFETY INSTRUCTIONS SHALL INCLUDE, AS APPLICABLE
TO THE APPLIANCE, STATEMENTS THAT CONVEY TO THE USER THE
INFORMATION ITEMIZED IN THIS PARAGRAPH:
1.
Read instructions - All the safety and operating instructions should be read
before the appliance is operated
2.
Retain instructions - The safety and operating instructions should be retained
for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating
instructions should be adhered to.
4.
Follow instructions - All operation and use instructions should be followed.
5.
Water and Moisture - The appliance should not be used near water; for
example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, and the like.
6.
Carts and Stands - The appliance should be used only with a
cart or stand that is recommended by the manufacturer.
An appliance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the appliance and cart combination to overturn.
7. Wall and Ceiling Mounting - The appliance should be mounted
to a wall or ceiling only as recommended by the manufacturer.
8.
Ventilation - The appliance should be situated so that its location or position
does not interfere with its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar surface that may block
the ventilation openings; or placed in a built-in installation, such as a bookcase
or cabinet that may impede the flow of air through the ventilation openings.
9.
Heat - The appliance should be situated away from heat sources such as
radiators, heat registers, stoves or other appliances (including amplifiers) that
produce heat.
P1

10. Power Sources - The appliance should be connected to a power supply only of
the type described in the operating instructions or as marked on the appliance.
11.
Grounding or Polarization - Precautions should be taken so that the grounding
or polarization means of an appliance is not defeated.
12.
Power-Cord Protection - Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience receptacles and the
point where they exit from the appliance.
13.
Protective Attachment Plug - The appliance is equipped with an attachment
plug having overload protection. This is a safety feature. See Instruction Manual
for replacement or resetting of protective device. If replacement of the plug is
required, be sure the service technician has used a replacement plug specified
by the manufacturer that has the same overload protection as the original plug.
14.
Cleaning - The appliance should be cleaned only as recommended by the
manufacturer.
15.
Power Lines - An outdoor antenna should be located away from power lines.
16.
Outdoor Antenna Grounding - If an outside antenna is connected to the receiver,
be sure the antenna system is grounded so as to provide some protection
against voltage surges and built up static charges. Section 810 of the National
Electrical Code, ANSI/ NFPA No.70-1984, provides information with respect to
proper grounding of the mast and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes, and requirements
for the grounding electrode. See figure 1.
II
'411111111 /1
Ki
MI r ill " r,°,==,'"
= E 7 a RgI F E=7 G E7TI "N'"
NEL PR. 250 PART NT
17.
Nonuse Periods - The power cord of the appliance should be unplugged from
the outlet when left unused for a long period of time.
18. Object and Liquid Entry - Care should be taken so that objects do not fall and
liquids are not spilled into the enclosure through openings.
01;=GE UNIT
/NEC SECTION 910/20/
NEC NATIONAL ELECTRIC/. CO.
P2

wide blade
AC Polanzed Plug
19. Damage Requiring Service - The appliance should be serviced by qualified
service personnel when:
A. The power supply cord or the plug has been damaged; or
B.
Objects have fallen, or liquid has been spilled into the appliance; or
C.
The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked
change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
20. Servicing - The user should not attempt to service the appliance beyond that
described in the operating instructions. All other servicing should be referred
to qualified service personnel.
CAUTION:
TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG
TO WIDE SLOT. FULLY INSERT
THE PLUG TO MAIN POWER
SOCKET.
COMPLIANCE WITH FCC REGULATIONS
This equipment has been tested and found to comply with the limits for
a radio receiver, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation
between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio technician for help.
P3

FUNCTIONS AND CONTROLS
1.
AC Power Cord
2. FM Antenna Wire
3. Snooze Button
4. Battery Compartment
5.
Clock Setting Switch (RUN / ALM / TIME)
6.
Power Switch (ON / AUTO / OFF)
7. LED Display
8.
Rotary Set Dial
9. Sleep Button
10. Tuning Control Knob
11. AM/FM Band Selection Switch
12. Volume / Buzz Knob
13.
Projection
14. Projection ON / OFF
15. Minute Button for Projection
16.
Hour Button for Projection
17. Focus Adjustment Knob
18. Time Set Button for Projection
P4

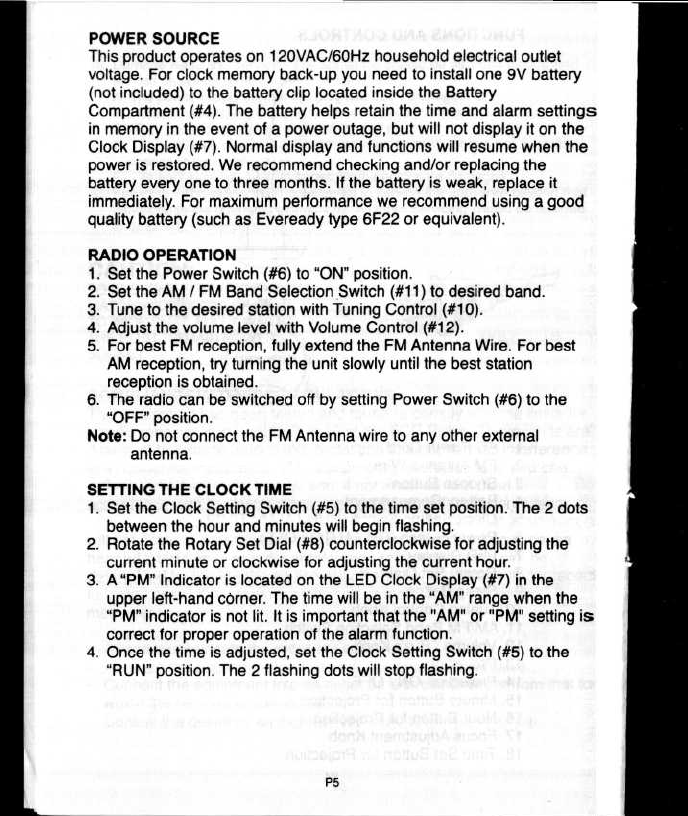

POWER SOURCE
This product operates on 120VAC/60Hz household electrical outlet
voltage. For clock memory back-up you need to install one 9V battery
(not included) to the battery clip located inside the Battery
Compartment (#4). The battery helps retain the time and alarm settings
in memory in the event of a power outage, but will not display it on the
Clock Display (#7). Normal display and functions will resume when the
power is restored. We recommend checking and/or replacing the
battery every one to three months. If the battery is weak, replace it
immediately. For maximum performance we recommend using a good
quality battery (such as Eveready type 6F22 or equivalent).
RADIO OPERATION
1.
Set the Power Switch (#6) to "ON" position.
2. Set the AM / FM Band Selection Switch (#11) to desired band.
3.
Tune to the desired station with Tuning Control (#10).
4.
Adjust the volume level with Volume Control (#12).
5. For best FM reception, fully extend the FM Antenna Wire. For best
AM reception, try turning the unit slowly until the best station
reception is obtained.
6. The radio can be switched off by setting Power Switch (#6) to the
"OFF" position.
Note: Do not connect the FM Antenna wire to any other external
antenna.
SETTING THE CLOCK TIME
1. Set the Clock Setting Switch (#5) to the time set position. The 2 dots
between the hour and minutes will begin flashing.
2. Rotate the Rotary Set Dial (#8) counterclockwise for adjusting the
current minute or clockwise for adjusting the current hour.
3.
A "PM" Indicator is located on the LED Clock Display (#7) in the
upper left-hand corner. The time will be in the "AM" range when the
"PM" indicator is not lit. It is important that the "AM" or "PM" setting is
correct for proper operation of the alarm function.
4.
Once the time is adjusted, set the Clock Setting Switch (#5) to the
"RUN" position. The 2 flashing dots will stop flashing.
P5

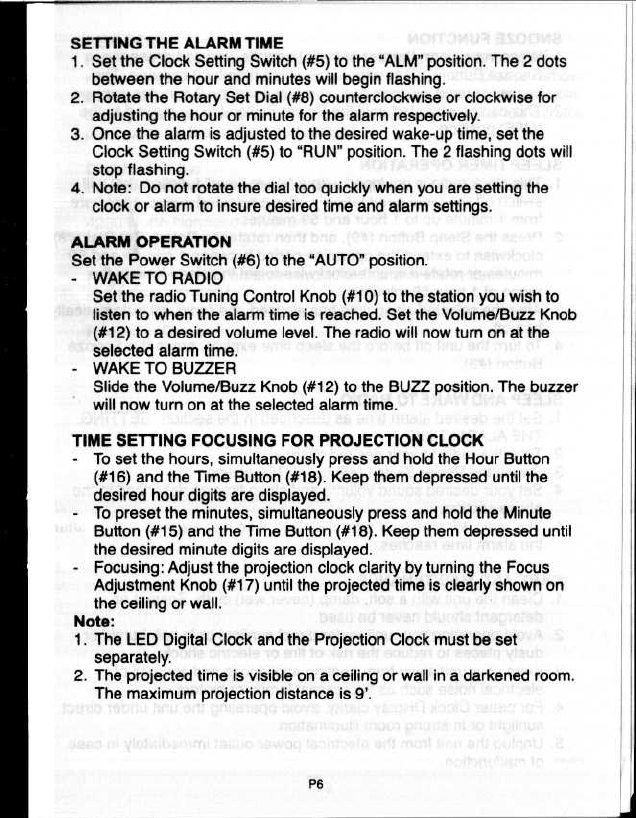

SETTING THE ALARM TIME
1. Set the Clock Setting Switch (#5) to the "ALM" position. The 2 dots
between the hour and minutes will begin flashing.
2.
Rotate the Rotary Set Dial (#8) counterclockwise or clockwise for
adjusting the hour or minute for the alarm respectively.
3. Once the alarm is adjusted to the desired wake-up time, set the
Clock Setting Switch (#5) to "RUN" position. The 2 flashing dots will
stop flashing.
4. Note: Do not rotate the dial too quickly when you are setting the
clock or alarm to insure desired time and alarm settings.
ALARM OPERATION
Set the Power Switch (#6) to the "AUTO" position.
- WAKE TO RADIO
Set the radio Tuning Control Knob (#10) to the station you wish to
listen to when the alarm time is reached. Set the Volume/Buzz Knob
(#12) to a desired volume level. The radio will now turn on at the
selected alarm time.
- WAKE TO BUZZER
Slide the Volume/Buzz Knob (#12) to the BUZZ position. The buzzer
will now turn on at the selected alarm time.
TIME SETTING FOCUSING FOR PROJECTION CLOCK
- To set the hours, simultaneously press and hold the Hour Button
(#16) and the Time Button (#18). Keep them depressed until the
desired hour digits are displayed.
- To preset the minutes, simultaneously press and hold the Minute
Button (#15) and the Time Button (#18). Keep them depressed until
the desired minute digits are displayed.
- Focusing: Adjust the projection clock clarity by turning the Focus
Adjustment Knob (#17) until the projected time is clearly shown on
the ceiling or wall.
Note:
1.
The LED Digital Clock and the Projection Clock must be set
separately.
2. The projected time is visible on a ceiling or wall in a darkened room.
The maximum projection distance is 9'.
P6

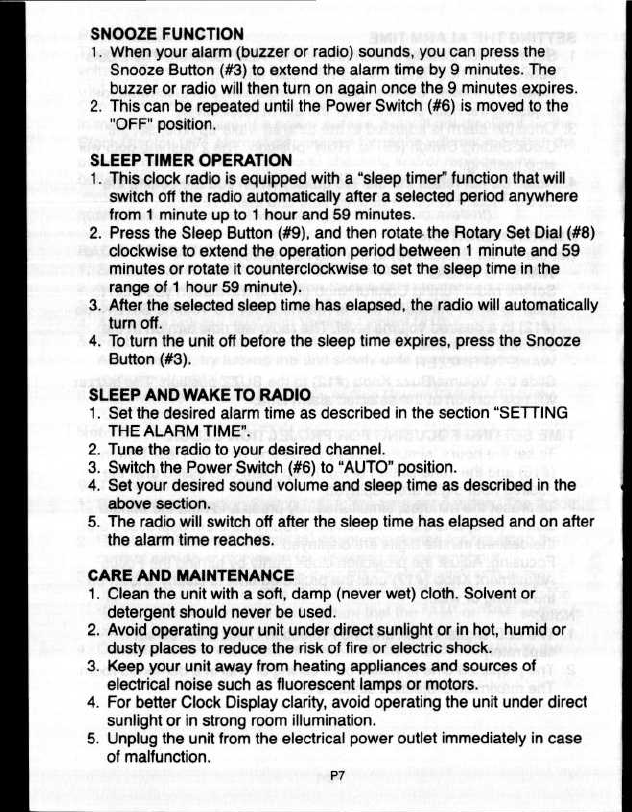

SNOOZE FUNCTION
1. When your alarm (buzzer or radio) sounds, you can press the
Snooze Button (#3) to extend the alarm time by 9 minutes. The
buzzer or radio will then turn on again once the 9 minutes expires.
2.
This can be repeated until the Power Switch (#6) is moved to the
"OFF" position.
SLEEP TIMER OPERATION
1. This clock radio is equipped with a "sleep timer" function that will
switch off the radio automatically after a selected period anywhere
from 1 minute up to 1 hour and 59 minutes.
2.
Press the Sleep Button (#9), and then rotate the Rotary Set Dial (#8)
clockwise to extend the operation period between 1 minute and 59
minutes or rotate it counterclockwise to set the sleep time in the
range of 1 hour 59 minute).
3.
After the selected sleep time has elapsed, the radio will automatically
turn off.
4. To turn the unit off before the sleep time expires, press the Snooze
Button (#3).
SLEEP AND WAKE TO RADIO
1.
Set the desired alarm time as described in the section "SETTING
THE ALARM TIME".
2. Tune the radio to your desired channel.
3. Switch the Power Switch (#6) to "AUTO" position.
4.
Set your desired sound volume and sleep time as described in the
above section.
5. The radio will switch off after the sleep time has elapsed and on after
the alarm time reaches.
CARE AND MAINTENANCE
1.
Clean the unit with a soft, damp (never wet) cloth. Solvent or
detergent should never be used.
2. Avoid operating your unit under direct sunlight or in hot, humid or
dusty places to reduce the risk of fire or electric shock.
3.
Keep your unit away from heating appliances and sources of
electrical noise such as fluorescent lamps or motors.
4.
For better Clock Display clarity, avoid operating the unit under direct
sunlight or in strong room illumination.
5.
Unplug the unit from the electrical power outlet immediately in case
of malfunction.
P7

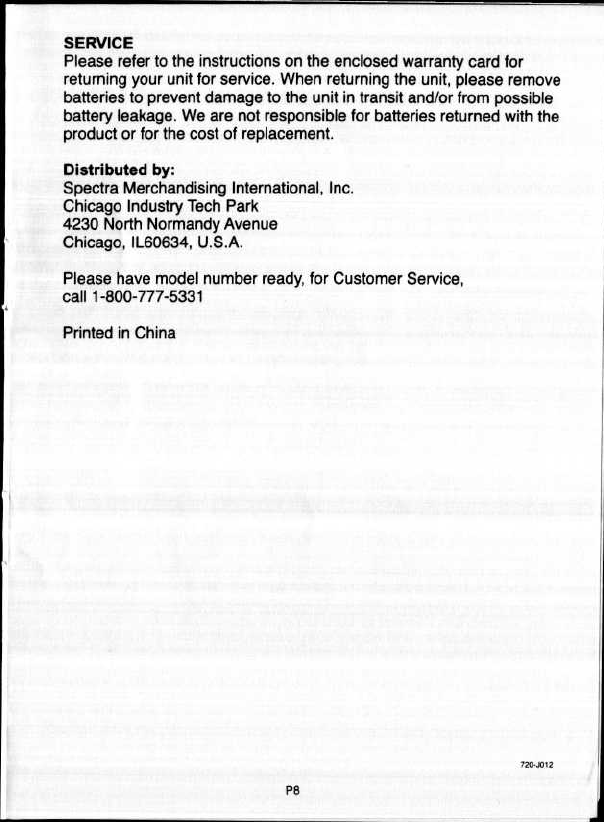

SERVICE
Please refer to the instructions on the enclosed warranty card for
returning your unit for service. When returning the unit, please remove
batteries to prevent damage to the unit in transit and/or from possible
battery leakage. We are not responsible for batteries returned with the
product or for the cost of replacement.
Distributed by:
Spectra Merchandising International, Inc.
Chicago Industry Tech Park
4230 North Normandy Avenue
Chicago, 160634, U.S.A.
Please have model number ready, for Customer Service,
call 1-800-777-5331
Printed in China
720-J012
P8
