Jesco INFINA DL-AC-FLEX2-RGBW User manual

INFINA® 2 AC LED FLEXIBLE LINEAR
DRIVERLESS RGBW LED STRIP
DL-AC-FLEX2-RGBW Project
Fixture Type
Notes
NY CA
15 Harbor Park Drive
Port Washington, NY 11050
© 2023 JESCO LIGHTING GROUP, LLC
OF
Specications subject to change without notice JW 01/16/2023
800 527 7796
855 265 5768
800 527 7796
855 265 5768
[e-mail]
Tech Support 855 592 0029
219 South 6th Ave
City of Industry, CA 91746
71
Main
Fax
Main
Fax
Please read and save these instructions. Read carefully before using product. Protect yourself and others by observing all
safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage
to product or property. Please retain instruction sheet for future reference.
DO NOT CUT OR SHORTEN INFINA®. DOING SO CAN CAUSE RISK OF ELECTRICAL SHOCK.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
SAVE THESE INSTRUCTIONS
All electrical connections must be in accordance with local codes, ordinances and the National Electric Code. This product
operates on 120 VAC; always conrm the maximum wattage of the linear strip does not exceed the maximum wattage of
the circuit it is connected to. If you are unfamiliar with methods of installing electrical wiring, secure the services of a qualied
licensed electrician.
• Do not cover this product as the covering may cause the exible light to overheat and melt or ignite.
• Do not operate with the exible light while attached to plastic spool or tightly coiled. Excess heat may melt the spool
and/or strip light.
• Do not puncture, cut, shorten, or splice the exible lighting.
• Do not route the cord or exible lighting cable through walls, doors, windows or any like part of the building structure.
• Do not use if there is any damage to the light or cord insulation. Inspect periodically.
• Do not submerge exible light in liquids, or use the product in the vicinity of standing water or other liquids.
• Do not install near areas with exposure to salt water or chlorinated water.
• Secure this exible light using only hangers or clips provided. Do not secure this product with staples, nails, or like
means that may damage the insulation or permanently attach to the building structure.
• Do not subject exible lighting to continuous exing.
• Do not install in cabinets, tanks or enclosures of any kind.
• Do not install closer than 3 meters from a swimming pool surface.
• Do not install in environment where LED chips are exposed to direct sunlight as damage to the phosphor will occur.
• DO NOT EXCEED THE MAXIMUM NUMBER OF EXTENSIONS OR FLEXIBLE LIGHT LENGTHS PERMITTED BY THE MARKING.
WARNING: When using outdoor-use portable lighting products, basic safety precautions should always be
followed to reduce the risk of re, electric shock, and personal injury, including the following:
Read All Instructions
a) Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuits or outlet to be used for the
outdoor use exible lighting product. Receptacles are available having built-in GFCI protection for this measure of
safety.
b) Use only outdoor extension cords, such as type SW, SOW, STW, STOW, SJW, SJOW, SJTW, or SJTOW.
This designation is marked on the wire of the extension cord.
c) Caution: Do not install closer than 3 meters from a swimming pool surface.
ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY, ACTUAL PRODUCT MAY VARY
RATED 120 VOLT AC to LC-AC-600-INT
DL-AC-FLEX2-RGBW |3Watt/Foot | MAX 164 Feet
Note: Each 5 feet of connecting cable is equvalent to 1 linear foot of INFINA®linear strip
WARNING: RISK OF FIRE AND SHOCK

INFINA® 2 AC LED FLEXIBLE LINEAR
DRIVERLESS RGBW LED STRIP
DL-AC-FLEX2-RGBW Project
Fixture Type
Notes
NY CA
15 Harbor Park Drive
Port Washington, NY 11050
© 2023 JESCO LIGHTING GROUP, LLC
OF
Specications subject to change without notice JW 01/16/2023
800 527 7796
855 265 5768
800 527 7796
855 265 5768
[e-mail]
Tech Support 855 592 0029
219 South 6th Ave
City of Industry, CA 91746
72
Main
Fax
Main
Fax
120V
120V
INDOOR
OUTDOOR
LC-PC-600LC-PC-500
5V 7V 7V 12V
24V 120V
LC-RF-510W-RGBWWLC-PC-400LC-PC-100
LC-AC-600-INT
4 CHANNELS
120V DC OUT
LC-AC-600-INT
4 CHANNELS
120V DC OUT
CONTROLLER OPTIONS
LINE VOLTAGE
DMX INTERFACE
REQUIRED
REQUIRED
LINE VOLTAGE
DMX INTERFACE
DL-AC-FLEX2-RGBW
1 run up to 164 Ft 492Watt
DL-AC-FLEX2-RGBW
Multiple runs up to 164 Ft each <700Watt total
120V AC
240V AC
120V AC
240V AC
120V AC
240V AC
120V AC
240V AC
DMX SIGNAL
DMX SIGNAL
LC-PC-100
May require a junction box
for hardwiring, depends on
the controller chosen
May require a junction box
for hardwiring, depends on
the controller chosen
Seal connector with silicone
for outdoor application
requires a junction box for hardwiring
requires a junction box
for hardwiring
requires a junction box
for hardwiring
requires a junction box for hardwiring
SCHEMATIC for reference only, not to scale, not for actual installation

INFINA® 2 AC LED FLEXIBLE LINEAR
DRIVERLESS RGBW LED STRIP
DL-AC-FLEX2-RGBW Project
Fixture Type
Notes
NY CA
15 Harbor Park Drive
Port Washington, NY 11050
© 2023 JESCO LIGHTING GROUP, LLC
OF
Specications subject to change without notice JW 01/16/2023
800 527 7796
855 265 5768
800 527 7796
855 265 5768
[e-mail]
Tech Support 855 592 0029
219 South 6th Ave
City of Industry, CA 91746
73
Main
Fax
Main
Fax
MOUNTING OPTIONS
3
6in 15cm
6in 15cm*
6in 15cm
MOUNTING “U” CLIP
2
HARDWIRE CLIP
1-7/8” | 47mm
3
3
3
1a
PLASTIC CHANNEL
A
HARDWIRE
INDOOR
OUTDOOR
B
C
METAL CHANNEL
OPTIONAL
LENS
COVER
2
1b
OPTIONAL ADJ. BRACKET
FACE-DOWN OR VERTICAL APPLICATIONS
Mounting option (A) with channel is recommended.
FACE-UP OR HORIZONTAL APPLICATIONS
Mounting option (A)(B)(C)are all appropriate.
SCREW TO
LOCK POSITION
1/8 INCH
minimum
3.5 mm
1/8 INCH
minimum
3.5 mm
CHANNEL & MOUNTING CLIPS
Allow 1/8 inch (3.5mm) clearance
,
6 INCH / 15 CM
6 INCH / 15 CM
1a&b
1a
1b
•minimum 3 per 6 foot channel
DIRECT SCREW MOUNT
•install screw every 6 inch
DIRECT SCREW MOUNT
MOUNTING U CLIP
•Install mounting clip every 6 inch
HARDWIRE CLIP
•Install 2 per section combined with
other mounting method
•Install every 6 inch as sole mounting
method
2
3
Per safety requirements
DL-AC-FLEX2-RGBW-MC-HW mounting clips must be
used for mounting at the beginning and the end
of each section of DL-AC-FLEX2-RGBW in arun.
HARDWIRING APPLICATIONS

INFINA® 2 AC LED FLEXIBLE LINEAR
DRIVERLESS RGBW LED STRIP
DL-AC-FLEX2-RGBW Project
Fixture Type
Notes
NY CA
15 Harbor Park Drive
Port Washington, NY 11050
© 2023 JESCO LIGHTING GROUP, LLC
OF
Specications subject to change without notice JW 01/16/2023
800 527 7796
855 265 5768
800 527 7796
855 265 5768
[e-mail]
Tech Support 855 592 0029
219 South 6th Ave
City of Industry, CA 91746
74
Main
Fax
Main
Fax
DL-AC-FLEX2-RGBW-HW(08/20)
120V AC
UL LISTED OUTDOOR
JUNCTION BOX
(not included)
DMX OUTPUT CABLE
DMX CABLE
DMX CABLE
Diagram 1.1
UL LISTED OUTDOOR
SPLICE BOX
(not included)
Nut Strain Relief Bushing
LC-AC-600 -INT
DL-AC-FLEX2-RGBW
LC-CC-120 OPTIONAL
LC-PC-600
1. Connect 120V AC supply wire to LC-PC-600 and LC-AC-600-INT’s input wires in an UL listed outdoor junction box.
BLACK to BLACK, WHITE to WHITE. Secure all connections via outdoor wire nuts. Install weatherproof lid per
manufacturer’s instructions without pinching wires.
For indoor applications, indoor junction box may be used.
LC-PC-600 and LC-AC-600-INT can be wired to 120V AC in separate circuit.
2. Connect LC-PC-600’s DMX output cable with barrel connector to LC-AC-600-INT DMX’s cable with barrel connector.
Secure connection by tightening lock nut on barrel connector. Additional LC-AC-600-INT can be daisy chain with
the DMX cable with barrel connector for DMX signal.
3. Connect DL-AC-FLEX2-RGBW-HW20 cable to LC-AC-600-INT in an UL listed outdoor splice box. Follow diagram 1.1 for
correct color wires connection. Install included strain relief bushing on DL-AC-FLEX2-RGBW-HW20 cable and onto
splice box. Install weatherproof lid per manufacturer’s instructions without pinching wires.
For indoor applications, indoor splice box may be used.
Rigid and exible conduit may be used to protect any exposed cables in accordance with local codes, ordinances
and the National Electric Code
TEMP RANGE:-20 -+50
SEC:
Uin=100-240AC
Iin=15mA MAX
AC 100-240V
INPUT
AC INPUT
Black :N
White :L
AC DMX512&RDM Controller
LC-PC-600
IP67
XLR Mini Connector 1: DMX- 2: DMX+ 3: COMMON
Reset
Key
Learning
Key
13
2
INSTALLATIONS WITH LC-PC-600
TURN OFF ELECTRICITY
at main fuse box (or circuit breaker
box) before beginning installation
by switching circuit breaker off or
removing fuse.
MIN 90º C SUPPLY CONDUCTORS.
HARDWARE FOR INSTALLATION
(NOT INCLUDED)
HARDWARE
(INCLUDED)
UL LISTED OUTDOOR
JUNCTION BOX
& SPLICE BOX
STRAIN RELIEF
BUSHINGS FOR SPLICE
BOX TO J-BOX
1x SJT CORD
STRAIN RELIEF BUSHING
WATERPROOF
WIRE NUTS
RATED 120VOLT AC
All electrical connections must be in accordance with local codes, ordinances and the National Electric Code
CONSULT A QUALIFIED
ELECTRICIAN TO ENSURE CORRECT
BRANCH CIRCUIT

INFINA® 2 AC LED FLEXIBLE LINEAR
DRIVERLESS RGBW LED STRIP
DL-AC-FLEX2-RGBW Project
Fixture Type
Notes
NY CA
15 Harbor Park Drive
Port Washington, NY 11050
© 2023 JESCO LIGHTING GROUP, LLC
OF
Specications subject to change without notice JW 01/16/2023
800 527 7796
855 265 5768
800 527 7796
855 265 5768
[e-mail]
Tech Support 855 592 0029
219 South 6th Ave
City of Industry, CA 91746
75
Main
Fax
Main
Fax
DL-AC-FLEX2-RGBW-HW(08/20)
120V AC
UL LISTED OUTDOOR
JUNCTION BOX
(not included)
DMX OUTPUT
DMX CABLE
DMX CABLE

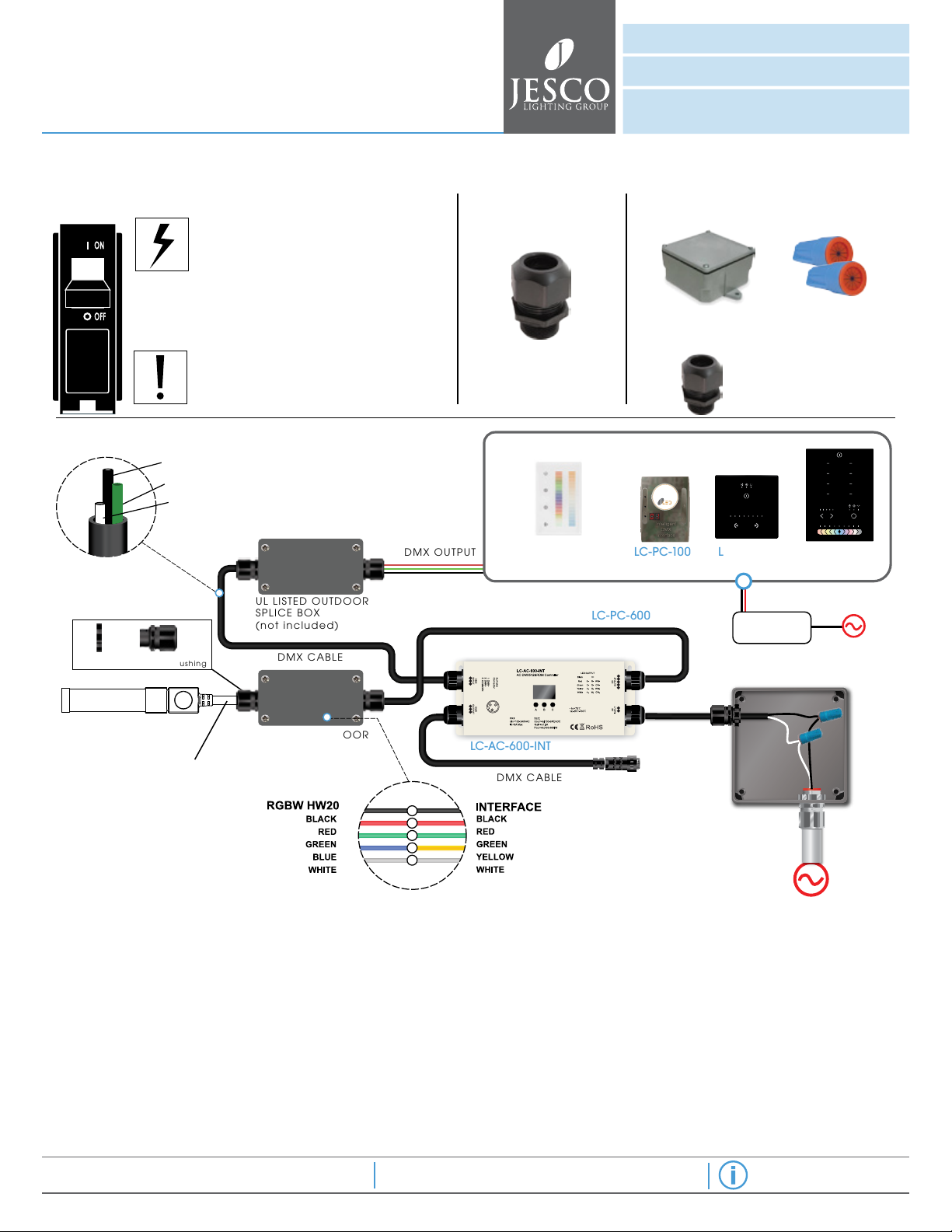

Diagram 2.1
Diagram 1.2
UL LISTED OUTDOOR
SPLICE BOX
(not included)
UL LISTED OUTDOOR
SPLICE BOX
(not included)
Nut Strain Relief Bushing
GREEN: DMX-
WHITE: DMX+
BLACK: GROUND
LC-AC-600 -INT
DL-AC-FLEX2-RGBW
LC-PC-600
1. Connect 120V AC supply wire to LC-AC-600-INT’s input wires in an UL listed outdoor junction box.
BLACK to BLACK, WHITE to WHITE. Secure all connections via outdoor wire nuts. Install weatherproof lid per
manufacturer’s instructions without pinching wires.
For indoor applications, indoor junction box may be used.
2. Connect DMX controller’s power supply to 120V AC supply.
3. Splice and connect LC-AC-600-INT’s DMX cable with to DMX controller’s output cable in an UL listed splice box.
Follow Diagram 2.2 for correct wiring.
4. Connect DL-AC-FLEX2-RGBW-HW20 cable to LC-AC-600-INT in an UL listed outdoor splice box. Follow diagram 2.1 for
correct color wires connection. Install included strain relief bushing on DL-AC-FLEX2-RGBW-HW20 cable and onto
splice box. Install weatherproof lid per manufacturer’s instructions without pinching wires.
For indoor applications, indoor splice box may be used.
Rigid and exible conduit may be used to protect any exposed cables in accordance with local codes, ordinances
and the National Electric Code
LC-PC-100 LC-PC-400 LC-PC-500
AC TO DC
POWER SUPPLY
LC-PC-100
1
2
3
4
5
6
7
8
A B C D E
LC-RF-510W-RGBWW
INSTALLATIONS WITH LC-RF-510W-RGBWW, LC-PC-(100/400/500)
TURN OFF ELECTRICITY
at main fuse box (or circuit breaker
box) before beginning installation
by switching circuit breaker off or
removing fuse.
MIN 90º C SUPPLY CONDUCTORS.
HARDWARE FOR INSTALLATION
(NOT INCLUDED)
HARDWARE
(INCLUDED)
UL LISTED OUTDOOR
JUNCTION BOX
& SPLICE BOX
STRAIN RELIEF
BUSHINGS FOR SPLICE
BOX TO J-BOX
1x SJT CORD
STRAIN RELIEF BUSHING
WATERPROOF
WIRE NUTS
RATED 120VOLT AC
All electrical connections must be in accordance with local codes, ordinances and the National Electric Code
CONSULT A QUALIFIED
ELECTRICIAN TO ENSURE CORRECT
BRANCH CIRCUIT

INFINA® 2 AC LED FLEXIBLE LINEAR
DRIVERLESS RGBW LED STRIP
DL-AC-FLEX2-RGBW Project
Fixture Type
Notes
NY CA
15 Harbor Park Drive
Port Washington, NY 11050
© 2023 JESCO LIGHTING GROUP, LLC
OF
Specications subject to change without notice JW 01/16/2023
800 527 7796
855 265 5768
800 527 7796
855 265 5768
[e-mail]
Tech Support 855 592 0029
219 South 6th Ave
City of Industry, CA 91746
76
Main
Fax
Main
Fax
Product is not lighting up
Some LEDs are not functional
LEDs are flickering
LEDs have uneven color
Some LEDs and integral circuit
chips appear oxidized with brown
or green marks
LED strip is too long or too short
for installation
1. Breaker may have been tripped.
2. Fuse may have been blown.
3. Incorrect branch wiring with LC-AC-600-INT and
DL-AC-FLEX2-RGBW hardwire cable.
4. Incorrect DMX cables wiring
1. Product may have been bent excessively or bent on horizontal
plane, potentially breaking connections.
1. Product may have been bent excessively or bent on horizontal
plane, potentially breaking connections
2. Product may be connected 120V AC directly
1. Product may have been painted over or covered with foreign ‘
substance.
2. Product’s operating temperature may have been exceeded.
3. Product may have prolonged exposure to direct sunlight
1. Product may have been submerged in puddle of water or snow
for a period of time.
2. Product may have been altered in field.
1. Incorrect measurements may be given to factory for production.
1. Check and switch on breaker.
2. Replace fuse in fuse holder or plug
3. Check wiring on LC-AC-600-INT and
DL-AC-FLEX2-RGBW hardwire cable.
4. Check DMX cables wiring
1. Disconnect. Product warranty may have
been voided, contact your local distributor.
1. Disconnect. Product warranty may have
been voided, contact your local distributor.
2. Disconnect. Product warranty may have
been voided, contact your local distributor.
1. Clean product with non-corrosive cleaners.
2. Disconnect. Product warranty may have
been voided, contact your local distributor.
3. Disconnect. Product warranty may have
been voided, contact your local distributor.
1. Disconnect. Product warranty may have
been voided, contact your local distributor.
2. Disconnect. Product warranty may have
been voided, contact your local distributor.
1. Contact your local distributor. Do not attempt
to splice or field shorten the product. Doing
so will void product warranty and ETL safety
certification.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTION / ACTION

INFINA® 2 AC LED FLEXIBLE LINEAR
DRIVERLESS RGBW LED STRIP
DL-AC-FLEX2-RGBW Project
Fixture Type
Notes
NY CA
15 Harbor Park Drive
Port Washington, NY 11050
© 2023 JESCO LIGHTING GROUP, LLC
OF
Specications subject to change without notice JW 01/16/2023
800 527 7796
855 265 5768
800 527 7796
855 265 5768
[e-mail]
Tech Support 855 592 0029
219 South 6th Ave
City of Industry, CA 91746
77
Main
Fax
Main
Fax
≥ 3 INCH
RADIUS
• CONNECTS TO GFCI CIRCUITS ONLY
• DO NOT INSTALL NEAR AREAS WITH EXPOSURE TO SALT WATER OR CHLORINATED WATER
• DO NOT INSTALL CLOSER THAN 3 METERS FROM A SWIMMING POOL SURFACE
• DO NOT INSTALL IN CABINETS, TANKS OR ENCLOSURES OF ANY KIND
• DO NOT INSTALL NEAR FLAMMABLE OR CORROSIVE LIQUIDS
FOR HARDWIRE APPLICATIONS,
A PROVIDED HW CLIP MUST BE
INSTALLED AT THE BEGINNING
AND END OF EACH SECTION
4°F 104°F
APPLICATIONS TO AVOID
OUTDOORHARDWIRE APPLICATIONS
Make sure DMX wires and RGBW wires are correctly connected
DO NOT BEND
90 DEGREE
DO NOT INSTALL
INSIDE BUILDING
STRUCTURE
DO NOT BEND ON
HORIZONTAL PLANE
DO NOT FOLD
OR OVERLAP
DO NOT USE THIRD
PARTY FASTENERS
DO NOT USE ADHESIVE
FOR INSTALLATION
DO NOT INSTALL IN
DIRECT SUNLIGHT
DO NOT SUBMERGE OR
INSTALL IN AREA WHERE
IT IS LIKELY TO PUDDLE
DO NOT TWIST
DO NOT HANG
OR SUSPEND
DO NOT CUT / PUNCTURE
LED STRIP OR
CONNECTING CABLE
DO NOT STEP ON OR
PUT OBJECT ON TOP
DO NOT COVER OR
WRAP TAPE OVER
DO NOT PAINT OVER
ANY PART
DO NOT POWER ON
WHEN STRIP LIGHT IS
IN A SPOOL OR ON A
REEL
INTERFACE
BLACK
RED
GREEN
YELLOW
WHITE
HW20
DMX CABLE
BLACK
RED
GREEN
BLUE
WHITE
GREEN: DMX-
WHITE: DMX+
BLACK: GROUND
A 5 YEAR LIMITED WARRANTY for indoor applications that necessitate up to 16 consecutive operational hours per 24 hour period.
A 3 YEAR LIMITED WARRANTY for outdoor applications.
A 2 YEAR LIMITED WARRANTY for applications that necessitate more than 16 consecutive operational hours per 24 hour period.
CAUTIONS
