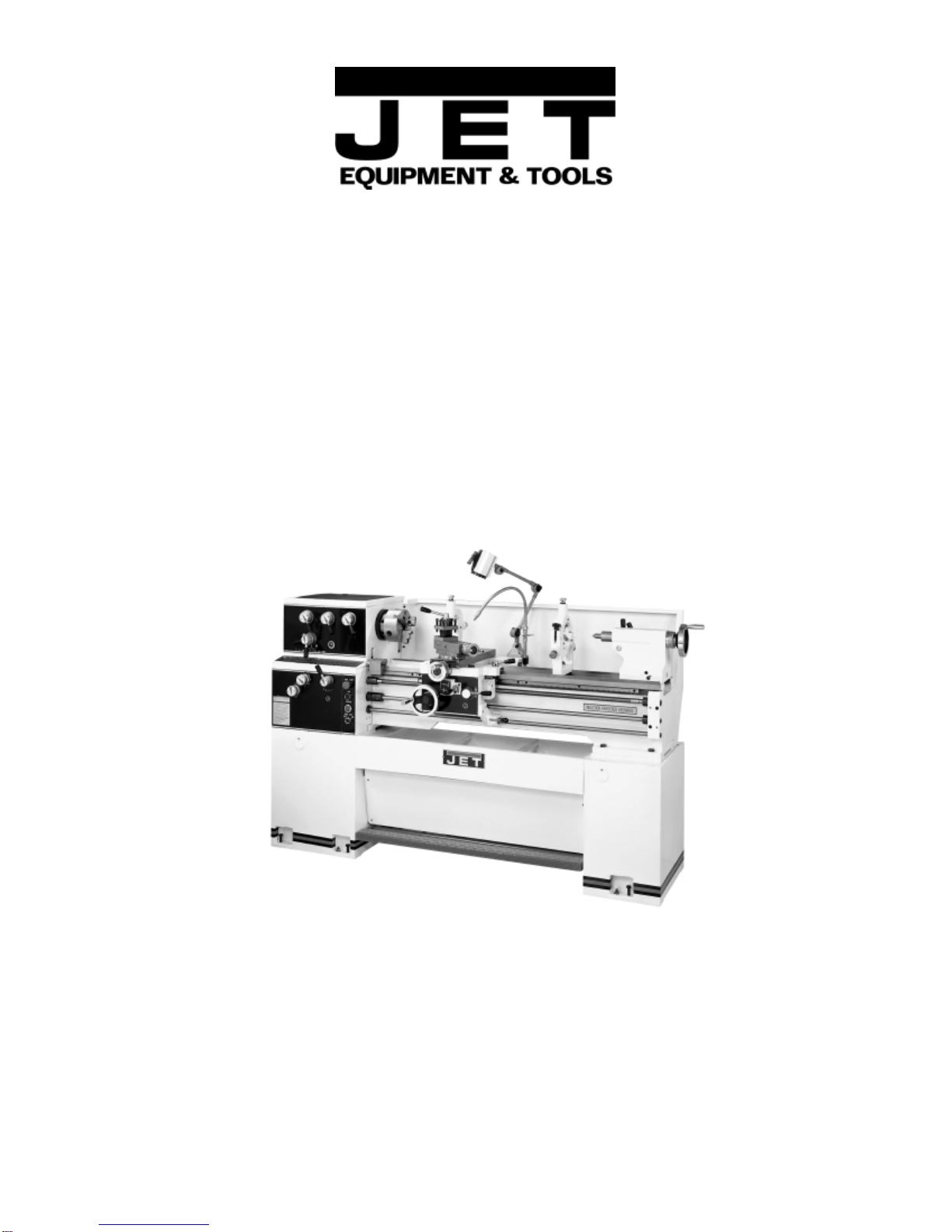

Jet GH-1340W User manual

PARTS LIST
GH-1340W/1440W Lathes
JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 253-351-6000
AWMH Company Auburn, WA98071-1349 Fax [phone]
www.jettools.com e-mail [e-mail] M-321810-1 6/00

2
Table of Contents
Table of Contents........................................................................................................................2
Headstock Assembly I..............................................................................................................3-5
Headstock Assembly II.............................................................................................................6-7
Headstock Assembly III..........................................................................................................8-10
Gearbox Assembly I.............................................................................................................11-12
Gearbox Assembly II............................................................................................................13-14
Gearbox Assembly III ...........................................................................................................15-17
Apron Assembly I .................................................................................................................18-19
Apron Assembly II ................................................................................................................20-21
Carriage & Cross Slide Assembly.........................................................................................22-24
Four Way Tool Post & Compound Slide Assembly.................................................................25-26
Tailstock Assembly...............................................................................................................27-28
Bed Assembly ......................................................................................................................29-31
Stand Assembly ...................................................................................................................32-33
End Gear Assembly..............................................................................................................34-35
Follow Rest ...............................................................................................................................36
Thread Dial Assembly................................................................................................................37
Steady Rest..........................................................................................................................38-39
Coolant & Work Light Assembly............................................................................................40-41
Electrical Components...............................................................................................................42
W Series Lathes Electrical Schematic Symbol Glossary.............................................................43
Wiring Diagram 1 Phase............................................................................................................44
Wiring Diagram 3 Phase............................................................................................................45

3

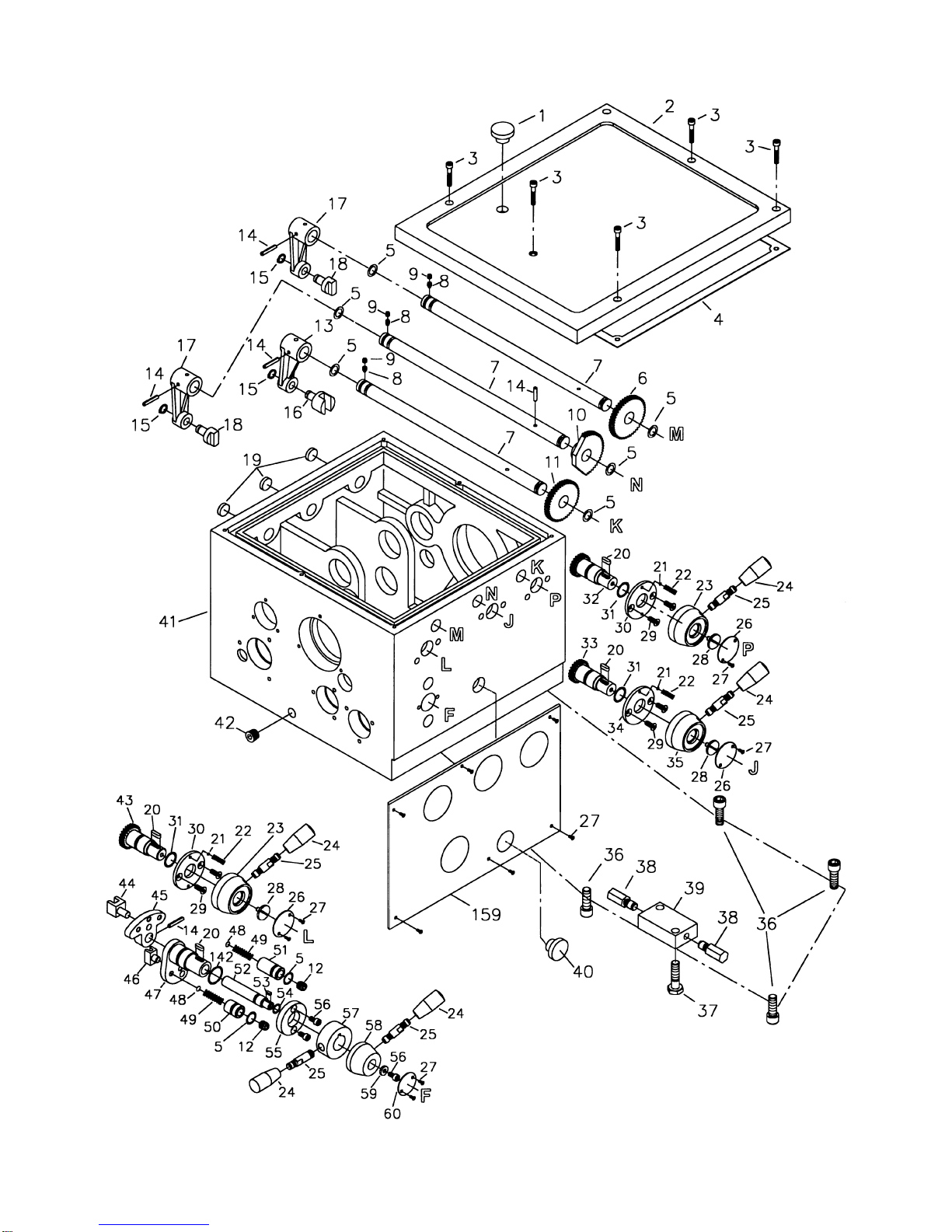

Headstock Assembly I

4
Headstock Assembly I
Index Part
No. No. Description Size Quantity
1..........GH1340A-04-06........................Plug.......................................... ...................................1
2..........GH1440W-04-60.......................Headstock Cover ...................... ...................................1
3..........TS-1503081..............................Hex Socket Cap Screw.............M6x35.........................6
4..........GH1440W-04-61.......................Gasket...................................... ...................................1
5..........GB3452.1-14X2.65 ...................O-Ring......................................14x2.65.......................8
6..........GH1440W-04-38.......................Gear.........................................38T.............................1
7..........GH1440W-04-41.......................Shaft......................................... ...................................3
8..........GB75-M6x10.............................Set Screw.................................M6x10.........................3
9..........GB77-M6x6...............................Set Screw.................................M6x6...........................3
10........GH1440W-04-37.......................Gear.........................................48T.............................1
11........GH1440W-04-36.......................Gear.........................................43T.............................1
12........GB77-M12x12...........................Set Screw.................................M12x12.......................2
13........GH1440W-04-43.......................Shift Arm................................... ...................................1
14........GB879-5X30.............................Spring Pin.................................5x30............................7
15........GB894.2-12 ..............................Retainer Ring............................12...............................3
16........GH1440W-04-45.......................Shift Fork.................................. ...................................1
17........GH1440W-04-35.......................Shift Arm................................... ...................................2
18........GH1440W-04-44.......................Gear Shifter .............................. ...................................2
19........GH1440W-04-10.......................Plug.......................................... ...................................3
20........GB1096-5X16...........................Key...........................................5x16............................4
21........GB308-SB8...............................Steel Ball...................................8.................................5
22........C6240-20018............................Spring....................................... ...................................5
23........GH1440W-04-49.......................Handle Body............................. ...................................2
24........GB4141.14-BM10X50...............Handle Cap............................... ...................................5
25........GH1440W-04-34.......................Handle Lever ............................ ...................................5
26........C6240-20001............................Lever Name Plate..................... ...................................3
27........TS-1531012..............................Pan Head Machine Screw.........M3x6.........................14
28........GH1440W-04-59.......................Screw ....................................... ...................................3
29........TS-1503031..............................Screw .......................................M6x12.........................6
30........GH1440W-04-50.......................Position Plate............................ ...................................2
31........GB3452.9-19X2.65 ...................O-Ring......................................19x2.65.......................3
32........GH1440W-04-40.......................Gear Shaft ................................22T.............................1
33........GH1440W-04-42.......................Gear Shaft ................................17T.............................1
34........GH1440W-04-51.......................Position Plate............................ ...................................1
35........GH1440W-04-48.......................Handle Body............................. ...................................1
36........TS-1506041..............................Hex Socket Cap Screw .............M12x35.......................4
37........GB5782-M10x40.......................Alignment Bolt...........................M10x40.......................2
38........GH1440W-04-62.......................Alignment Bolt........................... ...................................2
39........GH1440W-04-63.......................Alignment Block........................ ...................................1
40........GB1160.1-89.............................Oil Sight Glass..........................20...............................1
41........GH1440W-04-01.......................Headstock Casting (14”)............ ...................................1
............GH1340W-04-01.......................Headstock Casting (13”)............ ...................................1
42........05-75........................................Drain Plug................................. ...................................1
43........GH1440W-04-39.......................Gear Shaft ................................27T.............................1
44........GH1440W-04-47.......................Shaft Fork................................. ...................................1
45........GH1440W-04-36.......................Shifting Crank........................... ...................................1
46........GH1440W-04-71.......................Shaft Fork................................. ...................................1
47........GH1440W-04-56.......................Shifting Crank........................... ...................................1
48........GB308-SB9...............................Steel Ball...................................9.................................2
49........GH1440W-49............................Spring....................................... ...................................2
50........GH1440W-04-52.......................Shaft......................................... ...................................1

5
Index Part
No. No. Description Size Quantity
51........GH1440W-04-54.......................Shaft......................................... ...................................1
52........GH1440W-04-53.......................Shaft......................................... ...................................1
53........GB1096-4X10...........................Key...........................................4x10............................1
54........GB3452.9-10.6X2.65 ................O-Ring......................................10.6x2.65....................1
55........GH1440W-04-55.......................Collar........................................ ...................................1
56........TS-1503031..............................Hex Socket Cap Screw .............M6x12.......................18
57........GH1440W-04-57.......................Collar........................................ ...................................1
58........GH1440W-04-58.......................Handle Body............................. ...................................1
59........04-62........................................Washer..................................... ...................................1
60........04-90........................................Indicator Disk............................ ...................................1
142......GB3452.9-25X2.65 ...................O-Ring......................................25x2.65.......................3
159......GH1340W-04-02.......................Name Plate............................... ...................................1
............GH1440W-04-02.......................Name Plate............................... ...................................1
............GH-1340W-3J.B.S ....................3-Jaw Chuck (not shown).......... ...................................1
............GH-1340W-4J.B.S ....................4-Jaw Chuck (not shown).......... ...................................1

6
Headstock Assembly II

7
Headstock Assembly II
Index Part
No. No. Description Size Quantity
56........TS-1503031..............................Hex Socket Cap Screw .............M6x12.......................18
61........TS-1504041..............................Hex Socket Cap Screw .............M8x20.........................1
62........04-12........................................Washer..................................... ...................................1
63........04-11 ........................................Pulley........................................ ...................................1
64........11-10 ........................................Break Block............................... ...................................1
65........GB879-5X16.............................Pin............................................5x16............................1
66........11-09 ........................................Brake Actuator Shaft................. ...................................1
67........GB894.2-12 ..............................Retainer Ring............................12...............................1
68........GB9877.1-SD25X45X7.............Spacer ......................................SD25x45x7.................1
69........GB117-A6X26...........................Pin............................................A6x26.........................2
70........GB894.2-8................................Retainer Ring............................8.................................1
71........11-11.........................................Brake Retainer Stud.................. ...................................1
72........04-13........................................Cover........................................ ...................................1
73........04-14........................................Gasket...................................... ...................................1
74........GB894.2-25 ..............................Retainer Ring............................25...............................6
75........GB/T276-6205 ..........................Ball Bearing..............................6205/p5 ......................1
76........GB1096-8X20...........................Key...........................................8x20............................2
77........GH1440W-04-03.......................Shaft......................................... ...................................1
78........GB1096-8X72...........................Key...........................................8x72............................1
79........GH1440W-04-04.......................Gear.........................................50T.............................1
80........GH1440W-04-05.......................Gear.........................................37T.............................1
81........GH1440W-04-06.......................Gear.........................................43T.............................1
82........GB/T276-6204 ..........................Ball Bearing..............................6204/p5 ......................5
83........GH1440W-04-17.......................Washer..................................... ...................................1
84........GH1440W-04-12.......................Gear.........................................57T.............................1
85........GH1440W-04-11.......................Gear Shaft................................20T.............................1
86........GB893.1-47 ..............................Retainer Ring............................47...............................1
87........GB3452.1-40X2.65 ...................O-Ring......................................40x2.65.......................1
88........04-28........................................Plug.......................................... ...................................1
89........04-53........................................Bearing Cap.............................. ...................................2
90........04-52........................................Bearing Cap Gasket.................. ...................................2
91........GH1440W-04-08.......................Gear.........................................28T.............................1
92........GB1096-8X38...........................Key...........................................8x38............................1
93........GH1440W-04-09.......................Gear.........................................41T.............................1
94........GH1440W-04-10.......................Gear.........................................34T.............................1
95........GB894.2-40 ..............................Retainer Ring............................40...............................1
96........GB/T276-6005 ..........................Ball Bearing..............................6005/p5 ......................4
97........GH1440W-04-07.......................Gear Shaft ................................21T.............................1
98........GB894.2-17 ..............................Retainer Ring............................17...............................1
99........GB/T276-61803 ........................Ball Bearing..............................61803/p5.....................2
100......GH1440W-04-15.......................Gear .........................................21T.............................1
101......GH1440W-04-14.......................Gear .........................................58T.............................1
102......GH1440W-04-16.......................Washer..................................... ...................................1
103......GB894.2-55 ..............................Retainer Ring............................55...............................1
104......GH1440W-04-19.......................Gear .........................................59T.............................1
105......GH1440W-04-18.......................Gear .........................................31T.............................1
106......GB1096-10X18.........................Key...........................................10x18..........................1
107......GH1440W-04-13.......................Spline Shaft............................... ...................................1
108......GH1440W-04-24.......................Cover........................................ ...................................1
109......TS-1503081..............................Hex Socket Cap Screw.............M6x35.........................4
157......11-15 ........................................Brake Shoe Assembly............... ...................................1
164......VB-A73.....................................V-Belt (GH-1340W-1/3 & GH-1440W-1..........................2
............VB-A74.....................................V-Belt (GH-1440W-3)................ ...................................2

8
Headstock Assembly III

9
Headstock Assembly III
Index Part
No. No. Description Size Quantity
56........TS-1503031..............................Hex Socket Cap Screw .............M6x12.......................18
74........GB894.2-25 ..............................Retainer Ring............................25...............................6
82........GB/T276-6204 ..........................Ball Bearing..............................6204/p5 ......................5
89........04-53........................................Bearing Cap.............................. ...................................2
90........04-52........................................Bearing Cap Gasket.................. ...................................2
95........GB894.2-40 ..............................Retainer Ring............................40...............................1
96........GB/T276-6005 ..........................Ball Bearing..............................6005/p5 ......................4
102......GH1440W-04-16.......................Washer..................................... ...................................1
110......TS-1503041..............................Hex Socket Cap Screw.............M6x16.........................3
111......GH1440W-04-29.......................Cover........................................ ...................................1
112......04-60........................................Gasket...................................... ...................................1
113......TS-1502031..............................Hex Socket Cap Screw.............M5x12.........................2
114......GH1440W-04-31.......................Nut............................................ ...................................1
115......GB/T297-32011.........................Tapered Roller Bearing..............32011/p5.....................1
116......GH1440W-04-30.......................Gear.........................................38T.............................1
117......GH1440W-04-27.......................Lock Collar................................ ...................................1
118......GH1440W-04-21.......................Gear.........................................59T.............................1
119......TS-1504061..............................Hex Socket Cap Screw.............M8x30.........................1
120......GH1440W-04-23.......................Gear .........................................87T.............................1
121......GH1440W-04-25.......................Collar........................................ ...................................1
122......GB/T297-30212 ........................Tapered Roller Bearing..............30212/p5.....................1
123......GH1440W-04-32.......................Gasket...................................... ...................................1
124......GH1440W-04-28.......................Cover........................................ ...................................1
125......TS-1503051..............................Hex Socket Cap Screw.............M6x20.........................3
126......GB1096-6X30...........................Key...........................................6x30............................1
127......GB1096-10X55.........................Key...........................................10x55..........................1
128......TS-1504031..............................Hex Socket Cap Screw.............M8x16.........................3
129......04-31/1.....................................Spring....................................... ...................................3
130......04-86........................................Camlock Set Pin....................... ...................................3
131......04-85........................................Camlock.................................... ...................................3
132......GH1440W-04-22.......................Spindle...................................... ...................................1
133......GB894.2-20 ..............................Retainer Ring............................20...............................4
134......04-36........................................Spacer...................................... ...................................2
135......04-35........................................Gear .........................................32T.............................1
136......GB894.2-37 ..............................Retainer Ring............................37...............................1
137......04-54........................................Gear .........................................32T.............................1
138......GB1096-5X16...........................Key...........................................5x16............................1
139......04-55........................................Gear .........................................32T.............................1
140......TS-1523041..............................Set Screw.................................M6x12.........................1
141......04-37........................................Shaft......................................... ...................................1
142......GB3452.9-25X2.65 ...................O-Ring......................................25x2.65.......................3
143......04-47/1.....................................Key...........................................6x90............................1
144......04-46........................................Gear ........................................42T.............................1
145......04-45........................................Collar........................................ ...................................1
146......04-44........................................Gear ........................................32T.............................1
147......04-39........................................Collar........................................ ...................................1
148......04-41........................................Gear .........................................32T.............................1
149......GB/T276-6004 ..........................Ball Bearing..............................6004/p5 ......................2
150......GH1440W-04-33.......................Plug.......................................... ...................................1
151......04-47........................................Shaft (D)................................... ...................................1
152......04-43........................................Gear .........................................38T.............................1

10
Index Part
No. No. Description Size Quantity
153......04-42........................................Spline Shaft (E)......................... ...................................1
154......04-48........................................Housing Gasket ........................ ...................................1
155......04-49........................................Housing .................................... ...................................1
156......GB9877.1-SD25X40X7.............Spacer......................................SD25x40x7.................1
158......GH1440W-04-65.......................Collar........................................ ...................................1
160......GH1440W-04-66.......................Balance Space.......................... ...................................1
161......GH1440W-04-67.......................Balance Block........................... ...................................1
162......TS-1523041..............................Set Screw.................................M6x12.........................1
163......TS-1524031..............................Set Screw.................................M8x12.........................1

11

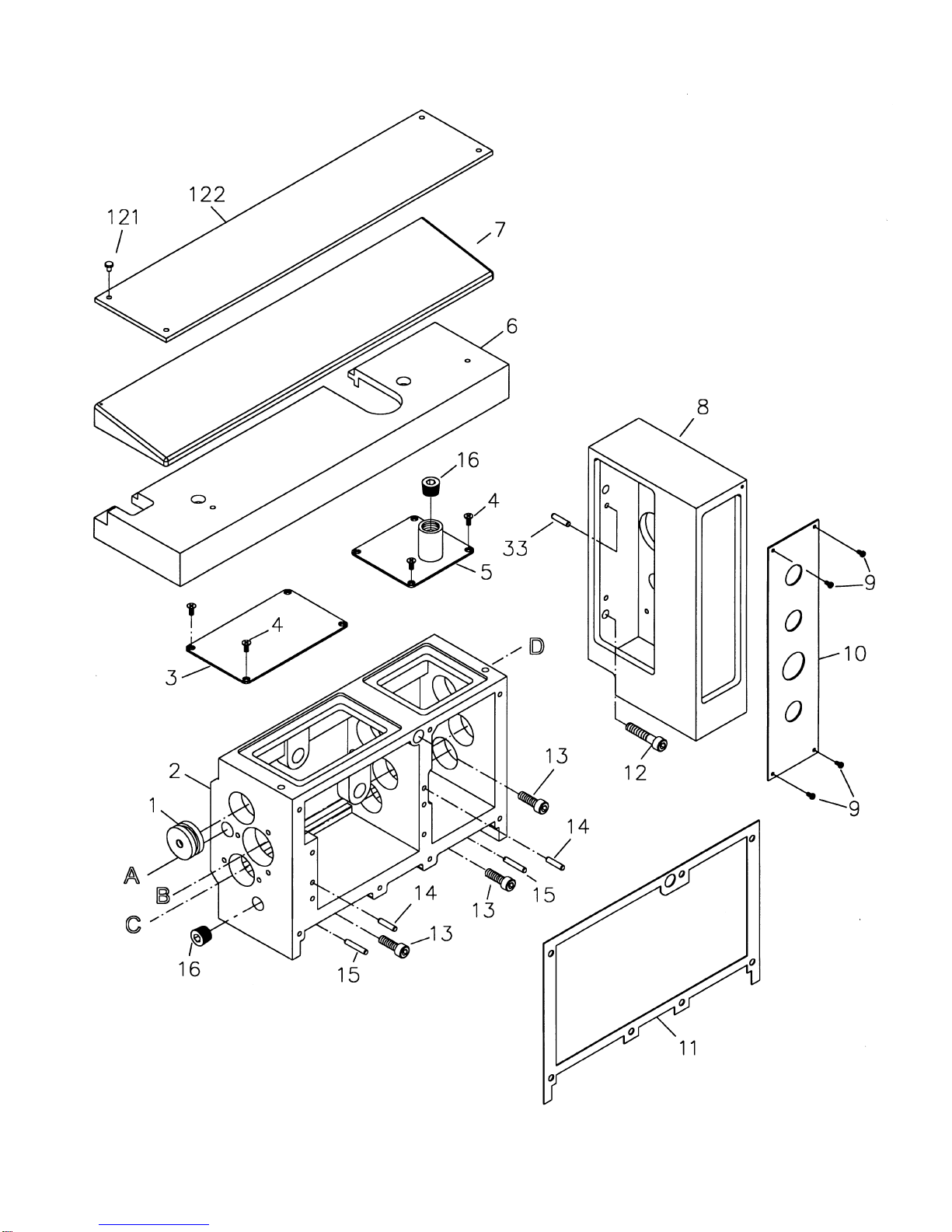

Gearbox Assembly I

12
Gearbox Assembly I
Index Part
No. No. Description Size Quantity
1..........05-73........................................Plug.......................................... ...................................1
2..........GH1440W-05-06.......................Gearbox Casting....................... ...................................1
3..........05-07........................................Front Cover............................... ...................................1
4..........TS-1532032..............................Flat Head Machine Screw.........M4x10.........................8
5..........GH1440W-05-26.......................Oil Cover (14”).......................... ...................................1
............GH1340W-05-26.......................Oil Cover (13”).......................... ...................................1
6..........GH1440W-05-07/1....................Cover (14”) ............................... ...................................1
............GH1340W-05-07/1....................Cover (13”) ............................... ...................................1
7..........GH1440W-05-08.......................Top Cover................................. ...................................1
8..........GH1440W-05-09.......................Bracket..................................... ...................................1
9..........TS-1531012..............................Pan Head Machine Screw.........M3x6...........................4
10........GH1440W-05-11.......................Electrical Plate.......................... ...................................1
11........05-61........................................Gearbox Gasket........................ ...................................1
12........TS-1504081..............................Hex Socket Cap Screw .............M8x40.........................2
13........TS-1504051..............................Hex Socket Cap Screw .............M8x25.........................3
14........GH1440W-14............................Pin............................................5x20............................2
15........GH1440W-15............................Pin............................................5x28............................2
16........05-75........................................Plug.......................................... ...................................2
33........GB118-A8X30...........................Pin............................................A8x30.........................2
121......GB867-2X4...............................Rivet.........................................2x4 .............................4
122......GH-1440W-05-12/1...................Speed Chart.............................. ...................................1

13

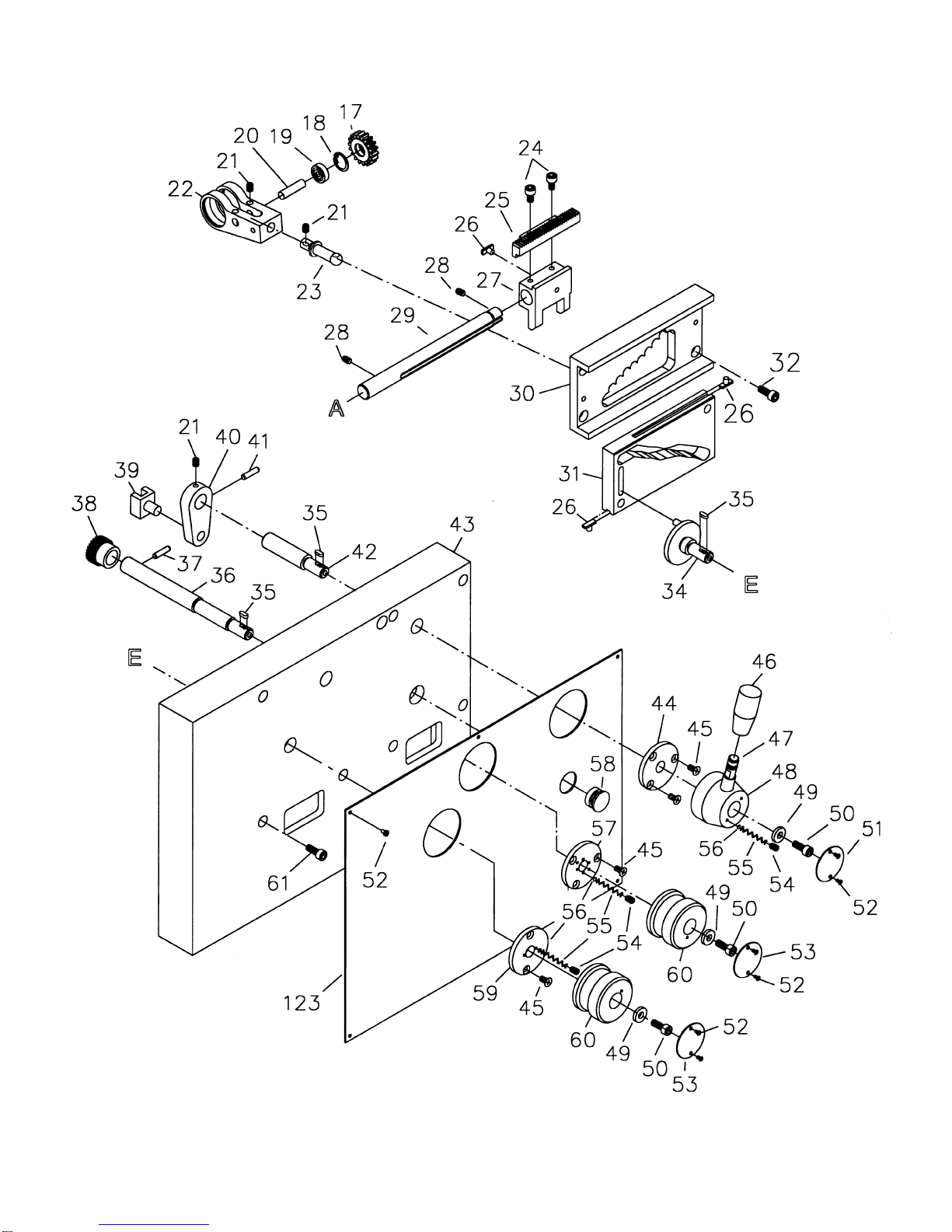

Gearbox Assembly II

14
Gearbox Assembly II
Index Part
No. No. Description Size Quantity
17........05-49........................................Gear.........................................16T.............................1
18........GH893.1-19..............................Retainer Ring............................19...............................1
19........GB/T276-6198 ..........................Bearing.....................................6198/p5 ......................1
20........05-51........................................Shaft......................................... ...................................1
21........TS-1523021..............................Set Screw.................................M6x8...........................4
22........05-03........................................Shifter....................................... ...................................1
23........05-02........................................Shaft......................................... ...................................1
24........TS-1503051..............................Hex Socket Cap Screw .............M6x20.........................2
25........05-13........................................Rack......................................... ...................................1
26........05-01........................................Shift Key................................... ...................................3
27........05-12........................................Shift Fork.................................. ...................................1
28........TS-1523021..............................Set Screw.................................M6x8...........................2
29........05-15........................................Shaft......................................... ...................................1
30........05-05........................................Locating Plate........................... ...................................1
31........05-04........................................Control Plate............................. ...................................1
32........TS-1503031..............................Hex Socket Cap Screw .............M6x12.........................4
33........GB118-A8X30...........................Pin............................................A8x30.........................2
34........05-60........................................Shift Hub................................... ...................................1
35........GB1096-4X10...........................Key...........................................4x10............................3
36........GH1440W-05-02.......................Shaft......................................... ...................................1
37........GB879-5X20.............................Pin............................................5x20............................1
38........05-14........................................Gear.........................................26T.............................1
39........05-55........................................Shift Fork.................................. ...................................1
40........05-56........................................Shift Lever ................................ ...................................1
41........GB879-5X20.............................Pin............................................5x20............................1
42........GH1440W-05-03.......................Shaft......................................... ...................................1
43........GH1440W-05-01.......................Cover........................................ ...................................1
44........05-58........................................Locating Disk............................ ...................................1
45........GB819-M5X10..........................Flat Head Machine Screw.........M5x10.........................8
46........GB4141.14-BM10X50...............Knob......................................... ...................................1
47........GH1440W-05-15.......................Handle Shaft............................. ...................................1
48........GH14440W-05-14.....................Shift Hub................................... ...................................1
49........05-08........................................Washer..................................... ...................................3
50........TS-1503041..............................Hex Socket Cap Screw .............M6x16.......................14
51........04-90........................................Indicator Disk............................ ...................................1
52........TS-1531012..............................Pan Head Machine Screw.........M3x6.........................12
53........05-70........................................Indicator Disk............................ ...................................2
54........TS-1524011..............................Set Screw.................................M8x8...........................4
55........GH1440W-05-72.......................Spring....................................... ...................................4
56........GB308-SB6.5............................Steel Ball...................................6.5..............................4
57........05-10........................................Locating Disk............................ ...................................1
58........GH1440W-05-27.......................Oil Sight.................................... ...................................1
59........05-59........................................Locating Disk............................ ...................................1
60........GH1440W-05-13.......................Shift Hub................................... ...................................2
61........TS-1503081..............................Hex Socket Cap Screw .............M6x35.........................7
123......GH1440W-05-10-1....................Name Plate (1 Phase)............... ...................................1
............GH1440W-05-10-3....................Name Plate (3 Phase)............... ...................................1
............GH1340W-05-10-1....................Name Plate (1 Phase)............... ...................................1
............GH1340W-05-10-3....................Name Plate (3 Phase)............... ...................................1

15

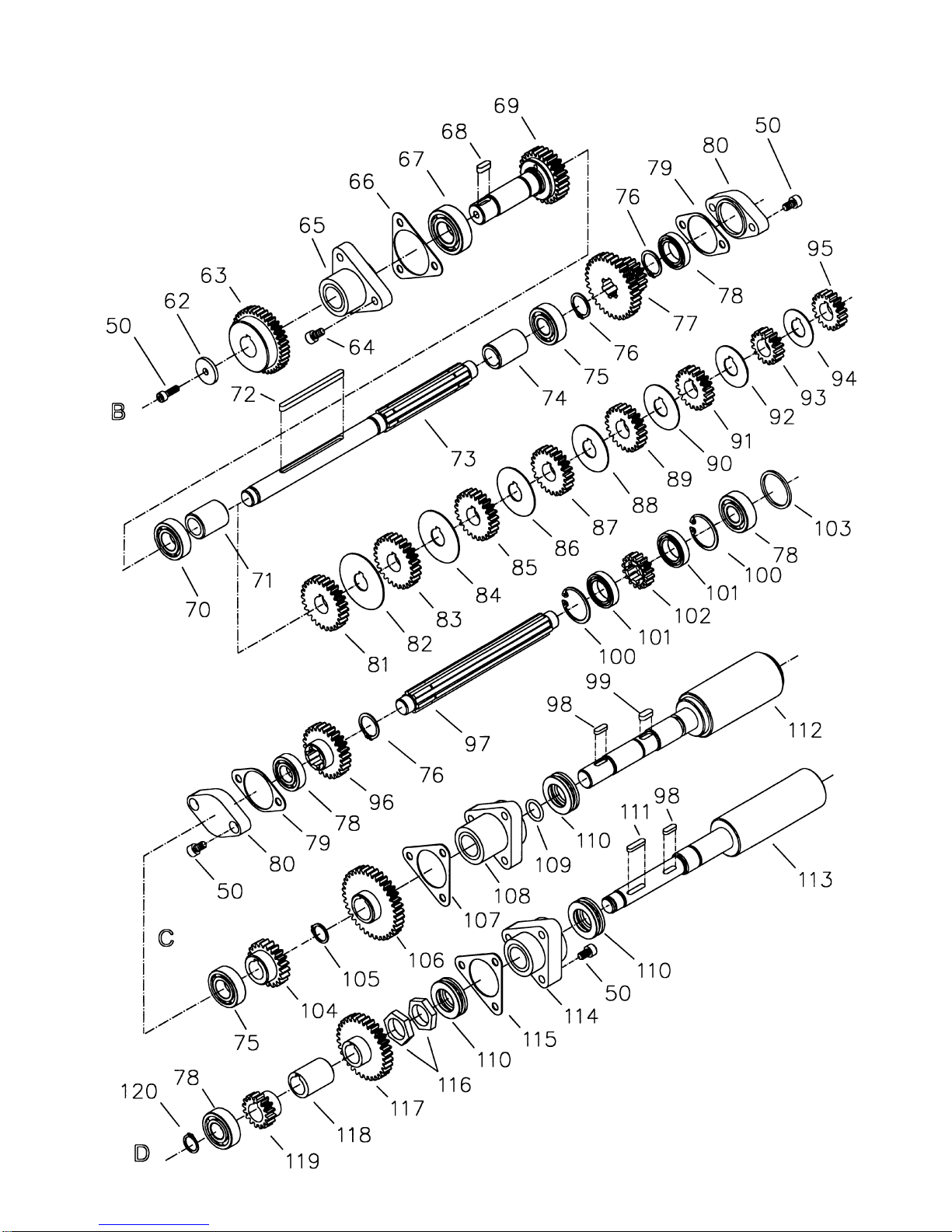

Gearbox Assembly III

16
Gearbox Assembly III
Index Part
No. No. Description Size Quantity
50........TS-1503041..............................Hex Socket Cap Screw .............M6x16.......................14
62........05-42........................................Washer..................................... ...................................1
63........05-41........................................Gear.........................................50T.............................1
64........TS-1503051..............................Hex Socket Cap Screw .............M6x20.........................3
65........05-39........................................Flange ...................................... ...................................1
66........05-38........................................Gasket...................................... ...................................1
67........GB/T276-6004 ..........................Ball Bearing..............................6004/P5......................1
68........GB1096-5X14...........................Key...........................................5x14............................1
69........05-40 ........................................Gear Shaft Assembly ................ ...................................1
70........GB/T276-6002 ..........................Ball Bearing..............................6002/p5 ......................1
71........05-36........................................Shaft Collar............................... ...................................1
72........GB1096-5X75...........................Key...........................................5x75............................1
73........05-27........................................Shaft......................................... ...................................1
74........05-67........................................Shaft Collar............................... ...................................1
75........GB/T276-6003 ..........................Ball Bearing..............................6003/p5 ......................2
76........GB894.1-20 ..............................Retainer Ring............................20...............................3
77........05-21........................................Gear.........................................16T/32T......................1
78........GB/T276-6202 ..........................Ball Bearing..............................6202/p5 ......................4
79........05-48........................................Gasket...................................... ...................................2
80........05-47........................................Flange ...................................... ...................................2
81........05-35........................................Gear.........................................28T.............................1
82........GH1440W-05-19.......................Washer..................................... ...................................1
83........05-34........................................Gear.........................................26T.............................1
84........GH1440W-05-20.......................Washer..................................... ...................................1
85........05-33........................................Gear.........................................24T.............................1
86........GH1440W-05-21.......................Washer..................................... ...................................1
87........05-32........................................Gear.........................................23T.............................1
88........GH1440W-05-22.......................Washer..................................... ...................................1
89........05-31........................................Gear.........................................22T.............................1
90........GH1440W-05-23.......................Washer..................................... ...................................1
91........05-30........................................Gear.........................................20T.............................1
92........GH1440W-05-24.......................Washer..................................... ...................................1
93........05-29........................................Gear.........................................18T.............................1
94........GH1440W-05-25.......................Washer..................................... ...................................1
95........05-28........................................Gear.........................................16T.............................1
96........05-37........................................Gear.........................................26T.............................1
97........05-52........................................Spline Shaft............................... ...................................1
98........GB1096-5X14...........................Key...........................................5x14............................2
99........GB1096-6X14...........................Key...........................................6x14............................1
100......GB893.1-32 ..............................Retainer Ring............................32...............................2
101......GB/T276-61804 ........................Bearing.....................................61804/p5.....................2
102......05-49........................................Gear .........................................16T.............................1
103......GH1340A-05-66........................Washer..................................... ...................................1
104......05-25........................................Gear .........................................21T.............................1
105......GB896-15.................................Retainer Ring............................15...............................1
106......05-19........................................Gear .........................................36T.............................1
107......05-53........................................Gasket...................................... ...................................1
108......05-17........................................Flange ...................................... ...................................1
109......GB3452.1-15X2.65 ...................O-Ring......................................15x2.65.......................1
110......GB301-8104 .............................Ball Bearing..............................8104 ...........................3
111......GB1096-5X20...........................Key...........................................5x20............................1

17
Index Part
No. No. Description Size Quantity
112......GH1440W-05-04.......................Shaft......................................... ...................................1
113......GH1440W-05-05.......................Shaft......................................... ...................................1
114......05-18........................................Flange ...................................... ...................................1
115......05-53........................................Gasket...................................... ...................................1
116......05-20........................................Nut............................................ ...................................2
117......05-22........................................Gear.........................................32T.............................1
118......05-24........................................Collar........................................ ...................................1
119......05-26........................................Gear.........................................16T.............................1
120......GB894.1-15 ..............................Retainer Ring............................ ...................................1

18
Apron Assembly I

19
Apron Assembly I
Index Part
No. No. Description Size Quantity
1..........TS-1503021..............................Hex Socket Cap Screw.............M6x10.........................2
2..........06-37........................................Half Nut..................................... ...................................1
3..........06-36........................................Bracket..................................... ...................................1
4..........TS-1503041..............................Hex Socket Cap Screw.............M6x16.........................2
5..........06-33........................................Gib............................................ ...................................1
6..........TS-1523031..............................Set Screw.................................M6x10.........................3
7..........TS-1504081..............................Hex Socket Cap Screw.............M8x40.........................2
8..........TS-1524011..............................Set Screw.................................M8x8...........................1
9..........06-39........................................Spring....................................... ...................................1
10........GB308-SB6...............................Steel Ball...................................6.................................1
11........06-01........................................Casting..................................... ...................................1
12........06-42-1.....................................Pin............................................ ...................................2
13........06-42........................................Half Nut Cam............................ ...................................1
14........GB879-5X35.............................Pin............................................5x35............................1
15........TS-1523011..............................Set Screw.................................M6x6...........................1
16........GB879-5X50.............................Pin............................................5x50............................1
17........GH1440W-06-09.......................Hub........................................... ...................................1
18........GH1440W-06-04.......................Handle Shaft............................. ...................................1
19........GB4141.14-BM10X50...............Knob......................................... ...................................2
20........06-40........................................Safety Catch............................. ...................................1
21........GB1160-12................................Sight Glass...............................12...............................1
22........GH1340W-06-04.......................Bracket..................................... ...................................1
23........06-16........................................Block......................................... ...................................1
24........TS-1503031..............................Hex Socket Cap Screw .............M6x12.........................2
25........GH1440W-06-07.......................Spline Shaft............................... ...................................1
26........GH1440W-06-08.......................Handle Shaft............................. ...................................1
27........TS-1503101..............................Hex Socket Cap Screw .............M6x45.........................3
28........06-02........................................Plug.......................................... ...................................1
29........TS-1503041..............................Hex Socket Cap Screw .............M6x16.........................4
30........06-35........................................Drain Plug................................. ...................................1
31........06-34........................................Flange ...................................... ...................................2
32........GB1096-5X56...........................Key...........................................5x56............................1
33........GB879-3X5...............................Pin............................................3x5 .............................2
34........06-27........................................Worm........................................ ...................................1
35........06-50........................................Collar........................................ ...................................2
73........TS-1522031..............................Set Screw.................................M5x10.........................2
75........GH1440W-06-01.......................Apron Label .............................. ...................................1
76........TS-1531012..............................Pan Head Screw.......................M3x6.........................10
77........GH1440W-06-03.......................Thread Dial Label...................... ...................................1
............GHW-AP-CA.............................Apron Assembly Complete........ .....................................

20

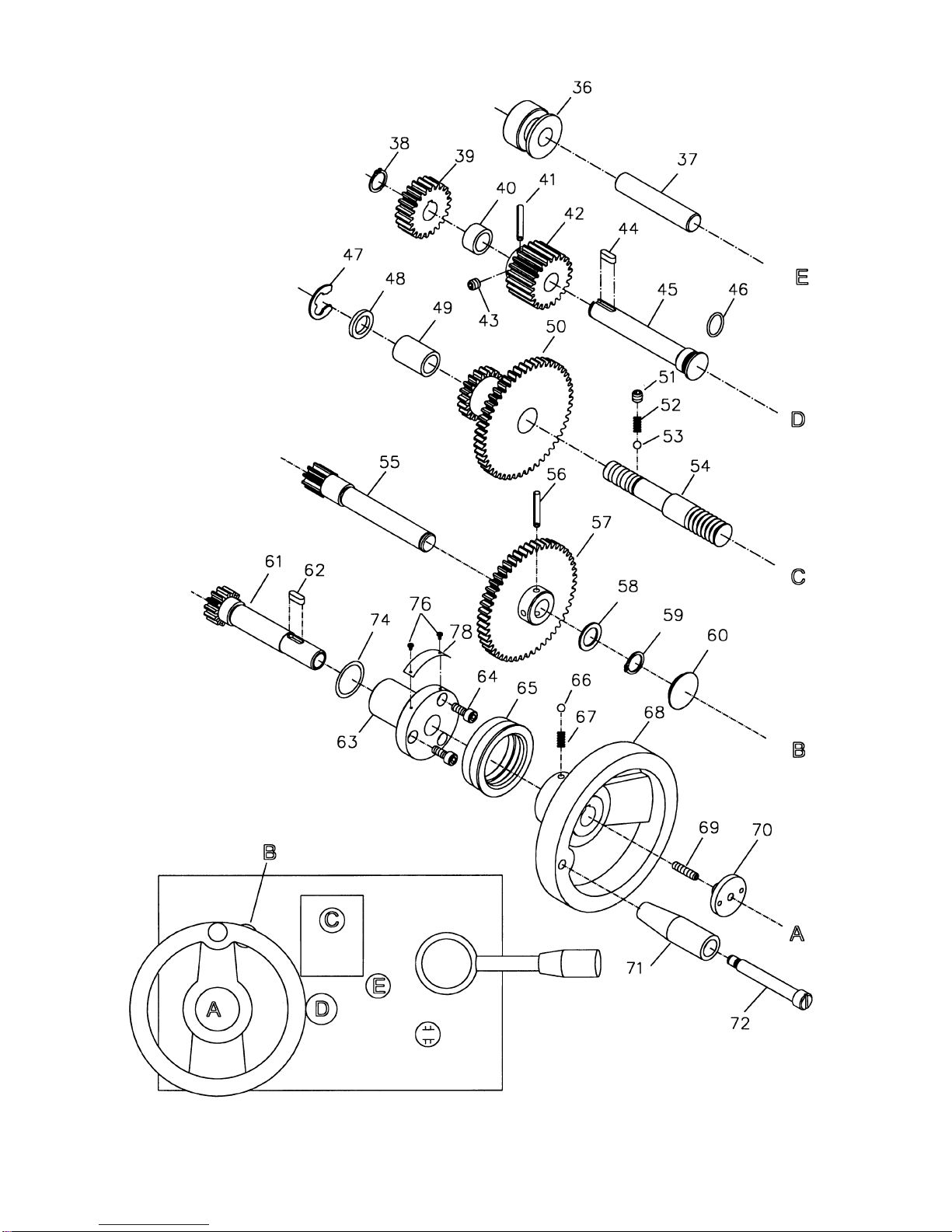

Apron Assembly II
