Jet JWL-1840VS User manual

JWL-1840VS
WOOD LATHE
Original:
GB
Operating Instructions
Translations:
D
Gebrauchsanleitung
F
Mode d´emploi
JPW (Tool) AG
Tämplerlistrasse 5
CH-8117 Fällanden
Switzerland
Phone [phone]
Fax [phone]
www.jettools.com
M-719600M 2016 -10

CE-Conformity Declaration
CE-Konformitätserklärung
Déclaration de conformité CE
Product / Produkt / Produit:
Wood lathe
Drechselmaschine
Tour à bois
JWL-1840VS
719600M
Brand / Marke / Marque:
JET
Manufacturer / Hersteller / Fabricant:
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden, Switzerland
We hereby declare that this product complies with the regulations
Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht
Par la présente, nous déclarons que ce produit correspond aux directives suivantes
2006/42/EC
Machinery Directive / Maschinenrichtlinie / Directive Machines
2014/30/EU
electromagnetic compatibility / elektromagnetische Verträglichkeit / compatibilité électromagnétique
designed in consideration of the standards
und entspechend folgender zusätzlicher Normen entwickelt wurde
et été développé dans le respect des normes complémentaires suivantes
EN ISO 12100:2010
EN 60204-1:2006+A1:2009
EN 61000-6-4:2007+A1:2011
EN 61800-3:2004+A1:2012
EN 55011:2009+A1:2010
Responsible for the Documentation / Dokumentations-Verantwortung / Résponsabilité de Documentation:
Hansjörg Meier
Head Product-Mgmt / Leiter Produkt-Mgmt./ Resp. de Gestions Produits
JPW (Tool) AG
2016-10-10 Alain Schmid, General Manager
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden,
Schweiz / Suisse / Switzerland
2

GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been
prepared for the owner and operators of a JET JWL-1840EVS wood lathe to promote safety during installation, operation and
maintenance procedures. Please read and understand the information contained in these operating instructions and the
accompanying documents. To obtain maximum life and efficiency from your machine, and to use the machine safely, read this
manual thoroughly and follow instructions carefully.
…Table of Contents
1. Declaration of conformity
2. Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Machine description
Technical data
Noise emission

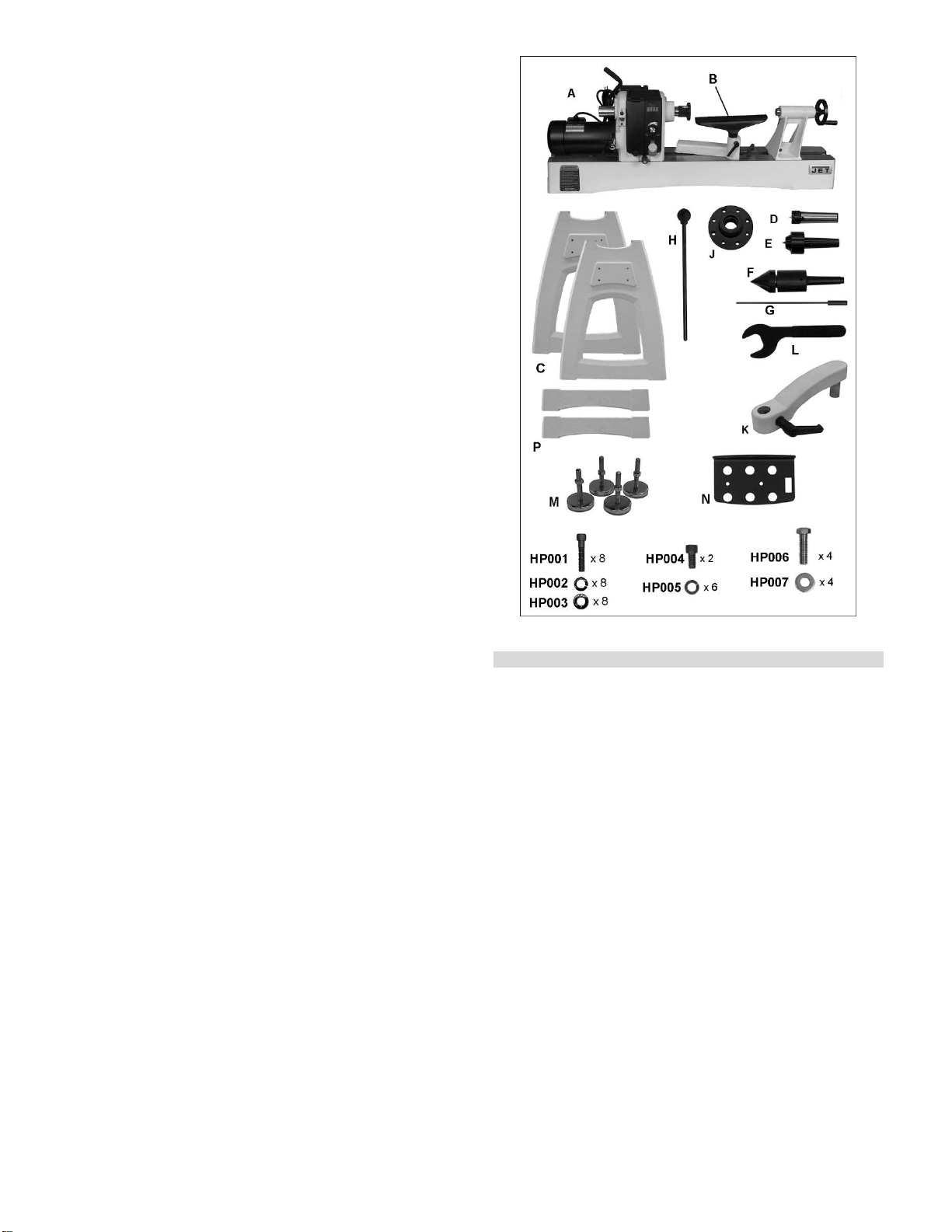

Contents of delivery
5. Transport and start up
Transport and installation
Assembly
Mains connection
Dust collection
Starting operation
6. Machine operation
Correct operating position
Tool selection
Speed selection
Turning between centres
Bowl turning
Sanding and Finishing
7. Setup and adjustments
Changing spindle speeds
Headstock spindle lock
Headstock rotation
Headstock spindle index
Installing work holding
Adjusting tool rest
Adjusting tailstock
8. Maintenance and inspection
Adjusting bed clamping
Pulley drive lubrication
Changing belt and bearings
9. Trouble shooting
10. Environmental protection
11. Available accessories
1. Declaration of conformity
On our own responsibility we hereby declare that this product
complies with the regulations* listed on page 2. Designed in
consideration with the standards**.
2. Warranty
The Seller guarantees that the supplied product is free from
material defects and manufacturing faults. This warranty does
not cover any defects which are caused, either directly or
indirectly, by incorrect use, carelessness, accidental damage,
repair, inadequate maintenance or cleaning and normal wear
and tear.
Guarantee and/or warranty claims must be made within
twelve months from the date of purchase (date of invoice).
Any further claims shall be excluded.
This warranty includes all guarantee obligations of the Seller
and replaces all previous declarations and agreements
concerning warranties.
The warranty period is valid for eight hours of daily use. If this
is exceeded, the warranty period shall be reduced in
proportion to the excess use, but to no less than three
months.
Returning rejected goods requires the prior express consent
of the Seller and is at the Buyer’s risk and expense.
Further warranty details can be found in the General Terms
and Conditions (GTC). The GTC can be viewed at
www.jettools.com or can be sent by post upon request.
The Seller reserves the right to make changes to the product
and accessories at any time.
3. Safety
3.1 Authorized use
This wood lathe is designed for turning wood only. Machining
of other materials is not permitted and may be carried out in
specific cases only after consulting with the manufacturer.
The workpiece must allow to safely be loaded and supported.
The proper use also includes compliance with the operating
and maintenance instructions given in this manual.
The machine must be operated only by persons familiar with
its operation and maintenance and who are familiar with its
hazards.
The required minimum age must be observed.

The machine must only be used in a technically perfect
condition.
When working on the machine, all safety mechanisms and
covers must be mounted.
In addition to the safety requirements contained in these
operating instructions and your country’s applicable
regulations, you should observe the generally recognized
technical rules concerning the operation of woodworking
machines.
Any other use exceeds authorization.
In the event of unauthorized use of the machine, the
manufacturer renounces all liability and the responsibility is
transferred exclusively to the operator
3.2 General safety notes
Woodworking machines can be dangerous if not used
properly. Therefore the appropriate general technical rules as
well as the following notes must be observed.
Read and understand the entire instruction manual before
attempting assembly or operation.
Keep this operating instruction close by the machine,
protected from dirt and humidity, and pass it over to the new
owner if you part with the tool.
No changes to the machine may be made.
Daily inspect the function and existence of the safety
appliances before you start the machine.
Do not attempt operation in this case, protect the machine by
unplugging the mains cable.
Before operating the machine, remove tie, rings, watches,
other jewellery, and roll up sleeves above the elbows.
Remove all loose clothing and confine long hair.
Wear safety shoes; never wear leisure shoes or sandals.
Always wear the approved working outfit:
- safety goggles
- ear protection
- dust protection
Do not wear gloves while operating this machine.
Install the machine so that there is sufficient space for safe
operation and workpiece handling.
Keep work area well lighted.
The machine is designed to operate in closed rooms and
must be placed stable on firm and levelled table surface.
Make sure that the power cord does not impede work and
cause people to trip.
Keep the floor around the machine clean and free of scrap
material, oil and grease.
Stay alert, give your work undivided attention.
Use common sense. Do not operate the machine when you
are tired.
Do not operate the machine under the influence of drugs,
alcohol or any medication. Be aware that medication can
change your behaviour.
Keep an ergonomic body position.
Maintain a balanced stance at all times.
Never reach into the machine while it is operating or running
down.
Never leave a running machine unattended. Before you leave
the workplace switch off the machine.
Keep children and visitors a safe distance from the work area.
Do not operate the electric tool near inflammable liquids or
gases.
Observe the fire fighting and fire alert options, for example
the fire extinguisher operation and place.
Do not use the machine in a dump environment and do not
expose it to rain.
Wood dust is explosive and can also represent a risk to
health.
Dust form some tropical woods in particular, and from
hardwoods like beach and oak, is classified as a carcinogenic
substance.
Always use a suitable dust collection device
Before machining, remove any nails and other foreign bodies
from the workpiece.
Make sure to guide and hold the chisel with both hands safe
and tight during machining.
Work only with well sharpened tools.
Machine only stock which is chucked securely on the
machine, always check before switching the machine on.
Provide workpieces with centre holes before clamping
between centres.
Work large and unbalanced workpieces at low spindle speed
only.

When sanding, remove the tool rest from the machine.
Workpieces with cracks may not be used.
Remove the chuck key or dowel pins before turning the
machine on.
Always close the belt cover.
Specifications regarding the maximum or minimum size of the
workpiece must be observed.
Test each set-up by revolving the work by hand to insure it
clears the tool rest and bed. Check setup at the lowest speed
before you increase to the operating speed.
Do not remove chips and workpiece parts until the machine is
at a standstill.
Never stop work pieces with the hand during run out.
Do not attempt to engage the spindle lock pin until the spindle
has stopped.
Never take measurements on a rotating workpiece.
Do not stand on the machine.
Connection and repair work on the electrical installation may
be carried out by a qualified electrician only.
Have a damaged or worn power cord replaced immediately.
Make all machine adjustments or maintenance with the
machine unplugged from the power source.
3.3 Remaining hazards
When using the machine according to regulations some
remaining hazards may still exist.
The rotating workpiece can cause injury.
Workpieces that are inhomogeneous or weak can explode
when being processed due to centrifugal force.
Only process selected woods without defects.
Unbalanced workpieces can be hazardous.
Injuries can occur when feeding tooling, if tool supports are
not correctly adjusted or if turning tools are blunt.
Risk of kickback. The tooling is caught by the rotating
workpiece and thrown back to the operator.
Thrown workpieces and workpiece parts can lead to injury.
Dust and noise can be health hazards. Be sure to wear
personal protection gear such as safety goggles and dust
mask. Use a suitable dust collection system.
The use of incorrect mains supply or a damaged power cord
can lead to injuries caused by electricity.
4. Machine specifications

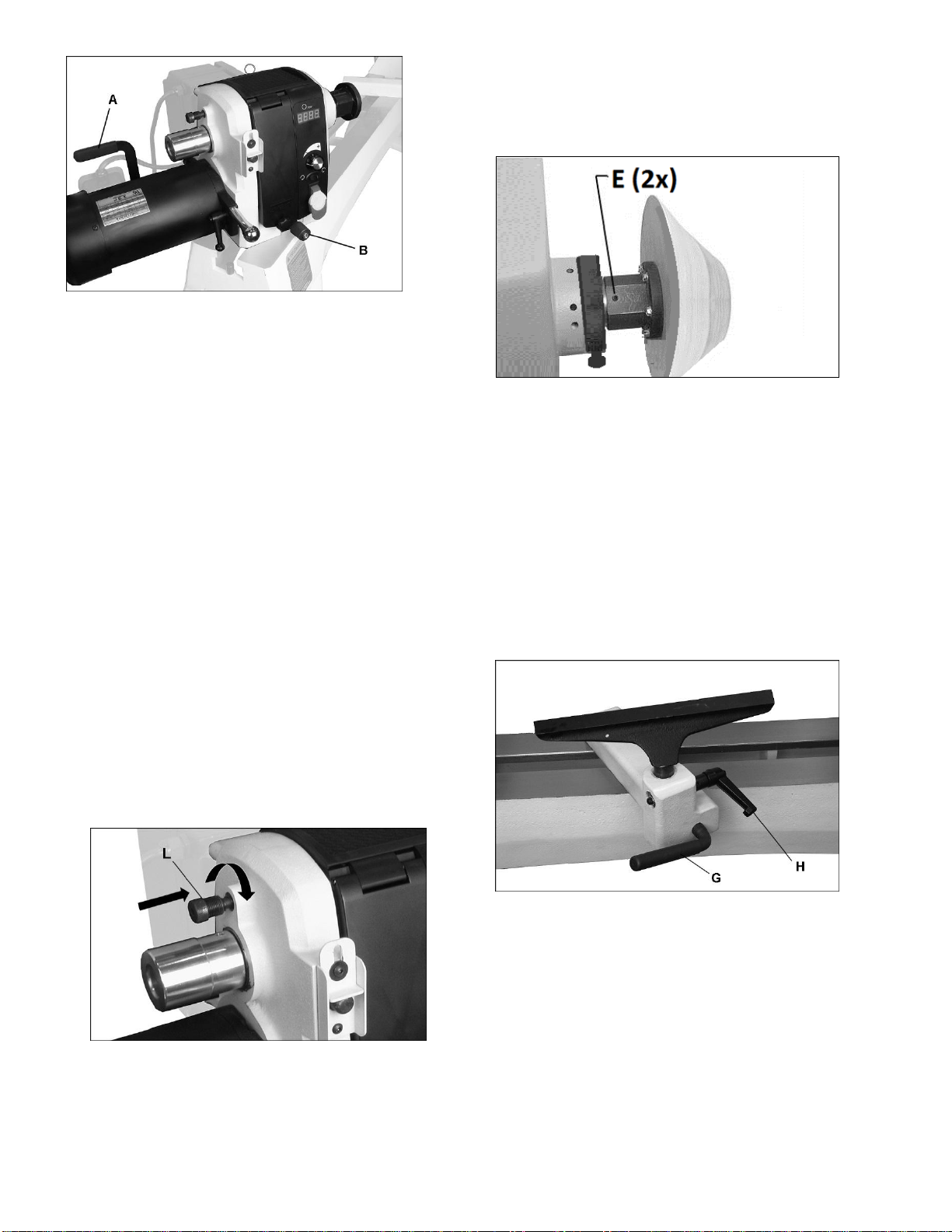

4.1 Machine description

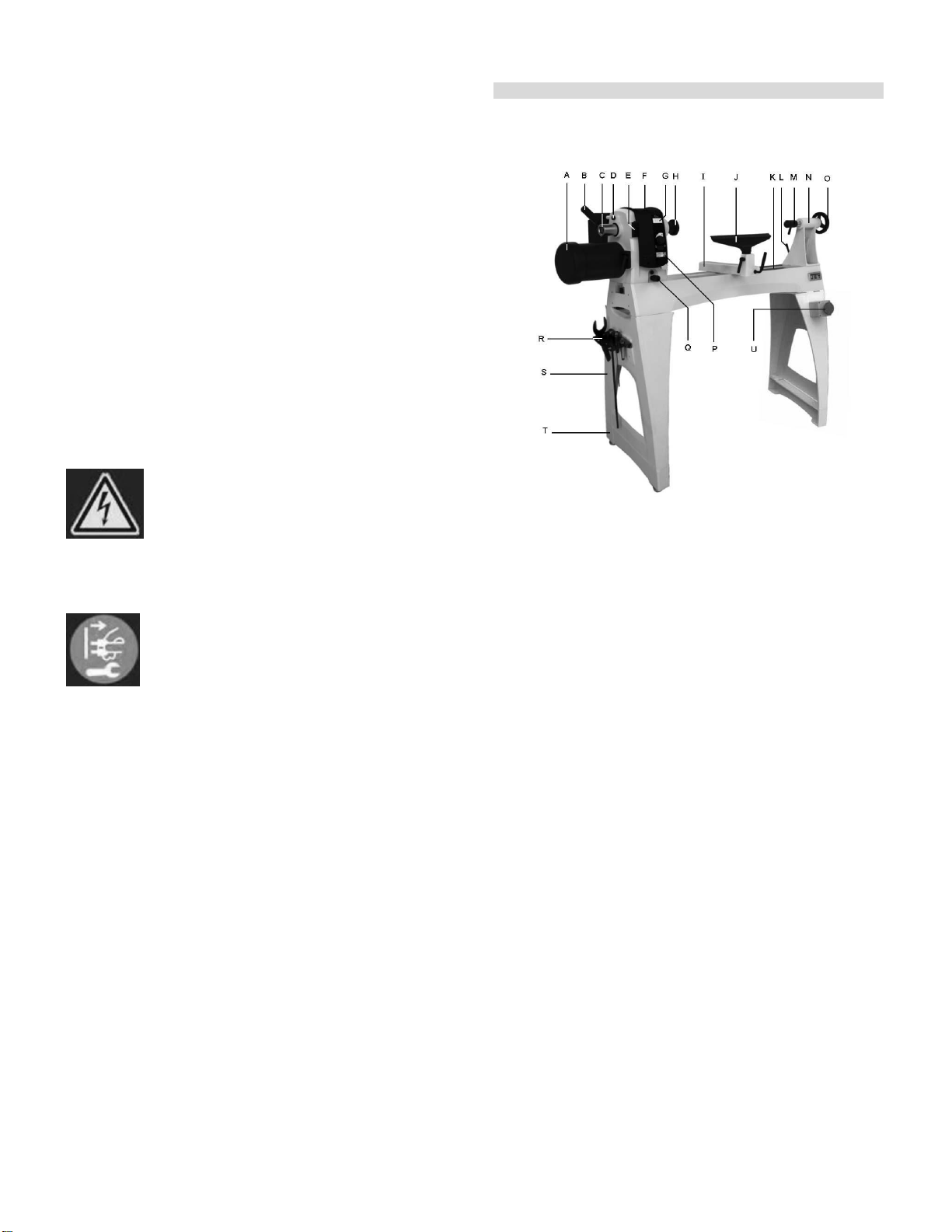

Fig 1
A Motor
B Headstock lock handle
C Headstock Handwheel
D Index pin
E Spindle lock
F Headstcock
G Digital readout
H Faceplate
I Toolrest base
J 350mm toolrest
K Bed
L Tailstock lock handle
M Live center
N Tailstock
O Tailstock Handwheel
P Front-mounted controls
Q Headstock Swivel index
R Tool caddy with tools
S Casting stands
T Riser Blocks
U E-Stop switch
4.2 Technical data
Swing over bed 470mm
Centre distance 1025 & 970mm
Number of mechanical speeds 2
Spindle speed range 1 40-1200 rpm
Spindle speed range 2 100-3200 rpm
Spindle nose M33x3,5 DIN 800
Headstock spindle taper MT 2
Spindle index lock 36 x 10°
Tailstock spindle taper MT 2
Tailstock hole diameter 9mm
Tailstock ram travel 108mm
Centre above floor with risters 1130mm

Centre above floor without risters 1130mm
Overall (LxWxH) 1854 x 1334 x 508 mm
Net weight 190 kg
Mains 1~230V, PE, 50Hz
Output power 1,5 kW (2 HP) S1
Reference current 8 A
Extension cord (H07RN-F): 3x1,5mm²
Installation fuse protection 16A
Isolation class I
4.3 Noise emission
Acoustic pressure level (EN ISO 11202):
Idling LpA 72,5 dB(A)
In operation LpA 78,4 dB(A)
The specified values are emission levels and are not
necessarily to be seen as safe operating levels.
As workplace conditions vary, this information is intended to
allow the user to make a better estimation of the hazards and
risks involved only.
4.4 Content of delivery
Lathe bed with headstock, tool support and tailstock –A
350mm Tool rest –B
Legs –C
Spur center –D
Live center –E
Live cone center –F
Live cone center pin –G
Knockout rod –H
75mm Faceplate –J (installed on lathe)
Tool rest extension –K
Faceplate wrench –L
Levelers –M
Tool shelf –N
Riser Blocks - P
Hardware:
8 Socket hd. cap screws, 5/16x1-1/4 –HP1*
8 Lock washers, 5/16 –HP2*
8 Flat washers, 5/16 –HP3*
2 Socket hd. cap screws, 3/8x1-1/4 –HP4
2 Lock washers, 3/8 –HP5
* included in JWL1440-HP1, hardware package
Fig 2
5. Transport and start up
5.1 Transport and installation
The machine is designed to operate in closed rooms and
must be placed stable on firm and levelled ground.
The machine can be bolted down if required.
For packing reasons the machine is not completely
assembled
5.2 Assembly
If you notice transport damage while unpacking, notify your
supplier immediately. Do not operate the machine!
Dispose of the packing in an environmentally friendly manner.
Clean all rust protected surfaces with a mild solvent.

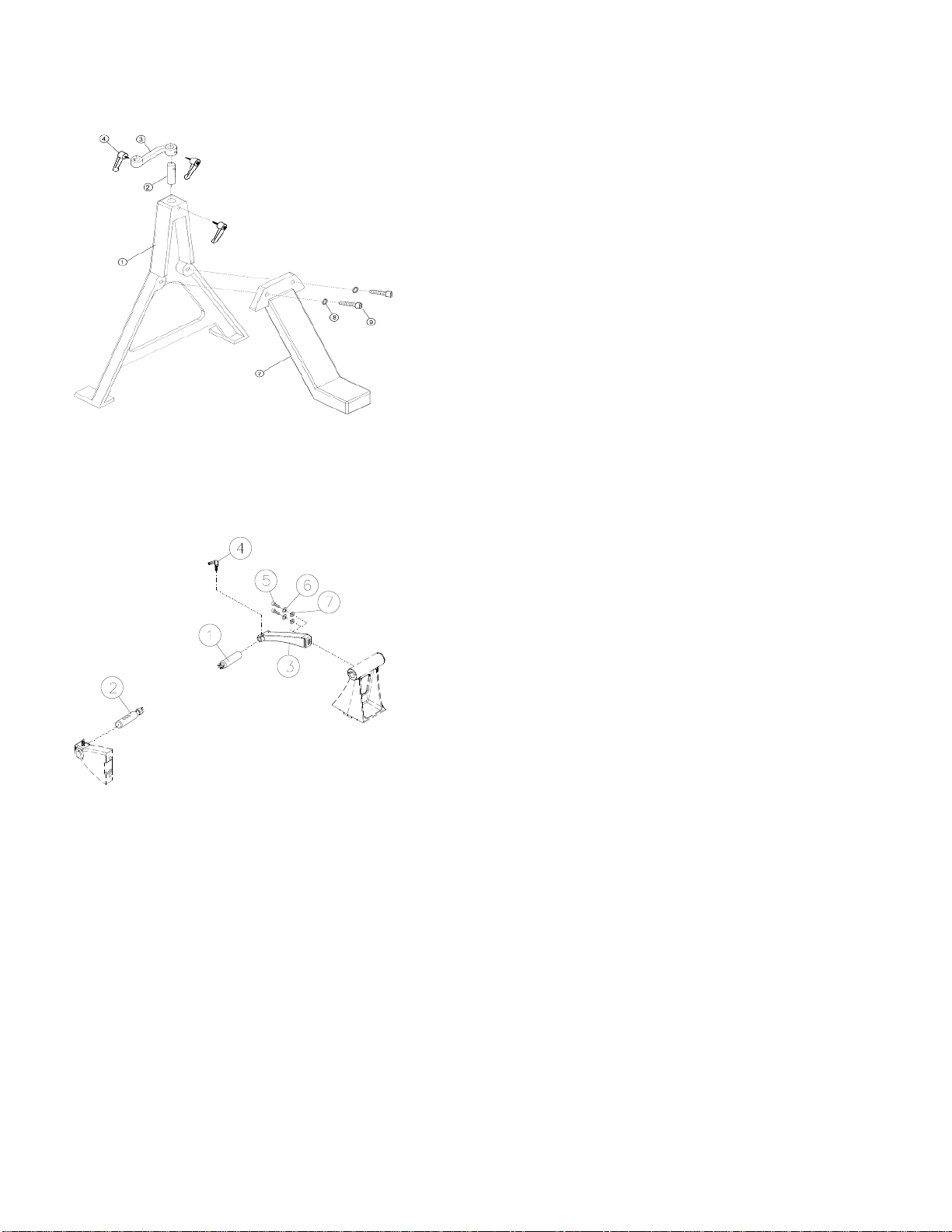

Attach the leg stand:
At this point the headstock, tailstock and tool rest should be
removed.
Unscrew the stud (N, Fig 4) from each end of bed.

Fig 4
Remove headstock, tailstock and tool rest support from bed.
The machine bed is heavy! With the help of a second person.
Carefully turn bed upside down. Place a mat or cardboard
beneath it to prevent scratching the bed ways.
Install legs with eight screws, lock washers and flat washers.
Tighten screws firmly with 6mm hex key. (see Fig 5).
Fig 5
Fig 6
With the help of a second person, raise bed and leg
assembly right-side up.
Rotate the levellers as needed to establish level for the lathe.
Tighten the hex nut on each leveller against the leg casting.
If you desire to install the riser blocks for a 100mm height
increase, mount them to bottom of legs using fasteners
(HP006/5/7) Tighten firmly.
Install adjustable feet into bottom of legs or riser blocks
(Figure 6) and tighten hex nut against leg casting. The feet
can be adjusted later.
Now headstock, tool rest and tailstock can be installed again
(Fig 7). Install both studs (N, Fig 4).
Fig 7

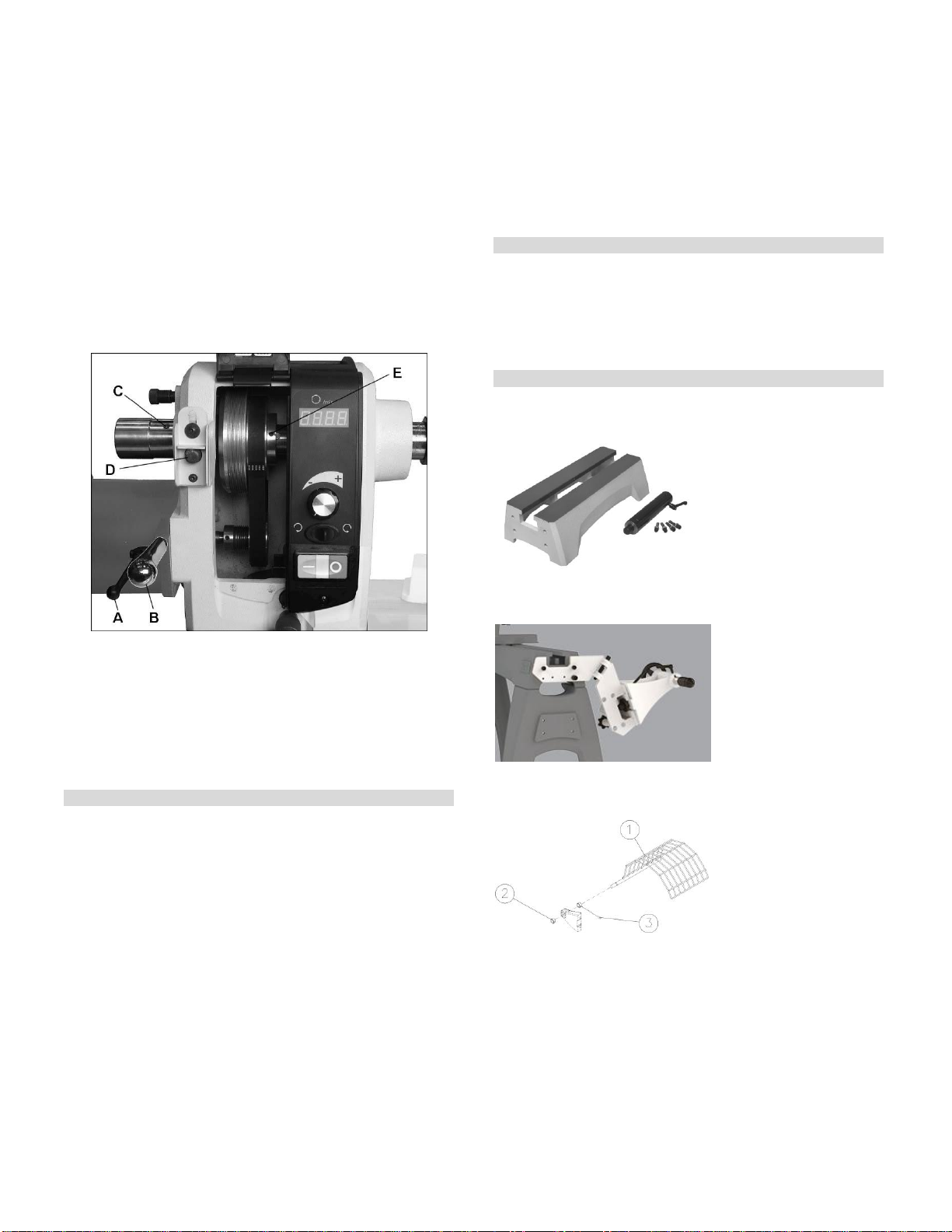

Installing bed extension: (JET Option # 719401)
The bed extension can be mounted to the upper or lower
holes of the lathe.
Mounting the extension to the lower holes allows use of the
tool support during outboard turning (Fig 8).
Fig 8
Mounting in upper holes increases the spindle length capacity
of the lathe.
Have an assistant hold bed extension flush to end of lathe
bed, and insert four screws with washers (P, Fig 9).
Snug screws just enough to hold bed extension to lathe bed.
Unscrew stop bolt (N) from lathe bed and insert it into hole at
end of bed extension.

Fig 9
Top surfaces and inside ways must be flush to allow smooth
movement of tailstock.
Slide tailstock over joint where beds meet, so that clamping
nut is centred over joint. Lock tailstock clamping handle; this
will align the beds.
Securely tighten screws (P) in bed extension.
Guard (optional accessory)
The guard (part no. 719002) is optional and purchased
separately. See our website for information.
Loosen set screw on outer collar (shown in Figure 10) with
4mm hex key. Slide outer collar off the guard support rod.
Insert guard support rod into mounting bracket at rear of
headstock. You will have to lift up on spring pin, as shown, to
slide guard support rod into mounting bracket. Release spring
pin and it will snap into position as you slide support rod
farther in.
Install outer collar and tighten set screw.
The guard can be pivoted to one of two positions: Operating
mode (shown on front cover) or tilted back for stock loading
(Figure 10-1).
Pull up on spring pin, and begin tilting guard, then release
spring pin. When guard reaches either of the two positions,
spring pin will engage.
Figure 10-1
Figure 10-1
Spindle comparator (optional accessory)
The spindle comparator bracket and centers are optional
and purchased separately.
The spindle comparator consists of two centers inserted
into the brackets at rear of lathe. The comparator is used
to mount a finished, or “reference” spindle, from which
measurements can be taken, the measurements being
transferred to the new piece being turned.
Install comparator spur center into guard bracket, by lifting
up on plunger and inserting comparator spur center until
its point is about even with the point of the spur center in
the headstock spindle. See Figure 10-2. The plunger in the
bracket should engage one of the holes in the comparator
center at this position.
Install comparator bracket to tailstock with provided
fasteners (Figure 10-2). Hand tighten only.
Install comparator dead center in the comparator bracket
and tighten lock handle.
Slide tailstock toward headstock until comparator centers
almost touch. Adjust comparator bracket as needed until
centers align. Tighten screws firmly.
Mount spur center with the spindle blank that you will be
turning. Loosen tailstock locking handle, and slide tailstock
until live center is about 25mm from spindle blank, then
tighten locking handle. Advance live center using tailstock
handwheel, until live center is secured in spindle blank.
Mount reference spindle between comparator centers.
Figure 10-2

5.3 Mains connection
Mains connection and any extension cords used must comply
with applicable regulations.
The mains voltage must comply with the information on the
machine licence plate.
The mains connection must have a
10 A surge-proof fuse.
Only use power cords marked H07RN-F
Connections and repairs to the electrical equipment may only
be carried out by qualified electricians.
5.4 Dust collection
Use a suitable dust collection and filtration system to avoid a
high dust concentrations in the air.
5.5 Starting operation
You can start the machine with the green ON-button. The red
OFF-button on the main switch (B, Fig 1) stops the machine.
6. Machine operation
6.1 Correct operating position
Always support the tool on the tool rest and guide with the
palm of your hand keeping your fingers closed.
(see Fig 11 and 12)
Fig 11
Fig 12
6.2 Tool selection:
Successful wood turning does not result from high speeds,
but rather, from the correct use of turning tools.
A perfect and sharp wood turner tool is a precondition for
professional wood-turning.
Major tools:
Fig 13
Gouge (A, Fig 13), used for rapidly cut raw wood into round
stock, for turning bowls and plates, for turning beds, coves
and other detail (Fig 14).
Fig 14
Scraper (B, Fig 13), used for diameter scraping and to
reduce ridges.
Skew Chisel (C, Fig 13), used to make vees, beads, etc. (Fig
15). The bevel of skew is parallel to the cut.
Fig 15
Parting tool (D, Fig 13), used to cut directly into the material,
or to make a cut off. Also used for scraping and to set
diameters.

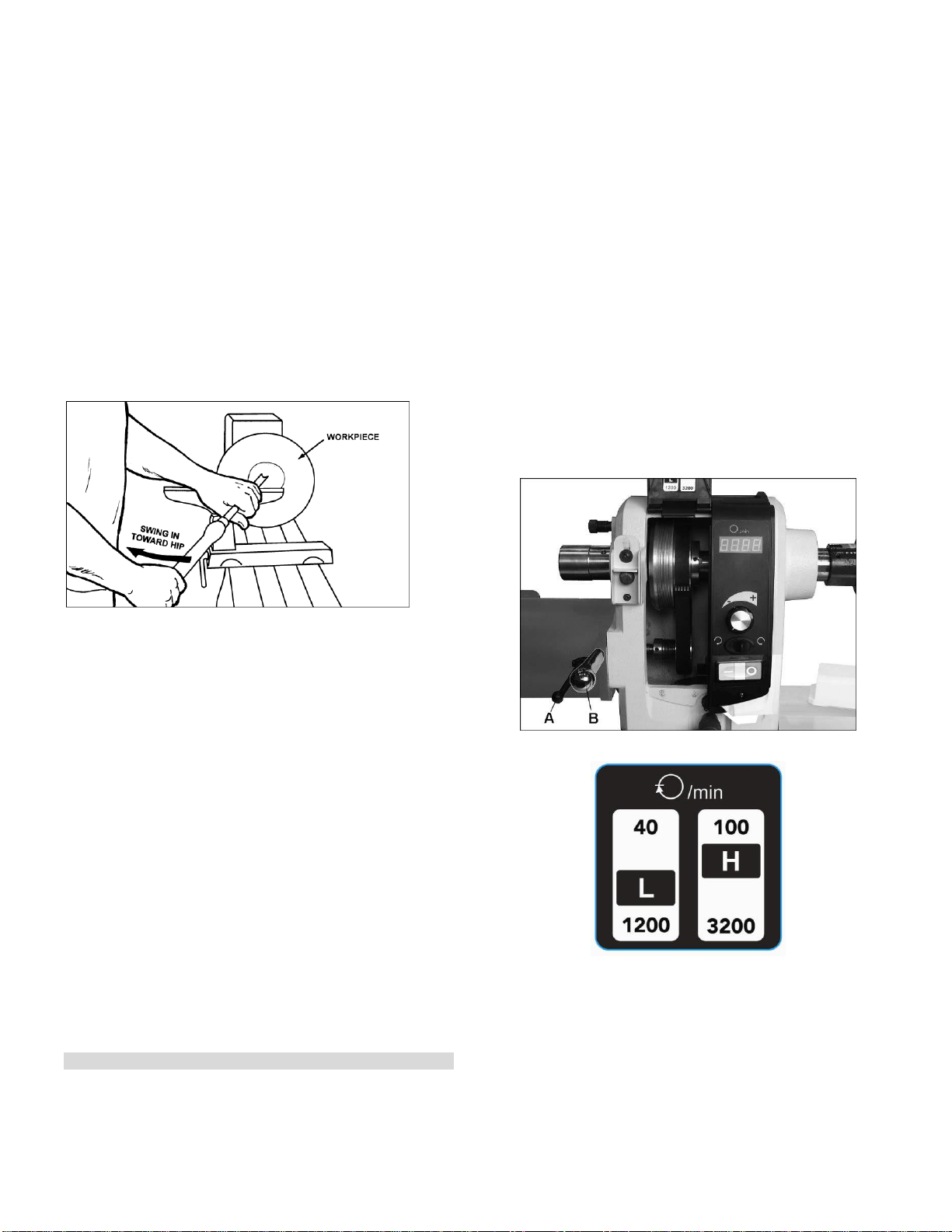

6.3 Speed selection:
Use low speeds for roughing and for large diameter work. If
vibrations occur, stop the machine and correct the cause.
See speed recommendations.

Speed recommendations
Workpiece
Diameter
mm
Roughing
RPM
General
Cutting
RPM
Finishing
RPM
< 50
1250
2500
2500
50-100
700
1600
2500
100-150
480
1100
1600
150-200
400
900
1250
200-250
350
600
1100
250-300
350
480
900
300-350
350
350
600
6.4 Turning between centres:
With a ruler locate and mark the centre on each end.
Put a dimple in each end of the shock. Extremely hard woods
may require kerfs cut into the spur drive end of stock (see Fig
16.
Fig 16
The spur drive centre locks into the spindle taper and can
be removed with the knockout rod (Fig 17)
Fig 17

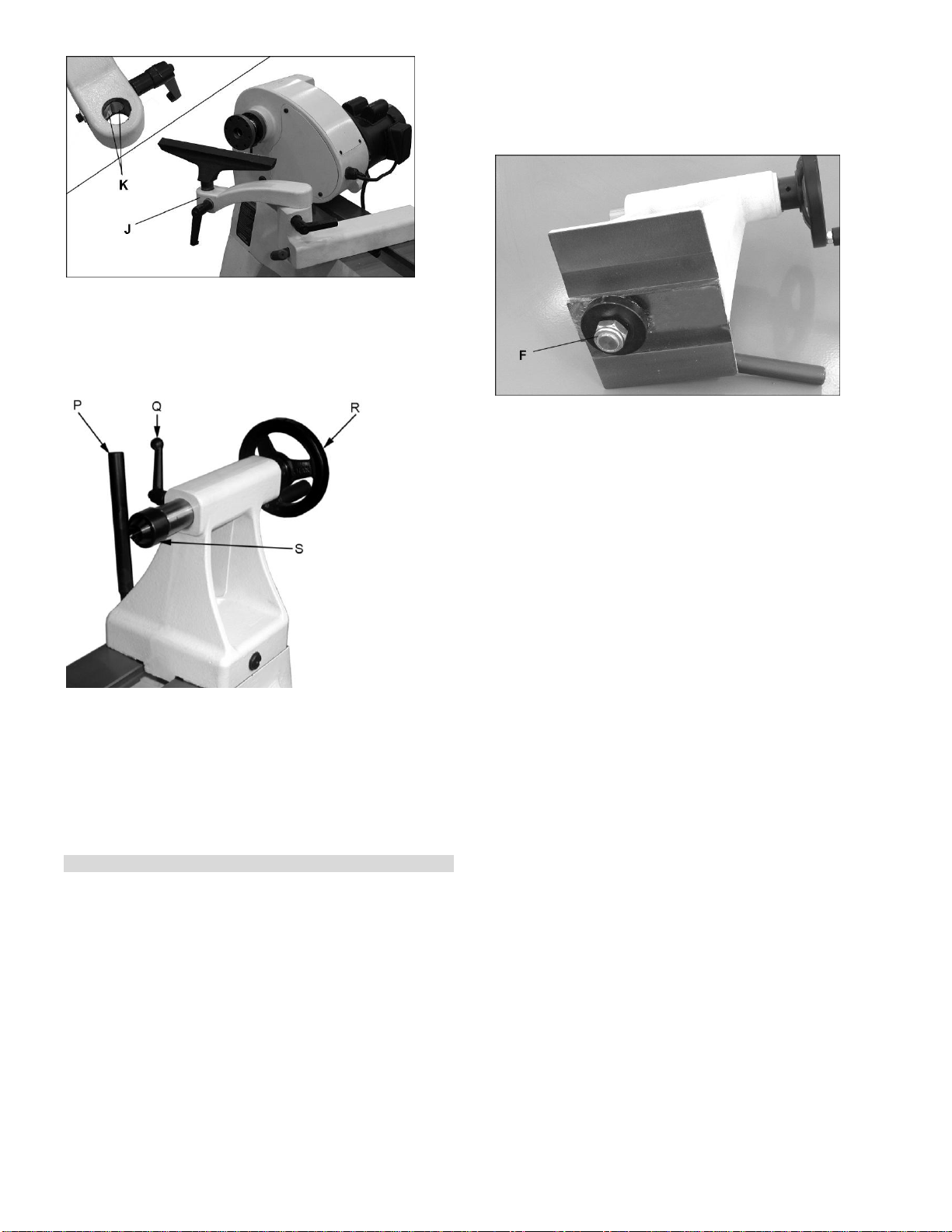

The live centre locks into the tail stock taper and can be
removed by rotating the handwheel counter clockwise (Fig
18)
Fig 18
Fig 18-1
Mount the centred workpiece between the spur drive centre
and the tailstock mounted live centre (Fig 19)
Fig 19
Turn the tailstock hand wheel until the live centre well
penetrates the workpiece. Reverse the hand wheel by one
quarter turn and lock the tailstock spindle (M, Fig 18)
Turn the workpiece by hand to see if it rests securely between
centres and can be rotated freely.
