Jet EQUIPMENT &TOOLS SBR-30N Service manual

Operating Instructions and Parts Manual
Shear, Brake and Roll
Models SBR-30N and SBR-40N
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-754031
Ph.: 800-274-6848 Revision G 02/2010
www.waltermeier.com Copyright © 2010 Walter Meier (Manufacturing) Inc.

2
Warranty and Service
Walter Meier (Manufacturing) Inc., warrants every product it sells. If one of our tools needs service or repair, one of
our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any
of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or
perform routine maintenance and major repair on your JET
® tools. For the name of an Authorized Service Center in
your area call 1-800-274-6848.
MORE INFORMATION
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with
your local Walter Meier distributor, or visit waltermeier.com.
WARRANTY
JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW =
Woodworking).
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools,
abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
The general JET warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED?
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational
purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education
purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse,
abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name
of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the
merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price,
at our option. We will return the repaired product or replacement at our expense unless it is determined by us that
there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will,
at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be
responsible for the shipping and handling costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WALTER MEIER (MANUFACTURING) INC., LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE
LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR
MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
WALTER MEIER SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR
FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF
OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Walter Meier sells through distributors only. The specifications in Walter Meier catalogs are given as general
information and are not binding. Members of Walter Meier reserve the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever. JET
® branded products are not sold in Canada by Walter Meier.

3
Table of Contents
Warranty and Service..........................................................................................................................2
Table of Contents ...............................................................................................................................3
Introduction ........................................................................................................................................5
Specifications .....................................................................................................................................5
Unpacking..........................................................................................................................................5
Contents of the Crate.......................................................................................................................5
Assembly ...........................................................................................................................................6
Setting Up the Press Brake .................................................................................................................7
Setting Up the Shear...........................................................................................................................8
Lower Blade Adjustment ..................................................................................................................8
Blade Rotation and Replacement .....................................................................................................9
Setting Up the Slip Roll .......................................................................................................................9
Flat Rolling....................................................................................................................................11
Forming a Radius..........................................................................................................................11
Forming a Tube.............................................................................................................................11
Bending Wire ................................................................................................................................12
Maintenance/Lubrication ...................................................................................................................12
Optional Accessories ........................................................................................................................12
Replacement Parts ...........................................................................................................................12
Breakdown for the SBR-30N Shear, Brake, and Roll........................................................................13
Parts List for the SBR-30N Shear, Brake, and Roll...........................................................................14
Breakdown For The SBR-40N Shear, Brake, and Roll......................................................................16
Parts List For The SBR-40N Shear, Brake, and Roll ........................................................................17

4
1. Read and understand the entire instruction manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with
all of these warnings may cause serious injury.
3. Replace warning labels if they become obscured or removed.
4. This shear, brake and roll is designed and intended for use by properly trained and experienced
personnel only. If you are not familiar with the proper and safe operation of a shear, brake and roll, do
not use until proper training and knowledge have been obtained.
5. This shear, brake and roll is intended to be used by one person only. Keep others away from the
machine during operations.
6. The shear, brake and roll must be bolted securely to a stand and the stand bolted securely to the
floor. If the machine is to be bench-mounted, the bench must be able to support the weight of the
machine and must be bolted to the floor.
7. Always wear approved safety glasses/face shields while using this tool. Note: Everyday eyeglasses
only have impact resistant lenses; they are not safety glasses.
8. Keep the floor around the shear, brake and roll clear of scraps, debris, oil and grease. The flooring
around the machine should be a non-skid type.
9. Sheet metal stock has sharp edges. To prevent cuts, deburr edges and use gloves when handling.
10. Keep top guard in place when not using the slip roll.
11. Keep hands and fingers clear of the slip roll pinch points.
12. Keep hands and fingers away from the area in front and rear of the shear blades.
13. Keep hands and fingers away from the press brake dies.
14. Do not exceed the maximum capacity of the machine.
15. Do not use the shear to cut round bars, chain, steel cable or hardened metals.
16. Do not use the machine for any purpose other than for which it is designed.
17. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are
careless acts that can result in serious injury.
18. Some dust created by power sanding, sawing, grinding, drilling and ot her construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
•Lead from lead based paint.
•Crystalline silica from bricks, cement and other masonry products.
•Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area and work with approved safety
equipment, such as face or dust masks that are specifically designed to filter out microscopic
particles.
19. Failure to comply with all of these warnings may cause serious injury.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or
possible machine damage.
This means that if precautions are not heeded, it may result in serious or even fatal
injury.

5
Introduction
This manual is provided by Walter Meier (Manufacturing) Inc., covering the safe operation and
maintenance procedures for a JET Model SBR-30N and Model SBR-40N Shear, Brake and Roll. This
manual contains instructions on installation, safety precautions, general operating procedures,
maintenance instructions and parts breakdown. This machine has been designed and constructed to
provide years of trouble free operation if used in accordance with instructions set forth in this manual. If
there are any questions or comments, please contact either your local supplier or Walter Meier. Walter
Meier can also be reached at our web site: www.waltermeier.com.
Specifications
Model Number................................................................. SBR-30N....................................... SBR-40N
Stock Number .................................................................... 754031.......................................... 754041
Capacity - Mild Steel (ga.) ...........................................................20.................................................. 20
Base Dimensions (LxW)(in.) ..................................... 32-1/4 x 14-1/2...............................45-1/4 X 17-3/4
Overall Dimensions, Assembled (LxWxH)(in.)................ 41 x 15 x 24..............................56 x 19 x 27-1/2
Net Weight, approximate (lbs.)................................................... 300................................................ 651
Shipping Weight, approximate (lbs.)........................................... 324................................................ 682
Shearing:
Shearing Capacity .....................................................20 ga. x 30 in. ................................20 ga. x 40 in.
Shear Blade .................................................................... reversible....................................... reversible
Bending:
Bending Capacity ......................................................20 ga. x 30 in..................................20 ga. x 40 in.
No. of Male Dies...........................................................................6....................................................8
No. of Female Dies .......................................................................5....................................................7
Width of Upper Dies (in.) .......................................... 1, 2, 3, 6, 8, 10...........1, 1-1/2, 2, 2-1/2, 4, 7, 10, 15
Upper Die Height (in.) .............................................................4-3/8..............................................3-3/8
Rolling:
Rolling Capacity ........................................................20 ga. x 30 in..................................20 ga. x 40 in.
Wire Grooves (dia./in.) ................................................ 1/8, 3/16, 1/4.................................. 1/8, 3/16, 1/4
Size of Slip Rolls (in.)............................................. 1-1/2 Dia. x 30 L............................. 1-5/8 Dia. x 40 L
Minimum Forming Radius (in.)....................................................3/4....................................................1
The above specifications were current at the time this manual was published, but because of our policy of
continuous improvement, Walter Meier reserves the right to change specifications at any time and without
prior notice, without incurring obligations.
Unpacking
Open shipping crate and check for shipping
damage. Report any damage immediately to
your distributor and shipping agent. Do not
discard any shipping material until the Shear,
Brake and Roll is assembled and running
properly.
Compare the contents of your crate with the
following parts list to make sure all parts are
intact. Missing parts, if any, should be reported
to your distributor. Read the instruction manual
thoroughly for assembly, maintenance and
safety instructions.
Contents of the Crate
1 Shear, Brake and Roll Machine
1 Operating Lever Assembly
2 Guide Rods with hex nuts
1 Guide Plate
1 Instruction and Parts Manual
1 Warranty Card

6
Assembly
Tools required for assembly:
5mm, 8mm hex keys (“Allen wrenches”)
19mm open end wrench
1. Finish removing the crate from around the
machine.
2. Remove the bolts holding the machine to
the skid.
3. Carefully clean all rust protected surfaces
with a mild solvent or kerosene and a soft
rag. Do not use lacquer thinner, paint
thinner, or gasoline, as these may damage
painted surfaces.
4. Coat all machined surfaces with a very light
film of oil to inhibit rust.
5. Carefully move the shear, brake, and roll to
a work bench or stand. Machine location
must allow free access on all sides.
6. Bolt the machine to a stand or a workbench.
If using a stand, the stand must be bolted to
the floor. If using a work bench, the benc h
must be bolted to the floor.
(NOTE: An optional stand is available for
this machine; see page 12. Contact your
JET distributor to order.)

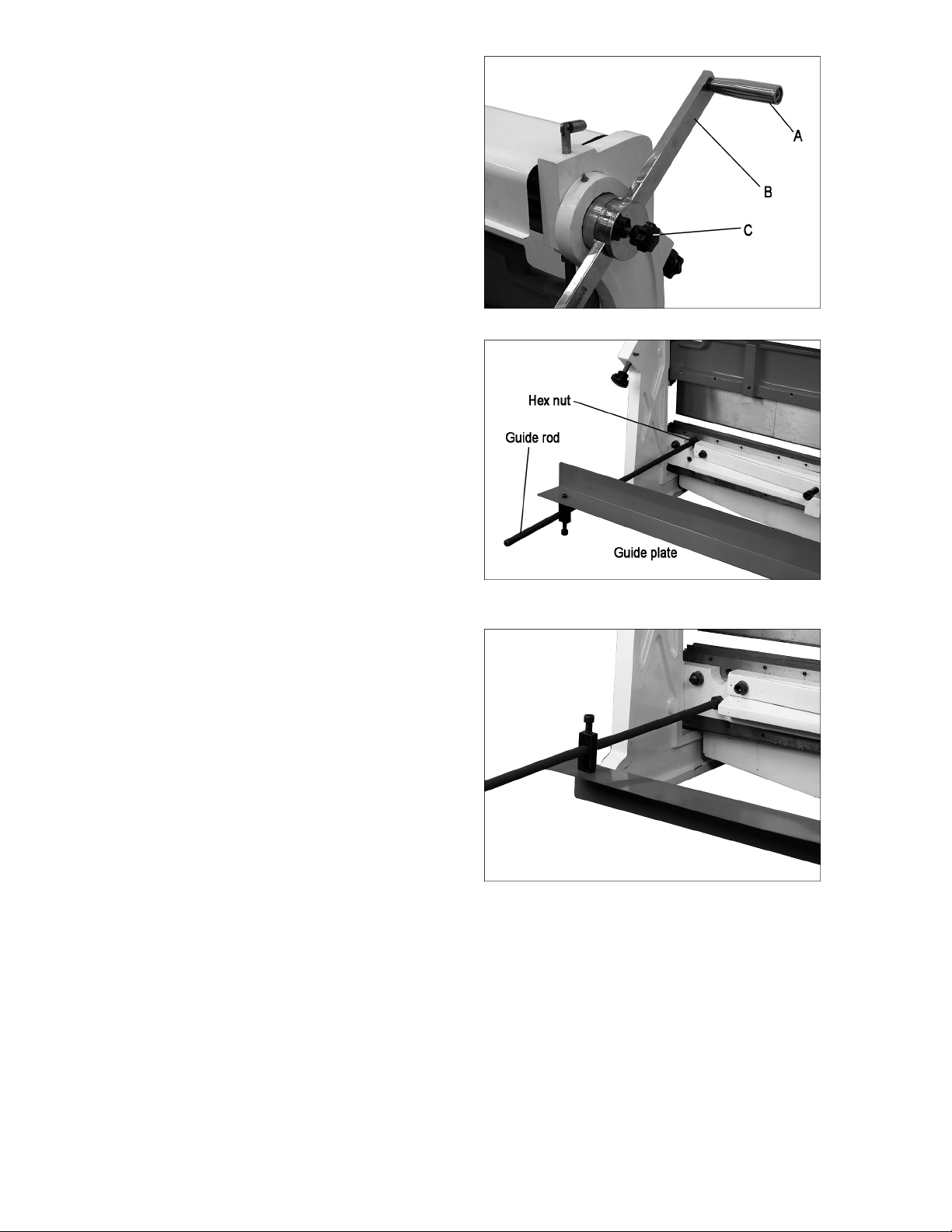

7. Remove one handle (A, Figure 1) from the
operating handle assembly, using an 8mm
hex key.
8. The operating handle can be installed o n
either end of the machine. Loosen lock bolt
(C, Figure 1).
9. Slide bar (B, Figure 1) into hub and tighten
lock bolt (C, Figure 1) to secure.
10. Re-install handle (A, Figure 1).
11. Install both guide rods into either the upper
or lower set of threaded holes (Figure 2)
and tighten the setting by rotating the hex
nut against the cast base of the machine
using a 19mm wrench.
NOTE: For brake operation, install the guide
rods into the upper set of holes (Figure 2);
for shear operation, install in the lower set of
holes (Figure 3).
12. Install the guide plate as shown in Figures 2
or 3. Secure it to the rods by tightening the
screws with a 5mm hex key.
Figure 1
Figure 2
(Brake position)
Figure 3
(Shear position)

7
Setting Up the Press Brake
Do not bend any material
larger than 30” (40”) 20-gauge mild steel.
Failure to comply may cause serious injury
and/or damage to the machine.
To set up for bending:
1. Place a strip of wood on the bottom die the
full length of the die.
2. Close the brake until the wood contacts the
upper dies.
3. Loosen the socket head cap screws (Figure
4) using a 6mm hex key.
4. Select upper die(s) (Figure 4) for the desired
job and remove the others by sliding them
out the left end.
5. Move the operating handle until the wood
pushes up the dies so that they seat
uniformly in the upper beam.
6. Securely re-tighten all screws (Figure 4),
then release and remove the wood strip.
7. If making repeated bends or using a long
workpiece, position the guide rods and plate
for brake operation, as shown in Figure 5.
8. Scribe a line on the workpiece for the bend
location. (Be sure to accommodate bend
allowance based upon thickness of the
material. This can be done either through
trial and error, or by consulting a machinist’s
handbook.)
9. Rest the workpiece on the v-block (lower
die) so that the scribed line is aligned with
the tips of the upper die(s).
10. Hold the workpiece steady and use the
operating handle to make the bend.
To adjust the brake beam to make 90°
°°
°bends
at the bottom of the stroke:
1. Slightly loosen locking screws (D, Figure 6)
using an 8mm hex key.
2. Turn brake beam adjusting screws (E,
Figure 6) using a 19mm wrench, until test
bends reflect a 90°bend at both ends of the
brake.
3. Re-tighten locking screws (D, Figure 6).
For special repetitive bends, the brake beam
may be adjusted to over-bend the desired angle
since the metal will have some degree of “spring
back”.
Figure 4
Figure 5
Figure 6

8
Setting Up the Shear
Do not shear any material
larger than 30” (40”) 20 gauge mild steel.
Failure to comply may cause serious injury
and/or damage to the machine.
1. Install the guide rods and plate in the shear
position (Figure 7) and adjust it to the
desired length of the cut workpiece.
2. Place the workpiece against the block at the
right edge of the table (Figure 8). The end of
the workpiece should be against the guide
plate.
3. Operate the handle to begin the shearing
cut. Shearing action progresses from right to
left.
NOTE: To prevent distortion when notching,
“snap” the handle to facilitate piercing.
Lower Blade Adjustment
The upper and lower shear blades have been
factory aligned and should not require
immediate adjustment. Should re-alignment be
needed in the future, proceed as follows:
1. Place a heavy sheet of paper in the cutting
position, along the entire length of the bed,
and make a cut.
2. If the shear does not cut the paper, loosen
the socket head cap screw (F, Figure 8) at
each end of the table, with an 8mm hex key.
3. Rotate the adjusting screws (G, Figure 9) to
shift the table and change the gap between
blades. Do not allow the blades to
overlap.
4. If the shear cuts the paper on the ends, but
not the center, slightly turn the screw (H,
Figure 10) clockwise until the paper is cut
the entire length.
5. If the shear cuts the paper in the center, but
not the ends, turn the screw (H, Figure 10)
counterclockwise until the paper is cut the
entire length.
Figure 7
Figure 8
Figure 9
Figure 10

9
Blade Rotation and Replacement
Exercise caution when
working with or near the blades. Use work
gloves when handling them.
The shearing blades are reversible and
interchangeable; when the edges dull, rotate
them to the new edge, as follows:
1. Remove the hold-down by loosening the
socket head cap screws (J, Figure 11),
using a 6mm hex key.
2. Raise the upper blade to highest position.
3. Remove the seven socket head cap screws
(K, Figure 11) and carefully remove a blade.
4. Rotate or replace the blade and re-install
the screws.
5. Re-install the hold-down. When the blade is
in highest position, the gap between the
hold-down and the table should be within
1/4”. Adjust to this position by turning the
two socket head cap screws (J, Figure 11)
as needed. When the blade starts its
downward travel, the hold-down should
immediately hold the workpiece in place.
Setting Up the Slip Roll
Do not roll any material
larger than 30” (40”), 20-
gauge mild steel. The slip roll guard must
cover the slip rolls except when material is
being fed into the rolls. Failure to comply
may cause serious injury and/or damage to
the machine.
Material Size Considerations
To determine the approximate length of material
needed for a desired size tube, use the following
formula:
DC
π
= ,
where Cis the circumference,
π
equals 3.1417
and
D
is the diameter.
For example: To find the length of material
needed (C) to form a tube 4" in diameter,
multiply 3.1417 by 4". Result: 12.5667" is the
circumference of approximate length of material
needed. Cut several pieces of material to this
length for a forming test run. Material may have
to be lengthened or shortened depending upo n
results of the test run.
Figure 11

10
TIP: If it doesn’t interfere with the proposed final
shape or design, a slight bend made with the
press brake on the leading edge will simplify the
initial rolling process, by allowing the leading
edge to slip more easily over the idle roll.
Beware of the pinch point –
the intersection of the upper and lower rolls.
Failure to comply may cause serious injury
to fingers and/or hands.
1. Make sure rolls and workpiece are clean
and free of debris to prevent pitting the
sheet metal.
2. Back off the idle roll completely by rotating
the idle roll screws (L, Figure 12) counter-
clockwise.
3. Loosen the bolt (M, Figure 12) to increase
the space between upper and lower press
rolls.
4. Insert the material between the upper and
lower rolls, and tighten the bolt (M, Figure
12) to lower the upper roll, until the material
fits snugly. The upper roll must have
sufficient pressure on the work piece to feed
properly.
5. Rotate both idle roll screws (L, Figure 12) to
adjust the idle roll’s proximity to the two
main rollers. Raise both ends an equal
amount.
6. Run the workpiece through the machine
using the operating lever. If the workpiece is
large, make sure it receives proper support
as it exits the slip roll machine.
7. Make further passes of the workpiece,
raising the idle roll incrementally before
each pass, until the desired radius is
achieved.
No exact formula can be followed when making
roll adjustments because material “spring-back”
varies with the kind of material being formed.
Only by test forming several pieces can the
correct adjustments be obtained. Also, keep in
mind that it is much easier to re-pass material to
make a smaller radius than to attempt to
increase a radius that was made too small.
The idle roll must be adjusted exactly parallel or
the material will spiral during the rolling process.
Measure each end of the opening with calipers if
greater precision is required.
Deliberately setting the rolls non-parallel can be
used to make cone shapes.
Figure 12

11

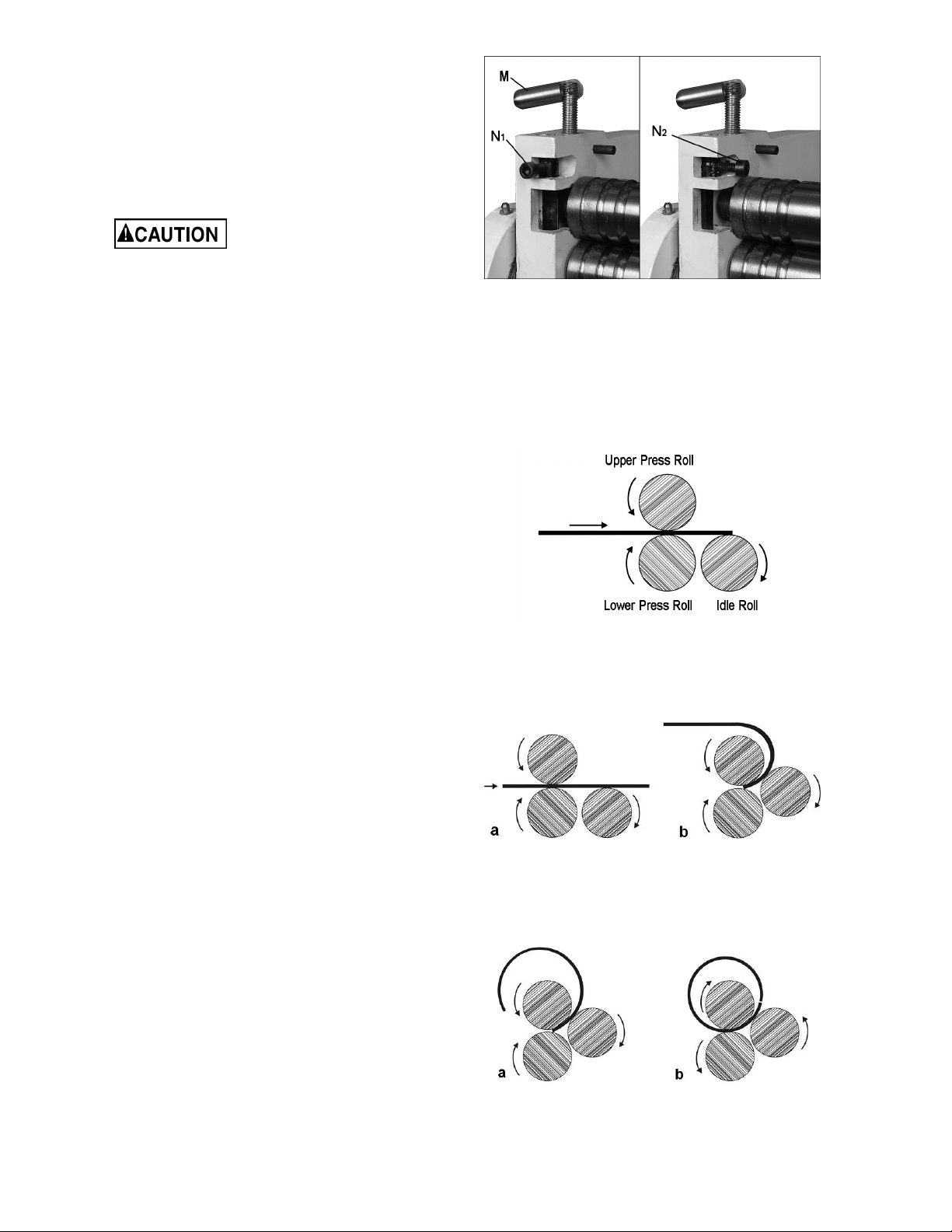

To remove cylindrical shaped workpieces:
1. Loosen bolt (M, Figure 13)
2. Rotate the screw (N
1
, Figure 30) toward the
rear of the machine to release the roll catch
(N
2
).
3. Carefully grasp upper roll and swing out the
end.
Grasp the upper roll firmly,
to prevent it falling out of the machine.
4. Slip the workpiece off the end of the roll.
5. Re-install the upper roll, and rotate the
screw (N
1
) back toward the front to secure.
Flat Rolling
Softer metals (copper, aluminum, etc.) can be
processed through the slip roll machine to
straighten, flatten, or reduce their thickness.
Simply adjust the upper press roll for thickness,
lower the idle roll all the way down, and feed the
workpiece through (Figure 14).
NOTE: The idle roll will not descend completely
out of the path of the workpiece; thus, there may
be a slight bend in the workpiece. By flipping the
workpiece over and re-feeding it, this bend can
be minimized.
Forming a Radius
1. Adjust the upper press roll as needed.
2. Insert the workpiece from the front.
3. Operate the lever; when the material
reaches the point where the radius is to
begin (a, Figure 15), stop the machine and
raise the idle roll an equal amount on eac h
end to achieve the desired bend.
4. Re-start the rolls and continue until the bend
is completed (b, Figure 15). Support the
workpiece as it exits the machine.
5. Make further passes if needed, along with
incremental idle roll adjustments.
Forming a Tube
1. Adjust the upper press roll as needed for
workpiece thickness.
2. Feed the workpiece into the machine. As it
nears the end (a, Figure 16), stop and
reverse direction (b, Figure 16).
3. Make further passes if needed, along with
incremental idle roll adjustments.
Figure 13
Figure 14
Figure 15
Figure 16

12
Bending Wire
There are three wire grooves at the end of the
press rollers to accommodate a 1/8”, 3/16” and
a 1/4” wire.
Use the smallest groove into which the wire will
comfortably fit. Bend the wire using the same
principles as described for forming a radius. To
make a complete loop of wire, use the
instructions for forming a tube.
Maintenance/Lubrication
Use caution when doing
maintenance work around
the shear blades.
1. Apply #2 lithium tube grease once a month
to the grease nipples on both ends of the
frame (Figure 17).
2. Keep the slip rolls clean and rust-free, and
frequently apply a light coat of oil to them.
3. Lightly brush a multi-purpose grease onto
the gears at the end of the rollers (Figure
17). Turn the operating handle to distribute
the grease.
4. Keep other exposed areas clean and lightly
coated with oil, such as the shear blades,
table and upper dies. (Remove the upper
dies from the bar for more effective
cleaning).
Optional Accessories
Part No. Description
754030 Optional Stand for SBR-30N
754040 Optional Stand for SBR-40N
Figure 17
Optional Stand
Replacement Parts
Replacement parts are listed on the following pages. To order parts or reach our service department, call
1-800-274-6848, Monday through Friday (see our website for business hours, www.waltermeier.com).
Having the Model Number and Serial Number of your machine available when you call will allow us to
serve you quickly and accurately.

13
Breakdown for the SBR-30N Shear, Brake, and Roll

14
Parts List for the SBR-30N Shear, Brake, and Roll
Index No. Part No. Description Size Qty
1.............. SBR30N-1...............Frame (Left) .......................................................................................1
2.............. SBR30N-2...............Table .................................................................................................1
3.............. SBR30N-3...............Brake Beam .......................................................................................1
4.............. SBR30N-4N ............Arm (Left)...........................................................................................1
4A............ SBR30N-4A.............Zerk Fitting .........................................................................................2
5.............. SBR30N-5...............Frame (Right) .....................................................................................1
6.............. SBR30N-6...............Spacer Bar.........................................................................................1
7.............. SBR30N-7...............Cover.................................................................................................2
8.............. SBR30N-8...............Pressure Plate Bracket .......................................................................2
9.............. SBR30N-9...............Spring ................................................................................................2
10............ SBR30N-10 .............Press Plate.........................................................................................1
11............ SBR30N-11 .............Cutter Plate........................................................................................1
12-1......... SBR30N-12-1 ..........Brake Forming Die............................................10”.............................1
12-2......... SBR30N-12-2 ..........Brake Forming Die............................................8”...............................1
12-3......... SBR30N-12-3 ..........Brake Forming Die............................................6”...............................1
12-4......... SBR30N-12-4 ..........Brake Forming Die............................................3”...............................1
12-5......... SBR30N-12-5 ..........Brake Forming Die............................................2”...............................1
12-6......... SBR30N-12-6 ..........Brake Forming Die............................................1”...............................1
13............ SBR30N-13 .............Press Plate.........................................................................................1
14............ TS-1491081 ............Hex Cap Screw ................................................M10x50......................2
15............ SBR30N-15 .............Pivot Bushing .....................................................................................2
16............ SBR30N-16 .............Block .................................................................................................1
17............ SBR30N-17 .............Adjustable Bolt ...................................................................................2
18............ SBR30N-18 .............Handle Bar .........................................................................................1
19............ SBR30N-19 .............Guide Rod..........................................................................................2
20............ SBR30N-20 .............Guide Block........................................................................................2
21............ SBR30N-21 .............Guide Plate ........................................................................................1
22............ SBR30N-22 .............Guide Bar...........................................................................................1
23............ SBR30N-23A...........Cutter ..............................................................25mm x 12mm............2
24............ SBR30N-24 .............Roll ....................................................................................................1
25............ SBR30N-25 .............Screw ................................................................................................2
26............ SBR30N-26 .............Handle ...............................................................................................2
27............ SBR30N-27 .............Adjustable Bolt ...................................................................................2
28............ SBR30N-28 .............Bushing..............................................................................................4
29............ SBR30N-29 .............Cover.................................................................................................2
30............ SBR30N-30 .............Gear ..................................................................................................2
31............ SBR30N-31 .............Lower Pressing Roll ............................................................................1
32............ SBR30N-32 .............Upper Pressing Roll ............................................................................1
33............ SBR30N-33 .............Cover.................................................................................................1
34............ SBR30N-34 .............Shaft..................................................................................................1
35............ SBR30N-35 .............Eccentric Shaft ...................................................................................2
36............ TS-1550071 ............Flat Washer......................................................M10 ...........................2
37............ SBR30N-37N...........Arm (Right).........................................................................................1
38............ SBR30N-38 .............Key..................................................................C8x25 ........................2
39............ TS-1503031 ............Hex Socket Cap Screw .....................................M6x12........................4
39A.......... SBR30N-39N...........Lock Bolt ............................................................................................1
40............ TS-1503021 ............Hex Socket Cap Screw .....................................M6x10........................2
41............ TS-1482081 ............Hex Cap Screw ................................................M6x40........................2
42............ TS-1503031 ............Hex Socket Cap Screw .....................................M6x12........................1
43............ TS-1503021 ............Hex Socket Cap Screw .....................................M6X10.......................2
44............ SBR30N-44 .............Screw ................................................................................................2
45............ TS-1505061 ............Hex Socket Cap Screw .....................................M10x40......................2
46............ TS-1550071 ............Flat Washer......................................................M10 ...........................2
47............ TS-1492051 ............Hex Cap Screw ................................................M12x50......................1
48............ TS-1491021 ............Hex Cap Screw ................................................M10x20......................2
49............ TS-1550071 ............Flat Washer......................................................M10 ...........................2

15
Index No. Part No. Description Size Qty
50............ TS-1540081 ............Hex Nut............................................................M12 ...........................1
51............ TS-1492041 ............Hex Cap Screw ................................................M12x40......................2
52............ TS-1505051 ............Hex Socket Cap Screw .....................................M10x35......................2
53............ TS-1504051 ............Hex Socket Cap Screw .....................................M8x25........................9
54............ TS-1505031 ............Hex Socket Cap Screw .....................................M10x25......................4
55............ TS-1550071 ............Flat Washer......................................................M10 ...........................2
56............ TS-1490151 ............Hex Cap Screw ................................................M8x90........................2
57............ TS-1503021 ............Hex Socket Cap Screw .....................................M6x10........................7
58............ TS-1503031 ............Hex Socket Cap Screw .....................................M6x12........................2
59............ TS-1503031 ............Hex Socket Cap Screw .....................................M6x12........................7
60............ TS-1505031 ............Hex Socket Cap Screw .....................................M10x25......................2
61............ TS-1550071 ............Flat Washer......................................................M10 ...........................2
62............ TS-1522031 ............Socket Set Screw .............................................M5x10......................20
63............ SBR30N-63 .............V-Block ..............................................................................................5
64............ TS-1540031 ............Hex Nut............................................................M5...........................20
65............ SBR30N-65N...........Roll Pin ............................................................A5x26 ........................2
66............ SBR30N-66N...........Roll Pin ............................................................A4x8 ..........................2
67............ SBR30N-WL............Warning Label ....................................................................................1

16
Breakdown For The SBR-40N Shear, Brake, and Roll

17
Parts List For The SBR-40N Shear, Brake, and Roll
Index No. Part No. Description Size Qty
1.............. SBR40N-1...............Frame (Left) .......................................................................................1
2.............. SBR40N-2...............Table .................................................................................................1
3.............. SBR40N-3...............Cross Beam .......................................................................................1
4.............. SBR40N-4N ............Arm (Left)...........................................................................................1
4A............ SBR40N-4A.............Zerk Fitting .........................................................................................2
5.............. SBR40N-5...............Frame (Right) .....................................................................................1
6.............. SBR40N-6...............Spacer Bar.........................................................................................1
7.............. SBR40N-7...............Cover.................................................................................................2
8.............. SBR40N-8...............Pressure Plate Bracket .......................................................................2
9.............. SBR40N-9...............Spring ................................................................................................2
10............ SBR40N-10 .............Press Plate.........................................................................................1
11............ SBR40N-11 .............Cutter Plate........................................................................................1
12-1......... SBR40N-12-1 ..........Brake Forming Die............................................15”.............................1
12-2......... SBR40N-12-2 ..........Brake Forming Die............................................10”.............................1
12-3......... SBR40N-12-3 ..........Brake Forming Die............................................7”...............................1
12-4......... SBR40N-12-4 ..........Brake Forming Die............................................4”...............................1
12-5......... SBR40N-12-5 ..........Brake Forming Die............................................2-1/2”.........................1
12-6......... SBR40N-12-6 ..........Brake Forming Die............................................2”...............................1
12-7......... SBR40N-12-7 ..........Brake Forming Die............................................1-1/2”.........................1
12-8......... SBR40N-12-8 ..........Brake Forming Die............................................1”...............................1
13............ SBR40N-13 .............Press Plate.........................................................................................1
14............ TS-1492051 ............Hex Cap Screw ................................................M12x45......................2
15............ SBR40N-15 .............Pivot Bushing .....................................................................................2
16............ SBR40N-16 .............Stop Block..........................................................................................1
17............ SBR40N-17 .............Adjustable Bolt ...................................................................................2
18............ SBR40N-18 .............Handle Bar .........................................................................................2
19............ SBR40N-19 .............Guide Rod..........................................................................................2
20............ SBR40N-20 .............Guide Block........................................................................................2
21............ SBR40N-21 .............Guide Plate ........................................................................................1
22............ SBR40N-22 .............Support Plate .....................................................................................1
23............ SBR40N-23 .............Cutter.................................................................................................2
24............ SBR40N-24 .............Roll ....................................................................................................1
25............ SBR40N-25N...........Screw w/Knob ....................................................................................2
26............ SBR30N-26 .............Handle ...............................................................................................4
27............ SBR40N-27 .............Adjustable Bolt ...................................................................................2
28............ SBR40N-28 .............Bushing..............................................................................................2
28A.......... SBR40N-28A...........Bushing..............................................................................................2
29............ SBR40N-29 .............Cover.................................................................................................2
30............ SBR40N-30N...........Gear ..................................................................................................2
31............ SBR40N-31 .............Lower Pressing Roll ............................................................................1
32............ SBR40N-32 .............Upper Pressing Roll ............................................................................1
33............ SBR40N-33 .............Cover.................................................................................................1
34............ SBR40N-34 .............Lock Shaft ..........................................................................................1
35............ SBR40N-35 .............Eccentric Shaft ...................................................................................2
36............ TS-155010 ..............Flat Washer......................................................M16 ...........................2
37............ SBR40N-37N...........Arm (Right).........................................................................................1
38............ SBR40N-38N...........Key..................................................................C8x28 ........................2
39............ TS-1503041 ............Hex Socket Cap Screw .....................................M6x16........................4
39A.......... SBR40N-39N...........Lock Bolt ............................................................................................2
40............ TS-1503041 ............Hex Socket Cap Screw .....................................M6x16........................2
41............ SBR40N-41N...........Set Screw ..........................................................................................2
42............ SBR40N-42N...........Key..................................................................B4x8 ..........................1
43............ TS-1492011 ............Hex Cap Screw ................................................M12x25......................2
44............ TS-2211201 ............Hex Cap Screw ................................................M12x16......................2
45............ TS-1506111 ............Hex Socket Cap Screw .....................................M12x70......................2
46............ TS-2360121 ............Flat Washer......................................................M12 ...........................2

18
Index No. Part No. Description Size Qty
47............ TS-149B16 ..............Hex Cap Screw ................................................M16x100 ....................1
48............ TS-2212301 ............Hex Cap Screw ................................................M16x30......................2
49............ TS-155010 ..............Flat Washer......................................................M16 ...........................2
50............ TS-154010 ..............Hex Nut............................................................M16 ...........................1
51............ TS-1492021 ............Hex Cap Screw ................................................M12x30......................2
52............ SBR40N-52N...........Hex Socket Cap Screw .....................................M16x55......................2
53............ TS-1503061 ............Hex Socket Cap Screw .....................................M6x25......................13
54............ SBR40N-54N...........Hex Socket Cap Screw .....................................M16x35......................4
55............ TS-2360121 ............Flat Washer......................................................M12 ...........................2
56............ TS-1499141 ............Hex Cap Screw ................................................M12x75......................2
57............ TS-1503041 ............Hex Socket Cap Screw .....................................M6x16........................6
58............ TS-1503041 ............Hex Socket Cap Screw .....................................M6x16........................2
59............ TS-1503041 ............Hex Socket Cap Screw .....................................M6x16........................6
60............ SBR40N-60N...........Hex Socket Cap Screw .....................................M16x35......................2
61............ TS-155010 ..............Flat Washer......................................................M16 ...........................2
62............ TS-1522041 ............Hex Socket Screw ............................................M5x12......................14
63............ SBR40N-63N...........V-Block ..............................................................................................7
64............ TS-1540031 ............Hex Nut............................................................M5...........................14
65............ TS-1502041 ............Hex Socket Cap Screw .....................................M5X16.....................14
66............ SBR30N-65N...........Roll Pin ............................................................A5x26 ........................2
67............ SBR30N-WL............Warning Label ....................................................................................1

19

20
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Phone: [phone]
www.waltermeier.com
