11.1.2 Main Body Assembly (3T Short Chassis Service Jack) – Parts List
Index No Part No Description Size Qty
1...............JSJ3XA-01...............Front Caster..........................................................................................2
2...............JSJ3XA-02...............Washer...............................................................18mm.........................2
3...............JSJ3XA-03...............C-Clip.................................................................18mm.........................2
4...............JSJ3S-07.................Swivel Caster Assembly........................................................................2
5...............JSJ3S-08.................Ball Ring................................................................................................2
6...............JSJ3S-09.................Steel Ball............................................................6.35mm....................38
7...............JSJ3S-10.................Ball Cover..............................................................................................2
8...............JSJ3S-05.................Lock Washer ......................................................16mm.........................2
9...............JSJ3S-06.................Hex Nut..............................................................M16............................2
10.............JSJ3S-13.................Arm Shaft..............................................................................................1
11.............JSJ3S-14.................Retainer Ring.....................................................25mm.........................4
12.............JSJ3S-11.................Lock Washer ......................................................12mm.........................4
13.............JSJ3S-12.................Socked Head Cap Screw....................................M12x25......................2
14.............JSJ3S-18.................Hex Nut..............................................................M12............................2
15.............JSJ3S-17.................Shaft .....................................................................................................1
16.............JSJ3S-16.................Lock Washer ......................................................10mm.........................3
17.............JSJ3S-15.................Hex Nut..............................................................M10............................3
18.............JSJ3S-19.................Screw....................................................................................................1
19.............JSJ3S-20.................Lock Washer ......................................................18mm.........................2
20.............JSJ3S-26.................Torsion Spring.......................................................................................1
21.............JSJ3S-21.................Pin......................................................................2x16mm.....................1
22.............JSJ3S-22.................Washer...............................................................8mm...........................4
23.............JSJ3S-27.................Handle Socket.......................................................................................1
24.............JSJ3S-24.................Pump Pin ..............................................................................................1
25.............JSJ3S-25.................Bolt........................................................................................................1
26.............JSJ3S-23.................Release Valve Gear ..............................................................................1
27.............JSJ3S-29.................Gear Shaft.............................................................................................1
28.............JSJ3S-31.................Hex Cap Bolt......................................................M6x35........................1
29.............JSJ3S-32.................Lower Handle........................................................................................1
30.............JSJ3S-34.................Upper Handle........................................................................................1
31.............JSJ3S-33.................Handle Grip...........................................................................................1

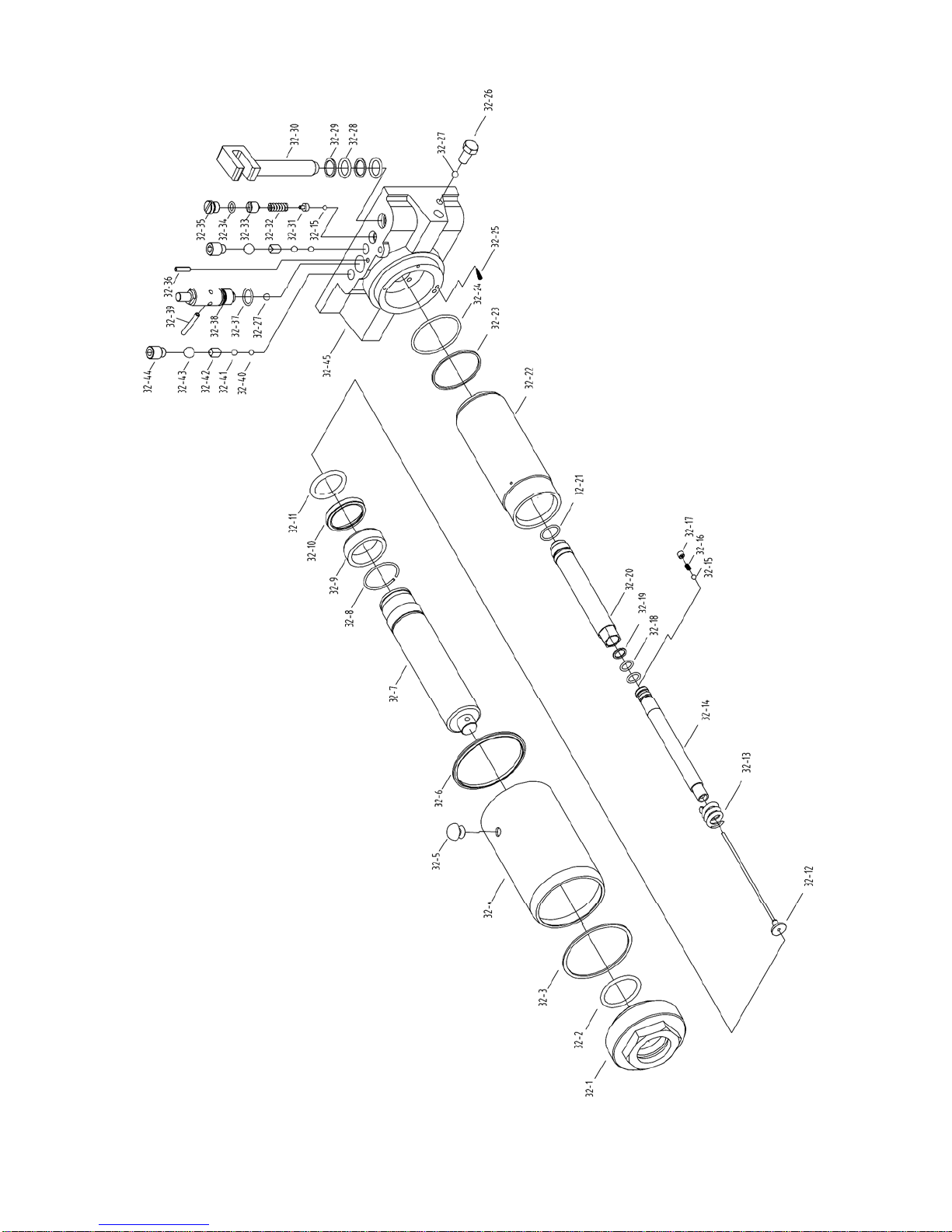

32.............JSJ21/4XA-32..........Power Unit Assembly.............................................................................1
33.............JSJ3XA-33...............Gear......................................................................................................1
34.............JSJ3XA-34...............Washer...............................................................8mm...........................1
35.............JSJ3XA-35...............Nut.....................................................................M8..............................1
36.............JSJ3S-42.................Return Spring........................................................................................1
37.............JSJ3S-41.................Pin......................................................................4x50mm.....................1
38.............JSJ3S-40.................Cross Head...........................................................................................1
39.............JSJ3XA-39...............Screw....................................................................................................1
40.............JSJ3S-39.................Grease Fitting.....................................................M6..............................1
41.............JSJ3S-36.................Lifting Arm Assembly.............................................................................1
42.............JSJ3S-37.................Saddle...................................................................................................1
43.............JSJ3S-35.................Bolt........................................................................................................2
44.............JSJ3XA-44...............Side Plate Assembly..............................................................................1
.................JSJ3XA-WL.............I.D./Warning Label (not shown)..............................................................1
