25CS & 22CS
WOODWORKING SHAPERS
The new line up of shapers from JET delivers power, quality, and precision for all of today's
woodworkers. If you're looking for the top of the line, look no further than our 35X shaper with
it's massive four-speed, 5 HP 1 Ph motor that delivers up to 10,000 RPM. If you want a shaper
that fits your smaller shop the 22CS, scaled down to fit even the tightest shop, will deliver big
power and features on your smaller budget. Looking for something in between?
JET has two more shapers to fit the bill. No matter what kind of
project you are tackling, JET has a an extensive
lineup of shapers to suit your needs.
Select a size that fits your needs:
INTRODUCING THE NEW FAMILY OF
JET®WOODWORKING SHAPERS
25X 25CS 22CS
35X
Features
Starting Pins for irregular shaping
•
Forward/reverse switch for left and right hand
•
operation
Two reversible spindle speeds lets you select the
•
best speed and torque for different
cutter diameters
Independent left and right fences feature
•
micro-adjustment and have zero clearance
capability
Extra large handwheel is conveniently located
•
for fast, easy and accurate spindle height
adjustments
Positive detent spindle lock allows safer,
•
easy cutter set up
4" dust port connects to your collection system
•
to keep your workplace dust and debris free
Fully enclosed, heavy-duty steel stand has a
•
removable cover for easy motor access
1/2" and 3/4" interchangeable spindles and 1/4"
•
and 1/2" router bit collets for use with shaper
cutter and router bits
Powerful 1-1/2HP motor delivers dependable power,
•
even on heavy jobs
22-3/8" x 18-1/8" solid cast iron table provides a
•
durable work area
Two adjustable work hold-downs to secure your
•
work while shaping
T-Slot Miter Gaugea.
Large, Heavy-Dutyb.
Handwheel
Solid Cast Iron Tablec.
Workpiece Hold-Downsd.
Ratchet Style Locksa.
Independentlyb.
Adjustable Fence
Magnetic Switchc.
Rigid, One-Pieced.
Steel Stand
Large, Heavy-Dutye.
Handwheel
Extra-Large 25" x 25"f.
Work Surface
Four Adjustableg.
Hold-Downs
Features
Starting pins for irregular shaping
•
Forward/reverse switch for left and right hand
•
operation
Two speed step pulley drive lets you select
•
the best speed and torque for different cutter
diameters
Independent left and right fences feature
•
micro-adjustment and have zero clearance
capability
Extra large handwheel is conveniently located
•
for fast, easy and accurate spindle height
adjustments
4" dust port connects to your collection system
•
to keep your workplace dust and debris free
Fully enclosed, heavy-duty steel stand has a
•
removable cover for easy motor access
1/2" and 3/4" interchangeable spindles and
•
router bit collets for use with shaper cutter
and router bits
Unique ratcheting style levers allow you to
•
micro-adjust your fence assembly to your
exact needs
Powerful 3HP motor and heavy-duty magnetic
•
controls deliver smooth, consistent power on
even the heaviest jobs
25" x 18" solid cast iron table comes with an
•
additional 25" x 7" extension wings to handle
extra large work pieces
Four adjustable work hold-downs to secure
•
your work while shaping
OptiOnal aCCessOries
1/2" Spindle 709527
3/4" Spindle 709526
1" Spindle 709521
1/4" Router Collet 709524
1/2" Router Collet 709525

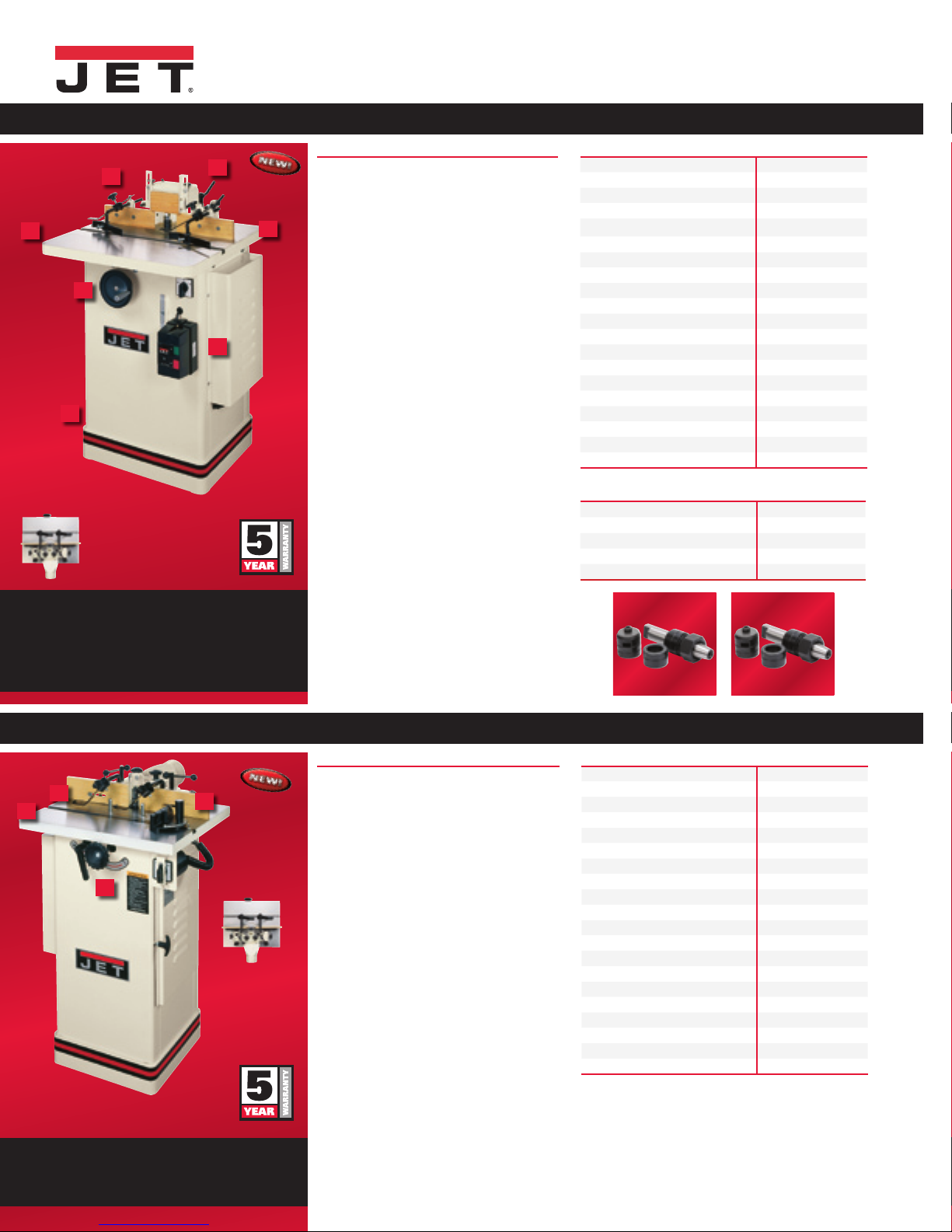

speCiFiCatiOns
Stock Number 708322
Model Number JWS-25CS
Spindle Speed (RPM) 8000 and 10000
Spindle Diameter (in.) 1/2 and 3/4
Spindle Size Under Nut (in.) (1/2) 2-3/4, (3/4) 3
Spindle Travel (in.) 3
Table Size (in.) 25 x 25
Table T-Slot (in.) 3/8 x 3/4
Table Opening Diameter (in.) 6-7/8
Table Insert Opening Diameter (in.) 1-5/8, 3, 3-1/2
Fence Size (2) (L x H/in.) 9-1/2 x 2-3/4
Router Bit Collet Diameter (in.) 1/4, 3/8 and 1/2
Table Height From Floor (in.) 34
Dust Port Diameter (OD/in.) 4
Amps 16
Motor HP 3HP
Motor Phase 1Ph
Motor Voltage 230V
Prewired 230V
Net Weight (lbs.) 320
speCiFiCatiOns
Stock Number 708320
Model Number JWS-22CS
Spindle Speed (RPM) 7000 and 9000 reversing
Spindle Diameter (in.) 1/2 and 3/4
Spindle Size Under Nut (in.) (1/2) 2-3/16, (3/4) 2-3/16
Spindle Travel (in.) 1-7/16
Table Size (in.) 22-1/4 x 18-1/8
Table T-Slot (in.) 3/8 x 3/4
Table Opening Diameter (in.) 5-1/4
Table Insert Opening Diameter (in.) 1-5/8 and 3-1/4
Fence Size (2) (L x H/in.) 10 x 3-1/8
Router Bit Collet Diameter (in.) 1/4 and 1/2
Table Height From Floor (in.) 33-1/2
Dust Port Diameter (OD/in.) 4
Amps 12/6
Motor HP 1-1/2HP
Motor Phase 1Ph
Motor Voltage 115/230V
Prewired Prewired 115V
Net Weight (lbs.) 192
A
B
C
D
E
F
G
25CS
22CS
A
B
C
D
Top view of hold-downs,
fence assembly and
dust port features
Top view of
hold-downs,
fence assembly and
dust port features
709526709521
© 2008 WMH TOOL GROUP, INC. All rights reserved. The color WHITE is a registered trademark of WMH Tool Group, Inc.

35X WOODWORKING SHAPER 25X WOODWORKING SHAPER
A
B
C
D
E
F
G
H
I
J
K
Features
Four speeds 4000, 6000, 8000, 1000 RPM let you select the best
•
speed and torque for different cutter diameters
Independently adjustable left and right fences, standard with a micro
•
adjust control for precise positioning
Large 26-3/4” X 32-1/4” precision ground cast iron table provides a
•
durable work area, predrilled for power feeder
Poly-V-belt transfers maximum power to the spindle
•
Extruded aluminum fence comes with T-Slots and 2 feather board
•
hold-downs
Reversible spindle speeds for diverse shaping jobs
•
Powerful 3HP, 1Ph, 5HP, 1Ph or 5HP, 3Ph motor with magnetic controls
•
Starting pins for irregular shaping
•
Extra large chrome handwheel is conveniently located for fast, easy
•
and accurate spindle height adjustments
4" Dust port built into fence for convenient hookup to any dust
•
collection system
Spindle lock for safe and easy cutter set up
•
Spindle height scale
•

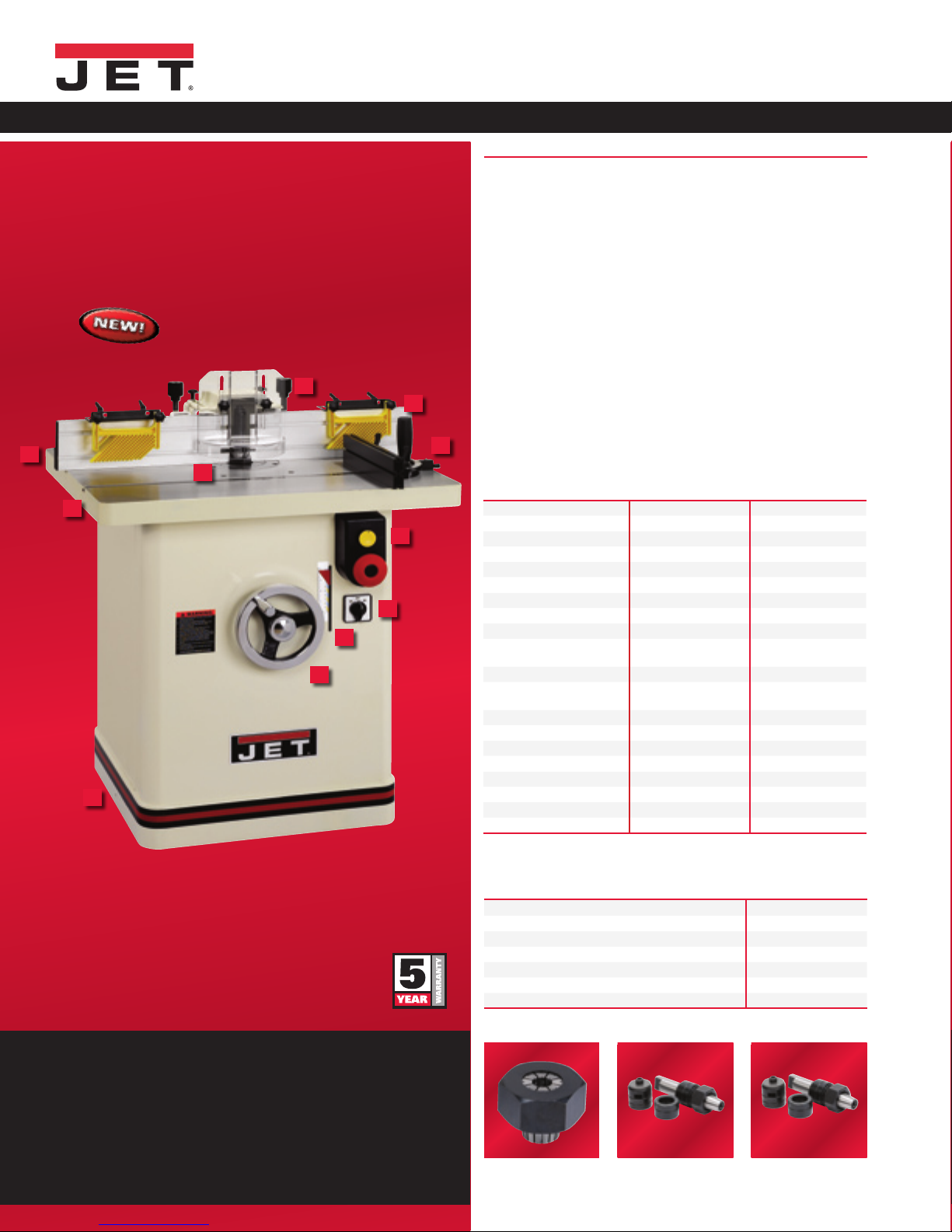

speCiFiCatiOns
Stock Number 708323 708326
Model Number JWS-35X3-1 JWS-35X5-1
Spindle Speed (RPM) 4000, 6000, 8000, 10,000 4000, 6000, 8000, 10,000
Spindle Diameter (in.) 1-1/4 1-1/4
Spindle Size Under Nut (in.) 4 4
Spindle Travel (in.) 4 4
Table Size (in.) 26-3/4 x 32-1/4 26-3/4 x 32-1/4
Table T-Slot (in.) Yes Yes
Table Opening Diameter (in.) 7-1/4 7-1/4
Table Insert Opening
Diameter (in.) 2-5/8, 4-7/8 2-5/8, 4-7/8
Fence Size (2) (L x H/in.) 4-3/4 x 16 4-3/4 x 16
Router Bit Collet Diameter
(in.) 1/4, 1/2 (optional) 1/4, 1/2 (optional)
Table Height From Floor (in.) 33-1/4 33-1/4
Dust Port Diameter (OD/in.) 4 4
Amps 14 17
Motor HP 3HP 5HP
Motor Phase 1Ph 1Ph
Motor Voltage 220V 230V
Prewired 220V 230V
Net Weight (lbs.) 473 473
OptiOnal aCCessOries
30mm Spindle for JET 35X Shaper 708372
1/2" Spindle for JET 35X Shaper 708381
3/4" Spindle for JET 35X Shaper 708317
1" Spindle for JET 35X Shaper 708314
1-1/4" Spindle for JET 35X Shaper 708328
1/4" Collet for JET 35X Shaper 708373
1/2" Collet for JET 35X Shaper 708374
708382 708328 708317
AB
C
D
E
F
G
H
I
J
L
K
Features
Two speeds let you select the best speed and torque for different
•
cutter diameters
Independently adjustable left and right fences, standard with a micro
•
adjust control for precise positioning
Large 25” X 25-1/2” precision ground cast iron table provides a
•
durable work area, predrilled for power feeder
Poly-V-belt transfers maximum power to the spindle
•
Extruded aluminum fence comes with T-Slots and 2 feather board
•
hold-downs
Reversible spindle speeds for diverse shaping jobs
•
Powerful 3HP, 1Ph motor with magnetic controls
•
Starting pins for irregular shaping
•
Extra large chrome handwheel is conveniently located for fast, easy
•
and accurate spindle height adjustments
4" Dust port built into fence for convenient hookup to any dust
•
collection system
Spindle lock for safe and easy cutter set up
•
Spindle height scale
•
OptiOnal aCCessOries
1" Spindle for JET 25X Shaper 708318
30mm Spindle for JET 25X Shaper 708382
1/4" Collet for JET JWS-25X Shaper 708383
1/2" Collet for JET JWS-25X Shaper 708384

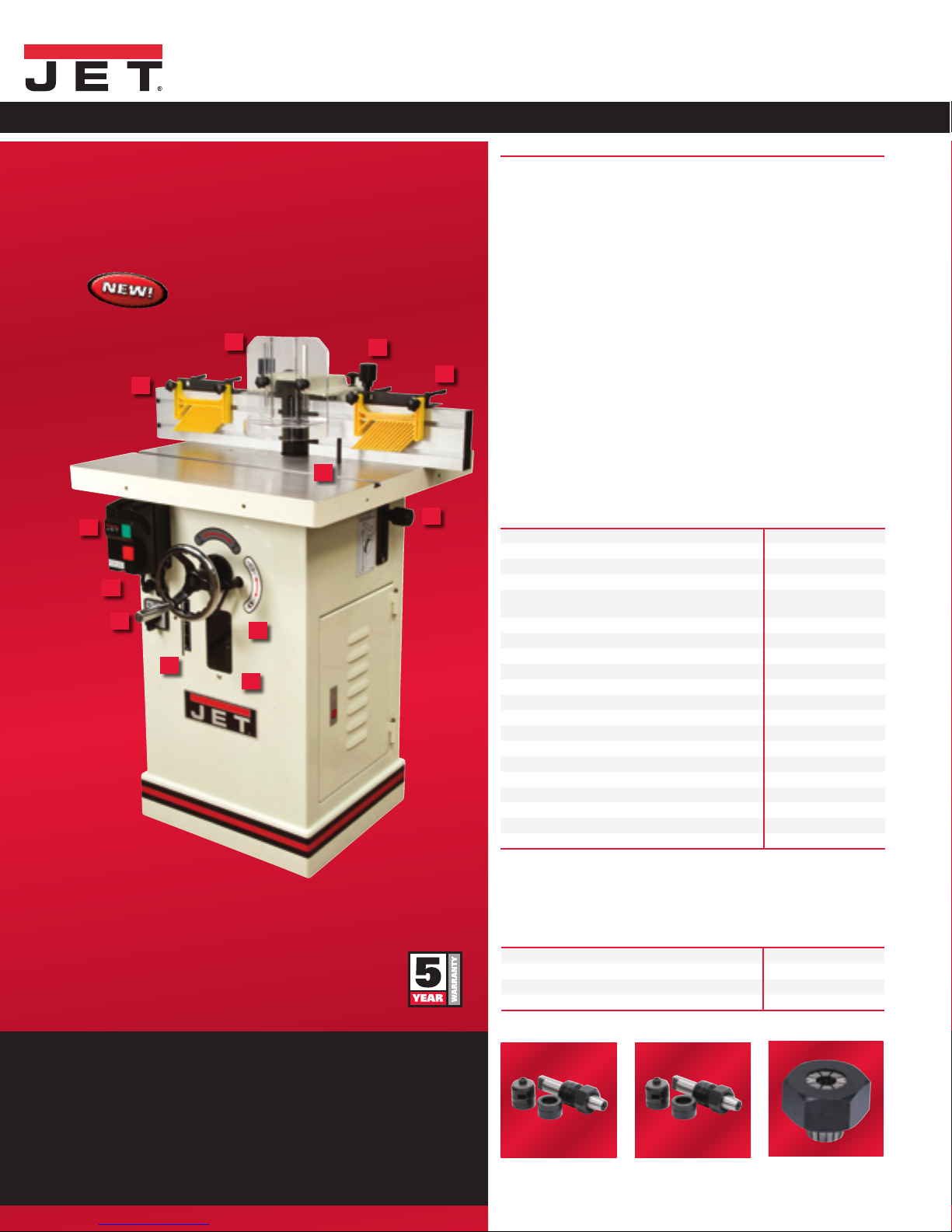

speCiFiCatiOns
Stock Number 708309
Model Number JWS-25X
Spindle Speed (RPM) 7500 and 10,000
Spindle Diameter (in.) (Standard) 1/2 and 3/4
Spindle Size Under Nut (in.) 1/2 (2-13/64) and
3/4 (3-3/16)
Spindle Travel (in.) 3
Table Size (in.) 25 x 25-1/2
Table T-Slot (in.) 3/4 x 3/8
Table Opening Diameter (in.) 6-9/32
Table Insert Opening Diameter (in.) 2-9/16 and 4-21/64
Fence Size (2) (L x H/in.) 14-1/2 x 4-3/4
Router Bit Collet Diameter (in.) 1/4 and 1/2 (optional)
Table Height From Floor (in.) 33
Dust Port Diameter (OD/in.) 4
Amps 16
Motor HP 3HP
Motor Phase 1
Motor Voltage 230V
Prewired 230V
Net Weight (lbs.) 331
708318 708382 708384
Independently Adjustable Lefta.
and Right Extruded Aluminum
Fence with T-Slots
Featherboard Hold-Downsb.
Miter Gaugec.
Magnetic Controls Withd.
Mushroom Step Button
Reversible Stop Button Switche.
Spindle Height Scalef.
Large Chrome Wheelg.
Heavy-Duty One Piece Steelh.
Stand
Large 26-3/4" X 32-1/4 Precisioni.
Ground Cast Iron Table
Predrilled for Powerfeederj.
Polycarbonate Guardk.
Polycarbonate Guarda.
Fence Lock Knobsb.
Adjustable Featherboardc.
Hold-Downs
Starter Pind.
Arbor Locke.
Spindle Height Lock Handlef.
Spindle Height Scaleg.
Spindle Speed Viewing Windowh.
Spindle Height Adjustment Wheeli.
Forward/Reverse Switchj.
Magnetic Controlsk.
Independently Adjustable Left andl.
Right Extruded Aluminum Fence
with T-Slots

35X WOODWORKING SHAPER 25X WOODWORKING SHAPER
A
B
C
D
E
F
G
H
I
J
K
Features
Four speeds 4000, 6000, 8000, 1000 RPM let you select the best
•
speed and torque for different cutter diameters
Independently adjustable left and right fences, standard with a micro
•
adjust control for precise positioning
Large 26-3/4” X 32-1/4” precision ground cast iron table provides a
•
durable work area, predrilled for power feeder
Poly-V-belt transfers maximum power to the spindle
•
Extruded aluminum fence comes with T-Slots and 2 feather board
•
hold-downs
Reversible spindle speeds for diverse shaping jobs
•
Powerful 3HP, 1Ph, 5HP, 1Ph or 5HP, 3Ph motor with magnetic controls
•
Starting pins for irregular shaping
•
Extra large chrome handwheel is conveniently located for fast, easy
•
and accurate spindle height adjustments
4" Dust port built into fence for convenient hookup to any dust
•
collection system
Spindle lock for safe and easy cutter set up
•
Spindle height scale
•
speCiFiCatiOns
Stock Number 708323 708326
Model Number JWS-35X3-1 JWS-35X5-1
Spindle Speed (RPM) 4000, 6000, 8000, 10,000 4000, 6000, 8000, 10,000
Spindle Diameter (in.) 1-1/4 1-1/4
Spindle Size Under Nut (in.) 4 4
Spindle Travel (in.) 4 4
Table Size (in.) 26-3/4 x 32-1/4 26-3/4 x 32-1/4
Table T-Slot (in.) Yes Yes
Table Opening Diameter (in.) 7-1/4 7-1/4
Table Insert Opening
Diameter (in.) 2-5/8, 4-7/8 2-5/8, 4-7/8
Fence Size (2) (L x H/in.) 4-3/4 x 16 4-3/4 x 16
Router Bit Collet Diameter
(in.) 1/4, 1/2 (optional) 1/4, 1/2 (optional)
Table Height From Floor (in.) 33-1/4 33-1/4
Dust Port Diameter (OD/in.) 4 4
Amps 14 17
Motor HP 3HP 5HP
Motor Phase 1Ph 1Ph
Motor Voltage 220V 230V
Prewired 220V 230V
Net Weight (lbs.) 473 473
OptiOnal aCCessOries
30mm Spindle for JET 35X Shaper 708372
1/2" Spindle for JET 35X Shaper 708381
3/4" Spindle for JET 35X Shaper 708317
1" Spindle for JET 35X Shaper 708314
1-1/4" Spindle for JET 35X Shaper 708328
1/4" Collet for JET 35X Shaper 708373
1/2" Collet for JET 35X Shaper 708374
708382 708328 708317
AB
C
D
E
F
G
H
I
J
L
K
Features
Two speeds let you select the best speed and torque for different
•
cutter diameters
Independently adjustable left and right fences, standard with a micro
•
adjust control for precise positioning
Large 25” X 25-1/2” precision ground cast iron table provides a
•
durable work area, predrilled for power feeder
Poly-V-belt transfers maximum power to the spindle
•
Extruded aluminum fence comes with T-Slots and 2 feather board
•
hold-downs
Reversible spindle speeds for diverse shaping jobs
•
Powerful 3HP, 1Ph motor with magnetic controls
•
Starting pins for irregular shaping
•
Extra large chrome handwheel is conveniently located for fast, easy
•
and accurate spindle height adjustments
4" Dust port built into fence for convenient hookup to any dust
•
collection system
Spindle lock for safe and easy cutter set up
•
Spindle height scale
•
OptiOnal aCCessOries
1" Spindle for JET 25X Shaper 708318
30mm Spindle for JET 25X Shaper 708382
1/4" Collet for JET JWS-25X Shaper 708383
1/2" Collet for JET JWS-25X Shaper 708384
speCiFiCatiOns
Stock Number 708309
Model Number JWS-25X
Spindle Speed (RPM) 7500 and 10,000
Spindle Diameter (in.) (Standard) 1/2 and 3/4
Spindle Size Under Nut (in.) 1/2 (2-13/64) and
3/4 (3-3/16)
Spindle Travel (in.) 3
Table Size (in.) 25 x 25-1/2
Table T-Slot (in.) 3/4 x 3/8
Table Opening Diameter (in.) 6-9/32
Table Insert Opening Diameter (in.) 2-9/16 and 4-21/64
Fence Size (2) (L x H/in.) 14-1/2 x 4-3/4
Router Bit Collet Diameter (in.) 1/4 and 1/2 (optional)
Table Height From Floor (in.) 33
Dust Port Diameter (OD/in.) 4
Amps 16
Motor HP 3HP
Motor Phase 1
Motor Voltage 230V
Prewired 230V
Net Weight (lbs.) 331
708318 708382 708384
Independently Adjustable Lefta.
and Right Extruded Aluminum
Fence with T-Slots
Featherboard Hold-Downsb.
Miter Gaugec.
Magnetic Controls Withd.
Mushroom Step Button
Reversible Stop Button Switche.
Spindle Height Scalef.
Large Chrome Wheelg.
Heavy-Duty One Piece Steelh.
Stand
Large 26-3/4" X 32-1/4 Precisioni.
Ground Cast Iron Table
Predrilled for Powerfeederj.
Polycarbonate Guardk.
Polycarbonate Guarda.
Fence Lock Knobsb.
Adjustable Featherboardc.
Hold-Downs
Starter Pind.
Arbor Locke.
Spindle Height Lock Handlef.
Spindle Height Scaleg.
Spindle Speed Viewing Windowh.
Spindle Height Adjustment Wheeli.
Forward/Reverse Switchj.
Magnetic Controlsk.
Independently Adjustable Left andl.
Right Extruded Aluminum Fence
with T-Slots

jettools.com
25CS & 22CS
WOODWORKING SHAPERS
The new line up of shapers from JET delivers power, quality, and precision for all of today's
woodworkers. If you're looking for the top of the line, look no further than our 35X shaper with
it's massive four-speed, 5 HP 1 Ph motor that delivers up to 10,000 RPM. If you want a shaper
that fits your smaller shop the 22CS, scaled down to fit even the tightest shop, will deliver big
power and features on your smaller budget. Looking for something in between?
JET has two more shapers to fit the bill. No matter what kind of
project you are tackling, JET has a an extensive
lineup of shapers to suit your needs.
Select a size that fits your needs:
INTRODUCING THE NEW FAMILY OF
JET®WOODWORKING SHAPERS
25X 25CS 22CS
35X
Features
Starting Pins for irregular shaping
•
Forward/reverse switch for left and right hand
•
operation
Two reversible spindle speeds lets you select the
•
best speed and torque for different
cutter diameters
Independent left and right fences feature
•
micro-adjustment and have zero clearance
capability
Extra large handwheel is conveniently located
•
for fast, easy and accurate spindle height
adjustments
Positive detent spindle lock allows safer,
•
easy cutter set up
4" dust port connects to your collection system
•
to keep your workplace dust and debris free
Fully enclosed, heavy-duty steel stand has a
•
removable cover for easy motor access
1/2" and 3/4" interchangeable spindles and 1/4"
•
and 1/2" router bit collets for use with shaper
cutter and router bits
Powerful 1-1/2HP motor delivers dependable power,
•
even on heavy jobs
22-3/8" x 18-1/8" solid cast iron table provides a
•
durable work area
Two adjustable work hold-downs to secure your
•
work while shaping
T-Slot Miter Gaugea.
Large, Heavy-Dutyb.
Handwheel
Solid Cast Iron Tablec.
Workpiece Hold-Downsd.
Ratchet Style Locksa.
Independentlyb.
Adjustable Fence
Magnetic Switchc.
Rigid, One-Pieced.
Steel Stand
Large, Heavy-Dutye.
Handwheel
Extra-Large 25" x 25"f.
Work Surface
Four Adjustableg.
Hold-Downs
Features
Starting pins for irregular shaping
•
Forward/reverse switch for left and right hand
•
operation
Two speed step pulley drive lets you select
•
the best speed and torque for different cutter
diameters
Independent left and right fences feature
•
micro-adjustment and have zero clearance
capability
Extra large handwheel is conveniently located
•
for fast, easy and accurate spindle height
adjustments
4" dust port connects to your collection system
•
to keep your workplace dust and debris free
Fully enclosed, heavy-duty steel stand has a
•
removable cover for easy motor access
1/2" and 3/4" interchangeable spindles and
•
router bit collets for use with shaper cutter
and router bits
Unique ratcheting style levers allow you to
•
micro-adjust your fence assembly to your
exact needs
Powerful 3HP motor and heavy-duty magnetic
•
controls deliver smooth, consistent power on
even the heaviest jobs
25" x 18" solid cast iron table comes with an
•
additional 25" x 7" extension wings to handle
extra large work pieces
Four adjustable work hold-downs to secure
•
your work while shaping
OptiOnal aCCessOries
1/2" Spindle 709527
3/4" Spindle 709526
1" Spindle 709521
1/4" Router Collet 709524
1/2" Router Collet 709525
speCiFiCatiOns
Stock Number 708322
Model Number JWS-25CS
Spindle Speed (RPM) 8000 and 10000
Spindle Diameter (in.) 1/2 and 3/4
Spindle Size Under Nut (in.) (1/2) 2-3/4, (3/4) 3
Spindle Travel (in.) 3
Table Size (in.) 25 x 25
Table T-Slot (in.) 3/8 x 3/4
Table Opening Diameter (in.) 6-7/8
Table Insert Opening Diameter (in.) 1-5/8, 3, 3-1/2
Fence Size (2) (L x H/in.) 9-1/2 x 2-3/4
Router Bit Collet Diameter (in.) 1/4, 3/8 and 1/2
Table Height From Floor (in.) 34
Dust Port Diameter (OD/in.) 4
Amps 16
Motor HP 3HP
Motor Phase 1Ph
Motor Voltage 230V
Prewired 230V
Net Weight (lbs.) 320
speCiFiCatiOns
Stock Number 708320
Model Number JWS-22CS
Spindle Speed (RPM) 7000 and 9000 reversing
Spindle Diameter (in.) 1/2 and 3/4
Spindle Size Under Nut (in.) (1/2) 2-3/16, (3/4) 2-3/16
Spindle Travel (in.) 1-7/16
Table Size (in.) 22-1/4 x 18-1/8
Table T-Slot (in.) 3/8 x 3/4
Table Opening Diameter (in.) 5-1/4
Table Insert Opening Diameter (in.) 1-5/8 and 3-1/4
Fence Size (2) (L x H/in.) 10 x 3-1/8
Router Bit Collet Diameter (in.) 1/4 and 1/2
Table Height From Floor (in.) 33-1/2
Dust Port Diameter (OD/in.) 4
Amps 12/6
Motor HP 1-1/2HP
Motor Phase 1Ph
Motor Voltage 115/230V
Prewired Prewired 115V
Net Weight (lbs.) 192
A
B
C
D
E
F
G
25CS
22CS
A
B
C
D
Top view of hold-downs,
fence assembly and
dust port features
Top view of
hold-downs,
fence assembly and
dust port features
709526709521
© 2008 WMH TOOL GROUP, INC. All rights reserved. The color WHITE is a registered trademark of WMH Tool Group, Inc.
