35x Shaper
The new heavy-duty JET Shaper is available with a powerful 3HP, 1Ph, 5HP, 1Ph or 5HP,
3Ph motor with magnetic controls.The four-speed 4000, 6000, 8000, 10000 RPM step
pulley drive with quick release lever allows you to select the best speed and torque for
different cutter diameters. Independently adjustable left and right fences, standard with
a micro adjust control for precise positioning.

jettools.com
35x SHAPER
•Large 26-3/4" X 32-1/4" precision ground cast iron
table provides a durable work area, predrilled for
power feeder
•Poly-V-belt transfers maximum power to the spindle
•Starting Pins for irregular shaping
•Extruded aluminum fence comes withT-Slots and 2
feather board hold-downs
•Extra-large chrome handwheel is conveniently
located for fast, easy and accurate spindle height
adjustments
•Reversible spindle speeds for diverse
shaping jobs
•4" Dust port built into fence for convenient hookup
to any dust collection system
•Spindle lock for safe and easy cutter set-up
•Spindle height scale

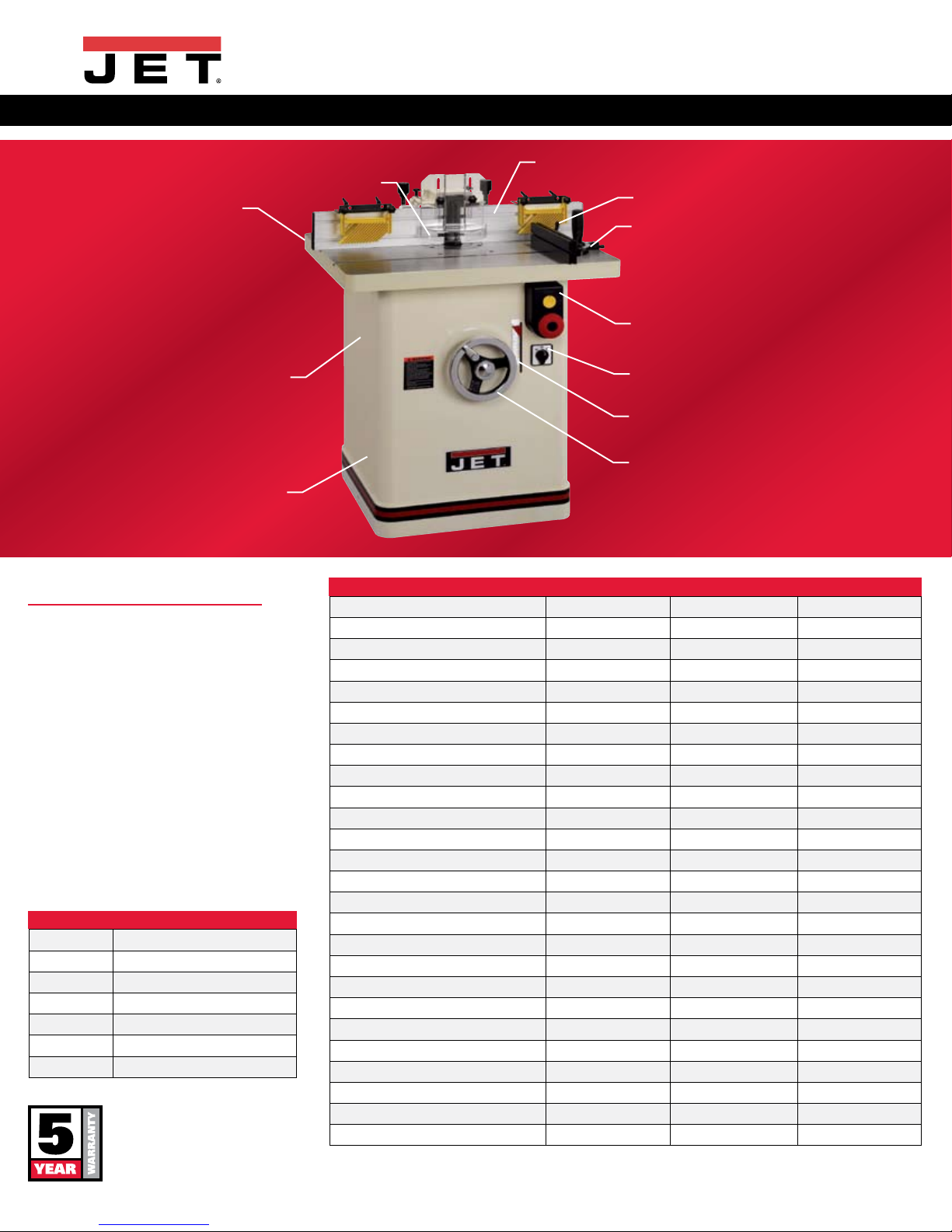

35x SHAPER
Reversable switch
Large chrome wheel
Magnetic controls with
mushroom step button
Spindle height scale button
Independently adjustable left and right
extruded aluminum fence withT-slots
Featherboard hold-downs
Miter Guage
Clear cutter guard
Predrilled for
powerfeeder
Large 26-3/4" x 32-1/4
precision ground cast
iron table
Heavy-duty one
piece steel stand
STOCK NUMBER 708323 708326 708327
Description Shaper 3HP, 1Ph Shaper 5HP, 1Ph Shaper 5HP, 3Ph
Model Number JWS-35X3-1 JWS-35X5-1 JWS-35X5-3
Net Weight 473 pound 473 pound 473 pound
Ship Weight 550 pound 550 pound 550 pound
Spindle Speed (RPM) 4000, 6000, 8000, 10000 4000, 6000, 8000, 10000 4000, 6000, 8000, 10000
Reversable Yes Yes Yes
Spindle Diameter (in.) 1-1/4 1-1/4 1-1/4
Spindle Size Under Nut (in.) 4 4 4
Spindle Travel (in.) 4 4 4
Table Size (in.) 26-3/4 X 32-1/4 26-3/4 X 32-1/4 26-3/4 X 32-1/4
Table T-Slot (in.) Yes Yes Yes
Table Opening Diameter (in.) 7-1/4 7-1/4 7-1/4
Table Insert Opening Diameter (in.) 2-5/8, 4-7/8 2-5/8, 4-7/8 2-5/8, 4-7/8
Fence Size (L x H/in.) 4-3/4 X 16 4-3/4 X 16 4-3/4 X 16
Router Bit Collet Diameter (in.) 1/4, 1/2 (optional) 1/4, 1/2 (optional) 1/4, 1/2 (optional)
Table Height From Floor (in.) 33-1/4 33-1/4 33-1/4
Maximum Diameter Cutter Below Table (in.) 6 6 6
Maximum Diameter Cutter Above Table (in.) 7-1/2 7-1/2 7-1/2
Table Inserts 2 2 2
Fence Travel (Major and Minor/in.) 4, 1 4, 1 4, 1
Dust Port Diameter (OD/in.) 4 4 4
Dust Collection Minimum CFM Required: 400 400 400
Motor HP 3 5 5
Motor Phase 1 1 3
Motor Voltage 220 230 230
Prewired 220 230 230
OPTIONAL ACCESSORIES
708314 1" Spindle for JWS-35X Shaper
708317 3/4" Spindle for JWS-35X Shaper
708328 1-1/4" Spindle for JWS-35X Shaper
708372 30MM Spindle for JWS-35X Shaper
708373 1/4" Collet Set for JWS-35X Shaper
708374 1/2" Collet Set for JWS-35X Shaper
708381 1/2" Spindle for JWS-35X Shaper
