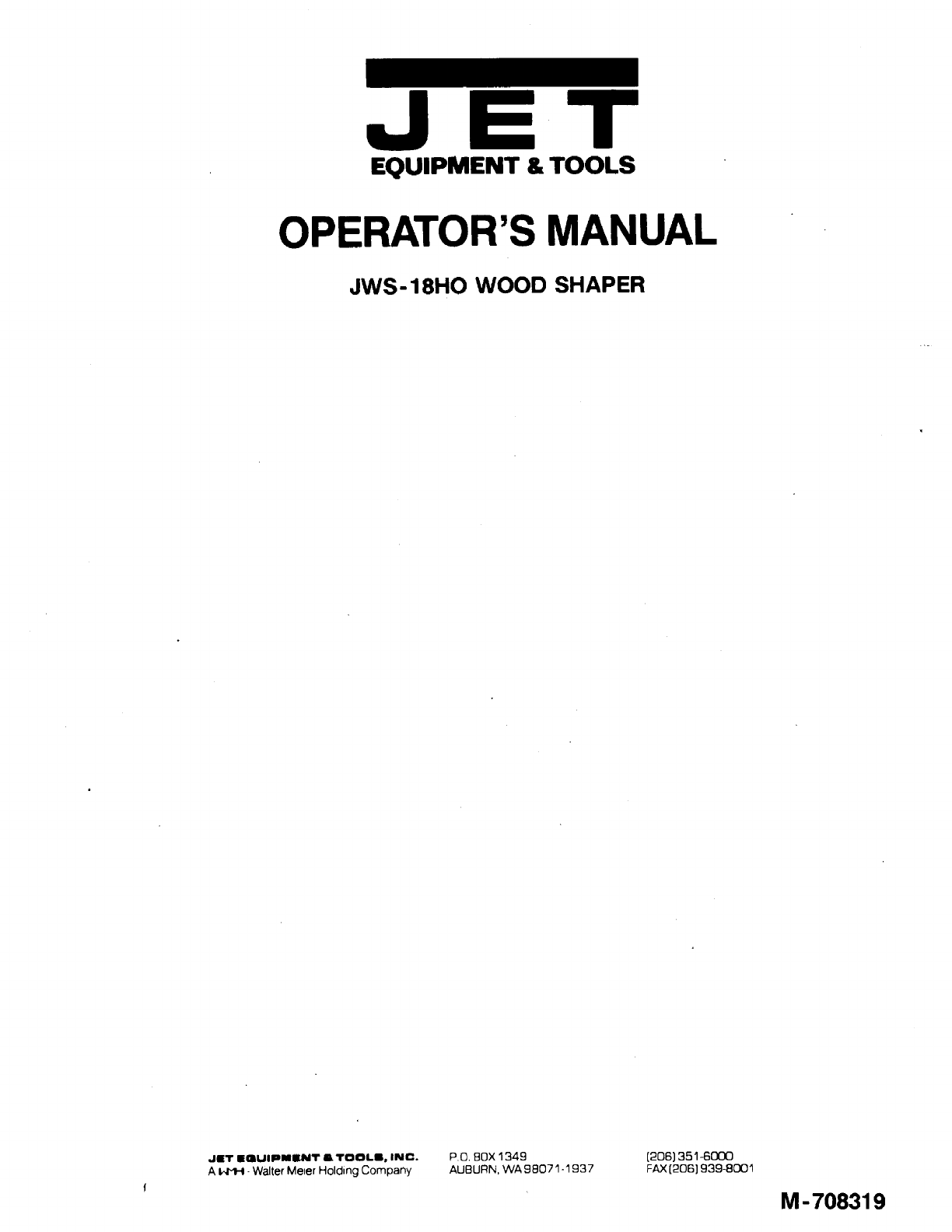

EQUIPMENT& TOOLS
OPERATOR'S MANUAL
JWS-18H0WOOD SHAPER
JCT cauiPMaMT a TOOLS, INC. P.O.BOX 1 349
A l-MH -WalterMeier Holding Company AUBURN, WA 98071-1937
[phone]
FAX [phone]

ImportantInformation
2 YEAR
LIMITEDWARRANTY
JET offers a two year warranty
onthis exclusive product
REPLACEMENT PARTS
Replacement partsforthis tool areavailabledirectly from JETEquipment& Tools.
To placeanordercall 1-800-274-6844. Please havethe follow/ing information ready:
1. Visa, MasterCardorDiscover Card number
2. Expirationdate
3. Partnumberlisted within thismanual
4.Shippingaddressotherthana Post Officebox
REPLACEMENT PART WARRANTY
JET Equipment& Toolsmakesevery effort to assure thatpartsmeethighqualityanddura-
bility standardsandwarrantstotheoriginalretailconsumer/purchaserofourpartsthateach
such part(s)befree from defectsinmaterialsandworkmanshipfora periodof thirty (30)
days from thedateofpurchase.
PROOF OF PURCHASE
Please retainyourdated sales receiptas proof ofpurchasetovalidatethewarrantyperiod.
LIMITED TOOL AND EQUIPMENT WARRANTY
JET makesevery effort to assure that its productsmeethighquality and durabilitystandardsandwarrants tothe
originalretailconsumer/purchaser ofour productsthateachproduct be free from defects in materials and
workmanship as follows: 1 YEAR LII^ITED WARRANTY ON ALL JET PRODUCTS. Warrantydoes not apply to
defects due directly or indirectly to misuse,abuse,negligence or accidents,repairs or alterationsoutside our
facilities ortoa lack of maintenance. JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED
ABOVE FROM THE DATE THE PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED HEREIN,
ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO
NOT ALLOW LIMITATIONS ONHOW LONG THE IMPLIED WARRANTY U\STS. SOTHE ABOVE LIMITATION
MAY NOT APPLY TO YOU. JET SHALL INNO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS
OR PROPERTY ORFOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING
FROM THEUSEOFOUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOTHE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU. To lakeadvantage of thiswarranty, the product or partmust be returned for examination,
postageprepaid, toan authorizedservicestationdesignated byour Tacomaoffice.Proof of purchasedale and
an explanation ofthe complaintmustaccompany the merchandise. Ifour inspectiondiscloses a defect, JET will
eitherrepair or replace the product or refund the purchaseprice, ifwe cannotreadily and quicklyprovide a repair
orreplacement, if you are willing to acceptsuchrefund. JET willreturnrepairedproduct or replacement at JET's
expense, butifitis determinedthere isno defect, or that the defectresulted from causes not within the scope of
JET'S warranty,then the usermustbear the cost of storing and returning the product. This warrantygives you
specific legalrights, andyoumay alsohaveotherrightswhichvary from state to state.
JET Equipment & Tools, P.O.Box1349, Auburn, WA98001-1349:[phone].

WARNING!
1. Readthe operator's manualcarefully.
Learn thetoolsapplicationsand
limitations, as well asthespecific
potentialhazardspeculiartoit. Know
yourpowertool.
2. Always wearapprovedsafety
glasses/faceshieldswhileusingthis
machine.
3. Makecertainthemachineisproperly
grounded.
4. Beforeoperatingthemachine,removetie,
rings, watches, other jewelry,and roll up
sleevesabovetheelbows.Removeall
looseclothingandconfinelonghair.Do
NOT weargloves.
5. Keeptheflooraroundthemachineclean
andfreeofscrapmaterial,oiland
grease.
6.Keepmachineguardsinplaceatalltimes
when themachineisinuse.Ifremoved
for maintenancepurposes,useextreme
cautionandreplacetheguards
immediately.
7. DoNOToverreach.Maintaina balanced
stanceatalltimesso that youdonot fall
orleanagainstbladesor other moving
parts.
8.Useonlysharptools. Dull toolsare
dangerous.
9. Makeallmachineadjustmentsor
maintenance with themachineunplugged
from thepowersource.
10. Usetherighttool.Don'tforcea toolor
attachment todoa job which itwasnot
designedfor.
11. DoNOTmakecutsrequiringmorepower
thanisavailableonthemachine.
13. Makecertainthemotorswitchisinthe
OFF positionbeforeconnectingthe
machinetopower.
14. Give yourworkundividedattention.
Looking around,carryingona
conversation,and"horse-play"are
carelessacts that canresultinserious
injury.
15. Makea habitofcheckingtosec that keys
andadjustingwrenchesarcremoved
beforeturningonthemachine.
167Keepvisitorsa safedistancefromthe
work area.
17. Userecommendedaccessories;improper
accessoriesmaybehazardous.
18. Usea pushstickwhenstocksize does not
give a reasonabledistanceofsafetyto
yourhands.
19. Neverpass hands directlyovercutlerhead.
20. Donotrunstockbetweenfenceand
cutter.
21. Donot shape short,lightworkagainst
collars.
22. Whenshaping with collarsandstarting
pin, keeptopsurfaceofworkinline
with topofcollar. This provides
sufficient bearingsurfaceforthework
piece.
23. Adjustfencesasclosetocutteras
possible.
24. Whenedge-shapingonworklessthan6
incheswide,alwaysusemiter gauge and
clamp attachment.
25. Whenshaping-withcollarsandstarting
pin, positioncutterbelowcollar.
12. Replacewarninglabelsifthey become
obscuredorremoved.

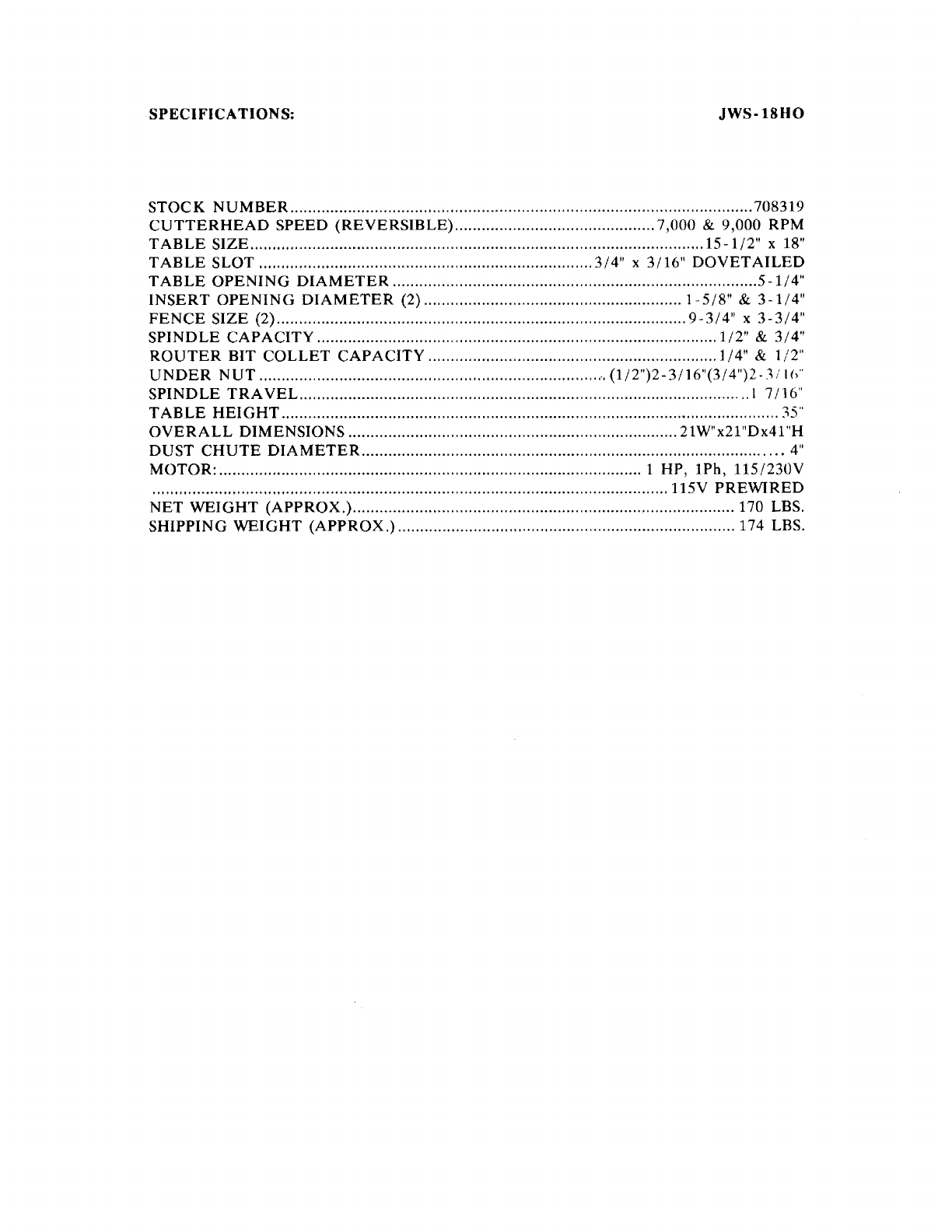

SPECIFICATIONS:
JWS-18HO
STOCKNUMBER 708319
CUTTERHEADSPEED(REVERSIBLE) 7,000& 9,000RPM
TABLE SIZE 15-1/2"x 18"
TABLE SLOT 3/4"x 3/16' DOVETAILED
TABLE OPENING DIAMETER 5-1/4"
INSERT OPENING DIAMETER (2) 1-5/8" & 3-1/4"
FENCESIZE (2)9-3/4"x 3-3/4"
SPINDLECAPACITY 1/2"& 3/4"
ROUTER BIT COLLETCAPACITY 1/4"& 1/2"
UNDER NUT•, (l/2")2-3/16"(3/4")2-3/ U,"
SPINDLETRAVEL 1 7/16"
TABLE HEIGHT 35"
OVERALL DIMENSIONS 21W"x2r'Dx4r'H
DUSTCHUTEDIAMETER 4"
MOTOR: 1 HP,IPh,115/230V
115VPREWIRED
NETWEIGHT(APPROX.) 170LBS.
SHIPPING WEIGHT(APPROX.) 174LBS.

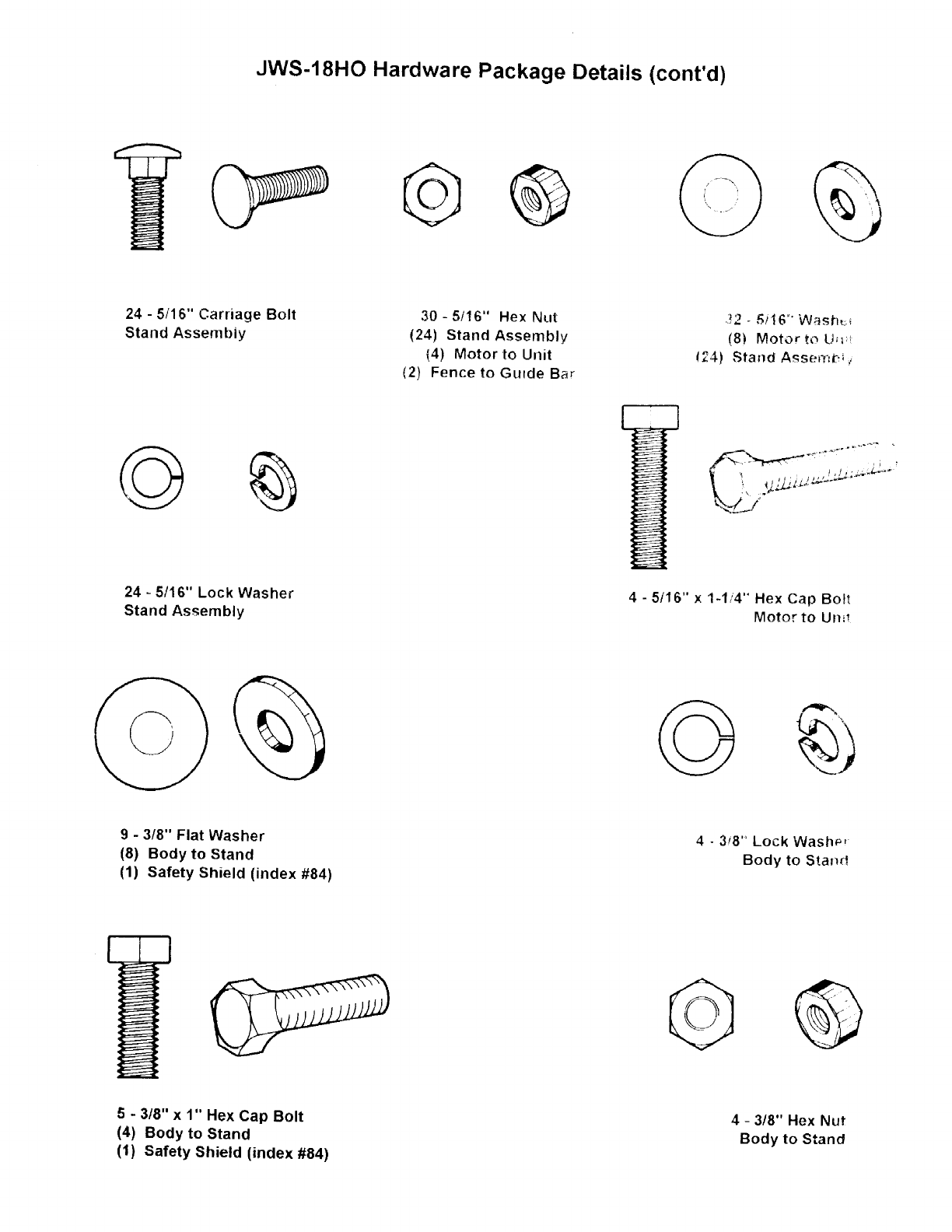

JWS-18H0HardwarePackageDetails(cont'd)
24- 5/16"CarriageBolt
StandAssembly
24-5/16" Lock Washer
StandAssembly
30- 5/16"HexNut
(24)StandAssembly
(4) Motor toUnit
(2) Fence toGuideBar
.32- S/IG" Wash.;
(8) Motor toUiv
(24) Stand Assemf-i,
4-5/16-x 1-14-HexCapBoit
Motor toUnit
9- 3/8"FlatWasher
(8)BodytoStand
(1)SafetyStiield(index#84)
4• 3'8" Lock Washp-
Bodyto Stand
5-3/8"x1"HexCapBolt
(4)BodytoStand
(1)SafetyStiield(index#84)
4- 3/8"HexNut
BodytoStand

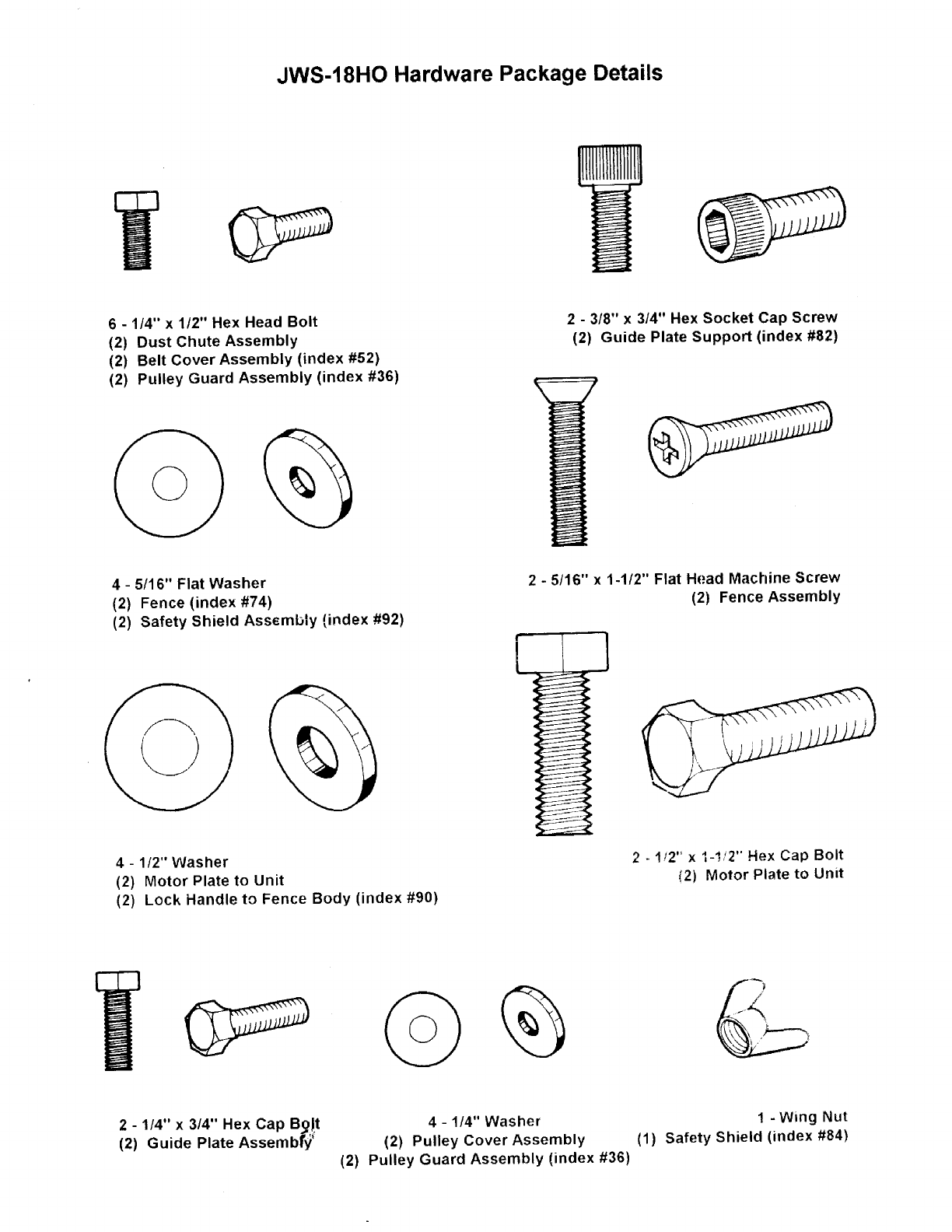

JWS-18H0 Hardware PackageDetails
6-1/4"X 1/2"HexHeadBolt
(2)DustCtiuteAssembly
(2)BeltCoverAssembly(index#52)
(2)PulleyGuardAssembly(index#36)
4-5/16"FlatWasher
(2)Fence(index#74)
(2)SafetyShieldAssembly(index#92)
4-1/2"Washer
(2) Motor PlatetoUnit
(2)LockHandletoFenceBody(index#90)
2- 3/8"X 3/4"HexSocketCapScrew
(2)GuidePlateSupport(index#82)
2- 5/16"X 1-1/2" FlatHeadMachineScrew
(2)FenceAssembly
2-1'2'X 1-1/2" HexCapBolt
12) Motor PlatetoUnit
2-1/4"X 3/4"HexCapBojt 4-1/4" Washer 1-WmgNut
(2)GuidePlateAssemb^'(2)PulleyCoverAssembly(1)SafetyShield(index#84)
(2)PulleyGuardAssembly(index#36)

l]NPACKING AND CLEANUP
1. Finish removingall contents fromthe
shippingcontainer.
2. Inspect contents forshipping damage and
report any damage toyourdistributor,
3. Cleanall protected parts withkerosene.Do
notusegasoline,paintthinner,orany
cellulose-basedsolvent.These will damage
paintedsurfacesandmeltplastic.
TOOLSREQUIRED FOR ASSEMBLY
Adjustablewrenchorcombinationwrenchset
#2flat blade screwdriver
#2cross point screwdriver
Ratchetwrenchandsockets will speed assembly
butarenotrequired.
CONTENTS OF SHIPPINGCARTON:
I - Motor
1 - TableAssembly
1 - FenceAssembly
4- StandLegs
4- StandBraces
3- StandTop
1 - 1/2"SpindleAssembly
1 - 3/4"SpindleAssembly
1 - Wrench
I - 1/4"Collet
1 - 1/2"Collet
1 - DustChute
2 - GuidePins
1 - MiterGauge
1 - Belt Cover
1 - BagofAssemblyHardware

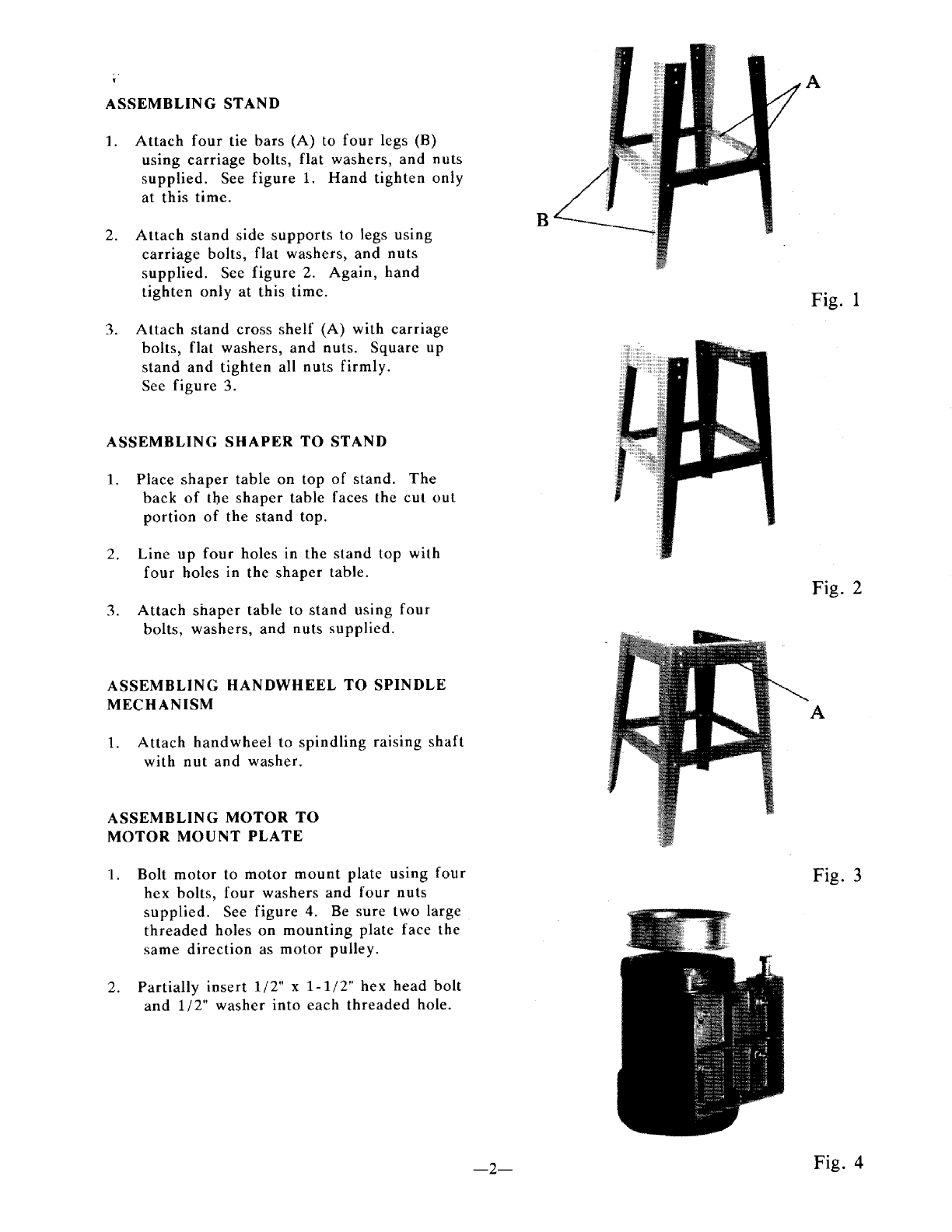

ASSEMBLING STAND
1. Attachfourtiebars(A)tofourlegs(B)
using carriagebolts, flat washers,and nuts
supplied.Seefigure1.Handtightenonly
atthistime.
B
2. Attachstandside supports tolegsusing
carriagebolts, flat washers,and nuts
supplied.Seefigure2. Again, hand
tightenonlyatthistime.
3. Attachstandcross shelf (A) with carriage
bolts, flat washers,andnuts.Squareup
standandtightenall nuts firmly.
Seefigure3.
ASSEMBLING SHAPER TO STAND
1. Placeshapertableontopofstand.The
backoftheshapertablefacesthecutout
portionofthestandtop.
2. Line upfourholesinthestandtop with
fourholesintheshapertable.
3. Attachshapertabletostandusingfour
bolts,washers,and nuts supplied.
ASSEMBLING HANDWHEEL TO SPINDLE
MECHANISM
1. Attachhandwheeitospindlingraisingshaft
with nutandwasher,
ASSEMBLING MOTOR TO
MOTOR MOUNT PLATE
1. Bolt motortomotormountplateusingfour
hex bolts,fourwashersandfour nuts
supplied.Seefigure4.Besuretwolarge
threadedholesonmountingplatefacethe
samedirectionasmotorpulley.
2. Partially insert1/2"x 1-1/2"hexheadbolt
and1/2"washerintoeachthreadedhole.
—2—

ASSEMBLING MOTOR AND MOUNTING
PLATE TO SHAPER
1. Attachmotorandmountingplateassembly
totherearofshaperusinghexboltsand
washers previouslyinstalledonmotorplate.
Sec figure5.
ASSEMBLING BELT AND ADJUSTING BELT
TENSION
1. Slip belt onto bothspindleandmotor
pulleys.
2. Loosentwolargehexbolts(A).
See figure6.
3. Pull motorouttotensionbelt.
4. Tightenbolts(A).
ASSEMBLING BELT COVER TO STAND
1. Attachbeltcover(A)toshaper with two
hex headboltsandwashers.Seefigure7.
ASSEMBLING SWITCH TO STAND
WARNING!
All adjustmentstomachinemustbemadewith
poweroffanddisconnectedfromthepower
source. Failure tocomplymayresultinserious
injury!
1. Removeselectorknob,faceplate,and
backing platefromthe switch assembly.
See figure8.
2. Push switch throughopeninginstandfrom
thebackandfastenfromfront with
mountingplateandfourscrews.See
figure 9.
3. Snaponcoverplate,slideselectorknob
onto,switch shaft,andsecure with screw.
See figure10.
Fig. 5
Fig. 6
Fig. 7
—3— Fig.
8

ASSEMBLINGSPINDLE PULLEY GUARD
\ Attachspindlepulleyguardtoinsideof
tableassembly with twohexheadbolts.
ASSEMBLING AND INSTALLING FENCE
1. Install fencebodytotablebyaligningtwo
holesintabletotwoholesinfencebody
and attaching with twoT-handles(A)and
two largewashers.Seefigure11.
2. Install fence boards (A)tofencebodyusing
two 5/16"xl" flat headmachinescrews,
washers andnuts.Seefigure12,
3. Insertholddownclamps(A)intofence
bodyandsecure with screwhandles.
See figure13.
4. Install dusthood(B)tofencebodyby
sliding holesindusthoodoverscrewsin
fencebody.Tightenscrews.
See figure13.
5. Attachspindleguard(C)tospindle
mountingplate(D)usinghexboltand
wing nut.SeeFigure13.
CONNECTING TO POWERSUPPLY
Certain electricalguidelinesmustbefollowed:
1. Usea separate electrical circuit with No.12
wire or greater protected with a 20amp
breaker.
2. UseNo.12 wire forextensioncordrunsup
to50feet.
3. UseNo.10 wire forextensioncordrunsup
to150feet.
Before connectingtopowersupply:
* Set switch to stop position.
* Placemachineona dry,non-conductive
surface.
* Makesure that powersupplyisthesameas
information stampedonthemotor
nameplale.
Fig. 13
—4—

* Check allconnectionsforgoodcontact; poor
connectionsmaycauselowvoltageand
motordamage.
Note:For 230V operation,pleaserefertothe
wiring diagramfoundinthebackofthis
manual. The115Vplug that comes with the
unit will havetobereplaced with onedesigned
for 230V operation. Switching motorvoltageor
replacing electrical partsshouldonlybe done
by qualified personnel.
ARBOR INSTALLATION
WARNING:
All adjustmentstomachinemustbemadewith
thepoweroffandunpluggedfromthepower
source. Failure tocomplymayresultinserious
injury!
WARNING:
Safetyshieldhasbeenremovedforillustration
purposesonly.Neveroperateshaperwithout
safetyshield. Failure tocomplymayresultin
serious injury:
1. Disconnectmachinefromthepowersource.
2. Raise spindle fully.
3. Selectthedesiredarborandhandtighten
arbornut onto arbor.
4. C!lean thearborshankandthe bore ofthe
spindle. Seefigure14.
5. Putthearborshankintothespindleand
tightenarbornut.
(>. Putthedrawbarintothebottomofthe
spindle andhandlighten.
7. Tightenthearbornut with anopenend
wrench while holdingthe flat onarbor
bottom with an17mmopenendwrench.
Then tightendrawbar.Seefigure15.
Fig. 15
S. Toremovearbor,reversetheabovesteps.

SHAPERCUTTERINSTALLATION
1. Disconnectmachinefromthepowersource.
2. Raise thespindle fully.
3. Settheshapercutteronthearbor with the
cutterrotatinginthe proper direction.
4. Puta spacewasher onto thearbortoreach
the proper height.Next,placethekeyed
collar onto thearbor.
5. Placethewasherontopandthentighten
thearborscrew.
SPINDLECONTROL
To raiseorlowerspindle:
1. Loosenspindle lock knob(A).Seefigure
16.
2. Raise orlowerspindletodesiredheightby
turning handwheei(B).
3. Tightenspindle lock knob.
FENCE ADJUSTMENTS
1. Adjust fencehalvesbyloosening lock knob
(A), turnknurledknob(B)toadjustfence
in orout,andtighten lock knob.
See Figure17.
2. Adjust spindleguardheightbyloosening
wing nut(C), sliding guardupordownto
desired height,andthentightening wing
nut.
3. Adjust spindleguard depth byloosening
two lock knobs(D),movingspindleguard
todesiredposition,andthentightening
two lock knobs.
4. Hold downclampscanbeadjustedfor
heightbyturningscrewhandle (E), to
loosen, adjusttodesiredheight,and
tightenscrewhandle.
—6

OPERATION
USING THE FENCE ASA GUIDE
Shaping with thefenceisthesafestandmost
satisfactory methodofworking. This method
should alwaysbeusedwhenworkpermits.
Almost allstraightworkcanbeused with the
fence.
Feed
Fig. 18
1. Formostwork,wherea portionofthe edge
of theworkisnottouchedbythecutter,
boththefrontandrearfencesareina
straight line, asshowninfigure18.
2. Whentheshapingoperationremovesthe
entire edge ofthework(i.e.jointingor
making a full bead),theshaped edge will
notbesupportedbytherearfencewhen
bothfencesareinlineasshowninfigure
19. Inthiscase,theworkpieceshouldbe
advancedtothepositionshowninfigure
19 and stopped.
3. Therearfenceshouldbeadvancedto
contacttheworkasshowninfigure20.
The rearfence will thenbeinline with
thecutting circle.
Feed
Fig. 19
Cutter,
Cutting Circle
Feed
Fig. 20
SHAPING WITH COLLARS AND STARTING
PIN
Follow these ruleswhenshaping with collars
andstarlingpinforsafestoperationand best
results:
1. Collars mustbesmoothandfreefromall
gumor other substances.
2. The edge oftheworkmustbesmooth.
Any irregularityinthesurface which rides
againstthecollar will beduplicatedonthe
shapedsurface.
Not Sufficient Bearir^g
(—] Surface
3. A portionofthework's edge mustremain
untouchedbythecutterso that thecollar
will havesufficientbearingsurface.See
figure 21foranexampleofinsufficient
bearingsurface.Figure22illustrates
sufficient bearingsurface.
Collar
Cutter
n Sufficient Bearing Surface
Work
Rigtit
Table
Fig. 22

4. Theworkmustbe fairly heavyin
proportiontothecutbeingmade.See
figure23.Undernocircumstancesshould
a smallworkpiecebeshapedagainstthe
collars asshowninfigure24.
COLLAR POSITIONING
Collars maybepositionedabove,below,or
betweentwocutters:
1. Whenusingthecollarbelowthecutter,
figure25,theprogressofthecutcanbe
observedatalltimes.A disadvantageof
thismethodisanyaccidental lifting ofthe
work will gouge thewoodandruinthe
workpiece.
2. Usingthecollarabovetheworkpiece,
figure26,offersthe advantage ofthecut
notbeingaffectedbyslightvariationsin
thestock'sthickness.However,thecutis
notvisibleduringtheoperation.Another
advantage isaccidental lifting ofthework
piece will not gouge theworkpiece.
Simply correctthemistakebyrepeating
theoperation.
3. Thecollarbetweencullersmethod,shown
in figure27,has both the advantages and
disadvantagesofthe first two methods.
This methodisusedprimarilywhere both
edges oftheworkaretobeshaped.
STARTING PIN
WARNING:
DO NOTADVANCEWORKTOWARDA
MOVING CUTTER WITHOUTTHE SIDE
SUPPORT OFTHE STARTING PIN.IT
COULD KICKBACK AND CAUSE SERIOUS
INJURY:
The startingpinisplacedinoneofthe
threaded holesinthetable:
1. Workshouldbeplacedinthe first position
usingtheguidepinas support, asshownin
figure28.Thenswingtheworkintothe
cutterasshowninthesecondposition.
Collar
r~> Sufficient Bearing Surface
Work
Right
Table
Fig. 23
1 1
Short WorkOt Light Body
^ /
Wrong
Fig. 24
Fig. 26
Cutter
Table
Fig. 27

The work will nowbesupportedbythe
collar andstartingpin.
2. After thecuthasbeenstarted,theworkis
swung freeofthestartingpinandrides
only againstthecollarasshowninthe
third positioninfigure29. Always feed
againsttheactionofthecutter.
LUBRICATION
To insureeasymovementwhenraisingand
lowering spindle,occasionallyapplya drop of
light oilonoutsideofspindlecartridge.
Spindle cartridgebearingsareprelubricatedand
sealed. They neednofurthercare.
Cutter
starting Pin
Cutter
Starting Pin
Cutting Circle
Collar
Work
2rdPosition
Fig. 28
2ndPosition
3rdPosition
Cutting Circle
Collar
Fig. 29
-9-

JWS-18HO Parts Breakdown
—10

PARTS LIST FOR THE JWS-18H0 WOODWORKINGSHAPER
PLEASE ORDER BY PARTNUMBERONLY
INDEXPART
NO. NO. DESCRIPTIONSIZE QTY.
1 JWSI8HO-1 ...TABLE
2JWS18HO-2 ...SPINDLEHOUSING
3JWS18HO-3 CUTTERSPINDLEBRACKET
4 BB-6005ZZ BALL BEARING
5JWS18HO-5SNAP RING
6JWS18HO-6 PULLEY...
7TS-056I082 HEXNUT 3/4xl6UNF
8 JWSI8HO-8 MAINSPINDLE
8-1JWS18HO-8-1 SHAFT **(1/2)
JWS18HO-8-1A SHAFT ** (3/4-NOTSHOWN)
9JWS18HO-9 KEY
10 JWS18HO-10.-.SNAP RING
11JWS18H0-I1 HEXNUT** (SPINDLE)
JWS18H0-IIA HEX NUT•* (COLLET-NOT SHOWN)
11-1....JWS18HO-11-1 TABLE RING
11-2....JWS18HO-1I-2 TABLE RING
12JWS18HO-12 SPACER **(1/2)3/8
JWS18HO-12A SPACER ** (3/4-NOTSHOWN) 3/8
13JWS18HO-13 SPACER **(1/2)5/8
JWSI8HO-13A SPACER ** (3/4-NOTSHOWN) 15/32
14 JWSI8HO-14 SPACER **(1/2)3/4
JWS18HO-I4A SPACER ** (3/4-NOTSHOWN) 3/4
15JWS18HO-I5 FIXEDBUSHING **(1/2)
JWS18HO-15A FIXEDBUSHING ** (3/4-NOTSHOWN)
16 JWSI8HO-I6 WASHER **(1/2)
JWSI8HO-16A WASHER ** (3/4-NOTSHOWN)
17TS-020806IHEX CAP BOLT **(1/2)5/16x1
TS-0209051 HEXCAP BOLT ** (3/4-NOTSHOWN)..3/8x 1
18 JWSI8HO-I8 QUILL
18-1....JWS18HO-18-I NUT
19 TS-056I021 HEXNUT5/16
20 TS-GO81031 HEX HEADBOLT 5/16x3/4
21JWSI8HO-21 SPRINGRING 1/2
22 TS-0060051 HEX HEADBOLT 1/2x1-3/4
23JWS18HO-23HAND WHEEL
24 JWS18HO-24 SPRING PIN3x25
25JWS18HO-25B ••• GUIDEPLATE
26 JWSI8HO-26 MITERGAUGEBODY
27JWS18HO-27 PLATE
28 JWS18HO-28 WASHER
29 JWS18HO-29 KNOB
30 JWS18HO-30 SCREW 3/16x5/8
31JWSI8HO-31 TABLE SUPPORT
32 TS-0561031 .'. HEX NUT* 3/84
33TS-068004I WASHER * 3/88
34 TS-006003IHEX HEADBOLT * 3/8x14
35JWS18HO-35 PAN HEADSCREW 1/4x1/22
—11—

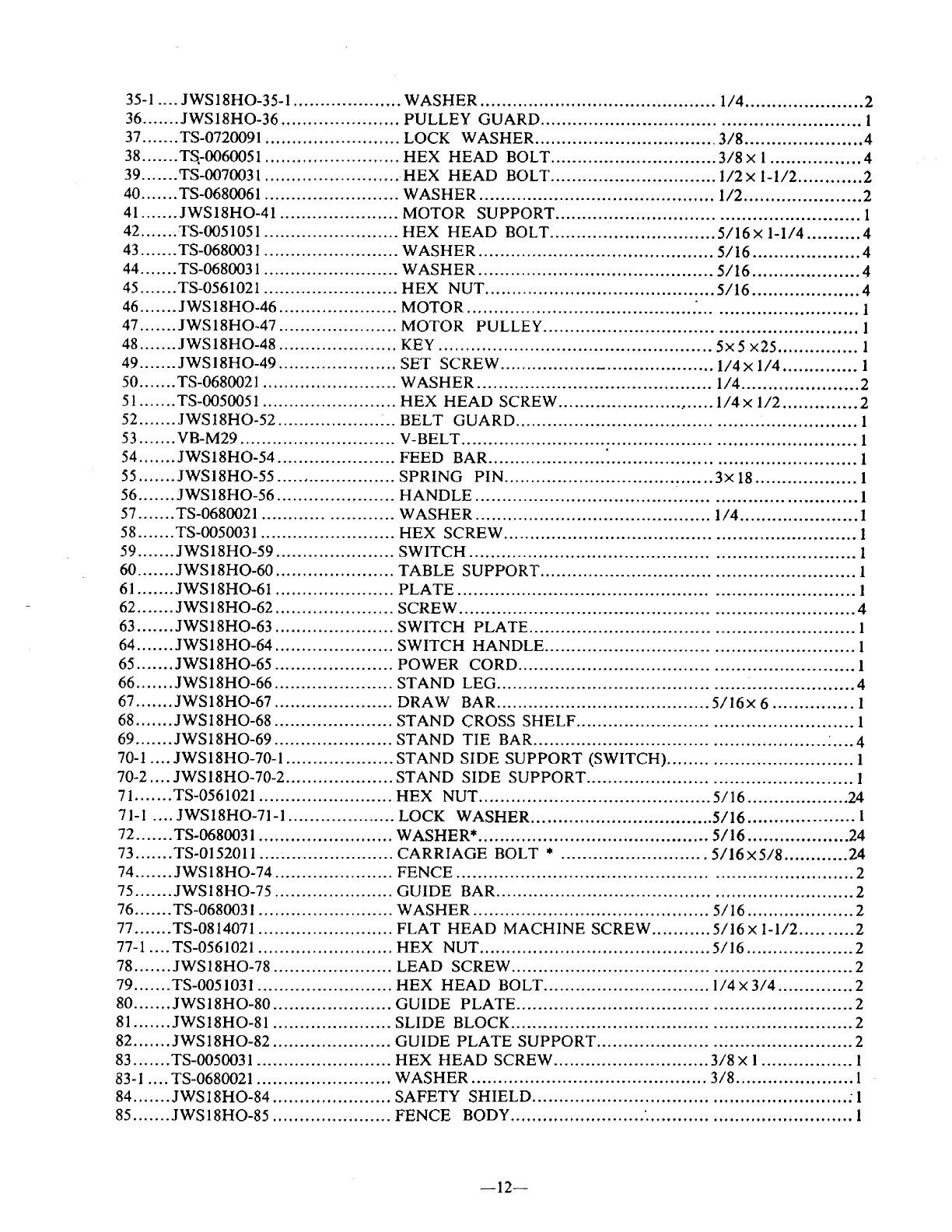

35-1.... JWS18HO-35-1 WASHER 1/42
36JWS18HO-36 PULLEY GUARD 1
37TS-0720091 LOCK WASHER 3/84
38TS-0060051 HEX HEADBOLT 3/8x14
39TS-0070031 HEX HEADBOLT 1/2x1-1/22
40 TS-0680061 WASHER 1/22
41JWS18HO-41 MOTORSUPPORT 1
42TS-0051051 HEX HEADBOLT 5/16x1-1/44
43TS-0680031 WASHER 5/164
44 TS-0680031 WASHER 5/164
45TS-0561021 HEXNUT5/164
46JWS18HO-46 MOTOR 1
47JWS18HO-47 MOTOR PULLEY 1
48JWS18HO-48 KEY5x5x251
49JWS18HO-49 SET SCREW 1/4x1/41
50 TS-0680021 WASHER 1/42
51TS-0050051HEX HEADSCREW 1/4x1/22
52JWS18HO-52 ...BELT GUARD 1
53VB-M29 V-BELT 1
54 JWS18HO-54 FEED BAR".1
55JWS18HO-55 SPRING PIN3x18I
56JWS18HO-56 HANDLE I
57TS-0680021 WASHER 1/41
58TS-0050031 HEX SCREW 1
59JWS18HO-59 SWITCH 1
60 JWSI8HO-60 TABLE SUPPORT 1
61JWS18HO-61 PLATE 1
62 JWS 18HO-62 SCREW 4
63JWS18HO-63 SWITCHPLATE I
64 JWS18HO-64 SWITCHHANDLE 1
65JWS18HO-65 POWERCORD I
66JWSI8HO-66STANDLEG 4
67JWS18HO-67 DRAW BAR5/16x6I
68JWS18HO-68STAND CROSS SHELF 1
69JWS18HO-69STANDTIE BAR:....4
70-1....JWS18HO-70-1STAND SIDESUPPORT(SWITCH) 1
70-2....JWS18HO-70-2STAND SIDESUPPORT 1
71TS-0561021 HEXNUT5/1624
71- 1 ....JWS18HO-71-I LOCK WASHER 5/161
72TS-0680031 WASHER* 5/1624
73TS-0I52011 CARRIAGEBOLT * 5/16x5/824
74 JWS 18HO-74 FENCE 2
75JWS18HO-75 GUIDE BAR2
76TS-0680031 WASHER 5/162
77TS-0814071 FLAT HEADMACHINESCREW 5/16x1-1/22
77-1....TS-0561021 HEXNUT5/162
78JWS18HO-78 LEADSCREW 2
79TS-005I03I HEX HEADBOLT 1/4x3/42
80 JWSI8HO-80 GUIDEPLATE 2
81JWS18HO-8I SLIDE BLOCK 2
82JWSI8HO-82 GUIDEPLATESUPPORT 2
83TS-0050031HEX HEADSCREW 3/8x11
83-1....TS-0680021 WASHER 3/81
84 JWS18HO-84 SAFETYSHIELD .1
85JWS18HO-85 FENCEBODY '.1
—12—

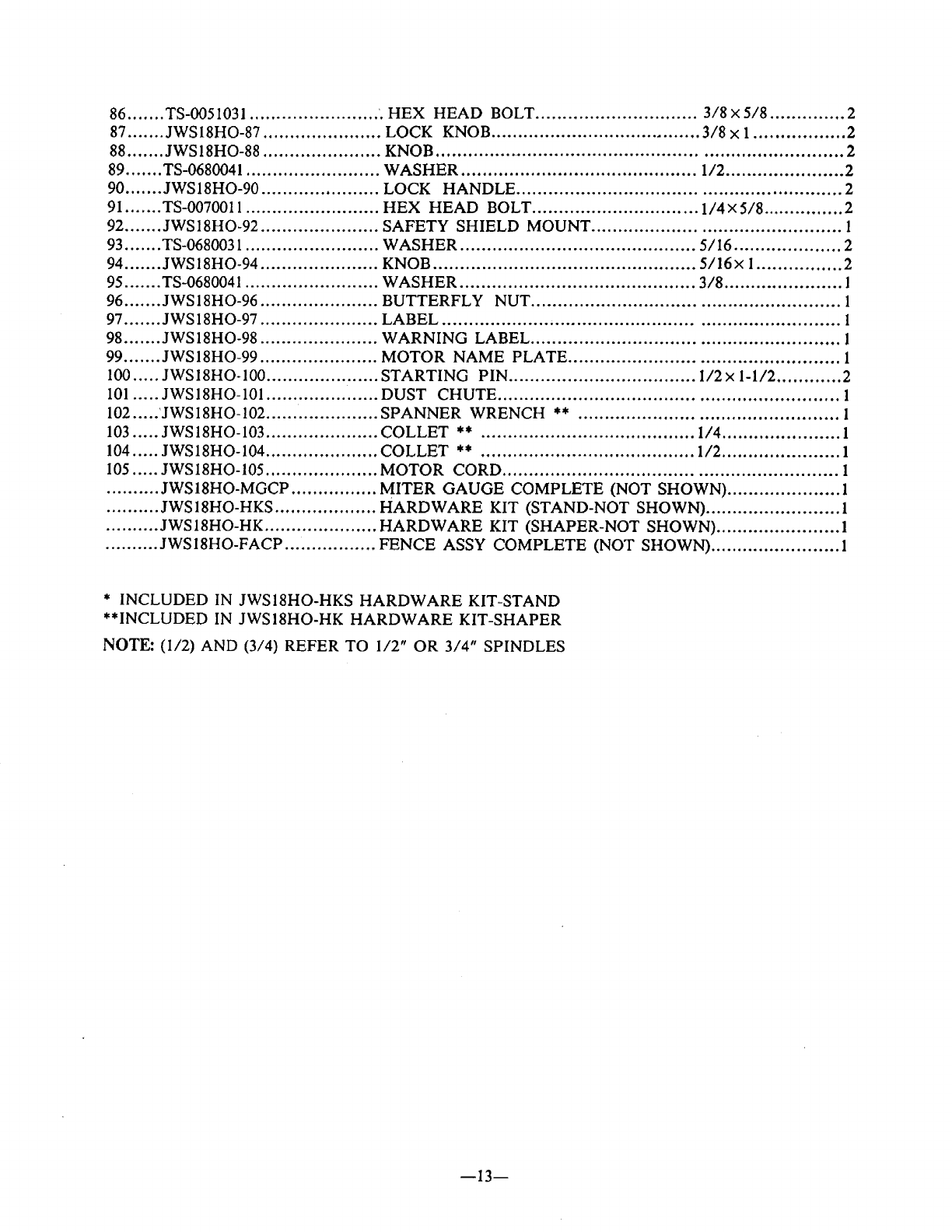

86 TS-0051031 .HEXHEADBOLT 3/8x5/82
87 JWS18HO-87 LOCK KNOB 3/8x12
88 JWS18HO-88 KNOB 2
89 TS-0680041 WASHER 1/22
90 JWS18HO-90 LOCK HANDLE 2
91 TS-0070011 HEX HEADBOLT 1/4x5/82
92 JWS18HO-92 SAFETY SHIELDMOUNT 1
93 TS-0680031 WASHER 5/162
94 J WS18HO-94 KNOB 5/16x1 2
95 TS-0680041 WASHER 3/8
96 JWS 18HO-96 BUTTERFLY NUT
97 JWS18HO-97 LABEL
98 JWS18HO-98 WARNING LABEL
99 JWS18HO-99 MOTORNAME PLATE
100 JWSI8HO-100 STARTING PIN1/2x1-1/2
101 JWS18HO-101 DUSTCHUTE
102 JWS18HO-102 SPANNERWRENCH **
103 JWS18HO-103 COLLET **1/4
104 JWS18HO-104 COLLET •*1/2
105 JWS18HO-105 MOTORCORD
JWS18H0-MGCPMITERGAUGECOMPLETE (NOT SHOWN)
JWS18H0-HKS HARDWAREKIT(STAND-NOT SHOWN)
JWS18HO-HKHARDWAREKIT(SHAPER-NOT SHOWN)
JWS18H0-FACP.... FENCE ASSYCOMPLETE (NOT SHOWN)
*INCLUDED IN JWS18HO-HKSHARDWAREKIT-STAND
••INCLUDED IN JWSI8H0-HKHARDWAREKIT-SHAPER
NOTE: (1/2)AND(3/4) REFER TO1/2"OR3/4" SPINDLES
—13—

JWS-18HOElectrical Schematic
230V 115V
Motor Motor
® ®
Motor
Junction
Box
\
\
\
\
\ \
\
\
\
\
\
ft]
\
\
\
® ® @ ©
\
\
\
(D (D(D(D®
L_J U_I
\
\
\
\
(51
\
\
\
\
\
\
\
\
\
0 ® ® 0
Motor Cord
—14—
