10" DELUXE XACTA®SAW
STOCK NO. 900463
10M 07/07
©2007 WMH TOOL GROUP, Inc. All Rights Reserved.
From our shop to yours - the new Deluxe Xacta®Saw was designed
for success.The quick release riving knife and push button arbor lock
make operation safer and trouble-free. A fully shrouded blade con-
nected to the 4" dust port makes dust collection a breeze.The built-in
sealed storage drawer keeps often used tools or accessories close at
hand, and dust free.
Q
U
I
C
K
C
H
A
N
G
E
R
i
v
i
n
g
K
n
i
f
e
S
y
s
t
e
m
Poly
Poly-V belt drive system
and arbor lock
Quick release riving knife

jettools.com

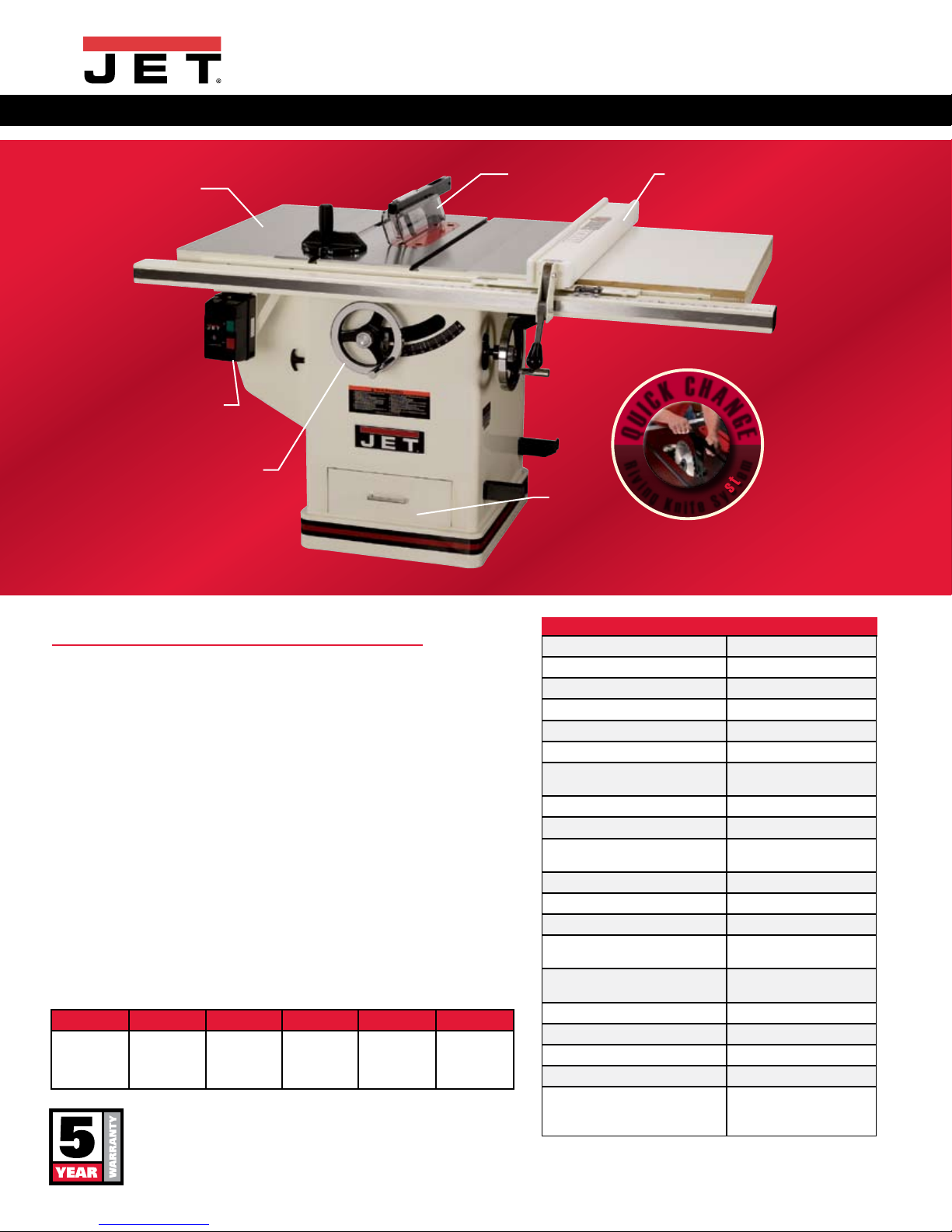

10" DELUXE XACTA®SAW
•Exclusive 30" or 50" rip capacities Commercial XACTA®Fence II with
T-square design
•Quick release riving knife greatly reduces binding/kickback risk
•Independent leaf blade guard protects operator from blade
•Push button arbor lock (patent pending) for rapid blade change
•Shrouded Blade increases dust collection efficiency
•Standard 11" left and right cast iron extension wings provides the
largest table surface in its class
•Poly-V drive belt system delivers efficient, quiet operation
•Rail-mounted magnetic switch is easy to reach and provides
overload protection
•Enclosed cabinet with built-in sealed storage drawer
•Hinged motor cover on cabinet gives quick access to the motor and belts
•Deluxe miter gauge with adjustable positive stops and large soft grip
handles provides large crosscutting capacity and accurate miters
10" DELUXE XACTA®SAW STOCK NUMBER 708674PK
Model Number JTAS-10XL30-1DX
Net Weight (lbs.) 490
Blade Diameter (in.) 10
Arbor Diameter (in.) 5/8
Arbor Speed (RPM) 4300
Maximum Depth of Cut (in.) 3
Maximum Depth of Cut at 45
Degrees (in.)
2-1/8
Maximum Rip Right of Blade (in.) 30 or 50
Maximum Rip Left of Blade (in.) 13
Table in Front of Saw Blade at
Maximum Depth of Cut (in.)
10
Maximum Width of Dado (in.) 13/16
Maximum Diameter of Dado (in.) 8
Table Height (in.) 34
Table Size with Standard Extension
(L x W/in.)
29 x 42
Table Size without Extension
(L x W/in.)
29 x 20
Dust Port Diameter (OD/in.) 4
Motor Amps 14.5
Motor HP 3HP or5HP
Motor Phase 1Ph or 3Ph
Motor Voltage 230/460V (Prewired 230V)
*Requires additional parts
for 460V operation.
Xacta
Fence II
Larger
Table
Surface
Magnetic
Controls
Large Hand Wheel
Riving Knife
Sealed
Storage
Drawer
708674PK 708675PK 708676PK 708677PK 708680PK 708681PK
10" DELUXE
XACTA
®
SAW
3HP, 1PH,
30" RIP
10" DELUXE
XACTA
®
SAW
3HP, 1PH,
50" RIP
10" DELUXE
XACTA
®
SAW
5HP, 1PH,
30" RIP
10" DELUXE
XACTA
®
SAW
5HP, 1PH,
50" RIP
10" DELUXE
XACTA
®
SAW
5HP, 3PH,
30" RIP
10" DELUXE
XACTA
®
SAW
5HP, 3PH,
50" RIP
Q
U
I
C
K
C
H
A
N
G
E
R
i
v
i
n
g
K
n
i
f
e
S
y
s
t
e
m
The Quick Change
Riving Knife system
incorporates maximum
safety with ease of
functionality. It’s tool-less
design makes blade
change easy and fast.
