JETWAY G03-NF9D-F User manual

TECHNICAL MANUAL
Of
Intel Cedar Trail-D & NM10 Chipset
Based
Mini-ITX M/B for ATOM Processor
NO. G03-NF9D-F
Revision: 2.0
Release date: March 20, 2012
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

i
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

ii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................6
2-2 CONNECTORS AND HEADERS................................................................................11
2-2-1 CONNECTORS .............................................................................................11
2-2-2 HEADERS .....................................................................................................12
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................20
3-2 BIOS MENU SCREEN ................................................................................................20
3-3 FUNCTION KEYS .......................................................................................................21
3-4 GETTING HELP ..........................................................................................................22
3-5 MENU BAR..................................................................................................................22
3-6 MAIN MENU................................................................................................................23
3-7 ADVANCED MENU.....................................................................................................24
3-8 CHIPSET MENU..........................................................................................................30
3-9 BOOT MENU...............................................................................................................32
3-10 SECURITY MENU.......................................................................................................33
3-11 SAVE & EXIT MENU...................................................................................................34
TABLE OF CONTENT

iii
Environmental Safety Instruction
zAvoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
zGenerally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
zThe increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
zAttention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition January 12, 2012
Item Checklist
5Motherboard
5User’s Manual
5DVD for motherboard utilities
5Cable(s)
5I/O Back panel shield

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
zIntel Cedar Trail-D and NM10 chipset, with low power consumption never denies
high performance
zSupport two DDRIII 800/1066MHz SO-DIMM up to 4GB
zSupport 2 * Serial ATAII (3Gb/s) Devices and 2 * Serial ATAIII (6Gb/s) Devices
zOnboard dual Realtek RTL 8111EVL Gigabit Ethernet LAN chip
zIntegrated ALC662-GR 6-channel HD audio CODEC
zSupport USB 2.0 data transport demands
zSupport PCI slot and mini-PCIE slot
zSupport daughter board expansion
zSupport Watchdog function
zSupport Smart Fan function
zCompliance with ErP standard

2
1-2 Specification
Spec Description
Design zMini-ITX form factor; PCB size: 17.0x17.0cm
Chipset zIntel®NM10 Express chipset
Embedded CPU zIntel Cedar Trail-D Processor
Memory Slot
zDDRIII SO-DIMM slot x 2
zSupport two DDRIII 800/1066 MHz SO-DIMM with memory
capacity expandable to 4GB
Expansion Slot z32-bit PCI slot x 1
zMini-PCIE slot x1
Dual LAN Chip
zIntegrated with two Realtek RTL8111EVL PCI-E Gigabit
LAN chips
zSupport Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip zRealtek ALC662-GR 6-channel Audio Codec integrated
zAudio driver and utility included
BIOS zAMI 16MB DIP Flash ROM
Multi I/O zPS/2 keyboard/ mouse combo connector x1
zVGA port connector x1
zSerial port connector x 1
zUSB 2.0 port connector x4
zRJ-45 LAN connector x2
zHDMI port connector x1
zAudio connector x3 (Line-in, Line-out, MIC)
zSATAII port connector x2
zSATAIII port connector x2
zFront panel audio header x1
zCDIN header x 1
zHDMI_SPDIF header x1
zSerial port header x1
zRS232/422/RS485 header x1
z4-pin USB 2.0 header x1

3
z9-pin USB 2.0 header x1
zGPIO header x1
zLVDS inverter x1
z24- bit single channel LVDS header x1
zPWRLED header x1
zSpeaker header x1
zFront panel header x1
zParallel header x1
zJetway daughter board header x 2
1-3 Layout Diagram
MIC-IN
VGA Port
Line-OUT
Line-IN
RJ-45 LAN Port
USB 2.0 Ports
PS/2 Keyboard &
Mouse Combo Port
HDMI Port
Serial Port
RJ-45 LAN Port
USB 2.0 Ports

4
ATX Power
Connector
SYSFAN Heade
r
USB 2.0 Heade
r
Line-In
PS/2 KB & MS Combo
Port over USB 2.0 Ports
HDMI Port
RJ-45 LAN Port over
USB 2.0 Ports
Front Panel
Audio Header
PCI Slot
Power LED Header
CPUFAN Header
RJ-45 LAN Port
LVDS Inverter
LVDS Heade
r
Parallel Por
t
Heade
r
Serial Por
t
Heade
r
SATAII Ports
(SATA1/SATA2)
Front Panel Header
Speaker Header
Intel CPU
Intel NM10 Chipset
HDMI_SPDIF
Header
J
P1
J
P2
COPE
N
SODIMM2 Slot
Serial Port
over
VGA Port
Line-Out
MIC-In
CDIN Heade
r
GPIO Heade
r
SYSFAN Heade
r
Min
i
-
P
CIE Slo
t
J
P3
J
P5
J
P6
J
BAT
J
P7
J
P8
SODIMM1 Slot
SATAIII Ports
(SATA3/SATA4)
Jetway Daughter Board Connecto
r
s
TX-RX COM Header

5
Jumper
Jumper Name Description
JBAT CMOS RAM Clear Function Setting 3-pin Block
JP1 K/B, USB Power On Function Setting 3-pin Block
JP2 LVDS PVCC 5V/3.3V Select 3-pin Block
JP3 Inverter12V/5V Select 3-pin Block
JP5 USB 2/3 Header Power On Function Setting 3-pin Block
JP6 MINIPCIE Power SB 3.3V/3.3V Select 3-pin Block
JP7 COM2 RS232 Power Select 6-pin Block
JP8 COM2 RS232/422/485 Function Select 6-pin Block
Connectors
Connector Name Description
ATXPWR1 ATX Power Connector 24-pin Connector
KB & MS combined
connector from UK1 PS2 Keyboard & Mouse Connector 6-pin Female
VGA Video Graphic Attach Connector 15-pin Female
COM1 Serial Port Connector 9-pin Connector
HDMI High-Definition Multimedia Interface 10-pin Connector
USB from UK1,UL1 USB Port Connector 4-pin Connector
LAN from LAN1, UL1 RJ-45 LAN Connector 8-pin Connector
AUDIO Line-in/Line-out/MIC 3-phone Jack
SATA1,2 Serial ATAII Connector 7-pin Connector
SATA3/SATA4 Serial ATAIII Connector 7-Pin Connector
Headers
Header Name Description
FP-AUDIO1 Front Panel Audio Header 9-pin block
CDIN1 CD Audio-In Header 4-pin block
SPDIF SPDIF Out header 2-pin block
USB2 USB 2.0 Header 4-pin Block
USB3 USB 2.0 Header 9-pin Block
GPIO_CON GPIO Header 10-pin Block

6
COM2 Serial Port Header 9-pin Block
TX_RX COM RS 232/422/485 port headers 4-pin block
PWR LED Power LED 3-pin Block
SPEAK Speaker Header 4-pin Block
JW_FP
Front Panel Header(PWR LED/ HD LED/ /Power Button /Reset) 9-pin Block
LVDS LVDS Header 32-pin Block
INVERTER LVDS Inverter Connector 7-pin Block
CPUFAN,SYSFAN1/2 FAN Speed Headers 3-pin Block
PARALLEL Parallel Port Header 25-pin Block
CN1; CN2 Jetway Daughter Card Connector 50-pin *2 Block
Chapter 2
Hardware Installation
2-1 Jumper Setting
(1) JBAT (3-pin): Clear CMOS
2-3 closed : Clear CMOS
JBATJBAT
13
1-2 closed: Normal;
13

7

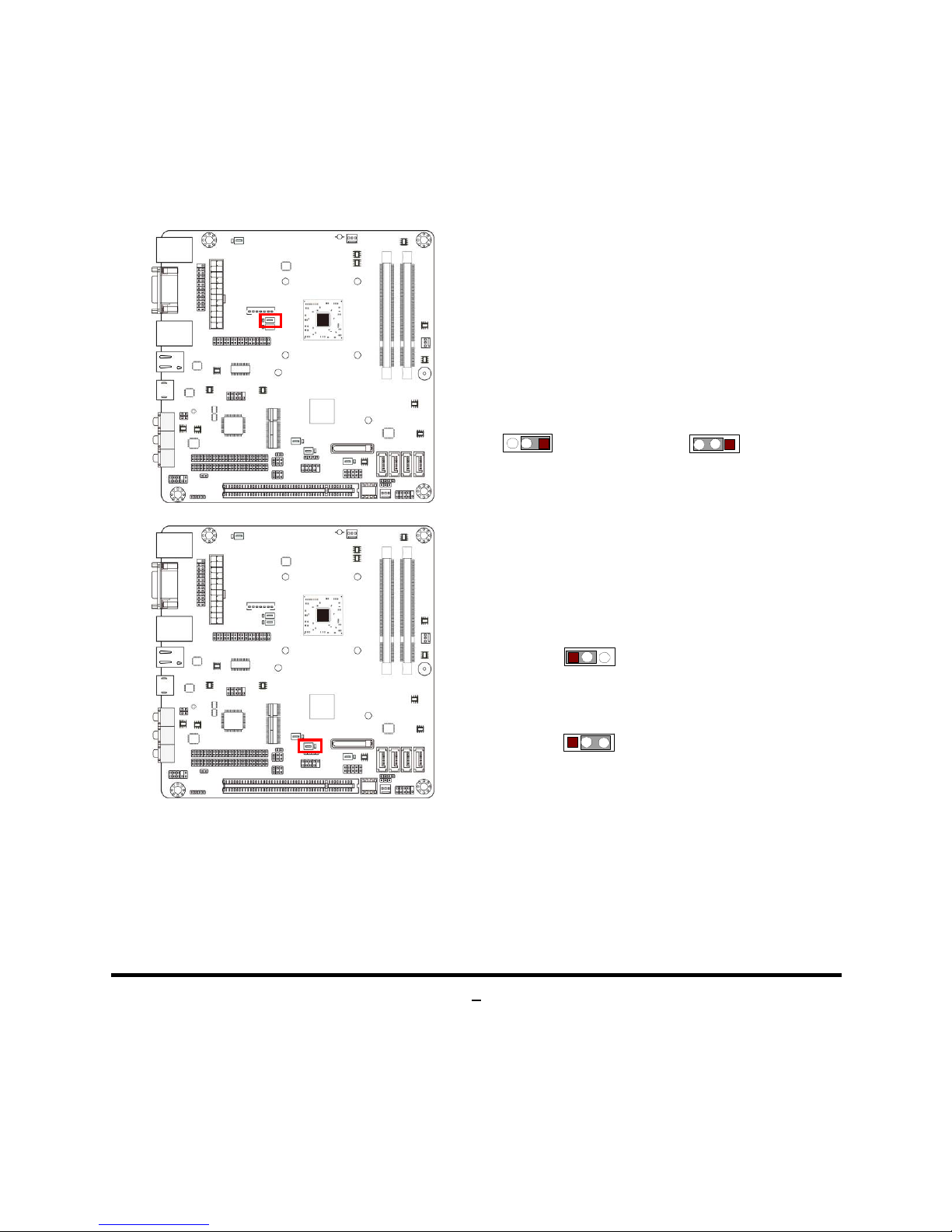

(2) JP1 (3-pin): K/B, USB Power on Function Setting
2-3 closed:K/B, USB Power-On Enabled
JP1
JP1
1-2 Closed: K/B, USB Power-On Disabled(default)
13
13
(3) JP2 (3-pin): LVDS PVCC 5V/3.3V Select
2-3 Cosed : LVDS VCC=3.3V
JP2JP2
1-2 Closed: LVDS VCC= 5V;
33 1
1

8
(4) JP3 (3-pin): Inverter VCC 5V/12V select
2-3 Closed : Inverter 5V Select
JP3JP3
1-2 Closed: Inverter 12V Select;
31
3
1
(5) JP5 (3-pin): USB2/3 Header Power on Function Setting
2-3 Closed: USB 2/3 Header Power-On Enabled
JP5
JP5
1-2 Closed : USB 2/3 Header Power-On Disabled(default)

9
(6) JP6(3-pin): Mini PCI-E Power VCC3.3V/ 3.3 V SB Select
2-3 Closed ：MINI PCI-E VCC= 3.3VSB Select
JP6
1-2 Closed ：MINI PCI-E VCC= 3.3V Select；
1
3
13
JP6

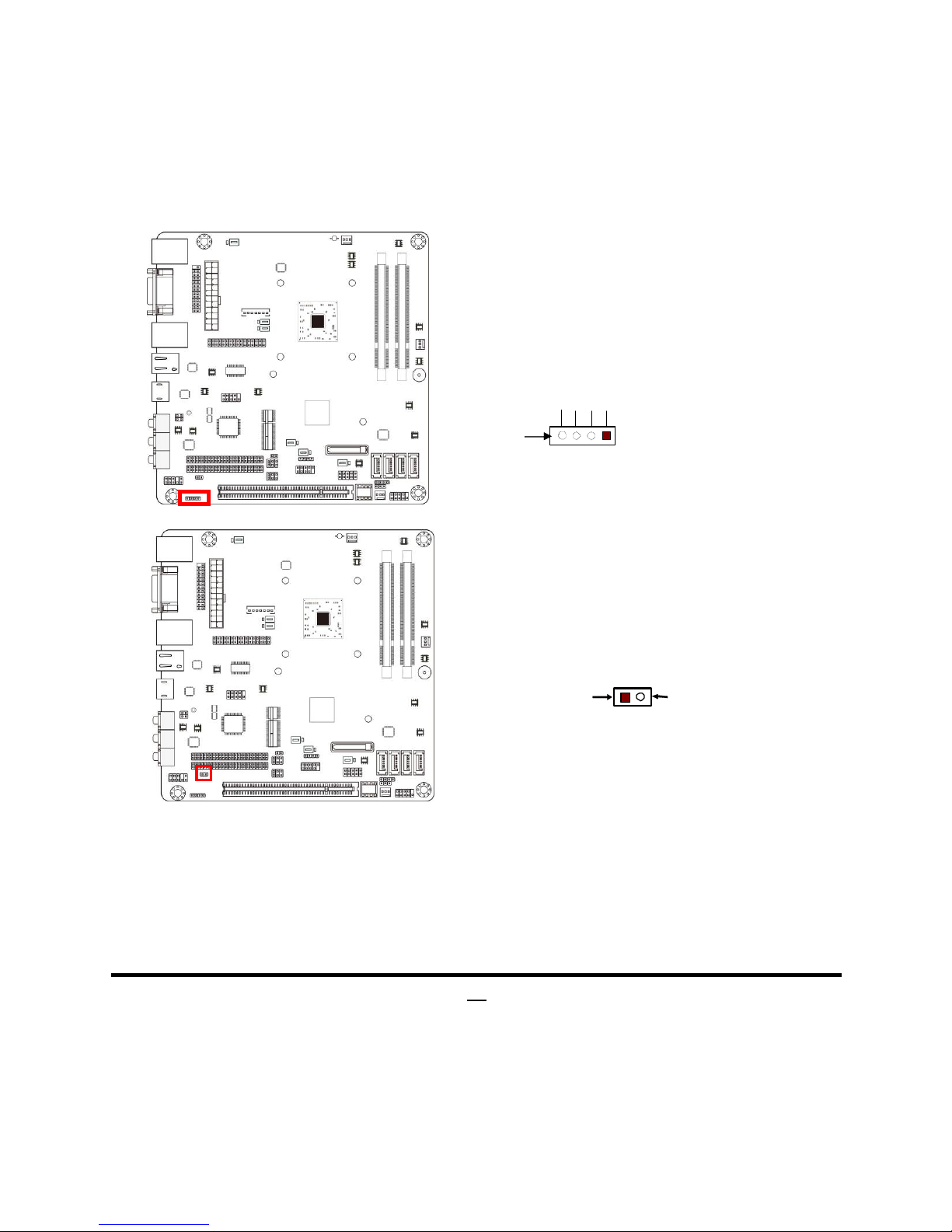

(7) JP7 (6-pin): COM2 Pin9 Function Select
3-4 Closed : +12V;
JP7
1
1-2 Closed: RS232;
1
1
5-6 Closed : +5V

10
(8) JP8 (6-pin): COM2 Port RS232/485/422 Function Select
3-4 Closed : RS485;
JP8
1
1-2 Closed: RS232;
11
5-6 Closed : RS422
(9)COPEN (2-pin): Case Open Message Display Function Select
Case Open Display Function
1-2 Short：Case Open
COPEN
1-2 Open：Normal
Pin 1-2 shorted: Case open display function enabled. In this case if you case is
removed, next time when you restart your computer a message will be displayed
onscreen to inform you of this.

11
2-2 Connectors and Headers
2-2-1 Connectors
(1) I/O Panel Connector:
(2) Serial-ATA Port connector: SATA1, SATA2, SATA3, SATA4
SATA1 and SATA2 connectors are SATAII connectors that support SATA 3Gb/s
specification. SATA3 and SATA4 connectors are SATAIII connectors that
support SATA 6Gb/s specification.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
MIC-IN
VGA Port
Line-OUT
Line-IN
RJ-45 LAN Port
USB 2.0 Ports
PS/2 Keyboard &
Mouse Combo Port
HDMI Port
Serial Port
RJ-45 LAN Port
USB 2.0 Ports

12
(3) Power Connector (24-pin block): ATXPWR
2-2-2 Headers
(1) Front Panel Audio Header (9-pin): FP_AUDIO1
This header connects to front panel Line-out, MIC-In connector with cable.
Line-Out, MIC Header
AUDIO
Pin 1
Lineout2-L Lineout2-R
Sense-FB
Audio-GND
LINE2
Audio
2
9
10
KEY
MIC2-L
MIC2
MIC2-R

13
(2) CD AUDIO-In Header (4-pin): CDIN
GND CD-R
CD-L
GND
Pin1
(3) HDMI-SPDIF Out header (2-pin): SPDIF
HDMI_SPDIF Header
1
GND
2
HDMI_SPDIF_OUT

14
(4) USB 2.0 Port Header (4-pin): USB2
USB2 Header
Pin 1
VCC
-DATA
GND
+DATA
(5) USB 2.0 Port Header (9-pin): USB3
VCC
Pin 1
-DATA
GND
+DATA
VCC
NC
-DATA
GND
+DATA

15
(6) COM2 (9-pin): RS232 Header
Serial COM Port 9-pin Block
Pin1
Pin6
DCD
Pin5
DSR RXD
TXD
DTR GND
RTS
CTS
RI
(7) TX-RXCOM (4-pin): RS422/485 Header
TX-RXCOM Header
Pin 1
TXDN RXDP
TXDP
2
RXDN
(8) Speaker Header (4-pin): SPEAK
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(9) Power LED (3-pin): PWR LED
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin header.
