JLT JLT6012A User manual

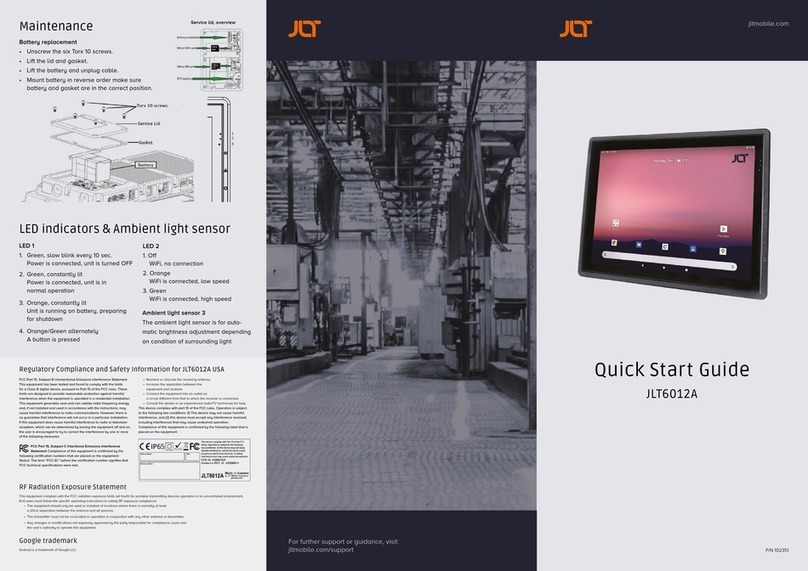

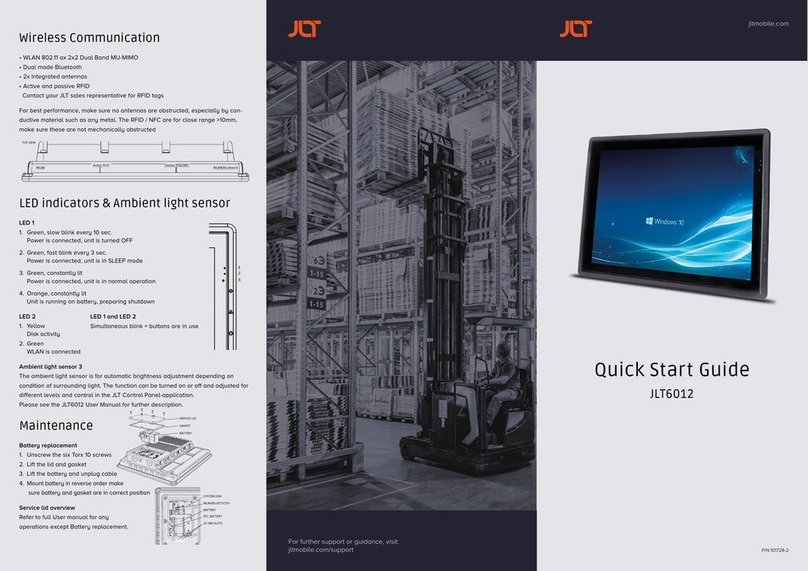

Quick Start Guide
JLT6012A
JLT6012A
JLT Mobile Computers AB
Head Office: Isbjörnsvägen 3, SE-352 45 Växjö, SWEDEN
Sales Office: Medborgarplatsen 3, Plan 8, SE-118 26 Stockholm, SWEDEN
Phone: [phone] Fax[phone] Email: [e-mail]
North America: 7402 West Detroit Street, Suite 150 Chandler, Arizona 85284, USA
Phone [phone] Toll free US: 844-705-4200

First start
Android operating system is preinstalled on the unit.
Follow instructions and steps given to complete the user setup.
See section “Maintenance” for SIM-card installation.
Touch Screen
JLT6012A is equipped with a Projected Capacitive Touch screen. Also called PCT or
PCAP. The touch screen is calibrated from factory and needs no further calibration.
It has a resistant glass surface that can be cleaned with a damp cloth, ordinary
soap or hand-dish washing fluids. Purpose made cleaning fluids may also be used.
It’s normally operated with fingers, and may also be used with purpose designed
stylus for PCT or PCAP. A stylus designed for resistive touch screens will not work.
NOTE: As the surface is made of glass it will withstand most common substances,
but Do NOT use fluids like bleach or any strong alkali cleaning agents such as
sodium or potassium hydroxide for cleaning as it may etch the glass and leave grey
marks.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this
device does not cause harmful interference.
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human
proximity to the antenna shall not be less than 20cm during normal operation.

Interfaces
Connectors
From left to right:
•WWAN Main, SMA
•GNSS, SMA
•WWAN Aux, SMA
•USB2 x2, USB type A
•Ethernet, RJ45
•USB3.1, OTG, ADB, Display, USB type C
•USB3.1, USB type A
•RS232C, configurable 5V supply on pin1/9, D-Sub-9
•Isolated Power input, 9-72VDC, nominal input voltage 12-60VDC
–Pin 1 = Positive –Pin 2 = Remote On/Off –Pin 3 = Power Ground
Power cable
Connect cable as shown in the picture below.
Remote may be connected to a remote switch or a vehicle ignition key for
automatic On/Off control where
high is on and low is off.
Important:
If not used for remote operation remote input pin must be connected to
positive input to enable operation.
JLT standard cable configuration: Red = Positive, White = Remote, Black =
Ground
The power cable must be dimensioned to handle up to 40 Watts, or use cable supplied by JLT.
Recommended cable area 0.75 mm2, AWG 18 or larger.
Important: Do NOT apply any solder to the cable ends. It will eventually make the connection
unreliable
and loose during use.

Power Input and UPS
The unit is equipped with an isolated wide range 9-72VDC input. Nominal input voltage 12-60VDC.
If power is lost or switched off, the unit will switch to the UPS-battery
to perform a controlled system shutdown.
Battery and remote operation are configurable in JLT Control Panel application.
Remote input is recommended to utilize to automatically power on and off the unit.
Typically connects to a vehicle ignition switch.
No additional grounding of unit is normally required.
Power consumption:
Stand by: 0.5W
Idle, active screen: typical 15W
Maximum: 40W
Buttons
From left to right:
•Power On/Off button, Press and hold 2 seconds for shut down menu, 8 seconds for forced
shutdown.
•Brightness –
•Brightness +
•Android buttons, Home, Back and Menu

Mounting
Cable Strain Relief and Rubber Sealing Plugs
Use included cable ties to attach cables to the strain relief plate.
Install rubber sealing plugs to unused ports.
JLT provided Mounting Kits: RAM®
RAM® Mount -> Computer: Use included screws and washers.
Usage of thread locking products like Loctite® is recommended.
Mounting with other brands and parts
When mounting a JLT unit to a VESA bracket, use M6 screws with correct length.
The inserting part of the screw should be minimum 5mm and must NOT exceed 8.5mm. (That is 8
complete turns on the screw).
If screws are too long, build up with washers to adjust the inserting part of screw.
If this is not done and the screws are too long, they will deform the aluminum case inwardly when
applying great force.
Torque: Maximum 6Nm

Important:
The vehicle computer and bracket must be firmly secured to a surface that can support the vehicle
computer´s weight and include optional accessories such as keyboard and scanners.
Computer weight = 2.9 kg or 6.4 lb
Keyboard mount
An accessory keyboard mount is available from JLT
that mounts towards the two M6 screw holes on each
side. Fasteners are included with the mount. If other
fasteners or screws are being used the depth of
mounting holes are maximum 8mm.
The keyboard mount has multiple mounting hole
alternatives and comes with a Velcro® adhesive tape
to adapt to any keyboard. It’s adjustable to allow
different keyboards and height. Mounting screws
come with the selected keyboard, if supplied from JLT
Mobile.

Wireless Communication
WLAN: 802.11 ac/a/b/g/n 2x2 Dual Band MU-MIMO
Dual Mode Bluetooth
2x Integrated Antennas 2.4Ghz / 5Ghz
NFC
Optional:
WWAN: 4G/3G, HSPA+, UMTS, LTE
GNSS: GPS, Glonass, Galileo, BeiDou
See section “Maintenance-Service lid overview” for SIM-card insertion.
For best performance, make sure no antennas are obstructed, especially by conductive material such
as any metal.
The NFC are for close range >10mm, make sure it’s physically accessible when mounting unit.

Maintenance
Battery Replacement
•Unscrew the six Torx 10 screws.
•Lift the lid and gasket.
•Lift the battery and unplug cable.
•Mount battery in reverse order make sure battery and gasket are in correct position.
Service lid, overview

LED indicators and Ambient light sensor
LED, 1
1. Green, slow blink every 10 sec.
Power is connected, unit is turned OFF
2. Green, Constantly lit
Power is connected, unit is in normal operation
3. Orange, Constantly lit
Unit is running on battery, preparing shutdown
4. Orange/Green alternately
A button is pressed
LED, 2
1. Off
WiFi, no connection
2. Orange
WiFi is connected, WiFi level 1-3
3. Green
WiFi is connected, WiFi level 4-5
Ambient light sensor, 3
The ambient light sensor is for automatic brightness adjustment depending
on condition of surrounding light
