JMC JMC-OSPH-SS User manual

21

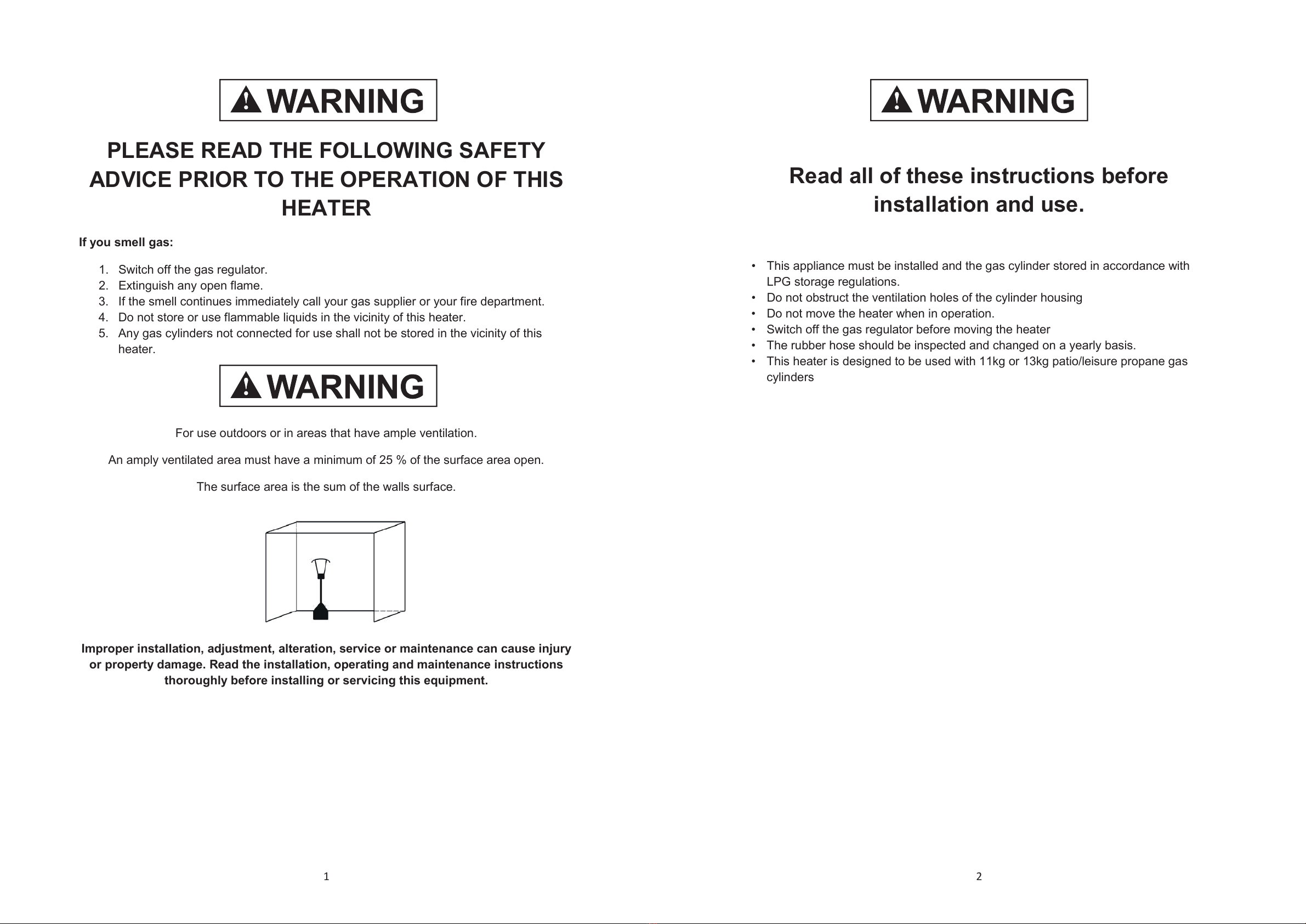

PLEASE READ THE FOLLOWING SAFETY
ADVICE PRIOR TO THE OPERATION OF THIS
HEATER
If you smell gas:
1. Switch off the gas regulator.
2. Extinguish any open flame.
3. If the smell continues immediately call your gas supplier or your fire department.
4. Do not store or use flammable liquids in the vicinity of this heater.
5. Any gas cylinders not connected for use shall not be stored in the vicinity of this
heater.
For use outdoors or in areas that have ample ventilation.
An amply ventilated area must have a minimum of 25 % of the surface area open.
The surface area is the sum of the walls surface.
Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
Read all of these instructions before
installation and use.
• This appliance must be installed and the gas cylinder stored in accordance with
LPG storage regulations.
• Do not obstruct the ventilation holes of the cylinder housing
• Do not move the heater when in operation.
• Switch off the gas regulator before moving the heater
• The rubber hose should be inspected and changed on a yearly basis.
• This heater is designed to be used with 11kg or 13kg patio/leisure propane gas
cylinders

4 3
TABLE OF CONTENTS
Safety Precautions …………………………………………………… 4
Heater Stand and Location …………………………………………… 6
Gas Requirements …………………………………………………… 6
Leak Test ……………………………………………………………… 7
Operation and Storage ………………………………………………… 8
Cleaning and Care …………………………………………………… 9
Parts and Specifications ……………………………………………… 9
Construction and Characteristics …………………………………… 10
Specification …………………………………………………………… 10
Assembly Parts ……………………………………………………… 11
Assembly Procedure…………………………………………………… 13
Troubleshooting ……………………………………………………… 18
SAFETY PRECAUTIONS
Read the instructions before using this appliance. The appliance must be installed in
accordance with the instructions.
Do not use this patio heater indoors, as it may cause personal injury or property
damage.
This outdoor heater is not intended to be installed on recreational vehicles and/or
boats. Installation and repair should be done by a qualified service person.
Improper installation, adjustment, alteration can cause personal injury or property
damage.
Do not attempt to alter the unit in any manner.
Never replace or substitute the regulator with any regulator other than the factory-
suggested replacement.
Do not store or use gasoline or other flammable vapors or liquids in the heater unit.
The whole gas system, hose, regulator, pilot or burner should be inspected for leaks
or damage before use, and at least annually by a qualified service person.
All leak tests should be done with a soap solution. Never use an open flame to check
for leaks. Do not use the heater until all connections have been leak tested.
Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve
OFF. If leak is at Hose/ Regulator connection: tighten connection and perform
another leak test. If bubbles continue appearing should be returned to hose’s place of
purchase. If leak is at Regulator/Cylinder Valve connection: disconnect, reconnect,
and perform another leak check. If you continue to see bubbles after several
attempts, cylinder valve is defective and should be returned to cylinder’s place of
purchase.
Do not transport heater while it’s operating.
Do not move the heater after it has been turned off until the temperature has cooled
down. Keep the ventilation opening of the cylinder enclosure free and clear of debris.
Do not paint the radiant screen, control panel or top canopy reflector.
Control compartment, burner and circulation air passageways of the heater must be
kept clean. Frequent cleaning may be required as necessary.
The LP tank should be turned off when the heater is not in use. Check the heater
immediately if any of the following occurs:
1. The heater does not reach temperature.
2. The burner makes a popping noise during use (a slight noise is normal when the
burner is extinguished).
3. Smell of gas in conjunction with extreme yellow tipping of the burner flames.
The gas regulator/hose assembly must be located out of pathways where people
may trip over it or in areas where the hose will not be subject to accidental damage.
Any guard or other protective device removed when servicing the heater must be
replaced before operating the heater. Adults and children should stay away from high
temperature surfaces to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should not be hung on the heater or placed on
or near the heater.

65
The gas cylinder should only be changed in a ventilated area, away from sources of
ignition (candles, cigarettes, and other flame producing appliances)
Do not obstruct the ventilation holes of the cylinder housing
Switch off the gas tap after use when using red propane cylinders.
Switch off the regulator after use when using green propane cylinders.
In the event of gas leak, the appliance shall not be used or if alight, the gas regulator
should be turned off immediately and the appliance should be inspected thoroughly
before it is used again.
Inspect the gas hose before every use. If it shows signs of cracking, splitting or other
deterioration it should be replaced with new hose of the same length and of the
equivalent quality.
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
For connection of hose and regulator, and connection of regulator and hose, please
refer to the photos shown below.
To assist connecting the regulator, carefully place the rubber hose into an insulated cup of
boiling hot water. This allows the rubber hose to expand and allow the regulator to be
connected easily. After connecting the regulator, tighten the hose clip with a screwdriver.
This product contains small batteries. Swallowed small batteries can cause
CHOCKING HAZARD. Seek immediate medical attention if batteries are swallowed
or inhaled. Keep children away from the small batteries.

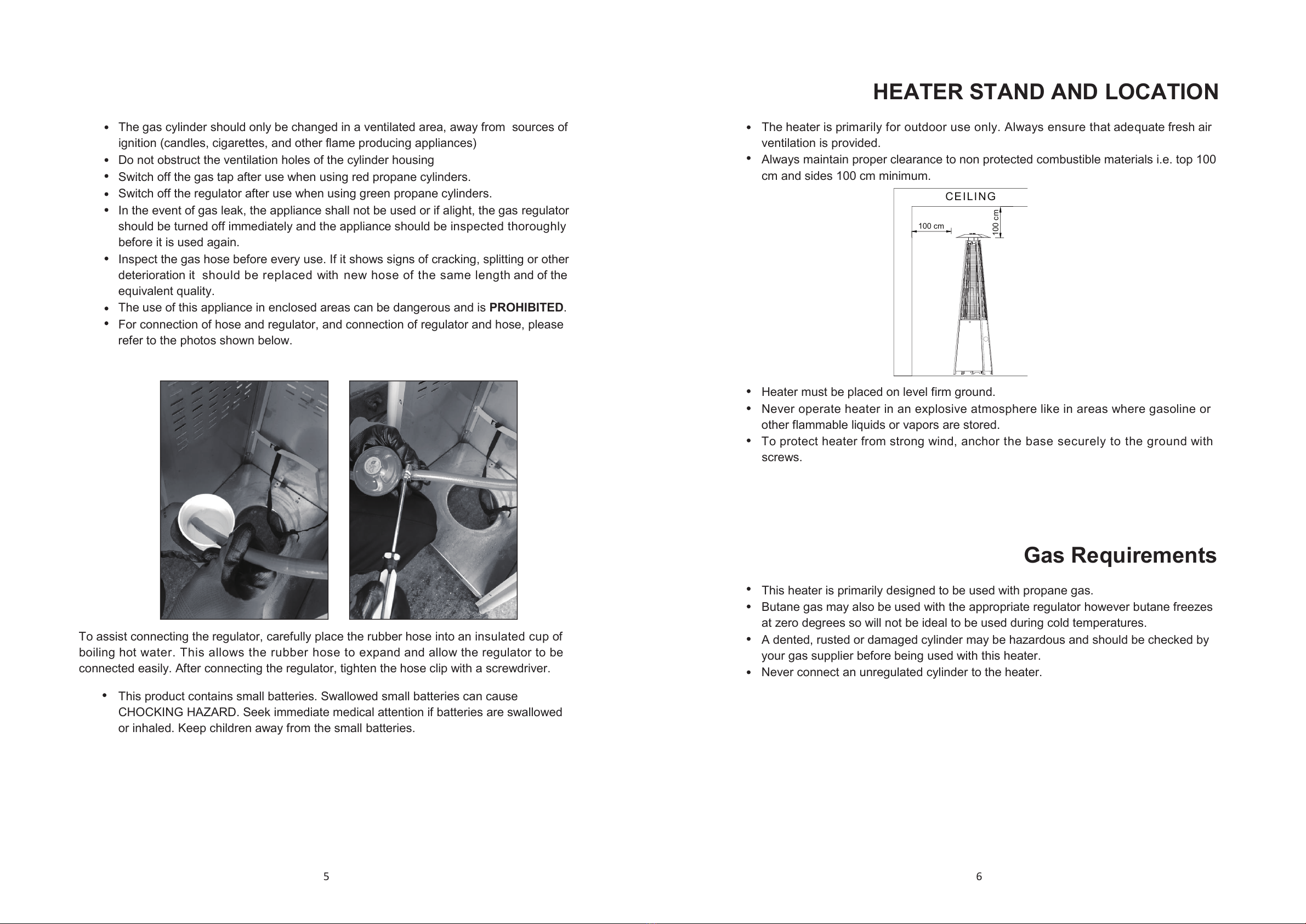

HEATER STAND AND LOCATION
The heater is primarily for outdoor use only. Always ensure that adequate fresh air
ventilation is provided.
Always maintain proper clearance to non protected combustible materials i.e. top 100
cm and sides 100 cm minimum.
Heater must be placed on level firm ground.
Never operate heater in an explosive atmosphere like in areas where gasoline or
other flammable liquids or vapors are stored.
To protect heater from strong wind, anchor the base securely to the ground with
screws.
Gas Requirements
This heater is primarily designed to be used with propane gas.
Butane gas may also be used with the appropriate regulator however butane freezes
at zero degrees so will not be ideal to be used during cold temperatures.
A dented, rusted or damaged cylinder may be hazardous and should be checked by
your gas supplier before being used with this heater.
Never connect an unregulated cylinder to the heater.
CEILING
100 cm
100 cm

87

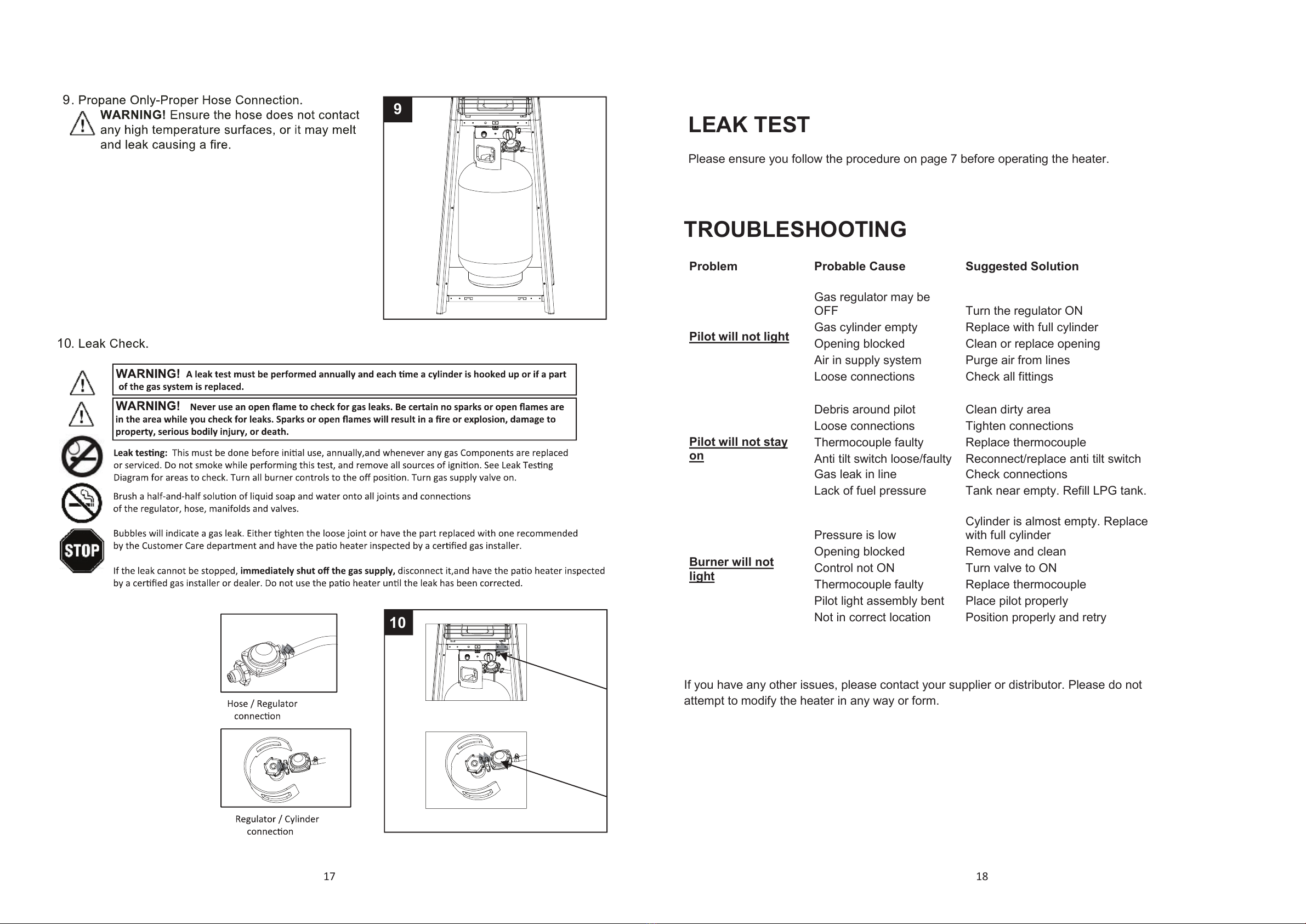

Leak Test
Gas hose connections on the heater are leak tested at the factory prior to shipment. A
complete gas leak check must be performed at the installation site due to possible
mishandling during the transit process.
Leak testing: Do not smoke while performing this test, and remove all sources of ignition.
A full gas cylinder is required. This test must be done before initial use, annually and
whenever any gas Components are replaced or serviced.
1. Mix a solution of water and washing up liquid, then pour onto the connection
between the joints and connections of the regulator, hose, manifolds and valves.
See Leak Testing Diagram below for areas to check. Turn all burner controls to
the off position. Turn the gas regulator ON.
If no bubbles are present - This indicates the connection is leak safe.
If bubbles are present – Tighten the hose clip further and retest for leaks
If bubbles continue to appear – please contact your gas supplier or heater
distributor
2. If the leak cannot be stopped, immediately shut off the gas supply and
disconnect it.
3. Do not use the patio heater until the leak has been corrected.

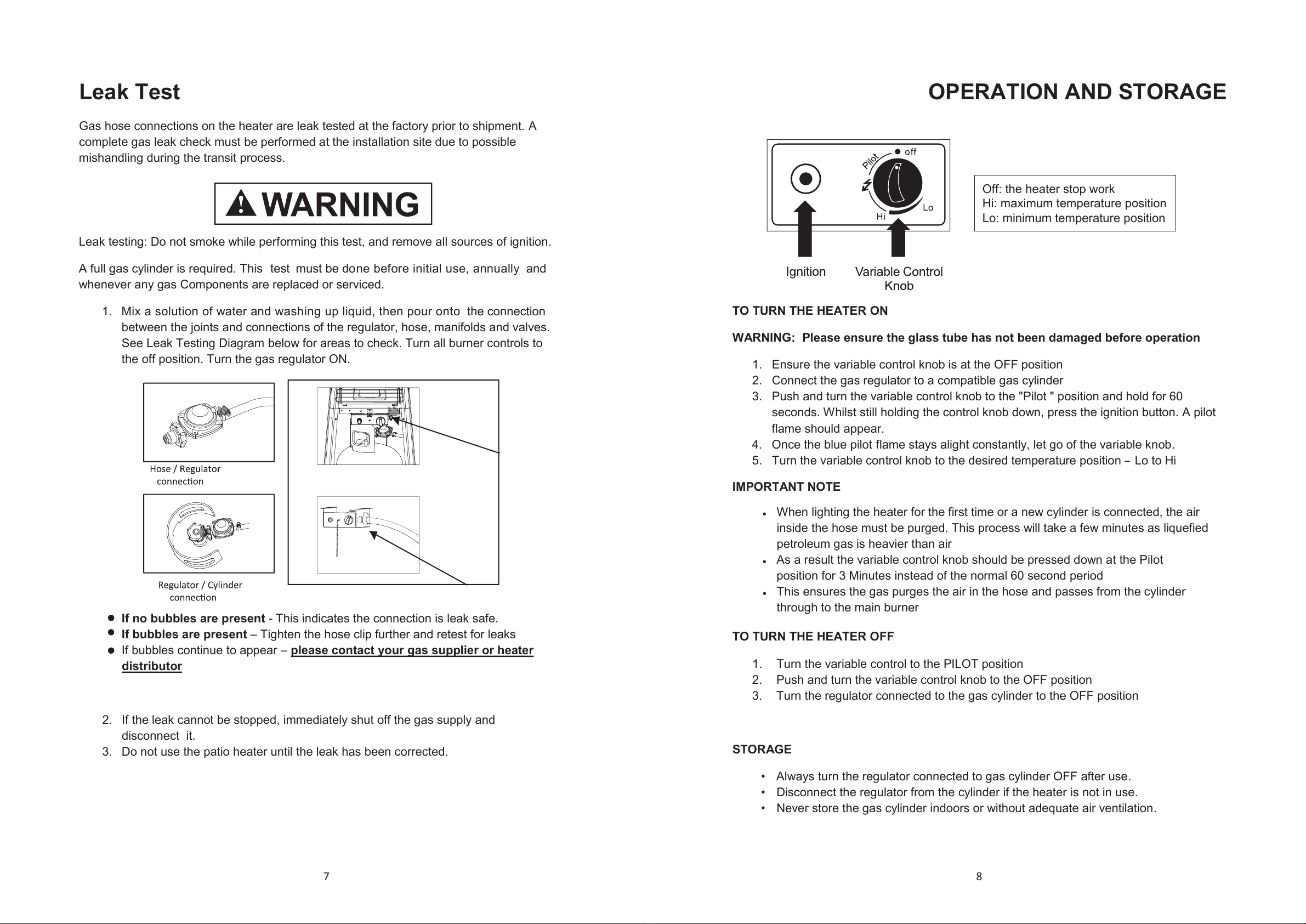

OPERATION AND STORAGE
TO TURN THE HEATER ON
WARNING: Please ensure the glass tube has not been damaged before operation
1. Ensure the variable control knob is at the OFF position
2. Connect the gas regulator to a compatible gas cylinder
3. Push and turn the variable control knob to the "Pilot " position and hold for 60
seconds. Whilst still holding the control knob down, press the ignition button. A pilot
flame should appear.
4. Once the blue pilot flame stays alight constantly, let go of the variable knob.
5. Turn the variable control knob to the desired temperature position – Lo to Hi
IMPORTANT NOTE
• When lighting the heater for the first time or a new cylinder is connected, the air
inside the hose must be purged. This process will take a few minutes as liquefied
petroleum gas is heavier than air
• As a result the variable control knob should be pressed down at the Pilot
position for 3 Minutes instead of the normal 60 second period
• This ensures the gas purges the air in the hose and passes from the cylinder
through to the main burner
TO TURN THE HEATER OFF
1. Turn the variable control to the PILOT position
2. Push and turn the variable control knob to the OFF position
3. Turn the regulator connected to the gas cylinder to the OFF position
STORAGE
• Always turn the regulator connected to gas cylinder OFF after use.
• Disconnect the regulator from the cylinder if the heater is not in use.
• Never store the gas cylinder indoors or without adequate air ventilation.
Off: the heater stop work
Hi: maximum temperature position
Lo: minimum temperature position

109
CLEANING AND CARE
• Wipe off surfaces with soft, moist cloth. Do not clean the heater with cleaning
products that are combustible or corrosive.
• Remove debris and insects from the burner periodically to keep it clean and safe
for use.
• Cover the burner unit with the optional protective cover when the heater is not in
use.
PARTS AND SPECIFICATION
2270 mm
900 mm
650 mm
730 mm
Reflector
Glass Tube
Top Plate Assy
Protective Guard
Upper Support
Front Panel
Side Panel
Lower Support
Bottom plate
CONSTRUCTION AND CHARACTERISTICS
• Transportable terrace/garden heater with cylinder housing.
• Constructed with aluminium, powder coated and stainless steel
• Heat is emitted upwards through the glass tube and distributed via the top
reflector.
SPECIFICATIONS
• This heater is best used with propane gas
• Max. wattage: 13kw
• Min. wattage: 5kw
Gas Consumption
APPLIANCE CATEGORY: 3+(28-30/37) 3B/P(30) 3B/P(50) 3B/P(37)
TYPES OF GAS: Butane Propane Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
GAS PRESSURE: 28-30mbar 37 mbar 30 mbar 50mbar 37mbar
OUTLET PRESSURE
OF REGULATOR:
30mbar
37 mbar
30 mbar
50mbar
37mbar
Use the correct regulator according to outlet pressure of regulator as showed in the table above.
Injector Information
APPLIANCE CATEGORY: 3+(28-30/37) 3B/P(30) 3B/P(50) II
IIII
II 3B/P(37)
TYPES OF GAS: Butane Propane Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
GAS PRESSURE: 28-30mbar 37 mbar 30 mbar 50mbar 37mbar
TOTAL HEAT
INPUT (Hs): (Qn)
13kW (945g/h)
INJECTOR SIZE: 1.88 mm for main burner
0.18 mm for pilot burner
1.55 mm for main burner
0.18 mm for pilot burner
1.65 mm for main burner
0.18 mm for pilot burner
The marking， for example， 1.88 on the injector，indicates that the size of injector is 1.88mm
•
•
The hose and regulator assembly must conform to adequate standards.
Regulator outlet pressure should meet the corresponding appliance category in
the Specification section above. The appliance requires approved hose with a
minimum length of 0.5 m.

1211

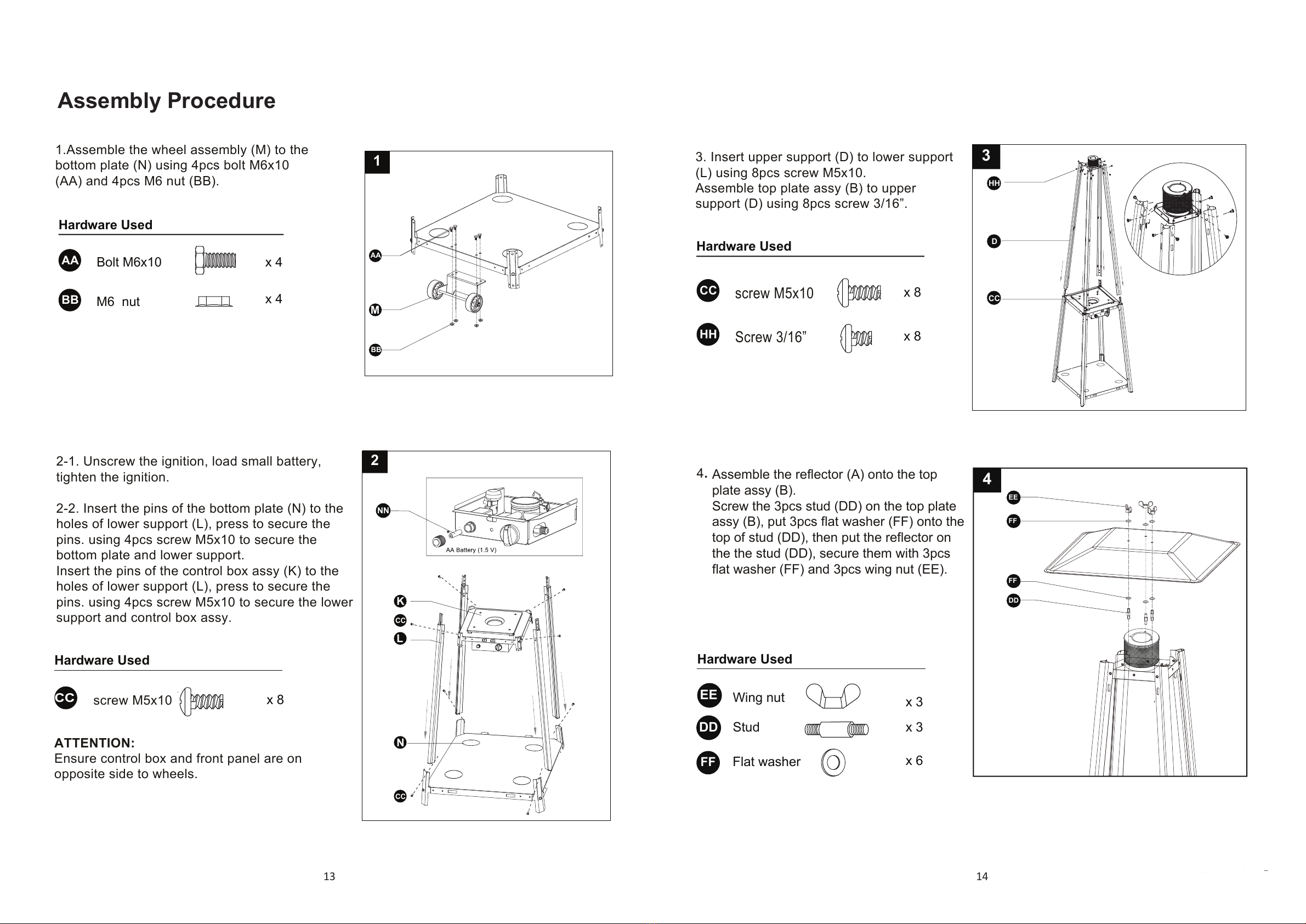

ASSEMBLY PARTS
Tools needed:
• Philips screwdriver w/ medium blade
• Spray bottle of soap solution for leakage test
Parts List:
NOITPIRCSED TRAP QUANTITY
1
Reflector
Glass Tube
Protective Guard
1
1
1
N
1
1
L
M
4
NOITPIRCSED TRAP QUANTITY
A 1
B 1
C
D
E
1
F
G
4
H
I
J
K
4
1
3
A
B
C
Top Plate Assy
Upper Support
Black Silicone Ring
D
E
Side Panel
F
G
Front Panel
H
Lower Support L
Control Box Assy K
Middle Plate J
Gas Hose & Regulator
I
Wheel Assembly
Bottom Plate
M
N
Reflector
Top Plate Assy
Glass Tube
Upper Support
Protective Guard
Black Silicone Ring
Side Panel
Front Panel
Gas Hose & Regulator
Middle Plate
Control Box Assy
Lower Support
Wheel Assembly
Bottom Plate
Hardware Contents
Screw 3/16”
Qty. 30
Philips
screwdriver
Qty. 1
LL
Screw
M4 X 8
Qty.1
AA BB
Bolt M6x10
Qty. 4
Qty.4
DD EE
Stud
Qty. 3
CC
M6 nut
Qty.4 Qty. 16
Wing nut
Qty. 3
MM
Wrench
Qty. 1
FF
GG II
Screw M5x10
Fixing Bracket
HH
Flat washer
Qty. 6
Knob
Qty. 1
KK
JJ
Large flat washer
Qty.1
NN
AA Battery (1.5 V)
Qty.1

Hardware Used
AA
BB
1
x 4
x 4
M
AA
BB
Bolt M6x10
M6 nut
1413
Assembly Procedure
2
Hardware Used
CC x 8
screw M5x10
HH x 8
Screw 3/16”
3
HH
CC
D
1.Assemble the wheel assembly (M) to the
bottom plate (N) using 4pcs bolt M6x10
(AA) and 4pcs M6 nut (BB).
Hardware Used
CC
x 8
screw M5x10
2-1. Unscrew the ignition, load small battery,
tighten the ignition.
2-2. Insert the pins of the bottom plate (N) to the
holes of lower support (L), press to secure the
pins. using 4pcs screw M5x10 to secure the
bottom plate and lower support.
Insert the pins of the control box assy (K) to the
holes of lower support (L), press to secure the
pins. using 4pcs screw M5x10 to secure the lower
support and control box assy.
3. Insert upper support (D) to lower support
(L) using 8pcs screw M5x10.
Assemble top plate assy (B) to upper
support (D) using 8pcs screw 3/16”.
L
K
CC
CC
N
Hardware Used
4
4.Assemble the reflector (A) onto the top
plate assy (B).
Screw the 3pcs stud (DD) on the top plate
assy (B), put 3pcs flat washer (FF) onto the
top of stud (DD), then put the reflector on
the the stud (DD), secure them with 3pcs
flat washer (FF) and 3pcs wing nut (EE).
EE
FF
FF
DD
x 3
x 3
x 6
EE Wing nut
Stud
DD
FF Flat washer
ATTENTION:
Ensure control box and front panel are on
opposite side to wheels.
NN

1615
6.Assembly the protective guard (E).
Hang the hooks of the protective guard
(E) onto the holes in supports
Secure the protective guards (E) with fixing
brackets (GG) with 4pcs screw Screw 3/16”
(HH).
Hardware Used
6
E
HH
GG
GG Fixing
Bracket x 4
7
8
HH
Hardware Used
HH x 18
Screw 3/16”
II
JJ
KK
H
8.Install the knob (II) to screw M4x8 (KK)
and large flat washer (JJ).
Put the pothook of front panel (H) to the
holes of bottom plate (N).
Hardware Used
x 1
II
Knob
KK
x 1
x 1
Screw M4 X 8
HH x 4
Screw 3/16”
JJ Large flat washer
7. Assemble three side panels (G) to heater
using 18pcs screw 3/16”.
Attention:
Do not cover the front side where the control
knob is.
5
5. Carefully install the glass tube (C) by
lifting up and inserting through the center
hole in the top plate assy (B). Ensure the
black silicone ring (F) is attached to the
lower edge of the glass tube (C) as illustrated.
Slide the glass tube (C) through the hole
of the lower plate cover and onto the middle
plate (J). Check and ensure that the glass
tube (C) is positioned properly and is
completely covering the center hole of
the middle plate(J).
To aid in installation
place black silicone
ring on the middle
plate and then
install glass tube.
Ensure the rim of
the glass tube sits
firmly in the black
silicone ring.
WARNING! The black
silicone ring must be in place
prior to operating the heater. BLACK SILICONE
RING
ATTENTION: Please unscrew Igniton to put in battery.

17
LEAK TEST
Please ensure you follow the procedure on page 7 before operating the heater.
TROUBLESHOOTING
Problem
Probable Cause
Suggested Solution
Pilot will not light
Gas regulator may be
OFF
Turn the regulator ON
Gas cylinder empty
Replace with full cylinder
Opening blocked
Clean or replace opening
Air in supply system
Purge air from lines
Loose connections
Check all fittings
Pilot will not stay
on
Debris around pilot
Clean dirty area
Loose connections
Tighten connections
Thermocouple faulty
Replace thermocouple
Anti tilt switch loose/faulty
Reconnect/replace anti tilt switch
Gas leak in line
Check connections
Lack of fuel pressure
Tank near empty. Refill LPG tank.
Burner will not
light
Pressure is low
Cylinder is almost empty. Replace
with full cylinder
Opening blocked
Remove and clean
Control not ON
Turn valve to ON
Thermocouple faulty
Replace thermocouple
Pilot light assembly bent
Place pilot properly
Not in correct location
Position properly and retry
If you have any other issues, please contact your supplier or distributor. Please do not
attempt to modify the heater in any way or form.
18
9
10
9
10
