JNF IN.28.690 User manual

FECHO ELETROMAGNÉTICO /
ELETROMAGNETIC LOCK /
IN.28.690 / IN.28.691
1/4Manual de instalação / Installation Manual - MI143-0 www.jnf.pt
Porta / Door
Especificações - Tipos de porta onde poderá ser aplicado /
Specifications - Types of door will be applied
2/4www.jnf.pt
Manual de instalação / Installation Manual - MI143-0
Porta com abertura para fora / Out-swing door
Fonte de Energia / Power Supply 12VDC/24VDC
Corrente / Current 500mA@12V , 250mA@24V
Força de retenção / Holding force
Adjust jumper for voltage selection
Ajustar jumper para a voltagem /
500 Kg.
1000 Kg. (Duplo / Double)
C E testado / tested
EN 50081-1/1992
EN 55014
EN 50082-1/1997
EN 55014-2
A. B. C.
Íman / Magnet
Parafuso de
montagem /
Mounting Screw
Suporte em L /
L Bracket
Moldura da Porta /
Door Frame

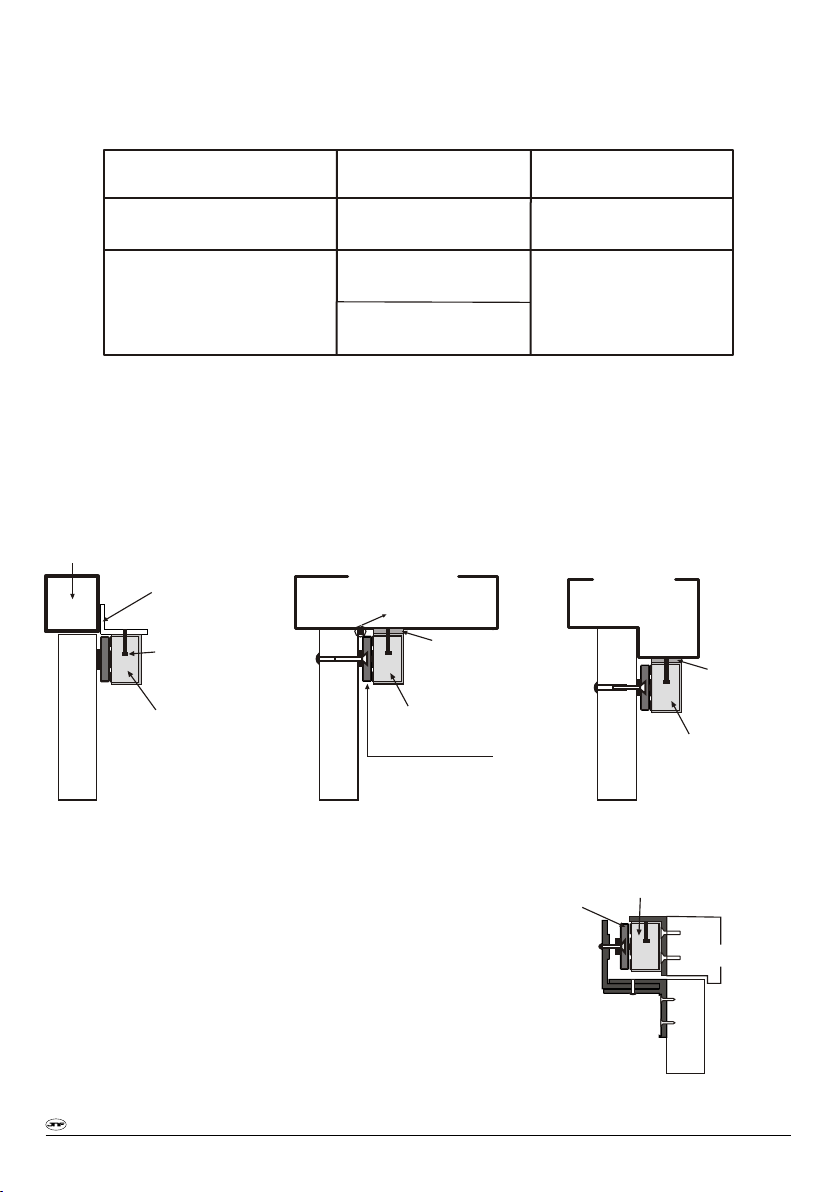

Instalação com Suporte em L /
Installed with L bracket
(IN.28.694)
Instalação com Placa de
Montagem /
Installed with Mounting Plate
Íman / Magnet
Placa de
montagem /
Mounting plate
Moldura da Porta /
Door Frame
_____ / Blade Stop
Moldura da Porta /
Door Frame
Armadura / Armature
Instalação Standard /
Standard mounting
Placa de
montagem /
Mounting plate
Íman / Magnet
Porta / Door
Porta / Door
Porta / Door
Íman / Magnet
Armadura / Armature
Moldura da Porta /
Door Frame
Porta com abertura para dentro / In-swing door
Instalação com Suportes em Z / Installed with Z bracket
(IN.28.693)
3/4www.jnf.ptManual de instalação / Installation Manual - MI143-0
NOTA / NOTE:
1. Se a porta ou a sua moldura forem de magnéticas será necessário cobrir a área com borracha para evitar
perdas de força;
2. Fixar a placa de montagem e ajustar o cabo para garantir que a tensão e a alimentação sejam corretamente
aplicadas.
IMPORTANTE
É necessário verificar as definições do jumper antes de ligar o fecho à energia. O fecho pode fica danificado por
uma definição incorreta e tal estrago não é coberto pela garantia.
1. If the door leaf or frame are made in magnetic material such as steel, please put rubber or plastic seam under the
armature to avoid the losses of force;
2. Fixing the mouting plate and setting the cable to ensure the correct voltage and power are applied.
IMPORTANT
Check jumper setting before connecting the lock to input power. Damage of the lock may be caused from incorrect
jumper setting and this damage is not covered by the product warranty.
+ Ve
- Ve2
1
N.C
COM.2
1
3
4
5
6
N.O
P.S
+ Ve
- Ve
Power Input
Power Input
12VDC
24VDC
Output
Accessories
Seleção da voltagem do jumper / Voltage selection jumper
Comércio e Indústria de Ferragens, S.A.
Rua das Mimosas, 849/851
jnf@jnf.pt | www.jnf.pt
4/4www.jnf.pt
J. Neves & Filhos
Zona Industrial das Mimosas
S. Pedro da Cova | Ap. 75
4424-909 Gondomar PORTUGAL
Manual de instalação / Installation Manual - MI143-0
Se necessário usar cola antes de apertar /
If necessary use a thread lock glue before tightening

This manual suits for next models
