Step 3

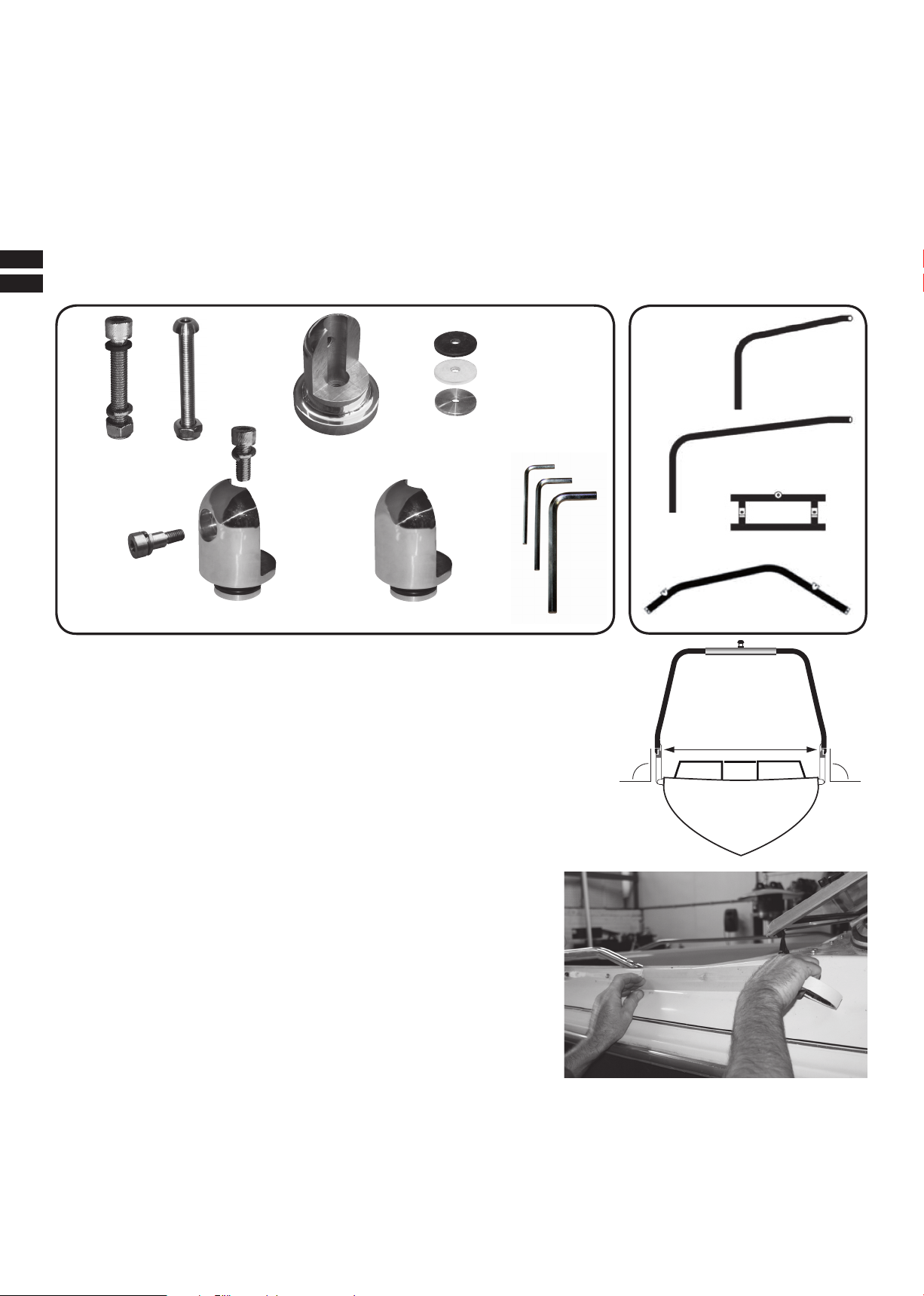

Use the semi-assembled side-rail to determine the correct position on the boat. Bear in mind the height in
the boat, the windscreen window, adittional tower accessories, wiring etc etc… When you have determined
the correct position mark the position on the masking tape using the mounting brackets.
!Make sure the mounting feet are mounted completely level (on a at spot)!
TIP : start +/- 20cm in front of the windscreen to determine the correct position.
This for possible mirror mount on the tower.
Step 4
After marking one side you can mark the other side using the mounting brac-
kets. Make sure to mark the mounting brackets on the direct oposite of the
boat using xed ponts of reference on the boat.
Step 5
Keep in mind you are going to be placing backing plates and need access to t a wrench to tighten the
nut on the mounting feet bolts on the inside of your boat. Before drilling inspect the inside of these
locations for obstructions such as wires or cables. You are now ready to drill the holes. When drilling in
breglass rst use a pilot bit size 6 than a drill bit size 12. After drilling the 4 holes, it is recommended
to countersink the holes using the countersink bit, this prevents the gelcoat from cracking.
Step 6
IMPORTANT: When the BOAT DECK is less than 9mm thick we strongly advise to reinforce the mounting
bracket with wood or breglass cloth which is at least 1cm thick. The reinforcement should be as big
as possible. This prevents stress on the boat which causes the gelcoat to crack. WARRANTY DOES NOT
COVER: Any cracks or other damage to the gelcoat or boat because of mounting the tower. Snug the bolt
but do not fully tighten at this point.

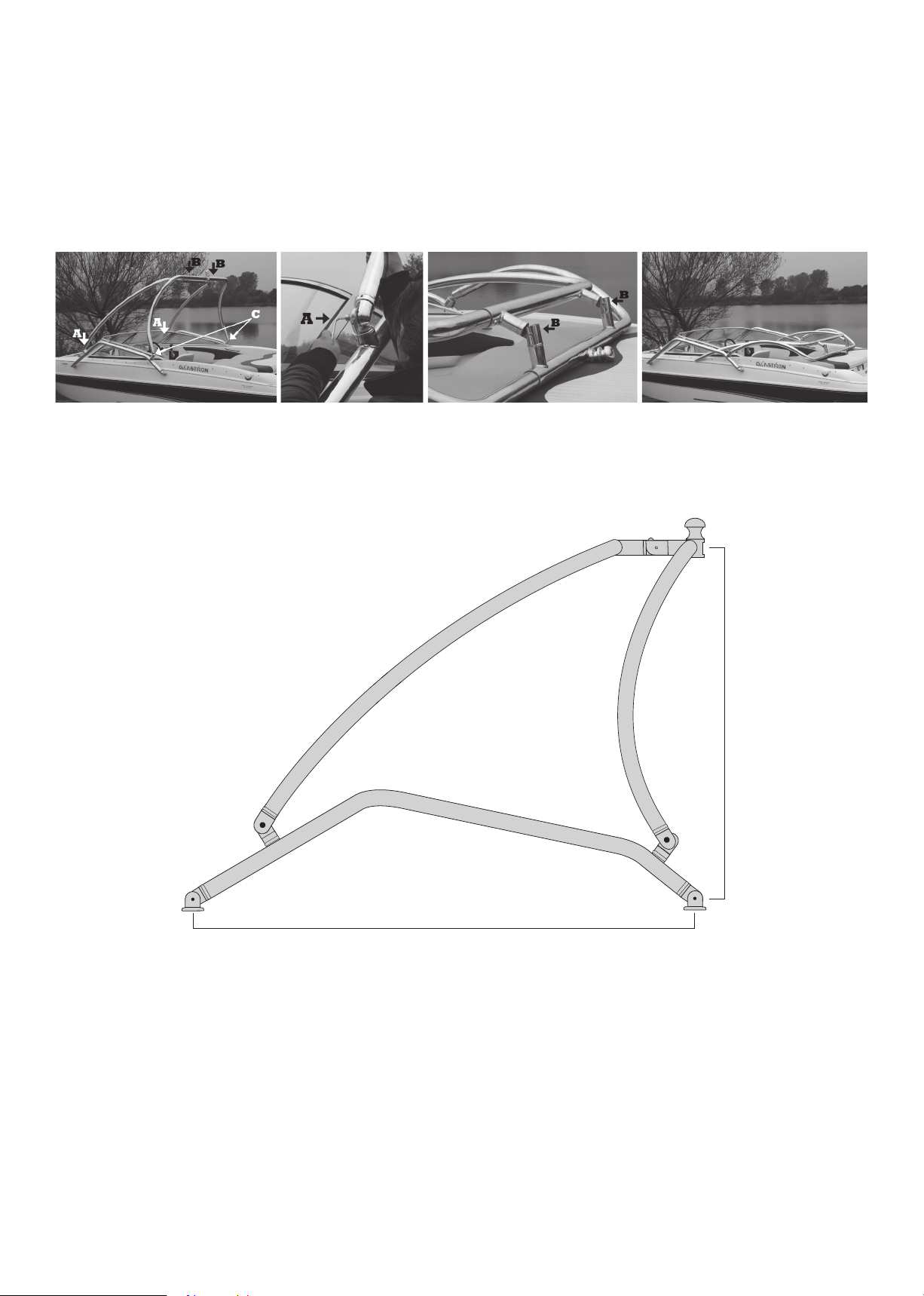

Step 7
Install the bottom bars with the MOUNT SET. All feet are swivel and can work with various mounting
angles. Be sure to mount the bottom bar vertical. When you fail to mount the bottom bar vertically, you
will not be able to fold the tower. Snug the bolt but do not fully tighten at this point. Remove the Bottom
bars and Tighten the 4 Mounting Brackets. Reinstall the bottom bar on the Mounting Brackets and tighten
the bolts.
Step 8
Assemble one front bar on the Mounting Bracket. Snug the bolt but do not fully tighten at this point.
Slide the taped bar into the Top Cross bar. Beware for scratches. Keep in mind that the towpoint need to
be facing towards the back of the boat. Slide the second front bar into the Top Cross bar and attach the
front bar on the other mounting bracket. As one person holds the tower assembly you can now assemble
the rear bars.
NOTE: When you have a narrow boat you probably need to shorten the Top Cross Bar to make the tower t to your boat.
You are now ready to square up and center the loose assembly. Have someone stand in front of the boat and determine that the towpoint is centered and the
tower arms are symmetrical. Make nessesary adjustments.
Step 9
Drill through the predrilled holes in the center section from each side with size 10 drill bit and install bolts and cap nuts.
One person will still be stabilizing the tower through this step. Tighten all hardware for completion of tower installation.
Rubber gasket
BOAT DECK
Backing Plate
Reinforcement
Nylon plate
