JOCCA 1503 User manual

(EN) Instructions manual
(FR) Manuel d’instructions
Ref: 1503

DESCRIPTION
Figure.1

EN
4
VERTICAL STEAM IRON STATION
PURCHASE ACKNOWLEDGEMENT
Thank you for your purchase we are confident that you will be
satisfied with this item.
[email protected]
PRODUCT DESCRIPTION
1. Hanger hook
2. Connecting rod
3. Clothes-hanger
4. Clips
5. Telescopic pole
6. Iron holder
7. Iron
8. Steam button
9. Temperature adjust knob
10. Hose
11. Hand screw
12. Safety cap
13. Unit body
14. Drain plug
15. Ironing board
16. Support pole
17. Power switch
18. Power cord
19. Supporting foot
20. Fabric brush
21. Funnel
22. Measure Cup
SAFETY WARNINGS
-These instructions are very important. Please read
this instruction manual carefully before using the
appliance and keep it at hand to refer to it at any
time.

EN
5
-JOCCA declines any responsibility for the
improper use of the product, or any other use that
is not described in this manual.
-Before using the product for the first time,
unpack the product and check that it is in perfect
conditions. If not, do not use the appliance and
contact JOCCA, as the guarantee covers any
damage from origin or manufacturing defects.
-This product is only indicated for domestic use.
Do not use the appliance outdoors. Never leave
the appliance exposed to climatic agents such
as rain, snow, sun, etc… -This appliance can be
used by children of 8 and above, and people with
reduced physical, sensory or mental capabilities
or lack of experience or knowledge if they are
supervised or instructed in an appropriate and
safe way about the use of the appliance and
understand the hazards involved. Any cleaning
and maintenance must be carried out by the user
or if they are carried out by a child of 8 or above
they must be supervised.
-Keep the appliance and its cable out of the reach
of children under 8 years old.
-Children should be supervised to ensure they do
not play with the device.
-If you need to put down the appliance during use,
this should always be done with the appliance
switched off and on a stable, smooth, horizontal
and fireproof surface, as it can become very hot.

EN
6
-Before connecting the appliance to the mains,
check that the cable and plug are in perfect
conditions. Also check that the voltage indicated
on the appliance is valid for your electrical
installation.
-Before connecting the appliance to the mains,
check that the cable and plug are in perfect
conditions. Also check that the voltage indicated
on the appliance is valid for your electrical
installation.
-If you detect that the power supply cable or the
plug are damaged, do not use the appliance or
try to replace the cable yourself. Go directly to the
authorised JOCCA technical service where they
will replace it correctly for you.
-Do not let the power supply cable touch or come
near the hot parts of the appliance.
-Do not immerse the appliance or any part of it in
water or any other liquid.
-Do not pull the cable to unplug the appliance
from the mains, always pull from the plug.
-If your appliance has been dropped or fallen into
water or any other liquid do not use it or try to
repair it. Take it to the JOCCA technical service.
-Do not move the appliance when it is in use, or
touch the hot parts of the appliance, as this may
cause damage and burns.
-Never leave the appliance cable hanging or in
contact with hot parts.

EN
7
-For your safety and for the appliance to work
correctly, always use JOCCA spare parts and
accessories.
-Use the appliance on a flat, smooth and horizontal
surface that can support high temperatures.
CAUTION: Always use a mat to prevent heat may
damage any delicate surface.
-Do not leave the appliance on top of or near a
hot electrical or gas burner.
-Leave sufficient space above and around the
appliance for the air to circulate correctly.
-Do not let the appliance come into contact
with curtains, wallpaper, dishcloths or other
inflammable materials when it is in use.
-Completely unroll the power cable to avoid
overheating.
INSTRUCTIONS FOR USE
-Before using the appliance for the first time,
remove all packaging.
-When you use the appliance for the first time,
it may produce some fumes and smells that will
quickly stop. Regarding the steam function, do
not try it on clothing the first time you use it,
as there may be some dirt on the inside of the
steam chamber which would leave remains on the
garments.

EN
8
Assembly the product
1. Take the unit and all the other parts
out of the package, then check and
be sure all the parts are available
reference the Figure 1 show.
2. Fully extend the telescopic pole by
open the clips and loosen the poles,
then fully extend the pole, at last close
the clips on the pole and to lock the
poles. As (figure 2) shows. Make sure
that the pole is securely locked into
place and cannot be pushed down.
NOTE: The Telescopic Pole must
be fully extending during steamer
operation to insure enough height for
steam clothes.
3. Insert the bottom of the telescopic
poles into the pole base (see Figure 3),
and make sure the pole not move.
4. Fix the Iron holder on the telescopic
pole (see Figure 4), and attach the
steam nozzle on its holder like the
figure 5 shows.
Caution: Do not upside down the
nozzle like the (figure 6) show, it is very
dangerous due to the Nozzle easy fall
off.
5. Attach the connecting rod to the
poles as Figure 7 shows. To attach the
Fig.3
Fig.2
Fig.4

EN
9
hanger attachment, align the hole of
hanger with pole top and push down,
(Figure 8).
6. Attached the clothes hanger to the
pole top hanger, you should align the
clothes hanger hole with pole hanger
tab and push down let it hold in place,
like figure 9 shows.
7. Refer to ironing board installation
instruction for how to install the ironing
board.
8. Take out the ironing board, and align
the ironing board to the fixing holes of
two side’s poles, screw the M8 screws
by hand. (see figure 10)
9. Fit the two supported poles onto the
hook of the extension poles. (see figure
11)
10. Put sponge on the ironing board, and cover
with the cloth.
Fig.5
Fig.6
Fig.7 Fig.8 Fig.9

EN
10

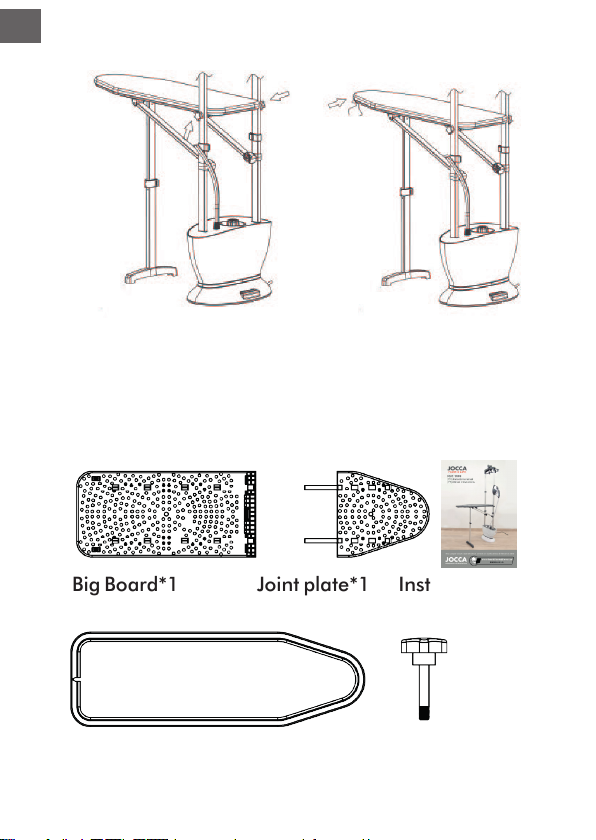

Ironing board Installation Instructions
All parts for ironing board are as followings:
Big Board*1 Joint plate*1 Instructions*1
Cloth Cover *1 M8Screw*2
Fig.10 Fig.11

EN
11
Insert the joint plate to the hole of the big board
as picture 1 shows.
Note: let the plate feet aiming at the holes of the
big board, which will be easier to install.
Pull the stand foot of the ironing board to 90
degree, and fixed; Loosen clip and extend the
pole, then lock the clip. Refer to picture 2.
Fix the ironing board to the telescopic poles, aim
at the holes and screw the M8 screws by hand as
picture 3 shows.
Put the two supported poles of the ironing board
onto the extension poles like picture 4 shows.
Picture1 Picture2 Picture3 Picture4
USE
Filling with water, unscrew the safety cap from
unit, reference to figure 12 filling water into boiler.
Caution: Only filling water, no any other cleaning
detergent allowed.
NOTE: To prolong the lifetime of your steamer,
we recommend using distilled or de-mineralized
water.

EN
12
Screw back the safety cap like the figure 13
shows, be sure the cap screw tighten with boiler,
otherwise there is steam leakage from there.
Plug the unit into a properly grounded three-
pronged outlet. Make sure the electric voltage is
same as the unit spec required.
Press the On/Off Switch to “On.” the switch is
illuminated, pre-heating 3 minutes, the steam will
be ready. (see figure 14).

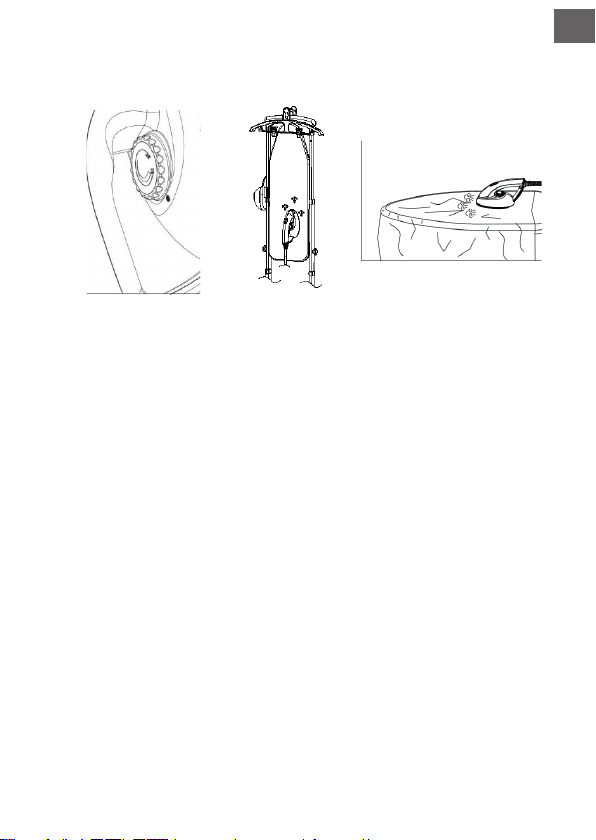

Picture12 Picture13 Picture14
CAUTION: Close the power switch or pull the
plug in time if there is no steam out. Dry
boiler will affect the service life or damage it.
Using Vertical ironing
Place garment on clothes hanger, and place the
hanger on Hanger Hook, fold the ironing board,
and start ironing garment.
CAUTION: Before ironing, please set
temperature to max once steam is ready, if
the steam is not ready, while you ironing the

EN
13
iron may spray water.
Picture15 Picture16 Picture17
Temperature setting: Dial the knob as the clothes
material required to align with the black dot.
Clockwise direction is rising the temperature,
counterclockwise direction is lower the
temperature.
Try iron: After sets temperature, it’s better to try
on clothes, to check if the temperature is too high
or not. If the temperature is too high that will burn
the clothes.
CAUTION: Do not press steam button when
setting the temperature, otherwise the Hot
Steam may escape from the nozzle to burn.
Vertical ironing board could be used as a support
for ironing. Fold the ironing board, and lock it.
Hang your cloth on the cloth hanger, and then
press the steam button, the pressurized Steam will

EN
14
come out from the soleplate of Steam iron head,
slide the iron head from the bottom to the top
of the garment until remove all the wrinkles and
refresh the clothes as figure 16 shows.
Using Horizontal ironing
Lay down the ironing board, and adjust to a
proper height. Put your cloth on the ironing board,
and then press the steam button, the pressurized
Steam will come out from the soleplate of Steam
iron head, Slow slide the iron head, from the
bottom to the top of the garment until remove all
the wrinkles and refresh the clothes. As figure 17
shows.
WARNING! Never unscrew the fill cap during
use, only can unscrew it until all pressure has
been released.
Refilling the water tank
When the water used up, no steam will spray out
even pressing the Steam Button. Now the water
needs to be refilled if you still want to use the
garment steamer.
To refill the water, please do as following:
a)Unplug from the electrical outlet.
b)Unscrew the Safety Cap slowly. Before
unscrewing it completely, wait for the hissing
noise created by residual steam to stop.

EN
15
c)Unscrew the Safety Cap completely and use the
measuring cup and funnel to fill water into the
boiler, Be carefully not to let the water leak out.
d)Screw the Safety Cap back on.
e)Plug in the electrical outlet and continue to use
it.
When finish using the product:
Turn the On/Off Switch to “Off”.
Unplug the Power Cord.
Make the unit cool for 40 minutes.
Remove the clothes hanger and hanger hook
from pole, and remove the ironing board and the
telescopic pole.
Tilt the unit or invert it, unscrew the bottom drain
plug to drain away the remaining water. As figure
18 shows. It’s better to loosen the safety cap
before unscrew drain device, which is easy way to
drain water fully clean. Screw the safety cap and
the drain plug before storage.
CAUTION: DON’T SCREW THE SAFETY CAP
WHEN BOILER IS HOT, THERE IS HOT STEAM
AND HOT WATER REMAINS IN BOILER, WILL
BURNS WITH HOT STEAM.

EN
16
Figure 18
CLEANING AND STORAGE
We recommend you follow this procedure at least once a
month. Use of distilled or de-mineralized water reduces
cleaning and prolongs the life of your pressurized steamer.
Turn the Lighted On/Off Switch to “Off”.
Unplug the unit from the power outlet.
Wait for the unit to cool completely (at least 40 minutes).
Remove the Telescopic Pole and others from the unit, and put
them aside.
Mix a solution of 50% vinegar and 50% water. In most cases,
1000ml of this solution will be sufficient,
Unscrew the safety cap, and filling the water-vinegar solution
1000ml to the boiler wait for 30 minutes. Then Carry the unit
to a sink or tub.
Unscrew the bottom drain plug and drain out remaining water
in the boiler, and then Rinse the boiler with fresh water. Tilt or
upside downs the unit to remove of the water.
Flush the boiler with fresh water until no vinegar smell.
Re-screw safety cap and drain plug, Reattach the Telescopic
Pole and hook hanger and nozzle. Wipe the outside of the
appliance with a wet cloth
If the unit surface is dirty, we recommend to use a dry cotton
cloth or with some 30% alcohol solution to cleaning.
TO PROLONG SERVIE LIFE OF THE STEAMER, WE SUGGEST
YOU TO CLEAN THE UNIT FREQUENTLY.

EN
17
Problem Solving Guide:
PROBLEM CAUSE SOLUTION
The unit fails to
steam. The light on
the On/Off Switch
does not illuminate.
Steamer is not
plugged in.
Plug into electrical
outlet.
Household Circuit
Breaker/Ground
Fault Interrupter is
tripped or
Fuse is blown.
Reset the Circuit
Breaker/Ground
Fault Interrupter, or
replace the fuse.
If you need
assistance, contact a
qualified electrician.
The unit fails to
steam. The light on
the On/Off Switch
does illuminate.
Mineral buildup in
the unit.
Follow the cleaning
ways Procedure in
this manual.
The Water Tank is
empty.
Refill the Water
Fill Tank using the
procedures in this
manual.
Water drips from
nozzle
Temperature setting
is too low.
Follow the
temperature setting
procedure in this
manual re-setting
the temperature.
Burn the clothes
Temperature setting
is too high.
Follow the
temperature setting
procedure in this
manual re-setting
the temperature.
TECHNICAL DATA
220-240V 50/60Hz 2400W
This device conforms to the safety requirements and provisions
of directives 2014/35/EU on Low tension devices and
2014/30/EU on Electromagnetic Compatibility.

EN
18
PRODUCT RECYCLING - ENVIROMENT
Packaging
The materials used in the package of thi item are
included in a system of waste collection, sorting and
recycling.
If you wish to dispose of these materials, you should use
rubbish bins or other means of waste collection that are
appropriate for each type of material.
Electrical and Electronic Product
This symbol means that if you wish to dispose of this
product at the end of its life, you must take it to a
waste collection company authorized for the selective
collection of Waste Electronic and Electrical Equipment
(WEEE). This product does not contain concentrations
of materials considered harmful to the environment.

19
FR
CENTRE DE REPASSAGE VERTICAL
REMERCIEMENT D’ACHAT
JOCCA vous remercie pour la confiance que vous accordez à
nos produits. Nous sommes sûrs que vous en serez pleinement
atisfait.
[email protected]
DESCRIPTION DU PRODUIT
1. Crochet de suspension
2. Bielle
3. Cintre
4. Clips
5. Barres verticales
6. Support de fer
7. Fer
8. Bouton vapeur
9. Bouton de réglage de la température
10. Tuyau
11. Vis à main
12. Bouchon de sécurité
13. Corps de l’unité
14. Bouchon de vidange
15. Table à repasser
16. Poste d’appui
17. Interrupteur d’alimentation
18. Cordon d’alimentation
19. Pied de soutien
20. Brosse en tissu
21. Entonnoir
22. Verre mesureur
CONSEILS DE SÉCURITÉ
-Ces instructions sont très importantes; lisez
attentivement cette notice d’emploi avant
d’utiliser l’appareil, puis conservez-la avec soin

20
FR afin de pouvoir la consulter ultérieurement.
- JOCCA dégage toute responsabilité concernant
l’utilisation incorrecte de ce produit ou toute autre
utilisation non prise en compte dans la présente
notice.
-Lors de la premiere utilisation, retirez l’emballage
et vérifiez son état. Si vous observez une
quelconque anomalie, n’utilisez pas l’appareil
et adressez-vous auprès de JOCCA; la garantie
couvre toutes les anomalies de fabrication et tout
autre défaut à l’origine.
- Ce produit a été conçu pour un usage domestique.
Ne l’utilisez pas à l’extérieur. N’exposez cet
appareil à aucun facteur climatique, tel que la
pluie, la neige, le soleil, etc.
-Cet appareil peut être utilisé par des enfants
à partir de 8 ans, par des personnes avec un
handicap physique, sensoriel ou mental mais
aussi par des personnes sans expérience ni
connaissance du produit, à partir du moment où
des instructions relatives au bon usage du produit
leur ont été données et qu’ils comprennent les
dangers liés à l’utilisation du produit. Les enfants
ne doivent pas jouer avec l’appareil. L’entretien et
le nettoyage requis par l’appareil doit être réalisé
par l’utilisateur et non par des enfants, à moins
qu’ils aient plus de 8 ans ou que cette tâche soit
faite sous la surveillance d’un adulte.
-Maintenez l’appareil hors de la portée des
