Joerns Healthcare Bari10A Troubleshooting guide

Joerns
Healthcare
User-Service Manual
Joerns®Model Bari10A
Bariatric Bed
leading bed evolution
To avoid injury, read user’s manual before using bed.

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
Important Precautions
Warning: Possible Injury Or Death. This product
is intended for use as an adjustable mattress
platform that articulates for resident/patient
comfort with adjustable height for resident/patient
and caregiver convenience. Use of this product
in a manner for which it was not designed could
result in unproven or unsafe conguration,
potentially resulting in injury or death.
Warning: Possible Injury. Before adjusting bed,
ensure that area under and near bed perimeter is
free of people and obstructions. Failure to do so
could result in injury.
Warning: Possible Injury. Keep bed in lowest
position except when providing care (bathing,
clothing changes, etc.). Bed should be at lowest
convenient height for entry or exit. Failure to do so
could result in injury.
Warning: Possible Injury Or Death. Floor locks
increase bed stability and resident/patient safety.
Floor and caster swivel locks must be locked prior
to any resident/patient transfer or resident/patient
use of the bed. Failure to do so could result in
injury or death.
Warning: Possible Injury Or Death. Residents/
patients may become entangled in pendant cord.
Patients with reduced mental acuity should not be
allowed access to pendant. Unsupervised use of
pendant could result in injury or death.
Warning: Possible Injury Or Death. Bed safe
working load is 1050 pounds. This is total weight
counting resident/patient, mattress, bedding and
any other equipment or persons likely to be on
bed. Do not exceed 1050-pound safe working
load. Exceeding the safe working load could result
in property damage, injury or death.
Warning: Possible Fire Hazard. Use nasal mask
or ½ bed tent oxygen administering equipment.
Oxygen tent should not extend below Mattress
Support Platform. Pendant should not be placed
in an oxygen-enriched environment such as an
oxygen tent. Use of electrical circuits in an oxygen-
enriched environment could result in a re hazard.
2
Warning: Possible Shock Hazard. Unplug
power cord from wall outlet before performing any
maintenance, cleaning, or service to the bed. Failure
to do so could result in injury or death. Note: In case
of unexpected movement, unplug bed from
any outlet.
Warning: Possible Shock Hazard. Injury may
result from improper routing of the power cord.
Always follow the proper factory-installed routing
conguration. Failure to do so could result in injury
or death.
Warning: Possible Injury Or Death. Use a
mattress that is properly sized to t Mattress Support
Platform, which will remain centered on Mattress
Support Platform relative to State and Federal
guidelines. Length and width should match Mattress
Support Platform. Use of an improperly tted
mattress could result in injury or death.
Warning: Possible Injury Or Death. If a resident/
patient’s mental or physical condition could lead to
resident/patient entrapment, the Mattress Support
Platform should be left in the at position when
unattended. Failure to do so could result in injury or
death.
Warning: Possible Injury Or Death. Use a properly
sized mattress in order to minimize the gap between
the side of mattress and Side Rails/Assist Devices.
This gap must be small enough to prevent resident/
patient from getting his/her head or neck caught in
this location. Make sure that raising or lowering bed,
or articulating the sleep surface, does not create any
hazardous gaps. Excessive gaps may result in injury
or death.
Warning: Possible Injury Or Death. Do not use
any Side Rails/Assist Devices until you verify it is
locked in place. Failure to lock assist devices may
result in injury or death.
Warning: Possible Injury Or Death. Do not use
any replacement parts not manufactured, marketed,
or provided by Joerns Healthcare on any Joerns
bed. Use of unapproved replacement parts may
result in injury or death.

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
3
Warning: Possible Injury Or Death. If using
accessories not manufactured, marketed, or
provided by Joerns Healthcare for Joerns® beds,
consult with the manufacturer for compatibility and
limitations prior to use. Failure to do so may result in
injury or death.
Warning: Possible Shock Hazard. Bed power
cord has hospital-grade, 3-pronged grounded plug.
Grounding reliability can only be achieved when
equipment is connected to an equivalent receptacle
marked hospital-grade. If external grounding
conductor is in doubt, operate bed from backup
battery. Failure to do so could result in injury.
Warning: Possible Equipment Damage Or
Injury To Staff Members. Service and repair must
only be performed by qualied, authorized Joerns
Healthcare Technical Support personnel
(call 800-966-6662).
Warning: Explosion Hazard. Do not use in
the presence of ammable anesthetics, gas or
vapors. Failure to heed this warning could result in
equipment damage, injury or death.
Caution: Stay clear of underneath the bed when
adjusting or moving the bed.
Caution: Mattress Support Platform is not grounded,
nor does it have a potential equalization connection
point. To prevent injury to resident/patient connected
to intravascular or intercardial medical equipment,
alternate measure must be implemented to equalize
the potential between Mattress Support Platform and
medical equipment.
Warning: To reduce the risk of injury, ensure the
sleep surface is horizontal and in the lowest position
with the siderails fully raised and locked when
moving the bed with a resident/patient in it. For best
maneuverability performance, push the bed from the
head end.

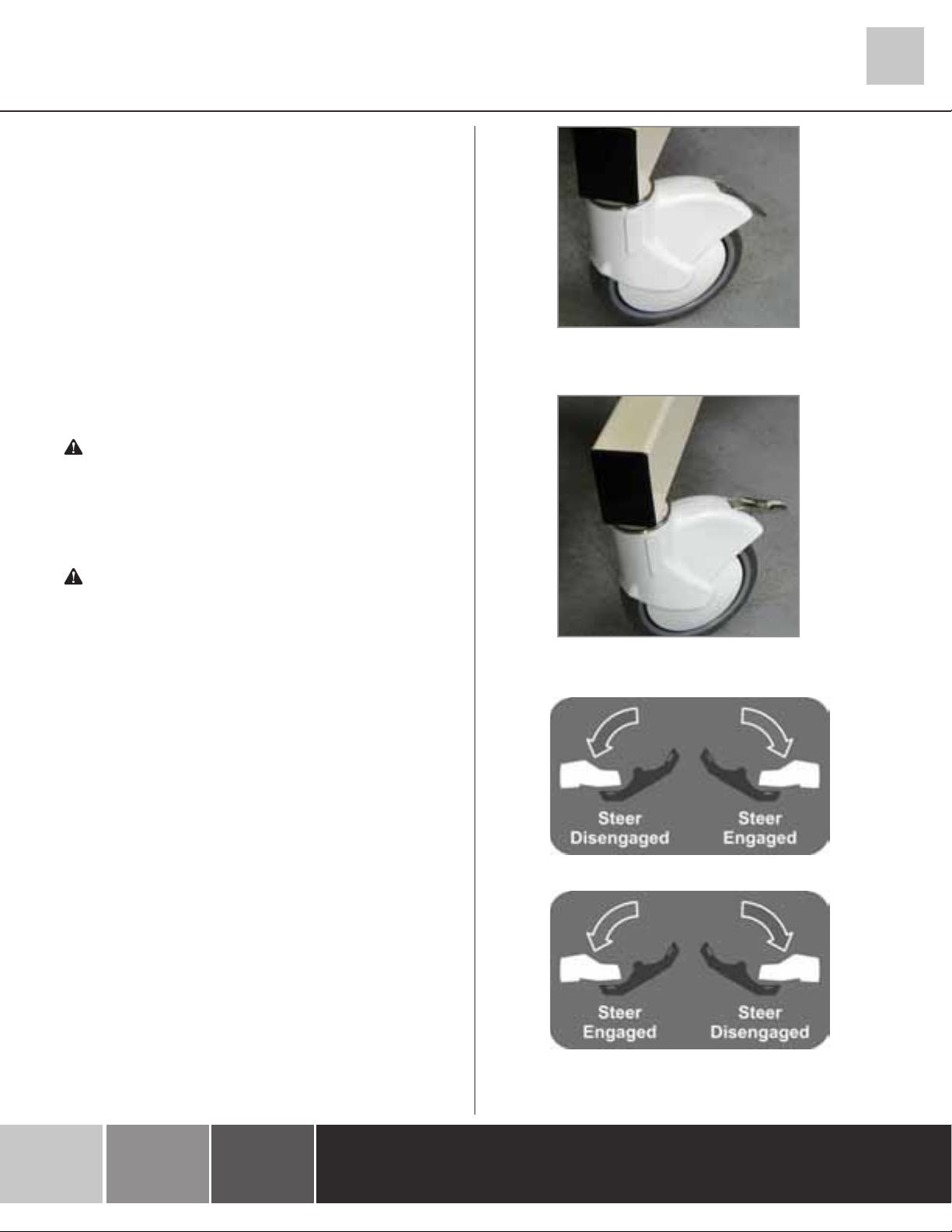

To avoid injury to the resident/patient and/or user, do
not attempt to move the bed laterally with the steer
mode engaged. The steer wheel can not swivel.
Caution: To avoid damage to the siderail
mechanisms, do not move the bed using the
siderails. Use the push/pull handles integrated to the
end panels to move the bed.
Caution: Before transporting bed, unplug bed
from power source, route Power Cord around Cord
storage hooks on bed frame below Head Panel
and hang Pendant Cord from Foot Panel. Failure
to do so could result in Power Cord, Pendant
Cord or bed damage, thereby creating a potential
hazard. Failure to do so could result in Power
cord, Pendant Cord or bed damage, thereby
creating a potential hazard.
Caution: Particular precaution must be considered
during exposure to strong emission source such
as High Frequency surgical equipment and
similar devices. Do not route High Frequency
cables on or near device. If in doubt, contact a
qualied technician.
When assessing the risk for entrapment, you need
to consider your bed, mattress, Head/Foot Panels,
Side Rails/Assist Device and other accessories,
as a system. It is also extremely important to
review the resident/patient’s physical and mental
condition and initiate an appropriate individual care
plan to address entrapment risk. All Joerns bed
systems are evaluated for compliance to the
FDA/CDRH “Hospital Bed System Dimensional
and Assessment Guidance to Reduce
Entrapment.” For more information, call Customer
Care, 800-826-0270.
Save These Instructions
Thank you and congratulations for choosing the
Joerns Bari10A bed. Joerns beds are developed
with safety, comfort and convenience of both
resident/patients and caregivers in mind.
Advanced ergonomic design will provide years of
reliable service in your facility.

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
4
Bed System Entrapment Information
In recent years, bedside rails have been a subject
of regulatory review and evolution in design
and use.
That focus includes not only the challenge of
achieving an appropriate balance between
resident security and unnecessary restraint, but
also the additional safety issue of entrapment.
The U.S. Food and Drug Administration (FDA),
working with our company and other industry
representatives has addressed the potential
danger of entrapment with new safety guidelines
for medical beds. These guidelines recommend
dimensional limits for critical gaps and spaces
between bed system components.
Entrapment zones involve the relationship of
components often directly assembled by the
healthcare facility rather than the manufacturer.
Therefore, compliance is the responsibility of
the facility.
As the leading manufacturer of long-term care
beds and a frontrunner in addressing this critical
issue, Joerns Healthcare can offer you the
expertise, assistance and products to bring your
facility into compliance.
Joerns®Compliance Solutions
Matching the right bed components in order to meet
regulatory guidelines can be complex.
That’s why Joerns offers a wide array of compliance
options. We assist customers in selecting compliant
accessories recommended for their specic
bed model.
For More Information
To learn more about compliance options with Joerns
products, visit our website at www.joerns.com, or
contact our Customer Care reps at 800-826-0270
and ask for free informational publications.
To learn more about entrapment zones, assessment
methods, and guidelines concerning entrapment,
contact Joerns Healthcare at 800-826-0270 or
consult the FDA website: www.fda.gov/cdrh/beds
Table of Contents
Important Precautions ...............................................................................................................2
Entrapment Information.............................................................................................................4
Features & Specications..........................................................................................................5
Assembly...................................................................................................................................6
Bed Operation ..........................................................................................................................7
Accessories .............................................................................................................................10
Scale System...........................................................................................................................12
Cleaning, Inspection & Maintenance.......................................................................................15

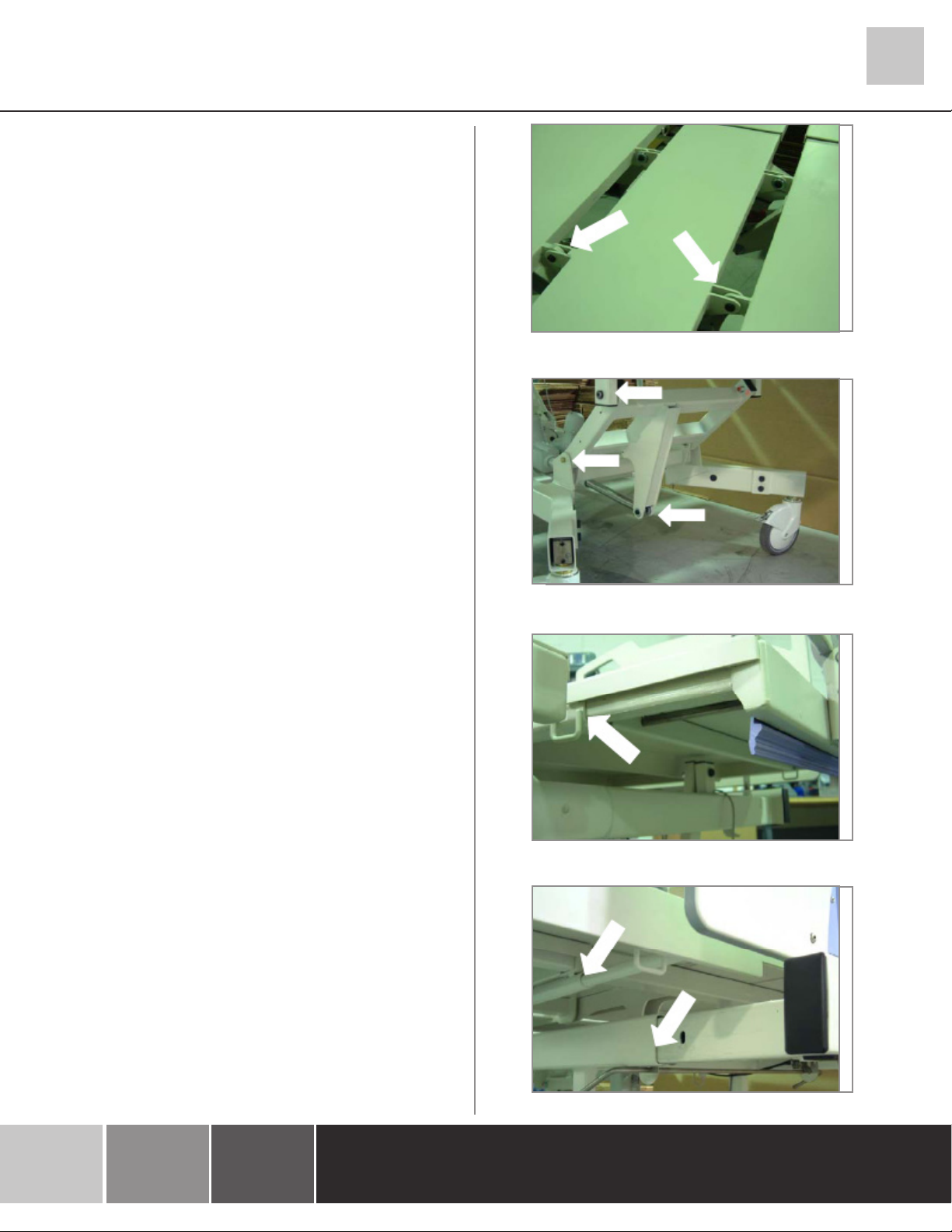

Lubrication Servicing ...............................................................................................................16
Troubleshooting.......................................................................................................................17

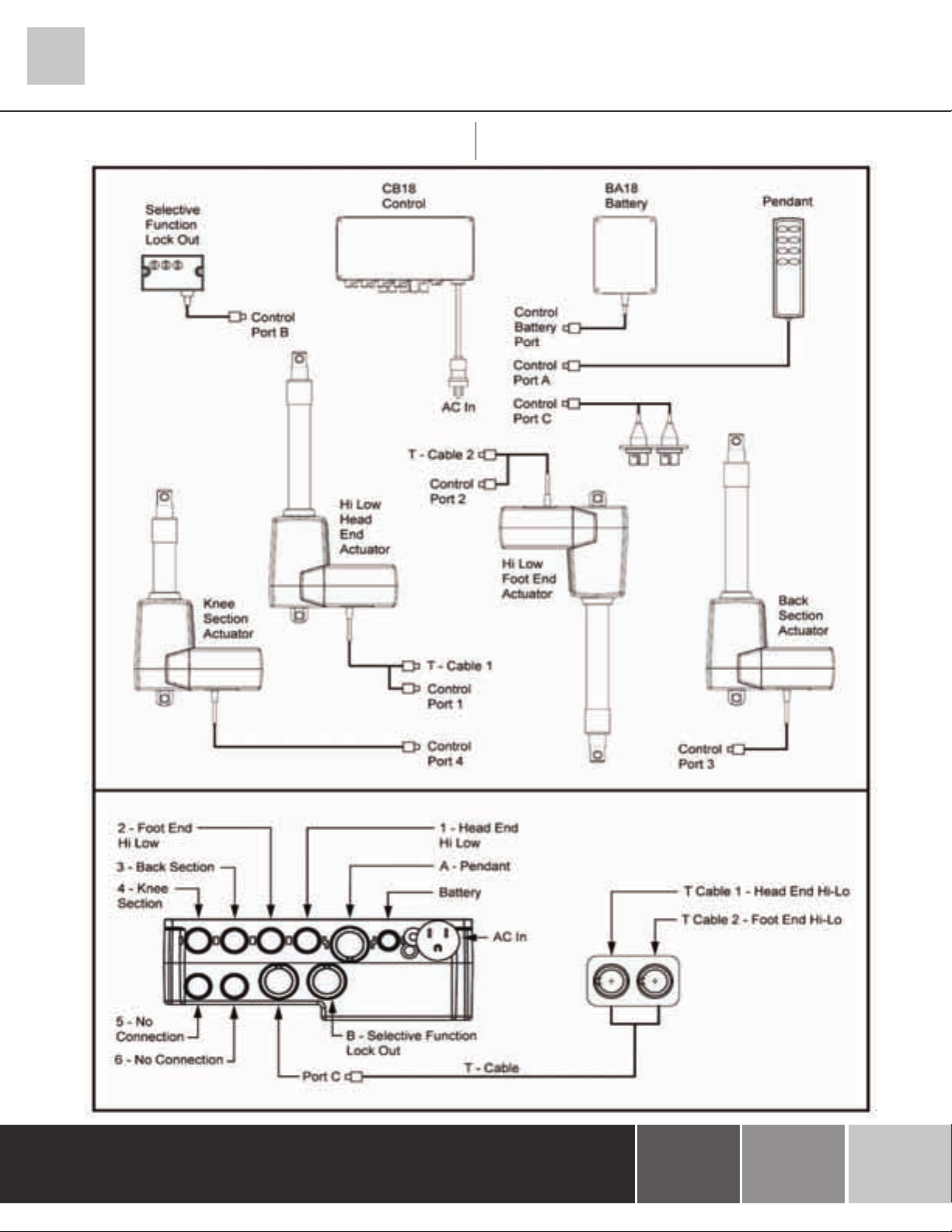

Appendix Diagrams .................................................................................................................19
Warranty ..................................................................................................................................21

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
Classications
UL 60601-1
CAN/CSA C22.2 NO.601.1
IEC 60601-2-38
CAN/CSA C22.2 NO 601.2.38
Environmental Conditions
Operating Conditions
Ambient Temperature: +20°C to +30°C
Relative Humidity: 10% to 95% Non-Condensing
Atmospheric Pressure: 700 hPa to 1060 hPa
Protected Against Splashing Water IPX4
Storage and Shipping Conditions
Ambient Temperature: -30°C to +50°C Relative
Relative Humidity: 10% to 95% Non-Condensing
Atmospheric Pressure: 500 hPa to 1060 hPa
Accessories And Options
Joerns Mattresses, IV Rod, Floor Mat
Bed Identication Numbers
When ordering parts or when contacting our
Customer Care Department, please include the
bed’s model and serial numbers, found on the
identication label. The identication label is
located on bed frame under the sleep deck foot
section.
5
Features and
Specifications
Joerns®Bari10A Standard Features
Fully articulated Mattress Support Platform with
independent back and knee movement, up/down
adjustments, Trendelenburg and Reverse
Trendelenburg positioning.
36" wide Mattress Support Platform sections
easily expand to 48" wide.
80"(expandable to 88") Mattress Support
Platform. Integrated foot end extension section
extends an extra 8" length for taller
residents/patients.
18-3/4" to 33-3/4" Travel Range
Integrated Scale System for resident/patient
weight monitoring
Head and Foot End Side Rails/Assist Devices
Side Rails on Head and Foot sections fold down
for easy resident/patient access.
Pendant Control for all bed functions with
separate Selective Lock-Out to override functions.
Emergency Manual Release for Mattress
Support Platform
Emergency Battery Backup System
Integrated Trapeze Mounts
Quiet DC Motors
Welded Steel Tubular Frame
Pan-Style Mattress Support Platform
Wide Stable Base
SoftTone Frame Color
Heavy-Duty Casters
CenterLine Caster Locks
Bed Angle Indicators
Electrical Specifications
Scale System
Power: 9V DC (6 Alkaline D Cells)
Actuators
Power: 115 VAC North American
Frequency: 60 Hz
Current Rating: 6.0 Amps
Classication: Class 1, Type B
Mode of Operation: 10% Maximum duty cycle
Circuit Protection: Auto reset current sensors
Note: Actuators operate on a 24V DC system with
an integral battery backup.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Mechanical Specifications
Description: Dimensions:
Overall Bed..........................Minimum 39"x 90"
Maximum 52"x 98"
Mattress Support Platform...Minimum 36"x 80"
Maximum 48"x 88"
Bed Frame Weight...............700 lbs
Maximum Back
Section Angle.......................65° to horizontal
Maximum Knee
Section Angle ......................35° to horizontal
Maximum Knee
to Leg Angle.........................45°
Maximum Height Mattress
Support Surface...................33-3/4" Above Floor
Minimum Height Mattress
Support Surface...................18-3/4" Above Floor
Safe Working Load..............1050 lbs

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
6
Assembly

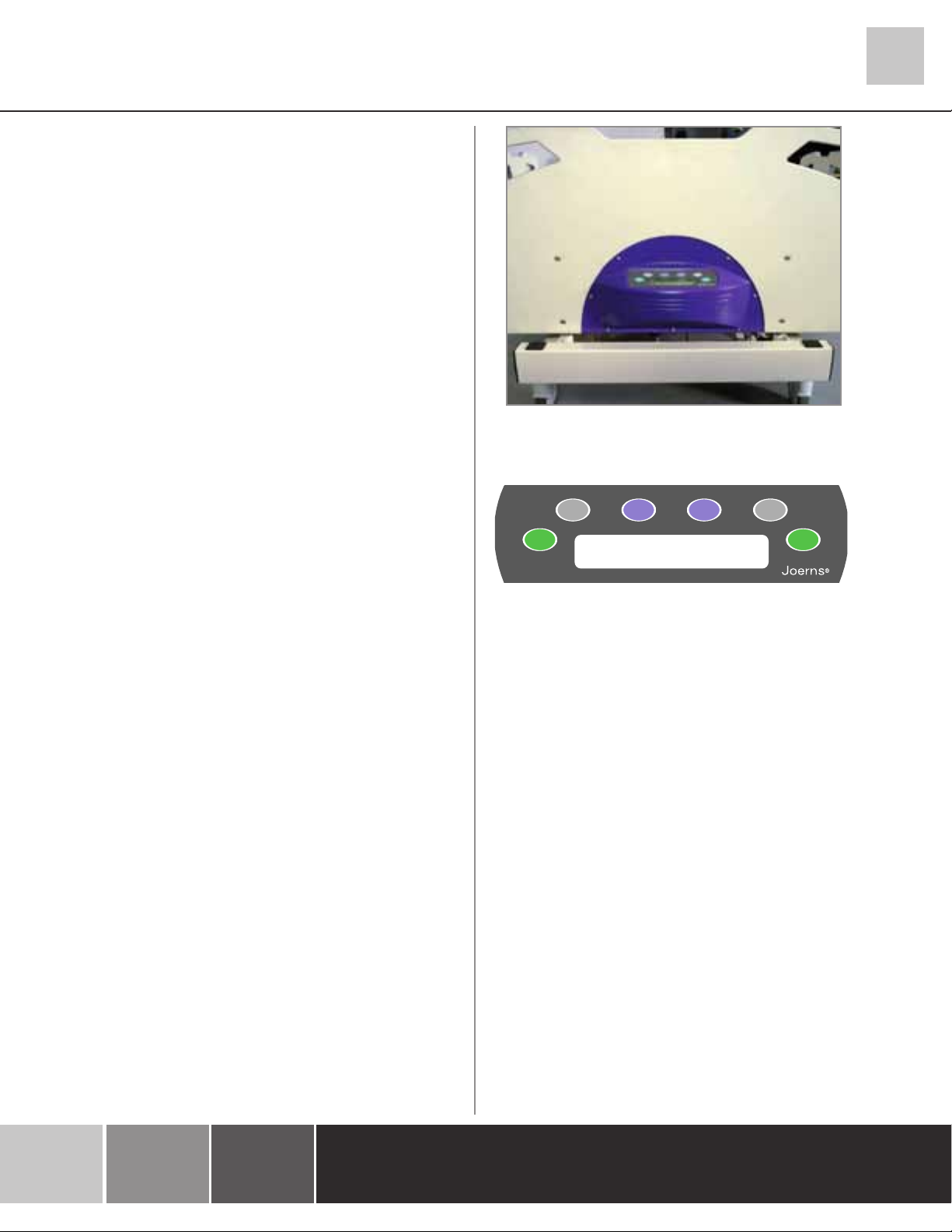

Installation Of Head And Foot Panels
Insert Head and Foot Panel support rods
into their respective receptacles in the frame
(Figure 1). Note: Scale System Display
located on outside of Foot Panel must face
away from bed (Figure 1).
Connect Scale System quick-release electrical
connector from the bed to Foot Panel rear
bottom xed connector (Figure 2). Note: This
is a quarter-turn fastener. Check to insure it is
rmly secured.
Power Cord supplies power to bed’s Actuator
System. Plug Power Cord into grounded
hospital-grade receptacle (115VAC, 15 amps).
Note: To achieve optimum Actuator System
battery life, keep the bed plugged in at
all times.
Power cord is the main disconnect device. To
disconnect the mains, unplug Power Cord.
Control Backup Battery powers the Actuators
when cord is unplugged.
Whenever bed is cleaned or serviced, it should
be unplugged from wall power. Selective
Function Lockout should be set to Lock for
all functions to keep bed from accidentally
operating using battery backup. Note: To
avoid electric shock, always plug bed into
properly grounded hospital-grade receptacle.
Actuator battery backup is not user-
serviceable. If service is required, contact
Joerns Healthcare Technical Support
at 800-966-6662.
Lockout Control
Activate Selective Function Lockout on bed
Frame, to keep resident/patient from operating
Actuators with Pendant. See Selective
Function Lockout instructions on Page 8.
Warning: Possible Injury Or Death. Use
Selective Function lockout to deactivate bed
when resident/patient movement or inadvertent
activation of bed functions by resident/patient or
staff member could result in personal injury.
1.
2.
3.
4.
5.
6.
1.
Figure 2
Head/Foot Panel Removal
Head/Foot Panels remove easily. Replace by
simply lifting straight up or pushing straight down
(Figure 1). Caution: Disconnect Foot Panel
Scale System Cable before removing Foot Panel
(Figure 2).
Head/Foot Panel pins t tightly in respective
frame receptacles. This may cause binding
during removal and replacement.
To minimize binding, grasp Head Panel or Foot
Panel at both lower corners and lift/push evenly.
1.
2.
3.
Figure 1

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
Bed Operation
Initial Start Up
After positioning bed, always lock all casters.
Bed must reach proper operating temperature
before plugging Power Cord into grounded
hospital-grade receptacle. Caution: It is critically
important to lock all four casters individually to
prevent unintended bed movement.
Resident/patient Transfer
Lock Casters and make sure Mattress Support
Platform is in non-extended position (narrow).
Lower Side Rails and lower resident/patient in
carefully controlled manner, onto bed.
Caution: It is critically important to lock all four
casters individually to prevent unintended
bed movement.
Emergency Manual Mattress Support
Platform Release
The quickest way to lower all Mattress Support
Platform parts is to power down with Pendant-
controlled Actuators. Note: To lower bed in
case of power and battery backup failure, use
Emergency Manual Mattress Support Platform
Release to lower Head and Foot Mattress
Support Platform sections (Figure 3).
To return Mattress Support Platform to at
position in case of power and battery backup
failure, rotate Emergency Manual Mattress
Support Platform Release Lever Up. Hold
Emergency Release handle Up until Mattress
Support Platform lowers to desired position.
Release handle if you need to stop descent.
1.
1.
1.
2.
7
Figure 4
Bari
Selective adhesive die
on Page 2
PMS 2715 C
Purple
PMS 429 C
Light Gray
PMS 425 C
Dark Gray
OPAQUE
WHITE
Rev
Part #:
Page 1 of 2
216-2270
Joerns Bari 10A Pendant Label
INIT
Scott Technology,LLC
1 Jacks Hill Road
Oxford, CT 06478
Scott
Init ________/Date_________
Nexus
Init ________/Date________
Date ECO
JP 00430 B
03/27/07
Scott
Init ________/Date_________
Note:
Material -
7 mil GLOSS POLYESTER - see finish notes below
Emboss Tool - 0.020” pillow emboss
8 Buttons up to edge of and including the white region (ellipses)
Selective Velvet coat on all areas EXCEPT in region of 8 keys (matching emboss)
Key embosses (eight) to be GLOSS
Adhesive Mask -selective adhesive tool
No adhesive behind key areas (see Selective Adhesive Die on Page 2)
Adhesive 3M 467 Hi Performance or equal.
Edge Bleed to be added
1.54"
6.62"
03/20/07 JP -A
Pendant Control Operation
Your Bari10A bed comes standard with
Pendant Control (Figure 4). Resident/patient
and staff can use the Pendant to adjust all
Mattress Support Platform sections to
desired positions.
Pendant has raised push buttons with graphics
and may be hooked on rails or panels for
convenient resident/patient and staff access.
1.
2.
Figure 3

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
Selective Function Lockout
Selective Function Lockout switch box is
located on bed frame Side Rail near Foot
Panel (Figure 5). Three switches on box
allow for certain Pendant functions to lock
out separately (Figure 6).
Lockout is intended for use by caregiver
when limiting bed positions for specic
resident/patient care.
To lock/unlock functions, rotate switch until it
clicks into position.
Side Rails/Assist Devices
Bari10A has one Head end Side Rail and
one Foot end Side Rail on both sides of bed
(Figure 7).
Side Rails are attached and operated by Latch
Hinge mechanism.
Pull bottom of Latch Hinge outwards to lower
Side Rails (Figure 8). Note: Latch Hinge locks
Side Rail only in up position.
Lower Side Rails gently.
1.
2.
3.
1.
2.
3.
4.
8
Figure 6-Pendant Lockout Operation
Rotate Switch to Lock/Unlock Back
Raise Function
Rotate Switch to Lock/Unlock Hi-Lo/
Trendelenburg Function
Rotate Switch to Lock/Unlock Knee
Raise Function
1.
2.
3.
Figure 5
Figure 8
Figure 7

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
9
Figure 9
Figure 10
Casters
All (4) Casters securely lock bed in place.
All Casters have full swivel/rotation locking in
any position.
Simply push Caster Lock Lever (Figure 9)
down to lock and up to unlock (Figure 10).
Caution: It is critically important to lock all four
casters individually to prevent unintended bed
movement.
Steer Pedal (optional)
A bed equipped with this option has a fth wheel
activated by lateral brake/steer pedals on either
side of the bed. The fth wheel helps in guiding the
bed along a straight line and helps the bed pivot
around corners.
Warning: To reduce the risk of injury, ensure the
sleep surface is horizontal and in the lowest position
with the siderails fully raised and locked when
moving the bed with a resident/patient in it. For best
maneuverability performance, push the bed from the
head end.
Warning: 5th wheel must be disengaged to
use scale.
To avoid injury to the resident/patient and/or user, do
not attempt to move the bed laterally with the steer
mode engaged. The steer wheel can not swivel.
Caution: To avoid damage to the siderail
mechanisms, do not move the bed using the
siderails. Use the push/pull handles integrated to the
end panels to move the bed.
Steer Pedal Operation (Figure 11)
To engage the steer wheel, fully depress the side
of the pedal identied with a green label and
represented by the ENGAGE green arrow. To
disengage the steer wheel, fully depress the side of
the pedal identied with a red label and represented
by the DISENGAGE red arrow.
1.
2.
3.
Left Side from foot of bed
Right Side from foot of bed
Figure 11

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
10
Mattress Support Platform
Width Extenders
The four Mattress Support Platform (MSP)
sections each have a 6" Width Extender on
both sides of the bed (Figure 12).
Release Width Extender by pulling latch
handle along the bottom edge of each MSP
section (Figure 13). Note: Width Extenders
lock in either full open or full closed position
and should only be used in these positions.
Side Rails move with the Width Extenders.
Caution: Extend all four sections on each side
prior to adjusting bed position or Side Rails.
Warning: Use Width Extenders only after the
resident/patient is safely positioned in the bed.
Failure to do so could result in injury.
Mattress Support Platform
Length Extender
Mattress Support Platform (MSP) Foot Section
has an 8" Length Extender, as does the foot
end of the bed frame. (Figure 14).
Both MSP Length Extender and the Frame
Length Extender latch in the normal and
extended positions.
Using the MSP Length Extender is a two-step
process:
Slide the Frame Extender out rst, by
pulling out the latch knob on the side of
the bed frame (Figure 14). Begin carefully
sliding the extender out and release the
latch knob as soon as the extender starts
to slide so that it will automatically latch
again at the extended position. Slowly pull
the extender out until the latch pin clicks
into its detent.
Reach under the center of the MSP Foot
Section and locate the MSP Extender
latch knob (Figure 15). Pull the knob out to
unlatch the Foot Section Extender. Begin
carefully sliding the extender and release
the latch knob as soon as the extender
starts to slide so that it will automatically
latch again at the extended position.
Slowly pull the extender out until the latch
pin clicks into its detent.
Warning: Possible Equipment Damage. Do
not slide Frame Length Extender past its detent.
Damage to the scale cable will result.
1.
2.
1.
2.
3.
a.
b.
Figure 12
Figure 15 - Photo taken from angle
underneath bed
Figure 14 - Arrow indicates Length
Extension Latch
Warning: Possible Equipment Damage. Prior to
use of the MSP Length Extender, the Frame Length
Extender must be fully extended and latched. Failure
to do so will result in scale connector damage.
Figure 13

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
Bed Movement/Transport
Follow these general guidelines when moving
bed (specic patient’s needs may necessitate
such requirements).
Fully lower all Mattress Support
Platform sections.
If extended, retract Mattress Support
Platform width extensions on both sides.
Note: This may require removing
mattress sections.
If extended, retract Mattress Support
Platform Foot extension.
Latch all Side Rails in up position.
Required: Place an attendant at each
bed end.
Caution: Before transporting bed, unplug
bed from power source, wrap Power Cord
around Cord storage hooks below head
Panel, hang Pendant Cord from Foot Panel,
and route Pendant Cord inside Side Rails
(Figure 16). Failure to do so could result in
Pendant Cord, Power Cord or bed damage,
thereby creating a potential hazard. Insure
Pendant Cable and Power Cord are off oor
and away from Casters.
Unlock Casters.
Deploy 5th Wheel if equipped with optional
Steer Petal.
Apply even push/pull force on Head
Panel and Foot Panel handholds
(Figure 17). When bed movement/transport
is completed:
Always apply Caster Locks.
Caution: It is critically important to lock
all four casters individually to prevent
unintended bed movement.
Always plug bed back into power outlet
so that it is continuously charging.
Accessories
Mattress
Bari10A Bed may be equipped with BariMatt
1000 6.5" foam mattress (Figure 18, p.12).
Mattress designed as separate sections, which
t together on Mattress Support Platform in
different arrangements: narrow, sides extended
or, length extended. Important: Patient’s risk for
pressure ulceration determines which mattress
should be used. Assessment of risk for pressure
ulceration is important to avoid injury to
patient, and should only be determined by
qualied professionals.
1.
a.
b.
c.
d.
e.
f.
g.
h.
i.
•
•
1.
2.
Note: International standards require distance
from top of mattress (un-compressed) to top
of Side Rails to be a minimum of 220 mm
(8.66 inches). If mattress is thicker than 6.5"
(Example: If a professional recommends an air
otation system to treat pressure ulceration),
bed/mattress system would not comply with
International standards. A professional can
assess if clinical benets outweigh the risk of
not meeting standards.
Mattress User Manual (Figure 18 p.12)
describes Mattress assembly and
usage requirements.
3.
Figure 15
Foot Panel
Route Pendant Control
Cord inside Side Rails
Figure 16
11
Figure 16
Figure 17
Pendant
Control
- Hang on
Foot Panel
Route Pendant Control
Cord inside Side Rails

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
12
F
Figure 18

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
Scale System
Bari10A bed is equipped with Scale System, fully
integrated within Foot Panel (Figure 19).
Scale System Features (Figure 20)
Resident/patient’s weight is displayed on a
16-character dot matrix liquid crystal display with
LED backlighting.
Resident/patient’s weight may be viewed in both
pounds and kilograms by pushing Weight
Mode button when displayed with resolution of
0.1-Lb/Kg (100 grams).
Monitor resident/patient’s weight relative to
zero by using Weight Change Mode button to
observe variations in weight.
Freeze/Resume mode button provides
customized ability to adjust resident/patient’s
comfort by adding or removing pillow or blanket
or ancillary equipment, without affecting
resident/patient’s displayed weight.
Maximum Weight Capacity
Do not exceed rated safe working load capacity of
bed (1050 pounds).
Accuracy
0.5% of resident/patient weight or 0.5 lb,
whichever is greater, from 250 to 1050 lbs, while
bed is in at position.
Auto Power Down (APD)
Scale System will automatically power down in 60
seconds to conserve battery life.
Averaging
Automatic Digital Filter samples weight data to
lter motion.
Power Supply
(6) “D” Cell Alkaline Batteries.
Environmental Conditions
Operating Conditions
Ambient Temperature: +20°C to 30°C
Relative Humidity: 10% to 95% Non-Condensing
Storage and Shipping Conditions
Ambient Temperature: -30°C to +50°C
Relative Humidity: 10% to 95% Non-Condensing
1.
2.
3.
4.
13
Figure 19
0.0
zero
Freeze
Resume
Weight
Change
Mode
On
Note:
Material -
7 mil GLOSS POLYESTER - see finish notes below
Emboss Tool - 0.015”- 0.010” pillow emboss (for metal domes)
6 Buttons up to edge of and including the white region (ellipses) -
Note - Two Hidden buttons - (flat non tactile) see sheet 2of 2
Selective Hardcoat to be Velvet except in region of 6 keys (matching emboss)
and Display Window
Key embosses (six) to be Gloss
Adhesive Mask - selective adhesive tool
No adhesive behind clear window
Adhesive 3M part no 7959MP
Display window to be Gloss
See sheet 2 of 2 for dimensional layout, circuit layout, tail layout
and more specifications
Edge Bleed to be added
Selective adhesive die
on its own layer -
PMS 2715 C
Purple
PMS 425 C
Dark Gray
PMS 360 C
Green
PMS 429 C
Light Gray
OPAQUE
WHITE
Screened colors
Lb/Kg
1.86"
7.42"
Weight
Mode
.06 R. TYP. 4
NOTE - SEE SHEET 2 OF 2
FOR TWO HIDDEN KEYS
Rev
Part #:
Page 1 of 2
216-2268
Joerns Bari 10A Bed
Scale Membrane Keypad
INIT
Scott Technology, LLC
1 Jacks Hill Road
Oxford, CT 06478
Scott
Init ________/Date_________
Nexus
Init ________/Date________
Date ECO
JP 00430 B
03/27/07
Scott
Init ________/Date_________
03/20/07 JP -A
Figure 20
Caution: 5th Wheel must be disengaged to obtain
an accurate resident/patient weight.

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
14
Scale System
Functions and
Weighing Procedures
Caution: 5th Wheel must be disengaged to obtain
an accurate resident/patient weight.
0.0 Zero
With all bed linens in place and without resident/
patient in bed, press Zero button. Displayed
message will read “PLEASE WAIT - HANDS OFF”.
Be sure nothing touches weight-sensitive portion
of integrated Scale System while performing
zeroing function. In a few seconds, display will
indicate “WEIGHT = 0.0 LB”.
Lb/Kg
Weight data may be viewed in either pounds or
kilograms. Pressing this button allows you to
switch between display modes quickly and easily.
Both modes will display resident/patient’s weight
within 0.1 units of resolution (0.1 Lb. or 0.1 Kg.).
Freeze/Resume
Freeze/Resume mode button provides
customized ability to adjust resident/patient’s
comfort by adding/ removing a pillow or blanket
or ancillary equipment, without affecting
resident/patient’s displayed weight.
Press Freeze/Resume button. The display will
read “FREEZE = (resident/patient’s weight).”
Make all necessary adjustments to bed or
resident/patient. When done, press
Freeze/Resume button again to resume
normal weighing.
Weight Change Mode
This mode is used to monitor resident/patient’s
weight changes. Note: To enable this function
initially, press Weight Change Mode button with
resident/patient in bed and then press Zero button
to zero out weight. Display will read
“ WT CHG = (resident/patient weight)”.
Any variation in weight will now be viewed as a
“+” or “-” gure relative to zero.
Weight Mode
If display shuts off before you can view weight data,
simply press the On button to refresh display and
view resident/patient’s weight. Display will indicate
“WEIGHT = XXX.X LB”(or KG).
Caution: After initialization process is complete and
Scale System is still in Weight Change Mode, do
not press Zero button again, or you will lose all
stored resident/patient’s weight history.
Pressing Weight Mode button will switch back to the
Weight Mode allowing you to view resident/patient’s
total weight again.
Caution: If you do not press Freeze/Resume
button before adding/removing items from bed,
the weight of those items will be reected in the
displayed weight, which will be hard to adjust back to
the correct stored weight.
Note: You can correct any weight discrepancy
described above, by using Weight Mode (for
increases) and Weight Change Mode (for
decreases) buttons, to manually adjust displayed
weight reading. You will need to know the weight of
added/removed items to add/subtract from
total weight.
If Freeze/Resume mode is left unattended for
more than three minutes, display will read “LEFT IN
FREEZE - REFER TO MANUAL.” You must press
Freeze/Resume button to exit this mode.
On
Button refreshes display or initiates power for
scale use.
0.0
zero
Freeze
Resume
Weight
Change
Mode
On
Note:
Material -
7 mil GLOSS POLYESTER - see finish notes below
Emboss Tool - 0.015”- 0.010” pillow emboss (for metal domes)
6 Buttons up to edge of and including the white region (ellipses) -
Note - Two Hidden buttons - (flat non tactile) see sheet 2of 2
Selective Hardcoat to be Velvet except in region of 6 keys (matching emboss)
and Display Window
Key embosses (six) to be Gloss
Adhesive Mask - selective adhesive tool
No adhesive behind clear window
Adhesive 3M part no 7959MP
Display window to be Gloss
See sheet 2 of 2 for dimensional layout, circuit layout, tail layout
and more specifications
Edge Bleed to be added
Selective adhesive die
on its own layer -
PMS 2715 C
Purple
PMS 425 C
Dark Gray
PMS 360 C
Green
PMS 429 C
Light Gray
OPAQUE
WHITE
Screened colors
Lb/Kg
1.86"
7.42"
Weight
Mode
.06 R. TYP. 4
NOTE - SEE SHEET 2 OF 2
FOR TWO HIDDEN KEYS
Rev
Part #:
Page 1 of 2
216-2268
Joerns Bari 10A Bed
Scale Membrane Keypad
INIT
Scott Technology, LLC
1 Jacks Hill Road
Oxford, CT 06478
Scott
Init ________/Date_________
Nexus
Init ________/Date________
Date ECO
JP 00430 B
03/27/07
Scott
Init ________/Date_________
03/20/07 JP -A
Figure 21

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
Remove weight and re-zero. Repeat steps #4,
#5 and #6, until results are satisfactory.
When adjustments are completed:
a. Press on button to abort your changes
and exit the CAL mode, (or)
b. Press Freeze button to save all changes
and exit CAL mode.
Calibration Tolerance Table
Low Limit Applied Load (lbs) High Limit
248.7 250 251.4
497.4 500 502.6
746.2 750 753.9
994.9 1000 1005.1
Scale System Care
and Maintenance
Cleaning
Mild soap/water recommended for general
cleaning/disinfecting.
Exercise caution when cleaning LED
electronics display window.
Storage
Remove batteries if storing this equipment for
periods longer than three months.
7.
8.
1.
2.

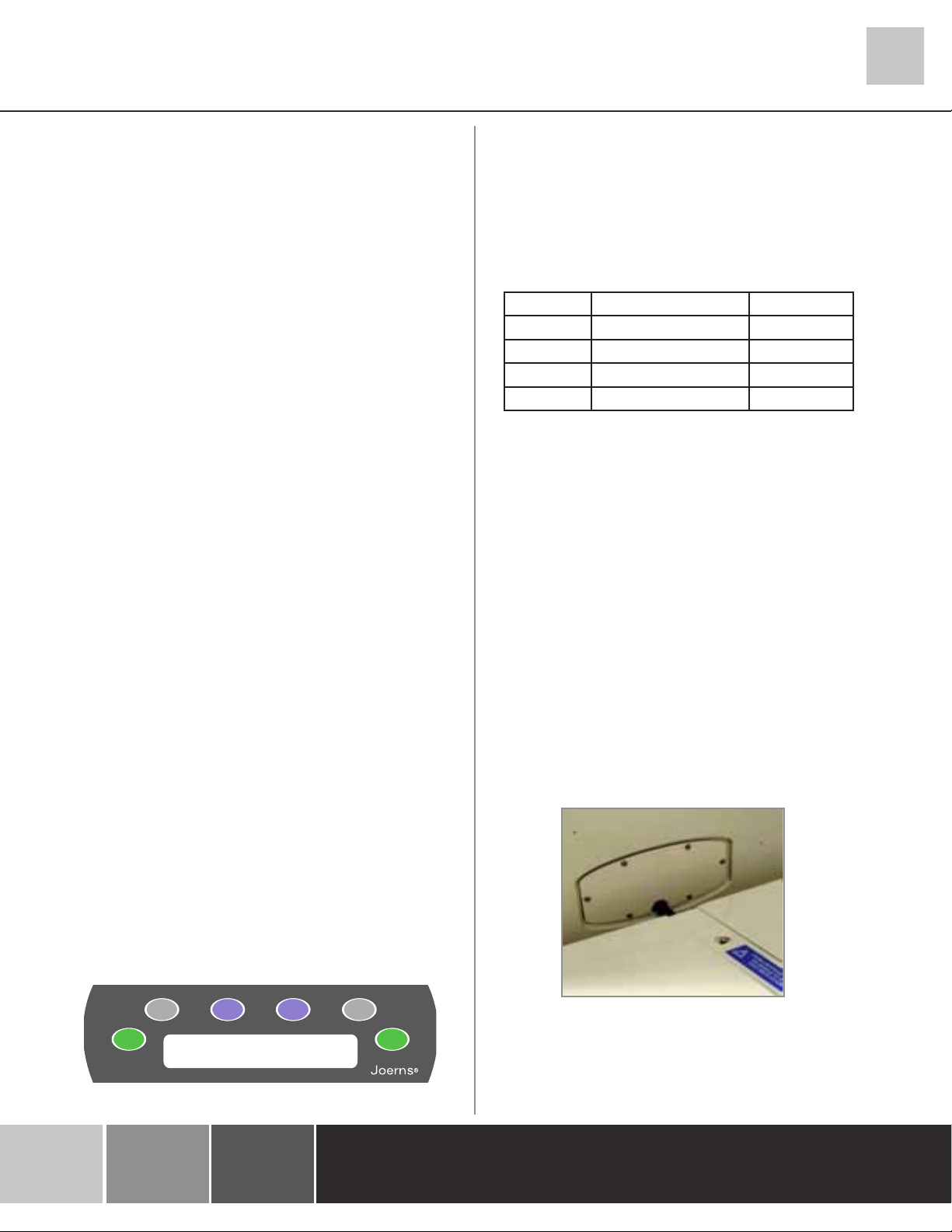

Scale System Calibration
(Figure 22)
Periodic Calibration Check
Important: Following calibration procedure
should only be performed by qualied
maintenance personnel.
Load cell has no user serviceable components.
Do not tamper with for any reason.
Re-calibration is generally not required, but
should be veried periodically to ensure
accuracy. Joerns Healthcare recommends
checking calibration check once every 12
months, or as your maintenance policy requires.
Electrostatic Discharge (ESD)
Integrated circuits and semiconductors on printed
circuit boards may be damaged by electrostatic
discharge (ESD). Be sure to use proper handling
precautions at all times.
Calibration Procedure
Note: Make sure nothing is in contact with Scale
System during this procedure. Be sure to remove
your hands from Scale System when noting
displayed calibration results.
Disengage 5th Wheel if equipped with optional
steer pedal.
Press Freeze/Resume button.
When display indicates “FREEZE = (weight)”,
press and hold Lb/Kg button. Display will read
“CAL” as right hand digit counts down to enter
CAL MODE.
When CAL MODE is shown, press Zero button
to zero the display.
Place known calibrated weight onto weighing
surface and compare it to displayed reading.
Press Weight Mode button for (+) corrections
and Weight Change Mode button for (-)
corrections to displayed weight. Displayed value
should be within 0.5% of calibrated weight, plus
or minus one digit.
1.
2.
3.
1.
2.
3.
4.
5.
6.
Figure 23
15
Figure 22
0.0
zero
Freeze
Resume
Weight
Change
Mode
On
Note:
Material -
7 mil GLOSS POLYESTER - see finish notes below
Emboss Tool - 0.015”- 0.010” pillow emboss (for metal domes)
6 Buttons up to edge of and including the white region (ellipses) -
Note - Two Hidden buttons - (flat non tactile) see sheet 2of 2
Selective Hardcoat to be Velvet except in region of 6 keys (matching emboss)
and Display Window
Key embosses (six) to be Gloss
Adhesive Mask - selective adhesive tool
No adhesive behind clear window
Adhesive 3M part no 7959MP
Display window to be Gloss
See sheet 2 of 2 for dimensional layout, circuit layout, tail layout
and more specifications
Edge Bleed to be added
Selective adhesive die
on its own layer -
PMS 2715 C
Purple
PMS 425 C
Dark Gray
PMS 360 C
Green
PMS 429 C
Light Gray
OPAQUE
WHITE
Screened colors
Lb/Kg
1.86"
7.42"
Weight
Mode
.06 R. TYP. 4
NOTE - SEE SHEET 2 OF 2
FOR TWO HIDDEN KEYS
Rev
Part #:
Page 1 of 2
216-2268
Joerns Bari 10A Bed
Scale Membrane Keypad
INIT
Scott Technology, LLC
1 Jacks Hill Road
Oxford, CT 06478
Scott
Init ________/Date_________
Nexus
Init ________/Date________
Date ECO
JP 00430 B
03/27/07
Scott
Init ________/Date_________
03/20/07 JP -A

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
16
d. Check structural parts for any cracking
(especially welds), bending or hole
enlargement.
e. Check wiring for proper connections and
damage (fraying, kinking or deterioration).
Report any damage to Joerns Healthcare
Technical Support at 800-966-6662.
f. Check Actuators for correct mounting at
attachment points and insure all related pins
are mounted securely and properly to frame.
Actuators are not serviceable.
If any discrepancies are noted during
inspection, they must be corrected
before continuing bed usage. Major
service and repair must only be
performed by authorized Joerns
Healthcare Technical Support, which
you may contact at 800-966-6662.
General Cleaning
For low level disinfecting, wipe surfaces with a
properly prepared detergent/disinfectant.
Do not use abrasive cleaners. Use damp rag
only when cleaning around electrical connectors
and components.
Actuator surfaces must be cleaned of dust and
dirt regularly. Do not attempt to clean exposed
piston rods. Never spray directly on Actuator
with high-pressure cleaners.
Storage
Store in a clean dry area.
Plug bed Power Cord into grounded hospital-
grade electrical outlet. Actuator Control System
backup batteries maintain the longest life if kept
charged and are not allowed to fully discharge.
Failure to keep Bari10A bed plugged in, will
discharge backup batteries and shorten their life.
If storing bed for periods longer than three
months, remove all Scale System batteries.
1.
2.
3.
1.
2.
3.
4.
Battery Replacement
If Scale System batteries need replacement,
display will indicate “CHANGE BATTERIES.”
Remove Battery Cover from Foot Panel to
access Scale System batteries (Figure 23).
Then, remove all six batteries (dispose used
alkaline batteries per local codes), and replace
with alkaline D cell batteries.
Printed circuit board vulnerable to electrostatic
discharge (ESD). Avoid touching circuit board
when changing batteries. Battery orientation is
illustrated on battery holder.
Cleaning, Inspection
and Maintenance
Warning: Disconnect Bari10A Power Cord from
wall outlet before cleaning.
Warning: Do not use power wash or high pressure
cleaner on any Bari10A part.
Warning: Lock all four Casters when cleaning,
inspecting or performing any maintenance of the
Bari10A. Lower all Mattress Support Platform
sections unless necessary for positioning for
service access. Place all Selective Function
Lockout switches in locked position. Disconnect
Power and Pendant Cords. Caution: It is critically
important to lock all four casters individually.
To achieve maximum usage and longest life
for your Bari10A bed, follow all warnings and
cautions within this manual and maintain
your bed with care, as outlined below. The
maintenance required will be dictated by
your bed’s usage and care, which should be
inspected every six months.
To optimize bed longevity:
a. Keep bed clean.
b. Observe bed usage and operation and
report any discrepancies or problems to
Joerns Healthcare Technical Support at
800-966-6662.
c. Check for loose bolts, nuts or pins, and
report problems. After a week of
use, check all bolts for any looseness, and
make sure all pins are in their
normal location and fastened.
1.
2.
1.
2.

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
Lubrication Servicing
Recommended Lubricants
Oil: Use 3-In-One®oil or equivalent.
Grease: Use Super Lube®synthetic grease or
equivalent.
Oiling Points
Keep pins and bolts oiled (sample indicated by
arrows in Figure 24).
Oil hinge points (sample indicated by arrows in
Figure 25).
Grease Points For Mattress
Support Platform
Grease Side and Foot Extensions (sample
indicated by arrows in Figure 26 & 27).
1.
2.
1.
2.
1.
Figure 24
Figure 25
Figure 26
Figure 27
17

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
18
Bari10A Bed Troubleshooting
Pendant Control Troubleshooting
Problem Solution
If adjustment does not occur when
Pendant button is pushed
Adjustment may be locked. Check Selective Funtion Lockout.
Adjustment may already be at maximum level.
Bed is not plugged into wall power outlet and battery has
discharged. Plug bed into wall outlet.
Pendant cord may be damaged. Check cord for damage. If cord is
damaged, discontinue bed usage until cord is replaced.
1.
2.
3.
4.
If Adjustment Only partially occurs,
stops and beeps
Battery may be low. Plug bed into power source.
Bed may be overloaded or constrained from moving. Determine
load and check for obstructions.
If beeping occurs while raising or lowering bed, Hi-Low Actuators
may have lost synchronization. Lower bed to lowest position.
Release Bed Down button. Press and hold Bed Down button for
ve seconds to recalibrate synchronization. If problems persist,
contact Joerns Healthcare Technical Support at 800-966-6662.
1.
2.
3.

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
19
Problem Possible Cause What to Do
Bed movement with all
casters locked.
Braking mechanisms may be worn
on one or more casters.
1. Remove bed from use and contact
Joerns Healthcare Technical Support
at 800-966-6662.
1.
Scale System display
is blank after On button
is pushed.
Batteries are dead.
Unit is defective.
1.
2.
Replace all six batteries
Contact Joerns Healthcare Technical
Support at 800-966-6662.
1.
2.
Scale System gives
suspect readings.
Scale System cable
is disconnected.
Scale System may need calibration.
5th Wheel is engaged.
1.
2.
3.
Reattach cable.
Refer to Page 13 of this Manual.
Disengage 5th Wheel.
1.
2.
3.
Mattress Support
Platform sections do
not extend.
Latch handles not fully disengaged.
Binding
1.
2.
While actuating the latch handle,
try to extend the mattress support
platform extension. Refer to page 9
of this manual.
Wider support platform sections may
require two hands to apply equal pull
force. Contact Joerns Healthcare
Technical Support at 800-966-6662.
1.
2.
Mattress Support
Platform sections do
not articulate.
Pendant Control operation.
Selective function lockout may have
been activated.
Unit may be defective or damaged.
1.
2.
3.
Refer to Pendant Control
Troubleshooting on page 18.
Refer to page 8 of this manual,
Selective Function Lockout.
Remove bed from use and contact
Joerns Healthcare Technical Support
at 800-966-6662.
1.
2.
3.
Actuator piston rod will
only move inwards and
not outwards.
Unit may be defective or damaged.
Possible synchronization problems.
1. Remove bed from use and contact
Joerns Healthcare Technical Support
at 800-966-6662.
1.
Actuator motor makes
sound, but piston rod
does not move.
Unit may be defective or damaged.1. Remove bed from use and contact
Joerns Healthcare Technical Support
at 800-966-6662.
1.
Actuator runs too
slowly or does not
give full force.
Unit is receiving insufcient power
or, is defective. Not plugged in and
running on batteries
1. Remove bed from use and contact
Joerns Healthcare Technical Support
at 800-966-6662.
1.

www.joerns.com | [email protected]
Joerns®Bariatric Beds
Bari10A Model
20
Appendix A - Actuator Wiring Diagram
