Johnson 40-6688 User manual

©2018 Johnson Level & Tool - Rev. 2 1
Self-Leveling Combina ion Cross-Line Laser
and Five-Beam Laser Do
Model No. 40-6688
Instruction Manual
Congratulations on your choice of this Self-Leveling Combination
Cross-Line Laser and Five-Beam Laser Dot. We suggest you read this
instruction manual thoroughly before using the instrument. Save this
instruction manual for future use.
This is a Class IIIa laser tool and is manufactured to comply with
CFR 21, parts 1040 .10 and 1040 .11 as well as international safety
rule IEC 285.
3104i_Manuals 9/6/18 12:02 PM Page 1

2©2018 Johnson Level & Tool - Rev. 2
Table of Contents
1. Kit Contents
2. Features and Functions
3. Safety Instructions
4. Location/Content
of Warning Labels
5. Location of Parts/Components
6. Operating Instructions
7. Using the Product
8. Accuracy Check
9. Technical Specifications
10. Application Demonstrations
11. Troubleshooting Guide
12. Care and andling
13. Product Warranty
14. Warranty Registration
15. Accessories
1. Kit Contents
Description for Model 40-6688 ty.
Self-Leveling Combination Cross-Line Laser &
Five-Beam Laser Dot 1
Multi-functional Magnetic Base 1
Mounting Strap 1
“AA” Alkaline Batteries 3
Tinted Glasses 1
Magnetic Target 1
Instruction Manual 1
ard-Shell Carrying Case 1
3104i_Manuals 9/6/18 12:02 PM Page 2

©2018 Johnson Level & Tool - Rev. 2 3
2. Features and Functions
• Laser simultaneously projects two, three or five laser beams
(up, down, front, left and right directions).
• Able to project one horizontal, vertical or cross-line beam.
• Magnetic dampened compensation system.
• Laser beam flashes and sounds audible alarm when the laser is
beyond its self-leveling range.
• Pendulum locking mechanism helps protect units inner
mechanisms.
• Multi-functional magnetic base for attaching to tripod or any
metal surface.
• Manual mode feature allows unit to be tipped at extreme
angles without the audible alarm and laser flash being
triggered.
• Pulsed line feature allows outdoor use with line generator laser
detector (sold separately).
3104i_Manuals 9/6/18 12:02 PM Page 3

4©2018 Johnson Level & Tool - Rev. 2
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. Failure to do so, may void the warranty.
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, warranty will be void.
• Use only original Johnson®parts and accessories purchased from your Johnson®
authorized dealer. Use of non-Johnson®parts and accessories will void warranty.
DANGER!
Class IIIa Laser Product
Max. Power Output: ≤5mW
Wavelength: 625-645nm & 532nm
THIS TOOL EMITS LASER RADIATION.
DO NOT STARE INTO BEAM.
AVOID DIRECT EYE EXPOSURE.
3104i_Manuals 9/6/18 12:02 PM Page 4

©2018 Johnson Level & Tool - Rev. 2 5
4. Location/Content of Warning Labels
3104i_Manuals 9/6/18 12:02 PM Page 5

6©2018 Johnson Level & Tool - Rev. 2
5. Location of Part/Components
Keypad
Laser Dot Output Windows
Laser Line
Output Windows
Battery Cover
1/4” - 20 Thread
Self-calibration Aperture A
Self-calibration Aperture B
Compensator
Lock/Unlock
Switch
1/4” - 20
Thread
attaches
to base Wall Mount
Belt Mounting
Groove
Laser Connecting Knob
Rare Earth
Magnets
5/8” Thread
3104i_Manuals 9/6/18 12:02 PM Page 6

©2018 Johnson Level & Tool - Rev. 2 7
6. Operating Instructions
IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.

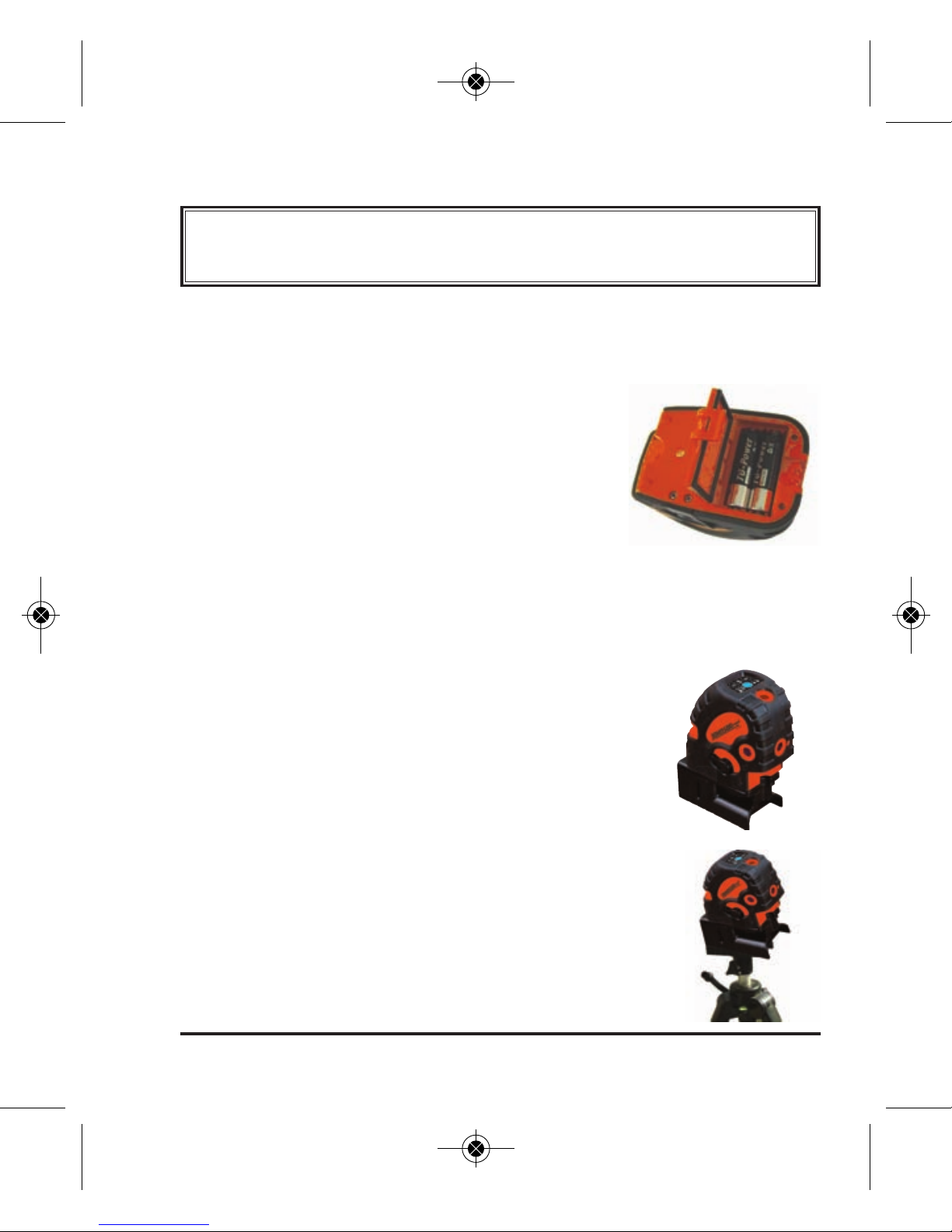

Battery Installation
Note:
Always check to be sure that the compensator lock/unlock switch
is in the locked position before removing and replacing batteries.
1. As shown in figure, open the battery cover.
2. Put three “AA” alkaline batteries into the
battery compartment noting polarity
3. Close the battery cover.
7. Using the Product
Place the laser on a relatively smooth, flat and
level surface.
Note: Product must be within ±4º of level for
self-leveling feature to function properly. Greater
than 4º will result in an alarm condition (flashing
laser and intermittent beeping sound).
Place the laser on a tripod using the multi-functional
base.
3104i_Manuals 9/6/18 12:03 PM Page 7

8©2018 Johnson Level & Tool - Rev. 2
Attach the laser to a steel object.
Laser can pivot on base.
Strap the laser to a pole.
3104i_Manuals 9/6/18 12:03 PM Page 8

©2018 Johnson Level & Tool - Rev. 2 9

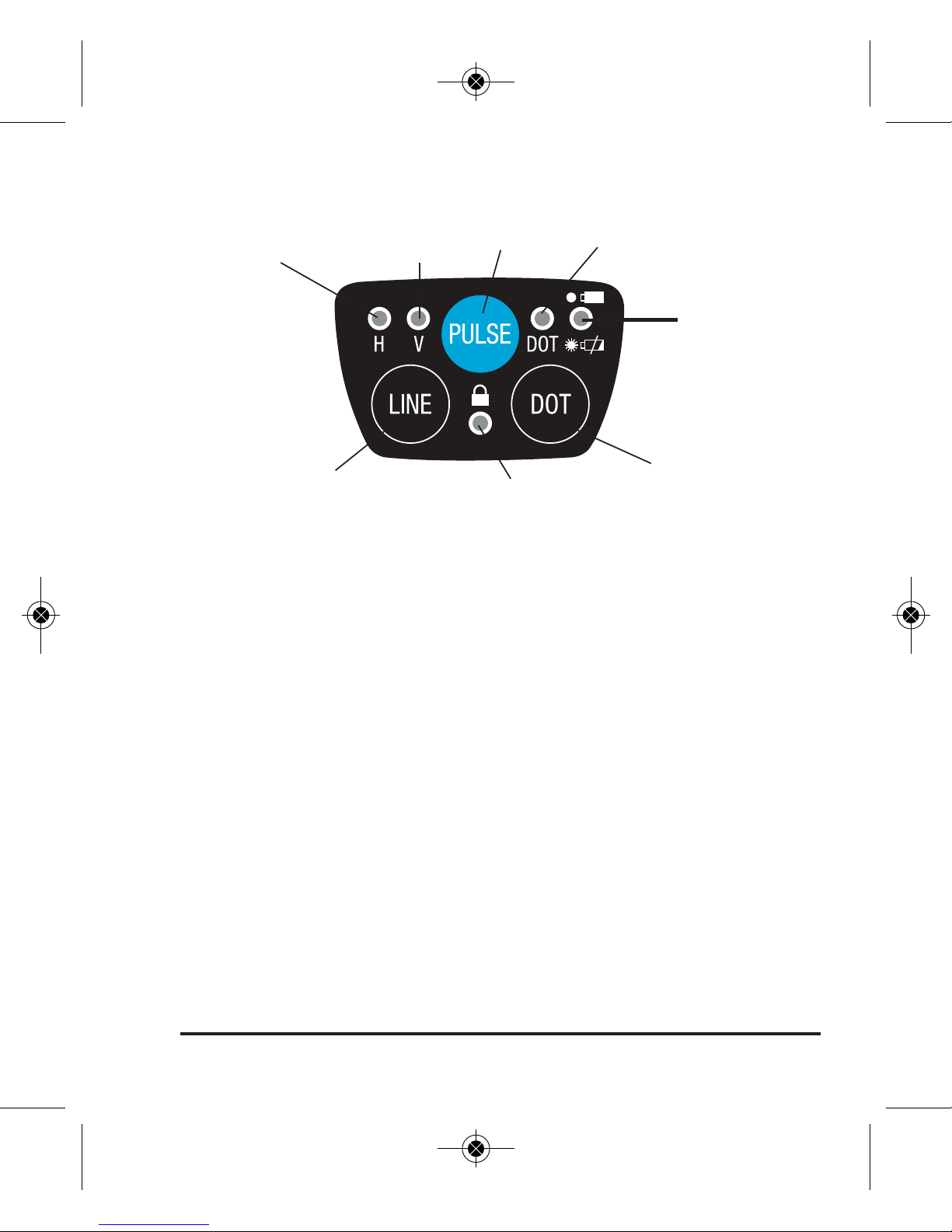

Keypad Operations
Power LED:
LED On: Laser is on or pendulum compensator is unlocked
LED Off: Pendulum compensator is locked and laser is off
LED Flashing: Low Battery
Manual Mode LED:
LED Flashing: The pendulum compensator is locked (laser is not
self-leveling) and laser is on
LED Off: The laser is in self-leveling mode or the laser is off
Horizontal Laser Line LED:
LED On: The horizontal laser line is on
LED Flashing: The horizontal laser line is in pulse mode and can be
used with a line detector (sold separately)
LED Off: The horizontal laser line is off
Dot LED /
Out-of-Level LED
(when flashing)
orizontal Line
LED
Pulse Mode
Button
Vertical
Line LED
Power LED
Laser Dot
Control Button
Manual Mode LED
Laser Line Control Button
3104i_Manuals 9/6/18 12:03 PM Page 9

10 ©2018 Johnson Level & Tool - Rev. 2
Vertical Laser Line LED:
LED On: The vertical laser line is on
LED Flashing: The vertical laser line is in pulse mode and can be
used with a line detector (sold separately)
LED Off: The vertical laser line is off
Dot LED:
LED On: Dot laser is on
LED Off: Dot laser is off
LED Flashing: Laser is outside its self-leveling range
Pendulum Compensator Lock Switch
Unlock the laser, the laser will be on, and the power LED is on. Lock
the laser, the laser will be off, and the power LED is off.
When unlocking the laser, if the laser flashes and sounds an alarm,
the laser is out of its self-leveling range.

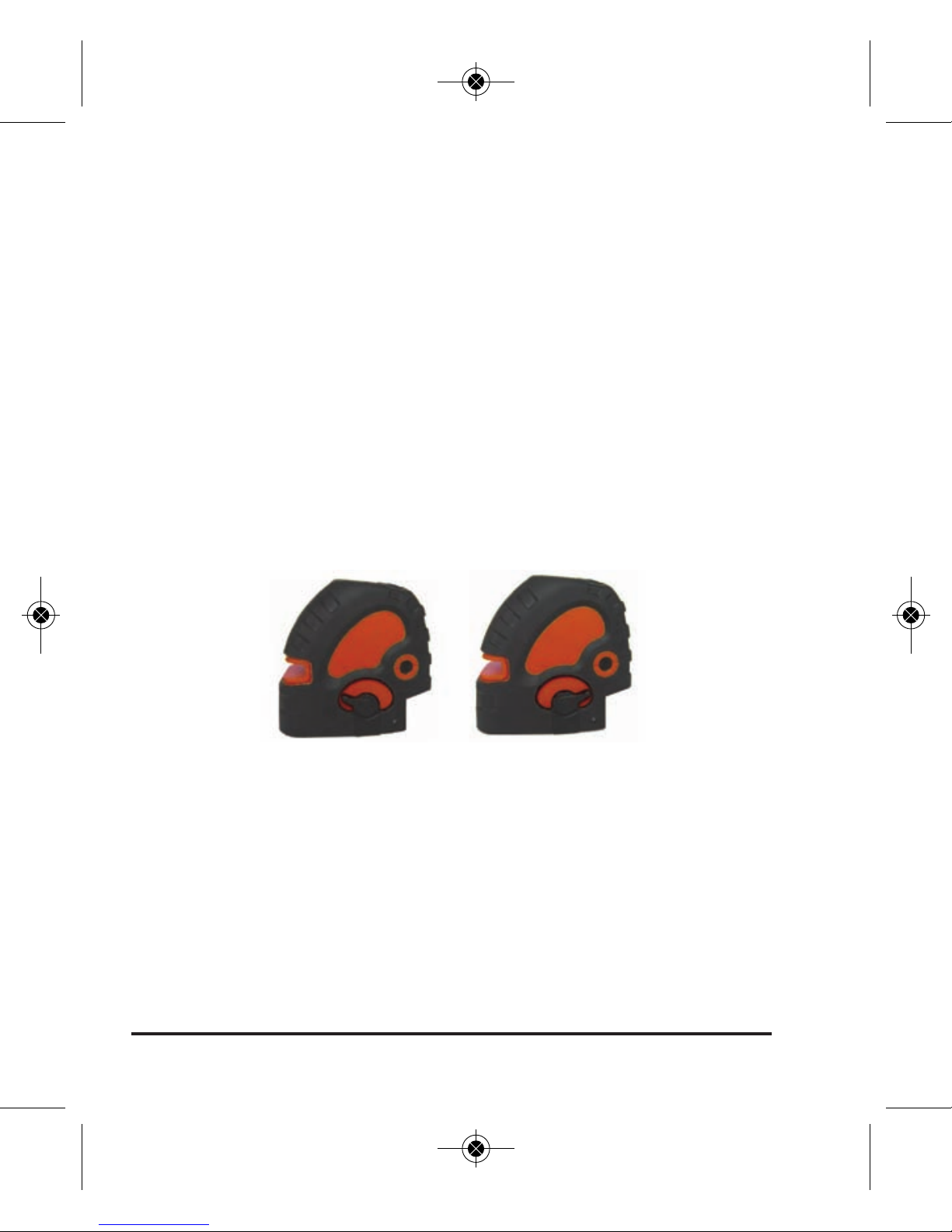

Locked Position Unlocked Position
3104i_Manuals 9/6/18 12:03 PM Page 10

©2018 Johnson Level & Tool - Rev. 2 11

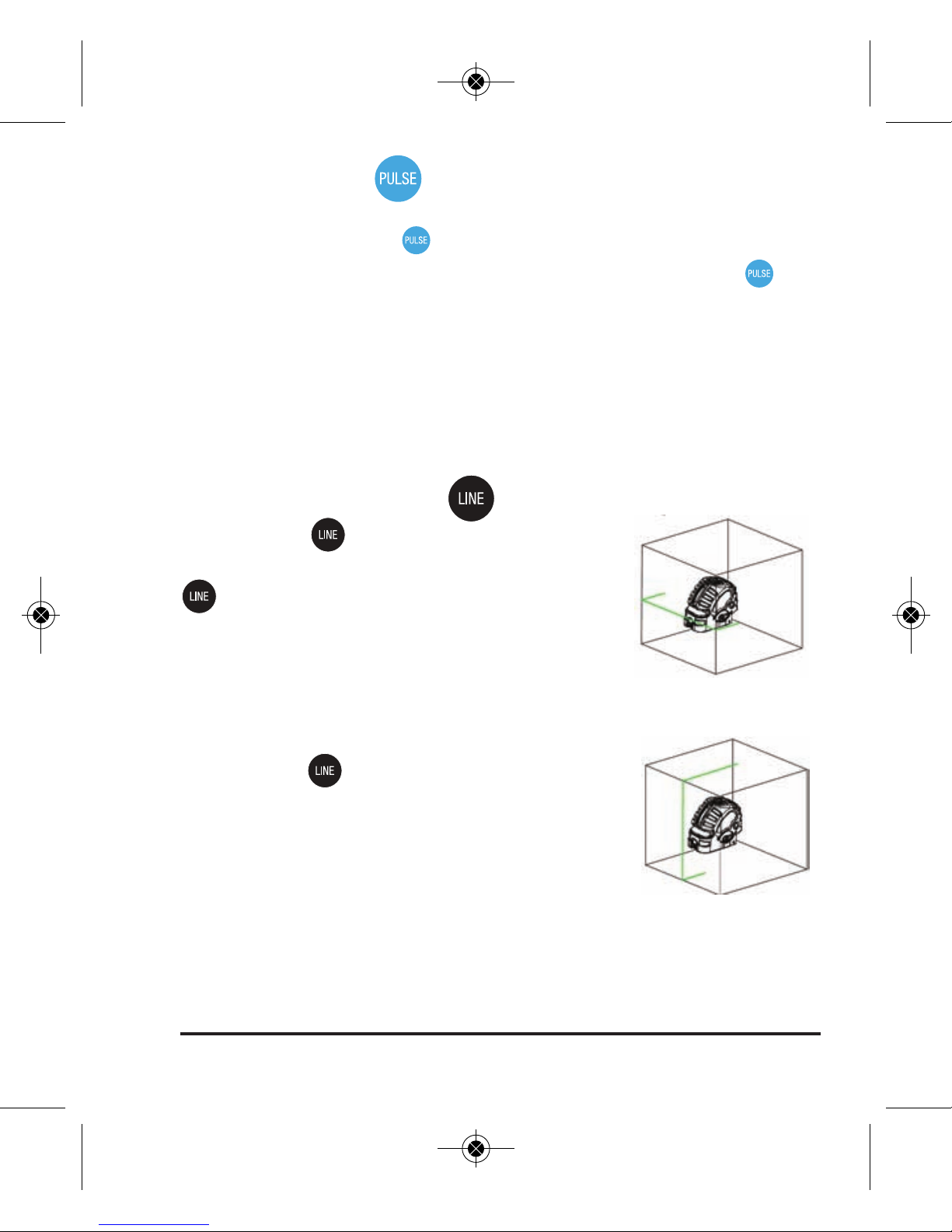

Pulse Mode Button
When the horizontal laser line, vertical laser line, or both laser lines
are on, press the pulse button and the laser line will enter Pulse
Mode and the corresponding LED will flash. Press the pulse
button again and the laser will exit the pulse mode, and the
corresponding LED will return to solid.
Note:
1. When the laser lines are off, the pulse mode button will not
function.
2. Pulse mode is for use with a line detector (sold separately).
Laser Line Control Button
Press the line button to turn the laser line
on or off. Unlock the laser and press the line
button once. The horizontal laser line
LED will be on and the output of the laser is
as follows:
Press the line button a second time, the
horizontal laser line LED will be off, the vertical
LED will be on, and the output of the laser is
as follows:
orizontal Line
Vertical Line
3104i_Manuals 9/6/18 12:03 PM Page 11

12 ©2018 Johnson Level & Tool - Rev. 2
Press the line button a third time, the
horizontal laser line and vertical laser line LED
will be on, and the output of the laser is as follows:
Press the line button a fourth time, the horizontal laser line and
vertical laser line LED will be off, there is no laser line output.
Laser Dot Control Button
Press the dot button to turn the laser dot on
or off, unlock the laser and press the dot
button once. The Laser Dot LED is on and the
output of the laser is as follows:
Press the dot button a second time, the
Laser Dot LED is on, the output of the laser is as
follows:
Cross-Line
3 Dots
2 Dots
3104i_Manuals 9/6/18 12:03 PM Page 12

©2018 Johnson Level & Tool - Rev. 2 13

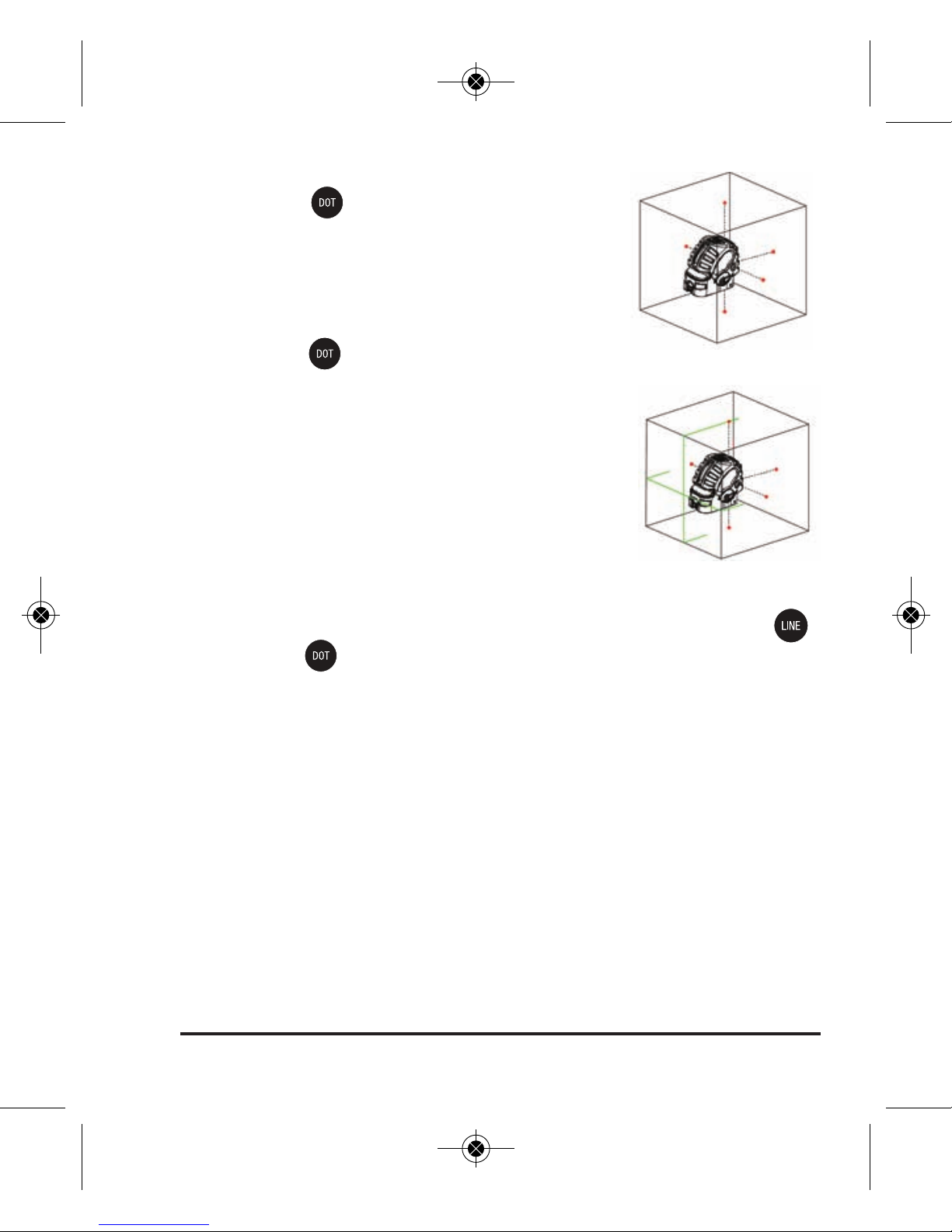

Press the dot button a third time, the Laser
Dot LED is on, the output of the laser is as
follows:
Press the dot button a fourth time, the Laser
Dot LED is off, there is no laser dot output.
With all laser lines and laser dots being on the
laser, the output is as follows:
Manual Mode
With the lasers compensator pendulum switch locked, press the
button or the button, the laser will be in manual mode, the power
LED is on, and the manual mode LED will be flashing.
Note:
1. When manual mode is on, the laser does not self-level and no
out-of-level alarm is indicated.
2. If the lasers compensator pendulum switch is unlocked during
manual mode, the laser will go into self-leveling mode and the
manual mode LED will turn off.
5 Dots
Cross-Line and 5 Dots
Note: To use model 40-6688 with a detector, a green detector is required and
is sold separately. For help in selecting a proper green laser detector, please
contact Johnson Level Customer Service at [e-mail] or call
888-9-LEVELS (USA) or 800-346-6682 (Canada).
3104i_Manuals 9/6/18 12:03 PM Page 13

14 ©2018 Johnson Level & Tool - Rev. 2
8. Accuracy Check
IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.
Horizontal line accuracy (horizontal)
1. Place unit on a tripod approximately 5′from a wall. Secure the
instrument on the tripod.
2. Face the front of the instrument to the wall, unlock the
instrument, and power on the horizontal and vertical laser lines.
Make a mark on the wall where the cross-line is displayed. Label
this as ‘A’.
3. Make a mark 8′from A, along the horizontal laser line, and label
as ‘M’.
4. Turn the instrument until the vertical line meets ‘M’, and then
make a mark 8′from ‘M’, and 15′from ‘A’. Label this mark as
‘B’. Also make a mark on the vertical line where it meets ‘B’.
5. Measure the height distance between ‘M’ and where the
horizontal laser line currently sits.
6. If e>1/16″, the instrument accuracy is out of tolerance, and
calibration is necessary.
Horizontal accuracy self-check (Vertical)
1. Stand up two straight poles/boards 15′ from each other, or two
walls which are parallel and more than 15′distance.
2. Place the instrument on the tripod, and place in the center of
the poles/boards/walls, and level the instrument by adjusting
the tripod.
3104i_Manuals 9/6/18 12:03 PM Page 14

©2018 Johnson Level & Tool - Rev. 2 15
3. Power on horizontal and vertical laser lines, and make a mark
where the cross laser meets target ‘A’. Mark this as ‘A1’.
4. Turn the instrument by 180°, so that the cross line meets target
‘B’. Mark this as ‘B1’.
5. Move the tripod within 2′of target ‘A’. Make a mark where the
cross meets target ‘A’, and label as ‘A2’.
6. Rotate the instrument by 180° and make a mark where the cross
meets target ‘B’, and label as ‘B2’.
7. Calculate (A1-A2)-(B1-B2) = E. If the absolute value of E is above
1/16″, the instrument accuracy is out of tolerance and calibration
is required.
Dot Accuracy
1. With the laser on its base and set on a flat platform, turn the
laser on.
2. Mark the down beam location and use this as your reference
point.
3. Locate the up beam and mark its point as ‘A’.
4. Rotate the laser (not moving the base) 180° by swiveling the laser
on its base and mark the up beam location as ‘B’.
5. Rotate the laser 90° and mark the up beam as ‘C’.
6. Rotate the laser 180° and mark the up beam as ‘D’.
Note: Do not move the base, and always have the down beam in
the same location.
7. Connect the four dots. Connect A to B, and C to D.
8. If the center point ‘E’ is more than 1/8″at 50′, or 1/16″at 25′
from points A, B, C, and D, the unit needs to be recalibrated.
3104i_Manuals 9/6/18 12:03 PM Page 15

16 ©2018 Johnson Level & Tool - Rev. 2
Checking the 3 Horizontal Beams
1. As shown in Fig. 1, set the instrument on a tripod or flat platform
50′from an upright wall. Aim the front beam at the face of the
wall. Mark the point projected on the wall by front beam as ‘A’.
2. Turn the instrument clockwise (Fig. 2) to make the point
projected by the right laser beam on the same exact line as point
‘A’, and then mark the point as ‘B’.
3. Turn the instrument clockwise (Fig. 3) to make the point
projected by the left laser beam on the same exact line as point
‘A’, and then mark the point as ‘C’.
4. The vertical distance between points A, B and C should not
exceed 0.125″(3.2mm).
5. If laser exceeds 1/8″at 50′, contact Johnson Level & Tool for
service.
Fig. 1 Fig. 2 Fig. 3
3104i_Manuals 9/6/18 12:03 PM Page 16

©2018 Johnson Level & Tool - Rev. 2 17
9. Technical Specifications
Laser Wavelength 635nm±10 (dots)
532nm±10 (lines)
Laser Classification Class IIIa
Maximum Power Output ≤5mW
Accuracy ±1/8″/50 ft.
Interior Range Up to 200 ft.
Detector range up to 75 ft.*
Self-Leveling Range ±4°
Power Supply 3 “AA” alkaline batteries (included)
Battery Life 20 hours
Dimensions 4.803″x 2.835″x 4.567″
Weight 5.164 lbs.
Operating Temperature 32º F to 104º F
Tripod Thread 5/8″– 11; 1/4″– 20
IP Rating IP 54
*With Johnson model 40-6763 Green Beam Laser Detector
(sold separately)
3104i_Manuals 9/6/18 12:03 PM Page 17

18 ©2018 Johnson Level & Tool - Rev. 2
10. Application Demonstrations
Piping
Tiling Plumb Walls Interior Layout
Transfer Reference Points Shelving
3104i_Manuals 9/6/18 12:03 PM Page 18

©2018 Johnson Level & Tool - Rev. 2 19
11. Troubleshooting Guide
Symptom
Will not turn on
Possible Cause
Batteries missing or
depleted
Polarity reversed
Solution
Change the batteries
Check polarity
Turns off after a
short time
Batteries depleted
Compensator lock may
be engaged
Change the batteries
Verify compensator is in
unlocked position
Flashing or Beeping Laser is beyond leveling
range
Laser is out of calibration
Place on surface within
4º of level
Perform calibration
check and calibrate
laser if needed
Laser is not accurately
reading plumb, level or
square
Compensator may be
locked
Laser is out of
calibration
Unlock compensator
Contact Johnson to
arrange calibration
3104i_Manuals 9/6/18 12:03 PM Page 19

20 ©2018 Johnson Level & Tool - Rev. 2
Symptom Possible Cause Solution
Laser light appears dim Pulse mode may be
engaged which makes
the beam detectable,
but dimmer
Batteries are weak
Improper battery type
Turn off pulse mode by
pressing “P” button until
line LED’s are solid
Replace batteries
Ensure high quality
Alkaline batteries are
used
Laser can not be
detected with a detector
(Note: detector is sold
separately)
Pulse mode may be off
Detector may require
new batteries
The detector may not be
the proper one for the
product
Trying to detect dot
lasers when dot laser
beams are not
detectable; only the
lines are detectable
Turn on pulse mode by
pressing “P” button until
line LED’s flash
Check and replace
detector battery
Validate detector is for
lines of the appropriate
wavelength
Do not attempt to detect
the dot laser, use the
line laser if possible
3104i_Manuals 9/6/18 12:03 PM Page 20
