JONARD TOOLS TEP-200 User manual

TEP-200
TONE TRACING PROBE+
INSTRUCTION MANUAL
RJ45 CABLE TEST MODE
1. Press the ON/MODE button to turn on the TET-700. Press it repeatedly until the yellow LED next to “RJ45”
illuminates.
2. Connect a RJ45 cable to the TET-700. Remove the remote terminator from the body of unit, connect it to the
other end of the RJ45 cable, and push SET/TEST button to test cable (Figures 4 & 5).
If the cable is open: The FAIL LED will illuminate, while the LEDs for any open pairs will be off.
If the cable is shorted: The wire pairs that are shorted will be indicated by flashing LED’s and the
Fail LED will light.
If the cable is good: All wire pair LED’s as well as the PASS LED will illuminate.
3. Power off the unit manually or it will power off automatically after 20 seconds if no other button is pressed.
TALK BATTERY MODE
1. Press the ON/MODE button to turn on the TET-700. Press the mode button repeatedly until the yellow LED next
to Talk/batt lights.
2. Using the red and black test leads, connect the TET-700 to two telephones (Figure 3). Using this mode will drain
the battery quickly, so the TET-700 should only be used for short intervals during this function.
(Figure 3)
(Figure 5)
CONTINUITY MODE
1. Press the ON/MODE button to turn on the TET-700. Press the mode button repeatedly until the yellow LED next
to “CONT” illuminates.
2. Using the red and black test leads, connect the TET-700 to the cable being tested and push the Set/Test button.
If the TET-700 detects continuity in the cable, the Pass and 7&8 LED’s will illuminate (Figure 6). If the TET-700
detects an open, the Fail LED will illuminate, and the 7&8 LED will blink.
(Figure 6)
(Figure 4)
3

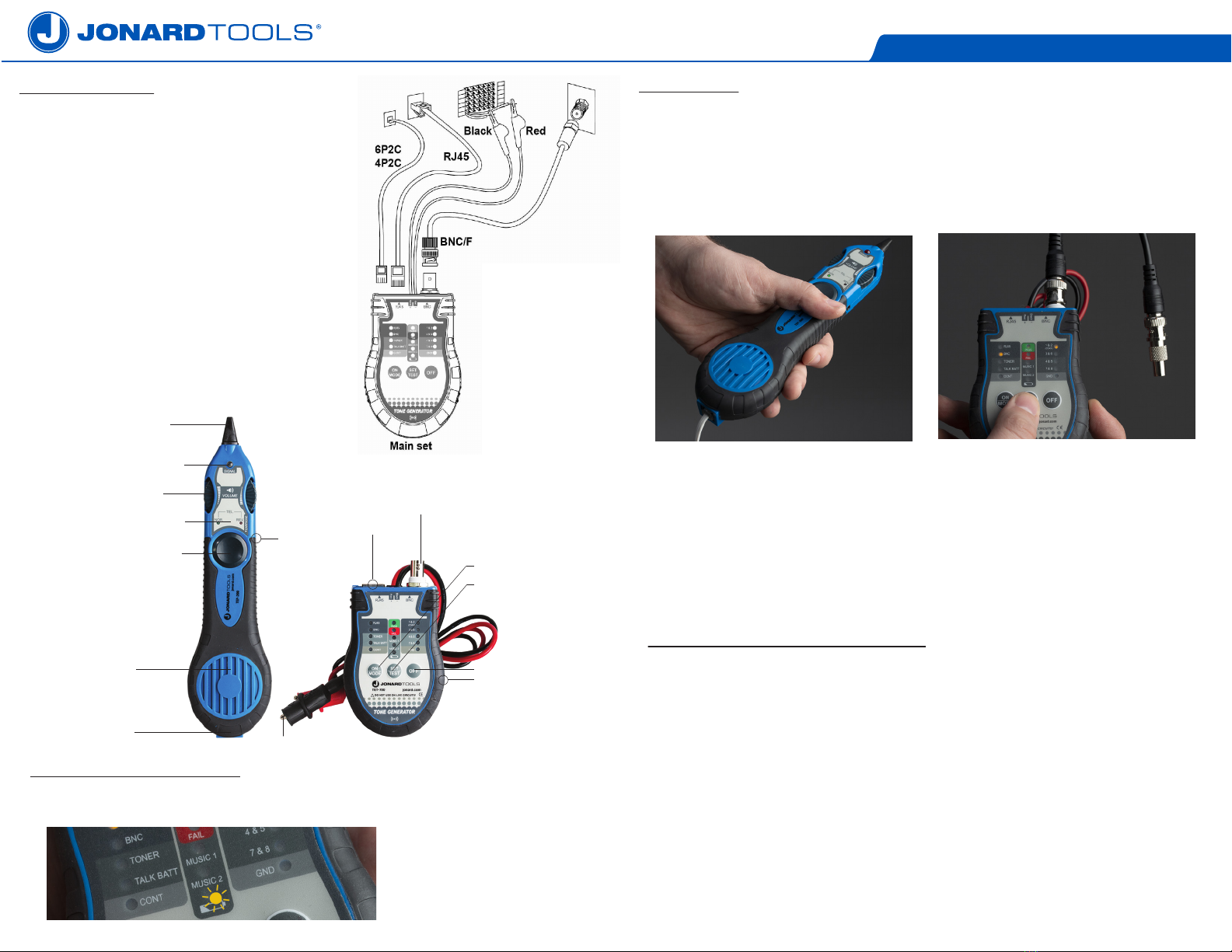

INTRODUCTION:
The TETP-900 is a multi-function cable tester tone and probe kit
consisting of:
• TEP-200 - Tone Tracing Probe+
•Traces wire paths via tone detection
•Checks polarity of many 6P2C/4P2C telephone jacks
•Plastic Probe Tip prevents accidental shorts
• TET-700 - Cable Tester & Toner+
•Tests the continuity of cables and generates tone for
identifying cables
•Perfect for use on RJ45, BNC, and F connectorized
coaxial, and other non-connectorized cables
•Provides talk power to telephones for testing
• TET-6 - Accessory Kit & (2) 9V Batteries
•Includes (2) BNC to F Connector Adapters, (1) 50 Ohm
BNC Terminator, (1) BNC Cable Jumper, (1) F
Connector Jumper, (1) RJ45 Cable Jumper, and
(1) Belt Clip
Plastic Probe Tip
Signal Strength LED
Volume Control
Polarity Check LED’s
Main Testing Button
Speaker
6P Jack
Earphone
Jack (2.5 mm)
8P Jack
BNC/F
Connector
ON/MODE Button
SET/TEST Button
Power Off Button
Remote Terminator
Red and Black Test Leads
jonard.com | TETP-900 Instruction Manual
1
LOW BATTERY INDICATION
1. If the battery power is low, the Low Battery indicator LED will start to blink. If this is the case, the battery
will need to be replaced.
HOW TO USE
TEP-200 - Tone Tracing Probe+
To use the TEP-200 for tone tracing, simply press and hold the Main Testing Button while tracing a wire to detect
tone. The louder the tone, the closer you are to the signal source. The Signal Strength LED will also illuminate
brighter as you get closer to the signal source.
To use the TEP-200 for checking the polarity of a 6P2C/4P2C telephone jack, see below:
1.
Using an RJ11 jumper (not supplied), connect it to a telephone jack and the RJ12 jack of the
TEP-200. (Figure 1) The TEP-200 will indicate if the polarity is correct by illuminating the “NOR” LED,
or if the polarity is reversed, it will illuminate the “REV” LED.
TET-700 - Cable Tester & Toner+
To use the TET-700 as a cable tester and toner, follow these basic instructions:
1. Press the ON/MODE button to turn on the unit. Press it repeatedly to change the mode and select the
function needed.
2. When a mode is selected, press the SET/TEST button to test. If you’re in TONER mode, press the
SET/TEST button to select the tone, either Music1 or Music2.
3. Press the OFF button to turn the unit off. Note the TET-700 has an auto off feature when in RJ45,
BNC, TALK BATT, CONT modes. When in TONER mode, you must press the OFF button to turn the
toner off.
For more detailed information, see the individual test method instructions.
2
BNC/F COAXIAL CABLE TEST MODE
1. Press the ON/MODE button to turn on the TET-700. Press it repeatedly until the yellow LED next to “BNC”
illuminates.
2.a. If you are testing a cable with BNC connectors:
1. Connect one end of the cable to the BNC port of the TET-700 (Figure 2).
2. Connect the other end of the cable to the 50-ohm BNC terminator.
NOTE: The cable will appear to fail if the 50-ohm BNC terminator is not connected while testing.
2.b. If you are testing a cable with an F connector:
1. Connect the BNC to F Adapter to the BNC port of the TET-700 and connect one end of the cable to
the F connector adapter.
2. If the other end of the cable is also an F connector, attach the other BNC to F connector to the end of
the cable. Once fitted, attach the 50-ohm BNC terminator to the end of this cable.
NOTE: The cable will appear to fail if the 50-ohm BNC terminator is not connected while testing.
3. Press the SET/TEST button and the Pass and 1 & 2 LED’s will illuminate (Figure 6).
4. If the cable fails, the FAIL LED will illuminate and the 1 & 2 LED’s will blink.
5. Power off the unit manually or it will power off automatically after 20 seconds if no other button is pressed.
(Figure 1) (Figure 2)
