Joovy Caboose S User manual

Instruction Manual
Manuel d’Instructions
Manual de Instrucciones
取扱説明書
사용 지침서
使用手册
9120
© Joovy 2020 • 200826
OPEN & ASSEMBLE

2

Table of Contents
English
Safety and Warnings ........................................................................................................................ 4
Assembly and Usage........................................................................................................................ 5
Additional Accessories..................................................................................................................... 7
Congurations .................................................................................................................................. 8
Customer Service............................................................................................................................. 9
Francais
Sécurité et Mise en Gardes............................................................................................................ 11
Assemblage et Utilisation............................................................................................................... 12
Accessoires Optionnels.................................................................................................................. 14
Congurations ................................................................................................................................ 15
Service à la Clientèle ...................................................................................................................... 16
Español
Securidad y Advertencias .............................................................................................................. 17
Ensamblaje y Uso........................................................................................................................... 18
Accesorios Opcionales................................................................................................................... 20
Conguraciones ............................................................................................................................. 21
Servicio al Cliente........................................................................................................................... 22
日本語
安全と警告 ...................................................................................................................................... 23
 ベビーカーの組立 ........................................................................................................................... 24
 オプションのアクセサリ ................................................................................................................... 26
 構成 ................................................................................................................................................ 27
 顧客サービス .................................................................................................................................. 28
한국어
 안전및경고 ...................................................................................................................................... 29
 유모차조립 ....................................................................................................................................... 30
 옵션액세서리 .................................................................................................................................... 32
 배치 ................................................................................................................................................. 33
 고객서비스 ....................................................................................................................................... 34
中文版
 安全和警告...................................................................................................................................... 35
 婴儿车装配...................................................................................................................................... 36
 选购附件 ......................................................................................................................................... 38
 配置 ................................................................................................................................................ 39
 客户服务 ......................................................................................................................................... 40

4
Safety and Warnings
IWARNING
Please read these instructions carefully before use and
keep them for future reference.
• For use ONLY on the Joovy Caboose S Stroller.
• ALWAYS install the infant car seat so that the child is
facing toward the rear (handlebar) of the stroller.
• ALWAYS position the infant car seat so that it securely
snaps into the infant car seat adapters.
• The infant car seat adapter is for use ONLY with specic
infant car seats. DO NOT use other infant car seat models
that are not in the Car Seat Compatibility List.
• This product is not a toy. DO NOT allow children to play
with it.
Please do not return this product to the store.
If you experience any of diculty with the assembly or use of this product, or if you have a question
regarding these instructions, please contact our Customer Service Department.
IMPORTANT NOTE
When using your stroller as an infant car seat, the following are the compatible infant car seat
models that the Caboose S will accommodate:
For the most updated list of compatible infant car seats,
please check our website at www.joovy.com.
Graco® SnugRide Click Connect 30
Graco® SnugRide Click Connect 35
Graco® SnugRide Click Connect 35 LX
Graco® SnugRide SnugLock 35 DLX
Graco® SnugRide Click Connect 40
Chicco® KeyFit
Chicco® KeyFit 30
Chicco® KeyFit 30 Magic
Chicco® KeyFit 30 Zip
Chicco® KeyFit 30 Zip Air
Chicco® Fit2 2-Year

5
Assembly and Usage
• To use the car seat adapter in the front position, rst ensure the front seat is removed.
• Line up the male brackets on the bottom of the car seat adapter with the female brackets on the
stroller frame. (1)
• Push down on both sides of the car seat adapter until both brackets click into place. (2) Pull up the
car seat adapter on both sides to ensure it is secured.
• The car seat can only face backward.
• Hold the car seat by the carry handle and lower the car seat onto the stroller so that the hook on
the rear of the car seat latches onto the car seat adapter. Pull up on car seat to ensure it is secure.
• To remove the car seat, pull the release lever (the same lever used to release the car seat from its
base) and lift up. (3)
• To remove the car seat adapter from the stroller, push the trigger on both side and pull it up o the
stroller. (4)
• To use the car seat adapter in the rear position, ensure the front seat is fully upright.
• Line up the male brackets on the bottom of the car seat adapter with the female brackets on the
stroller frame. (5)
• Push down on both sides of the infant car seat adapter until both brackets click into place. Pull up
on the infant car seat adapter on both sides to ensure it is secured. (6)
• The car seat can only face backward.
• Hold the car seat by the carry handle and lower the car seat onto the stroller so that the hook on
the rear of the car seat latches onto the car seat adapter. (7) Pull up on car seat to ensure it is
secure.
• To remove the car seat, pull the release lever (the same lever used to release the car seat from its
base) and lift up.
• To remove the adapter from the stroller, press the trigger on both sides. Pull up and remove. (8)
NOTE: The stroller can be folded with the car seat adapter installed in front position or rear
position when bench seat is not installed.

6
1
5
2
3 4
6
7 8

7
Additional Accessories
Customize your ride with a number of optional accessories for added functionality. All accessories
are sold separately.
Rear Seat
• 3 recline position
• High, middle or front positions
• Removable/machine-washable seat
fabric
Cup Holder
• Includes clear inner cup
• Deep cup holder
• Removable/dishwasher-safe
Car Seat Adapters
• Compatibility with 20+ car seats
• Click-in installation
• Rear-facing
• Front and rear positions
Rain Cover
• Custom t
• All-weather protection
• Vented
• Easy to install
Parent Organizer
• Large neoprene organizer
• Two Insulated cup holders
• 7 individual compartments; one
zippered pocket
Tote
• Largest tote, 14″ deep
• Carries up to 25 lbs.
• Four interior mesh pockets
• Rear position
• Easy click-in installation
• Easily removed and carried as an
independent tote
Handles
• Snap on handles
• Easy to install
• Front and rear facing adjustment
• Large holding area
Bassinet Adapters
• Required for bassinet use on front
position
Bassinet
• For use in the front position
• Ultra-soft interior and mattress pad
• Adjustable ventilated canopy
• Zippered cover
• Machine-washable mattress pad cover
• Birth to 20 lbs.
• Bassinet Adapters required

8

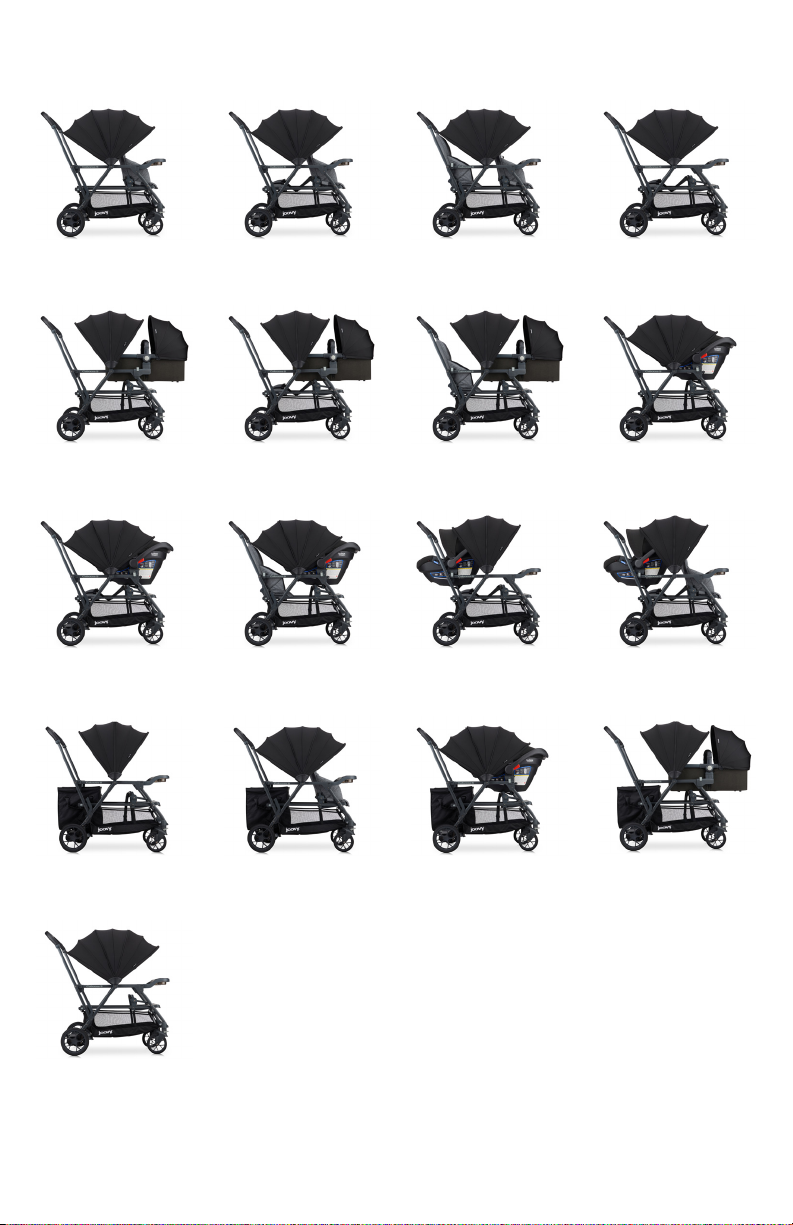

Congurations

9
Customer Service
Please do not return this product to the store.
If you experience any of diculty with the assembly or use of this product, or if you have a question
regarding these instructions, please contact our Customer Service Department:
United States
Joovy
[phone], 8:30 am – 5:00 pm Central Time
joovy.com LiveChat, 8:30 am – 9:00 pm Central Time
[e-mail]
Canada
Elfe Juvenile Products
[phone], 8:30 am – 5:00 pm Eastern Time
[email protected]
Korea
Joy Partners Limited Korea
(822) 2248-3384, 9:00 am – 6:00 pm GMT+9
@joovy
