23−inch high visibility display
Constaview™ digital signal processing
TEF™ multi-level target enhancement
Built-in high performance ECDIS mode for backup
Advanced LAN interfacing
– the new chart radar combines the features of JRC’s renowned radar systems with great chart graphics
Complies with IMO carriage requirements for vessels above
10.000 GT. and fully meets MSC 192(79) radar performance
standards eective from 1 July 2008 contained within IEC62388.
JMA-900B series
Chart radar system

JMA-900B series
– performance features
JMA-900B Chart radar – improved situation a
w
The new JMA-900B chart radar combines JRC’s
renowned radar and highly advanced ECDIS
technology, providing reliable performance and
signicantly improves situation awareness.
Unique features
Also, it is easy to active, deactivate
and switch between AIS target
symbols. This simply can be done
with an integrated AIS lter,
prioritising the targets within a
dedicated area.
The AIS is an important key device used to indicate AIS target symbol and information.
These targets are very useful, as it provides the maneuvering conditions of other ships
at a glance, allowing for safe and eective navigation. The name of the vessels, and
AIS targets
bearing, range, speed, length, heading
and much more AIS target specics from
other ships are received and displayed. The
AIS symbols are continuously displayed
on-screen without the inuence of the
radar characteristics. The AIS targets are
never shielded by ground, rain or cloud
reections, nor are they eliminated by
adjustments of anti-sea or anti-rain clutter.
120nm
1
24
3
1. vessels’ position
2. ring area
3. sector area
4. heading line
Other ship’s movement and speed can
be monitored from length and direction
of their trails, primary serving for collision
avoidance. The JMA-900B series integrate
three dierent trail length modes, that will
show a ship’s course instantly.
Select a trail length
1 min 3 min 6 min 10 min
The second generation and patented
Constaview™ is realised through the use
of two high-speed processors (in-house
Tornado™ technology). All info gathered
by the radar is fully processed within
a few milliseconds before displayed,
generating a smooth image rotation
when sailing in Head-Up mode. When
changing to North-Up, the new radar
image is displayed without any delay
caused by the scanner rotation.
Constaview™
Constaview™ in JMA-900B
Constaview™ works in radar mode. In chart-radar mode,
radar images are displayed with regular intervals.
Constaview™
Conventional
Radar
sweep
Redrawing
True Trails
Constaview™ refreshes the image
every 16mS. Despite heading
changes trails are always true.
Relative Trails
Traditional technology relies on several
sweeps of the scanner to redraw the
image. Trails are presented as relative.

JMA-900B series
– developed for maximum ease of use
w
areness
Advanced route planning
Editing the user maps
The advanced nature of JRC’s new chart radar system allows route
planning in dierent ways. Either plan your route by using the table
editor, while displaying current waypoint or graphically draw your
next waypoint on the chart. Editing the route is just as simple as
inserting. Dedicated menus are readily available to assist the mariner
in eective route planning. Not only can you save the routes, but
import favourite or commonly used les, even from previous ECDIS
models, using industry standard CSV format.
During the voyage, you can add an alternative route, which can
be displayed simultaneously. You can move, insert, add and delete
waypoints instantly and easily exchange the alternative route with
route in progress, at your own convenience.
Interswitching
Optional interswitching to JMA-900B and JMA-9100 series radar.
JRC also produces special interswitch boxes that allow interswitching up to 8 (chart) radars.
with optional I/S PCB
Route planning with table editor
while displaying waypoints
user map 2user map 1
chart chart
merge
The new JMA-900B chart radar provides a rich suite of objects which you single-handedly can enter,
move, insert and add on user maps. The objects consist of symbols, lines, areas and texts. From buoys to
buildings and harbour to seabed signals, the ECDIS system has a total of over 40 categories and 30
sub-categories, which include more than 250 graphics readily available for endless possibilities.
warning shing harbour sand wavesdangerous wreck - unknown depth
jurisdiction border warning area large font
Multiple and wide screen viewing is possible with the new JMA-900B. You can divide the chart screen into
two sections, in which the same or dierent charts can be displayed. There is also a‘look-ahead’ capability,
especially useful in coastal areas. With the wide screen view function, an additional screen in the display
area shows a segment of the chart, allows viewing at a glance.
Multi-view
A few examples

JMA-900B series
– easy user interface
Honolulu
San Diego
Los Angeles
Houston
Chicago
Toronto
New York
Miami
St. John’s
Havana
Panama
Lima
Guayaquil
Talchuano
Buenos Aires
Reykjavik Torshavn
Belfast
London
Le Havre
Lisbon
Las Palmas
Dakar
Abidjan
Cape Town Durban
Richards Bay
Madrid
Rome
Tunis Athens
Istanbul
Limassol
Alexandria
Haifa
Dubai
Mumbai
Columbo
Vladivostok
Tokyo
Pusan
Shanghai
Taipei
Manila
Hanoi
Hong Kong
Bangkok
Kuala Lumpur
Singapore
Jakarta
Suva
Brisbane
Sydney
Melbourne Auckland
Egersund Lund Tallinn
Helsinki
Amsterdam
Rotterdam
Antwerp
Rio de Janeiro
San Francisco
Seattle
Vancouver
JRC has been providing sales and support of products since 1915. Today, JRC oers comprehensive assistance
through its organisation, in partnership with a worldwide StarNetwork™ of over 270 fully trained and qualied
partners and agents, assisting you 24 hours a day, 7 days a week and 365 days a year.
JRC StarNetwork™
JRC one-call™
One number to call
With JRC you can go anywhere and
if you need our support, simply call us
at [phone], anytime.

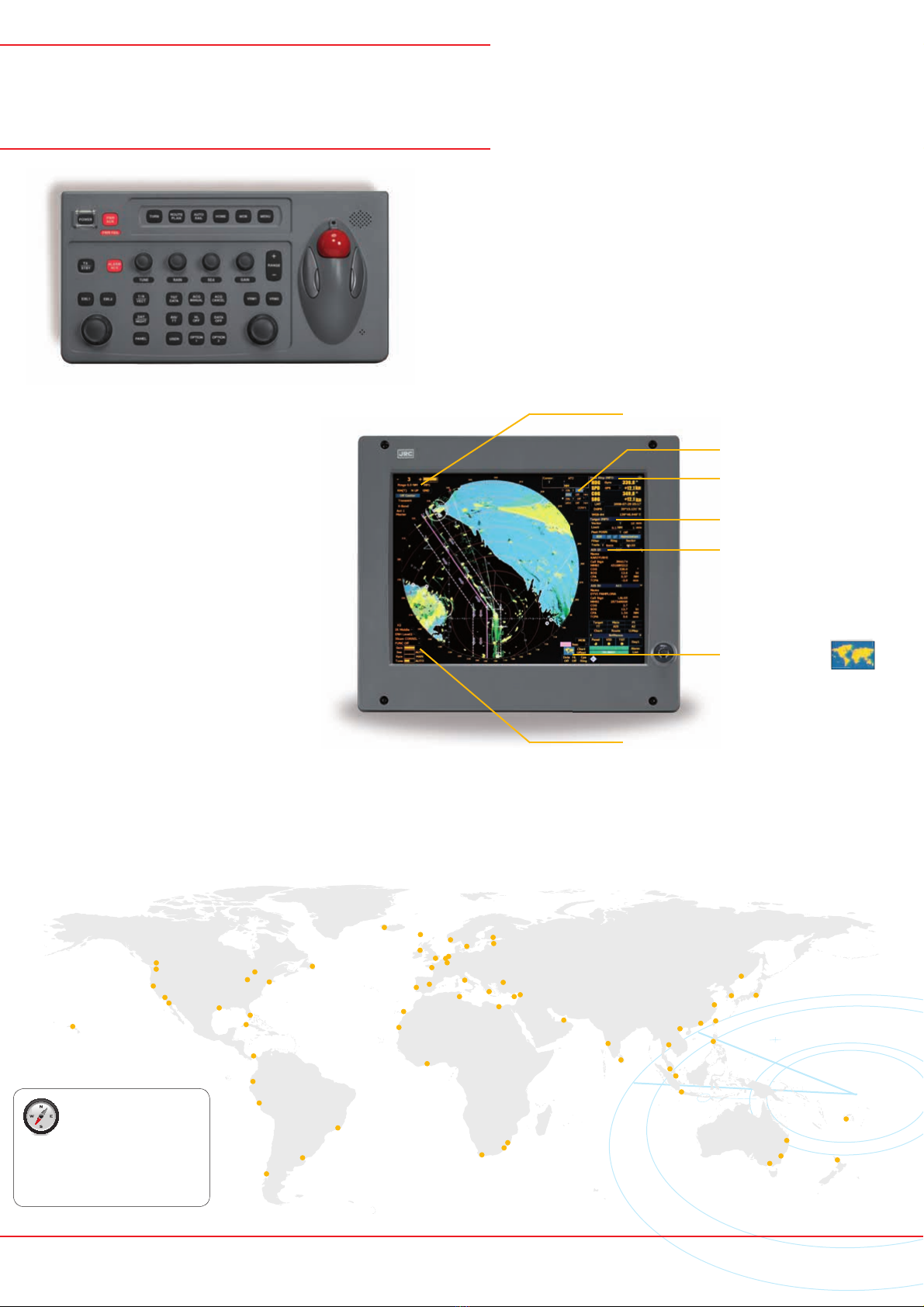

The new keyboard design of the JMA-900B allows you to carry
out all operations simply by using the keyboard or on-screen by
use of the trackball.
The JMA-900B keyboard is solid and responsive, which allows for
precise operation. It also integrates function keys for one-touch
access to EBL, VRM, GAIN, SEA and RAIN. This makes it easy to
navigate through all common used tasks.
New keyboard design
Own ship info
The JMA-900B series make your
images more brilliant than ever with
a sharp 23-inch high resolution LCD
display.
Menu selections, via the keyboard
or trackball are clearly shown on
the display - allowing at a glance
interpretation of the display image.
You can also select from multiple
background modes in day, dusk, and
night mode, and you can adjust the
brilliance at your own convenience.
Clear on-screen info
Menu and digital info
Display chart
Target tracking & AIS info
Cursor/marker info
Sensor info
Signal processing info

JMA-900B series
– system exibility
Wide dynamic range receiver
Flexible installation approach
The JMA-900B series are available in standalone and desktop version,
designed for a exible installation approach to suit your type of vessel.
The desktop version consists of a processor, dedicated keyboard and
high visibility LCD display, sharing the same simple conguration as it
predecessor, which contributes to enhanced system conguration.
The new chart radar series integrates a wide dynamic range receiver
that, compared to conventional models, dramatically improves the
dierentiation of noise and targets under sea clutter. The radar system
overcomes dierent sources of unwanted signals, maintaining a
constant level of clutter suppression.
User interface
The insightful and simple menu structure can be found on both radar and
ECDIS. The consistent visual appeal and intuitive usage is of great importance
on the vessels bridge, especially being a working and living environment for
thousand of vessels’ ocers on a day to day base.
What’s standard in the box?
JRC sets the highest standards for performance and exibility. With our new JMA-900B series, you have a set of
choices to select from, allowing you to‘congure’your favoured chart radar system. This makes it ideal for your
preferred installation approach.
Scanner to display 40 m (standard)
Cable type 1
Scanner to transceiver alternative 20 m or 30 m
Scanner to transceiver (waveguide) alternative 20 m or 30 m
Transceiver to display 35 m (standard)
Cable type 2
Scanner to transceiver 30 m (standard)
Scanner to transceiver (waveguide) 30 m (standard)
Transceiver to display 35 m (standard)
(!) The maximum total length for cable (scanner to display) must not exceed 65 m.
Cable type 3
JMA-922B-6XA JMA-922B-9XA JMA-923B-7XA JMA-923B-9XA JMA-932B-SA JMA-933B-SA
Unit type 2323
Transmitting power 25kW 30kW
Frequency X-band S-band
Version Available in desktop and standalone version
Cable type 1 2, 3 1 3
Saturation of noises
on receiver
ECDIS
Radar
Wide dynamic
range

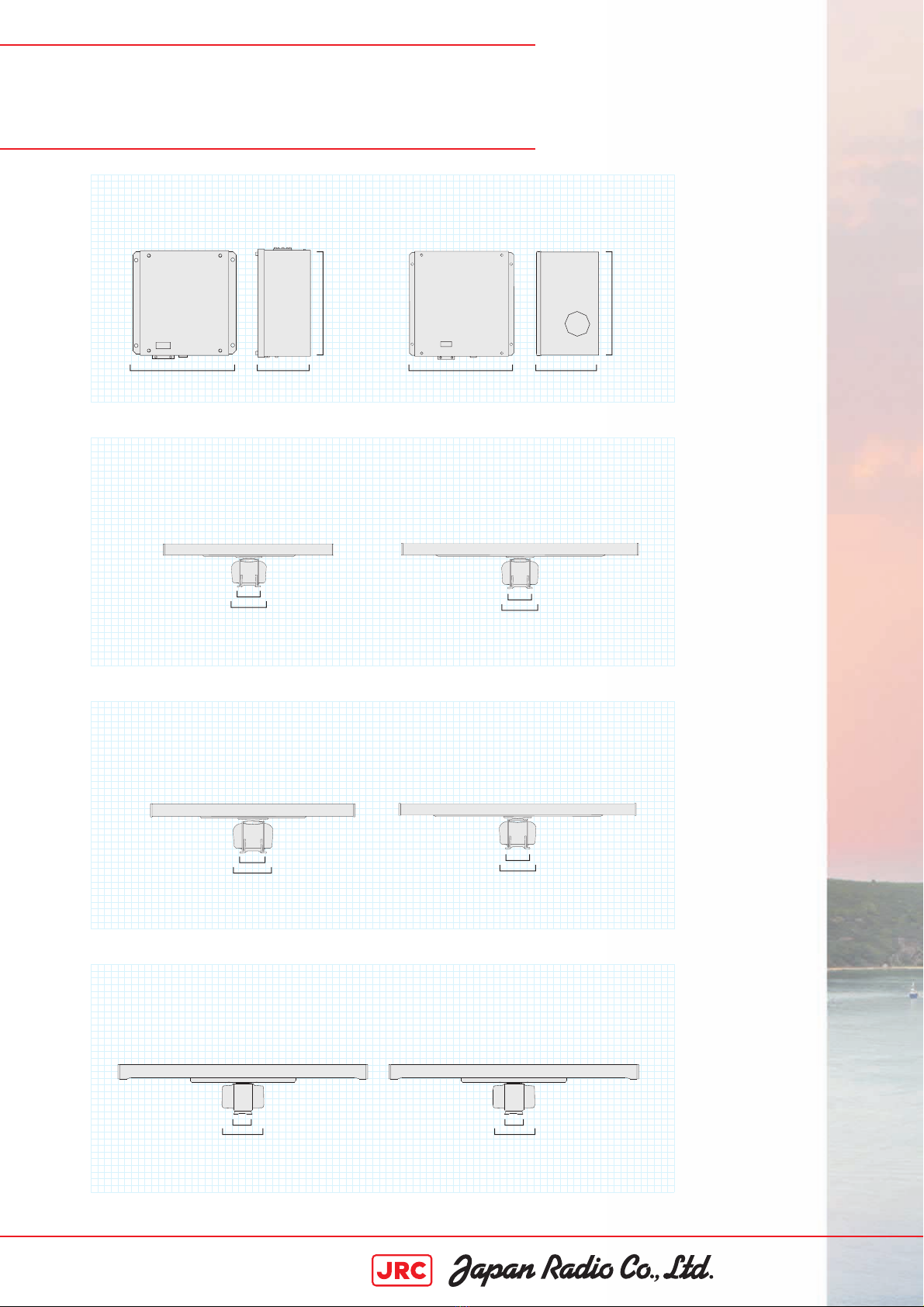

Dimension drawings - Stand alone version
JMA-900B series
– dimensions and mass
Dimension drawings - Display in desktop version
NCD-2096 MASS 150 kg
700 mm
575 mm
200 mm
325 mm
515 mm
1145 mm
335 mm
NWZ-170-E MASS 25 kg
cutout for panel mount height 344,5 mm, width 485 mm, depth 80 mm
485 mm
606 mm 463 mm
505 mm
NCE-5163-F MASS 3,5 kg
210 mm
400 mm
52 mm
Dimension drawings - Keyboard in desktop version
Dimension drawings - Processor in desktop version
23”
NDC-1444 MASS 85 kg
575 mm
515 mm576 mm

JMA-900B series
– dimensions and mass
Dimension drawings - Transceivers for 3-unit types
NTG-3230 s-band MASS 33 kg NTG-3225 x-band MASS 15 kg
460 mm
461 mm
615 mm
615 mm
365 mm227 mm
Dimension drawings - 25kW X-band scanner
Dimension drawings - 30kW S-band scanner
NKE-1139 3-unit type MASS 150 kg
320 mm
660 mm
Swing circle 4000 mm
NKE-1129-9 3-unit type MASS 53 kg
NKE-1130 MASS 180 kg
Swing circle 4000 mm
320 mm
660 mm
Swing circle 2825 mm
290 mm
458 mm
NKE-1125-9 MASS 60 kg
NKE-1129-7 3-unit type MASS 51 kg
Swing circle 2270 mm
290 mm
458 mm
Swing circle 2825 mm
290 mm
458 mm
NKE-1125-6 MASS 55 kg
Swing circle 1910 mm
290 mm
458 mm
Dimension drawings - 25kW X-band scanner

2009.4 2009.4 CAT.No.Y9-170 (No.680-1-3)D Printed in Japan
JMA-900B series
– specications
Model JMA-922B-6XA JMA-922B-9XA JMA-923B-7XA JMA-923B-9XA JMA-932B-SA JMA-933B-SA
IMO compliant
Unit type 2-unit type 1) 3-unit type 2-unit type 2) 3-unit type
Performance monitor NJU-85 NJU-84
Frequency X-band S-band
Display colour raster scan PPI
Scanners
Model NKE-1125-6 NKE-1125-9 NKE-1129-7 NKE-1129-9 NKE-1130 NKE-1139
Antenna length 6ft. 9ft. 7ft. 9ft. 12ft. 12ft.
Transmitting power 25kW 30kW
Transmitting frequency 9410MHz ± 30MHz 3050MHz ± 20MHz
Beam width 3db Hor. 1.2°, Ver. 20° Hor. 0.8°, Ver. 20° Hor. 1.0°, Ver. 20° Hor. 0.8°, Ver. 20° Hor. 1.9°, Ver. 25° Hor. 1.9°, Ver. 25°
Rotation speed 24rpm 24rpm
Pulse width (receive freq.) 0.07µs/2250Hz, 0.2µs/2250Hz,
0.3µs/1900Hz, 0.4µs/1400Hz,
0.8µs/750Hz,
1.0µs/650Hz,
1.2µs/510Hz
Duplexer circular + diode limiter
circular + TRHPL
Range scale 0.125/0.25/0.5/0.75/1.5/3/6/12/24/48/96 NM
Tuning automatic / manual
Ambient condition temperature
- 25° to +55°C (PM: temperature - 15° to +55°C), relative humidity 0% to 93% non-condensing
Chart radar display unit
LCD 1600 by 1200 pixels (UXGA)
Eective diameter ≥ 320mm
Bearing indication north-up / course-up / head-up
Presentation mode RM display with true trails, RM display with relative trails, TM display
Range resolution <30 m
Minimum detective range <40 m
Bearing accuracy <1°
Chart database vector: ENC S-57 Ed3.0/3.1, S-63 (security scheme), C-Map Ed.3 3) raster: ARCS navigator/skipper service
Trail indication 3 stages: short, middle, long (e.g. short: o /0.25/0.5/1/3/6/10/15-min)
Navigation lines 20.000 points
O center 60% radius of PPI
AIS targets 300 (activated + sleeping)
ARPA tracking numbers 100
Ambient condition temperature
- 15° to +55°C, relative humidity 0% to 93% non-condensing
Antenna cable (max length 65 m) H-2695110056 H-7AWRD0003/4 (20/30 m)
5) H-2695110056 H-2695110056 HF-20D (30 m) 5) H-2695110056
Power supply (voltage) 4) 110V AC (100V to 115V AC), 230V AC (220V to 240V AC), 50/60Hz, 1Ø
Power consumption (at max wind load) avg 550VA, max 1900VA avg 600VA, max 2200VA
Optional items
Lightproof hood (display) MPOL30345A
Canvas cover (display) MPXP33089
Mini keyboard MPXP33223A
Gyro interface kit MPXP34120
Interswitch NQE-3141-4A (4 units), NQE-3141-8A (8 units)
All specications are subject to change without notication.
1) Separate transmitter receiver: NTG-3225 2) Separate transmitter receiver: NTG-3230
3) Available at ECDIS mode only 4) Specify power supply input for drive motor upon ordering
5) Require two cables for 3-unit type (display - transceiver / transceiver - scanner)
v v vv v v
