JUKI LZ-2290A-SR/IP-110D/SC-916 User manual

ENGLISH
LZ-2290A-SR / IP-110D / SC-916
INSTRUCTION MANUAL
* "CompactFlash(TM)" is the registered trademark of SanDisk Corporation, U.S.A.

i
1. NAME OF EACH COMPONENT .................1
2. SPECIFICATIONS........................................2
2-1.Specicationsofthemachinehead .............2
2-2.Specicationsoftheelectricalbox ..............2
3. STITCH PATTERN TABLE ..........................3
3-1. Initial value of
the stitch pattern and the table .....................4
4. INSTALLATION............................................6
4-1. Installation of the sewing machine head .....6
4-2. Removing the needle bar stopper ................7
4-3. Attaching the knee-lifter ................................7
4-4. Adjusting the height of the knee lifter..........7
4-5. Installing the electrical box ...........................8
4-6. Connecting the power switch cord
(Japan and general export area) ...................8
4-7. Installing the operation panel (IP-110 (D))....8
4-8. Connecting the cords ....................................9
(1) Preparation of wiring .........................................9
(2) Connecting the connectors ............................ 10
4-9. Attaching the connecting rod......................14
4-10. Adjustment of the pedal.............................15
4-11. Installing the thread stand.........................15
4-12. Installing the bird’s nest prevention
(CB) type sewing machine...........................15
4-13. Lubrication..................................................17
4-14. Test run .......................................................18
(1) Turn ON the power......................................... 18
(2) How to operate the pedal............................... 18
5. PREPARATION BEFORE SEWING ..........19
5-1. Inserting the needle ....................................19
5-2. Removing the bobbin case..........................19
5-3. Winding the bobbin thread..........................19
5-4. Placing the bobbin case and the bobbin ...20
5-5. Threading the machine head.......................21
5-6. Adjusting the stitch length ..........................21
5-7. Adjusting the condensation stitching ........21
6. HOW TO USE THE OPERATION PANEL ......22
6-1. Names and functions of
the respective sections................................22
6-2. Before setting the pattern............................24
(1) Limitation of the max. zigzag width ................ 24
(2) Setting the reference of stitch base line......... 26
(3) Setting the feed amount................................. 27
6-3. Basic screen ................................................28
6-4. List of the display pictographs of
each screen...................................................29
6-5. Setting the sewing pattern ..........................52
(1) Selecting the zigzag pattern .......................... 52
6-6. Setting of the sewing shape........................54
(1) 2-step zigzag,
3-step zigzag and 4-step zigzag stitch........... 54
(2) Scallop stitching ............................................. 56
(3) Blind stitch sewing ......................................... 59
(4) Custom pattern stitching ................................ 60
(5) T stitch, left..................................................... 61
(6) T stitch, right................................................... 62
(7) Pattern 1 ........................................................ 64
(8) Pattern 2 (fagoting) ........................................ 65
(9) Pattern 3 ........................................................ 67
(10) Pattern 4 ...................................................... 69
6-7. Setting of the number of rotations .............71
6-8. Reverse feed stitching .................................71
(1) Standard condensation .................................. 72
(2) 2-point condensation...................................... 74
(3) Condensation custom .................................... 75
(4) Comparision table of
the reverse stitch of each shape.................... 76
6-9. Selection of the kind of stitching................77
(1) Overlapped stitching ...................................... 77
(2) Programmed stitching .................................... 78
6-10. Custom pattern...........................................80
(1) Custom pattern setting................................... 80
(2) New creation of the custom pattern .............. 81
(3) Custom pattern edit........................................ 82
(4)
Pattern sewing registration,
custom pattern copy and
custom pattern deletion of the custom pattern
... 82
6-11. Condensation Custom ...............................84
(1) Condensation custom setting......................... 84
(2) Condensation custom edit ............................. 85
6-12. Pattern stitching .........................................87
(1) Setting the pattern stitching ........................... 87
(2) Registering the pattern stitching .................... 89
(3) Copy and deletion of the pattern stitching...... 89
6-13. Continuous stitching .................................91
(1) New creation of the continuous stitching ....... 91
(2) Continuous stitching edit................................ 92
(3)
Copy and deletion of the continuous stitching ... 94
6-14. Cycle stitching............................................95
(1) New creation of the cycle stitching................. 95
(2) Cycle stitching edit ......................................... 95
(3) Copy and deletion of the cycle stitching......... 97
(4) Teaching......................................................... 98
(5) Performing the constant-dimension stitching
using the cycle stitching................................. 99
6-15. Counter........................................................99
(1) Thread trimming counter................................ 99
(2) Bobbin thread counter.................................... 99
6-16. Information................................................100
(1) Sewing common data .................................. 101
(2) Sewing management information ................ 103
(3) Communication mode .................................. 106
6-17. Setting for functions ................................110
(1) How to change over to
the function setting mode..............................110
(2) Function setting list ......................................113
(3)
Detailed explanation of selection of functions ..117
6-18. External interface ....................................122
(1) Compact ash slot ....................................... 122
(2) RS-232C port ............................................... 122
(3) General input port (Production control switch
connecting connector) ................................. 122
7. SEWING...................................................123
7-1. Adjusting the thread tension.....................123
7-2. Adjusting the pressure of
the presser foot ..........................................124
7-3. One-touch type reverse feed stitching
mechanism..................................................124
7-4. Pattern 2 (fagoting) sewing .......................125
7-5.Hand switch .................................................126
CONTENTS

ii
8. STANDARD ADJUSTMENT ....................127
8-1. Adjusting the amount of oil in the hook ..127
8-2. Adjusting the amount of
lubricating to face plate section ...............127
8-3. Adjusting the height of the presser bar ...128
8-4. Adjusting the micro-lifting
mechanism of the presser foot .................128
8-5. Height and inclination of the feed dog .....128
8-6. Hook adjusting mode.................................129
8-7. Attaching / removing the hook..................130
8-8. Adjusting height of the needle bar ...........131
8-9. Adjusting the needle-to-hook timing
and the needle guard .................................131
8-10. Adjusting the stop position of
the needle....................................................132
8-11. Adjusting the thread trimmer ..................132
8-12. Adjusting the needle thread
feeding device ............................................133
8-13. Adjusting the bird's nest prevention
(CB) type wiper ...........................................134
8-14. Replacing procedure of the bird’s nest
prevention (CB) type presser knife...........135
9. MAINTENANCE.......................................136
9-1. Replacing the power fuse..........................136
9-2. Adjusting the contrast of
the operation panel display.......................137
9-3. Draining
(Bird’s nest prevention (CB) type only)....137
9-4. Cleaning the dust bag
(Bird’s nest prevention (CB) type only)....137
9-5. Cleaning the cooling fan installed on the
under cover.................................................138
9-6. Cleaning the hook section.........................138
9-7. Cleaning the rear cover of
the control box ...........................................138
9-8. Cleaning the operation panel screen ......138
9-9. Replacing procedure of
the hook shaft oil wick...............................139
9-10. Applying the exclusive grease................139
10. AT A TIME LIKE THIS !..........................140
11. ERROR DISPLAY...................................141
11–1. Error code list (Error display in panel) ...142
12. TROUBLES AND CORRECTIVE
MEASURES.............................................146

1
1. NAME OF EACH COMPONENT
1Needle thread draw-out device 8Knee lifter lever !5 Oil supply opening
2Wiper switch 9Power switch !6 Mirror inversion switch
3Thread take-up cover !0 Hand switch !7 Reverse feed control lever
4Finger guard !1 Control panel
5Thread tension controller (Rotary tension) !2 Bobbin winder
6Electrical box !3 Tension controller No.1
7Pedal (Pre-tension)
!4 Thread stand
4
32!2
!1
!3
!4
!5
o
q
t
!0
i
y
u
!6
!7

2
2. SPECIFICATIONS
2-1. Specications of the machine head
* 1. The max. sewing speed is set to 4,000 sti/min at the time of delivery (depending on the delivery area).
•The speed is limited by setting of the zigzag width of the sewing pattern and feed amount since the
speed is controlled by the amount of zigzag width per stitch and feed amount.
•Properly set the number of revolution in accordance with the product to be sewn and process.
* 2. Max. zigzag width is limited to 8 mm at the time of standard delivery.
For CE
For general export
For JUS
2-2. Specications of the electrical box
Model Minute-quantity
lubricating type LZ-2290A-SR-7-WB LZ-2290A-SR-7-CB
Application Light-weight materials to medium-weight materials
Max. sewing speed 5,000 sti/min (*1)
Max. zigzag width 10 mm (*2)
Max. feed pitch 5 mm (normal/reverse feed)
Stitch pattern 14 kinds 20 patterns
Needle SCHMETZ 438 #75 (Needle at the time of delivery)
Oil used JUKI New Defrix Oil No. 1
Thread trimmer With
Feed method Standard feed (Computer controlled system)
Wiper method Front sweeping method Side sweeping method
Thread clamp method ——— Air clamp method
Noise
- Equivalent continuous emission sound pressure level (LpA) at the workstation:
A-weighted value of 80 dB; (Includes KpA = 2.5 dB);
according to ISO 10821- C.6.2 -ISO 11204 GR2, at 4600 sti/min.
Supply voltage Single phase 200V / 220V / 240V 3-phase 200V / 220V / 240V
Frequency 50 Hz / 60 Hz
Electric power 600VA
Operating environment Temperature : 0 to 40˚C Humidity : 90% or less
Supply voltage Single phase 220V / 230V / 240V
Frequency 50 Hz / 60 Hz
Electric power 600VA
Operating environment Temperature : 0 to 40˚C Humidity : 90% or less
Supply voltage Single phase 100V / 110V / 120V 3-phase 200V / 220V / 240V
Frequency 50 Hz / 60 Hz
Electric power 600VA
Operating environment Temperature : 0 to 40˚C Humidity : 90% or less

3
3. STITCH PATTERN TABLE
Name of pattern Stitch
pattern
Number of stitches
for pattern
Max.zigzag
width Remarks
Straight stitch 1____
2-step zigzag stitch 2
10
3-step zigzag stitch 4
4-step zigzag stitch 6
Scallop
(right)
Standard
scallop
24
Crescent
scallop
Equal-width
scallop
Equal-width
scallop 12
Scallop
(left)
Standard
scallop
24
Crescent
scallop
Equal-width
scallop
Equal-width
scallop 12
Blind stitch (right) a
2 + a
Blind stitch (left) a
Custom pattern —— 500
T stitch (left)
3
T stitch (right)
Pattern 1
6
Pattern 2 (fagoting)
Pattern 3
Pattern 4

4
3-1. Initial value of the stitch pattern and the table
1 2 3 4 5 6 7 8 9 10 11 12 13
Straight stitch 2-step zigzag
stitch
4-step zigzag
stitch
3-step zigzag
stitch
Scallop 24
stitches
Scallop 12
stitches Blind stitch
Custom pattern T stitch Pattern 1 Pattern 2
(Fagoting) Pattern 3 Pattern 4
Standard scallop
Crescent scallop
Equal-width scallop
Equal-width scallop
(Left)
(Right)
a
a
———
(Right)
(Left)
Zigzag width
—— 4.0 8.0 6.0 8.0 8.0 3.0 —— 3.0 6.0 6.0 6.0 6.0
Normal feed
amount
2.0 1.5 1.0 1.0 0.5 0.8 1.5 —— 2.5 2.5 1.6 2.1 2.0
Reverse feed
amount
0.0 0.0 0.0 0.0 0.0 0.0 0.0 —— 0.0 0.0 - 2.0 2.4 - 2.0
Number of
stitches —— —— —— —— —— —— 4 —— —— —— —— —— ——
Related input
P. 31, 54,
55
P. 32, 54,
55
P. 32, 54,
55
P. 32, 54,
55
P. 32, 33,
56, 57, 58,
101, 102
P. 32, 33,
56, 57, 58,
101, 102
P. 34, 59 P. 45, 60,
80, 81, 82,
83, 98, 99,
101, 102
P. 35, 36,
37, 38, 61,
62, 63
P. 37, 38,
64, 65
P. 39, 40,
65, 66, 67
P. 41, 42,
67, 68
P. 43, 44,
69, 70
Related
mechanical
adjustment
P. 126 P. 126 P. 125
Remarks
There are
cases where
the stitch
shapes are not
stabilized in
case of some
patterns which
frequently
repeat normal
and reverse
feed stitching.
Use the
machine at
the sewing
speed of
approximately
2,000 rpm.

5

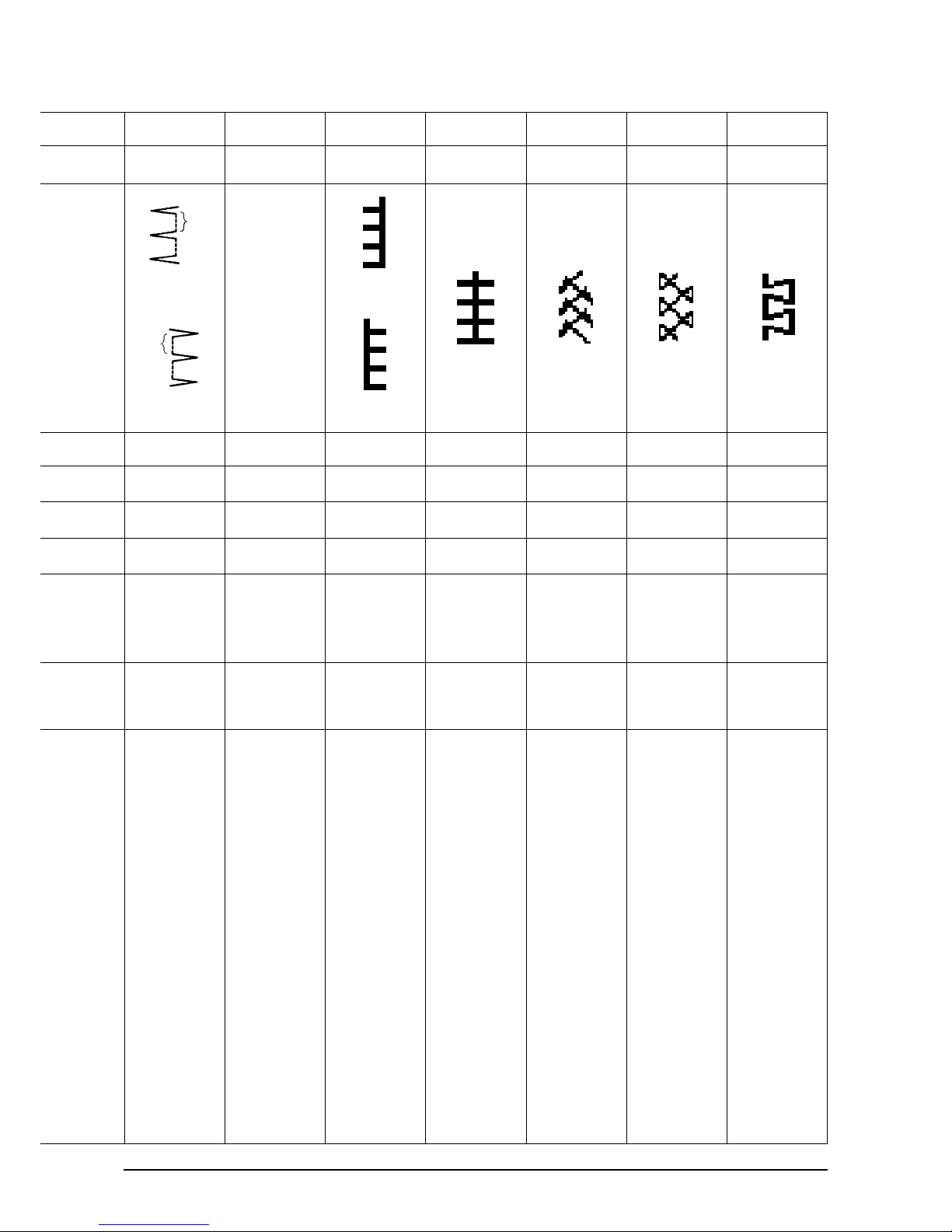

1 2 3 4 5 6 7 8 9 10 11 12 13
Straight stitch 2-step zigzag
stitch
4-step zigzag
stitch
3-step zigzag
stitch
Scallop 24
stitches
Scallop 12
stitches Blind stitch
Custom pattern T stitch Pattern 1 Pattern 2
(Fagoting) Pattern 3 Pattern 4
Standard scallop
Crescent scallop
Equal-width scallop
Equal-width scallop
(Left)
(Right)
a
a
———
(Right)
(Left)
Zigzag width
—— 4.0 8.0 6.0 8.0 8.0 3.0 —— 3.0 6.0 6.0 6.0 6.0
Normal feed
amount
2.0 1.5 1.0 1.0 0.5 0.8 1.5 —— 2.5 2.5 1.6 2.1 2.0
Reverse feed
amount
0.0 0.0 0.0 0.0 0.0 0.0 0.0 —— 0.0 0.0 - 2.0 2.4 - 2.0
Number of
stitches —— —— —— —— —— —— 4 —— —— —— —— —— ——
Related input
P. 31, 54,
55
P. 32, 54,
55
P. 32, 54,
55
P. 32, 54,
55
P. 32, 33,
56, 57, 58,
101, 102
P. 32, 33,
56, 57, 58,
101, 102
P. 34, 59 P. 45, 60,
80, 81, 82,
83, 98, 99,
101, 102
P. 35, 36,
37, 38, 61,
62, 63
P. 37, 38,
64, 65
P. 39, 40,
65, 66, 67
P. 41, 42,
67, 68
P. 43, 44,
69, 70
Related
mechanical
adjustment
P. 126 P. 126 P. 125
Remarks
There are
cases where
the stitch
shapes are not
stabilized in
case of some
patterns which
frequently
repeat normal
and reverse
feed stitching.
Use the
machine at
the sewing
speed of
approximately
2,000 sti/min.

6
Installing the under cover
1) The under cover should rest on the four corners
of the machine table groove.
2) Fix two rubber seats 1on side A(operator’s
side) using nails 2as illustrated above. Fix two
cushion seats 3on side B(hinged side) using a
rubber-based adhesive. Then place under cover
4 on the xed seats.
3) Remove air vent cap 5attached to the machine
bed. (Be sure to attach cap 5when transporting
the machine head in the state that the machine
head is removed from the machine table.)
If the sewing machine is operated
without removing air vent cap 5, oil
leakage from gear box portion 7may
occur.
4) Fit hinge 1into the opening in the machine bed,
and t the machine head to table rubber hinge 8
before placing the machine head on cushions 3
on the four corners.
5) Attach head support rod 6to the machine table.
4. INSTALLATION
4-1. Installation of the sewing machine head

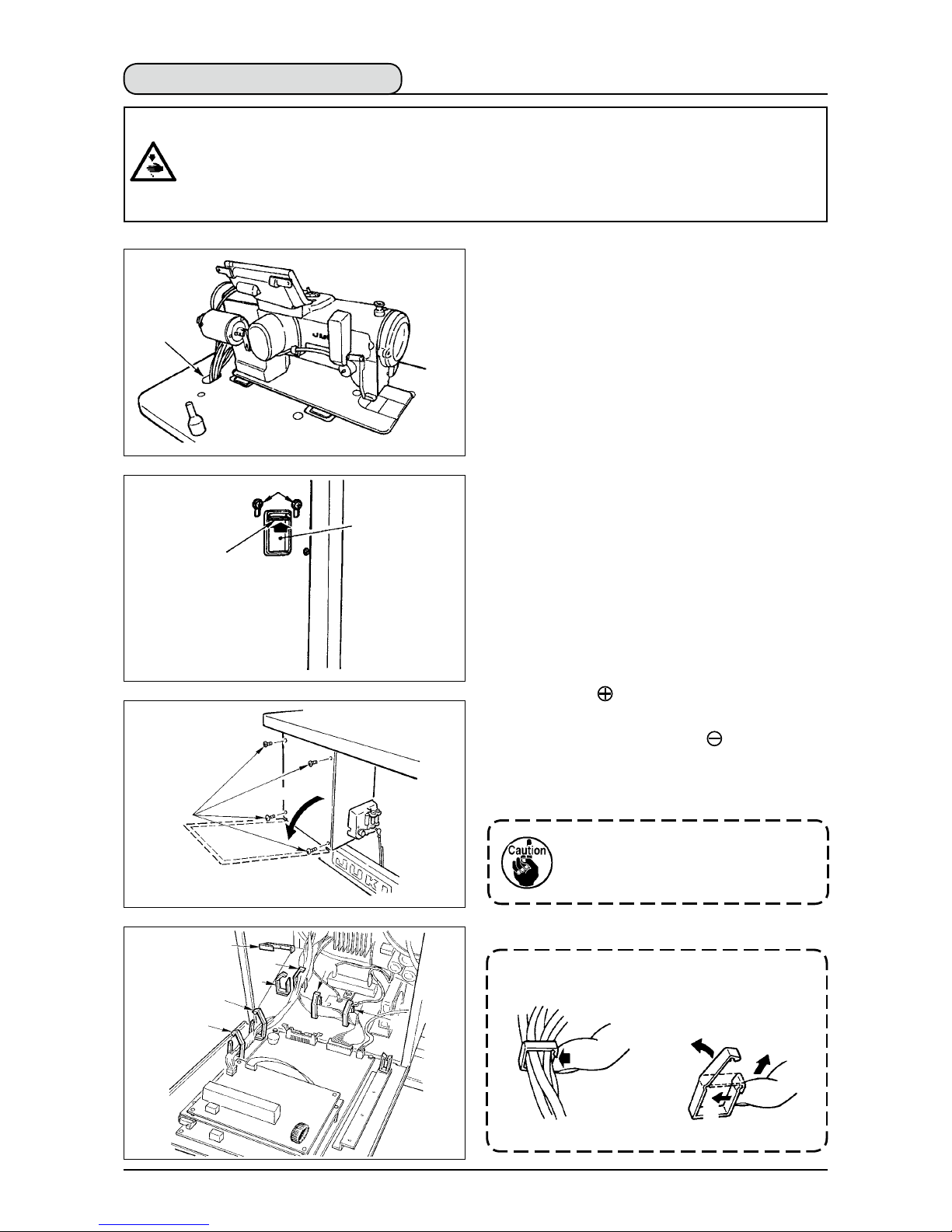

WARNING :
• Perform the installation of the sewing machine by the technical personnel who have been trained.
• To prevent personal injury, ask our dealer or the electrician for electric wiring.
• Be sure to perform the work with two persons or more when transporting the sewing machine and use a
lorry when moving it.
• To prevent personal injury caused by abrupt start of the sewing machine, do not connect the power plug
until the set-up of the sewing machine is completed.
• Be sure to earth the ground wire to prevent personal injury caused by leak.
• Besuretoattachsafetyprotectioncover,gerguard,etc.
1
3
1
3
23.5 mm 19.5 mm
6
1
4
3
8
1
2
4
3
AB
5
7

7
4-2. Removing the needle bar stopper
220
mm
4-4. Adjusting the height of the knee lifter
1) The standard height of the presser foot lifted using
the knee lifter is 10 mm.
2) You can adjust the presser foot lift using knee lifter
adjust screw 1.
23
1
1
1
2
3
4
Do not operate the sewing machine in
the state that presser foot 3is lifted
by 10 mm or more since needle bar 2
and presser foot 3, or wiper 4and
presser foot 3come in contact with
each other.
Insert knee-lifter into attaching hole 2and tighten it
with bolt 3.
* Adjust the position of knee lifter pad 1to a
convenient place. For the reference dimension, the
position is 220 mm from the bottom face of table.
* In case of the machine with AK device, knee lifter
pad 1is optional. (Part No. 22934251)
4-3. Attaching the knee-lifter
Remove needle bar stopper 1for transportation.
Keep the needle bar stopper which
has been removed, and install this
needle bar stopper when transporting
the sewing machine.The needle bar
stopper may be cut when it is strongly
drawn out. Slightly move the needle
bar to the right or left and slowly draw
out the needle bar stopper.

8
4-5. Installing the electrical box
Install the electrical box on the underside of the
table at the location illustrated using round-head
bolt 1, plain washer 2, spring washer 3and nut
4supplied with the machine, and using bolt having
hexagonal indentation on the head 5, plain washer
6and spring washer 7supplied with the machine.
1) Loosen screw 1located on the side of the power
switch supplied as accessories and remove the
power switch cover.
2) Connecting the input power cord of electrical box
¡
When the input power cord of electrical box is 4P
Put 4P cord from hole A of the power switch and
securely x green/yellow cord to 5, white cord to 2,
black cord to 3and red cord to 4with screws.
¡
When the input power cord of electrical box is 3P
Put 3P cord from hole A of the power switch and
securely x green/yellow cord to 5, brown cord to
2and sky blue cord to 3with screws.
3) Connecting the power cable supplied as accessories
¡In case of 3-phase power cable
Put power cable from hole B of the power switch,
and securely fix green/yellow cord to 9, white
cord to 6, black cord to 7and red cord to 8with
screws.
¡In case of single phase power cable
Put power cable from hole B of the power switch,
and securely x green/yellow cord to 9and other
cords to 6and 7with screws. 8is not used.
4) Installing the power switch cover
Securely tighten screw 1located on the side of
the power switch.
4-7. Installing the operation panel (IP-110 (D))
1) Install operation panel 1on the machine head
using screws 3which have been assembled to
panel installing bracket 2.
4-6. Connecting the power switch cord (Japan and general export area)
1. Do not disassemble the operation
panel to prevent it from breakage.
2. Clamp the cord coming from the
panel and that of the machine head
with the clip band supplied as
accessories.
B
A
1
6
9
7
8
3
4
5
2
1
2
5
4
3
6
7
1
2
3
3
3

9
3) Remove four screws fixing the rear cover of
the electrical box.
(Caution) Do not touch other screws.
When opening the rear cover, pressing it with your
hands, slowly open it by approximately 70˚ until it
stops as illustrated.
(1) Preparation of wiring
1) Pass the cords coming from the machine head to
the underside of the table through hole A in the
table.
2) Loosen screws D and lift cord presser plate C of
cord passing hole B located on the front cover to
the top and temporarily tighten the plate.
Be sure to lend your hand to the
rear cover in order not to let the rear
cover fall. In addition, do not apply
force to the rear cover opened.
A
C
B
D
4-8. Connecting the cords
WARNING :
• To prevent personal injury caused by abrupt start of the sewing machine, carry out the work after turning
OFF the power switch and a lapse of 5 minutes or more.
• Topreventdamageofdevicecausedbymaloperationandwrongspecications,besuretoconnectallthe
correspondingconnectorstothespeciedplaces.
• To prevent personal injury caused by maloperation, be sure to lock the connector with lock.
• As for the details of handling respective devices, read carefully the Instruction Manuals supplied with the
devices before handling the devices.
How to remove the cord clamp
1Lightly pressing
2Pull down the clamp.
3The clamp goes up.
* See P.14 for how to lock the cord clamp.
4) Remove the locks of cord clamps a, b, c, d, e, f and j.
Slowly
j
c
b
a
e
fd
E
2
3
1
1

10
(2) Connecting the connectors
• Each connector has the inserting direction. Check the direction and securely insert it.
(In case of the type with lock, insert up to the lock.)
• If the connector is forcibly inserted, trouble or accident will be caused.
• Never pull out the connectors inserted at the time of delivery.
• The sewing machine fails to work if the connectors are not properly inserted. Not only
the problem such as the error warning or the like but also breakage of the sewing
machine or electrical box will occur.
Connect cords in the following order.

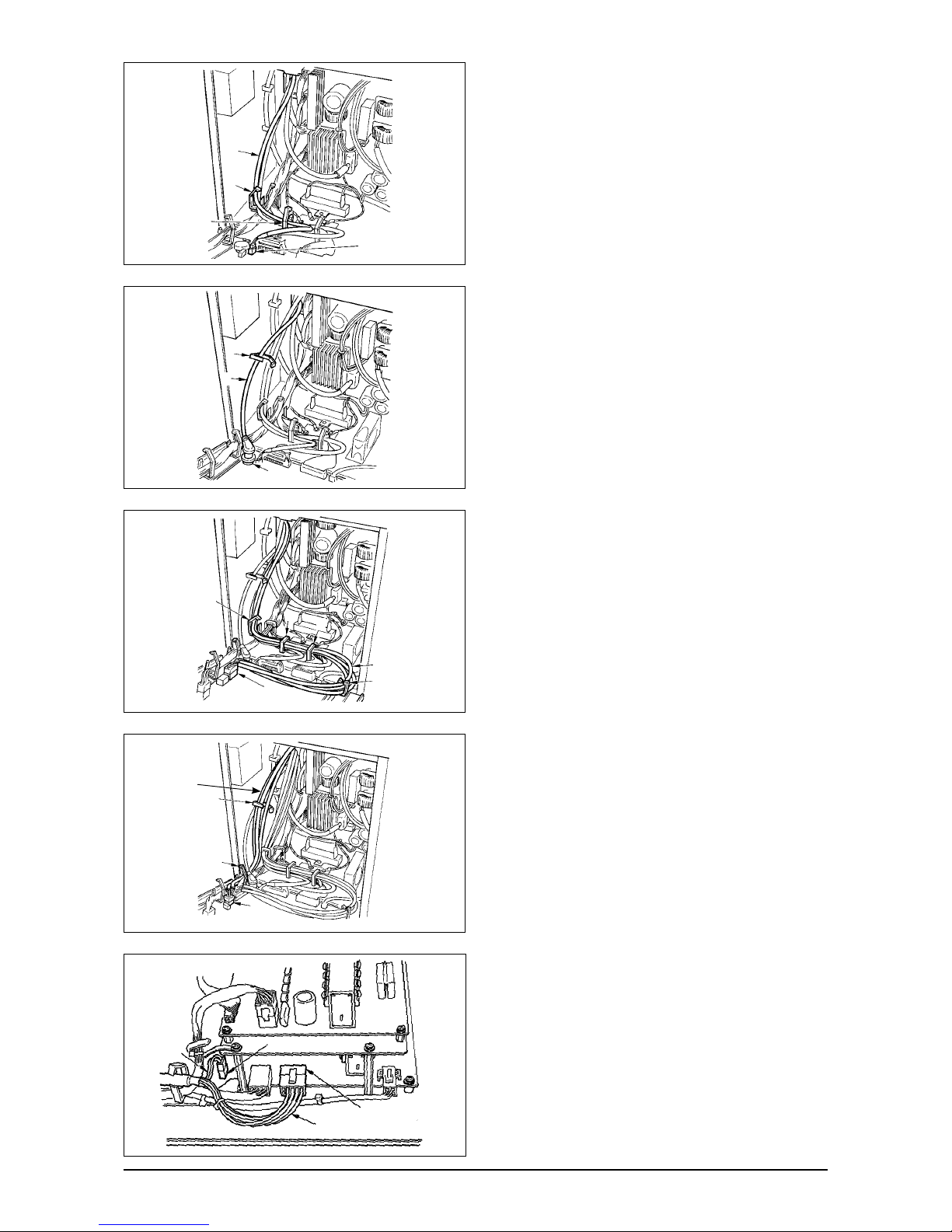

5) Insert yellow/green earth cord 1coming from the
machine head inside the electrical box through
front cover through hole B, and pass it through
cord clamp “b” as illustrated and tighten it with
screw at the position 2in the illustration.
6) Insert white square connector 9P black cord
3coming from the machine head inside the
electrical box through front cover through hole B,
and insert it into connector CN38 4of the circuit
board attached to the front cover.
7) Insert white connector 4P black cord 5coming
from the machine head inside the electrical box
through front cover through hole B, and insert
it into connector CN21 6of the circuit board
attached to the front cover.
8) Insert white connector 26P cord 7coming from
the control panel inside the electrical box through
front cover through hole B, pass it through cord
clamps “a”, “c” and “d”, insert it into connector
CN34 8, and lock it.
2
b
B
1
3
B
4
5
6
7
c
d
a
8
B
B

11

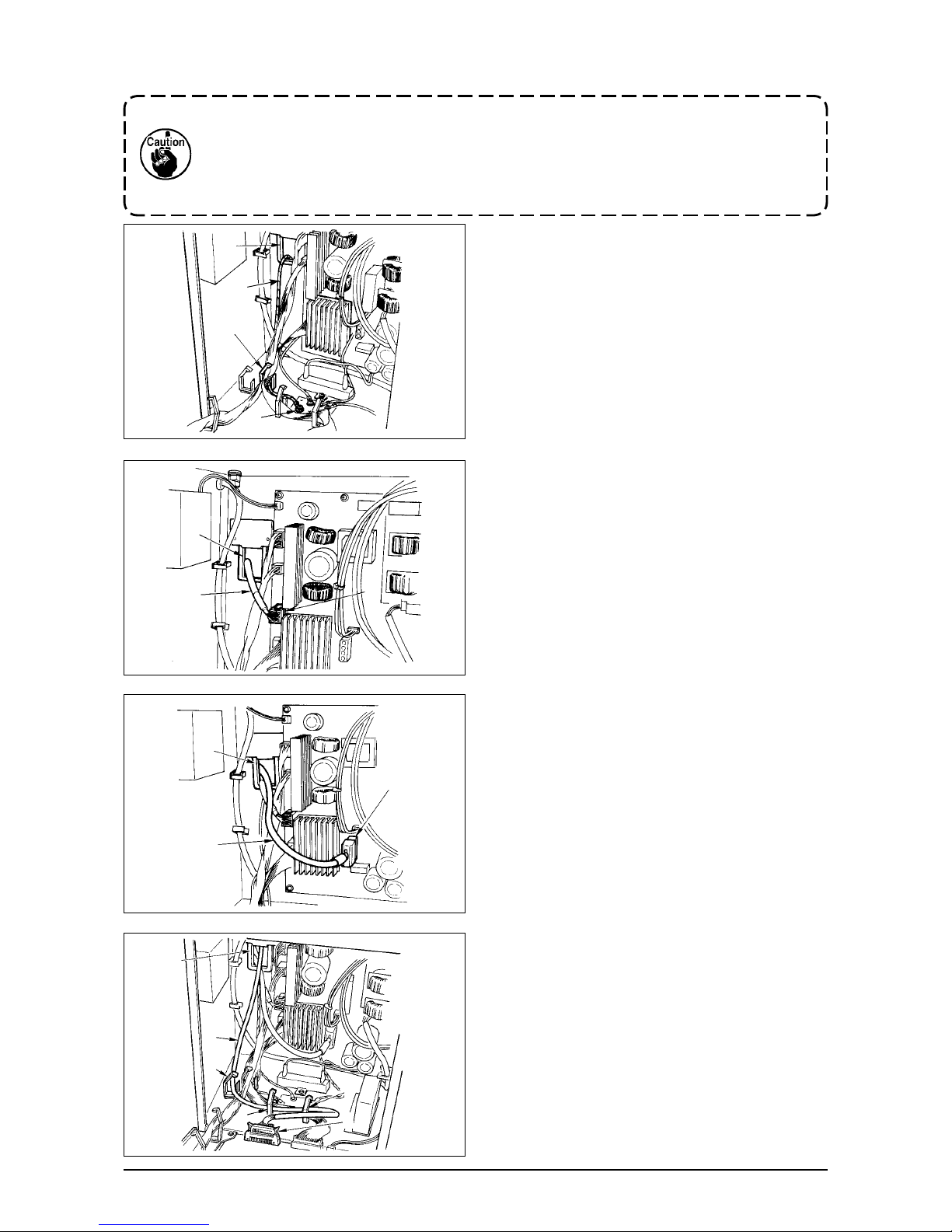

9) Insert black connector 4P white cord 9coming
from the machine head inside the electrical box
through front cover through hole B, and insert it
into connector CN31 !0 through cord clamps a
and c.
10) Insert gray round connector 7P cord !1 coming
from the machine head inside the electrical
box through front cover through hole B, pass
it through cord clamp “j”, and insert it into
connector CN30 !2.
11) Insert white connector 12P cord !3 coming from
the machine head inside the electrical box through
front cover through hole B, pass it through cord
clamps “a”, “c”, “d” and “g”, and insert it into
connector CN53 !4.
Close cord clamps “a”, “c” and “d”.
12) Insert white connector 6P cords !5 coming from
the machine head inside the electrical box through
front cover through hole B, pass it through cord
clamps “e” and “j”, and insert it into connector
CN54 !6.
13)-1 Insert white connector 10P cord !9 and blue
connector 2P cord !7 coming from the machine
head inside the electrical box through front
cover through hole B, pass them through cord
clamps “e”, “f” and “j”, and insert the white 10P
into connector CN51 @0 and the blue 2P into
CN46 !8.
9
!2
!4
!3
!5
!6
!8
!7
@0
!9
c
e
g
!0
a
j
!1
a
cd
j

12
13)-2 Insert white connector 10P cord !9 coming from
the machine head to the rear of the connector
as shown in the gure.
14) Insert black square connector 8P cord @1 coming
from the machine head inside the electrical
box through front cover through hole B, pass
it through cord clamps “e”, “f”, “h” and “j”, and
insert the black square 10P into connector CN72
@2.
15) Insert black connector 4P cord @3 coming from the
machine head inside the electrical box through
front cover through hole B, pass it through cord
clamps “e”, “f”, “h” and “j”, and insert the black 4P
into connector CN73 @4.
16) Close cord clamps “e”, “f” and “j”.
e
f
@1
@2
h
@3
@4
h
j
!9

13
When the Auto-lifter (AK121) is used :
17) Insert white connector 2P cord @5 coming from
the machine head inside the electrical box
through front cover through hole B, pass it
through cord clamps “e”, “f” and “j”, and insert it
into connector CN40 @6.
When the bird’s nest prevention device is used
(CB type)
18) Insert white small connector 6P cord @7 coming
from the machine head inside the electrical
box through front cover through hole B, pass it
through cord clamps “e” and “j”, and insert it into
connector CN52 @8.
When foot pedal for standing work (PK70 or 71)
is used :
19) Insert black connector 12P cord @9 inside the
electrical box through front cover through hole
B coming from the foot pedal for standing work,
pass it through cord clamps “a” and “c”, and
insert it into connector CN32 #0.
20) Connect white connector 2P of cord #1 supplied
as accessories to which red connector 2P
and white connector 2P are attached to white
connector 2P #2 of under cover of the machine
head.
Fix omega lock #3 supplied as accessories with
the neighboring cords and cord #1 as shown in
the gure.
21) Insert red connector 2P side of cord #1 supplied
as accessories to which red connector 2P and
white connector 2P are attached inside the
electrical box through front cover through hole,
and insert it into red connector CN25 #4.




Change the setting of function setting No.
23 from “0” to “1” after completing all set-up
procedure. For the details, see p.110 and p.113.




@5
@6
@8
@7
#0
@9
f
ej
j
e
a
c
#2
#1 #3
#4
#1

14
4
3
4
Clamp
4Lightly press the corner of clamp.
(Cord clamp is locked with a click.)
How to lock the cord clamp
4-9. Attaching the connecting rod
1) Fix connecting rod 1to installing hole Bof pedal
lever 2with nut 3.
2) Installing connecting rod 1to installing hole A
will lengthen the pedal depressing stroke, and the
pedal operation at a medium speed will be easier.
#5
22) Install core clamp #5 supplied as accessories at
the position as shown in the gure.
[For CE territory]
1
2
3
A
B
C
B
2
A
1
When the insertion of the connector is completed,
lock the cord clamps.
qTake care so that the cord is not caught between
the rear cover and the electrical box main body,
close the rear cover while pressing section A on
the lower side of the rear cover, and tighten four
screws 1.
wPress down cord presser plate C of cord through
hole B of the front cover, press the cord, and
tighten screws 2.

15
Installing the connecting rod
1) Move pedal 3to the right or left as illustrated
by the arrows so that motor control lever 1and
connecting rod 2are straightened.
Adjusting the pedal angle
1) The pedal tilt can be freely adjusted by changing
the length of the connecting rod.
2) Loosen adjust screw 4, and adjust the length of
connecting rod 2.

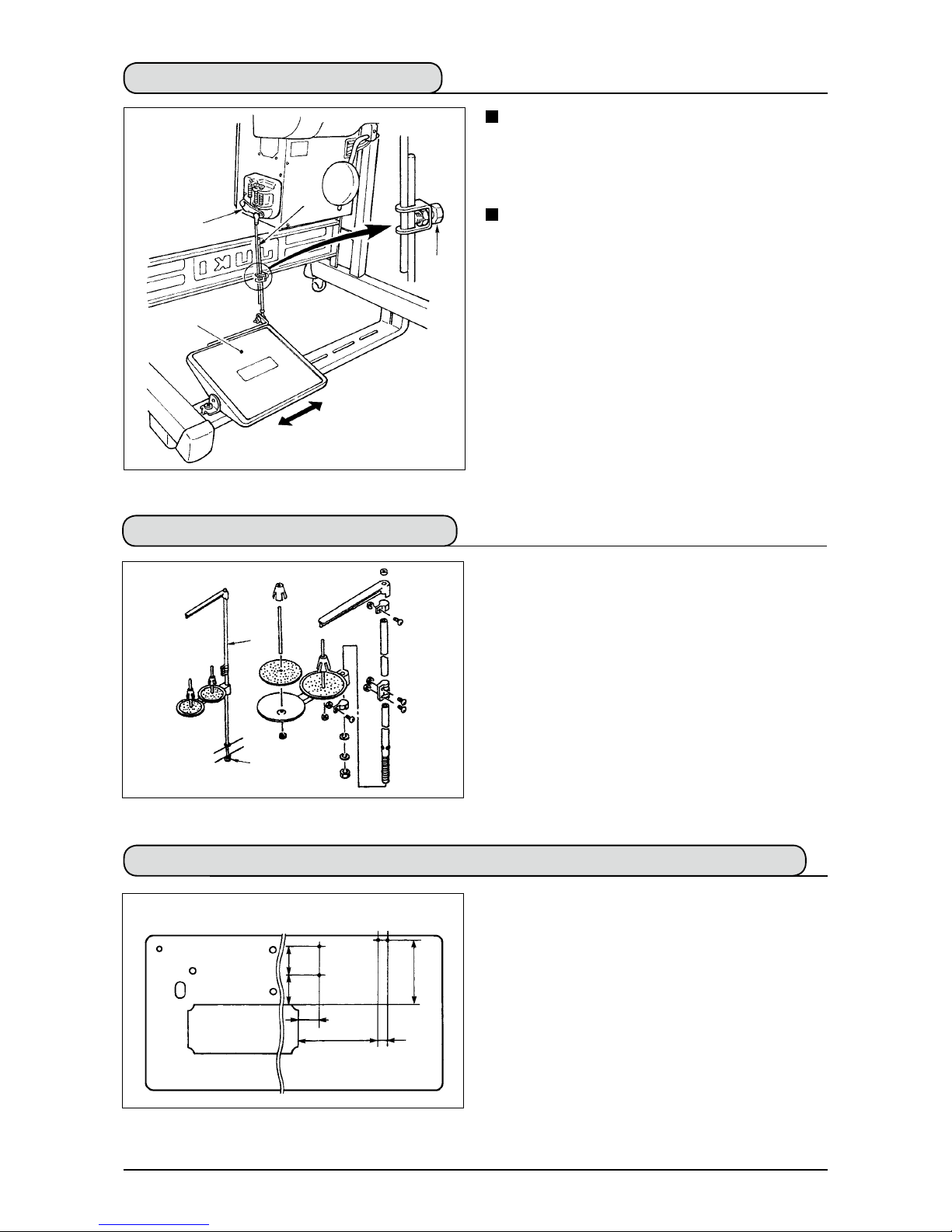

4-11. Installing the thread stand
1) Punch dots on the positions of the setscrews of
solenoid valve (asm.) and regulator (asm.) on the
bottom surface of the machine table.
Besides, awling is performed on JUKI genuine
table.
4-12. Installing the bird’s nest prevention (CB) type sewing machine
(bottom surface of the machine table)
75
291 34
233
106107
(mm)
4-10. Adjustment of the pedal
1
4
3
2
1
2
1) Assemble the thread stand unit, and insert it in
the hole in the machine table.
2) Tighten locknut 1 to x the thread stand.
3) For ceiling wiring, pass the power cord through
spool rest rod 2.

16

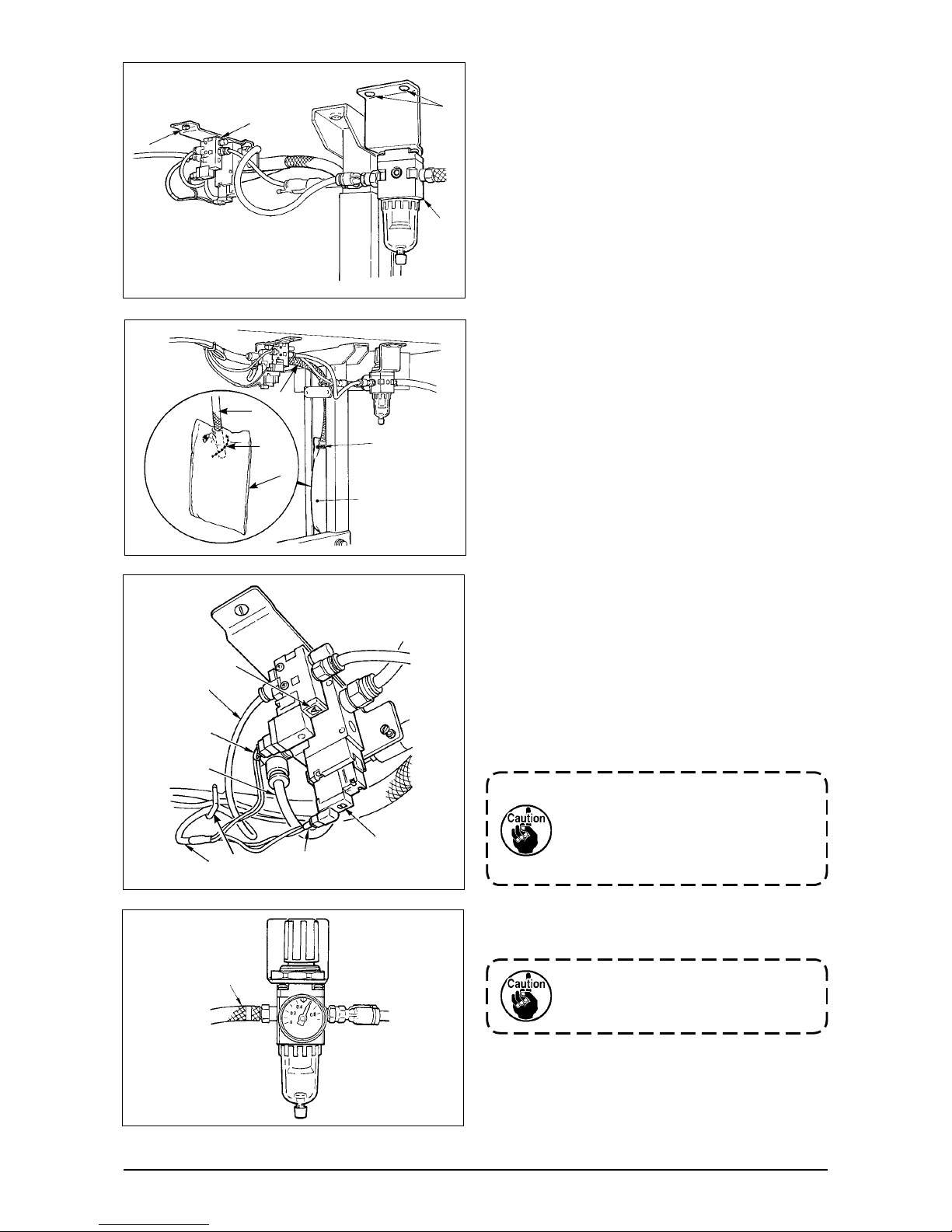

6) Adjust solenoid valve cord (asm.) 7to the
solenoid valve and the hot marker of the cord,
and connect it.
Connect 6P connector
! 0 ! 1to CM52 connector
inside the electrical box.(Refer to “When the bird’s
nest prevention device is used, p. 13”.)
7) Connect air hose ø4 coming from the machine
head to the solenoid valve section and air hose
ø8 to the dust bag suction port respectively.
8) Fix the solenoid valve and the air hose on the
table with staple 8supplied as accessories.
9) Connect the air pipe !2 and set the air pressure to
0.6 MPa.
1. Fix the staple to such an extent
that the air hose is not crushed.
2. Determine the position of the
staple so that the cord and the air
hose do not hang from the table.
2) Fix solenoid valve (asm.) 1with wood screws 2
supplied with the sewing machine as accessories.
3) Fix regulator (total asm.) 3with wood screw 4
supplied with the sewing machine as accessories.
4) Connect ø6 and ø8 hoses attached to regulator
(total asm.) 3to the respective solenoid valves.
5) Insert dust bag 5into the top end of hose 9for
dust bag and x it with band 6supplied with the
sewing machine as accessories.
φ8
φ4
• When air pressure is used under
thespeciedvalue,clamptrouble
will be caused.
1
2
4
3
6
5
9
5
9
!1
!0
7!1
!0
6
8
!2

17
3
2
2
1
4
4-13. Lubrication
Fill the oil tank with oil for hook lubrication before
operating the sewing machine.
1) Remove oil hole cap 1 and ll the oil tank with
JUKI New Defrix Oil No. 1 using the oiler supplied
with the machine.
2) Fill the oil tank with oil up to the place where the
top of oil amount indicating rod 3aligns with
the upper engraved line of oil amount indicating
window 2.
If the oil is lled excessively, it will leak from the
air vent hole in the oil tank or proper lubrication
will be not performed. So, be careful.
3) When you operate the sewing machine, rell oil if
the top end of oil amount indicating rod 3comes
down to the lower engraved marker line of oil
amount indicating window 2.
WARNING :
1. Do not connect the power plug until the lubrication has been completed so as to prevent
accidents due to abrupt start of the sewing machine,
2. Topreventtheoccurrenceofaninammationorrash,immediatelywashtherelatedportionsif
oiladherestoyoureyesorotherpartsofyourbody.
3. Ifoilismistakenlyswallowed,diarrheaorvomittingmayoccur.Putoilinaplacewherechildren
cannot reach.
•Whenyouuseanewsewing
machine or a sewing machine after
an extended period of disuse, run
yourmachineat3,000to3,500sti/
min for the purpose of break-in.
• For the oil for hook lubrication,
purchase JUKI New Defrix Oil No.
1(PartNo.:MDFRX1600C0).
• For oiling, perform with oiler
(B19210120A0)4supplied as
accessories. Be careful that dust
such as thread waste or the like is
not oiled when oiling.
Upper engraved
marker line
Lower engraved
marker line
