Immersion / Open Bath Circulators
Operating Instructions
Important: keep original operating manual for future use.
1.953.0400-V0

Table of contents
1Intended use ........................................................................................5
2CORIO®C product overview ...............................................................6
3Description...........................................................................................6
4Explanation of safety information.....................................................7
4.1 Explanation of other information ............................................................ 7
5Safety instructions ..............................................................................8
6Operator's responsibility - safety instructions .................................9
6.1 Requirements for the operating personnel .............................................. 9
6.2 Operating and ambient conditions for using the unit.............................. 9
6.3 Operating the unit................................................................................. 10
7Control and function elements.........................................................11
8Preparations for operating the device ............................................12
8.1 Installation ............................................................................................ 12
8.2 Installation of the circulator .................................................................. 13
8.3 Open bath tanks.................................................................................... 13
8.4 Bath fluid .............................................................................................. 16
9Filling..................................................................................................16
10 Initial Operation ................................................................................18
10.1 Switching on / Start - Stop .................................................................... 18
10.2 Automatic / Manual start mode ............................................................ 19
10.3 Adjusting of temperature setpoint ........................................................ 20
10.4 ATC - Absolute Temperature Calibration (1-point calibration) .............. 20
11 Error messages / Possible causes of faults......................................22
12 Draining the bath tank .....................................................................23
13 Technical data....................................................................................24
13.1 Circulator .............................................................................................. 24
14 Materials of parts in contact with the bath fluid ...........................25
14.1 Circulator .............................................................................................. 25
15 Accessories.........................................................................................26
2

15.1
For external connection......................................................................... 26
15.2 For open baths ...................................................................................... 26
16 Maintenance, repair and transport ................................................. 26
16.1 Cleaning................................................................................................ 26
16.2 Repair service........................................................................................ 27
17 Warranty............................................................................................ 28
18 Waste disposal .................................................................................. 31
18.1 Packaging.............................................................................................. 31
18.2 Unit ....................................................................................................... 31
Pos:4 /TechnischeDokumentation/Flash CORIO/EinhängethermostatCORIO C/Neue Seite@ 0\mod_ 1 417 593 782 389_ 0.do cx @ 763 0 @ @ 1
3

Pos:5 /TechnischeDokumentation/Flash CORIO/Glückwunsch- Ein le itun g @0 \mo d_13 951 368 662 01_ 18.d oc x @ 416 1 @ @ 1
Congratulations.
You have made an excellent choice.
JULABO thanks you for the trust you have placed in us.
This operating manual is designed to familiarize you with the operation
of our units and their possible applications. Please read the operating
manual carefully.
Please call us if you have any questions about the operation of the unit
or about the operating manual.
Contact:
JULABO USA, Inc.
884 Marcon Boulevard
Allentown, PA 18109
Phone: [phone]
Fax:[phone]
[e-mail]
www.julabo.com
The JULABO quality management system
The standards for the development, production and distribution of
temperature control devices for laboratory and industry use satisfy the
requirements of ISO 9001 and ISO 14001.
Registration certificate No. 01 100044846.
Unpacking and inspection
If the packaging is damaged or if you discover any concealed transport
damage when you have unpacked the devices and the accessories,
please notify the supplier in the form of a statement of damage.
The operating manual
•should be kept for future use.
•must be available to operating personnel at all times.
Pos : 6 /TechnischeDokumentation/FlashCORIO/EinhängethermostatCORIO C/BestimmungsgemäßeVerwendungC @ 0\mod_140 610 668 314 8_1 8.d oc x @ 6 311 @ 1 @ 1
4

Intended use
1Intended use
JULABO circulators are designed for controlling the temperature of water
in a bath tank.
JULABO circulators are not designed for the direct temperature control of
foods, semi-luxury foods and tobacco, or pharmaceutical and medical
products.
•Direct temperature control means unprotected contact between the
object and the tempering medium (bath fluid).
•The device is not suitable for use in potentially explosive
environments.
Pos:7 /TechnischeDokumentation/FlashCORIO/EinhängethermostatCORIO C/C-Prod uk tü be rs ich t @ 0\mod_14250 374 622 65_ 18.docx @ 799 0 @ 1 @ 1
5

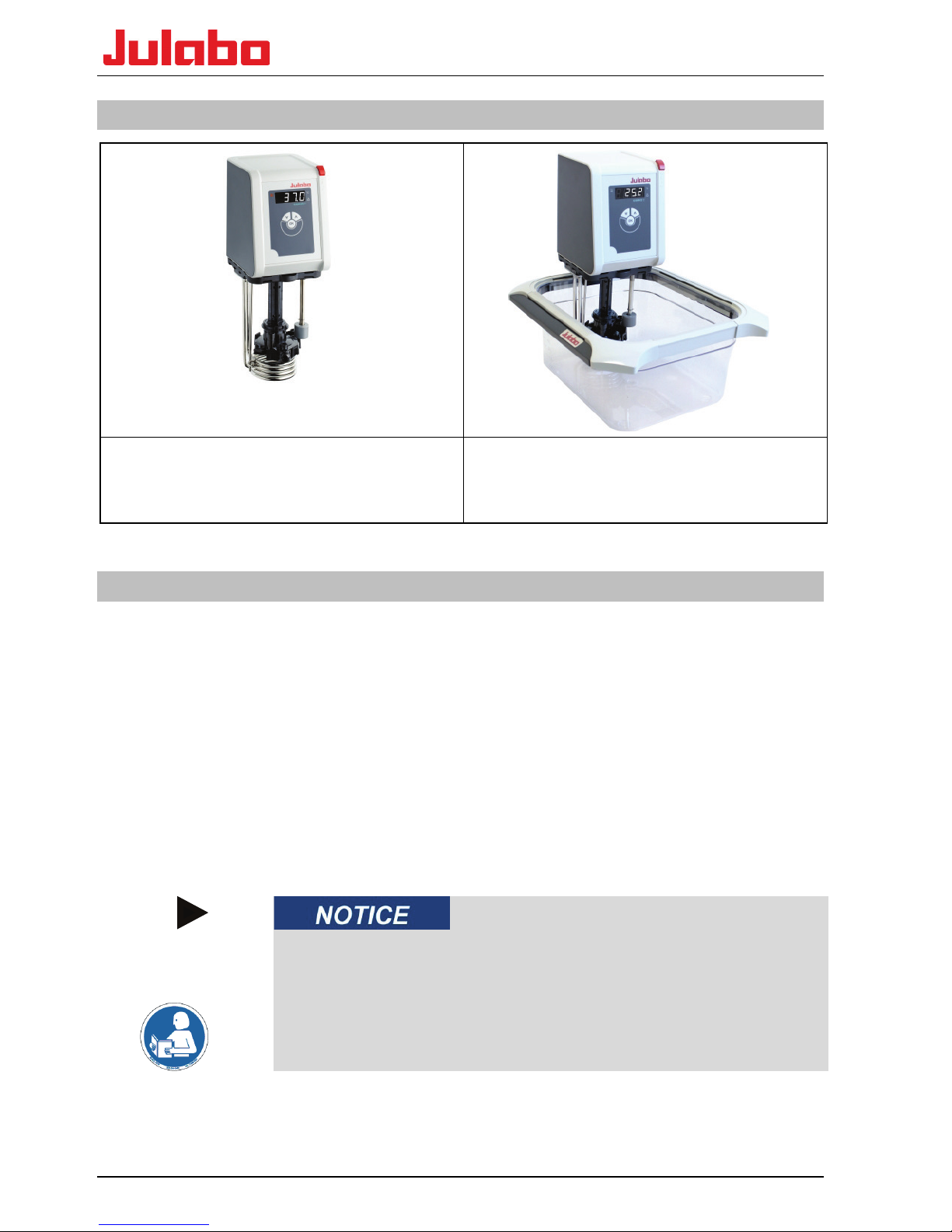

2CORIO®C product overview
Immersion circulator
for bath tanks up to 30 l.
Open bath circulator
with high quality bath tanks made of
transparent plastic or stainless steel.
Pos:8 /TechnischeDokumentation/FlashCORIO/EinhängethermostatCORIO C/BeschreibungThermostatC @0 \mod_13 963 355 173 76_ 18. doc x @ 441 1 @ 1 @ 1
3Description
•These circulators are operated via the splash-proof keypad. The
microprocessor technology allows the setpoint to be set, displayed and
saved using the LED temperature display.
•The PID temperature control automatically adjusts the heat supply to the
requirements in the bath.
•ATC - Absolute Temperature Calibration (1-point calibration)
•Low level protection using a float switch.
•If the low level protection device is triggered, the heater and circulating
pump are completely shut down.
Po s: 9 /T ech n is c he Do ku m en ta tio n / Fl as h C O RI O /CO R I O_ CD_ G ES AMT / V erh alten + B A l es en @ 0 \mod _1 409 218 461 856 _18.do c x @ 7203 @ @ 1
It is important to follow these safety instructions to prevent personal injury
and property damage. These instructions apply in addition to the safety
instructions at your workstation.
It is essential that you read the user information before
starting the device.
Pos:10 /TechnischeDokumentation/Flash CORIO/CORIO_CD_GESAMT/Erklärung Sicherheits- und andere Hinweise @ 0\mod_140 921 844 901 7_ 1 8.doc x @ 6697 @ 12 @ 1
6

Explanation of safety information
4Explanation of safety information
The operating manual contains warnings to increase safety when using
the unit. The general warning sign, consisting of an equilateral triangle
surrounding an exclamation sign and reproduced in various signal
colors, is preceded by the signal words.
"Warning of a dangerous situation".
The significance of the danger is classified with a signal word. Read the
instructions carefully and follow them.
This signal word designates a danger with a high level of risk which, if
it not prevented, will result in death or serious injury.
This signal word designates a danger with a medium level of risk
which, if it not prevented, may result in death or serious injury.
This signal word designates a danger with a low level of risk which, if it
not prevented, may result in minor or moderate injury.
Designates a possibly harmful situation. If it is not prevented, the
system or something near it may be damaged.
4.1 Explanation of other information
TIP
Your attention is drawn to something special by this.
Designates user tips and other useful information.
Dangers at second glance
Designates states which only occur after the start of an action and
could have been prevented if the warning had been heeded.

Informative note
Provides additional information.
Pos:11 /TechnischeDokumentation/Flash CORIO/Einhängethermostat CORIO C/Sicherheitsanweisungen_C @ 0\mod_14 061 013 758 15_1 8.do cx @ 6300 @ 1 @ 1
7

5Safety instructions
It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to
standard safety practices for working places.
•It is essential that you read the user information before starting the
unit.
•Place the unit on a flat surface and a mat made of non-flammable
material.
•Do not start the unit if it is damaged or leaking.
•Only connect the unit to a power socket with ground contact (PE –
protective earth)!
•The power supply plug serves as safe disconnecting device from the
power supply network and must be freely accessible at all times.
•Do not start the unit if it has a damaged mains power cable.
•Never use the unit without bath fluid.
•Check the filling level of the bath fluid at regular intervals. The pump
and heater must always be completely covered with bath fluid.
•Do not drain the bath fluid when it is hot.
•Check the temperature of the bath fluid prior to draining, for
example by switching on the unit briefly.
•Switch off the unit and pull the plug before moving the unit or
carrying out service or repair work.
•Have all service and repair work carried out by authorized specialists
only.
•Switch off the unit and disconnect it from the power supply before
cleaning it.
•Empty the unit completely before transporting it.
•Transport the unit carefully. The interior of the unit can also be
damaged by impacts or if it is dropped.
•Refer to the safety sticker.
•Do not remove the safety sticker.
Po s: 12 /T ech n is ch e Do kum ent at io n/F l as h CO RI O /Ein h än g eth erm o st at CORI O C/Ve ran twortu ng d es Bet reibe rs The rm. Kl. 1, nich t b renn b ar @ 0 \mod_1 406 538 102 828_ 18. doc x @ 638 0 @ 1222 @ 1
8

Operator's responsibility - safety instructions
6Operator's responsibility - safety instructions
Products manufactured by JULABO GmbH ensure safe operation when
installed, operated and according to common safety regulations. This
section explains the potential dangers which may occur when operating
the unit and specifies the most important safety measures to prevent
these dangers as far as possible.
6.1 Requirements for the operating personnel
The operator is responsible for the qualifications of the personnel
operating the unit. Ensure that the personnel who operate the unit are
trained in the relevant work application by a trained person.
The operator must receive regular training about the dangers involved
with their work as well as preventive action.
Ensure that everybody involved with the operation, maintenance and
installation have read and understood the safety information and the
operating manual. The unit may only be configured, installed,
maintained and repaired by trained personnel.
If hazardous substances or substances which may become hazardous are
used, the unit may only be used by a person who is completely familiar
with these substances and the unit. This person must be able to assess
the possible dangers in full.
6.2 Operating and ambient conditions for using the unit
•Avoid impacts on the housing, vibrations, damage to the touch-
sensitive foil (keys and display) and heavy soiling.
•Ensure that the product is checked at regular intervals suitable for its
frequency of use to ensure that it is in perfect condition.
•Check the proper condition of the mandatory warning, prohibition,
and safety labels at regular intervals, but at least every 2 years.
•Ensure that the mains supply has a low impedance to prevent
influencing of other units powered in the same mains.
•The unit is designed for operation in a controlled electromagnetic
environment. This means that in an environment of this nature,
transmission equipment such as mobile phones should not be used
in the immediate vicinity.
•Other units with components which are suceptible to magnetic fields
may be influenced by magnetic radiation. We recommend to
maintain a minimum distance of 1 m.
•Permissible ambient temperature max. 40 °C, min. 5 °C.
•The relative humidity should not exceed 50 % (40 °C).
•Do not store in an aggressive atmosphere. Protect from dirt.
•Protect from direct sunlight.
9

6.3 Operating the unit
The bath may not be filled with flammable materials. Fire hazard!
Special substance specifications (bath fluids) must be observed for
correct operation. Caustic or corrosive bath fluids must not be used.
The formation of explosive mixtures is possible if the ventilation is
inadequate.
Only use the units in well ventilated areas. The unit is not suitable for
use in potentially explosive environments.
When using hazardous substances or substances which may be
hazardous, the operator must apply the enclosed safety symbols (1; 2; 3)
on the control side panel where they are clearly visible:
1
Warning of a danger zone. Attention!
Observe documentation (Operating manual, safety data sheet).
2a
It is essential that you read the user information prior to beginning
operation.
Area of validity: EU
2b
It is essential that you read the user information prior to operation.
Area of validity: USA, NAFTA
3
Warning label Proposition 65
As a result of the wide range of operating temperatures, special care and
caution is essential.
There are thermal dangers: Burns, scalds, hot steam, hot parts and
surfaces which may be touched.
Warning about hot surfaces.
(The label is applied by JULABO)
Po s: 13 /T ech n is ch e Do kum ent at io n/F l as h CO RI O /Ein h än g eth erm o st at CORI O C /Bed ien- und F un kt io ns el em en t e C @ 0\mod _13 963 356 168 22_ 18.do cx @ 441 8 @ 1 @ 1
10

Control and function elements
7Control and function elements
Front Rear
Position Designation
1 Mains switch
2 Four-figure temperature display LED, menu display
3 Control indicator - alarm
4 Edit keys
Temperature setpoint increase or decrease
Press the key briefly for step-by-step changes.
Press and hold the key for fast change of setpoint.
5 OK key 1. Switch the device on/off.
2. Store value / parameter.
6 Control indicator - heating
7 Fuses: Miniature circuit-breaker
8 Electrical connection: Integrated connector plug
Accessories, included in the scope of supply
- Power supply cable
For further country-specific power supply cables,
see www.julabo.com
Pos:14 /TechnischeDoku m en t at io n /Fl as h CO RI O /Au fs t el len, Einh änget h erm os t at @ 0\mod_ 139 523 706 081 1_1 8.do cx @ 4197 @ 12 @ 1
11

8Preparations for operating the device

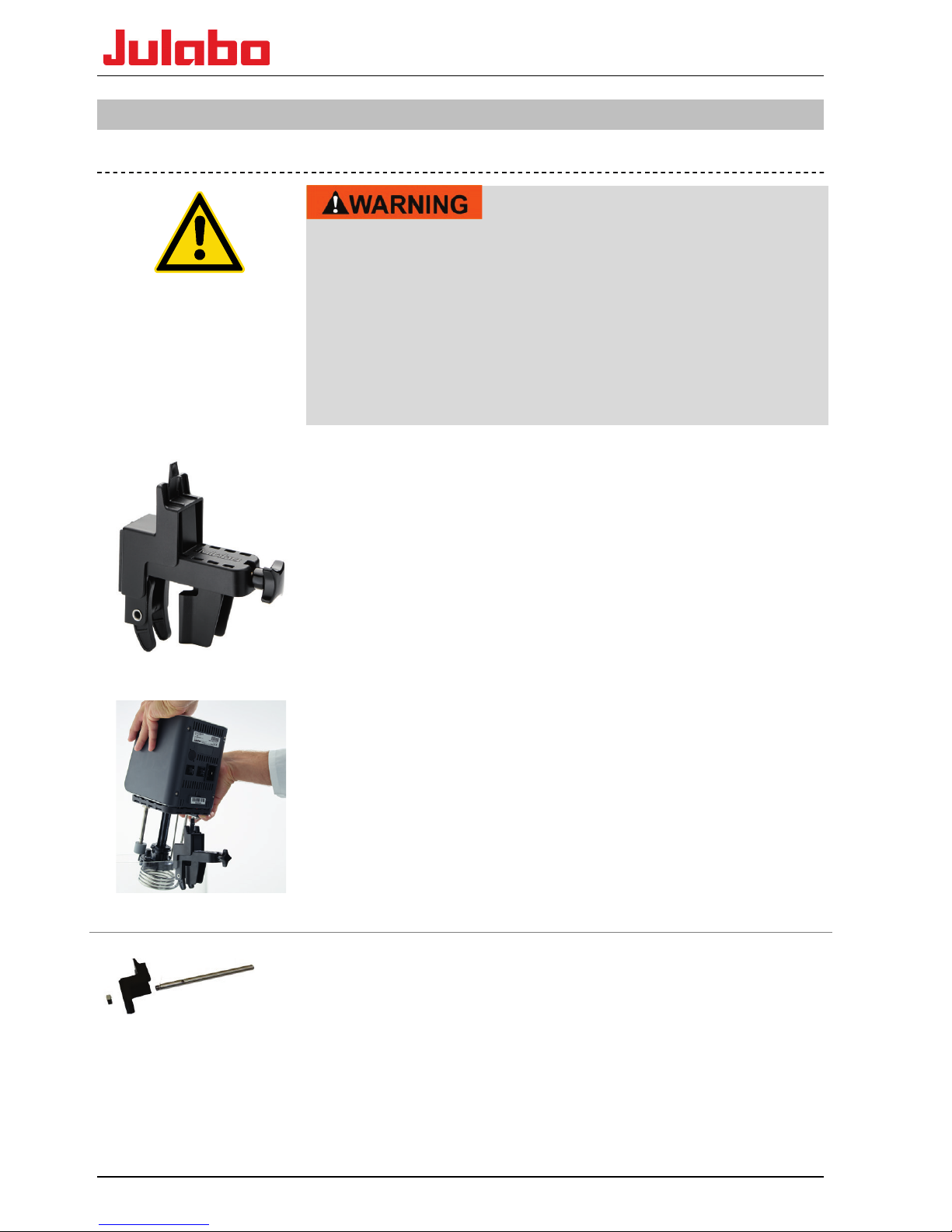

8.1 Installation
Danger of electric shock.
Carefully secure the immersion circulator on the bath tank. Poorly
installed circulators can fall into the bath tank.
Have the unit checked by a service technician prior to re-use.
The heater must not be in contact with the wall or the bottom of the
bath tank. Minimum distance 15 mm.
Pull the plug to disconnect the unit from the power supply. Only then
take the immersion circulator out of the bath tank.
Bath attachment clamp, order No. 9970420
•Pay special attention to the circulator's immersion depth (see
Technical data) when selecting the bath.
•Place the bath on a flat surface on a pad made of non-
flammable material.
•Secure the bath attachment clamp to the bath tank. The wall
thickness may be up to 30 mm.
•Attach the circulator with a “clic” to the bath attachment
clamp.
•For use with glass tanks a stand attachment with rod is
available as an optional accessory.
(Order No. 9970022)
Po s: 15 /T ech n is ch e Do kum ent at io n/F l as h CO RI O /CO R IO _C D_ GE SAM T / St at ivh al te ru n g @ 0\mod _ 142 228 526 035 2_18 .d ocx @ 7820 @ @ 1
Stand attachment, order No. 9970022
For use with glass tanks a stand attachment with rod is available as an
optional accessory.
The circulator must be mounted vertically and secured against rotation.
If necessary, secure the nuts of the rod also.
Pos : 16 /T echn is ch e Do ku m en t at ion /Fl as h C OR I O/Ei nh äng eth er mo st at COR IO C /Mo n t age au fs a tz C orio C @ 0 \mod _ 1424 266 184 377 _18.do c x @ 7882 @ @ 1
12

Preparations for operating the device

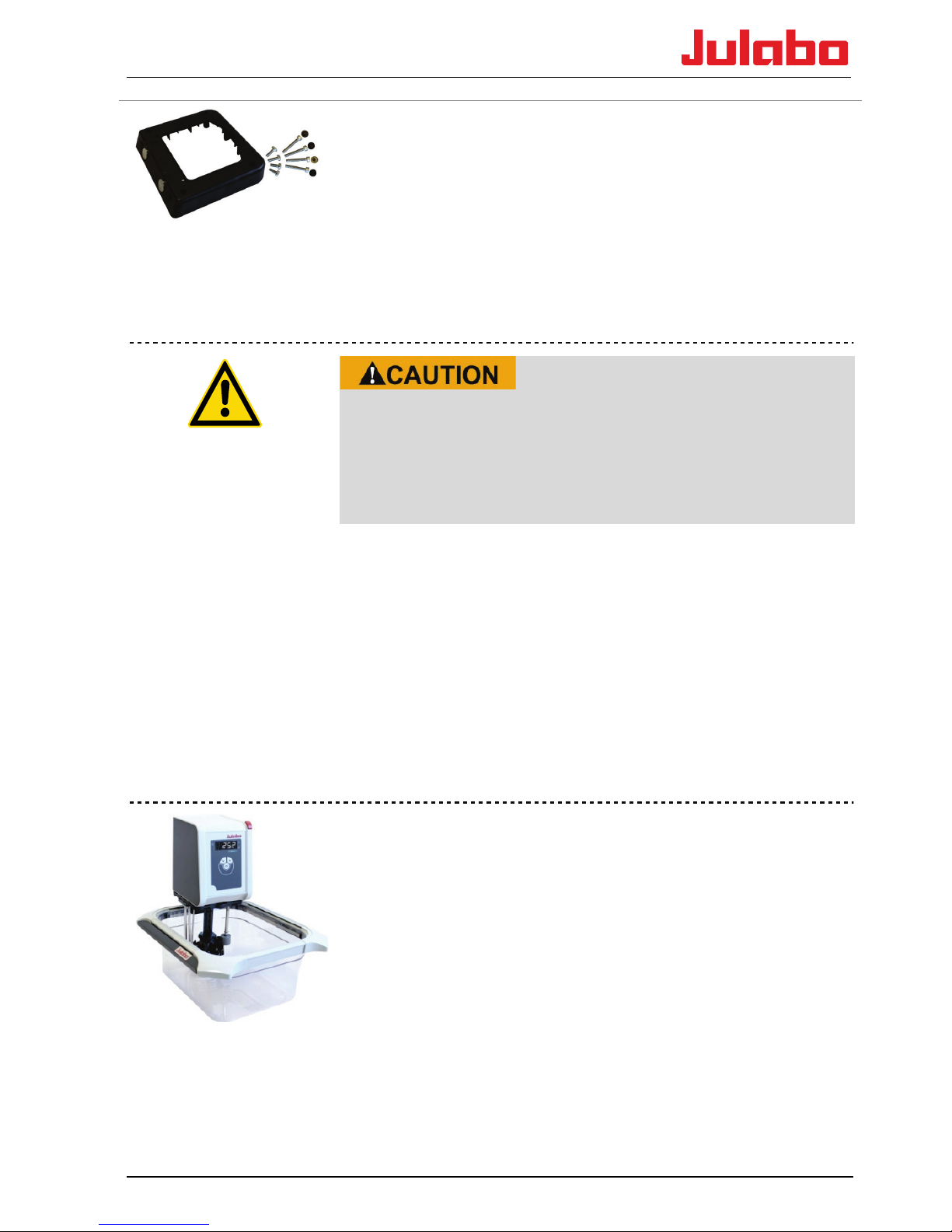

Bracket, order No. 9970178
Installation on the circulator
•Slide the bracket over the heater on to the circulator.
•Secure the bracket housing to the base of the circulator using the
four screws.
os:17 /TechnischeDokumentation/Flash CORIO/CORIO_CD_GESAMT/Aufstellen, Achtung@ 0\mod _14 092 184 439 94_1 8.d oc x @ 6 532 @ 2 @1
8.2 Installation of the circulator
Danger of scalding due to leaks from the baths
The JULABO plastic baths are not solvent-resistant. JUALBO plastic
bath tanks are for water at a working temperature range from +20°C
to +100°C.
Do not contaminate the bath fluid with solvents.
Things to keep in mind during the installation process:
This work may only be carried out by trained personnel.
•The installation site should be a sufficiently large room to ensure
that it does not become too hot due to the waste heat.
•The surface for the device should be flat and made of non-
flammable material.
•A specific room size is prescribed for refrigerated circulators.
•Observe the safety sticker - do not remove!
Po s: 18 /T ech n is ch e Do kum ent at io n/F l as h CO RI O /CO R IO _C D_ GE SAM T /Of fen e Bad g ef äß e (b xh xt) @ 0 \mod_ 1 424 251 016 879 _18.do c x @ 7860 @ 2 @ 1
8.3 Open bath tanks
Open JULABO baths can be combined with JULABO circulators from the
CORIO product series. When combined with these circulators they are
designed for controlling the temperature of liquid media recommended
by JULABO.
The circulators are mounted on the baths using bath attachment clamps,
for example.
13

Technical details for transparent bath tanks
Type BT5 BT9 BT19 BT27
Order numbers 9901305 9901309 9901319 9901327
Temperature range °C
+20 ... +100
Approx. weight kg
1.2
1.5
2.3
2.7
Dimensions (WxDxH*) cm
23 x 38 x 38
32 x 38 x 38
38 x 58 x 38
38 x 58 x 43
Useful bath opening
(WxLxD)
cm
15 x 15 x 15
23 x 15 x 15
30 x 35 x 15
30 x 35 x 20
Filling volume,
Min...Max
l
3.5 …5.0
6.0 … 9.0
14.0 … 19.0
20.0 … 27.0
Material Parts in contact with the bath fluid: Polycarbonate
* With CORIO circulators
Technical details for stainless steel bath tanks
Type B5 B13 B17 B19
Order numbers 9903405 9903413 9903417 9903419
Temperature range °C
+20 ... +150
Approx. weight kg
2.6
5.2
6.1
6.9
Dimensions (WxDxH*) cm
23x38x41
38x40x42
38x40x47
38x58x42
Useful bath opening
(WxLxD) cm
15x15x15
30x18x15
30x18x20
30x35x15
Filling volume,
Min...Max
l
3.5 ... 5.0
9.0 ... 13.0
13.0 ... 17.0
14.0 … 19.0
Material Parts in contact with the bath fluid: Stainless steel
14

Preparations for operating the device
Type B27 B33 B39
Order numbers 9903427 9903433 9903439
Temperature range °C
+20 ... +150
Approx. weight kg
8.0
17.6
14.6
Dimensions (WxDxH*) cm
38x58x47
91x36x43
54x34x57
Useful bath opening
(WxLxD) cm
30x35x20
66x32x15
33x30x30
Filling volume,
Min...Max
l
19.5 … 22.0
26.0 … 30.0
35.0 …41.0
Material Parts in contact with the bath fluid: Stainless steel
* With CORIO circulators
Bath covers
Order No. Designation For Baths
9970296 Flat stainless steel bath cover B5
9970290 Flat stainless steel bath cover B13, B17
9970291 Flat stainless steel bath cover B19, B27
9970292 Flat stainless steel bath cover B33
9970293 Flat stainless steel bath cover B39
9970254 Lift-up stainless steel gable cover B19, B27, BT19, BT27
9970257 Lift-up stainless steel gable cover B33
Pos:19 /TechnischeDokumentation/Flash CORIO/Einhängethermostat CORIO C/Kühlschlange Corio C @ 0\mo d_14 225 174 615 37_1 8.d oc x @ 7 840 @ @ 1
Cooling coil, order No. 9970101
A cooling coil is required for working at ambient temperature (20 °C) A
cooling water flow rate of 45 ml/min is generally sufficient to
compensate for the intrinsic temperature.
The cooling water temperature should be at least 5 °C lower than the
working temperature.
Po s: 20 /T ec hn is c h e Doku m ent at io n/ Fl as h CO R I O/E inh äng eth ermo st at COR I O C/T em p er i erf lü s s igk ei t - W as ser @0 \mo d_1 406 553 456 136 _18. doc x @ 63 91 @ 2 @ 1
15

8.4 Bath fluid
This circulator is only approved for use with water as the
bath fluid.
Recommended water mixture.
70 % soft/decalcified water and 30% tap water.
The parts of the bath which come into contact with the bath fluid may
be damaged and cause the failure of the device.
The water quality depends on the local conditions.
•Hard water is not suitable for temperature control tasks due to
its high lime content and will produce lime deposits in the bath.
•Ferrous water can cause corrosion, even on stainless steel.
•Chloric water can cause pitting corrosion.
•Distilled and deionized water is not suitable. Their specific
properties cause corrosion in the bath, even on stainless steel.
Check the quality of the water you use at regular intervals.
Evaporation and constant refilling may produce a concentration
of harmful substances in the bath.
You should therefore check the quality of the water in the bath
at regular intervals.
Replace the water in the bath in full at regular intervals.
Pos:21 /TechnischeDokumentation/Flas h C O RI O /CO R I O_ CD_ GESAM T/B efü l len @ 0\mod_ 140 921 844 664 6_18 .d oc x @ 65 98 @1 @ 1
9Filling
Check the level of the bath fluid at regular intervals. The pump and
heater must always be completely covered with bath fluid.
The device is not suitable for unsupervised continuous operation.
•Ensure that no bath fluid gets into interior of the circulator.
•The recommended maximum fill level for water is 30 mm below
the bath edge.
•After filling, insert the material or place the lid on the bath if the
bath opening is not required.
Po s: 22 /T ech n is ch e Do kum ent at io n/F l as h CO RI O /CO R IO _C D_ GE SAM T /I nd ir e kt te m per i ert e F lüs s ig kei t -Vors icht - @ 0 \mod_ 140 921 845 081 1_18 . doc x @ 6774 @ @ 1
16

Filling
Properties of indirectly temperature-controlled fluids and
substances
The intended use of the units includes the indirectly temperature
control of fluids.
We do not know which substances these are.
Many substances are:
•inflammable, flammable or explosive
•harmful
•polluting
In other words: dangerous
The user bears sole responsibility for handling these substances.
Use personal protective equipment.
The following questions should help to identify possible dangers and
minimize risk.
•Are hazardous vapors or gases produced when heated?
Does operation of the bath has to be conducted in a fume hood?
•What should you do if a dangerous substance has been spilled on
or in the device?
Obtain information on the substance before starting work and
define a decontamination method.
•Are all hoses and electrical cables securely connected and routed?
Keywords: Sharp edges, hot surfaces during operation, moving
machine parts, etc.
Pos : 23 /Tec hn is c he Do ku m en t at ion /F las h C OR I O/I n b etr iebn ahm e - Netzspannung, ausführlicheW arnung @ 0\mo d_13 896 930 662 36_ 18. doc x @ 383 6 @ 1 @ 1
17

10 Initial Operation
Danger from mains voltage.
Risk of injury from electric power.
•Compare the mains voltage and frequency with the details on the
model plate.
•The unit may only be connected to power outlets with a ground
contact (PE – protective earth).
•The mains plug serves as a safe disconnecting device from the
power supply network and must be freely accessible at all times.
•Do not start the unit if it has a damaged mains cable.
•Check the mains cable regularly for signs of damage.
•We disclaim all liability for damage caused by incorrect line
voltages!
Pos:24 /TechnischeDokumentation/Flash CORIO/WarnungheißeO b e rfl äc h e @ 0 \mod_ 138 968 608 832 0_ 18 .do cx @ 3668 @ @ 1
What should be observed when operating the JULABO
temperature control unit?
•Unit parts may develop high surface temperatures. A hot surface
means it has a temperature of 140°F / 60°C or more.
•Let the device cool down to an uncritical safe temperature.
•Use safety gloves
Pos:25 /TechnischeDokumentation/Flash CORIO/Einschalten/Start-Stopp @ 0\mo d_1 395 238 575 986 _18.d oc x @ 42 09 @ 2 @ 1
10.1 Switching on / Start - Stop
When pressing the keys, it is advisable to hold the
circulator head with one hand.
OFF
Switching on
•The device is switched on by pressing the power switch (1).
The unit performs a self-test. All the segments of the four
digit LED temperature display will illuminate.
The "OFF" signal then indicates that the unit is ready to
operate.
18

Initial Operation
28.3
Start
•Press OK for approx. 4 seconds.
The current bath temperature will be shown on LED
temperature display.
Stop
•Press OK for approx. 4 seconds.
•Switch off the unit with the circulator's mains power switch.
Pos:26 /Technische Dokumentation/FlashCORIO/Autostart ein/ aus @ 0\mod_13 952 386 395 40_1 8.do cx @ 4216 @ 2 @ 1
10.2 Automatic / Manual start mode
The AUTOSTART function allows the device to be started as soon as the
mains power switch is pressed, which in turn allows you to use a timer.
Autostart
If circulators are started using "AUTOSTART", ensure that even if it is
started accidentally, for example after a power outage, it does not pose
a danger to personnel or equipment.
•
Ensure that the circulator's safety equipment is set correctly.
OK +
1. Press and hold OK and
2
. Switch on the circulator using the mains power switch.
The switchover process is shown briefly on the
LED temperature display.
AOn
Autostart on
AOFF
Autostart off
Po s: 27 /T ech n is ch e Do kum ent at io n/F l as h CO RI O /CO R IO _C D_ GE SAM T / Temp erat u r-So l lw e rt ein s t el lu ng @ 0 \mod_ 140 921 845 552 2_ 18 .do cx @ 6961 @ 2 @ 1
19

10.3 Adjusting of temperature setpoint
Factory setting: 10°C
Example:
The temperature can be set in the start/stop condition.
The set value is saved so that it will be retained even after a power
outage.
1. Press the edit key or briefly to switch from displaying
the actual value to the desired value. The decimal point will flash.
2. Change the value:
Press the key to set a higher value.
Press the key to set a lower value.
3. Press the key briefly for single steps, press and hold the key
to adjust the values quickly.
4. Save the set value as the desired value by pressing the
key.
5. The new desired value will flash three times.
Pos:28 /TechnischeDokumentation/Flash CORIO/CORIO_CD_GESAMT/ATC- C @0 \mod_1409 218 443 588 _18.d oc x @ 65 21 @ 2 @ 1
10.4 ATC - Absolute Temperature Calibration (1-point calibration)
1-point calibration:
The temperature sensor can be calibrated at any value in the working
temperature range.
Place a calibrated thermometer (resolution: 0.01 °C) in the center of the
bath to measure the actual bath temperature.
50.0
50.0
1st Switch on the circulator at its mains switch
2nd Set the required calibration value as described in "Adjusting
temperature setpoint" (example: 50.0 °C).
3rd Start the unit:
Press the key.
4th The bath will be heated to 50.0°C.
When the setpoint is reached, allow the bath temperature to
settle for approx. 3 minutes.
5. Start the calibration:
Press the “Service” and the key together until the comma
in the display starts to flash.
20
