Julabo CORIO CP Series User manual

English
Immersion / Open Bath / Refrigerated Circulators
Operating Instructions
Important: keep original operating manual for future use.
1.951.0900-V0

CORIO® CP product overview
2
Table of contents
1CORIO®CP product overview .............................................................5
2Intended use ........................................................................................5
3Description...........................................................................................6
4Explanation of safety information.....................................................7
4.1 Explanation of other information ............................................................ 7
5Safety instructions ..............................................................................8
6Operator's responsibility - safety instructions ...............................10
6.1 Requirements for the operating personnel ............................................ 10
6.2 Operating and ambient conditions for using the unit............................ 10
6.3 Operating the unit................................................................................. 11

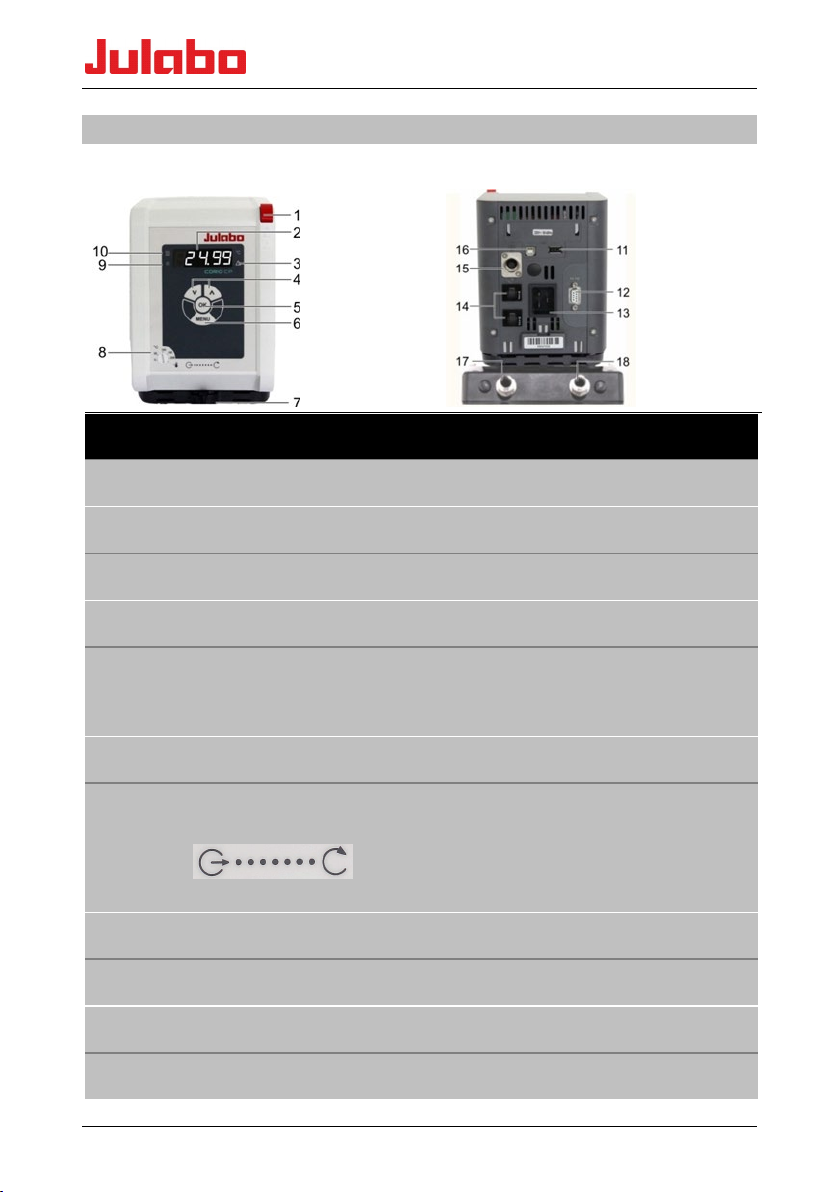

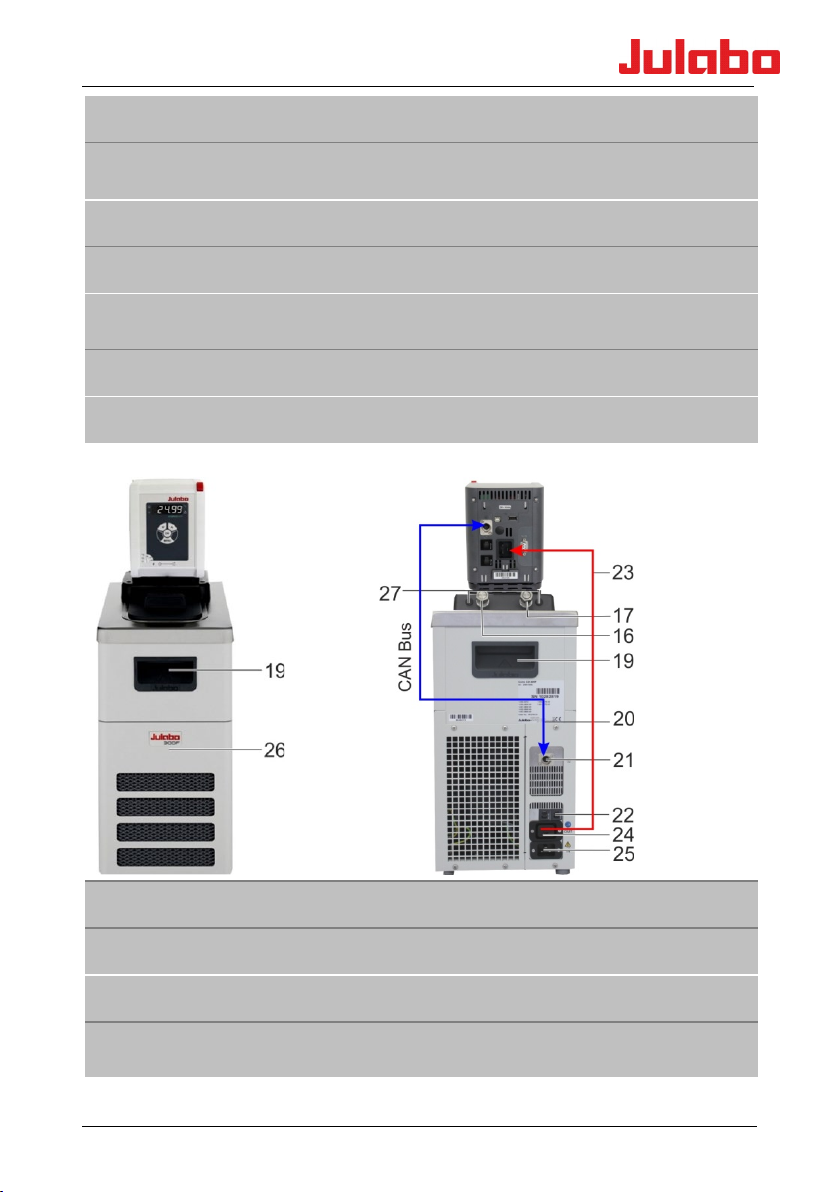

7Control and function elements.........................................................12
7.1 Installation of the circulator .................................................................. 15
8Preparations for operating the device ............................................15
8.1 Securing the immersion circulator......................................................... 15
8.2 Closed stainless steel bath tanks........................................................... 19
8.3 Basic refrigeration baths ....................................................................... 20
8.4 Bath fluids............................................................................................. 21
8.5 Temperature control for external connected systems............................ 23
8.6 Tubing................................................................................................... 24
9Commissioning ..................................................................................25
9.1 Filling .................................................................................................... 26
9.2 Switching on / Start - Stop .................................................................... 26
9.3 Excess temperature and low level safety devices .................................. 27
9.4 Pump settings ....................................................................................... 29
9.5 Adjusting of temperature setpoint ........................................................ 29
9.6 Setting the timer ................................................................................... 30
9.7 ATC - Absolute Temperature Calibration............................................... 31
9.8 Device configuration ............................................................................. 33
10 Operation via the USB or RS232 interface.......................................36
10.1 Data logging ......................................................................................... 38

CORIO® CP product overview
3
10.2 Interface commands via USB or RS232 interface................................... 39
11 Error messages / Possible causes of faults...................................... 41
12 Emptying the bath tank.................................................................... 45
13 Technical data ................................................................................... 46
13.1 Technical data for circulator.................................................................. 46

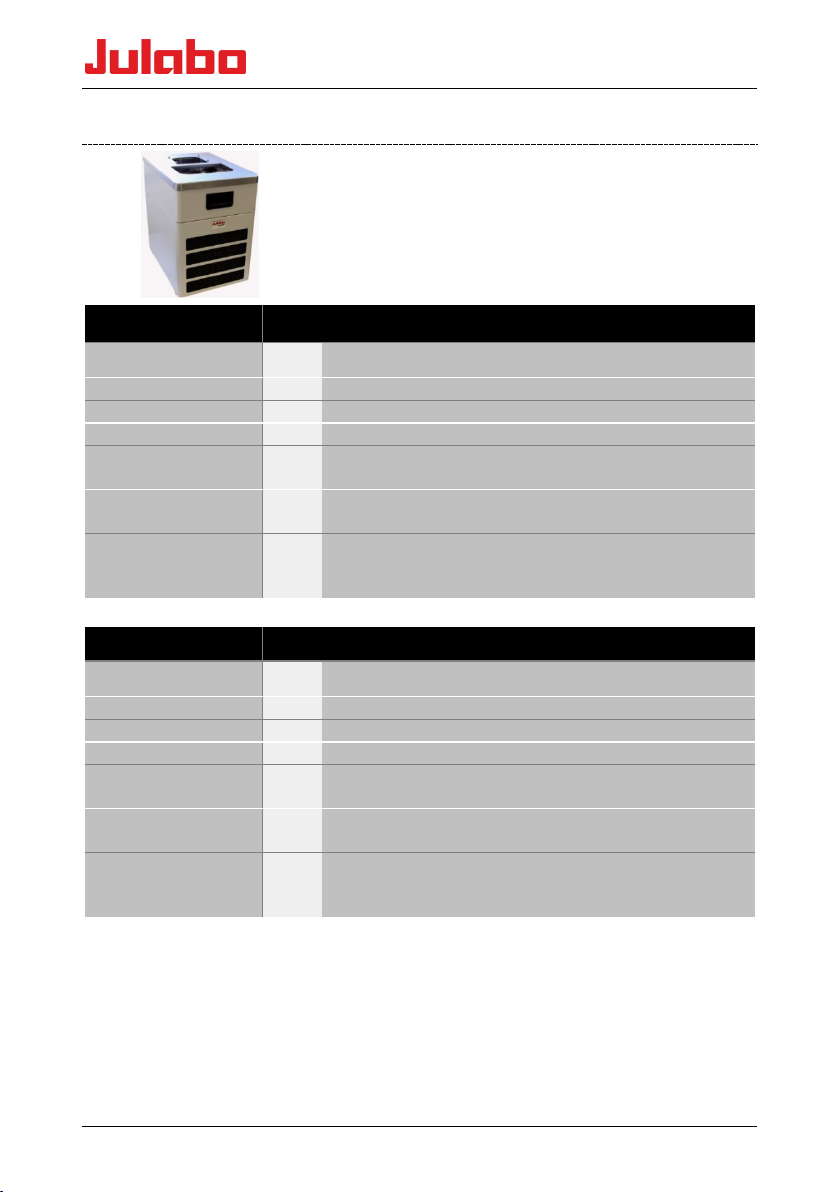

13.2 Technical data for refrigeration circulation circulator............................ 47
13.3 Refrigerant ............................................................................................ 52
14 Materials of parts in contact with the bath fluid........................... 53
14.1 Circulator .............................................................................................. 53
15 Accessories ........................................................................................ 53
15.1 For external connection......................................................................... 53
15.2 For open baths ...................................................................................... 54
16 Maintenance, cleaning, storage....................................................... 54
16.1 Maintain the refrigeration capacity....................................................... 54
16.2 Cleaning................................................................................................ 55
17 Storage .............................................................................................. 55
18 Repair service.................................................................................... 56
18.1 Warranty ............................................................................................... 57
19 Waste disposal .................................................................................. 58
19.1 Packaging.............................................................................................. 58
19.2 Unit ....................................................................................................... 58
19.3 Refrigerant ............................................................................................ 58
20 EC conformity.................................................................................... 59

CORIO® CP product overview
4
Congratulations.
You have made an excellent choice.
JULABO thanks you for the trust.
This operating manual is designed to familiarize you with the
operation of our units and their possible applications. Please read
the operating manual carefully.
Please call us if you have any questions about the operation of the
unit or about the operating manual.
Contact:
JULABO GmbH
Gerhard-Juchheim-Strasse 1
77960 Seelbach / Germany
Tel. [phone] / 51-0
Fax [phone] / 2491
[e-mail]
www.julabo.com
The JULABO quality management system
The standards for the development, production and distribution of
temperature control devices for laboratory and industry use satisfy
the requirements of ISO 9001 and ISO 14001.
Registration certificate No. 01 100044846.
Unpacking and inspection
If the packaging is damaged or if you discover any concealed
transport damage when you have unpacked the devices and the
accessories, please notify the supplier in the form of a statement of
damage.
The operating manual
•should be kept for future use.
•must be available to operating personnel at all times.

CORIO® CP product overview
5

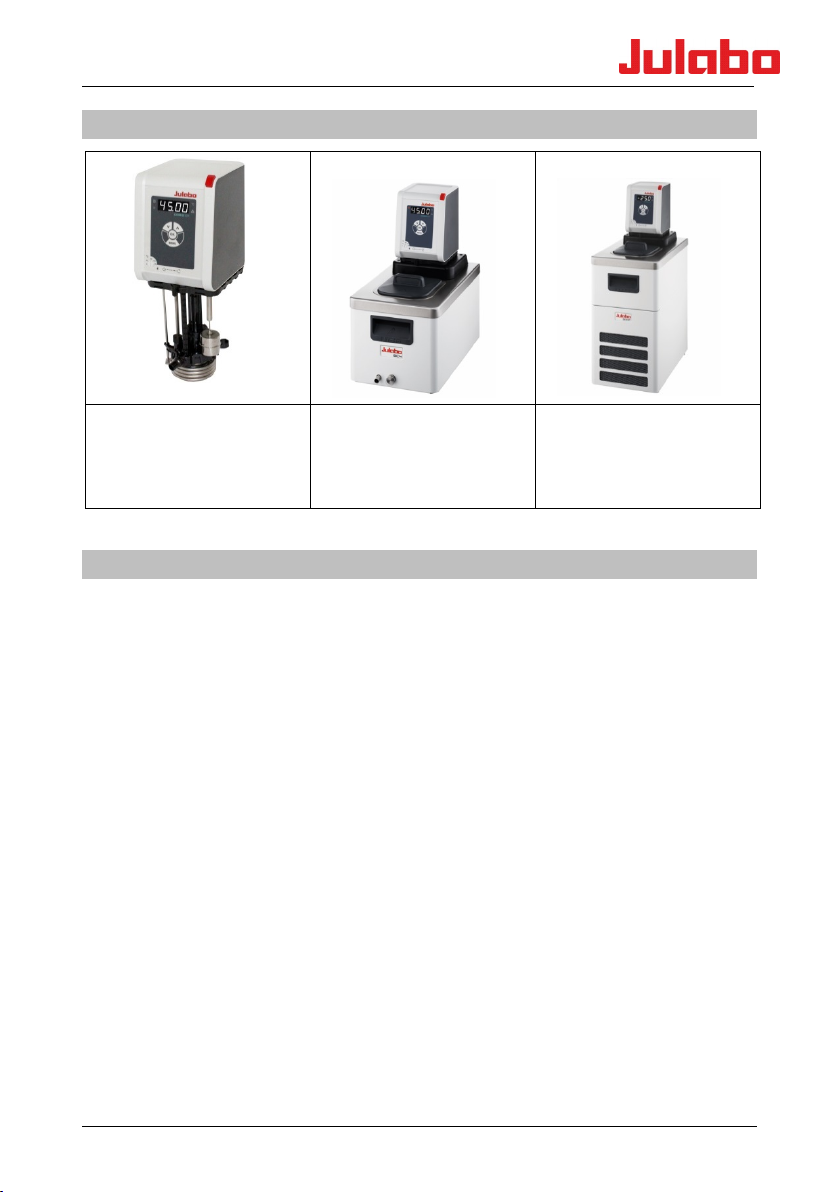

1CORIO®CP product overview
Immersion circulator
for bath tanks up to 50 l.
Bath circulator
for temperate control in an
internal bath or an external
application.
Refrigerated circulator
for standard temperature
control and routine tasks.
2Intended use
JULABO circulators are laboratory devices which are designed for the
temperature control of certain liquid media in a bath tank or with a
refrigeration unit. The bath fluids recommended by JULABO must be
used as tempering media.
Units with pump connections allow the tempering tasks to be carried
out in an external temperature control system.
JULABO circulators are not designed for the direct temperature
control of foods, semi-luxury foods and tobacco, or pharmaceutical
and medical products.
•Direct temperature control means unprotected contact between
the object and the tempering medium (bath fluid).
•The devices are not suitable for use in potentially explosive
environments.

Description
6
3Description
•These circulators are operated via the splash-proof keypad. The
microprocessor technology allows the setpoint to be set,
displayed and saved using the temperature display LED.
•The PID temperature control automatically adjusts the heat
supply to the requirements in the bath.
•ATC - Absolute Temperature Calibration (3-point calibration)
•The pump function can be switched from internal to external
circulation by a simple switchover button.
•Safety equipment to IEC 61010-2-010:
Excess temperature protector is a safety device which is
independent of the control circuit whose value is set
using a tool (screwdriver).
A float switch acts as the low level safety device. If these safety
devices trip, the heater and circulating pump are
completely shut down.
•Interfaces:
- CAN bus to communicate with the refrigeration machine
- RS232 interface for remote control.
- USB connector to act as host to update and read data. USB
device for remote control.
It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to
the safety instructions at your workstation.
It is essential that you read the user information before
starting the device.

Explanation of safety information
7
4Explanation of safety information
The operating manual contains warnings to increase safety when
using the unit. The general warning sign, consisting of an equilateral
triangle surrounding an exclamation sign and reproduced in various
signal colors, is preceded by the signal words.
"Warning of a dangerous situation".
The significance of the danger is classified with a signal word. Read
the instructions carefully and follow them.
This signal word designates a danger with a high level of risk which,
if it not prevented, will result in death or serious injury.
This signal word designates a danger with a medium level of risk
which, if it not prevented, may result in death or serious injury.
This signal word designates a danger with a low level of risk which,
if it not prevented, may result in minor or moderate injury.
Designates a possibly harmful situation. If it is not prevented, the
system or something near it may be damaged.
4.1 Explanation of other information
TIP
Your attention is drawn to something special by this.
Designates user tips and other useful information.
Dangers at second glance
Designates states which only occur after the start of an action and
could have been prevented if the warning had been heeded.

Informative note
Provides additional information.

Safety instructions
8
5Safety instructions
It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to
standard safety practices for working places.
•It is essential that you read the user information before starting
the unit.
•Use PPE (safety gloves, safety shoes, safety goggles).
•Transport the unit carefully. The interior of the unit can also be
damaged by impacts or if it is dropped.
•Do not loiter under the unit during transportation and operation.
•The unit is not intended for use in potentially explosive areas.
•Please observe the specifications for the minimum space
requirement when setting up the unit.
•Only operate the unit in rooms that are well-ventilated, dry and
free of frost.
•Switch the unit off immediately if there is refrigerant leakage.
•Place the unit on a flat surface of non-flammable material.
•Operate the unit under an exhaust hood as much as possible.
•Do not start the unit if it is damaged or leaking.
•Compare the mains voltage and frequency with the
specifications on the type plate.
•Only connect the unit to a fused mains connection via a FI circuit
breaker (Ia=30 mA).
•Only connect the unit to a power socket with ground contact (PE
–protective earth)!
•The power supply plug serves as safe disconnecting device from
the power supply network and must be freely accessible at all
times.
•Check the mains cable regularly for signs of damage.
•Do not start the unit if it has a damaged power cable.
•Keep the mains cable away from hot pump connections.
•Refer to the safety sticker. Parts of the unit can be hot or cold.
•Never use the unit without enough bath fluid.
•Do not reach into the thermal bath fluid.
•Check the filling level of the bath fluid at regular intervals. The
pump and heater must always be completely covered with bath
fluid.

Safety instructions
9
•Adjust over-temperature safety device below the flash point of
the bath fluid.
•Consider the restricted working temperature range if you are
using plastic bath tanks.
•Monitor the heat expansion of the bath oils as the bath
temperature rises.
•Prevent water getting into hot bath oils.
•Use suitable tubing.
•Secure the tubing connections to prevent them sliding off.
•Do not bend the bath fluid tubing.
•Check the hoses at regular intervals for signs of material fatigue
(for example cracking).
•Do not drain the bath fluid when it is hot.
•Check the temperature of the bath fluid before draining it, for
example by switching on the unit briefly.
•Switch off the unit and pull the plug before moving the unit or
carrying out service or repair work.
•Have all service and repair work carried out by authorized
specialists only.
•Switch off the unit and disconnect it from the power supply
before cleaning it.
•Drain the unit completely before transporting it.

Operator's responsibility - safety instructions
10
6Operator's responsibility - safety instructions
Products manufactured by JULABO GmbH ensure safe operation
when installed, operated and according to common safety
regulations. This section explains the potential dangers which may
occur when operating the unit and specifies the most important
safety measures to prevent these dangers as far as possible.
6.1 Requirements for the operating personnel
The operator is responsible for the qualifications of the personnel
operating the unit. Ensure that the personnel who operate the unit
are trained in the relevant work application by a trained person.
The operative must receive regular training about the dangers
involved with their work and about action to prevent such dangers.
Ensure that everybody involved with the operation, maintenance
and installation have read and understood the safety information
and the operating manual. The unit may only be configured,
installed, maintained and repaired by trained personnel.
If hazardous substances or substances which may become
hazardous are used, the unit may only be used by a person who is
completely familiar with these substances and the unit. This person
must be able to assess the possible dangers in full.
6.2 Operating and ambient conditions for using the unit
•Avoid impacts on the housing, vibrations, damage to the
operative keypad (keys and display) and heavy soiling.
•Ensure that the product is checked at regular intervals suitable
for its frequency of use to ensure that it is in perfect condition.
•Check the proper condition of the mandatory warning,
prohibition, and safety labels at least every 2 years.
•Ensure that the mains supply has a low impedance to prevent
influencing of other units powered in the same mains.
•The unit is designed for operation in a controlled
electromagnetic environment. This means that in an
environment of this nature, transmission equipment such as
mobile phones should not be used in the immediate vicinity.
•Other units with components which are susceptible to magnetic
fields may be influenced by magnetic radiation. We recommend
to maintain a minimum distance of 1 m.
•Permissible ambient temperature: max. 40 °C, min. 5 °C.
•The relative humidity should not exceed 50% (40°C).
•Do not store in an aggressive atmosphere. Protect from dirt.
•Protect from direct sunlight.

Operator's responsibility - safety instructions
11
6.3 Operating the unit
The bath may be filled with flammable materials. Fire hazard!
Chemical dangers may occur, depending on the bath medium.
Refer to all warnings on the substances used (bath fluids) and in the
relevant instructions (safety data sheets).
The formation of explosive mixtures is possible if the ventilation is
inadequate.
Only use the units in well ventilated areas. The unit is not suitable
for use in potentially explosive environments.
Special substance specifications (bath fluids) must be observed for
correct operation. Caustic or corrosive bath fluids must not be used.
When using hazardous substances or substances which may be
hazardous, the operator must apply the enclosed safety symbols (1
+ 2a or 2b) on the control side panel where they are clearly visible:
1
Warning of a danger zone. Attention!
Observe documentation. (Operating manual, safety data sheet)
2a
It is essential that you read the user information prior to operation.
Area of validity: EU
2b
It is essential that you read the user information prior to operation.
Area of validity: USA, NAFTA
As a result of the wide range of operating temperatures, special care
and caution is essential.
There are thermal dangers: Burns, scalds, hot steam, hot parts and
surfaces which may be touched.
Warning about hot surfaces.
(The label is applied by JULABO)
If external units are connected
Refer to the instructions in the manuals for the external units which
you connect to the JULABO unit, particularly the safety instructions.
The connection assignment of the plugs and the technical data for
the products must be observed at all times.

Control and function elements
12
7Control and function elements
Front Rear
Position Designation
1 Main switch (Device switched on / off)
2 Four-digit temperature display LED, menu display
3 Control indicator - alarm
4 Edit keys for navigating in the operating dialog
5 OK key 1. Switch the temperature control on/off.
2. Store value / parameter.
3. Alarms, confirm signal
6 Menu key for navigating in the operating dialog
7 Pump switchover,
Delivery
external…….internal
8 Adjustable excess temperature safety device
9 Control indicator - cooling
10 Control indicator - heating
11 USB host interface (type A)

Control and function elements
13
12 RS232 interface
13 Mains connection: Integrated connector for voltage supply (mains cable included
as accessory)
14 Fuses: Miniature circuit-breaker
15 CAN plug for connecting to the refrigeration machine.
16 USB device interface (type B) for data transfer to the PC, for example for control
tasks using the EasyTEMP software.
17 Pump connection: Return, IN M16x1, external
18 Pump connection: Supply, OUT M16x1, external
Refrigerated Circulators
19 Recessed handle (front, rear)
20 CAN connection cable for refrigeration machine circulator
21 CAN plug for connecting to the circulator.
22 Fuses: Miniature circuit-breakers, for refrigeration machine
Resettable fuses for 600F refrigeration units (115 V, 100 V)

Control and function elements
14
23 Connection cable: Voltage supply, refrigeration machine circulator
24 Electrical connection: Integrated connector to supply power to the circulator
25 Electrical connection: Integrated connector to supply power to the refrigeration
circulator
26 Drain cock and drain port (behind ventilation grille)
27 Caps (connectors for the cooling coil)

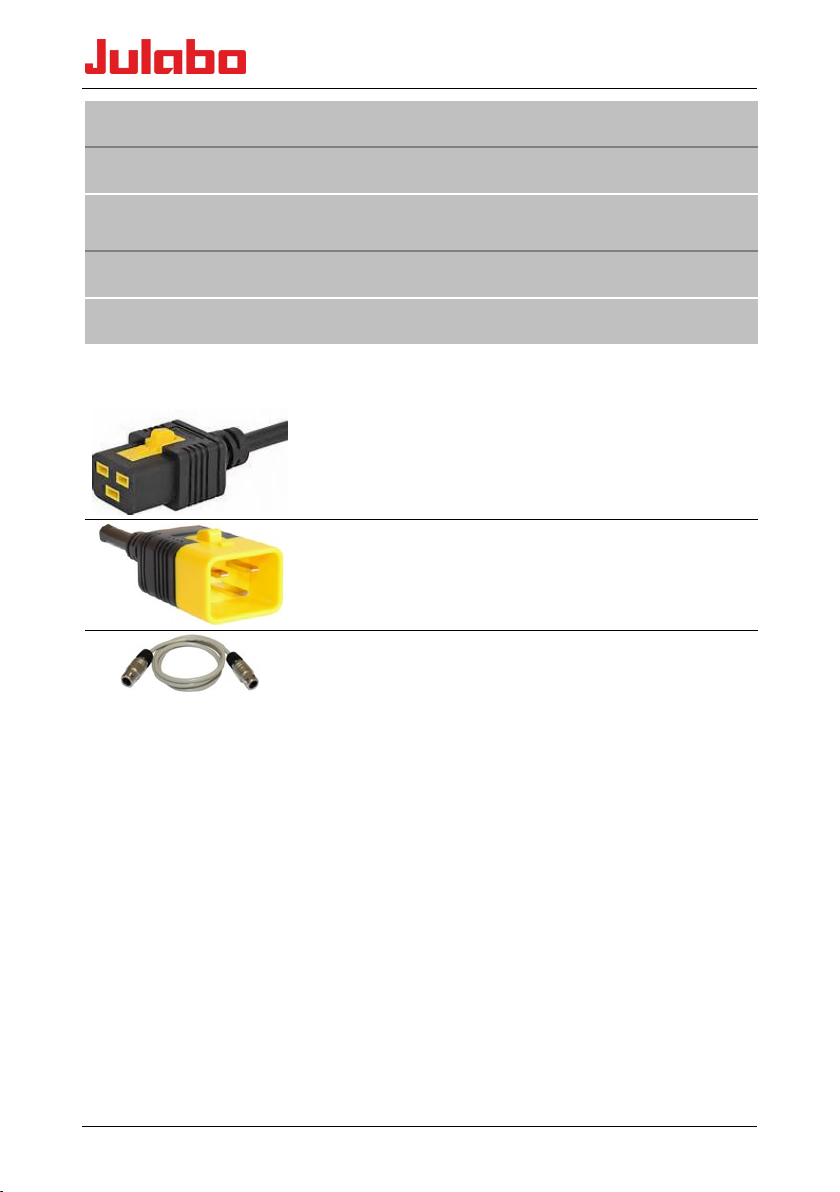

Accessories, included in the supply
1x Main cable for voltage supply for the
refrigeration machine (23) and circulator (11)
(use one only for refrigeration circulator)
1x Connection cable: Refrigeration machine (22) Circulator
(11)
With Refrigerated Circulators
1x CAN connection cable (18, for refrigeration machine
circulator)

Preparations for operating the device
15
7.1 Installation of the circulator
Danger of scalding due to leaks from the baths
The JULABO plastic baths are not solvent-resistant. JUALBO plastic
bath tanks are for water at a working temperature range from
+20°C to +100°C.
Do not contaminate the bath fluid with solvents.
Things to keep in mind during the installation process:
Risk of tipping due to improper transportation
Crushing, damage to the unit
•Use PPE (safety gloves, safety shoes, safety goggles).
•Carry the unit with 2 persons (see the Technical Data for the
weight).
•Transport the unit carefully on firm, level ground. The interior
of the unit can also be damaged by impacts or if it is dropped.
•Do not loiter under the unit during transportation and
operation.
•The installation site should be a sufficiently large room to
ensure that it does not become too hot due to the heat
emission.
•The surface for the device should be flat and made of non-
flammable material.
•A specific room size is prescribed for refrigerated circulators.
•At high temperatures, position the unit under an exhaust hood
as much as possible due to potential vapors from the thermal
bath fluid.
•Observe the safety sticker - do not remove!
8Preparations for operating the device
8.1 Securing the immersion circulator
Danger of electric shock.
Switch off the device and unplug it from the power
supply
Carefully secure the immersion circulator on the bath vessel. Poorly
installed circulators can fall into the bath tank. If this happened have
the unit checked by a service technician prior to re-use.

Preparations for operating the device
16
The heater must not be in contact with the wall or the bottom of the
bath tank. Minimum distance 15 mm.
Pull the plug to disconnect the unit from the power supply before
you uninstall. Only then take the immersion circulator out of the
bath tank.
A range of accessories is available for various applications:
•Bath clamp (for securing the circulator to baths)
•Bracket (for securing the circulator to JULABO refrigeration
machines)
•Pump set (for connecting external applications)
•Cooling coil (for operating close to ambient temperature)
•Stand holder with rod (for securing to a laboratory stand)
Bath attachment clamp, order No. 9970420
•Pay special attention to the circulator's immersion depth (see
Technical data) when selecting the bath.
•Place the bath on a flat surface on a pad made of non-
flammable material.
•Secure the bath attachment clamp to the bath tank. The wall
thickness may be up to 30 mm.
•Attach the circulator with a “click” to the bath attachment
clamp.
Stand attachment, order No. 9970022
For use with glass tanks a stand attachment with rod is available as
an optional accessory.
The circulator must be mounted vertically and secured against
rotation. If necessary, secure the nuts of the rod also.
Bracket, order No. 9970170
Installation on the circulator
•Slide the bracket over the heater and pump on to the
circulator
•Push the end of the tubing on the "OUT" side on to the outlet
port on the pump.
•Secure against slipping using the clamp.

Preparations for operating the device
17
•
Push the end of the tubing on the "IN" side into the holding
device on the pump.
•Secure the bracket housing to the base of the circulator using
the four screws.
Connect an external system
•Remove the union nuts and sealing plates from the pump
connectors.
•The tubing connections can be used for hoses with M16x1
connections in this state.
Or:
•Secure barbed fittings to the union nuts.
•Connect tempering hoses and secure them with tube clamps
to prevent them sliding off.
•Connect the tubing for the supply and return to the pump
connectors and the external consumer and secure them with
tube clamps.
•Switch the pump function to external circulation.
Pump set, order No. 9970141
Installation on the circulator
•Push the end of the tubing on the "OUT" side on to the port
on the pump.
•Secure against slipping using the clamp.
•Push the end of the tubing on the "IN" side on to the holding
device on the pump.
•Secure the pump housing to the base of the circulator using
the two screws.
•Attach the circulator to the bath clamp.
The total immersion depth will be reduced due to the pump
set.
Connect an external system (also applies to bracket)
•Remove the union nuts and sealing plates from the pump
connectors.
•The hose connectors can be used for tubing with M16x1
connections in this state.
Or:

Preparations for operating the device
18
•
Secure barbed fittings to the union nuts.
•Connect tubing and secure them with tube clamps to prevent
them sliding off.
•Connect the tubing for the supply and return to the pump
connectors and the external consumer and secure them with
tube clamps.
•Switch the pump function to external circulation.
Cooling coil, order No. 9970100
A cooling coil is required for working at around ambient
temperature (20 °C) A cooling water flow rate of 45 ml/min is
generally sufficient to compensate for the intrinsic temperature.
The cooling water temperature should be at least 5 °C lower
than the working temperature.
Install the cooling coil on the pump set
•Remove the caps from the pump set.
•Insert the ends of the cooling coil through the fastening
boreholes and secure them with the washers and hex nuts.
•Install the connection ports to the cooling coil.
•Slide the cooling water hoses over the connection ports and
prevent slipping.
Bracket with cooling coil, order No. 9970176
Install the cooling coil on the bracket
•Remove the caps from the bracket.
•Slide the ends of the cooling coil through the fastening
boreholes.
•Secure them with the washers and hex nuts.
•Install the connection ports to the cooling coil.
•Slide the cooling water tubing over the connection ports and
prevent slipping.

Preparations for operating the device
19
8.2 Closed stainless steel bath tanks
Intended use
JULABO BC4, BC6, BC12 and BC26 closed stainless steel baths can
be combined with JULABO circulators from the CORIO product
series. When combined with these circulators they are designed for
controlling the temperature of JULABO recommend liquid media.
Technical details for the sealed baths
The circulators feature the bracket which is secured to the
baths.
Type
BC4
BC6
BC12
BC26
Order No.
9905504
9905506
9905512
9905526
Temperature range
°C
+20…+300
Approx. weight
kg
5.2
6.4
8.2
15.0
Dimensions (WxDxH*)
cm
23x41x42
24x44x47
33x49x47
39x62x48
Useful bath opening
(WxLxD), inner
cm
13x15x15
13x15x20
22x15x20
26x35x20
Filling volume
Min. … Max.
l
3.0…4.5
4.5…6.0
8.5 … 12.0
19.0 …26.0
Materials for parts in
contact with the
medium
Bath and drain cock: 1.4301 / 304H
Bath/Bath cover seal: FKM Viton®
O-ring on drain cock: FKM Viton®
* / With circulator

Preparations for operating the device
20
8.3 Basic refrigeration baths
Intended use
The basic refrigeration baths can be combined with JULABO
circulators. In combination with these circulators, they are intended
for the temperature control of liquid media (bath fluids).
Technical details for basic refrigeration baths
The bracket is required for installation on the circulator.
Type 200F 201F 300F 600F
Order No. 9461701 9461702 9461703 9461704
Temperature range
°C
-20…200 -20…200 -25…200 -35…200
Weight
kg
26,0
25,0
28,0
36,0
Dimensions (WxDxH*)
cm
23x39x65
44x41x44
24x42x66
33x47x69
Useful bath opening
(WxLxD), inner
cm
13x15x15
13x15x15
13x15x15
22x15x15
Filling volume
Min. … Max.
l
3,0…4,0
3,0…4,0
3,0 … 4,0
5,0 …7,5
Materials for parts in
contact with the
medium
Bath and drain valve: 1.4301 / 304H
Bath/Bath cover seal: FKM Viton®
O-ring on drain valve: FKM Viton®
Type 601F 900F 1000F 1001F
Order No. 9461705 9461706 9461707 9461707
Temperature range
°C
-40…200
-40…200
-40…200
-38…100
Weight
kg
36,0
52,0
49,0
68,0
Dimensions (WxDxH*)
cm
36x46x74
39x62x75
42x49x70
45x64x77
Useful bath opening
(WxLxD), inner
cm
22x15x20
26x35x20
18x13x15
35x41x30
Filling volume
Min. … Max.
l
8,0…10,0
21,0…30,0
5…7,5
42…56
Materials for parts in
contact with the
medium
Bath and drain valve: 1.4301 / 304H
Bath/Bath cover seal: FKM Viton®
O-ring on drain valve: FKM Viton®
* / with circulator
