Julabo CORIO CD User manual

english
Pos:2 /TechnischeDokumentation/FlashCORIO/EinhängethermostatCORIO C/TitelfotoCD @0\mod _1 395 828649 188_ 0.d ocx @ 4 299 @ @ 1
=== E nde d er L ist e fü r Te xtm ark e In hal t1 == =
Immersion / Open Bath / Refrigerated Circulators
Operating Instructions
Important: keep original operating manual for future use.
1.951.0800-V0

Table of contents
1CORIO®CD product overview.............................................................5
2Intended use ........................................................................................5
3Description...........................................................................................6
4Explanation of safety information.....................................................7
4.1 Explanation of other information ............................................................ 7
5Safety instructions ..............................................................................8
6Operator's responsibility - safety instructions ...............................10
6.1 Requirements for the operating personnel............................................ 10
6.2 Operating and ambient conditions for using the unit............................ 10
6.3 Operating the unit................................................................................. 11
7Control and function elements.........................................................13
7.1 Installation of the circulator .................................................................. 16
8Preparations for operating the device ............................................16
8.1 Securing the immersion circulator......................................................... 16
8.2 Open bath tanks.................................................................................... 19
9Closed stainless steel bath tanks .....................................................22
9.1 Bath fluids............................................................................................. 23
Water bath fluid........................................................................................................ 23
9.2 Temperature control for external connected systems............................ 25
9.3 Tubing................................................................................................... 26
10 Commissioning ..................................................................................27
10.1 Excess temperature and low level safety devices .................................. 28
10.2 Filling .................................................................................................... 28
10.3 Pump settings ....................................................................................... 29
10.4 Switching on / Start - Stop .................................................................... 29
10.5 Adjusting of temperature setpoint ........................................................ 30
10.6 ATC - Absolute Temperature Calibration (1-point calibration) .............. 31
10.7 Switch Autostart on and off .................................................................. 32
11 Error messages / Possible causes of faults......................................33
2

12 Operation of the CORIO CD via the USB interface ......................... 36
13 Emptying the bath tank.................................................................... 38
14 Technical data ................................................................................... 39
14.1 Technical data for circulator.................................................................. 39
14.2 Technical data for refrigeration circulation circulator............................ 40
15 Materials of parts in contact with the bath fluid........................... 42
15.1 Circulator .............................................................................................. 42
16 Accessories ........................................................................................ 43
16.1 For external connection......................................................................... 43
16.2 For open baths ...................................................................................... 43
17 Maintenance, cleaning, storage....................................................... 43
17.1 Maintain the refrigeration capacity....................................................... 43
17.2 Cleaning................................................................................................ 44
18 Storage .............................................................................................. 45
19 Repair service.................................................................................... 45
19.1 Warranty ............................................................................................... 45
20 Waste disposal .................................................................................. 46
20.1 Packaging.............................................................................................. 46
20.2 Unit ....................................................................................................... 46
20.3 Refrigerant ............................................................................................ 46
21 EC conformity.................................................................................... 47
Pos:4 /TechnischeDokumentation/FlashCORIO/EinhängethermostatCORIOC/N eueSeite @0\mod _1 417 593 782389_ 0.d oc x @7 630 @ @ 1
3

Pos:5 /TechnischeDokumentation/FlashCORIO/Glückwunsch- Ein le itun g @ 0 \mo d_13951 36866201_ 18.docx @ 416 1@ @1
Congratulations.
You have made an excellent choice.
JULABO thanks you for the trust you have placed in us.
This operating manual is designed to familiarize you with the operation
of our units and their possible applications. Please read the operating
manual carefully.
Please call us if you have any questions about the operation of the unit
or about the operating manual.
Contact:
JULABO GmbH
Eisenbahnstrasse 45
77960 Seelbach / Germany
Tel. [phone] / 51-0
Fax [phone] / 2491
[e-mail]
www.julabo.com
The JULABO quality management system
The standards for the development, production and distribution of
temperature control devices for laboratory and industry use satisfy the
requirements of ISO 9001 and ISO 14001.
Registration certificate No. 01 100044846.
Unpacking and inspection
If the packaging is damaged or if you discover any concealed transport
damage when you have unpacked the devices and the accessories,
please notify the supplier in the form of a statement of damage.
The operating manual
•should be kept for future use.
•must be available to operating personnel at all times.
Pos: 6 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/CD-Produktüb ersich t @0 \mod _140 930467 092 6_18.do cx @73 30 @ 1 @ 1
4

CORIO® CD product overview

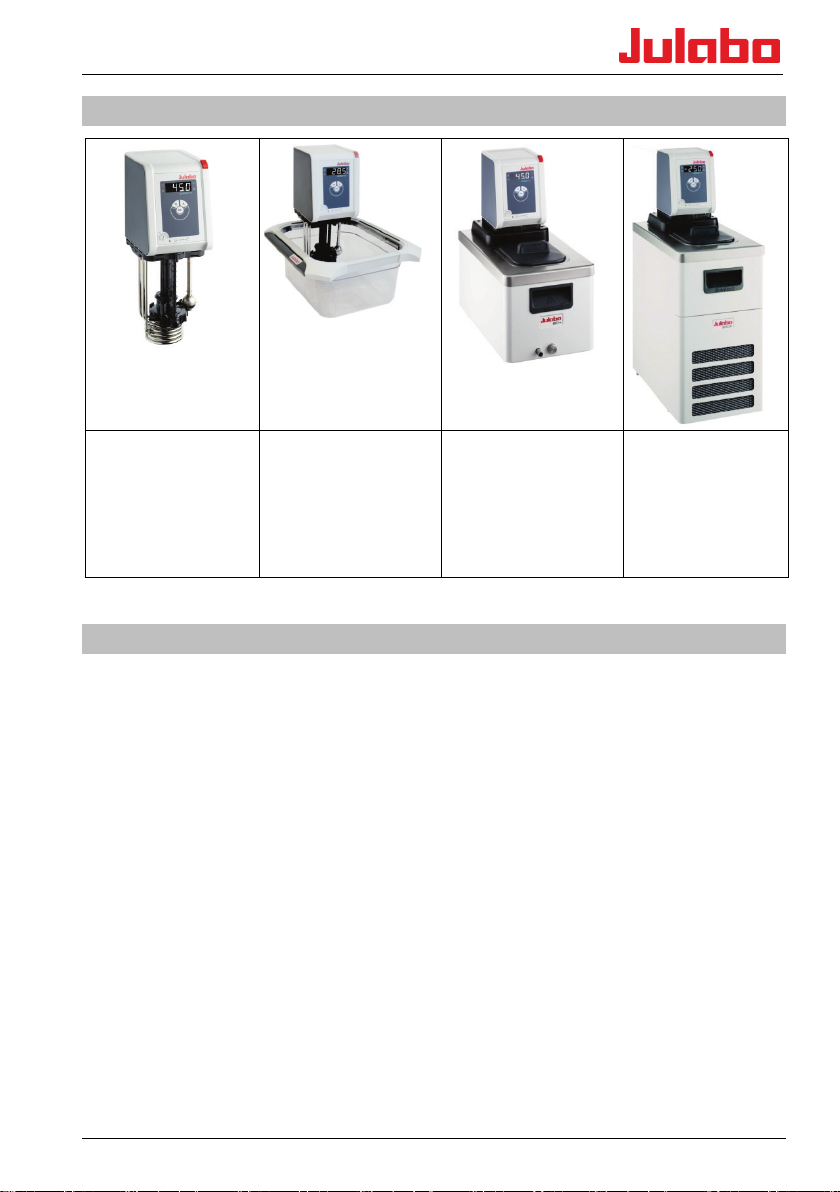

1CORIO®CD product overview
Immersion
circulator
for bath tanks up to
50 l.
Open bath
circulator
with high quality bath
tanks made of
transparent plastic or
stainless steel.
Bath circulator
for temperate control
in an internal bath or
an external
application.
Refrigerated
circulator
for standard
temperature control
and routine tasks.
Pos:7 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/BestimmungsgemäßeVerwendung @ 0\mod _1 409218 447 083_ 18.d oc x @ 662 0 @ 1 @ 1
2Intended use
JULABO circulators are laboratory devices which are designed for the
temperature control of certain liquid media in a bath tank or with a
refrigeration unit. The bath fluids recommended by JULABO must be
used as tempering media.
Units with pump connections allow the tempering tasks to be carried out
in an external temperature control system.
JULABO circulators are not designed for the direct temperature control of
foods, semi-luxury foods and tobacco, or pharmaceutical and medical
products.
•Direct temperature control means unprotected contact between the
object and the tempering medium (bath fluid).
•The devices are not suitable for use in potentially explosive
environments.
Pos:8 /TechnischeDokumentation/FlashCORIO/EinhängethermostatCORIOC/N eueSeite @0\mod _1 417 593 782389_ 0.d oc x @7 630 @ @ 1
5

Pos: 9 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/BeschreibungTh ermostatCD @ 0 \mod_ 140 921844 6802_ 18.doc x @ 66 09 @ 1 @ 1
3Description
•These circulators are operated via the splash-proof keypad. The
microprocessor technology allows the setpoint to be set, displayed
and saved using the temperature display LED.
•The PID temperature control automatically adjusts the heat supply to
the requirements in the bath.
•ATC - Absolute Temperature Calibration (1-point calibration)
•The pump function can be switched from internal to external
circulation by a simple switchover button.
•Safety equipment to IEC 61010-2-010:
- The excessive temperature protector is a safety device which
is independent of the control circuit whose value is set using
a tool (screwdriver).
- A float switch acts as the low level safety device. If these
safety devices trip, the heater and circulating pump are
completely shut down.
•Interfaces:
- CAN bus to communicate with the refrigeration machine
- USB connector to act as host to update and read data. USB device
for remote control.
Pos:10 /TechnischeDokumentation/FlashCORIO/HinweisB A lesen @ 0\mo d_1 389 684 668 601_ 18.doc x @ 363 2 @ @1
It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to the
safety instructions at your workstation.
It is essential that you read the user information before
starting the device.
Pos:11 /TechnischeDokumentation/FlashCOR IO /Einh än geth erm ost at CO RIO C/N eue Sei te @ 0\mo d_ 141 759 378 2389_ 0.doc x @ 763 0 @ @ 1
6

Explanation of safety information
Pos:12 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/ErklärungSicherheits-und andere Hinweise@ 0\mod_ 140921 844901 7_1 8.docx @ 6 697 @ 12 @ 1
4Explanation of safety information
The operating manual contains warnings to increase safety when using
the unit. The general warning sign, consisting of an equilateral triangle
surrounding an exclamation sign and reproduced in various signal
colors, is preceded by the signal words.
"Warning of a dangerous situation".
The significance of the danger is classified with a signal word. Read the
instructions carefully and follow them.
This signal word designates a danger with a high level of risk which, if
it not prevented, will result in death or serious injury.
This signal word designates a danger with a medium level of risk
which, if it not prevented, may result in death or serious injury.
This signal word designates a danger with a low level of risk which, if it
not prevented, may result in minor or moderate injury.
Designates a possibly harmful situation. If it is not prevented, the
system or something near it may be damaged.
4.1 Explanation of other information
TIP
Your attention is drawn to something special by this.
Designates user tips and other useful information.
Dangers at second glance
Designates states which only occur after the start of an action and
could have been prevented if the warning had been heeded.

Informative note
Provides additional information.
Pos:13 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/Sicherheitsanweisungen @ 0\mod _1 409218 454 274_18.d oc x @ 6917 @ 1 @ 1
7

5Safety instructions
It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to
standard safety practices for working places.
•It is essential that you read the user information before starting the
unit.
•Place the unit on a flat surface and a mat made of non-flammable
material.
•Do not start the unit if it is damaged or leaking.
•Only connect the unit to a power socket with ground contact (PE –
protective earth)!
•The power supply plug serves as safe disconnecting device from the
power supply network and must be freely accessible at all times.
•Do not start the unit if it has a damaged power cable.
•Refer to the safety sticker.
•Never use the unit without bath fluid.
•Check the filling level of the bath fluid at regular intervals. The pump
and heater must always be completely covered with bath fluid.
•Set the excess temperature protector to at least 25 °C below the
flash point of the bath fluid.
•Consider the restricted working temperature range if you are using
plastic bath tanks.
•Monitor the heat expansion of the bath oils as the bath temperature
rises.
•Prevent water getting into hot bath oils.
•Use suitable tubing.
•Secure the tubing connections to prevent them sliding off.
•Do not bend the bath fluid tubing.
•Check the hoses at regular intervals for signs of material fatigue (for
example cracking).
•Do not drain the bath fluid when it is hot.
•Check the temperature of the bath fluid before draining it, for
example by switching on the unit briefly.
•Switch off the unit and pull the plug before moving the unit or
carrying out service or repair work.
•Have all service and repair work carried out by authorized specialists
only.
•Switch off the unit and disconnect it from the power supply before
cleaning it.
8

Safety instructions
•Empty the unit completely before transporting it.
•Transport the unit carefully. The interior of the unit can also be
damaged by impacts or if it is dropped.
Pos:14 /TechnischeDokumentation/FlashCOR IO/Veran twortun gd esB etreibe rs Therm. Kl. 3, brenn bar @ 0\mod_139 504675414 7_18.doc x @4 104 @ 1222 @ 1
9

6Operator's responsibility - safety instructions
Products manufactured by JULABO GmbH ensure safe operation when
installed, operated and according to common safety regulations. This
section explains the potential dangers which may occur when operating
the unit and specifies the most important safety measures to prevent
these dangers as far as possible.
6.1 Requirements for the operating personnel
The operator is responsible for the qualifications of the personnel
operating the unit. Ensure that the personnel who operate the unit are
trained in the relevant work application by a trained person.
The operative must receive regular training about the dangers involved
with their work and about action to prevent such dangers.
Ensure that everybody involved with the operation, maintenance and
installation have read and understood the safety information and the
operating manual. The unit may only be configured, installed,
maintained and repaired by trained personnel.
If hazardous substances or substances which may become hazardous are
used, the unit may only be used by a person who is completely familiar
with these substances and the unit. This person must be able to assess
the possible dangers in full.
6.2 Operating and ambient conditions for using the unit
•Avoid impacts on the housing, vibrations, damage to the operative
keypad (keys and display) and heavy soiling.
•Ensure that the product is checked at regular intervals suitable for its
frequency of use to ensure that it is in perfect condition.
•Check the proper condition of the mandatory warning, prohibition,
and safety labels at least every 2 years.
•Ensure that the mains supply has a low impedance to prevent
influencing of other units powered in the same mains.
•The unit is designed for operation in a controlled electromagnetic
environment. This means that in an environment of this nature,
transmission equipment such as mobile phones should not be used
in the immediate vicinity.
•Other units with components which are susceptible to magnetic
fields may be influenced by magnetic radiation. We recommend to
maintain a minimum distance of 1 m.
•Permissible ambient temperature: max. 40 °C, min. 5 °C.
•The relative humidity should not exceed 50% (40°C).
•Do not store in an aggressive atmosphere. Protect from dirt.
•Protect from direct sunlight.
10

Operator's responsibility - safety instructions
6.3 Operating the unit
The bath may not be filled with flammable materials. Fire hazard!
Chemical dangers may occur, depending on the bath medium.
Refer to all warnings on the substances used (bath fluids) and in the
relevant instructions (safety data sheets).
The formation of explosive mixtures is possible if the ventilation is
inadequate.
Only use the units in well ventilated areas. The unit is not suitable for
use in potentially explosive environments.
Special substance specifications (bath fluids) must be observed for
correct operation. Caustic or corrosive bath fluids must not be used.
When using hazardous substances or substances which may be
hazardous, the operator must apply the enclosed safety symbols (1; 2a;
2b) on the control side panel where they are clearly visible:
1
Warning of a danger zone. Attention!
Observe documentation (Operating manual, safety data sheet).
2a
It is essential that you read the user information prior to operation.
Area of validity: EU
2b
It is essential that you read the user information prior to operation.
Area of validity: USA, NAFTA
11

As a result of the wide range of operating temperatures, special care and
caution is essential.
There are thermal dangers: Burns, scalds, hot steam, hot parts and
surfaces which may be touched.
Warning about hot surfaces.
(The label is applied by JULABO)
If external units are connected
Refer to the instructions in the manuals for the external units which you
connect to the JULABO unit, particularly the safety instructions.
The connection assignment of the plugs and the technical data for the
products must be observed at all times.
Pos : 15 /T ec hn is ch e Doku m en t at ion /F l ash CO RI O /Bed i en - und FunktionselementeCD-F300 @ 0\mod_ 139626 531114 0_18 .docx @ 43 87 @ 1 @ 1
12

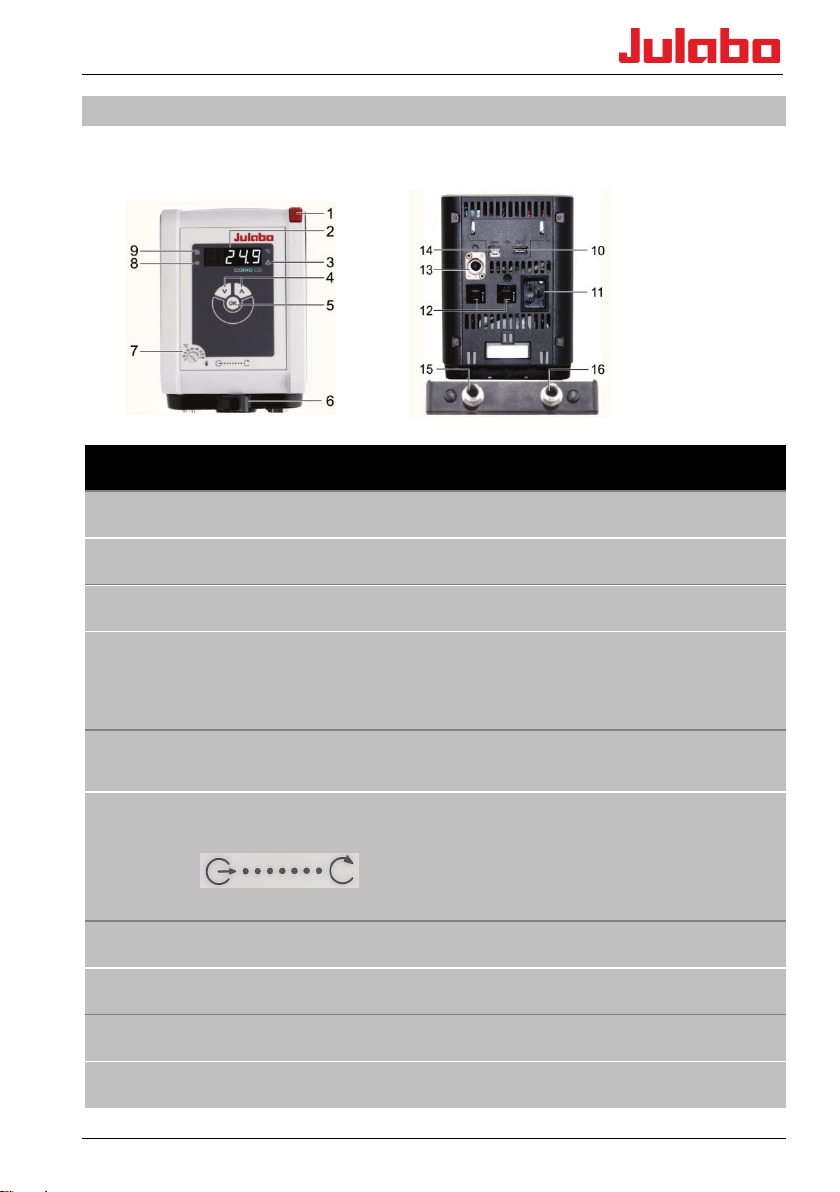

Control and function elements
7Control and function elements
Front Rear
Position Designation
1 Main switch
2 Four-figure temperature display LED, menu display
3 Control indicator - alarm
4 Editi keys
Temperature setpoint increase or decrease
Press the key briefly for step-by-step changes.
Press and hold the key for fast change of setpoint.
5 OK key 1. Switch the device on/off.
2. Store value / parameter.
6 Pump switchover,
Delivery
external…….internal
7 Adjustable excess temperature safety device
8 Control indicator - cooling
9 Control indicator - heating
10 USB host interface (type A)
13

11 Electrical connection: Integrated connector plug for voltage supply (mains cable in
accessories)
12 Fuses: Miniature circuit-breaker
13 CAN plug for connecting to the refrigeration machine.
14 USB device interface (type B) for data transfer to the PC, for example for control tasks
using the EasyTEMP software.
15 Pump connection: Return, IN M16x1, external
16 Pump connection: Supply, OUT M16x1, external
Refrigerated Circulators
17 Recessed handle (front, rear)
18 CAN connection cable for refrigeration machine circulator
19 CAN plug for connecting to the circulator.
20 Fuses: Miniature circuit-breakers, for refrigeration machine. Resettable fuses for 600F
refrigeration units (115 V, 100 V).
14

Control and function elements
21 Connection cable: Voltage supply, refrigeration machine circulator
22 Electrical connection: Integrated connector to supply power to the circulator
23 Electrical connection: Integrated connector to supply power to the refrigeration
circulator
24 Drain cock and drain port (behind ventilation grille)
25 Caps (connectors for the cooling coil)
Accessories, included in the supply
2x Main cable for voltage supply for the
refrigeration machine (23) and circulator (11)
(use one only for refrigeration circulator)
1x Connection cable: Refrigeration machine (22) Circulator (11)
1x CAN connection cable (18, for refrigeration machine circulator)
Pos:16 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/Aufstellen, Achtung@ 0\mod_ 140 921844 399 4_1 8.d ocx @ 6 532 @ 2@ 1
15

7.1 Installation of the circulator
Danger of scalding due to leaks from the baths
The JULABO plastic baths are not solvent-resistant. JUALBO plastic
bath tanks are for water at a working temperature range from +20°C
to +100°C.
Do not contaminate the bath fluid with solvents.
Things to keep in mind during the installation process:
This work may only be carried out by trained personnel.
•The installation site should be a sufficiently large room to ensure
that it does not become too hot due to the waste heat.
•The surface for the device should be flat and made of non-
flammable material.
•A specific room size is prescribed for refrigerated circulators.
•Observe the safety sticker - do not remove!
Pos:17 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/Befestigen,Einhängethermostat@0\mo d_1409 218444321_ 18.docx @ 654 3 @12 @ 1
8Preparations for operating the device
8.1 Securing the immersion circulator
Danger of electric shock.
Carefully secure the immersion circulator on the bath tank. Poorly
installed circulators can fall into the bath tank.
Have the unit checked by a service technician prior to re-use.
The heater must not be in contact with the wall or the bottom of the
bath tank. Minimum distance 15 mm.
Pull the plug to disconnect the unit from the power supply. Only then
take the immersion circulator out of the bath tank.
A range of accessories is available for various applications:
•Bath clamp (for securing the circulator to baths)
•Bracket (for securing the circulator to JULABO refrigeration
machines)
•Pump set (for connecting external applications)
•Cooling coil (for operating close to ambient temperature)
•Stand holder with rod (for securing to a laboratory stand)
16

Preparations for operating the device

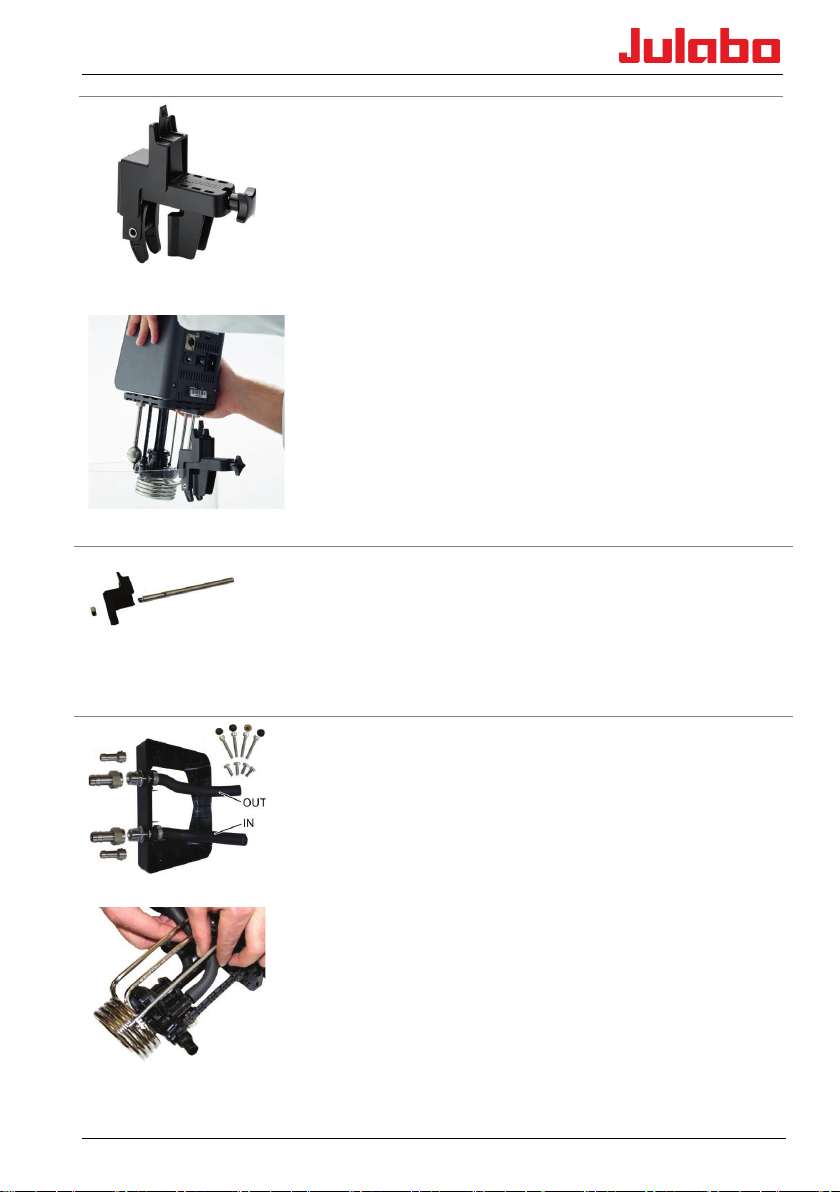

Bath attachment clamp, order No. 9970420
•Pay special attention to the circulator's immersion depth (see
Technical data) when selecting the bath.
•Place the bath on a flat surface on a mat made of non-flammable
material.
•Secure the bath attachment clamp to the bath tank. The wall
thickness may be up to 30 mm.
•Attach the circulator with a “click” to the bath attachment clamp.
Pos: 18 /T ec h nis c h e Dokum en t at io n /Fl as h COR IO /C OR I O_ CD_ GESAM T/ St at ivh al t er un g @ 0\mod_142 228526 035 2_18.d ocx @ 7820 @ @ 1
Stand attachment, order No. 9970022
For use with glass tanks a stand attachment with rod is available as an
optional accessory.
The circulator must be mounted vertically and secured against rotation.
If necessary, secure the nuts of the rod also.
Pos : 19 /T ec hn is ch e Doku m en t at ion /F l ash CO RI O /CO R IO _C D_ GE SAM T / Mo nt ag eau fs atz @0 \mo d_1 422 270 519 338_ 18.doc x @ 781 0 @ @1
Bracket, order No. 9970177
Installation on the circulator
•Slide the bracket over the heater and pump on to the circulator
•Push the end of the tubing on the "OUT" side on to the outlet
port on the pump.
•Push the end of the tubing on the "IN" side into the holding
device on the pump.
•Secure the bracket housing to the base of the circulator using the
four screws.
Connect an external system
•Remove the union nuts and sealing plates from the pump
connectors.
•The tubing connections can be used for hoses with M16x1
connections in this state.
17

Or:
•Secure barbed fittings to the union nuts.
•Connect tubing and secure them with tube clamps to prevent
them sliding off.
•Connect the tubing for the supply and return to the pump
connectors and the external consumer and secure them with tube
clamps.
•Switch the pump function to external circulation.
Pos:20 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/Pumpenset@ 0\mod_ 140 921845 3557_ 18.doc x @ 68 84 @ @ 1
Pump set, order No. 9970140
Installation on the circulator
•Push the end of the tubing on the "OUT" side on to the port on
the pump.
•Push the end of the tubing on the "IN" side on to the holding
device on the pump.
•Secure the pump housing to the base of the circulator using the
two screws.
•Attach the circulator to the bath clamp.
The total immersion depth will be reduced due to the pump set.
Connect an external system (also applies to bracket)
•Remove the union nuts and sealing plates from the pump
connectors.
•The hose connectors can be used for tubing with M16x1
connections in this state.
Or:
•Secure barbed fittings to the union nuts.
•Connect tubing and secure them with tube clamps to prevent
them sliding off.
•Connect the tubing for the supply and return to the pump
connectors and the external consumer and secure them with
tube clamps.
•Switch the pump function to external circulation.
Pos:21 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/KühlschlangeCorioC D @0\mod _1 409 218451 357_ 18.d oc x @ 679 6 @ @ 1
18

Preparations for operating the device
Cooling coil, order No. 9970100
A cooling coil is required for working at around ambient temperature
(20 °C) A cooling water flow rate of 45 ml/min is generally sufficient to
compensate for the intrinsic temperature.
The cooling water temperature should be at least 5 °C lower than the
working temperature.
Install the cooling coil on the pump set
•Remove the caps from the pump set.
•Insert the ends of the cooling coil through the fastening boreholes
and secure them with the washers and hex nuts.
•Install the connection ports to the cooling coil.
•Slide the cooling water hoses over the connection ports and
prevent slipping.
Bracket with cooling coil, order No. 9970176
Install the cooling coil on the bracket
•Remove the caps from the bracket.
•Slide the ends of the cooling coil through the fastening boreholes.
•Secure them with the washers and hex nuts.
•Install the connection ports to the cooling coil.
•Slide the cooling water tubing over the connection ports and
prevent slipping.
Pos:22 /TechnischeDoku m en t at ion /F las h CO RI O /CO RI O _C D_ GE SAM T /Of fene Badg ef äß e (b xh xt) @ 0\mod_1 424 251016 879 _18.doc x @ 78 60 @2 @ 1
8.2 Open bath tanks
Open JULABO baths can be combined with JULABO circulators from the
CORIO product series. When combined with these circulators they are
designed for controlling the temperature of liquid media recommended
by JULABO.
The circulators are mounted on the baths using bath attachment clamps,
for example.
19

Technical details for transparent bath tanks
Type BT5 BT9 BT19 BT27
Order numbers 9901305 9901309 9901319 9901327
Temperature range °C +20 ... +100
Approx. weight kg
1.2
1.5
2.3
2.7
Dimensions (WxDxH*) cm
23 x 38 x 38
32 x 38 x 38
38 x 58 x 38
38 x 58 x 43
Useful bath opening
(WxLxD)
cm
15 x 15 x 15
23 x 15 x 15
30 x 35 x 15
30 x 35 x 20
Filling volume,
Min...Max
l
3.5 …5.0
6.0 … 9.0
14.0 … 19.0
20.0 … 27.0
Material Parts in contact with the bath fluid: Polycarbonate
* With circulators
Technical details for stainless steel bath tanks
Type B5 B13 B17 B19
Order numbers 9903405 9903413 9903417 9903419
Temperature range °C
+20 ... +150
Approx. weight kg
2.6
5.2
6.1
6.9
Dimensions (WxDxH*) cm
23x38x41
38x40x42
38x40x47
38x58x42
Useful bath opening
(WxLxD) cm
15x15x15
30x18x15
30x18x20
30x35x15
Filling volume,
Min...Max
l
3.5 ... 5.0
9.0 ... 13.0
13.0 ... 17.0
14.0 … 19.0
Material Parts in contact with the bath fluid: Stainless steel
20
