Julabo Corio C User manual

english
Pos: 2 /Technische Dok umentation/Flash CORIO/Einhängethermostat CORIO C/Titelfoto C@ 0\mod_1424680789375_0.docx @ 7930 @ @1
===Ende derListefürTextmarke Inhalt1===
Immersion / Open Bath Circulators
Operating Instructions
Important: keep original operating manual for future use.
1.951.0400-V2

2
Table of contents
1Intended use ........................................................................................5
2CORIO®C product overview ...............................................................6
3Description...........................................................................................6
4Explanation of safety information.....................................................7
4.1 Explanation of other information ............................................................ 7
5Safety instructions ..............................................................................8
6Operator's responsibility - safety instructions .................................9
6.1 Requirements for the operating personnel.............................................. 9
6.2 Operating and ambient conditions for using the unit.............................. 9
6.3 Operating the unit................................................................................. 10
7Control and function elements.........................................................11
8Preparations for operating the device ............................................12
8.1 Installation ............................................................................................ 12
8.2 Installation of the circulator .................................................................. 13
8.3 Open bath tanks.................................................................................... 13
8.4 Bath fluid .............................................................................................. 16
9Filling..................................................................................................16
10 Initial Operation ................................................................................18
10.1 Switching on / Start - Stop .................................................................... 18
10.2 Automatic / Manual start mode ............................................................ 19
10.3 Adjusting of temperature setpoint ........................................................ 20
10.4 Adjustment of the timer ............. Fehler! Textmarke nicht definiert.
10.5 ATC - Absolute Temperature Calibration (1-point calibration) .............. 21
11 Error messages / Possible causes of faults......................................22
12 Draining the bath tank .....................................................................23
13 Technical data....................................................................................24
13.1 Circulator .............................................................................................. 24
14 Materials of parts in contact with the bath fluid ...........................25
14.1 Circulator .............................................................................................. 25

Intended use
3
15 Accessories ........................................................................................ 26
15.1 For external connection......................................................................... 26
15.2 For open baths ...................................................................................... 26
16 Maintenance, repair and transport ................................................. 26
16.1 Cleaning................................................................................................ 26
16.2 Repair service........................................................................................ 27
17 Warranty............................................................................................ 28
18 Waste disposal .................................................................................. 29
18.1 Packaging.............................................................................................. 29
18.2 Unit ....................................................................................................... 29
19 EC conformity.................................................................................... 30
Pos: 4 /Technische Dokumentation/Flash CORIO/Einhängethermostat CORIO C/NeueSeite @0\mod_1417593782389_0.docx @ 7630 @ @1

4
Pos: 5 /Technische Dokumentation/Flash CORIO/Glückwunsch -E inleitung @ 0\mod _1395136866201_18.docx @ 4161 @ @1
Congratulations.
You have made an excellent choice.
JULABO thanks you for the trust.
This operating manual is designed to familiarize you with the operation
of our units and their possible applications. Please read the operating
manual carefully.
Please call us if you have any questions about the operation of the unit
or about the operating manual.
Contact:
JULABO GmbH
Gerhard-Juchheim-Strasse 1
77960 Seelbach / Germany
Tel. [phone] / 51-0
Fax [phone] / 2491
[e-mail]
www.julabo.com
The JULABO quality management system
The standards for the development, production and distribution of
temperature control devices for laboratory and industry use satisfy the
requirements of ISO 9001 and ISO 14001.
Registration certificate No. 01 100044846.
Unpacking and inspection
If the packaging is damaged or if you discover any concealed transport
damage when you have unpacked the devices and the accessories,
please notify the supplier in the form of a statement of damage.
The operating manual
•should be kept for future use.
•must be available to operating personnel at all times.
Pos: 6/T echnischeD okumentation/FlashCORIO/Einhängethermostat CORIO C/Bestimmungsgemäße VerwendungC @ 0\mod_1406106683148_18.docx @ 6311 @ 1 @ 1

Intended use
5
1Intended use
JULABO circulators are designed for controlling the temperature of water
in a bath tank.
JULABO circulators are not designed for the direct temperature control of
foods, semi-luxury foods and tobacco, or pharmaceutical and medical
products.
•Direct temperature control means unprotected contact between the
object and the tempering medium (bath fluid).
•The device is not suitable for use in potentially explosive
environments.
Pos: 7 /Technische Dok umentation/Flash CORIO/Einhängethermostat CORIO C/C-Prod uk tüb ersi cht @ 0\mod_1425037462265 _18.docx @ 7990 @ 1 @ 1

6

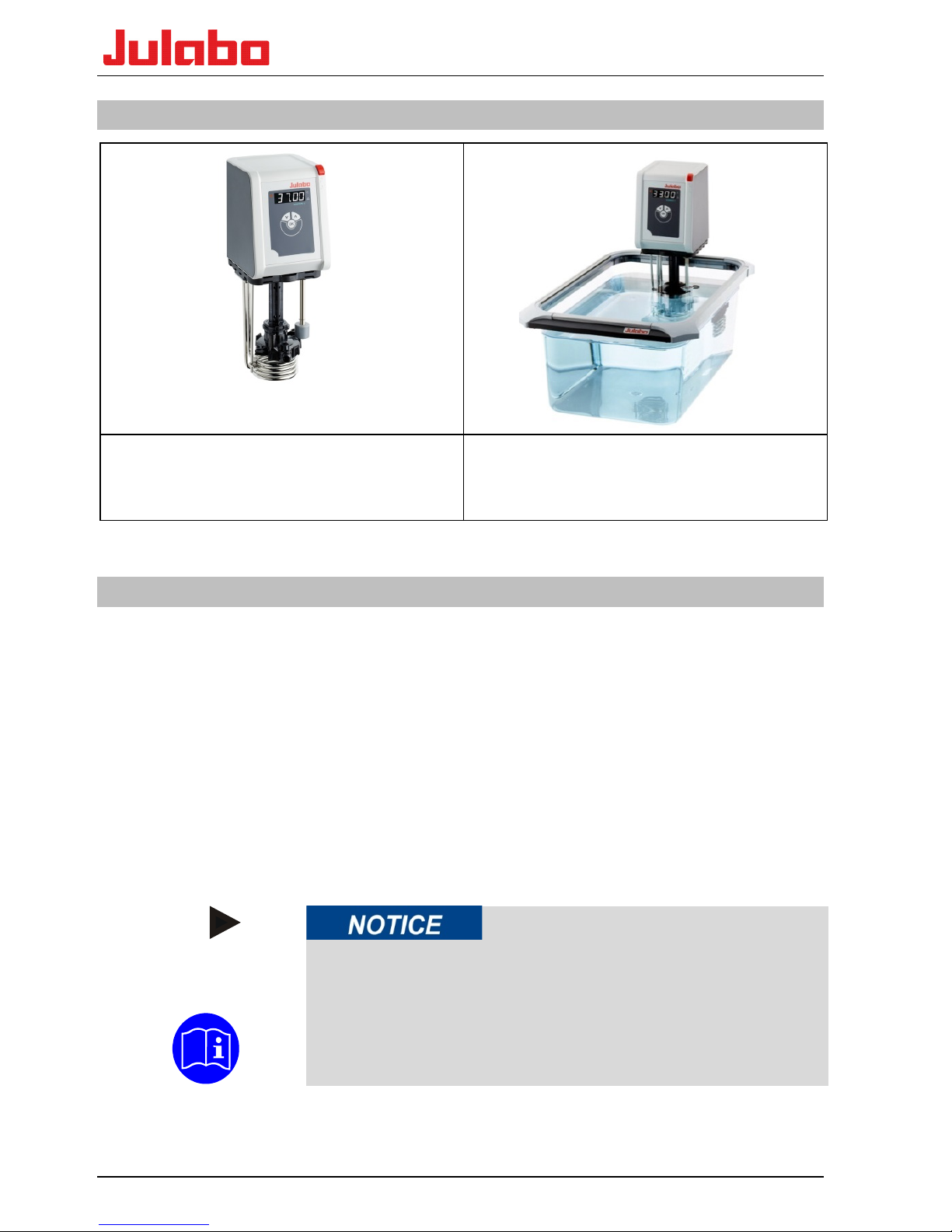

2CORIO®C product overview
Immersion circulator
for bath tanks up to 30 l.
Open bath circulator
with high quality bath tanks made of
transparent plastic or stainless steel.
Pos: 8 /Technische Dok umentation/Flash CORIO/Einhängethermostat CORIO C/Beschreibung T herm ostat C @ 0\mod _1396335517376_18.docx @ 4411 @ 1 @ 1
3Description
•These circulators are operated via the splash-proof keypad. The
microprocessor technology allows the setpoint to be set, displayed
and saved using the LED temperature display.
•The PID temperature control automatically adjusts the heat supply
to the requirements in the bath.
•ATC - Absolute Temperature Calibration (1-point calibration)
•Low level protection using a float switch.
•If the low level protection device is triggered, the heater and
circulating pump are completely shut down.
Pos: 9 /Technische Dokumentation/FlashCORIO/CORIO_CD_GESA MT/Verhalten + BA lesen @ 0\mod_1409218461856_18.docx @ 7203 @ @1
It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to the
safety instructions at your workstation.
It is essential that you read the user information before
starting the device.
Pos: 10 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/ErklärungS icherheits- und andere Hinweise @0\mod_1409218449017_18.do cx @ 6697 @ 12 @ 1

Explanation of safety information
7

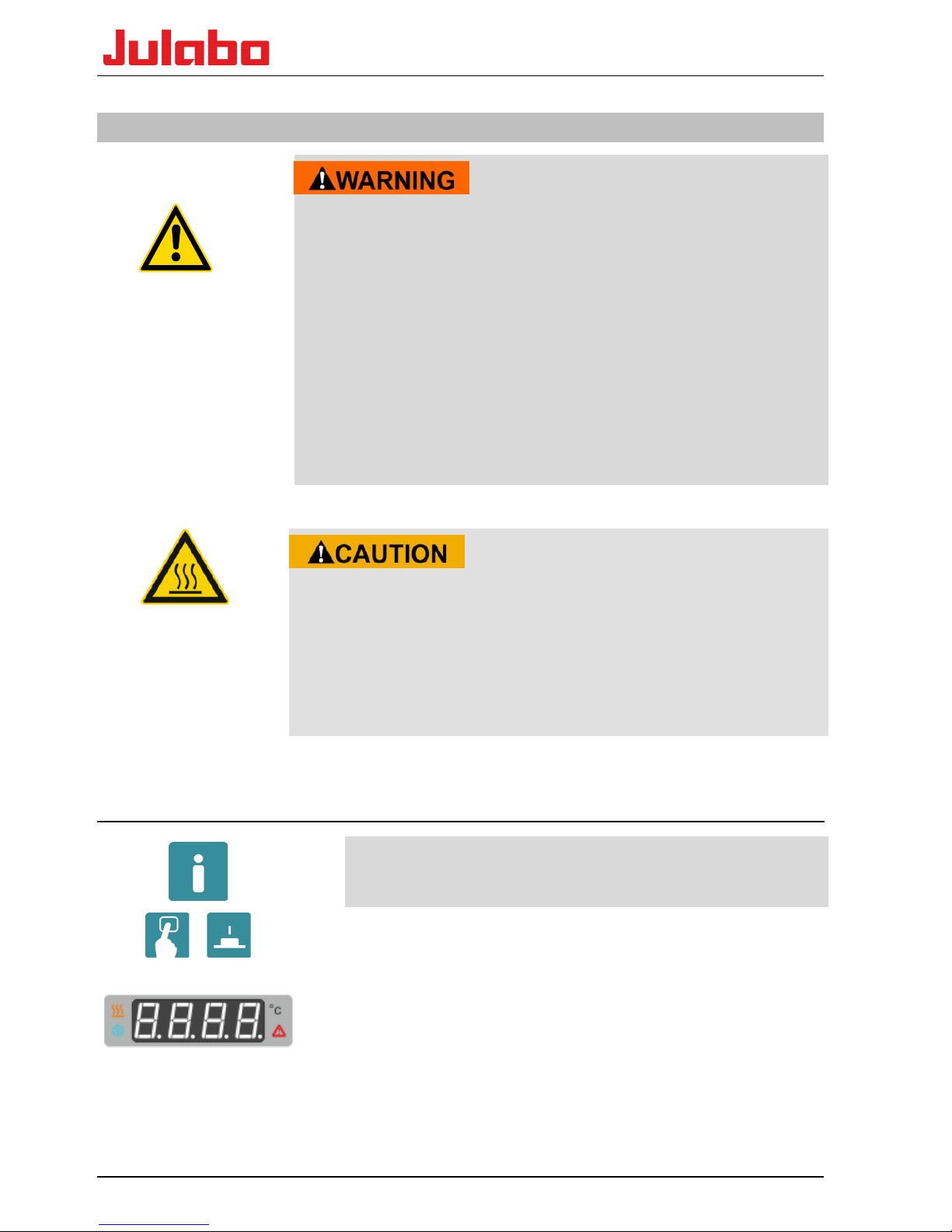

4Explanation of safety information
The operating manual contains warnings to increase safety when using
the unit. The general warning sign, consisting of an equilateral triangle
surrounding an exclamation sign and reproduced in various signal
colors, is preceded by the signal words.
"Warning of a dangerous situation".
The significance of the danger is classified with a signal word. Read the
instructions carefully and follow them.
This signal word designates a danger with a high level of risk which, if
it not prevented, will result in death or serious injury.
This signal word designates a danger with a medium level of risk
which, if it not prevented, may result in death or serious injury.
This signal word designates a danger with a low level of risk which, if it
not prevented, may result in minor or moderate injury.
Designates a possibly harmful situation. If it is not prevented, the
system or something near it may be damaged.
4.1 Explanation of other information
TIP
Your attention is drawn to something special by this.
Designates user tips and other useful information.
Dangers at second glance
Designates states which only occur after the start of an action and
could have been prevented if the warning had been heeded.

Informative note
Provides additional information.
Pos: 11 /Technische Dok umentation/Flash CORIO/Einhängethermostat CORIO C/Sicherheitsanweisungen_C @ 0\mod_1406101375815_18.docx @ 6300 @ 1 @1

8

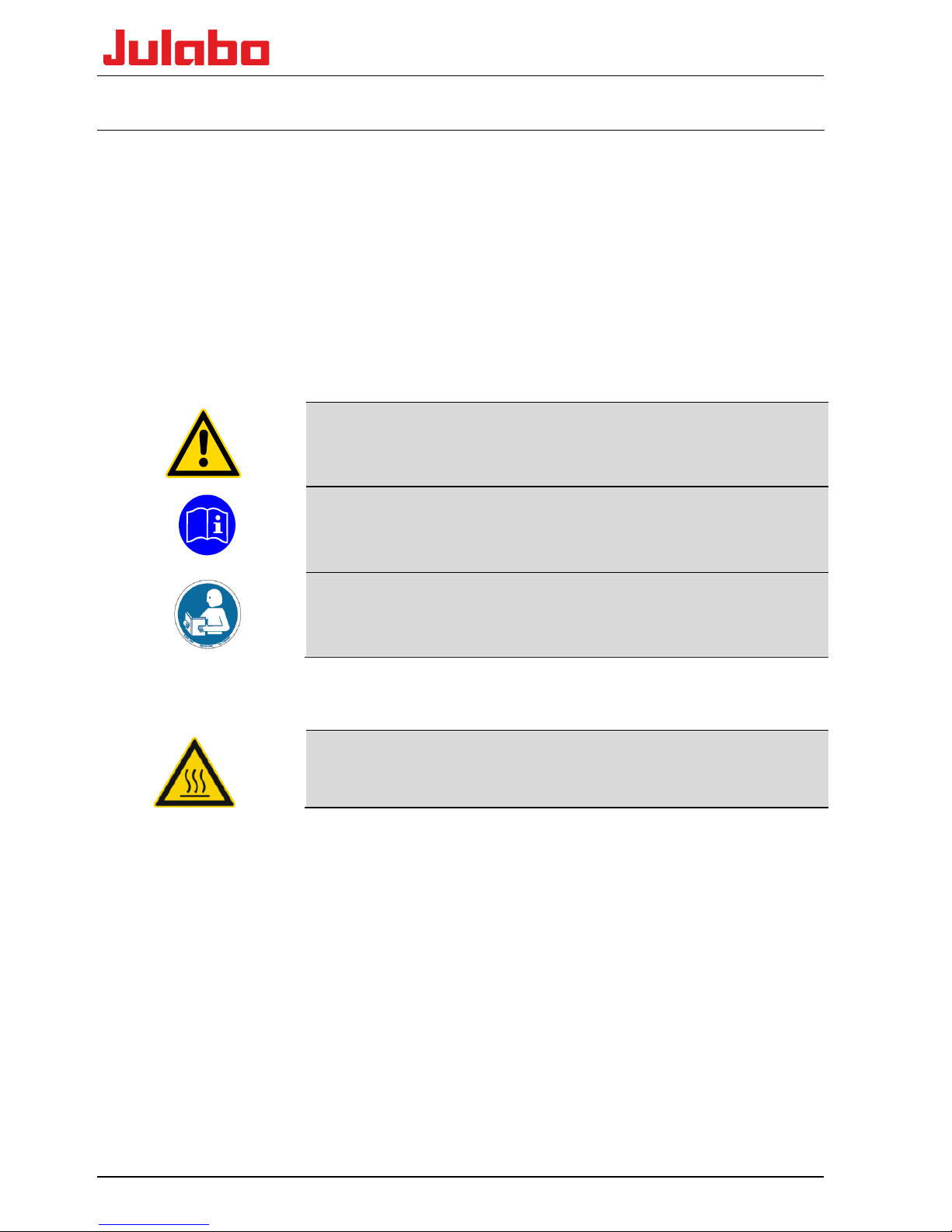

5Safety instructions
It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to
standard safety practices for working places.
•It is essential that you read the user information before starting the
unit.
•Place the unit on a flat surface and a mat made of non-flammable
material.
•Do not start the unit if it is damaged or leaking.
•Only connect the unit to a power socket with ground contact (PE –
protective earth)!
•The power supply plug serves as safe disconnecting device from the
power supply network and must be freely accessible at all times.
•Do not start the unit if it has a damaged mains power cable.
•Never use the unit without bath fluid.
•Check the filling level of the bath fluid at regular intervals. The pump
and heater must always be completely covered with bath fluid.
•Do not drain the bath fluid when it is hot.
•Check the temperature of the bath fluid prior to draining, for
example by switching on the unit briefly.
•Switch off the unit and pull the plug before moving the unit or
carrying out service or repair work.
•Have all service and repair work carried out by authorized specialists
only.
•Switch off the unit and disconnect it from the power supply before
cleaning it.
•Empty the unit completely before transporting it.
•Transport the unit carefully. The interior of the unit can also be
damaged by impacts or if it is dropped.
•Refer to the safety sticker.
•Do not remove the safety sticker.
Pos: 12 /Technische Dokumentation/Flash CORIO/Einhängethermostat CORIO C/Verantwortung des BetreibersThe rm.Kl. 1, nich tbrennbar @ 0\mod_1406538102828_18.docx @ 6380 @ 1222 @ 1

Operator's responsibility - safety instructions
9
6Operator's responsibility - safety instructions
Products manufactured by JULABO GmbH ensure safe operation when
installed, operated and according to common safety regulations. This
section explains the potential dangers which may occur when operating
the unit and specifies the most important safety measures to prevent
these dangers as far as possible.
6.1 Requirements for the operating personnel
The operator is responsible for the qualifications of the personnel
operating the unit. Ensure that the personnel who operate the unit are
trained in the relevant work application by a trained person.
The operator must receive regular training about the dangers involved
with their work as well as preventive action.
Ensure that everybody involved with the operation, maintenance and
installation have read and understood the safety information and the
operating manual. The unit may only be configured, installed,
maintained and repaired by trained personnel.
If hazardous substances or substances which may become hazardous are
used, the unit may only be used by a person who is completely familiar
with these substances and the unit. This person must be able to assess
the possible dangers in full.
6.2 Operating and ambient conditions for using the unit
•Avoid impacts on the housing, vibrations, damage to the touch-
sensitive foil (keys and display) and heavy soiling.
•Ensure that the product is checked at regular intervals suitable for its
frequency of use to ensure that it is in perfect condition.
•Check the proper condition of the mandatory warning, prohibition,
and safety labels at regular intervals, but at least every 2 years.
•Ensure that the mains supply has a low impedance to prevent
influencing of other units powered in the same mains.
•The unit is designed for operation in a controlled electromagnetic
environment. This means that in an environment of this nature,
transmission equipment such as mobile phones should not be used
in the immediate vicinity.
•Other units with components which are suceptible to magnetic fields
may be influenced by magnetic radiation. We recommend to
maintain a minimum distance of 1 m.
•Permissible ambient temperature max. 40 °C, min. 5 °C.
•The relative humidity should not exceed 50 % (40 °C).
•Do not store in an aggressive atmosphere. Protect from dirt.
•Protect from direct sunlight.

10
6.3 Operating the unit
The bath may not be filled with flammable materials. Fire hazard!
Special substance specifications (bath fluids) must be observed for
correct operation. Caustic or corrosive bath fluids must not be used.
The formation of explosive mixtures is possible if the ventilation is
inadequate.
Only use the units in well ventilated areas. The unit is not suitable for
use in potentially explosive environments.
When using hazardous substances or substances which may be
hazardous, the operator must apply the enclosed safety symbols (1 + 2)
on the control side panel where they are clearly visible:
1
Warning of a danger zone. Attention!.
Observe documentation. (Operating manual, safety data sheet)
2a
It is essential that you read the user information prior to beginning
operation.
Scope: EU
2b
It is essential that you read the user information prior to operation.
Scope: USA, NAFTA
As a result of the wide range of operating temperatures, special care and
caution is essential. There are thermal dangers: Burns, scalds, hot steam,
hot parts and surfaces which may be touched.
Warning about hot surfaces.
(The label is applied by JULABO)
Pos: 13 /Technische Dok umentation/Flash CORIO/Einhängethermostat CORIO C/Bedien- und Funktionselemente C @ 0\mod_1396335616822 _18.docx @ 4418 @ 1 @ 1

Control and function elements
11

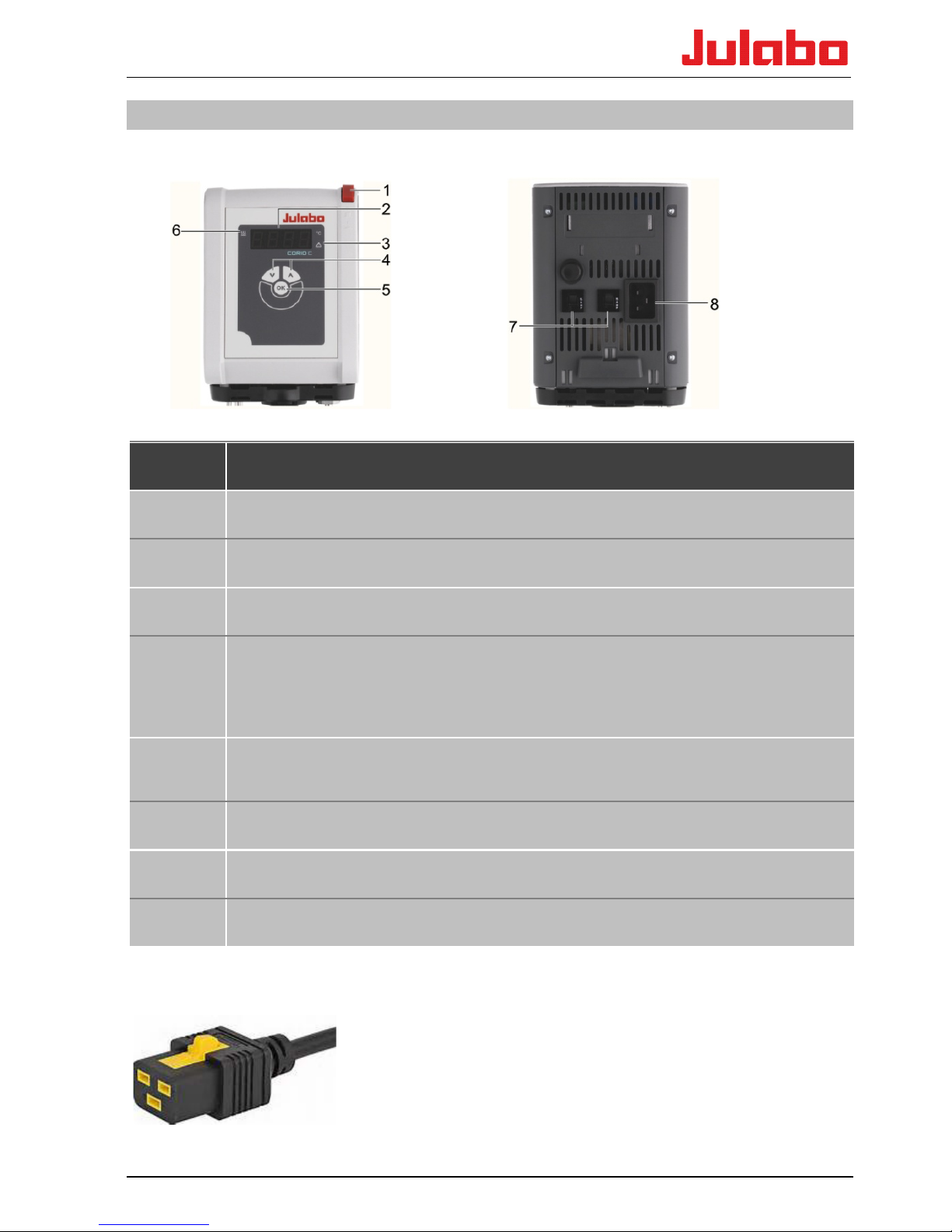

7Control and function elements
Front Rear
Position Designation
1 Mains switch
2 Four-figure temperature display LED, menu display
3 Control indicator - alarm
4 Edit keys
Temperature setpoint increase or decrease
Press the key briefly for step-by-step changes.
Press and hold the key for fast change of setpoint.
5 OK key 1. Switch the device on/off.
2. Store value / parameter.
6 Control indicator - heating
7 Fuses: Miniature circuit-breaker
8 Electrical connection: Integrated connector plug
Accessories, included in the scope of supply
- Power supply cable
For further country-specific power supply cables,
see www.julabo.com
Pos: 14 /Technische Dokumentation/Flash CORIO/Aufstellen, Einhängethermostat @0\mod_1395237060811_18.do cx @ 4197 @ 12 @ 1

12
8Preparations for operating the device
8.1 Installation
Danger of electric shock.
Carefully secure the immersion circulator on the bath tank. Poorly
installed circulators can fall into the bath tank.
Have the unit checked by a service technician prior to re-use.
The heater must not be in contact with the wall or the bottom of the
bath tank. Minimum distance 15 mm.
Pull the plug to disconnect the unit from the power supply. Only then
take the immersion circulator out of the bath tank.
Bath attachment clamp, order No. 9970420
•Pay special attention to the circulator's immersion depth (see
Technical data) when selecting the bath.
•Place the bath on a flat surface on a pad made of non-
flammable material.
•Secure the bath attachment clamp to the bath tank. The wall
thickness may be up to 30 mm.
•Attach the circulator with a “clic” to the bath attachment
clamp.
•For use with glass tanks a stand attachment with rod is
available as an optional accessory.
(Order No. 9970022)
Pos: 15 /Technische Dok umentation/FlashCORIO/CORIO_CD_GESA MT/Stativhalterung @0\mod_1422285260352_18.do cx @ 7820 @ @1
Stand attachment, order No. 9970022
For use with glass tanks a stand attachment with rod is available as an
optional accessory.
The circulator must be mounted vertically and secured against rotation.
If necessary, secure the nuts of the rod also.
Pos: 16 /Technische Dok umentation/Flash CORIO/Einhängethermostat CORIO C/Montageaufsatz Corio C @0\mod _1424266184377_18.docx @ 7882 @ @1

Preparations for operating the device
13
Bracket, order No. 9970178
Installation on the circulator
•Slide the bracket over the heater on to the circulator.
•Secure the bracket housing to the base of the circulator using the
four screws.
8.2 Installation of the circulator
Danger of scalding due to leaks from the baths
The JULABO plastic baths are not solvent-resistant. JUALBO plastic
bath tanks are for water at a working temperature range from +20°C
to +100°C.
Do not contaminate the bath fluid with solvents.
Things to keep in mind during the installation process:
Risk of tipping due to improper transportation
Crushing, damage to the unit
•Use PPE (safety gloves, safety shoes, safety goggles).
•Carry the unit with 2 persons (see the Technical Data for the
weight).
•Transport the unit carefully on firm, level ground. The interior of
the unit can also be damaged by impacts or if it is dropped.
•Do not loiter under the unit during transportation and operation.
•The installation site should be a sufficiently large room to ensure
that it does not become too hot due to the heat emission.
•The surface for the device should be flat and made of non-
flammable material.
•A specific room size is prescribed for refrigerated circulators.
•Wegen eventuellen Ausdünstungen der Temperierflüssigkeit bei
hohen Temperaturen, Gerät möglichst unter einem Abzug
positionieren.
•At high temperatures, position the unit under an exhaust hood as
much as possible due to potential vapors from the thermal bath
fluid.
•Observe the safety sticker - do not remove!
8.3 Open bath tanks
Open JULABO baths can be combined with JULABO circulators from the
CORIO product series. When combined with these circulators they are
designed for controlling the temperature of liquid media recommended
by JULABO. The circulators are mounted on the baths using bath
attachment clamps, for example.

14

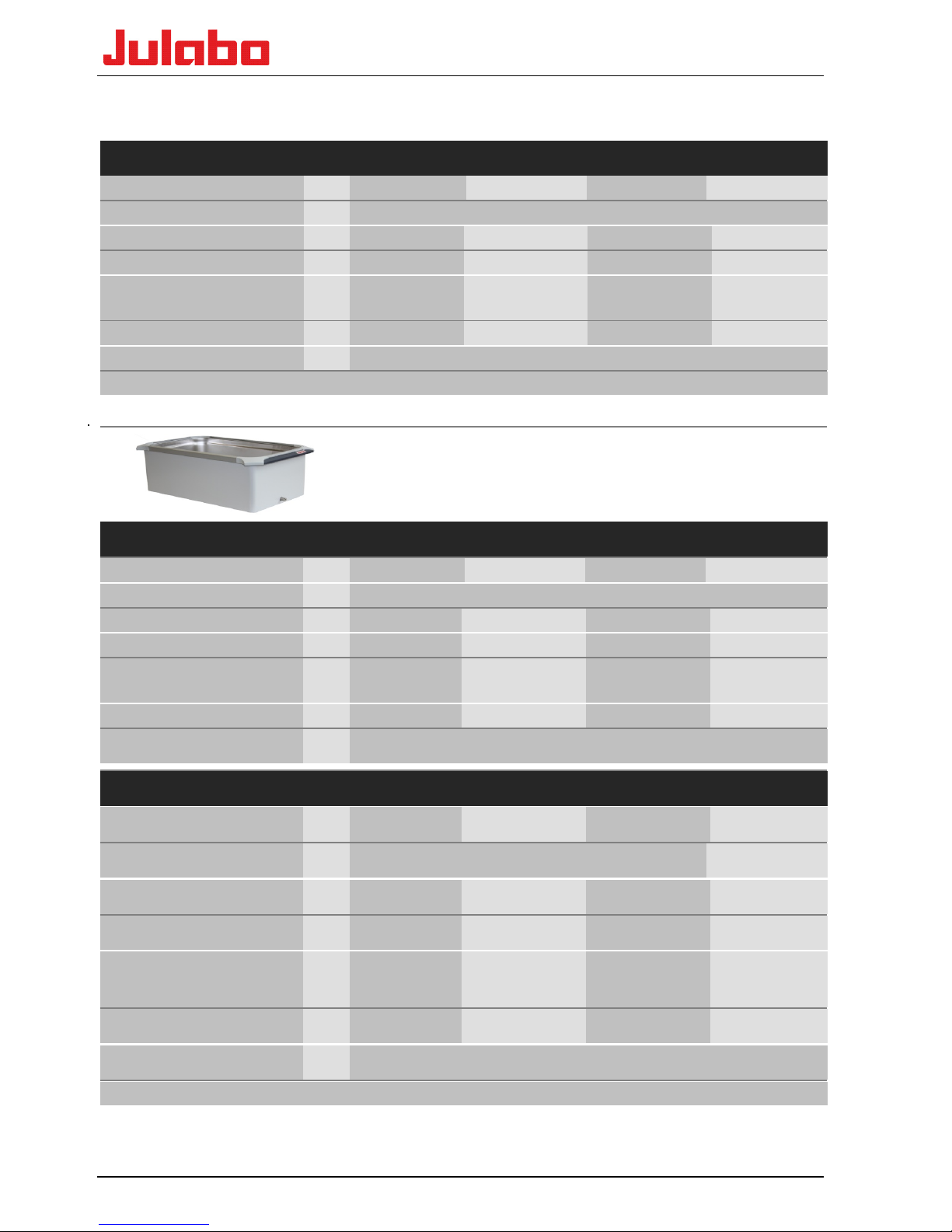

Technical details for transparent bath tanks
Type BT5 BT9 BT19 BT27
Order numbers
9901305
9901309
9901319
9901327
Temperature range
°C
+20 ... +100
Approx. weight
kg
1.2
1.5
2.3
2.7
Dimensions (WxDxH*)
cm
23 x 38 x 38
32 x 38 x 38
38 x 58 x 38
38 x 58 x 43
Useful bath opening
(WxLxD)
cm
15 x 15 x 15
23 x 15 x 15
30 x 35 x 15
30 x 35 x 20
Filling volume, Min...Max
l
3.5 …5.0
6.0 … 9.0
14.0 … 19.0
20.0 … 27.0
Material
Parts in contact with the bath fluid: Polycarbonate
* With CORIO circulators
Technical details for stainless steel bath tanks
Type B5 B13 B17 B19
Order numbers
9903405
9903413
9903417
9903419
Temperature range
°C
+20 ... +150
Approx. weight
kg
2.6
5.2
6.1
6.9
Dimensions (WxDxH*)
cm
23x38x41
38x40x42
38x40x47
38x58x42
Useful bath opening
(WxLxD)
cm
15x15x15
30x18x15
30x18x20
30x35x15
Filling volume, Min...Max
l
3.5 ... 5.0
9.0 ... 13.0
13.0 ... 17.0
14.0 … 19.0
Material
Parts in contact with the bath fluid: Stainless steel
Type B27 B33 B39
Order numbers 9903427 9903433 9903439
Temperature range °C
+20 ... +150
Approx. weight kg
8.0
17.6
14.6
Dimensions (WxDxH*) cm
38x58x47
91x36x43
54x34x57
Useful bath opening
(WxLxD) cm
30x35x20
66x32x15
33x30x30
Filling volume, Min...Max l
17.0 … 27.0
26.0 … 39.0
35.0 …41.0
Material Parts in contact with the bath fluid: Stainless steel
* With CORIO circulators

Preparations for operating the device
15
Bath covers
Order No. Designation For Baths
9970296 Flat stainless steel bath cover B5
9970290 Flat stainless steel bath cover B13, B17
9970291 Flat stainless steel bath cover B19, B27
9970292 Flat stainless steel bath cover B33
9970293 Flat stainless steel bath cover B39
9970254 Lift-up stainless steel gable cover B19, B27, BT19, BT27
9970257 Lift-up stainless steel gable cover B33
Pos: 19 /Technische Dok umentation/Flash CORIO/Einhängethermostat CORIO C/Kühlschlange Co rio C @ 0\mod_1422517461537_18.do cx @ 7840 @ @1
Cooling coil, order No. 9970101
A cooling coil is required for working at ambient temperature (20 °C) A
cooling water flow rate of 45 ml/min is generally sufficient to
compensate for the intrinsic temperature.
The cooling water temperature should be at least 5 °C lower than the
working temperature.
Pos: 20 /Technische Dok umentation/Flash CORIO/Einhängethermostat CORIO C/Temperierflüssigkeit - Wa sse r @ 0 \mod_1406553456136_18.doc x @ 6391 @ 2 @ 1

16
8.4 Bath fluid
This circulator is only approved for use with water as the
bath fluid.
Recommended water mixture.
70 % soft/decalcified water and 30% tap water.
The parts of the bath which come into contact with the bath fluid may be
damaged and cause the failure of the device.
The water quality depends on the local conditions.
•Hard water is not suitable for temperature control tasks due to its
high lime content and will produce lime deposits in the bath.
•Ferrous water can cause corrosion, even on stainless steel.
•Chloric water can cause pitting corrosion.
•Distilled and deionized water is not suitable. Their specific properties
cause corrosion in the bath, even on stainless steel.
Check the quality of the water you use at regular intervals.
Evaporation and constant refilling may produce a concentration of
harmful substances in the bath.
You should therefore check the quality of the water in the bath at
regular intervals.
Replace the water in the bath in full at regular intervals.
Pos: 21 /Technische Dokumentation/FlashCORIO/CORIO_CD_GESA MT/Befüllen @0\mod _1409218446646_18.docx @ 6598 @ 1 @ 1
9Filling
Check the level of the bath fluid at regular intervals. The pump and
heater must always be completely covered with bath fluid.
The device is not suitable for unsupervised continuous operation.
•Ensure that no bath fluid gets into interior of the circulator.
•The recommended maximum fill level for water is 30 mm below
the bath edge.
•After filling, insert the material or place the lid on the bath if the
bath opening is not required.

Filling
17
Pos:22 /TechnischeDokumentation/FlashCORIO/CORIO_CD_GESAMT/IndirekttemperierteFlüssigkeit-Vo rsich t - @ 0\mod_1409218450811_18.do cx @ 6774 @ @1
Properties of indirectly temperature-controlled fluids and
substances
The intended use of the units includes the indirect temperature control
of fluids.
We do not know which substances these are.
Many substances are:
•inflammable, flammable or explosive
•harmful
•polluting
In other words: dangerous
The user bears sole responsibility for handling these substances!
Use personal protective equipment!
The following questions should help to identify possible dangers and
minimize risk.
•Are hazardous vapors or gases produced when heated?
Does operation of the bath has to be conducted in a fume hood?
•What should you do if a dangerous substance has been spilled on
or in the device?
Obtain information on the substance before starting work and
define a decontamination method.
•Are all hoses and electrical cables securely connected and routed?
Keywords: Sharp edges, hot surfaces during operation, moving
machine parts, etc.
Pos: 23 /TechnischeD okumentation/FlashCORIO/Inbetriebnahme - Netzspannung, aus führliche Wa rnung @ 0\mod_1389693066236_18.docx @ 3836 @ 1 @ 1

18
10 Initial Operation
Danger from mains voltage.
Risk of injury from electric power.
•Compare the mains voltage and frequency with the details on the
model plate.
•The unit may only be connected to power outlets with a ground
contact (PE – protective earth).
•The mains plug serves as a safe disconnecting device from the
power supply network and must be freely accessible at all times.
•Do not start the unit if it has a damaged mains cable.
•Check the mains cable regularly for signs of damage.
•We disclaim all liability for damage caused by incorrect line
voltages!
Pos: 24 /TechnischeD okumentation/FlashCORIO/Warnung heiße Oberfläche @ 0\mod_1389686088320_18.docx @ 3668 @ @1
What should be observed when operating the JULABO
temperature control unit?
•Unit parts may develop high surface temperatures. A hot surface
means it has a temperature of 60 °C / 140 °F or more.
•Let the device cool down to an uncritical safe temperature.
•Use safety gloves.
Pos: 25 /Technische Dok umentation/FlashCORIO/Einschalten/Start-Stopp @ 0\mod_1395238575986_18.docx @ 4209 @ 2 @ 1
10.1 Switching on / Start - Stop
When pressing the keys, it is advisable to hold the
circulator head with one hand.
OFF
Switching on
•The device is switched on by pressing the power switch (1).
The unit performs a self-test. All the segments of the four
digit LED temperature display will illuminate.
The "OFF" signal then indicates that the unit is ready to
operate.
Start

Initial Operation
19
28.35
•
Press OK for approx. 1 second.
The current bath temperature will be shown on LED
temperature display.
Stop
•Press OK for approx. 1 second.
•Switch off the unit with the circulator's mains power switch.
Pos: 26 /Technische Dokumentation/FlashCORIO/Au tostartein / aus @ 0\mod_1395238639540_18.doc x @ 4216 @ 2 @ 1
10.2 Automatic / Manual start mode
The AUTOSTART function allows the device to be started as soon as the
mains power switch is pressed, which in turn allows you to use a timer.
Autostart
If circulators are started using "AUTOSTART", ensure that even if it is
started accidentally, for example after a power outage, it does not pose
a danger to personnel or equipment.
•
Ensure that the circulator's safety equipment is set correctly.
OK +
1. Press and hold OK and
2
. Switch on the circulator using the mains power switch.
The switchover process is shown briefly on the
LED temperature display.
AOn
Autostart on
AOFF
Autostart off
Pos: 27 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Temperatur-Sollwerteinstellung @ 0\mod_1409218455522_18.docx @ 6961 @ 22 @ 1

20
10.3 Adjusting of temperature setpoint
Factory setting: 10 °C
Example:
Changing the desired value
from 33.00 to 45.50
The temperature can be set when the device has been started or
stopped.
The set value is saved so that it will be retained even after a
power outage.
1. Press the edit key or briefly to switch from
displaying the actual value to the desired value. The digits
before the decimal point flash.
2. Change the value:
Press the key to set a higher value.
Press the key to set a lower value.
Press the key briefly for single steps, press and hold the
key to adjust the values quickly.
3. Save the set value as the desired value by pressing the
key. The digits after the decimal point flash.
4. Change the value:
Press the key to set a higher value.
Press the key to set a lower value.
Press the key briefly for single steps, press and hold the
key to adjust the values quickly.
5. Save the set value as the desired value by pressing the
key.
The new desired value will flash three times.
10.4 Setting the timer
Timer displays
Timer set to 15 minutes.
The timer keeps the set value for a defined period of time. The
device then stops (OFF).The timer settings can be set when the
device has been started or stopped.
The set value is saved so that it will be retained even after a
power outage.
Setting the timer
1. and simultaneously press “t” and O. appear
on the display.
2. Changing the timer value (in minutes):
Press the key to set a higher value.
Press the key to set a lower value.
Press the key briefly for single steps, press and hold the
key to adjust the values quickly.
3. Save the set value as the desired value by pressing the
key.
The new timer value will flash three times.
