Jung FM Series User manual

eNet radio centre plate
eNet radio centre plate
Art. No. : FM..1561.07..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
Danger of electric shock. The device is not suitable for disconnection from supply
voltage. Depending on the insert used, the load is not electrically isolated from the
mains, even when the device is switched off.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

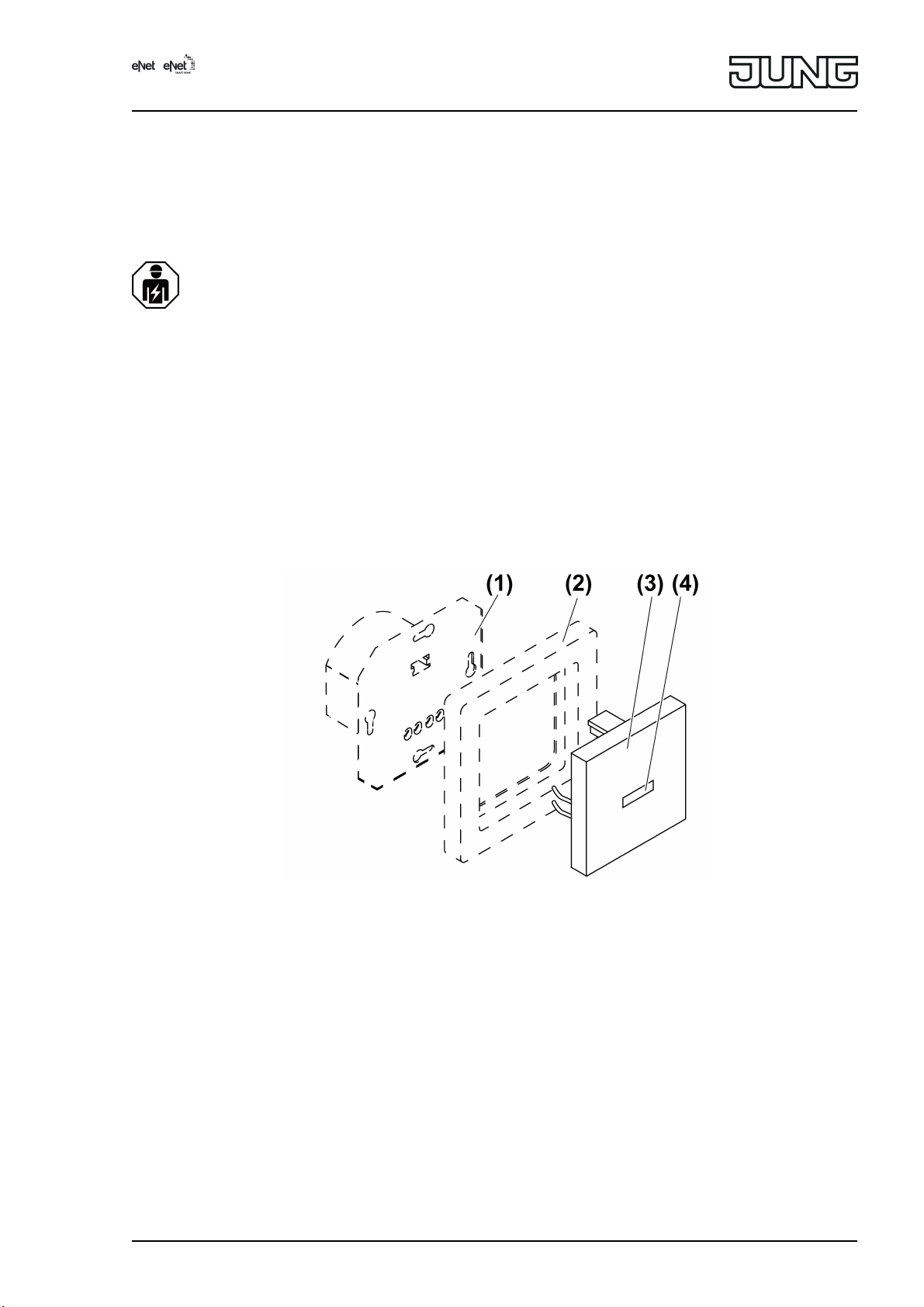

Figure 1: Device components
(1) FM insert
(2) Frame
(3) Radio button
(4) Status LED
3 Function
Intended use
- Manual and radio-controlled operation of suitable flush-mounted inserts for switching or
dimming (see accessories)
- Mounting on flush-mounted insert
- Operation with suitable radio transmitters
iNo operation on pulse insert, 2-wire and 3-wire extension inserts possible.
1/15
32582723
J0082582723 27.04.2017

Product characteristics
- Evaluation of extensions
- Scene operation possible
- Status indication with LED
- Status feedback to radio transmitter
- Switch-on brightness can be saved permanently when combined with flush-mounted
inserts for dimming
Can be set with eNet server:
- Maximum brightness
- Minimum brightness
- Dimming speed
- Switch-on delay / switch-off delay
- Dim up/dim down ramp
- Switch-off warning
- Operation locks
- Continuous on, Continuous off
- Hotel function
- Run-on time
- Light control
Supplementary functions with eNet Server:
- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
- Update of the device software
- Reading of error memory
Response after mains voltage return
The response after mains voltage return can be configured with the eNet Server. Default
setting: Off.
4 Operation
iWhen operating with the eNet Server, operation and signalling could vary from what is
described here.
Operation is performed directly on the device or on a connected extension.
iIf operation takes place with radio transmitters, please observe the radio transmitter
instructions.
Switch light
oPress button for less than 0.4 seconds.
The light is switched on or off. In combination with inserts for dimming, switch-on takes
place at the saved switch-on brightness.
Status-LED (4) lights up: output is switched on.
Status-LED (4) off: output is switched off.
iIn the case of the HVAC insert, only the output Kanal 1 is switched, whilst the output HLK
switches according to the output Kanal 1 (see operation manual of the insert).
Adjust the brightness
Button is combined with an insert for dimming.
Light is switched on.
oPress top button for longer than 0.4 seconds.
The light gets brighter up to maximum brightness.
oPress bottom button for longer than 0.4 seconds.
Light gets darker to minimum brightness.
iPush-button: the light becomes brighter up to maximum brightness, remains there briefly
and becomes dimmer down to minimum brightness, remains there briefly and becomes
brighter again. This process repeats for as long as the push-button remains pressed.
Switch light on with minimum brightness
Button is combined with an insert for dimming.
2/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

oPress button at bottom for longer than 0.4 seconds.
Light is switched on at minimum brightness.
iIf the button or 2-wire extension is pressed at the top or the push-button is pressed for
longer than 0.4 seconds, then the light is switched on to minimum brightness and then
brighter.
Save switch-on brightness
Button is combined with an insert for dimming.
oSet light to the required brightness.
oPress button over entire surface for longer than 4 seconds.
Switch-on brightness is saved. For confirmation the lighting switches off briefly and then on
again to the saved switch-on brightness.
iAn push-button cannot be used to save the switch-on brightness.
5 Information for electrically skilled persons
5.1 Fitting and electrical connection
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
Before carrying out work on the device or load, disengage all the
corresponding circuit breakers. Cover up live parts in the working environment.
Connecting and fitting the device
To ensure good transmission quality, keep a sufficient distance from any possible sources of
interference, e.g. metallic surfaces, microwave ovens, hi-fi and TV systems, ballasts or
transformers.
The flush-mounted insert is correctly fitted and connected (see instructions for flush-mounted
insert).
oFit radio button (3) and frame (2) on flush-mounted insert (1).
oSwitch on mains voltage.
oCarry out commissioning (see Commissioning chapter).
5.2 Commissioning
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
During commissioning, cover the parts carrying voltage on radio transmitters
and actuators and in their surrounding area.
iThe button can also be commissioned with eNet server as an alternative to the
commissioning described here.
Connecting with radio transmitter
Load is switched off.
oPress button over entire surface for longer than 4 seconds.
iSwitch inserts switch the load on until the Status LED flashes.
The status LED (4) flashes after 4 seconds. The button is in programming mode for
approx. 1 minute.
oSwitch radio transmitter to programming mode as well (see radio transmitter instructions).
oTrigger telegram on the radio transmitter (see instructions of the radio transmitter).
The status LED lights up for 5 seconds.
3/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

The button is connected to the radio transmitter. The button and radio transmitter exit the
programming mode automatically.
iIf the status LED of the button flashes 3 times at 1-second intervals for approx. 5 seconds,
then the programming operation was not successful. All the memory locations in the
button or radio transmitter are occupied.
iAll On and All Off buttons of a radio transmitter are connected to the actuator automatically
as soon as the first connection to a radio transmitter takes place. Scene buttons must be
connected separately.
Disconnecting connection to a radio transmitter
oCarry out the same steps as when connecting (see Connecting to radio transmitter).
The status LED (4) flashes quickly for 5 seconds. The button is disconnected from the
radio transmitter. The button and radio transmitter exit the programming mode
automatically.
iIf there several connections or scene buttons for a radio transmitter, all connections must
be disconnected individually.
iAll On and All Off buttons of a radio transmitter are disconnected automatically as soon as
the last connection to the radio transmitter is disconnected. Manual disconnection is not
possible.
Resetting button to the default setting
All connections to radio transmitters are disconnected and parameters are reset to default
setting.
iThe connections in the radio transmitters are preserved and must be deleted separately.
Load is switched off.
oPress button over the entire surface for at least 20 seconds.
iSwitch inserts switch the load on until the Status LED flashes.
The status LED flashes after 4 seconds. After 20 seconds the status LED flashes faster.
oRelease the button and press it briefly and fully once again within 10 seconds.
The status LED flashes more slowly for approx. 5 seconds.
The button is reset to default setting.
6 Appendix
6.1 Technical data
Ambient temperature -5 ... +45°C
Radio frequency 868.0 ... 868.6MHz
Transmitting range in free field typ. 100m
Transmission capacity max. 20mW
Receiver category 2
6.2 Parameter list
The device parameters can be changed with the eNet server:
Device and channels
Parameters Setting options, Basic
setting
Explanations
4/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Function Light (dimming), light
(switching), switching, unused
Basic setting: Light (dimming)
Light (dimming)
The channel is integrated for
the "Lighting" central function
in the eNet SMART HOME
app. Use the setting in
combination with a dimming
insert.
Light (switching)
The channel is integrated for
the "Lighting" central function
in the eNet SMART HOME
app. Use the setting in
combination with a switching
insert.
Switching
The channel is not integrated
in any central function. Use
the setting in combination with
a switching insert.
Unused
The channel is not displayed
in the eNet SMART HOME
app and is disabled for use in
the commissioning interface.
Operating mode Normal operation
Continuous on
Continuous off
Basic setting: Normal
Operation
Normal operation
The output can be operated
with radio transmitters and the
Prog button.
Continuous on
The output switches to
continuously "On". All
operations of radio
transmitters and the Prog
button are ignored.
Continuous off
The output switches to
continuously "Off". All
operations of radio
transmitters and the Prog
button are ignored.
Advanced device settings
Parameters Setting options, Basic
setting
Explanations
Manual commissioning On, Off
Basic setting: On
Blocks manual commissioning
for the device channel.
Note: In the "Off" setting, the
device cannot be reset to the
factory setting.
Allow extension unit operation On, Off
Basic setting: On
Prevents operation via wired
extensions.
Channel settings "dimming"
Parameters Setting options, Basic
setting
Explanations
5/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Switch-on brightness 1...100 %
Basic setting: 100 %
During brief operation, the
output switches on at the set
switch-on brightness.
Note: If the value is above the
set maximum brightness or
below the minimum
brightness, then the system
will switch to the appropriate
limit value.
Minimum brightness 1...67 %
Basic setting: 5 %
Specifies the minimum
settable brightness.
Note: If parameters or scene
values are set to a level lower
than the minimum brightness,
then the system will dim to
minimum brightness.
Maximum brightness 75...100 %
Basic setting: 100 %
Specifies the maximum
settable brightness.
Note: If parameters or scene
values are set to a level higher
than the maximum brightness,
then the system will dim to
maximum brightness.
Dimming adjustment time 1…60 s
Basic setting: 4 s
Time from minimum
brightness until reaching
maximum brightness (dimming
speed).
Switch-on delay 0 s … 24 h
Basic setting: 0 s
The load switches on after a
delay. Repeated switch-on
commands restart the delay
time. If the load has not yet
been switched on due to the
delay when a switch-off
command comes, then the
load will remain off.
Note: The set time apply to
operation using radio
transmitters. The device is
switched immediately when
the Prog button is pressed.
Switch-off delay 0 s … 24 h
Basic setting: 0 s
The load switches off after a
delay. Repeated switch-off
commands restart the delay
time. If the load has not yet
been switched off due to the
delay when a switch-on
command comes, then the
load will remain on.
Note: The set time apply to
operation using radio
transmitters. The device is
switched immediately when
the Prog button is pressed.
6/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Dim up ramp 0 s … 24 h
Basic setting: 0 s
Time between switch-on and
reaching switch-on brightness.
The light is switched on at
minimum brightness and then
dimmed to the switch-on
brightness.
Only applies to switch-on with
transmitters (short operation).
If scenes are recalled or
switching uses logic modules,
the switch-on brightness is
approached using so-called
soft dimming (not
configurable).
Dim down ramp 0 s … 24 h
Basic setting: 0 s
Time until reaching minimum
brightness. The light is
dimmed to minimum
brightness and then switched
off.
Only applies to switch-off with
transmitters (short operation).
If scenes are recalled or
switching uses logic modules,
the system switches off
directly.
Run-on time 0 s … 24 h
Basic setting: 0 s
As soon as a run-on time has
been entered, the actuator will
no longer remain on
permanently, but only for the
length of the run-on time. The
run-on time is restarted if
actuation is repeated. This
parameter is directly
connected to the "Manual
switch-off of run-on time"
parameter.
Note: The set time apply to
operation using radio
transmitters. The device is
switched immediately when
the Prog button is pressed.
Manual switch-off of the run-
on time
On, Off
Basic setting: Off
Allows manual switch-off of a
running run-on time. If the
parameter is switched off, then
a switch-off command will also
switch the actuator on. Only
visible if a run-on time was
set.
Operating hours 0...65535
Basic setting: Current value
The time is counted during
which the load is physically
switched on.
This parameter can be reset to
"0", for example after
exchanging the load.
The Reset button is used to
reset the meter to "0". The
device must be programmed
to apply the change.
7/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Extended channel settings "dimming"
Parameters Setting options, Basic
setting
Explanations
Operating mode Normal operation
Continuous on
Continuous off
Basic setting: Normal
Operation
see Device and channels
Manual commissioning On, Off
Basic setting: On
Blocks manual commissioning
for the device channel.
Note: In the "Off" setting, the
device cannot be reset to the
factory setting.
Local Operation On, Off
Basic setting: On
Blocks the output for operation
using the Prog button.
Behaviour on voltage return On
Off
Last value
Configured brightness
Basic setting: Off
Defines the behaviour of the
output after voltage return.
Brightness on voltage return 0...100 %
Basic setting: 100 %
Brightness value, set by the
output after voltage return
(mains voltage). The
parameter "Behaviour after
voltage return" must be set to
"Configured brightness".
Note: If the value is above the
set maximum brightness or
below the minimum
brightness, then the system
will switch to the appropriate
limit value.
Behaviour after the end of the
disabling function
On
Off
no change
Last value
Basic setting: No change
Behaviour of the output when
a block is removed.
Manual saving of the scene
values
On, Off
Basic setting: On
Disables the saving of the
current brightness value as
scene value in an actuator for
a command via a transmitter.
8/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Switch-off warning On, Off
Basic setting: Off
If the switch-off warning is
active, then, during switch-off,
the systems dims to minimum
brightness within 30 seconds
and only then switches off. If
the parameter "Dim down
ramp" is configured as longer
than 30 s, then the length of
the dim down ramp is applied.
If, during the dim down
operation, another command
is given, e.g. switch on or
scene recall, then the switch-
off warning stops and the
command is executed. A
switch-off command restarts
the time for the switch-off
warning.
Note: The set time apply to
operation using radio
transmitters. The device is
switched immediately when
the Prog button is pressed.
Priority, lock-out protection 0...4
Basic setting: 1
Specifies the priority for
recalling and removing a
scene of type Lock-out
protection for the channel.
Note: 1 is the highest priority
and 4 the lowest. 0 means no
priority.
Activate lock-out protection
brightness value
0…100 %
Basic setting: 0 %
Defines the behaviour of the
output on activating the lock-
out protection.
Deactivate lock-out protection
brightness value
0…100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
lock-out protection. Only
visible when the priority for the
lock-out protection is 0.
Priority, restraint 0...4
Basic setting: 2
Specifies the priority for
recalling and removing a
scene of type Restraint for the
channel.
Activate forced operation
brightness value
0…100 %
Basic setting: 100 %
Defines the behaviour of the
output on activating the forced
operation.
Deactivate forced operation
brightness value
0…100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
forced operation. Only visible
when the priority for the forced
operation is 0.
Priority, wind alarm 0...4
Basic setting: 3
Specifies the priority for
recalling and removing a
scene of type Wind alarm for
the channel.
Activate wind alarm brightness
value
0…100 %
Basic setting: 0 %
Defines the behaviour of the
output on activating the wind
alarm.
9/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Deactivate wind alarm
brightness value
0…100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
wind alarm. Only visible when
the priority for the wind alarm
is 0.
Priority, sun protection 0...4
Basic setting: 0
Specifies the priority for
recalling and removing a
scene of type Sun protection
for the channel.
Activate sun protection
brightness value
0…100 %
Basic setting: 100 %
Defines the behaviour of the
output on activating the sun
protection.
Deactivate sun protection
brightness value
0…100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the sun
protection. Only visible when
the priority for the sun
protection is 0.
Priority, twilight 0...4
Basic setting: 0
Specifies the priority for
recalling and removing a
scene of type Twilight for the
channel.
Activate twilight brightness
value
0…100 %
Basic setting: 100 %
Defines the behaviour of the
output on activating the
twilight function.
Deactivate twilight brightness
value
0…100 %
Basic setting: 0 %
Defines the behaviour of the
output on deactivating the
twilight function. Only visible
when the priority for the
twilight function is 0.
Switch off brightness
overshoot
On, Off
Basic setting: On
Allows automatic switch-off
according to the brightness. If
the parameter is On, then the
light controller switches off
automatically when the
brightness setpoint is greatly
exceeded.
Note: This parameter is not
yet active, as a light controller
has not yet been
implemented.
Switch on brightness
undershoot
On, Off
Basic setting: Off
Allows automatic switch-on
according to the brightness. If
the parameter is On, then the
light controller switches on
automatically when the
brightness setpoint is greatly
undershot. We recommend
only using the parameter in
connection with the parameter
"Switch-off on brightness
overshoot".
Note: This parameter is not
yet active, as a light controller
has not yet been
implemented.
10/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Hotel function On, Off
Basic setting: Off
If the hotel function is
activated, the system will dim
to 20 % brightness when a
switch-off command is made.
Switch-off is only possible with
a forced position command.
Note: If the minimum
brightness is set to greater
than 20 %, then the system
dims to the set minimum
brightness when the hotel
function is activated.
Channel settings "switching"
Parameters Setting options, Basic
setting
Explanations
Switch-on delay 0 s … 24 h
Basic setting: 0 s
The load switches on after a
delay. Repeated switch-on
commands restart the delay
time. If the load has not yet
been switched on due to the
delay when a switch-off
command comes, then the
load will remain off.
Note: The set time apply to
operation using radio
transmitters. The device is
switched immediately when
the Prog button is pressed.
Switch-off delay 0 s … 24 h
Basic setting: 0 s
The load switches off after a
delay. Repeated switch-off
commands restart the delay
time. If the load has not yet
been switched off due to the
delay when a switch-on
command comes, then the
load will remain on.
Note: The set time apply to
operation using radio
transmitters. The device is
switched immediately when
the Prog button is pressed.
Run-on time 0 s … 24 h
Basic setting: 0 s
As soon as a run-on time has
been entered, the actuator will
no longer remain on
permanently, but only for the
length of the run-on time. The
run-on time is restarted if
actuation is repeated. This
parameter is directly
connected to the "Manual
switch-off of run-on time"
parameter.
Note: The set time apply to
operation using radio
transmitters. The device is
switched immediately when
the Prog button is pressed.
11/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Manual switch-off of the run-
on time
On, Off
Basic setting: Off
Allows manual switch-off of a
running run-on time. If the
parameter is switched off, then
a switch-off command will also
switch the actuator on. Only
visible if a run-on time was
set.
Operating hours 0...65535
Basic setting: Current value
The time is counted during
which the load is physically
switched on.
This parameter can be reset to
"0", for example after
exchanging the load.
The Reset button is used to
reset the meter to "0". The
device must be programmed
to apply the change.
Extended channel settings "switching"
Parameters Setting options, Basic
setting
Explanations
Operating mode Normal operation
Continuous on
Continuous off
Basic setting: Normal
Operation
see Device and channels
Manual commissioning On, Off
Basic setting: On
Blocks manual commissioning
for the device channel.
Note: In the "Off" setting, the
device cannot be reset to the
factory setting.
Local Operation On, Off
Basic setting: On
Blocks the output for operation
using the Prog button.
Behaviour on voltage return On
Off
Last value
Basic setting: Off
Defines the behaviour of the
output after voltage return.
Behaviour after the end of the
disabling function
On
Off
no change
Last value
Basic setting: No change
Behaviour of the output when
a block is removed.
Manual saving of the scene
values
On, Off
Basic setting: On
Disables the saving of the
current brightness value as
scene value in an actuator for
a command via a transmitter.
12/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Switch-off warning On, Off
Basic setting: Off
If the switch-off warning is
active, then, during switch-off,
the systems dims to minimum
brightness within 30 seconds
and only then switches off. If
the parameter "Dim down
ramp" is configured as longer
than 30 s, then the length of
the dim down ramp is applied.
If, during the dim down
operation, another command
is given, e.g. switch on or
scene recall, then the switch-
off warning stops and the
command is executed. A
switch-off command restarts
the time for the switch-off
warning.
Note: The set time apply to
operation using radio
transmitters. The device is
switched immediately when
the Prog button is pressed.
Priority, lock-out protection 0...4
Basic setting: 1
Specifies the priority for
recalling and removing a
scene of type Lock-out
protection for the channel.
Note: 1 is the highest priority
and 4 the lowest. 0 means no
priority.
Activate lock-out protection
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on activating the lock-
out protection.
Deactivate lock-out protection
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the
lock-out protection. Only
visible when the priority for the
lock-out protection is 0.
Priority, restraint 0...4
Basic setting: 2
Specifies the priority for
recalling and removing a
scene of type Restraint for the
channel.
Activate forced operation
switching state
On, Off
Basic setting: On
Defines the behaviour of the
output on activating the forced
operation.
Deactivate forced operation
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the
forced operation. Only visible
when the priority for the forced
operation is 0.
Priority, wind alarm 0...4
Basic setting: 3
Specifies the priority for
recalling and removing a
scene of type Wind alarm for
the channel.
Activate wind alarm switching
state
On, Off
Basic setting: Off
Defines the behaviour of the
output on activating the wind
alarm.
13/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

Deactivate wind alarm
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the
wind alarm. Only visible when
the priority for the wind alarm
is 0.
Priority, sun protection 0...4
Basic setting: 0
Specifies the priority for
recalling and removing a
scene of type Sun protection
for the channel.
Activate sun protection
switching state
On, Off
Basic setting: On
Defines the behaviour of the
output on activating the sun
protection.
Deactivate sun protection
switching state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the sun
protection. Only visible when
the priority for the sun
protection is 0.
Priority, twilight 0...4
Basic setting: 0
Specifies the priority for
recalling and removing a
scene of type Twilight for the
channel.
Activate twilight brightness
value
On, Off
Basic setting: On
Defines the behaviour of the
output on activating the
twilight function.
Deactivate twilight switching
state
On, Off
Basic setting: Off
Defines the behaviour of the
output on deactivating the
twilight function. Only visible
when the priority for the
twilight function is 0.
Information window
In the Information window, the load can be controlled and the information about the device can
be displays.
Channel control/channel information
Display value Explanations
Current dimming value The load can be dimmed using the slider or a
brightness value entry. Only when "Function"
is set to "Light (Dimming)".
Load state The load can be switched on or off.
Restraint Display of forced position status.
Operating hours Display of the operating hours since the last
restart in the Settings window Einstellungen.
6.3 Accessories
Operation with all Light Management flush-mounted inserts for switching or dimming.
6.4 Conformity
Albrecht Jung GmbH & Co. KG hereby declares that the radio system type
Art. No. FM..1561.07..
corresponds to the directive 2014/53/EU. You can find the full article number on the device. The
complete text of the EU Declaration of Conformity is available under the Internet address:
www.jung.de/ce
14/15
32582723
J0082582723 27.04.2017
eNet radio centre plate

6.5 Warranty
The warranty follows about the specialty store in between the legal framework as provided for
by law.
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: [phone]
Telefax: [phone]
[email protected]
www.jung.de
15/15
32582723
J0082582723 27.04.2017
eNet radio centre plate
