1Disassembling of the various components:
Important:
When exchanging components, it is very important to put back the cable wiring the same way
as it was before !
Remove water tank, grounds container, aroma preservation lid, powder funnel
1. Turn JURA emblem anticlockwise
(e.g. with a suction disc).
Rather pulling than pushing when removing.
2. Unscrew the Oval screw
3. Release snap-lock of fixation of the lateral part
4. Unscrew 2x TORX 15

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 3/15
5. Push with a small screw driver (no. 0) or alike
simultaneous in both immersions of the interlock
(between both lateral- and front parts)
6. Remove cover of the service plug
7. Insert e.g. a plastic ruler in between the bottom
and lateral part to release the barb
(approx. 7 cm of distance)
8. On the same, upper side, pull outside the lateral
part with your thumb (or similar aid).
Pull backwards the whole lateral part.
Proceed the same way for the other lateral
part.
9. Position of the lower barb of the lateral part
10. Position of the upper barb of the lateral part

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 4/15

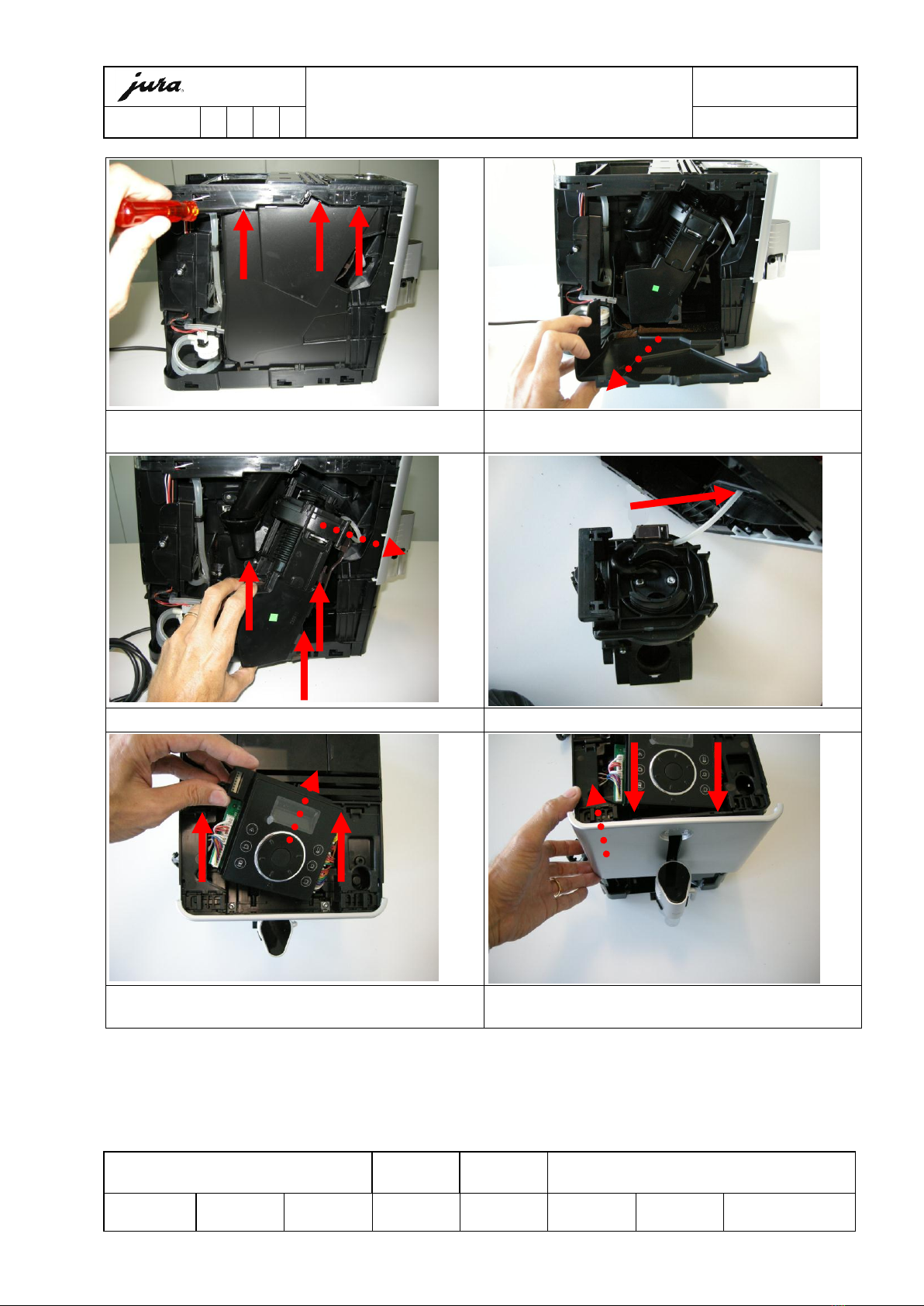

11. Remove with a screw driver the cover of the
brewing unit
12. View:
Brewing unit cover removed.
13. Unscrew 3x TORX 15 to remove the brewing unit
14. Remove hose
15. Unscrew 2x TORX 15.
Remove control panel (display module).
16. Unscrew 2x TORX 15.
Remove the front shield upwards.

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 5/15
17. Unscrew 4x TORX 15
18. Remove the 2x supports of the front shield
19. Remove coffee spout
(Press interlocks on both sides)
20. Release 3x snap-locks of the bottom of the
coffee spout and remove the lid
21. Unscrew 2x TORX 10 of the top of the coffee
spout
22. Release snap-lock and safety guide.
Swing the coffee spout.

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 6/15
23. Release 2x snap-locks of the interlock angel
24. Unscrew 2x TORX 10 of the fluid system support
25. Unscrew TORX 15 of the hose shield
26. Remove hose shield.
Hose connection to brewing unit.
27. Pull out the fluid system support.
Detach the shield of the fluid system support.
28. Remove the shield upwards

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 7/15
29. Release snap-lock of the air cover
30. Remove the air cover.
Unscrew 1x TORX 15.
31. Unscrew 2x TORX 15 (front side).
Remove top case cover upwards.
32. Release 4x snap-locks
33. Remove thermoblock cover
34. Unscrew 3x TORX 15
(See also cable wiring chapter 6 )

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 8/15
35. Remove the upper and sideward
cable-connectors
36. Unscrew TORX 15 of the multi-valve
(bottom of the appliance)
37. Pull down carefully the snap-lock of the multi-
valve support and remove the multi-valve
38. Pull out the pump of the pump support
39. Pull with a small screw driver into the slot to
release the lateral interlock and remove it
40. Remove the transformer

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 9/15
41. Variation when print and pump is removed:
Release snap-lock of the tank base.
42. Turn at the same time the tank base
(bayonet lock).
43. View:
Tank base with inner distributing collar
44. Variation 2:
Release with screw driver snap-lock of the tank
base.
45. View:
Tank base / bayonet lock.
46. Release snap-lock of the coffee powder funnel
(push) and remove upwards

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 10/15
47. Unscrew TORX 15.
Remove the powder funnel guide downwards.
48. Remove grinder:
Unscrew 3x TORX 15
49. Press snap-lock and slide the Zero Energy Switch
(ZES)
50. Pull down the 2x snap-locks and slide down the
ZES to remove
51. Unscrew 2x TORX 15 and press snap-lock to
remove the thermoblock
52. Check the position of the grinder finesse
adjustment when re-inserting the grinder

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 11/15

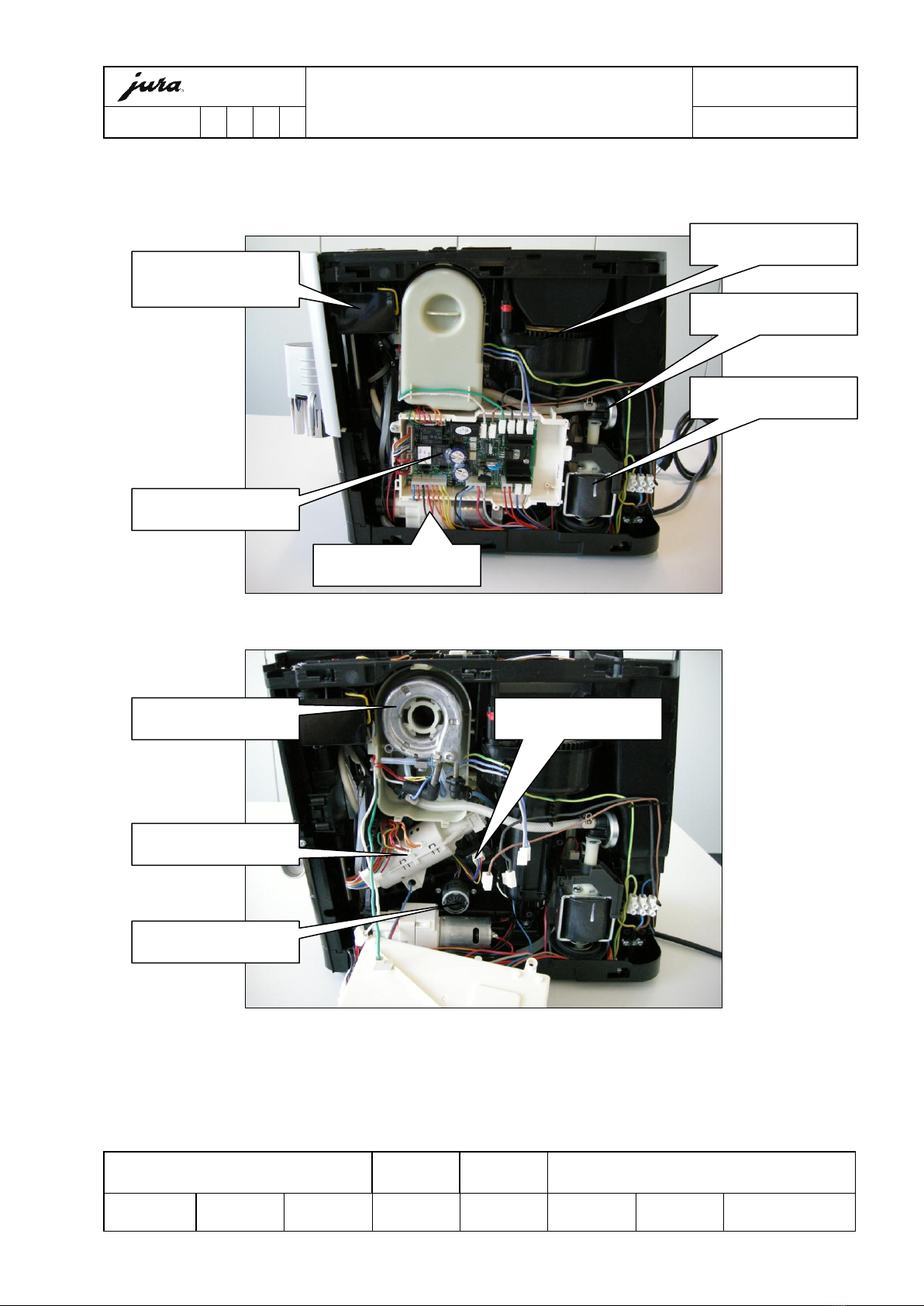

2View appliance, Right:
Power-Logic print
Heater TB2010
Multi-valve
Pump
Membrane controller
ZES
(Zero Energy Switch
Grinder
Encoder
Drain motor
Brewing unit motor

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 12/15
3View appliance, Left:
Flowmeter
Brewing unit (BU)

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 13/15
4View appliance, Top:
5View appliance, Back:
Control panel
Connector mains feeder
Service-plug
Suppression filter
Aroma lid detector
Transformer

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 14/15
6View power-logic print, cable wiring (example ENA Micro 9 One Touch):
6.1 Block schematic:
TM5 to supp. filter L Inp.
TM3 to heater L
TM4 to supp. filter N Out
TM1 to supp. filter L Out
TM5A to ZES
TM6 to mains L
TM2 to heater N
TM6A to ZES
CP4A to mult-valve
CP2C to tray switch
CP10 to control panel
CP5 to control panel
CP2D to grounds switch
CP4B to transformer Sec.
CP2A to multi-valve
CP2B to BU motor
CP4C to grinder/pump
CP2E to transformer Prim.

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro 9 One Touch
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.doc
L:\Geräte\ENA\ENA_Micro\ENA_Micro_9\Schulungsunterlage
n\E\Demontage_ENA_Micro_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
11.11.2011
Page 15/15
7View multi-valve connections:
7.1 Fluid system:
5. Direction to
Condesation box
1. Direction to
Fluid terminal outlet (Hot water)
2. Direction to
Fluid terminal outlet (Steam)
4. Direction to
Fluid connector Thermoblock
3. Direction to
Fluid connector Check valve
2
1
