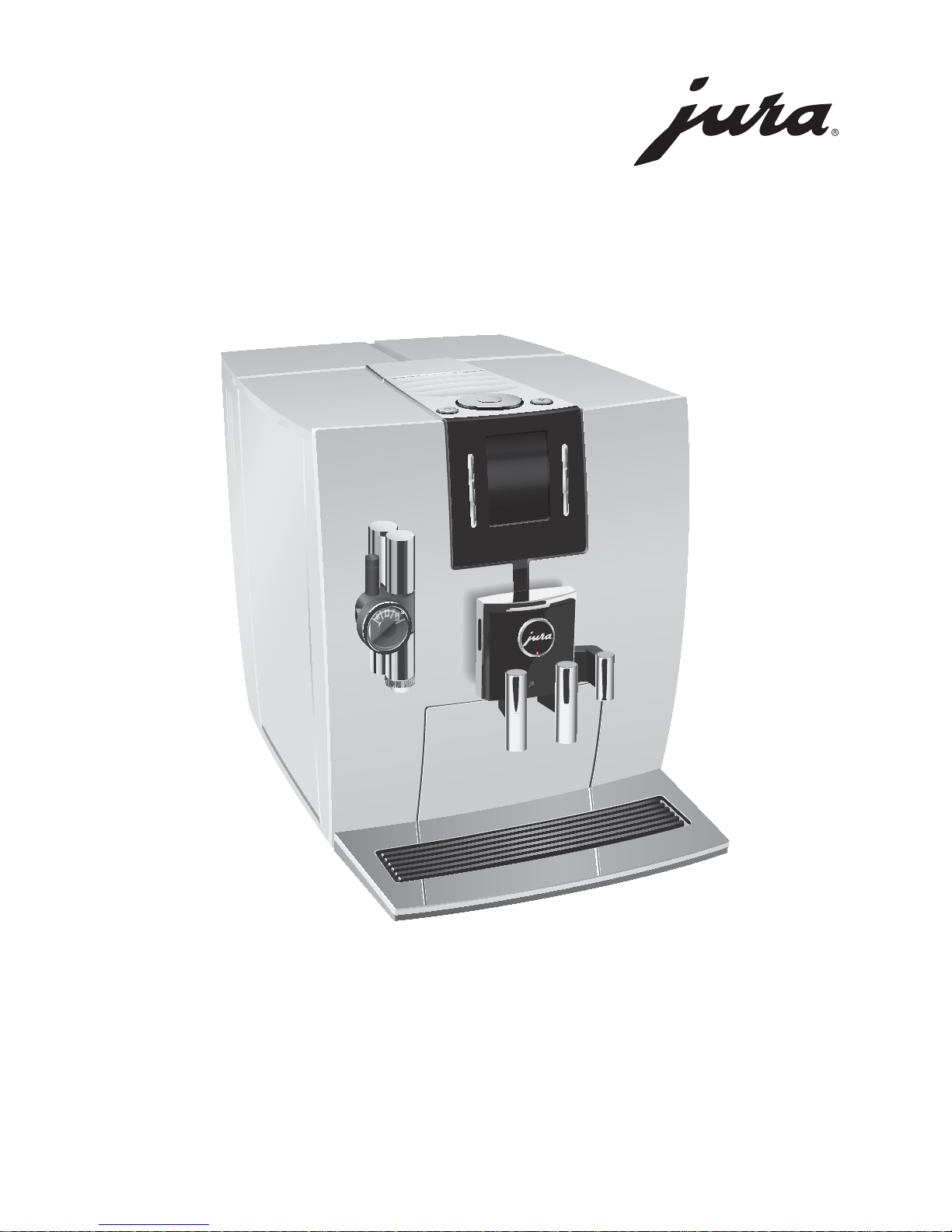

Jura Impressa J6 User manual

J6 Instructions for Use
KFor your safety: read and understand manual before use.
E

2
Table of contents
Your J6
IMPORTANT SAFEGUARDS 4
Control elements 8
1 Preparing and using for the first time 10
JURA on the Internet....................................................................................................................................10
Setting up the machine ..............................................................................................................................10
Filling the bean container...........................................................................................................................10
Determining the water hardness ..............................................................................................................10
First-time use .................................................................................................................................................11
Connecting milk...........................................................................................................................................14
2 Preparation 15
Ways of preparing a beverage ...................................................................................................................16
Ristretto, espresso and coffee....................................................................................................................17
Two ristretti, two espressi and two coffees .............................................................................................17
Latte macchiato, cappuccino and other specialty coffees with milk..................................................17
Ground coffee...............................................................................................................................................18
Permanently setting the amount of water for the cup size .................................................................19
Adjusting the grinder ..................................................................................................................................19
Hot water......................................................................................................................................................20
3 Daily operation 21
Filling the water tank...................................................................................................................................21
Switching on the machine..........................................................................................................................21
Daily maintenance ......................................................................................................................................22
Regular maintenance .................................................................................................................................22
Switching off the machine.........................................................................................................................23
4 Permanent settings in programming mode 24
Adjusting the product settings.................................................................................................................25
Adding products to the start screen, duplicating and personalizing................................................27
Automatic switch-off..................................................................................................................................28
Energy-saving mode ..................................................................................................................................28
Setting the water hardness .......................................................................................................................29
Display settings ...........................................................................................................................................29
Unit for amount of water...........................................................................................................................30
Restore factory settings .............................................................................................................................30
Language.......................................................................................................................................................31
Querying information .................................................................................................................................31
5 Maintenance 33
Rinsing the machine...................................................................................................................................34
Automatic milk system rinsing.................................................................................................................34
Cleaning the milk system..........................................................................................................................34
Dismantling and rinsing the cappuccino frother ..................................................................................36
Inserting the filter .......................................................................................................................................36
Changing the filter...................................................................................................................................... 37

3
Table of contents
Cleaning the machine ................................................................................................................................38
Descaling the machine...............................................................................................................................40
Cleaning the bean container.....................................................................................................................42
Descaling the water tank ...........................................................................................................................42
6 Display messages 43
7 Troubleshooting 44
8 Transport and environmentally friendly disposal 46
Transport/ Emptying the system.............................................................................................................46
Disposal.........................................................................................................................................................46
9 Technical data 47
10 Index 48
11 JURA contact details/ Legal information 52
Symbol description
Warnings
This is the safety alert symbol. lt is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
J CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous situation
which, if not avoided, could result in minor or moderate injury.
NOTICE NOTICE is used to address practices not related to personal injury.
Symbols used
TPrompt to take action. This symbol means that you are being prompted to
perform some action.
EInformation and tips to make it even easier to use your J6.
‘Coffee’ Display message
J
J DANGER
J WARNING

4
IMPORTANT SAFEGUARDS
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS.
Pass them on to any subsequent user.
When using electrical appliances, basic safety precautions shall
always be followed, to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
ZRead all instructions.
ZDo not touch hot surfaces. Use handles or knobs.
ZToprotectagainstfire,electricshockandinjurytopersons,do
not immerse power cord, plugs, or body of machine in water
or other liquid.
ZClose supervision is necessary when any appliance is used by
or near children.
ZUnplug from outlet when not in use and before cleaning.
Allowtocoolbeforeputting onor takingoff parts,andbefore
cleaning the appliance.
ZDonotoperateanyappliancewithadamagedcordorplugor
aftertheappliancemalfunctions,orhasbeendamagedinany
manner. Return appliance to the nearest authorized service
facility for examination, repair or adjustment.
ZTheuseofanaccessoryattachmentnotrecommendedbythe
appliance manufacturer may result in fire, electric shock, or
injury to persons.
ZDo not use outdoors.
ZDo not let the cord hang over the edge of a table or counter,
or touch hot surfaces.
ZDo not place on or near a hot gas or electric burner, or in a
heated oven.
ZTo disconnect, turn any control to ‘OFF’ then remove plug
from wall outlet.
ZDo not use appliance for other than intended use.
ZUse extreme caution when dispensing hot steam, hot water
or hot coffee.
ZFor household use only.
Follow the basic safety
precautions

5
IMPORTANT SAFEGUARDS
The appliance is designed and intended for household use only. It
shallonly be used forcoffeepreparationandtoheatmilkandwater,
according to these instructions. Use for any other purpose will be
deemed improper. JURA Elektroapparate AG cannot accept any
responsibility for the consequences of improper use.
People, including children, who
Zdonothavethephysical,sensoryormentalcapabilitiestouse
the appliance safely or
Zare inexperienced or lack knowledge in how to use the
appliance safely
must be supervised by a responsible person when using it, or must
be instructed in how to use it correctly.
ZA short power-supply cord is to be provided to reduce risks
resulting from becoming entangled in or tripping over a
longer cord.
ZThe cord shall be arranged so that it will not drape over the
countertop ortable topwhere it canbe pulledon bychildren
or tripped over.
ZThis appliance has a 3-pin grounded plug.
ZDo not modify the plug in any way.
Extension cords are available an may be used if care is exercised in
their use.
If the user chooses to use an extension cord,
Zthe marked electrical rating of the extension cord should be
at least as great as the electrical rating of the appliance, and
Zif the appliance is of the grounded type, the extension cord
should be a grounding type 3-wire cord, and
Zthe longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over.
To reduce the risk of fire or electric shock, DO NOT remove any
service covers. DO NOT modify the appliance in any way that is not
described in these instructions. NO user serviceable parts included.
Repair MUST be done by authorized personnel only.
In the event of signs of damage, for example if there is a smell of
burning, unplug the machine immediately from outlet and contact
JURA customer service.
Intended use
Special power cord set
instructions
J WARNING

6
IMPORTANT SAFEGUARDS
This appliance is for household use. Any servicing other than
cleaningandusermaintenanceshallbeperformedbyanauthorized
service representative:
ZDo not immerse base in water or try to disassemble.
ZDo not put the appliance or any individual parts in the
dishwasher.
ZCheck voltage to be sure that the voltage indicated on the
name plate complies with your voltage. The name plate is
located on the underside of the appliance.
ZNever use warm or hot water to fill the water container. Use
cold water only.
ZKeep your hands and the cord away from hot parts of the
appliance during operation.
There is a risk of scalds or burns on the spouts and the cappuccino
frother / nozzle.
ZKeep children away.
ZDo not touch any hot parts. Use the handles or knobs
provided.
ZEnsure that the cappuccino frother / nozzle is correctly fitted
and clean. If incorrectly fitted or if they become blocked, the
cappuccino frother or its parts might come off.
ZNever clean with scouring powders or hard implements.
ZEnsure that the ventilation slots are not covered.
ZNever pull out the drip tray during the brewing process. Only
pull the drip tray when the display instructs you or when the
appliance is ready for use.
JCAUTION
NOTICE

7
IMPORTANT SAFEGUARDS
ZNever fill instant coffee, chocolate mix etc. into the bean
container or ground coffee funnel (filler funnel for ground
coffee). It will damage the functioning of the brewing
chamber.
ZNever fill sugar coated coffee beans into the bean container.
In case of doubt, call your dealer.
ZNever fill anything other than coffee beans into the bean
container (no chocolate, no rice, no nuts, no spices, nothing
other than roasted coffee beans).
ZNever fill frozen beans into the bean container. If you store
beans in the freezer, let them thaw 3 to 4 hours before filling
them into the bean container.
ZNever fill anything but fresh, cold and clean water into the
water tank, except when decalcifying.
ZNeverusemineralorcarbonatedwater.Youcanusetapwater,
bottled water, spring water and reverse osmosis water.
ZNeverdoanythingwiththemachinewhichisnotdescribedin
these instructions. In case of doubt, call your dealer.
NEVER DO
(or you will void your
warranty protection):

8
Control elements
Control elements
3
7
4
6
10
9
8
1
2
18
19
17
20
5
11
16
12
13
14
15
J HOT
J HOT
1 Filler funnel cover
2 Filler funnel for ground coffee
3 Bean container cover
4 Water tank cover
5 Service socket
6 Bean container with aroma preservation
cover
7 Water tank
8 Height-adjustable cappuccino frother
9 Coffee grounds container
10 Drip tray
11 Storage compartment cover
12 Grinder adjustment switch
13 Interchangeable milk spout
14 Storage compartment insert
15 Milk pipe
16 Measuring spoon for ground coffee
17 Power cord (side of machine)
18 Hot-water spout
19 Height- and width-adjustable coffee spout
20 Cup platform

9
Control elements
31 2
4
5
Top of the machine
1 On/Off button Q
2 Rotary Switch
3 P button (programming)
Front
4 Display
5 Multi-function buttons (button function
depends on what is shown in the display)
Container for milk system cleaning
6

10
1 Preparing and using for the first time
1 Preparing and using for the first time
Visit us on the Internet (www.jura.com). You will find interesting and
up-to-date information on your J6 and on every aspect of coffee.
When setting up your J6, please note the following:
UPlace the J6 on a horizontal surface that is not sensitive to
water.
UChoose a spot for your J6 which protects the machine against
overheating. Ensure that the ventilation slots are not covered.
The bean container has an aroma preservation cover. This will ensure
that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar),
ground coffee or freeze-dried coffee will damage the grinder.
T Only use roasted, untreated coffee beans to fill the bean
container.
TOpen the bean container cover and remove the aroma
preservation cover.
TRemove any dirt or foreign objects from inside the bean
container.
TFill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
When you use the machine for the first time, you must set the water
hardness. If you do not know the hardness of your water, you can
find this out first. Use the Aquadur® test strips supplied with the
machine.
THold the test strip briefly (for 1second) under flowing water.
Shake off the water.
TWait for about 1minute.
JURA on the Internet
Setting up the machine
Filling the bean container
NOTICE
Determining the water
hardness

11
1 Preparing and using for the first time
TYou will then be able to read the degree of water hardness
from the discoloration of the Aquadur® test strip and the
description on the packaging.
Level Display German
Degree (°dH)
Degrees of general
hardness (°dGH)
Parts per
million (ppm)
Indicator Strip number
of ‘reddish’fields
Not active – – – –
Very soft water <3 <3 < 53.4 None
Soft water > 4 > 4 > 71 1
Hard water > 8.4 > 8.4 > 150 2
Very hard water > 14 > 14 > 250 3
When using the machine for the first time, you can choose whether
you want to operate J6 with or without the CLEARYL Smart filter
cartridge. As well as limescale, the filter cartridge filters many other
substances that impair aroma and flavour out of the water. These
substances may negatively affect the coffee. To enjoy the best
quality coffee at all times, we recommend that you use CLEARYL
Smart.
If the machine is operated with a defective power cord, there is a
danger of potentially fatal electric shock.
T Never use a machine which is damaged.
T Never use a machine which has a defective power cord.
EThe water volume is given as standard in ‘oz’. You can change
this setting to ‘ml’ in programming mode (see Chapter 4
‘Permanent settings in programming mode – Unit for amount
of water’).
Precondition:The bean container has been filled.
TInsert the mains plug into a power socket.
TPress the On/Off button Qto switch the J6 on.
‘Choose language’ / ‘English’
ETo view more languages, turn the Rotary Switch.
First-time use
J WARNING

12
1 Preparing and using for the first time
TPress the ‘Save’ button.
‘Saved’ appears briefly on the display to confirm the setting.
‘Water hardness’
EIf you do not know the hardness of your water, you must find
this out first (see Chapter 1 ‘Preparing and using for the first
time – Determining the water hardness’).
TTurn the Rotary Switch to change the water hardness
setting, e.g. to ‘25°dH’.
TPress the ‘Save’ button.
‘Saved’ appears briefly on the display.
‘Insert filter’
ENow decide whether you want to operate your J6 with or
without a CLEARYL Smart filter cartridge.
Operation with filter cartridge: go straight to the next section.
Operation without filter cartridge: see Chapter 1 ‘Preparing and
using for the first time – First-time use without filter cartridge
activation’.
Milk, sparkling mineral water or other liquids can damage the water
tank or the machine.
T Only fill the water tank with fresh, cold water.
TPlace one receptacle under the hot-water spout and another
under the cappuccino frother.
TRemove the water tank and rinse it with cold water.
TOpen the filter holder.
TFit the filter cartridge extension supplied on top of a CLEARYL
Smart filter cartridge .
First-time use with filter
cartridge activation
NOTICE

13
1 Preparing and using for the first time
TInsert the filter cartridge with its extension into the water
tank.
TClose the filter holder. It will click into place audibly.
TFill the water tank with fresh, cold water and reinsert the
tank.
EThe machine automatically detects that you have just inserted
the filter cartridge.
‘Filter operation’ / ‘Saved’
‘Filter is being rinsed’, water flows out of the hot-water
spout.
Rinsing of the filter stops automatically after approximately
10 oz (300ml).
‘System is filling’, water flows out of the cappuccino frother.
‘Empty drip tray’
TEmpty the drip tray and put it back into the machine.
TPlace a receptacle under the coffee spout.
‘Machine is heating’
‘Machine is rinsing’, the system is rinsed. The rinse stops
automatically. ‘Please select product’ appears on the display.
Your J6 is ready for use.
EThe display shows the products you can prepare.
EIf the filter is active, this is indicated by a blue filter symbol in
the top right of the display.
Milk, sparkling mineral water or other liquids can damage the water
tank or the machine.
T Only fill the water tank with fresh, cold water.
TPress the ‘No filter’ button.
‘Descaling mode’ / ‘Saved’
‘Fill water tank’
First-time use without filter
cartridge activation
NOTICE

14
1 Preparing and using for the first time
TPlace a receptacle under the cappuccino frother, the coffee
spout and the hot-water spout.
TRemove the water tank and rinse it with cold water.
TFill the water tank with fresh, cold water and reinsert the
tank.
‘System is filling’, the system fills up with water.
‘Machine is heating’
‘Machine is rinsing’, water flows out of the coffee spout. The
rinse stops automatically. Your J6 is ready for use.
EThe display shows the products you can prepare.
Your J6 creates fine, creamy, feather-light milk foam with a perfect
consistency. The most important requirement for frothing milk is
a milk temperature of 39–46 °F (4–8 °C). We would therefore
recommend using a milk cooler or a milk container.
ESuitable milk containers from JURA are available from
specialized dealers.
TRemove the protective cover from the cappuccino frother.
TAttach the milk pipe to the cappuccino frother.
TConnect the other end of the milk pipe to a milk container
or a milk cooler.
Connecting milk

15
2 Preparation
2 Preparation
Hot coffee, hot steam and hot water can cause scalding. Scalding is
a serious burn.
T Use extreme care when handling hot liquid or steam.
T Allow liquid to cool down before drinking.
T In the event of scalding, rinse affected area with cold water
and seek medical attention.
T Keep children AWAY.
Basic information about preparing drinks:
UDuring the grinding operation you can select the coffee
strength of single products by turning the Rotary Switch.
UDuring preparation, you can change the preset amounts (e.g.
amount of water or milk) by turning the Rotary Switch.
UYou can stop the machine at any time while a specialty
coffee or hot water is being prepared. To do this, press the
‘’ button or the Rotary Switch.
EThe water volume is given as standard in ‘oz’. You can change
this setting to ‘ml’ in programming mode (see Chapter 4
‘Permanent settings in programming mode – Unit for amount
of water’).
Coffee tastes best served hot. A cold porcelain cup cools the
beverage – and impairs the taste. We therefore recommend
prewarming the cups. The full coffee aroma can develop only in
prewarmed cups. You can purchase a JURA cup warmer from your
specialized dealer.
You can make permanent settings for all products in programming
mode (see Chapter 4 ‘Permanent settings in programming mode –
Adjusting the product settings’).
J WARNING

16
2 Preparation
The J6 offers various ways of preparing a specialty coffee, milk or hot
water:
UPreparation using the start screen: Simply press the
corresponding preparation button for the product shown
on the display (start screen) that you want.
The following products are displayed as standard:
U‘Cappuccino’
U‘Latte macchiato’
U‘1 portion milk’
U‘Espresso’
U‘Coffee’
U‘Hot water’
UUsing the product selector view (Rotary Selection): Only
some of the products you can prepare are shown on the start
screen. As soon as you turn the Rotary Switch, more products
are displayed in a product selector view.
Turn the Rotary Switch to bring the product you want into
focus. Start preparation by pressing the Rotary Switch.
The following additional products are shown in the product
selector view:
U‘Ristretto’
U‘Flat White’
U‘Macchiato’
EThe product selector view disappears automatically after
10seconds if no preparation is started.
EYou can move any of the standard products programmed in
your J6 to your preferred position on the start screen or in the
product selector and make it one of your favorites. You can
duplicate and personalize your favorite specialty coffees by
giving them a new product name and individual settings (e.g.
amount and coffee strength) (see Chapter 4 ‘Permanent
settings in programming mode – Adding products to the start
screen, duplicating and personalising’). Please note that the
descriptions provided in the following sections always refer
to the default settings.
Ways of preparing a
beverage

17
2 Preparation
Example:Proceed as follows to prepare one coffee.
TPlace a cup under the coffee spout.
TPress the ‘Coffee’ button.
Preparation starts. ‘Coffee’ and the coffee strength are dis-
played. The preset amount of water for coffee flows into the
cup.
Preparation stops automatically. Your J6 is once more ready
for use.
To prepare two specialty coffees, press the appropriate preparation
button twice (within approximately 2 seconds).
Example:Proceed as follows to prepare two espressi.
TPlace two cups under the coffee spout.
TPress the ‘Espresso’ button twice (within 2 seconds) to start
preparation.
‘2x Espresso’ appears and the preset amount of water flows
into the cups.
Preparation stops automatically. Your J6 is once more ready
for use.
Your J6 prepares latte macchiato, cappuccino, flat white and espresso
macchiato at the touch of a button. There is no need to move the
glass or cup.
Example:Proceed as follows to prepare one latte macchiato.
TPlace a glass under the cappuccino frother.
TTurn the setting wheel of the cappuccino frother to the Milk
Foam area 5.
TPress the ‘Latte macchiato’ button.
‘Latte macchiato’ appears and the preset amount of milk
flows into the glass.
EThere is a short interval while the hot milk separates from the
milk foam. This allows the typical layers of a latte macchiato
to form.
Coffee preparation starts. The preset amount of water for
espresso flows into the glass. Preparation stops automatically.
‘Rinse the milk system’ appears on the display.
Ristretto, espresso and
coffee
Two ristretti, two
espressi and two coffees
Latte macchiato,
cappuccino and other
specialty coffees with
m i l k

18
2 Preparation
E15 minutes after preparation, the milk system is automatically
rinsed (see Chapter 5 ‘Maintenance – Automatic milk system
rinsing’). Therefore always place a receptacle under the
cappuccino frother after preparing milk.
To ensure that the cappuccino frother always works properly,
you must clean it daily when you have been preparing milk (see
Chapter 5 ‘Maintenance – Cleaning the milk system’).
You can choose to use a second coffee variety, for example
decaffeinated coffee, with the filter funnel for ground coffee.
ENever add more than two level measuring spoons of ground
coffee.
EUse ground coffee which is not ground too finely. Very fine
coffee can block up the system so that the coffee only comes
out in drips.
EIf you did not fill the machine with a sufficient amount of
ground coffee, ‘Not enough ground coffee’ is displayed and
the J6 stops the operation.
EThe desired specialty coffee must be prepared within
approximately one minute after filling with the ground coffee.
Otherwise the J6 stops the operation and is once more ready
for use.
All specialty coffees with ground coffee are always prepared
following the same model.
Example:Proceed as follows to prepare one espresso using ground
coffee.
TPlace an espresso cup under the coffee spout.
TOpen the powder chute cover.
‘Please add ground coffee’
TPlace one level measuring spoon of ground coffee into the
filler funnel.
TClose the cover of the filler funnel.
‘Please select product’
TPress the ‘Espresso’ button.
Preparation starts. ‘Espresso’ appears and the preset amount
of water for espresso flows into the cup.
Ground coffee

19
2 Preparation
Preparation stops automatically. Your J6 is once more ready
for use.
It is easy to permanently adjust the amount of water for all single
products to the cup size. Adjust the amount once as shown in the
following example. Every time you prepare a drink in the future, this
amount will be dispensed.
Example: Proceed as follows to permanently set the amount of
water for one coffee.
TPlace a cup under the coffee spout.
TPress and hold the ‘Coffee’ button until ‘Enough coffee?
Press button’ appears.
TRelease the ‘Coffee’ button.
Preparation starts and the coffee flows into the cup.
TPress any button as soon as there is sufficient coffee in the
cup.
Preparation stops. ‘Saved’ appears briefly on the display. The
set amount of water for one coffee is permanently stored.
Your J6 is once more ready for use.
EYou can alter this setting at any time by repeating the above
procedure.
EYou can also permanently set the amounts for all single
products in programming mode (see Chapter 4 ‘Permanent
settings in programming mode – Adjusting the product
settings’).
You can adjust the grinder to suit the degree of roast of your coffee.
If you adjust the consistency of grind when the grinder is not
operating, the grinder adjustment switch could be damaged.
T Only adjust the consistency of grind when the grinder is
running.
The consistency of grind is correct if the coffee flows regularly from
the coffee spout. In addition a fine, thick crema forms.
Example: Proceed as follows to change the consistency of grind
during the preparation of an espresso.
Permanently setting the
amount of water for the
cup size
Adjusting the grinder
NOTICE

20
2 Preparation
TPlace a cup under the coffee spout.
TOpen the storage compartment cover.
TPress the ‘Espresso’ button to start preparation.
TTurn the grinder adjustment switch to the desired position
while the grinder is running.
The preset amount of water flows into the cup. Preparation
stops automatically.
TClose the storage compartment cover.
There is a danger of scalding from hot water splashes.
T Avoid direct contact with the skin.
TPlace a cup under the hot-water spout.
TPress the ‘Hot water’ button.
‘Hot water’, the preset amount of water flows into the cup.
Preparation stops automatically. ‘Please select product’
appears on the display.
Hot water
JCAUTION
