1Disassembling (example ENA Micro 9 OT):
Important:
When exchanging components, it is very important to put back the cable wiring the same way
as it was before !
Remove water tank, grounds container, aroma preservation lid, powder funnel

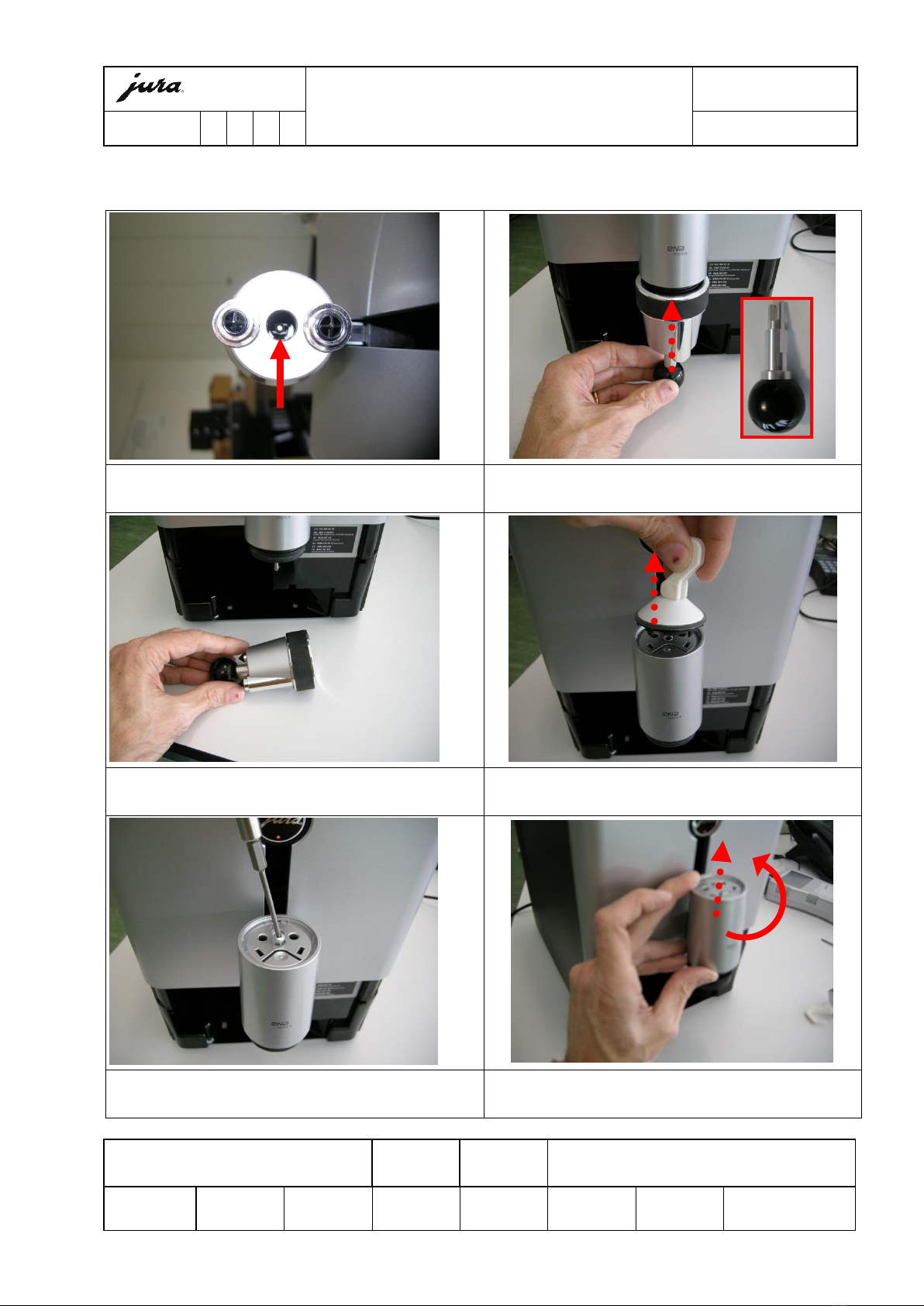

1. Turn JURA emblem anticlockwise
(e.g. with a suction disc).
Rather pulling than pushing when removing.
2. Unscrew the Oval screw
3. Release snap-lock of fixation of the lateral part
4. Unscrew 2x TORX 15

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 4/26
1.1 Service cover / side panel 1st generation:

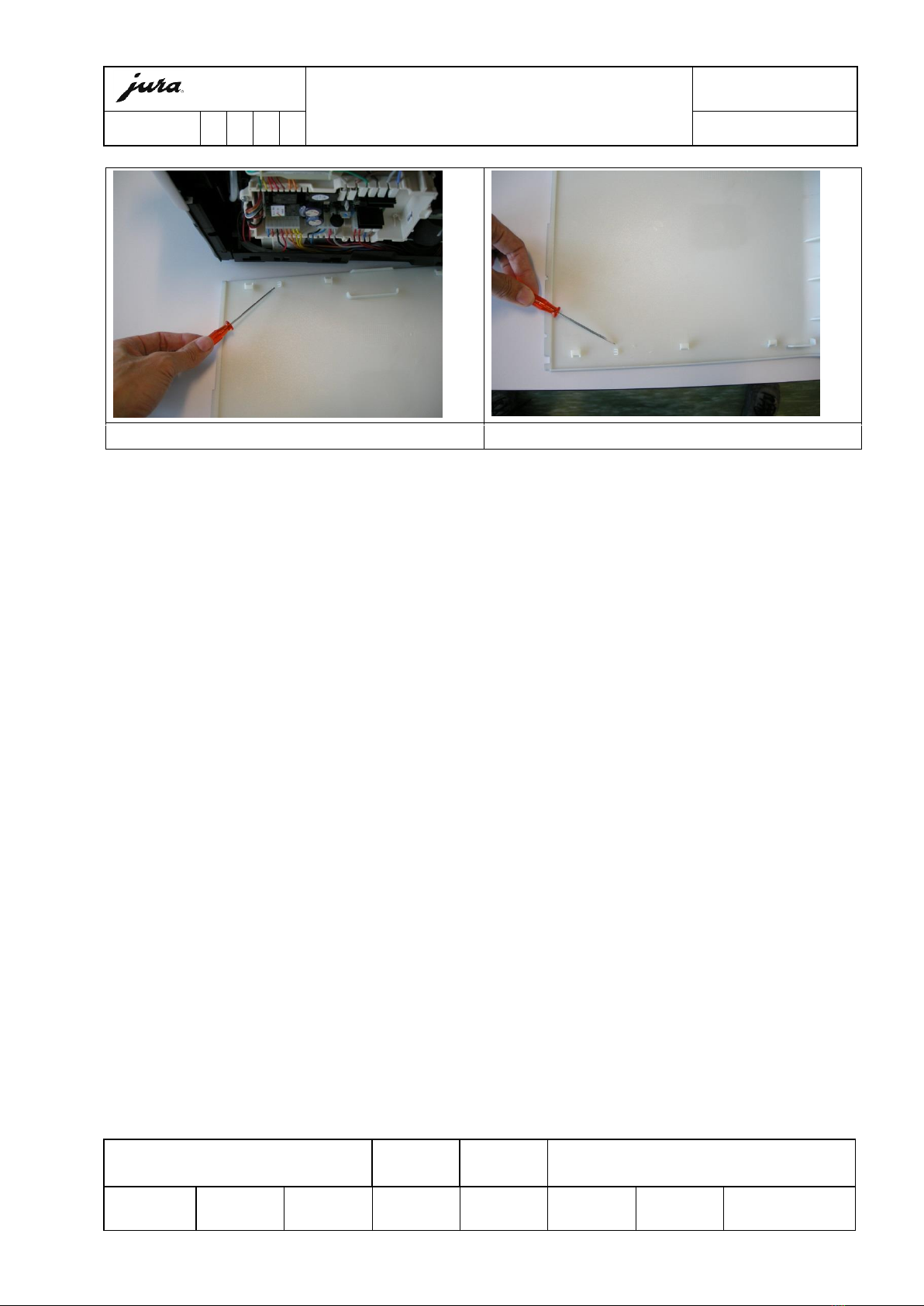

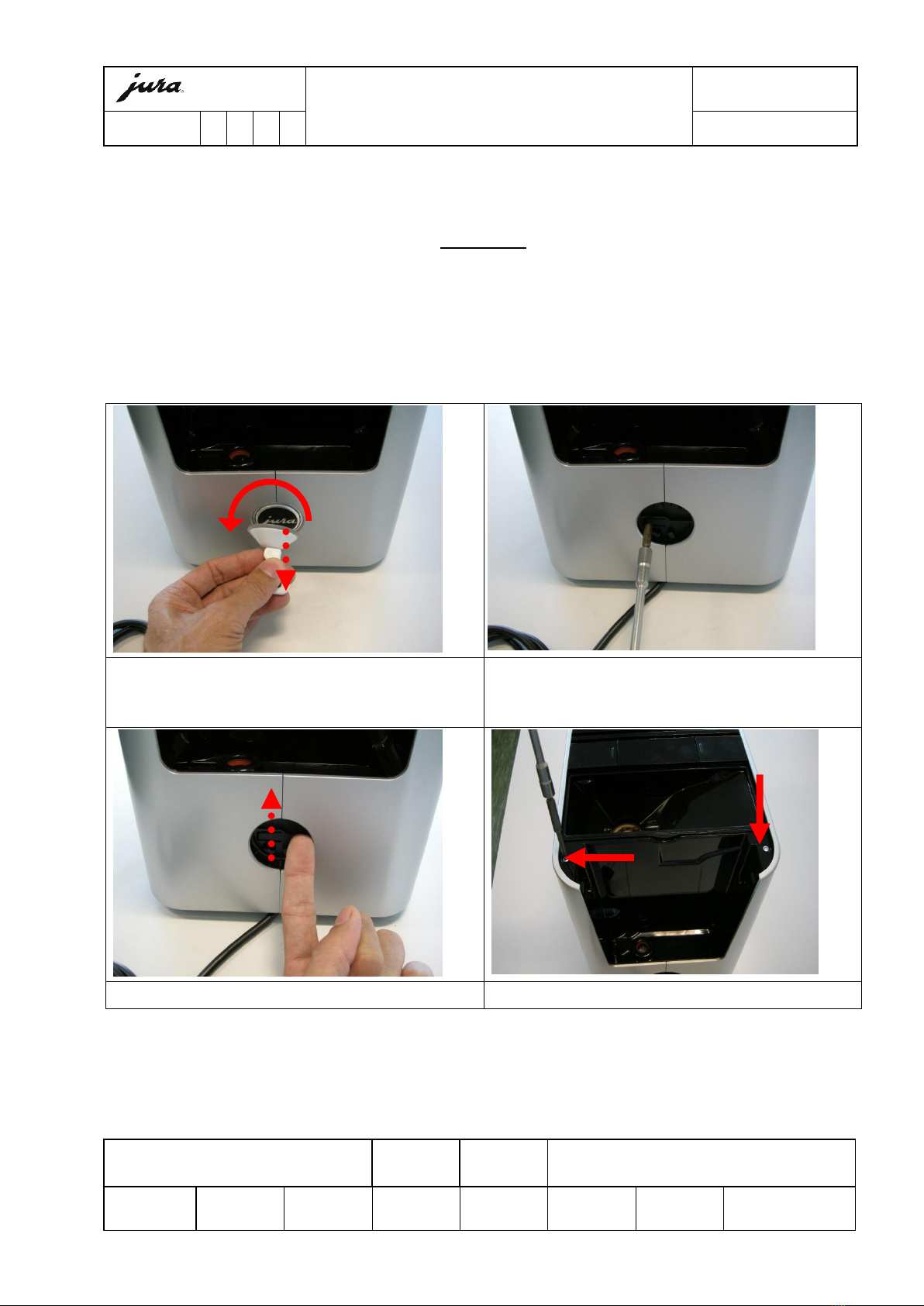

5. Push with a small screw driver (no. 0) or alike
simultaneous in both immersions of the interlock
(between both lateral- and front parts).
- Support by pushing with finger from above.
6. Remove cover of the service plug
7. Insert e.g. a plastic ruler in between the bottom
and lateral part to release the barb
(approx. 7 cm of distance)
8. On the same, upper side, pull outside the lateral
part with your thumb (or similar aid).
Pull backwards the whole lateral part.
Proceed the same way for the other
lateral part.

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 5/26
9. Position of the lower barb of the lateral part
10. Position of the upper barb of the lateral part

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 6/26
1.2 Service cover / side panel 2nd generation and IMPRESSA A line:

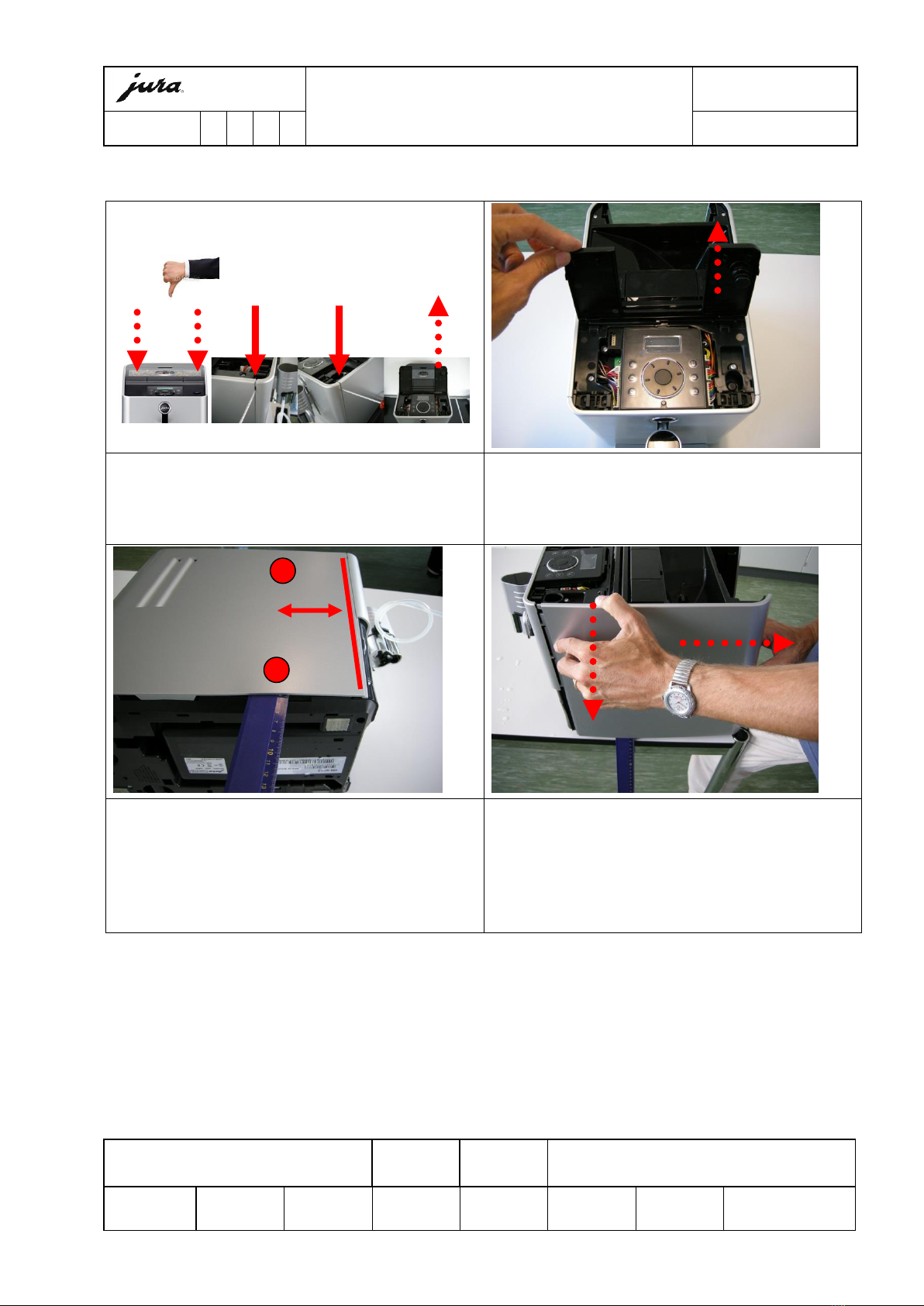

11.Insert a metal ruler (thickness max. 0.5 mm) on
the front side and slide it to the left
(pay attention to not scratch the control panel)
New: Unlock tool for service cover ENA Micro Art.
No. 71178
- Support by pushing with finger from above
- Release the left lock analogue
the right lock
12.Sliding-in a small screw driver to release upper
barb and keep in position

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 7/26

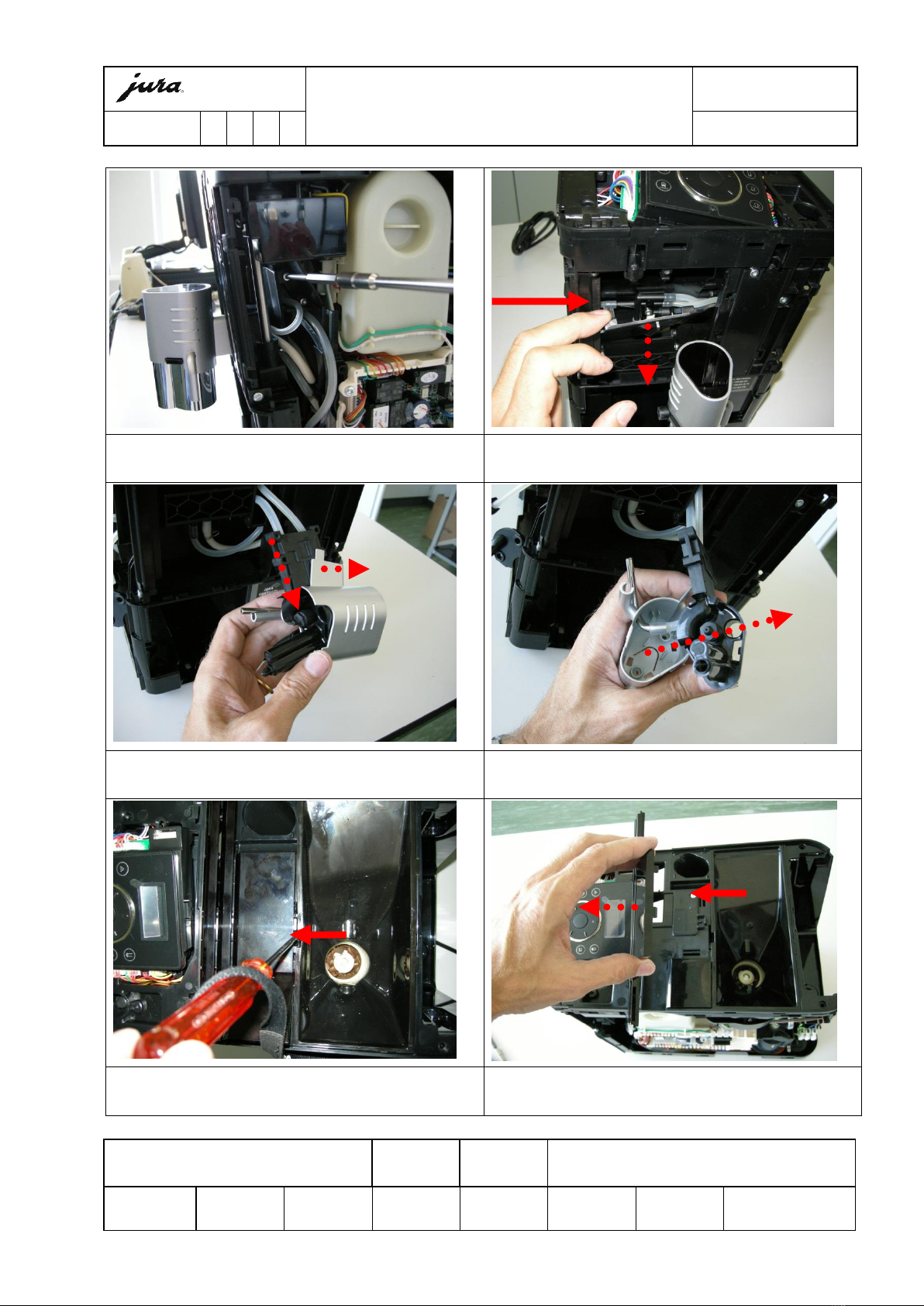

13.Sliding-in a small screw driver to release lower
barb (slot under appliance base) and keep in
position
14.On both sides, pull outside the lateral part with
your thumb (or similar aid).
Pull backwards the whole lateral part.
Proceed the same way for the other
lateral part.
1.3 Disassembling of further components:
15.Remove with a screw driver the cover of the
brewing unit
16.View:
Brewing unit cover removed.

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 8/26

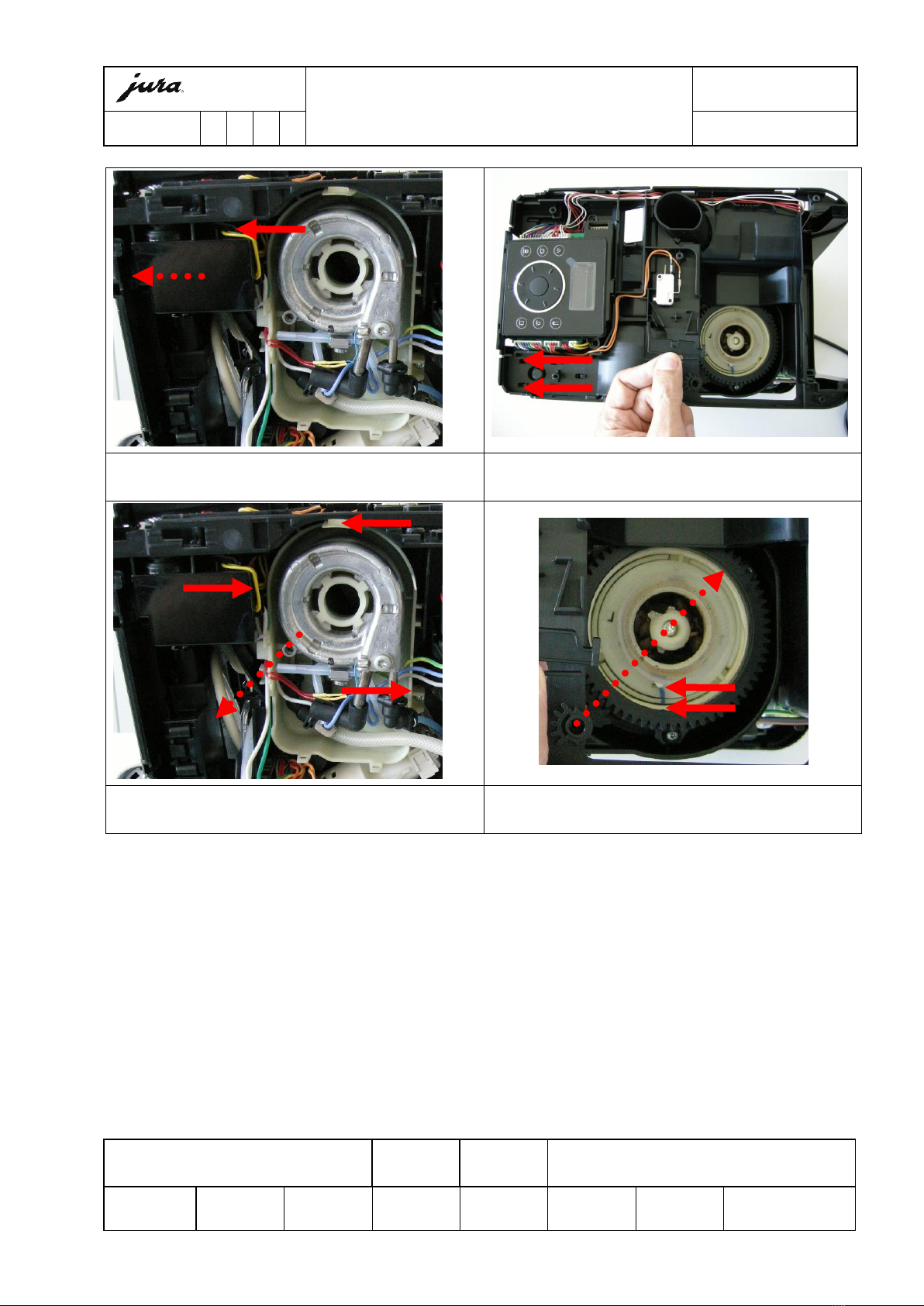

17.Unscrew 3x TORX 15 to remove the brewing unit
18.Remove hose
19.Unscrew 2x TORX 15.
Remove control panel (display module).
20.Unscrew 2x TORX 15.
Remove the front shield upwards.
21.Unscrew 4x TORX 15
22.Remove the 2x supports of the front shield

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 9/26

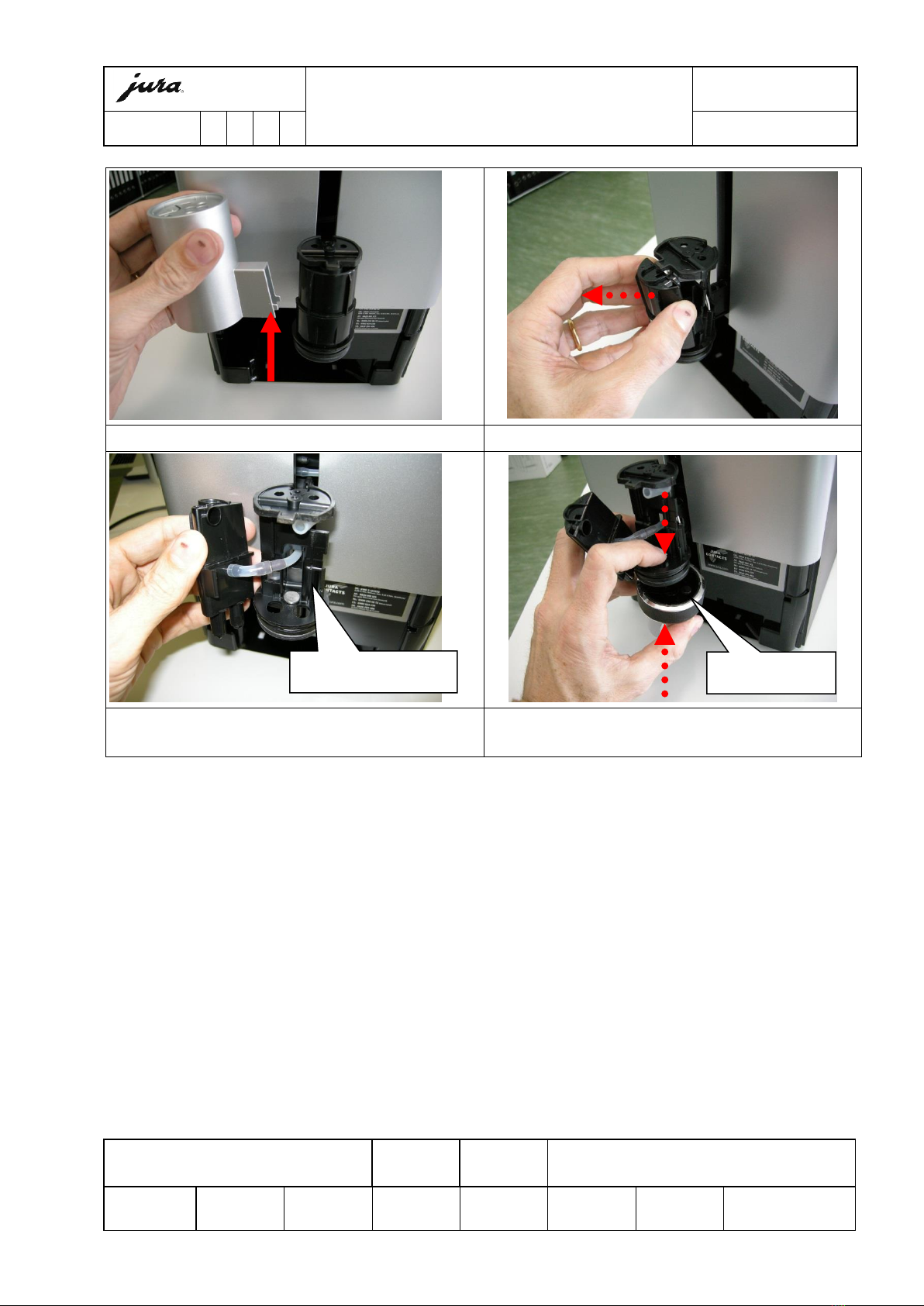

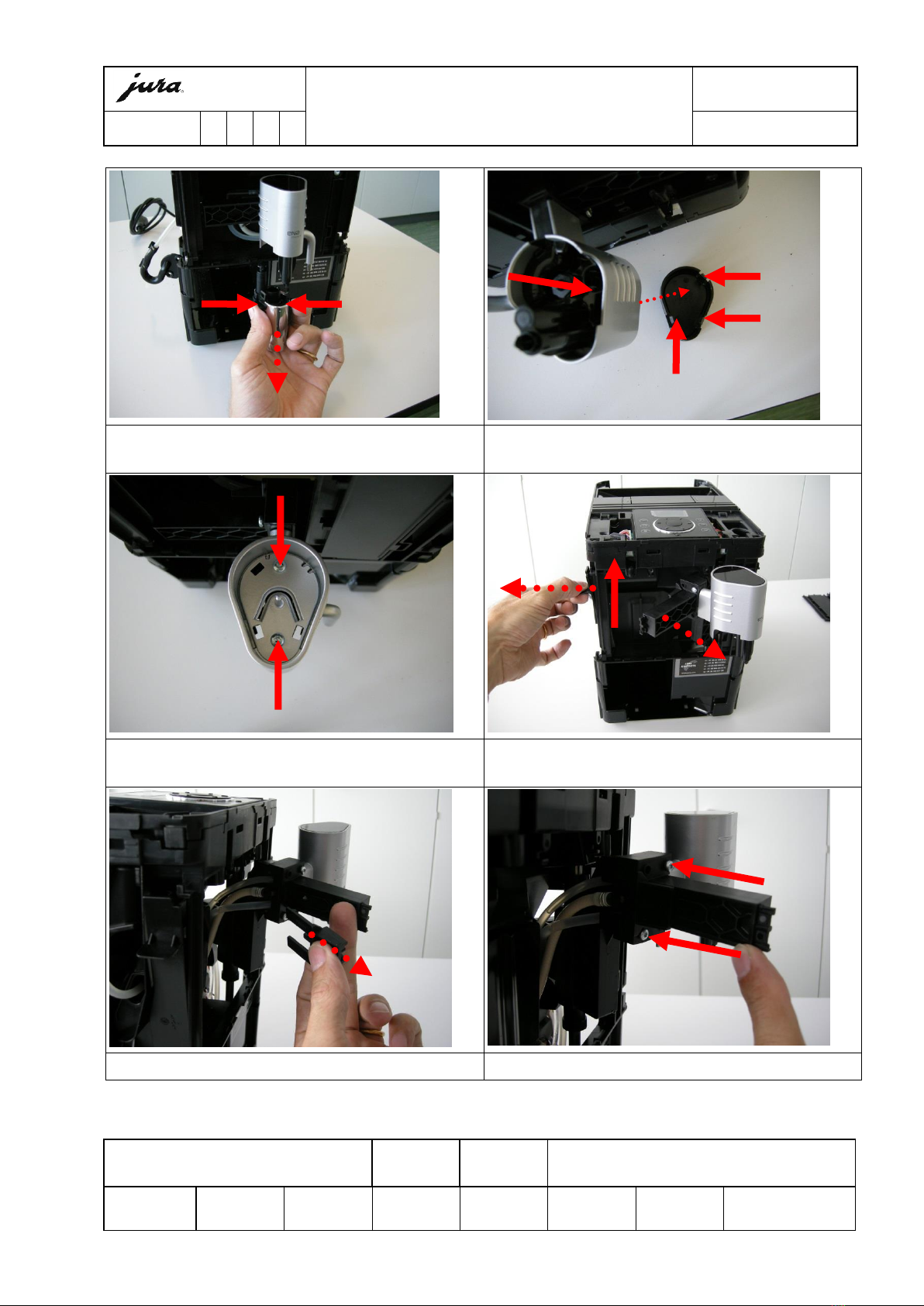

23.Remove coffee spout
(Press interlocks on both sides)
24.Release 3x snap-locks of the bottom of the coffee
spout and remove the lid
25.Unscrew 2x TORX 10 of the top of the coffee
spout

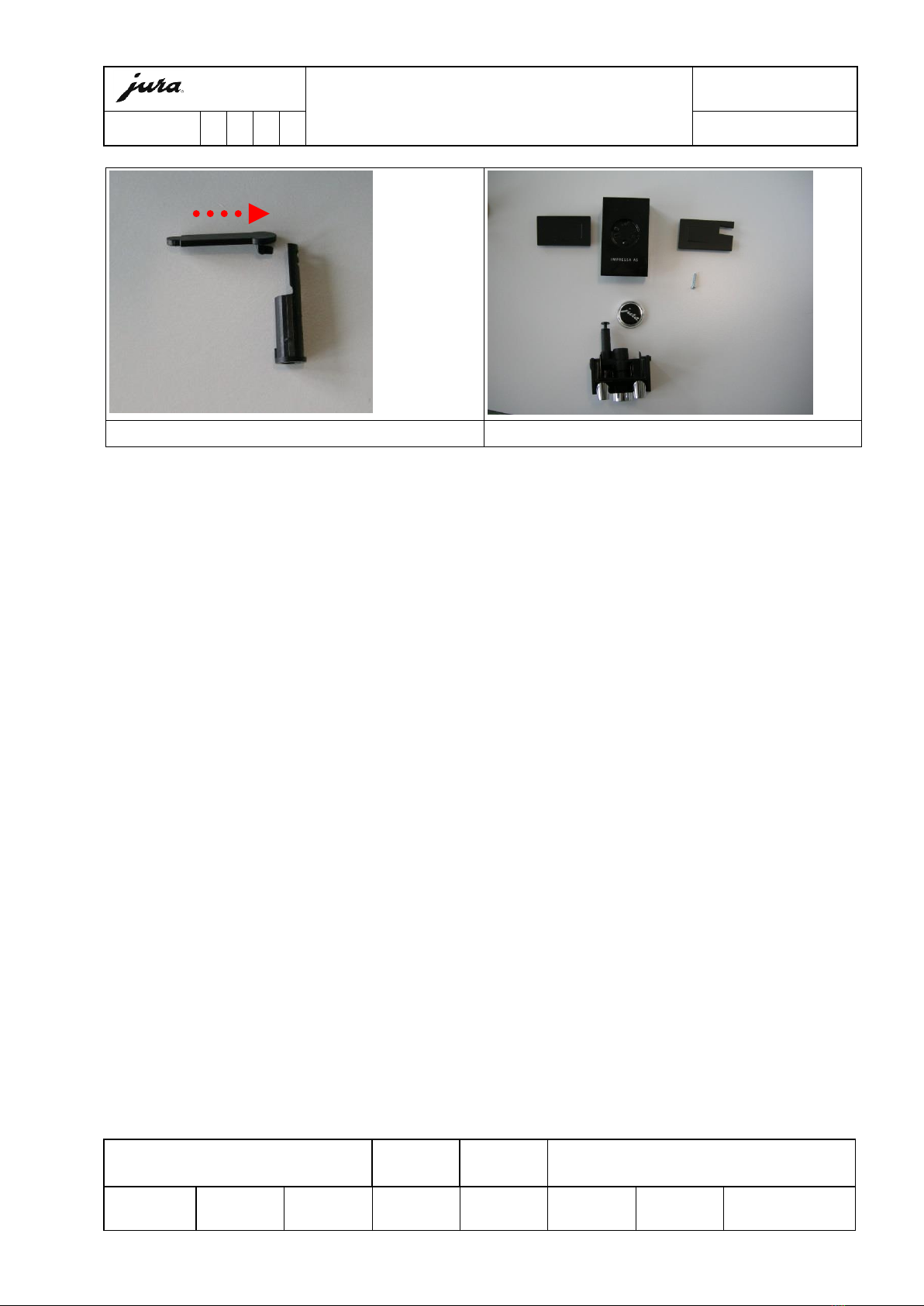

26.Release snap-lock and safety guide.
Swing the coffee spout.
27.Release 2x snap-locks of the interlock angel
28.Unscrew 2x TORX 10 of the fluid system support

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 10/26

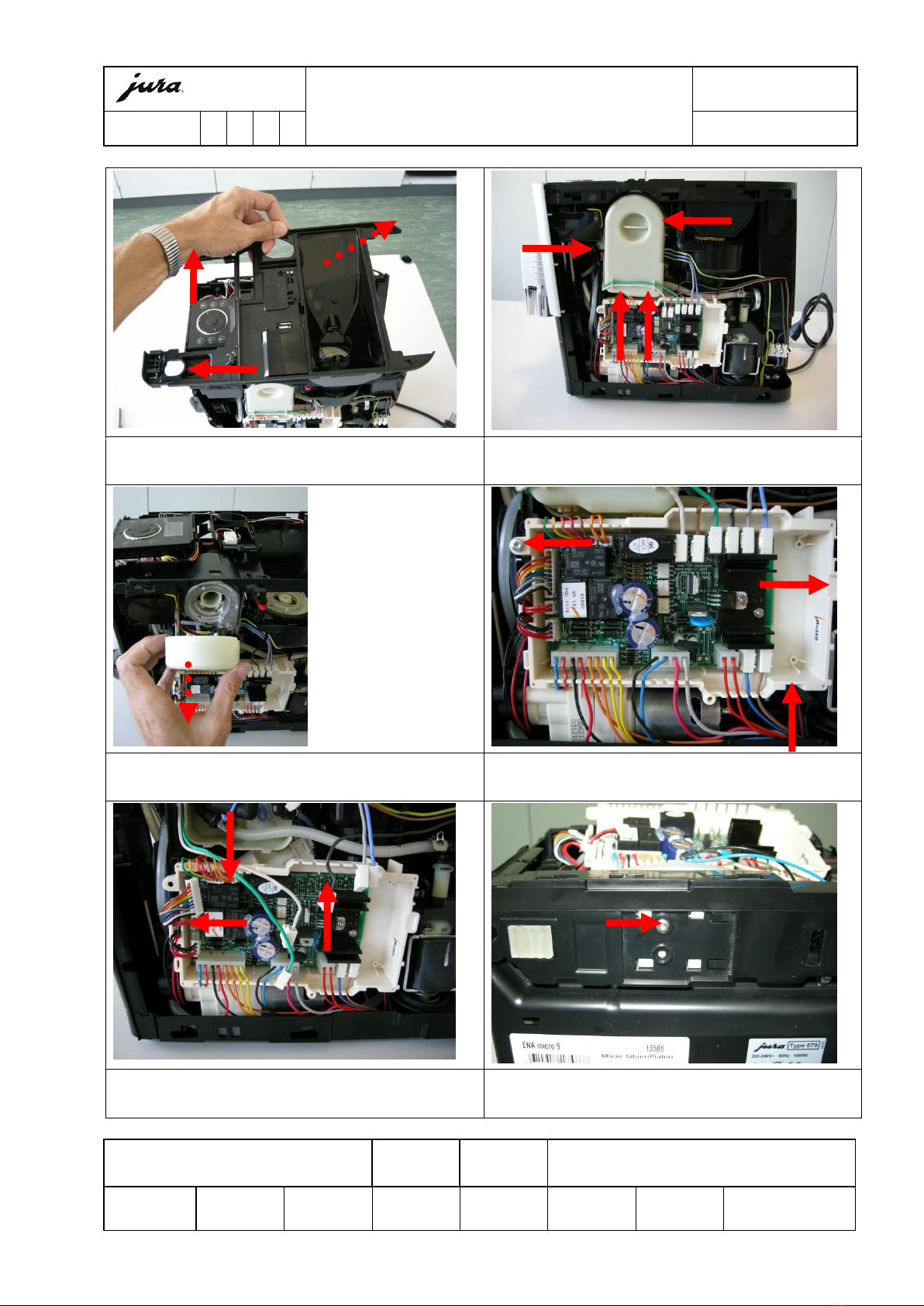

29.Unscrew TORX 15 of the hose shield
30.Remove hose shield.
Hose connection to brewing unit.
31.Pull out the fluid system support.
Detach the shield of the fluid system support.
32.Remove the shield upwards
33.Release snap-lock of the air cover
34.Remove the air cover.
Unscrew 1x TORX 15.
