Jura Z6 User manual

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 1/20
Table of contents:
1Disassembling of single components: .........................................................................................................................2
2View machine side, Left: ...........................................................................................................................................10
3View machine side, Right: .........................................................................................................................................11
4View back of the machine: ........................................................................................................................................12
5View top of machine:.................................................................................................................................................13
6View of the front: ......................................................................................................................................................14
7Fluid system Z6 OT TFT: ............................................................................................................................................15
8Block schematic:........................................................................................................................................................16
8.1 Wiring:.........................................................................................................................................................................16
8.2 Overview 1:.................................................................................................................................................................. 17
8.3 Display:........................................................................................................................................................................ 18
8.4 Logic:...........................................................................................................................................................................19
8.5 Power: ......................................................................................................................................................................... 20
Revision:
A:

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 2/20
1Disassembling of single components:

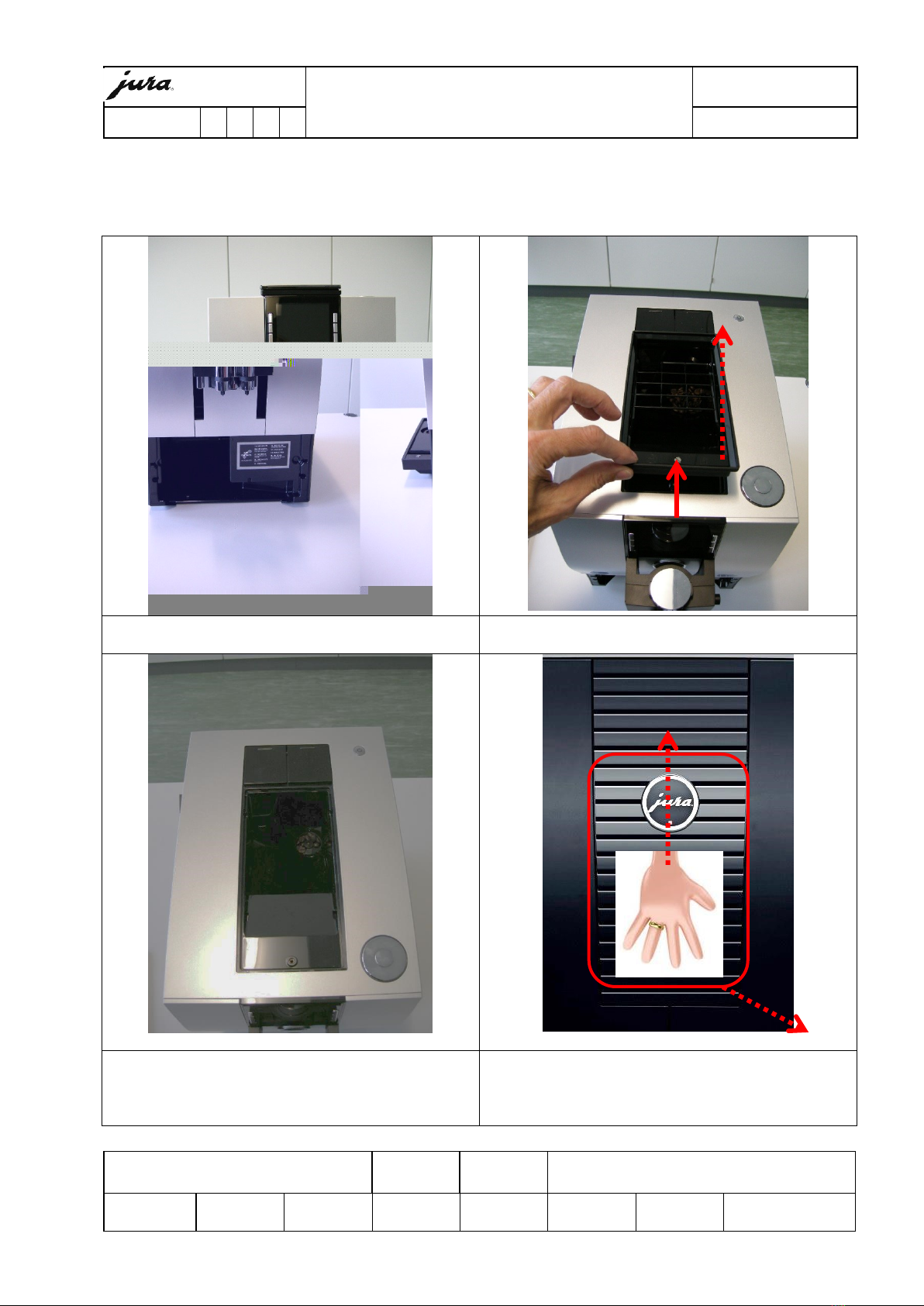

Remove water tank, tray, aroma preservation cover, beans
1. Front view:
2. Unscrew and remove finger protection with a
slot screw driver
3. View: Finger protection removed
4. Remove service cover:
Best way is to use grab in lowest lamella with
your fingertips and slide it upwards
Then remove towards you

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 3/20

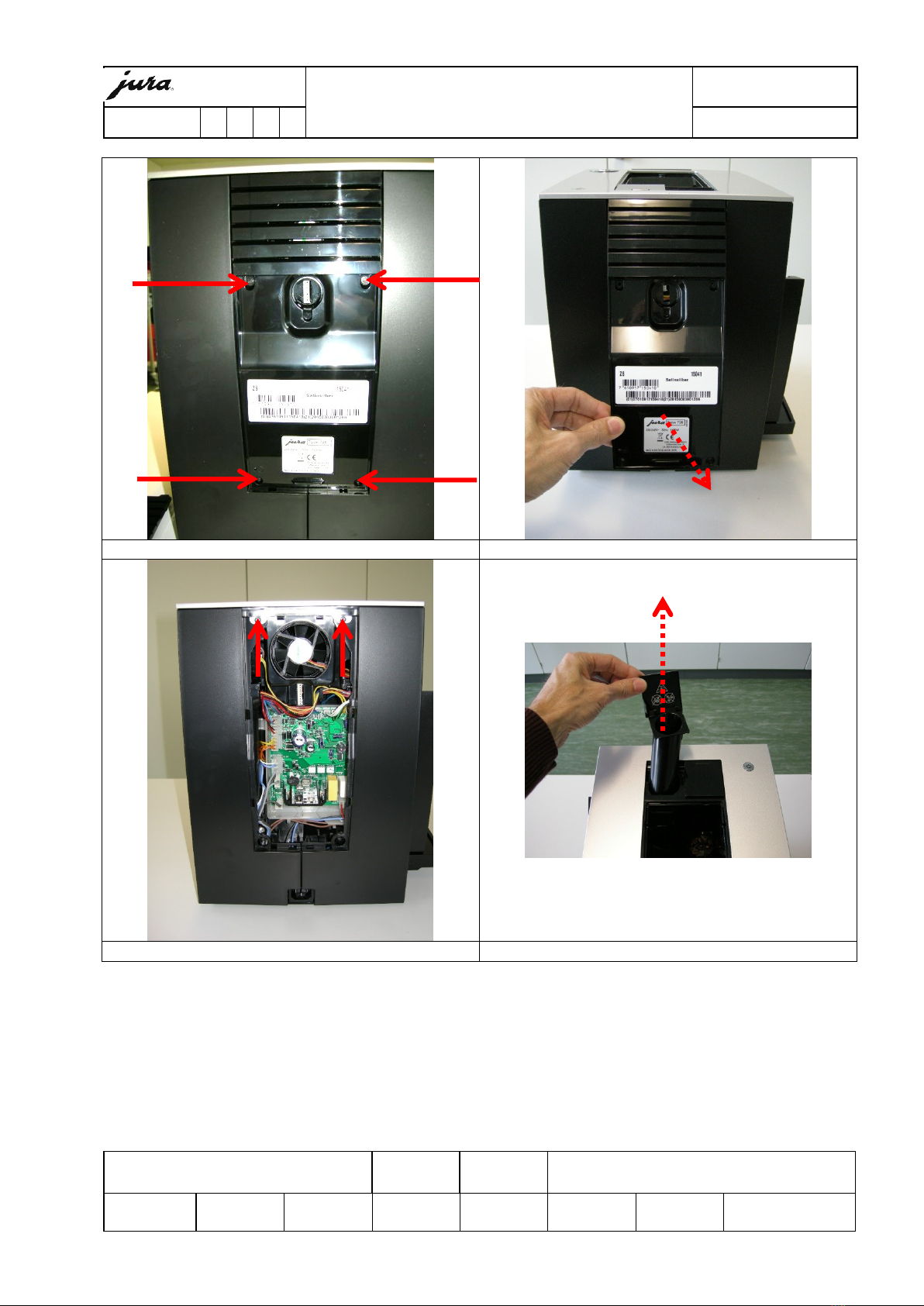

5. Unscrew 4x Oval-screws
6. Remove service cover 2 towards you
7. Unscrew 2x TORX 10
8. Remove coffee powder chute

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 4/20

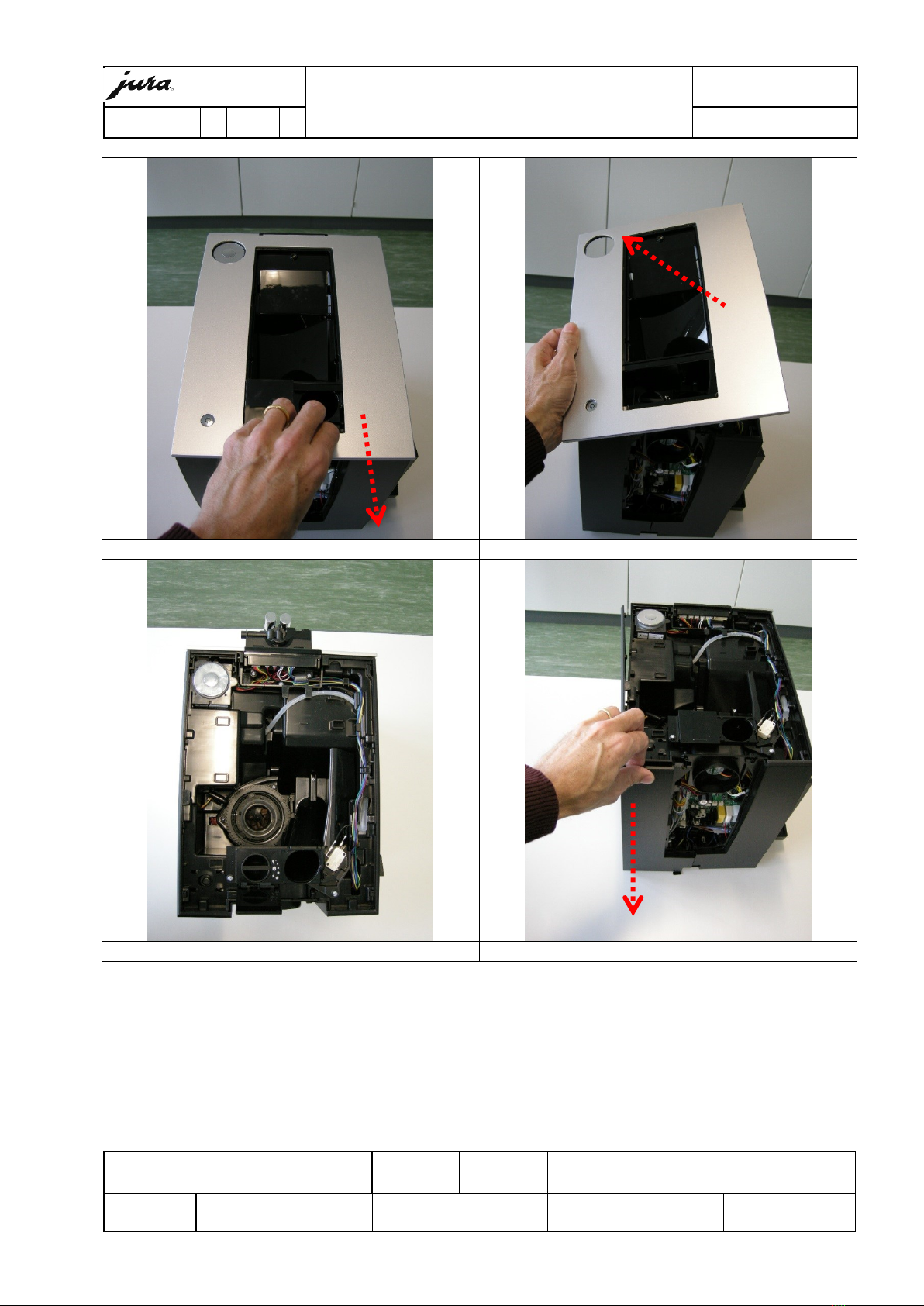

9. Slide upper housing part towards you
10. Remove upper housing part
11. View: Upper housing part removed
12. Slide Left side case towards you

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 5/20

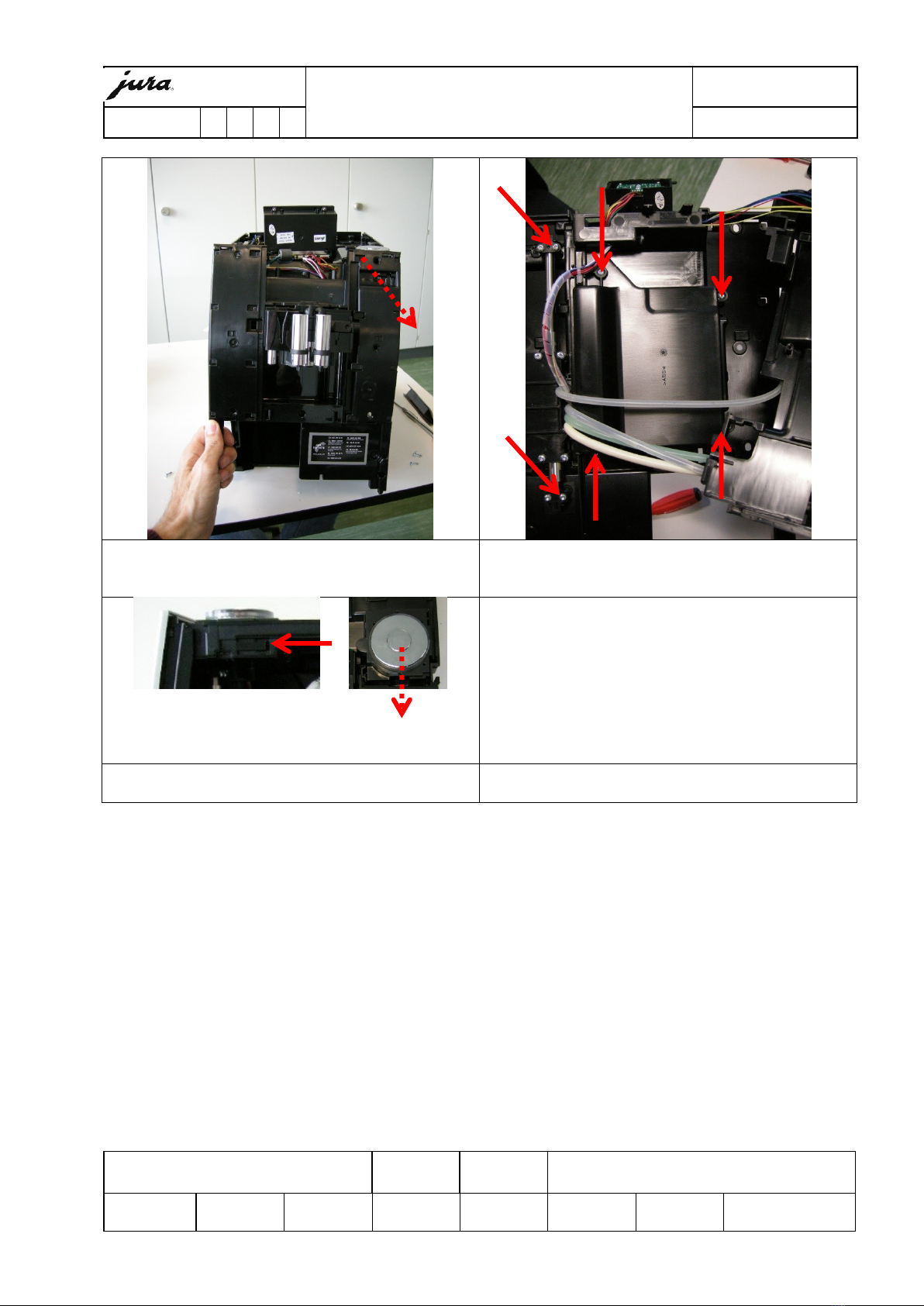

13. Remove 2x cable (capacity sensor/LED)
14. Slide Right side case towards you
15. Right side case removed
16. Remove brewing unit (BU):
Unscrew 2x TORX 15
Unscrew 2x TORX 10

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 6/20
17. Detach BU with VC (Vacuum Clean)
18. Detach hose
19. Remove thermoblock:
Unscrew INBUS 4
Unscrew TORX 10
20. Detach Thermoblock towards you
21. View: Thermoblock cover removed
22. View: Thermoblock

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 7/20
23. View: From above
24. Remove coffee powder chute support:
Unscrew 2x TORX 10
25. Remove coffee powder chute 2:
Unscrew TORX 10
26. Remove grinder:
Unscrew 3x TORX 10
27. Remove CLARIS Smart module
28. Remove capacity sensor:
Detach with screw driver

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 8/20
29. Remove display:
Unscrew 2x TORX 10
30. View: Display removed
31. Remove front cover Middle:
Detach with screw driver
32. Remove front cover Left:
Slide to the left
33. Remove front cover Right:
Slide to the right
34. Remove front cover:
Unscrew 4x TORX

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 9/20
35. Remove front part towards you
36. Remove dual spout:
Unscrew 4x TORX 10 at support
Unscrew 4x TORX 10 at slider
No picture
37. Remove Rotary Switch towards you:
Before detach snap-lock with screwdriver
38. ---

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 10/20
2View machine side, Left:
Brewing unit
Condenser
CLARIS Smart filter
module
BU Vacuum Clean
CLARIS Smart filter
Antenna

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 11/20
3View machine side, Right:
Multi-valve
Thermoblock
Flowmeter
Pump with membrane controller
and thermostat
Micro-switch
Tray detection
Gear-motor
Drain motor and reject-
valve
Thermo-fuse
Thermo sensor

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 12/20

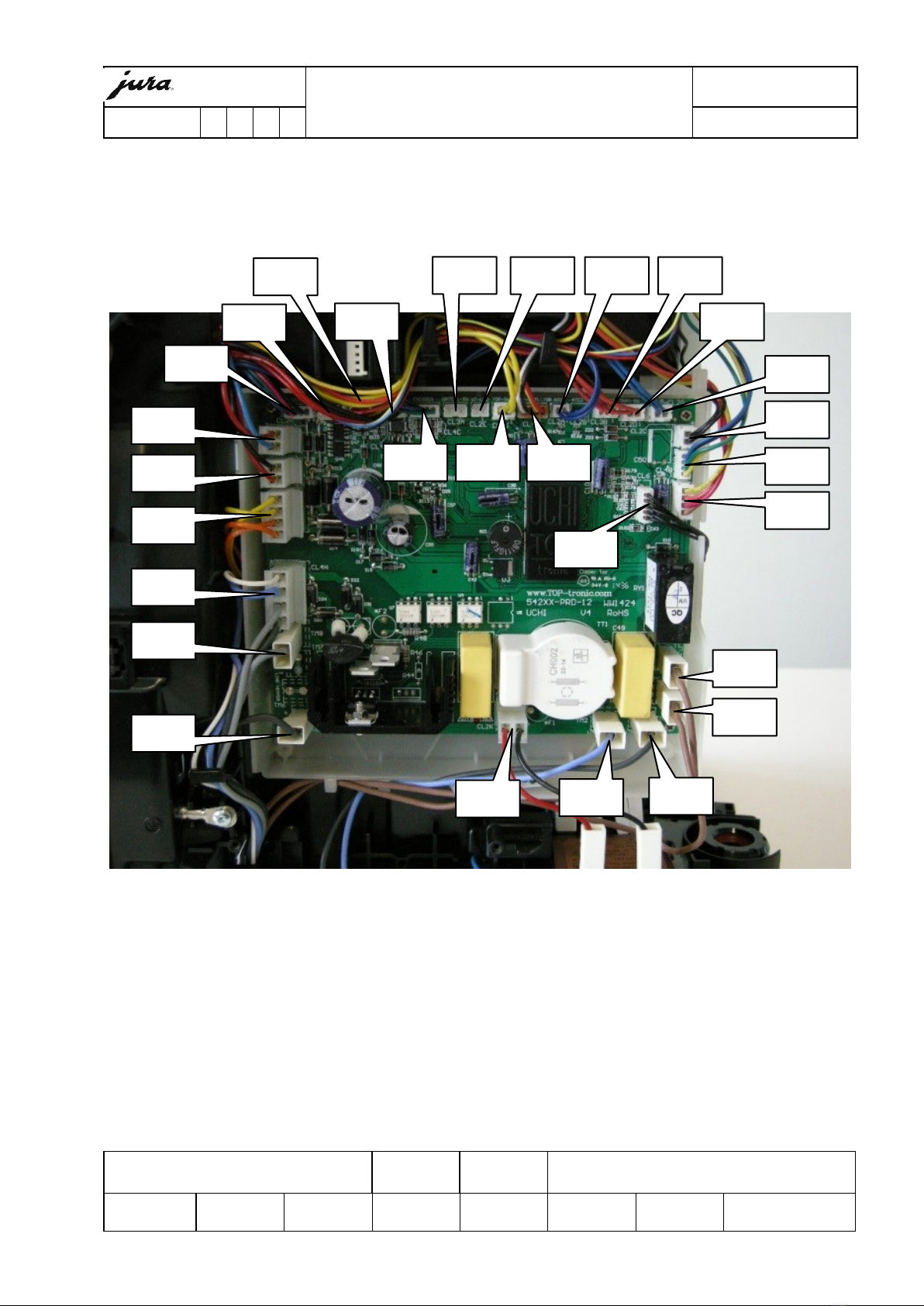

4View back of the machine:
Fan
230 V~ feeder
Transformer
Combi-print
Tray detector
Service plug

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 13/20

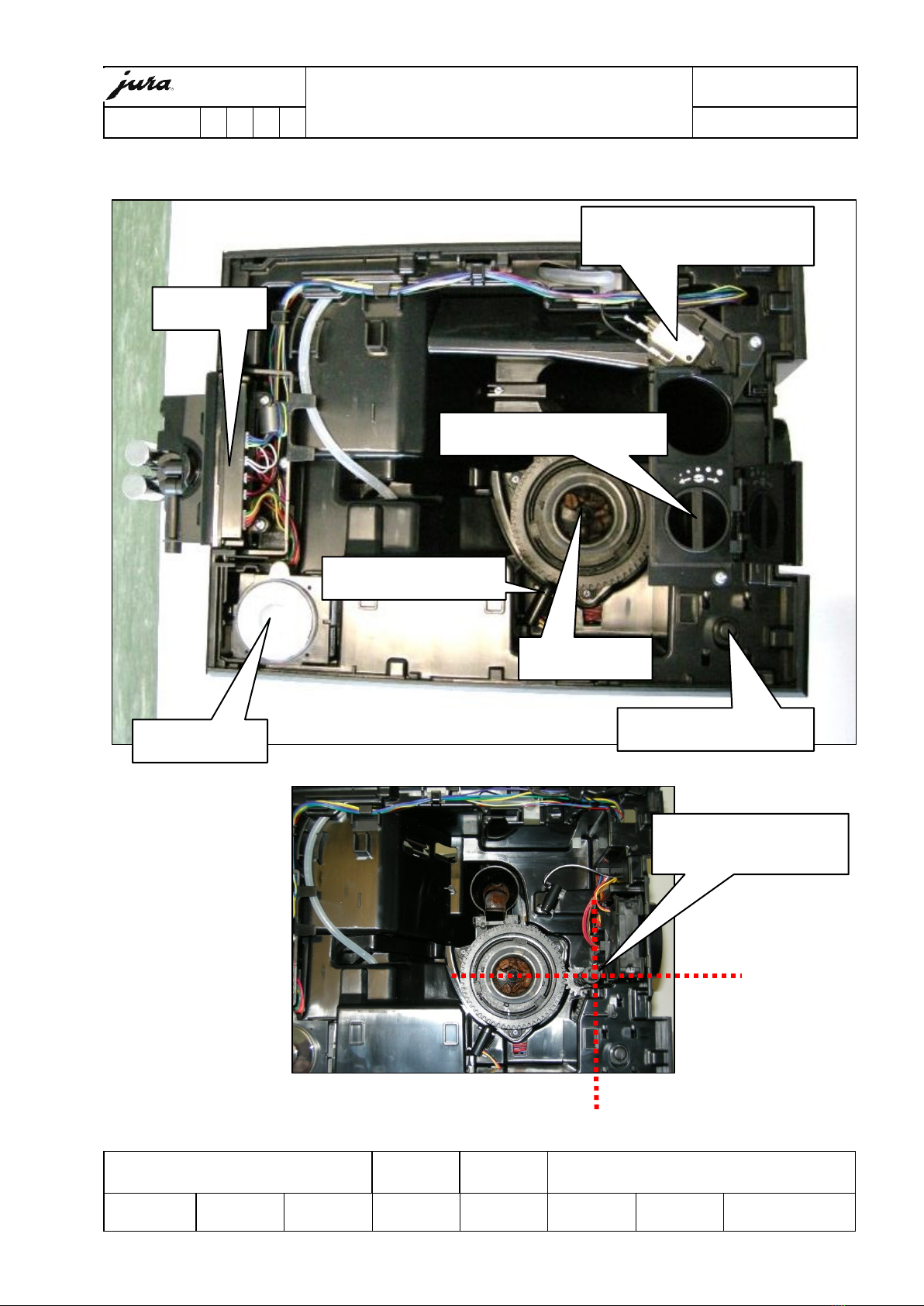

5View top of machine:
Grinder
Micro-switch
Coffee powder detection
Zero Energy Switch
Rotary Switch
Display
Bean monitor
Consistency of grind adjuster
Consistency of grind
in middle position

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 14/20
6View of the front:
Dual spout
Micro-switch
Tray detection
REED contact integrated
Spout cover detection
Magnet in spout cover
Water tank illumination

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 15/20

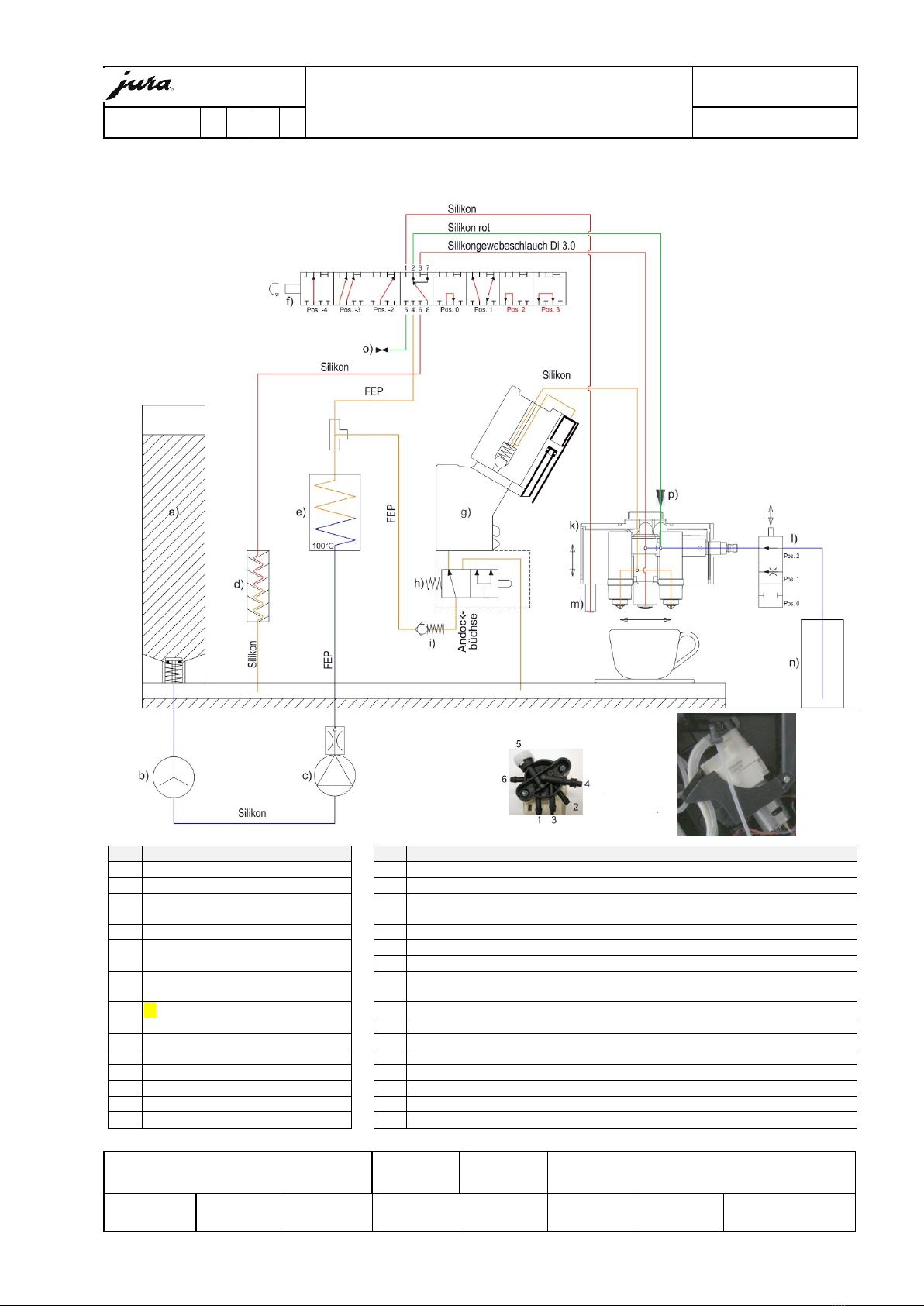

7Fluid system Z6 OT TFT:
Pos
Text
No
Komponent / Component / Composant
1
Heisswasser/Hot water/Eau chaude
a)
Wassertank / Water tank / Réservoir d’eau
0
TB entleeren/discharge/décharger
b)
Flowmeter / Flowmeter / Débitmètre
-1
Bereitschaft Kaffee/Read coffee/
Prêt café
c)
Pumpe mit Membranregler / Pump with membran controller /
Pompe avec régulateur de membrane
-2
Milch/Milk/Lait
d)
Kondensator /
-3
Milchschaum/Milk foam/
Mousse de lait
e)
Thermoblock 2010 (230 V/1400 W)
g)
Brüheinheit / Brewing unit / Unité de percolation
-4
Spülen Luftsystem/Rinse air system/
Rincer système d‘air
h)
Drainageventil mit Schrittmotor / Drain valve with stepper motor /
Soupape de drainage avec moteur pas à pas
2
wenn TB heiss/if TB is hot/
si TB est chaud
i)
Auslaufventil (Rückschlagventil) BE / Check valve BU / Clapet anti-retour UdP
k)
Kaffee-Verstellauslauf / Coffee adjustable outlet / Écoulement de café ajustable
l)
Quetschventil / Squeezing valve / Soupape de préssion
m)
Heisswasser-Auslauf / Hot water spout / Écoulement de l’eau chaude
n)
Milchbehälter / Milk container / Conteneur du lait
o)
Luftloch / Air hole / Trou d‘air
p)
Lippenventil / Lip valve / Soupape de lèvre
t)
Mehrweg-Ventil / Multivalve / Multivannes

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 16/20

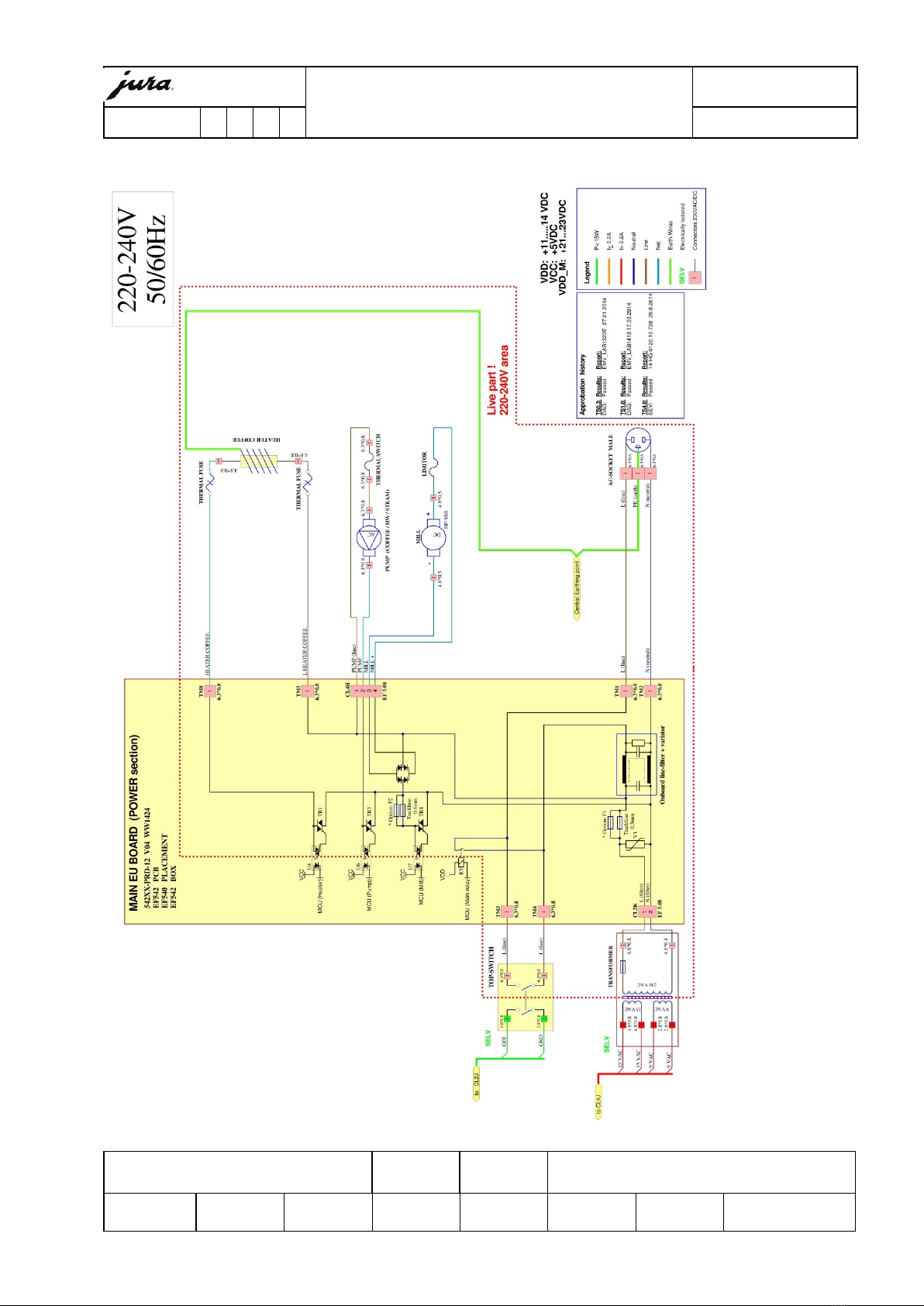

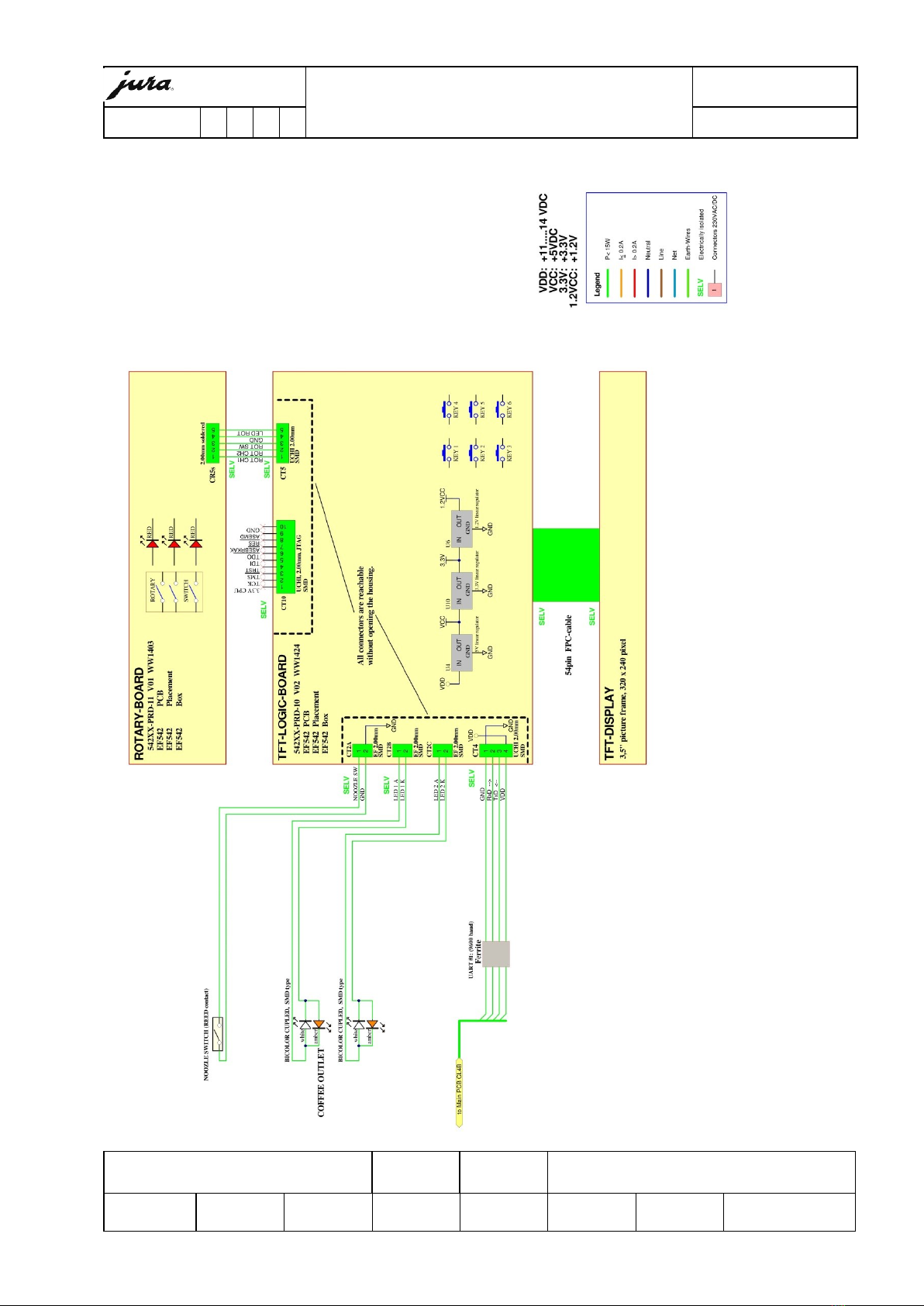

8Block schematic:
8.1 Wiring:
CL4G
CL3C
CL4F
CL4E
CL4C
CL3A
CL2H
CL2I
CL4I
CL4H
TM8
CL2K
CL2G
CL4D
CL4A
CL6
TM4
TM3
TM1
TM2
TM5
CL4B
CL2C
CL2D
CL3B
CL2A
CL2J
CL2E

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 17/20
8.2 Overview 1:

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 18/20
8.3 Display:

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 19/20
8.4 Logic:

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
Z6 OT TFT
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontageanleitung_Z6_EN.docx
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\
Demontageanleitung_Z6_EN.docx
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
30.04.2015
Page 20/20
8.5 Power:
