IMPRESSA Z5 Generation II
Quick Reference Guide
The ‘IMPRESSA Manual’ together with these short
instructions ‘IMPRESSA Z5 – Quick Reference Guide’ has
been awarded the seal of approval by the independent
German Technical Inspection Agency, TÜV SÜD, due to its
easy-to-understand style, its thoroughness and coverage
of safety aspects.

2
IMPRESSAZ5 – Quick Reference Guide
These short instructions do not replace the ‘IMPRESSA Z5
Generation II Manual’. Make sure you read and observe the safety
information and warnings first in order to avoid hazards.
WhentheIMPRESSAisswitchedon,apromptfortherinseoperation
automatically appears which is initiated by pressing the mainte-
nance button c.
Precondition: Your IMPRESSA is switched on at the power switch
and the On/Off button Qis illuminated (standby).
Q T Press the On/Off button to switch the IMPRESSA on.
WELCOME TO JURA
UNIT IS HEATING
PRESS RINSE, the maintenance button clights up.
Place a receptacle under the coffee spout.
c T Press the maintenance button.
The machine rinses itself, stopping automatically.
COFFEE READY appears on the display. Your IMPRESSA
is ready to use.
Your IMPRESSA prepares a latte macchiato at the touch of a
button.
Example: This is how to prepare a latte macchiato.
Precondition: COFFEE READY is shown on the display.

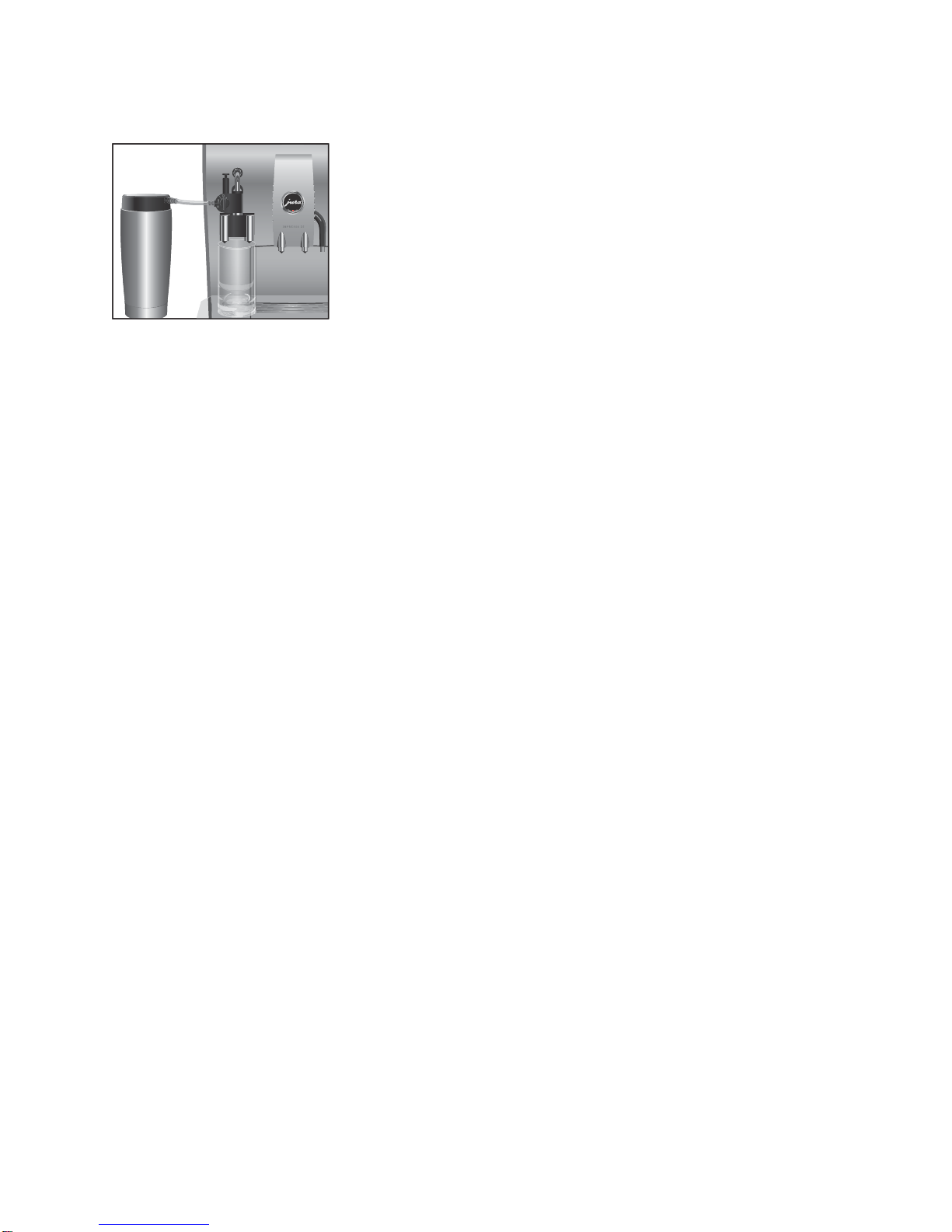

Remove the milk pipe from the packaging of the vacuum
milkcontainer.Foramilkcarton/bottleusethelongpipe,for
the vacuum milk container the short pipe.
Attach the milk pipe to the Frother.
Insert the other end in a milk carton/bottle or connect it to
the vacuum milk container.
T
T
T
T
Switching onSwitching on
Latte macchiatoLatte macchiato

3
IMPRESSAZ5 – Quick Reference Guide
Place a glass under the Cappuccino Frother.
Turn the selection lever of the Frother to the milk foam
position p.
Toenablethe typical layers of aLatteMacchiato toform even
more effectively, add 10 ml of cool milk to the glass before
preparing this speciality.
YoucanrefineyourLatteMacchiatoevenmorebyalsoadding
a little flavoured syrup to the glass as well.
q T Press the Latte Macchiato button.
1 LATTE MAC. and the coffee strength is displayed.
1 LATTE MAC. / MILK, the milk foam is being pre-
pared.
Theoperationstopsautomaticallyafterreachingthepre-set
amount of milk.
1 LATTE MAC.
A brief interval follows during which the hot milk separates
from the milk foam. This enables the formation of the typical
layersofalattemacchiato.Thedurationofthisintervalcanbe
defined in programming mode.
1 LATTE MAC. / COFFEE, coffee preparation starts.
Preparation stops automatically after reaching the pre-set
amount of water. COFFEE READY is shown on the
display.
To ensure that the Cappuccino Frother works perfectly, you should
rinse and clean it regularly. The descriptions can be found in the
‘Cappuccino Frother’ section.
T
T
E
E
E

4
IMPRESSAZ5 – Quick Reference Guide
Your IMPRESSA no longer has to be descaled if you use the CLARIS
filter cartridge.
Perform the ‘Insert filter’ operation without interruption. This
will ensure that your IMPRESSA always produces its best.
Precondition: COFFEE READY is shown on the display.
k T Keep the Rotary Switch pressed until MAINTENANCE
appears on the display.
g T Turn the Rotary Switch until FILTER I.P.W.S. is
displayed.
k T Press the Rotary Switch to enter the programme item.
FILTER NO
g T Turn the Rotary Switch until FILTER YES is displayed.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED √ appears briefly on the display to confirm
the setting.
INSERT FILTER / PRESS BUTTON, the mainte-
nance button clights up.
Remove a CLARIS filter cartridge and the filter cartridge ex-
tension from the Welcome Pack.
Place the extension on top of the filter cartridge.
Remove the water tank and empty it.
Lift the cartridge holder and insert the filter cartridge into
the water tank, applying slight pressure.
Close the cartridge holder. It will click into place audibly.
Fill the water tank with fresh, cold water and reinsert.
Place a receptacle (containing at least 500 ml) under the
Cappuccino Frother.
Turn the selection lever of the Frother to the steam posi-
tion n.
c T Press the maintenance button.
FILTER RINS., water will flow out of the Frother.
E
T
T
T
T
T
T
T
T
Using and activating
filter
Using and activating
filter

5
IMPRESSAZ5 – Quick Reference Guide
You can interrupt filter rinsing at any time by pressing any
button.
The water may be slightly discoloured. This is not harmful to
health and does not affect the taste.
Filter rinsing stops automatically after approx. 500 ml.
COFFEE READY appears on the display. The filter is now
activated.
After 50 litres of water have flowed through the filter, or after
twomonths, itscapacityis reached.Your IMPRESSAwillauto-
matically prompt you to change the filter.
If the CLARIS filter cartridge is not activated, you will not be
prompted to change the filter.
To change the CLARIS filter cartridge when prompted to do so by
your IMPRESSA, proceed as follows:
Precondition:COFFEEREADY /FILTER CHANGEisdisplayed
and the maintenance button clights up.
c T Press the maintenance button.
CHANGE TIME 2 MIN / START YES
Ifyouwanttochangethefilteratalaterpointintime,turnthe
Rotary Switch until CHANGE / START NO is displayed. Exit
the maintenance programme by pressing the Rotary Switch.
The prompt ‘change filter’ remains on the display.
c T Press the maintenance button.
INSERT FILTER / PRESS BUTTON
Remove the water tank and empty it.
OpenupthecartridgeholderandremovetheoldCLARISfil-
ter cartridge and the extension.
Fit the extension on top of a new CLARIS filter cartridge.
E
E
E
E
E
T
T
T
Filter changeFilter change

6
IMPRESSAZ5 – Quick Reference Guide
Insert the filter cartridge into the water tank, exerting slight
pressure.
Close the cartridge holder. It will click into place audibly.
Fill the water tank with fresh, cold water and reinsert.
Place a receptacle (containing at least 500 ml) under the
Cappuccino Frother.
TurntheselectionleveroftheFrothertothesteampositionn.
c T Press the maintenance button.
FILTER RINS., water flows from the Frother.
You can interrupt filter rinsing at any time. To do this, press
any button.
The water may be slightly discoloured. This is not harmful to
health and does not affect the taste.
Filter rinsing stops automatically after approx. 500 ml. Your
IMPRESSA heats up and is once again ready to use.
After 220 coffee preparations or 80 switch-on rinses, the IMPRESSA
will prompt you to clean it.
Ifthe wrongcleaningagentisused,the machinecouldbedamaged
and/or traces of detergent could be left behind in the water.
Use only original JURA care products.
The cleaning programme only lasts about 20 minutes.
Do not interrupt the cleaning programme. The quality of
cleaning will be impaired if you do so.
JURA cleaning tablets are available from stockists.
Precondition: COFFEE READY / CLEAN is displayed and the
maintenance button clights up.
c T Press the maintenance button.
CLEANING TIME 20 MIN / START YES
T
T
T
T
T
E
E
T
E
E
E
Clean machineClean machine
CAUTIONCAUTION

7
IMPRESSAZ5 – Quick Reference Guide
If you want to clean the machine at a later point in time, turn
the Rotary Switch until CLEANING / START NO is dis-
played. Exit the maintenance programme by pressing the
Rotary Switch. The prompt ‘clean machine’ remains on the
display.
c T Press the maintenance button.
TRAY / GROUNDS EMPTY
Empty the drip tray and coffee grounds container and put
them back into the machine.
PRESS BUTTON, the maintenance button clights up.

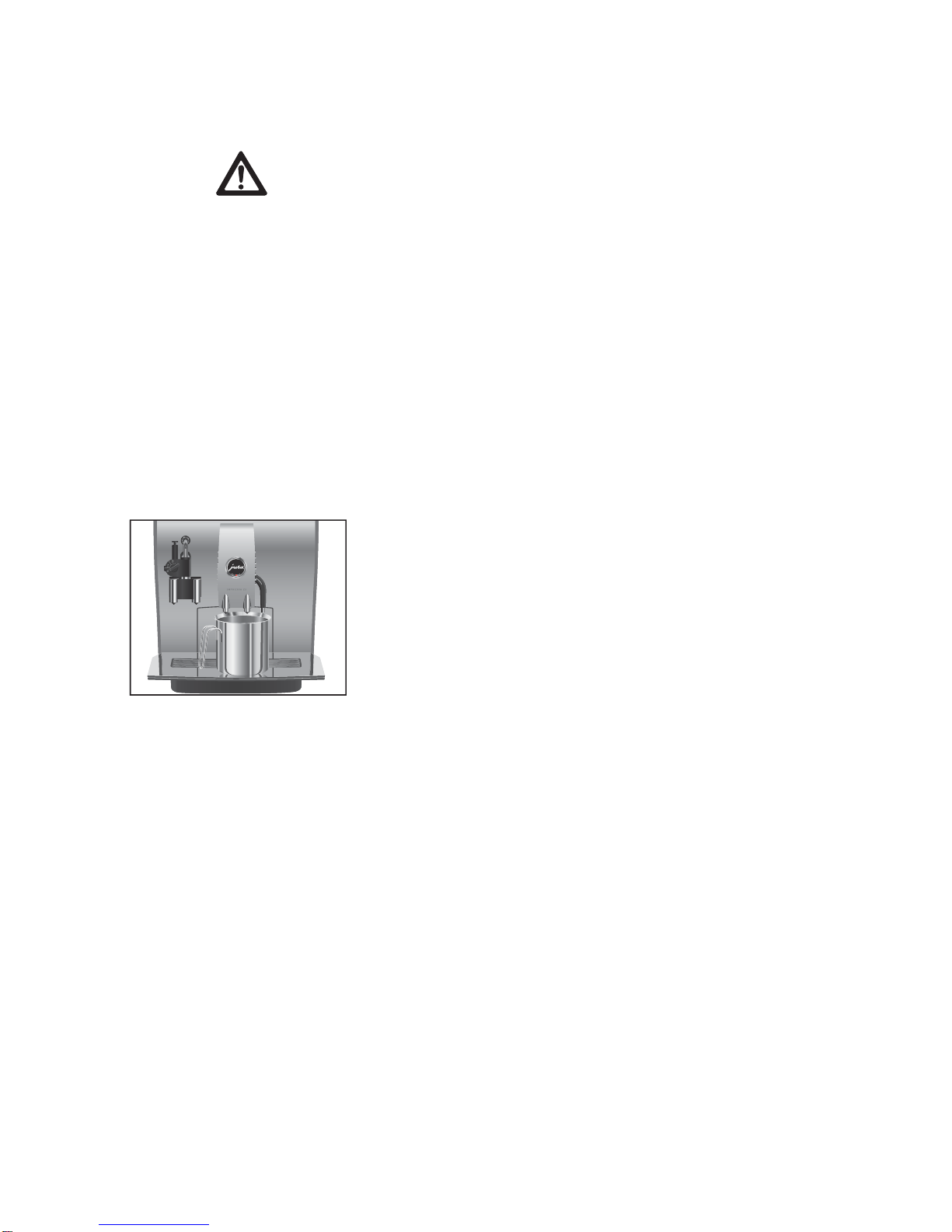

Place a receptacle under the coffee spout and the Cappuc-
cino Frother.
c T Press the maintenance button.
MACHINE IS CLEANING, water flows out of the
coffee spout.
The process is interrupted, ADD TABLET.
Open the cover of the bean container.
Open the cover of the filler funnel for pre-ground coffee.
Insert a JURA cleaning tablet into the filler funnel.
Close the cover of the filler funnel and the cover of the bean
container.
PRESS BUTTON, the maintenance button clights up.
c T Press the maintenance button.
MACHINE IS CLEANING, water flows out of the
coffee spout and the Cappuccino Frother several times.
The process is interrupted TRAY / GROUNDS EMPTY.
Empty the drip tray and coffee grounds container and put
them back into the machine.
The cleaning operation is now complete. The IMPRESSA is
once more ready for use.
E
T
T
T
T
T
T
T

8
IMPRESSAZ5 – Quick Reference Guide
The IMPRESSA builds up deposits of limescale over time and auto-
matically prompts you to descale it when necessary. The degree of
calcification depends on the degree of hardness of your water.
If the descaling agent comes into contact with the skin or eyes, this
can cause irritation.
Avoid contact with the skin or eyes.
Rinsethedescalingagentoffwithcleanwater.Shouldyouget
any descaling agent in your eye, consult a doctor.
If the wrong descaling agent is used, the machine could be dam-
aged and/or traces of detergent could be left behind in the water.
Use only original JURA care products.
If the descaling operation is interrupted, there may be damage to
the machine.
Allow the descaling programme to run to the end.
If the descaling agent comes into contact with sensitive surfaces,
damage cannot be ruled out.
Clean up any splashes immediately.
The descaling programme lasts approx. 45 minutes.
JURA descaling tablets are available from stockists.
If you use a CLARIS filter cartridge and this is activated, you
will not be prompted to descale the machine.
Precondition: COFFEE READY / DESCALE is displayed and
the maintenance button clights up.
c T Press the maintenance button.
DECALCIFYING TIME 45 MIN / START YES
Ifyouwanttodescalethemachineatalaterpointintime,turn
the Rotary Switch until DECALCIFYING / START NO is
displayed. Exit the maintenance programme by pressing the
Rotary Switch. The prompt ‘Descale machine’ remains on the
display.
T
T
T
T
T
E
E
E
E
Descale machineDescale machine
CAUTIONCAUTION
CAUTIONCAUTION
CAUTIONCAUTION
CAUTIONCAUTION

9
IMPRESSAZ5 – Quick Reference Guide
c T Press the maintenance button.
TRAY / GROUNDS EMPTY
Empty the drip tray and coffee grounds container and put
them back into the machine.
SOLVENT IN TANK
Remove the water tank and empty it.

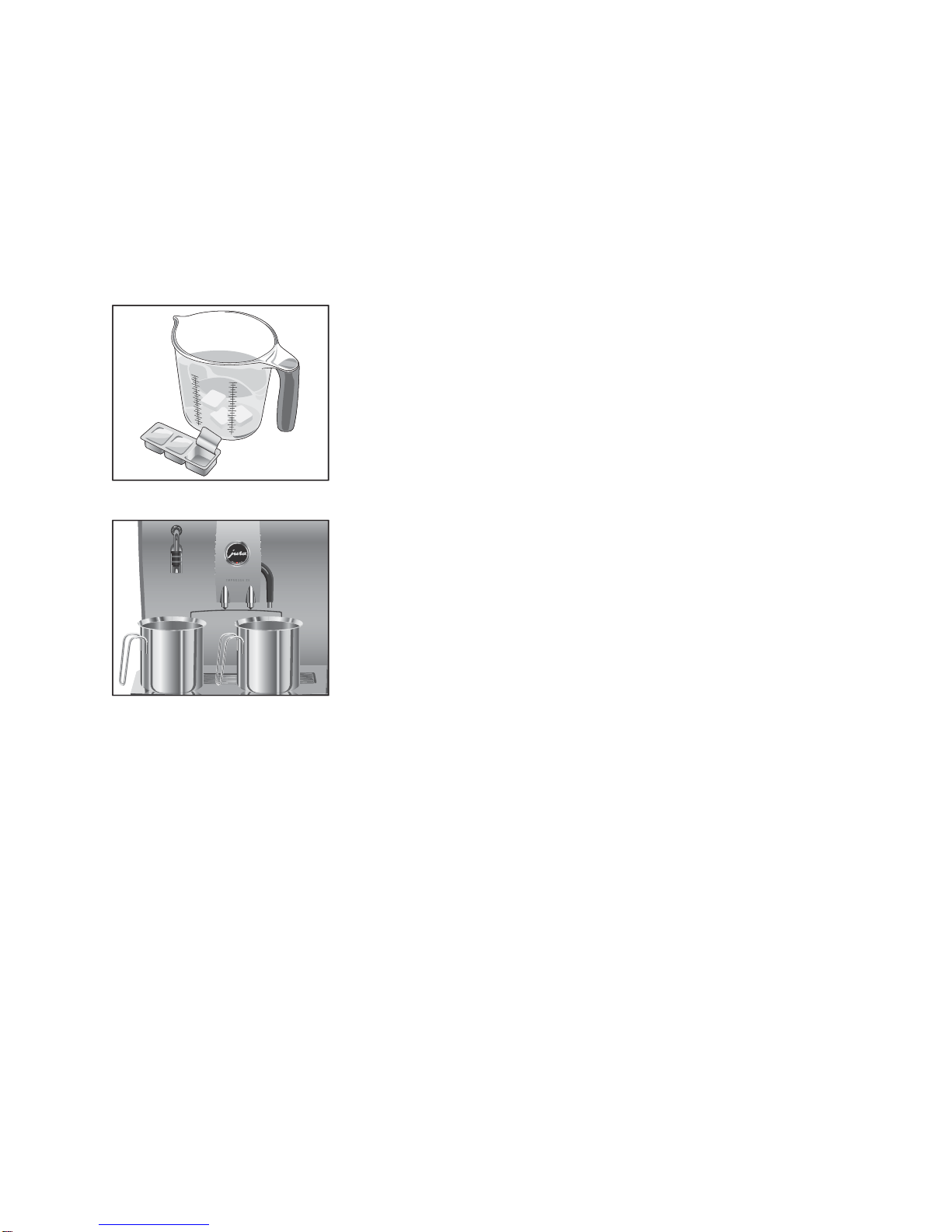

Completelydissolve thecontentsofone blister(3JURA des-
calingtablets)inacontainerthatholds600mlofwater.This
may take several minutes.
Pour the solution into the empty water tank and insert it in
the machine.
SOLVENT IN TANK / PRESS BUTTON, the main-
tenance button clights up.
Remove the Cappuccino Frother.
Place a receptacle under the hot water spout and the con-
nector of the Frother.
c T Press the maintenance button.
MACHINE IS DECALCIFYING
Water flows from the hot water spout and the connector of
the Frother. The maintenance button cblinks during the
descaling operation.
The process stops automatically, TRAY / GROUNDS
EMPTY.
Empty the receptacles below the hot water spout and the
connector of the Frother.
Empty the drip tray and coffee grounds container and put
them back into the machine.
WATER TANK FILL
Remove the water tank and rinse it thoroughly.
Fill the water tank with fresh, cold mains water and rein-
sert.
PRESS BUTTON, the maintenance button clights up.
Replace the Cappuccino Frother.
T
T
T
T
T
T
T
T
T
T
T

10
IMPRESSAZ5 – Quick Reference Guide
Placea receptacleunderthehotwaterand coffeespoutand
the Cappuccino Frother.
c T Press the maintenance button.
MACHINE IS DECALCIFYING, water flows out of
the hot water spout and the Cappuccino Frother.
UNIT IS HEATING, RINSING water flows out of
the coffee spout.
The process stops automatically, TRAY / GROUNDS
EMPTY.
Empty the drip tray and coffee grounds container and put
them back into the machine.
The descaling operation is now complete. Your IMPRESSA
heats up and is once again ready to use.
If the descaling operation stops unexpectedly, rinse the water
tank thoroughly.
Each time milk has been prepared the IMPRESSA displays a prompt
for cappuccino rinsing.
Precondition: COFFEE READY / CAPPU RINSE is shown
on the display, the maintenance button clights up.
Place a receptacle under the Cappuccino Frother.
TurntheselectionleveroftheFrothertothesteampositionn.
c T Press the maintenance button.
CAPPUCCINO RINSING, the Cappuccino Frother is
rinsed.
The procedure stops automatically. COFFEE READY
appears on the display.
T
T
E
T
T
Rinsing the
Cappuccino Frother
Rinsing the
Cappuccino Frother

11
IMPRESSAZ5 – Quick Reference Guide
To ensure that the Cappuccino Frother works perfectly, you should
clean it daily when you have been preparing milk.
Ifthe wrongcleaningagentisused,the machinecouldbedamaged
and/or traces of detergent could be left behind in the water.
Use only original JURA care products.
The IMPRESSA will not prompt you to clean the Cappuccino
Frother.
The JURA Cappuccino Cleaner is available from stockists.
Precondition: COFFEE READY is shown on the display.
k T Keep the Rotary Switch pressed until MAINTENANCE
appears.
k T Press the Rotary Switch to enter the programme item.
CAPPUCCINO CLEANING
k T Press the Rotary Switch.
CLEANER FOR CAPPUCCINO / PRESS BUTTON
Pour 250 ml of fresh water into a container and add one
capful (max. 15 ml) of Cappuccino Cleaner.
Immerse the milk pipe in the receptacle.
Turn the selection lever to the milk foam position por
milk t.
Place another receptacle under the Cappuccino Frother.
c T Press the maintenance button.
CAPPUCCINO CLEANING, the Frother and pipe are
cleaned.
WATER FOR CAPPUCCINO / PRESS BUTTON
Rinse the receptacle thoroughly, fill it with approx. 250 ml
of fresh water and immerse the milk pipe in the water.
Empty the receptacle and place it under the Frother once
more.
c T Press the maintenance button.
CAPPUCCINO CLEANING, the Frother and pipe are
rinsed with fresh water.
COFFEE READY appears on the display. Your IMPRESSA
is once more ready to use.
T
E
E
T
T
T
T
T
T
Cleaning the
Cappuccino Frother
Cleaning the
Cappuccino Frother
CAUTIONCAUTION

12
IMPRESSAZ5 – Quick Reference Guide
Carefully pull off the Cappuccino Frother.
Dismantle the Cappuccino Frother completely.
Rinse all the Frother parts thoroughly under running water.
ReassembletheCappuccinoFrotherandattachitoncemore
to the connector.
T
T
T
T
Dismantle and
rinse the
Cappuccino Frother
Dismantle and
rinse the
Cappuccino Frother
Art. 67252/Z5/en/200910
