Justfit G 152X User manual

G 152X
OWNER'S MANUAL
ASSEMBLY INSTRUCTION

PARTS LIST-1
#ITEM DESCRIPTION Q'TY
1 TOP BEAM 1
2 BASE TUBE 1
3 RIGHT BASE FRAME 1
4 LEFT BASE FRAME 1
5 REAR MAIN FRAME 1
6 VERTICAL FRAME 1
7 REAR BASE TUBE 1
8 REAR CONNECT TUBE 1
9 RIGHT MAIN FRAME 1
10 FRONT CROSS TUBE 1
11 SUPPORT TUBE A 1
12 SUPPORT TUBE B 1
13 ADJUST BRACKET 1
14 ADJUST TUBE 1
15 FOOT PLATE 1
16 RIGHT HANDLE 1
17 LEFT HANDLE 1
18 BUTTERFLY EXTENSION 1
19 ARC STEEL PIECE 1
20 RIGHT BUTTERFLY ARM 1
21 LEFT BUTTERFLY ARM 1
22 HANDLE GRIP (100MM) 2
23 HANDLE GRIP (114MM) 2
24 HANDLE GRIP (132MM) 8
25 HANDLE GRIP (194MM) 2
26 HAND BAR 2
27 LAT BAR 1
28 LOW BAR 1
29 SEAT ADJUST FRAME 1
30 SEAT SUPPORT TUBE 1
31 SPRING RING 2
32 SEAT HANDLE 1
33 VKR CONNECT TUBE 1
34 RIGHT VKR SUPPORT 1
35 LEFT VKR SUPPORT 1
36 RIGHT VKR ARM 1
37 LEFT VKR ARM 1
38 GUIDE ROD 2
39 WEIGHT SELECTION POST 1
40 LEG ADJUST TUBE 1
41 LEG EXTENSION FRAME 1
42 TOP WEIGHT PLATE 1

PARTS LIST-2
43 WEIGHT PLATE 10
44 BLACK BALL PIN 1
45 PIN 1
46 PLASTIC BUSHING 1
47 TAPE END PLUG 1
48 OIL BUSHING (Ф50XФ12.1MM) 8
49 OIL BUSHING (Ф50XФ19.1MM) 4
50 OIL BUSHING (Ф25.4MM) 2
51 TOP END CAP 1
52 KNOB BOLT 1
53 KNOB BOLT 1
54 KNOB BOLT 1
55 SMALL PULLEY 1
56 PULLEY 20
57 INTERSECT PULLEY BRACKET 2
58 PULLEY GUARD 3
59 PULLEY BRACKET PIECE 2
60 CHAIN HOOK 7
61 SHORT CHAIN 1
62 LONG CHAIN 1
63 UPPER CABLE 1
64 LOWER CABLE 1
65 BUTTERFLY ARM CABLE 1
66 LEG EXTENSION CABLE 1
67 ENG CAP 2
68 WITH RING PIN 1
69 STEEL BUSHING 2
70 L PIN 1
71 SEAT LOCK PIN 1
72 HOOK COVER 2
73 DOME CAP 12
74 Ф60MM DOME END PLUG 5
75 WEIGHT SPACER 2
76 ROUND BUMPER 2
77 SQUARE BUMPER 1
78 TAPE BUMPER 1
79 LEVELING FEET 8
80 FOAM ROD 1
81 Ф76MM DOME END PLUG 1
82 Ф25MM ROUND END PLUG 4
83 Ф45MM ROUND END PLUG 9
84 60X60MM SQUARE END PLUG 4
85
45X45MM （ THICK ） SQUARE END PLUG
1
86
45X45MM （ THIN ） SQUARE END PLUG
1

PARTS LIST-3
87 SEAT CUSHION A 1
88 SEAT CUSHION B 1
89 BACKREST CUSHION A 1
90 BACKREST CUSHION B 1
91 ARM CURL PAD 2
92 BACKREST CUSHION C 1
93 BIG FOAM ROLL 2
94 SMALL FOAM ROLL 2
95 RIGHT SHROUD 1
96 LEFT SHROUD 1
97 M5X10MM SCREW 4
98 M8X16MM ALLEN BOLT 20
99 M8X20MM SCREW 20
100 M8X58MM HEX BOLT 4
101 M10X25MM SCREW 1
102 M10X25MM HEX BOLT 6
103 M10X30MM HEX BOLT 2
104 M10X50MM HEX BOLT 21
105 M10X60MM HEX BOLT 1
106 M10X65MM HEX BOLT 6
107 M10X70MM HEX BOLT 1
108 M10X75MM HEX BOLT 1
109 M10X80MM HEX BOLT 6
110 M10X85MM HEX BOLT 6
111 M10X95MM HEX BOLT 5
112 M10X100MM HEX BOLT 5
113 M10X105MM HEX BOLT 2
114 M12X75MM HEX BOLT 1
115 M12X130MM HEX BOLT 1
116 M12X145MM HEX BOLT 4
117 M5 WASHER 4
118 M8 WASHER 40
119 M10 WASHER 79
120 M10 ARC WASHER 34
121 M12 WASHER 12
122 T3.0XФ19.5XФ40MM WASHER 2
123 T3.0XФ26XФ46MM WASHER 1
124 T3.0XФ13XФ32MM WASHER 1
125 M10 LOCKNUT 52
126 M12 LOCKNUT 6
127 SHROUD COVER 1
128 L STELL PIECE 4
129 DOUBLE BAND 1
130 M8 ARC WASHER 4
131 LONG FOAM ROLL 2
132 Leg extension cap 1

133
231
Back shroud border 3
134 Back shroud 1
135 Screw M4.2X10MM 2
136
34
Long knob bolt 1

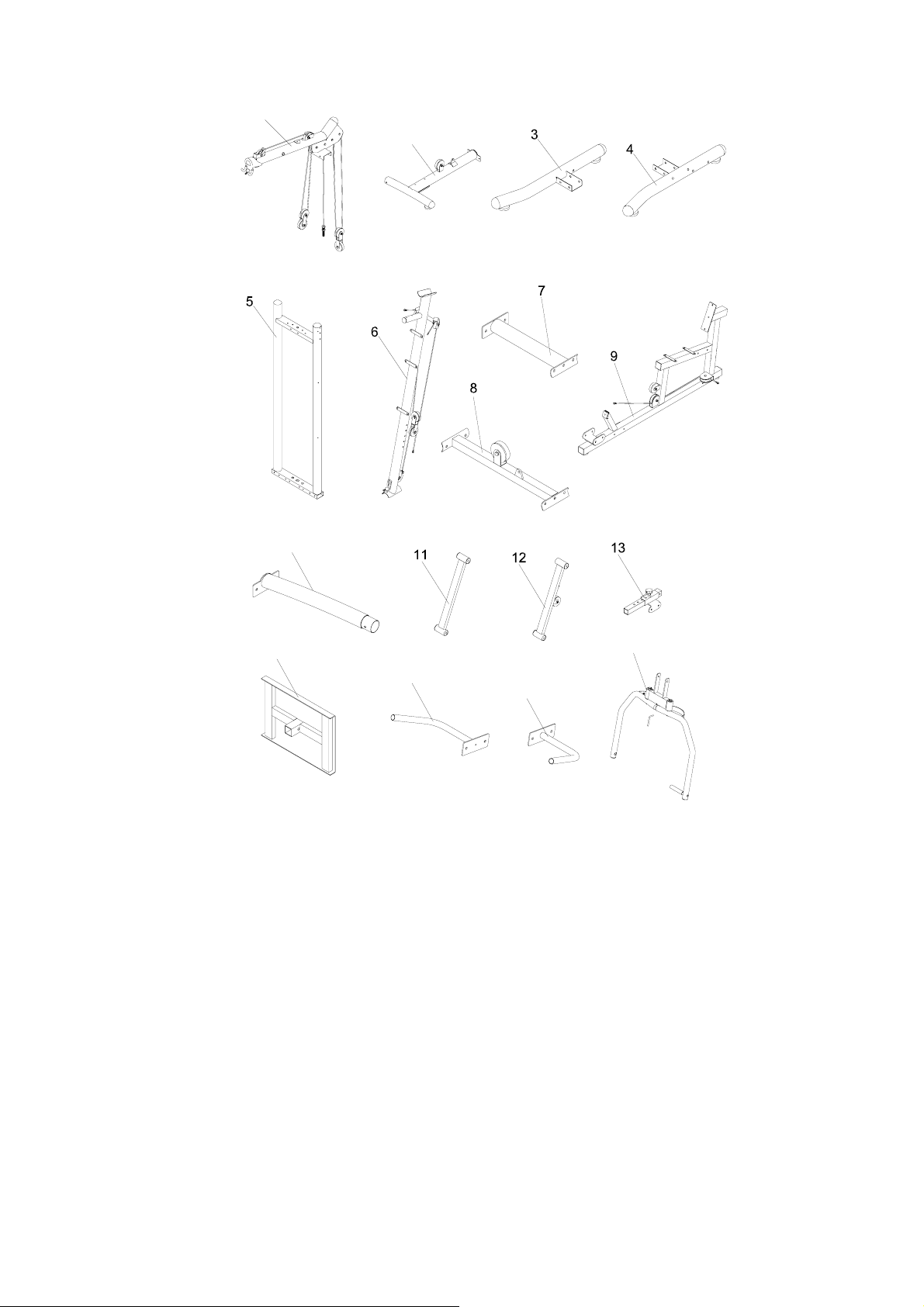

PARTS DRAW-1
1
1
2
10
15
16
17
18
2

PARTS DRAW-2
33

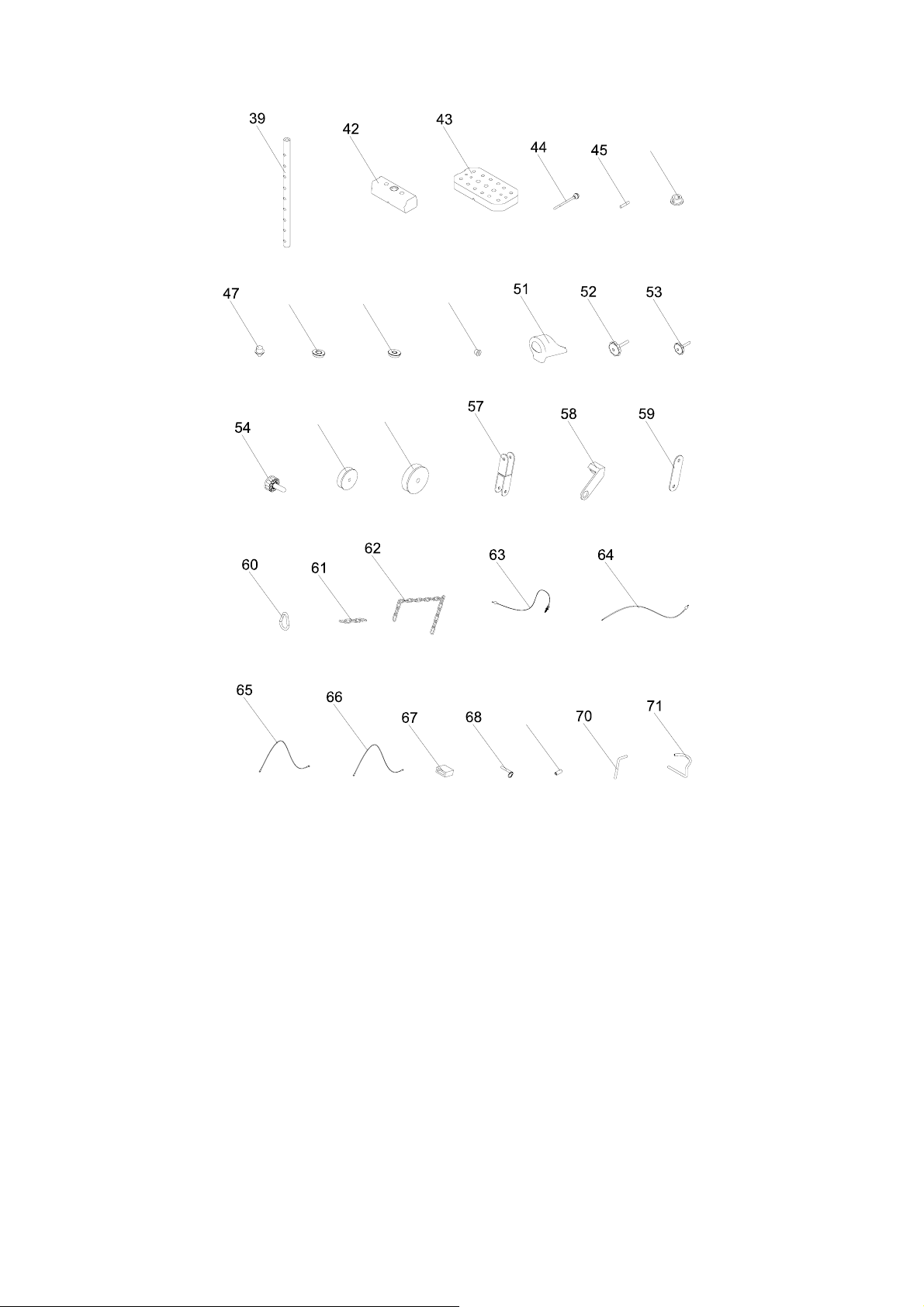

PARTS DRAW-3
46
48 49 50
55 56
69

PARTS DRAW-4

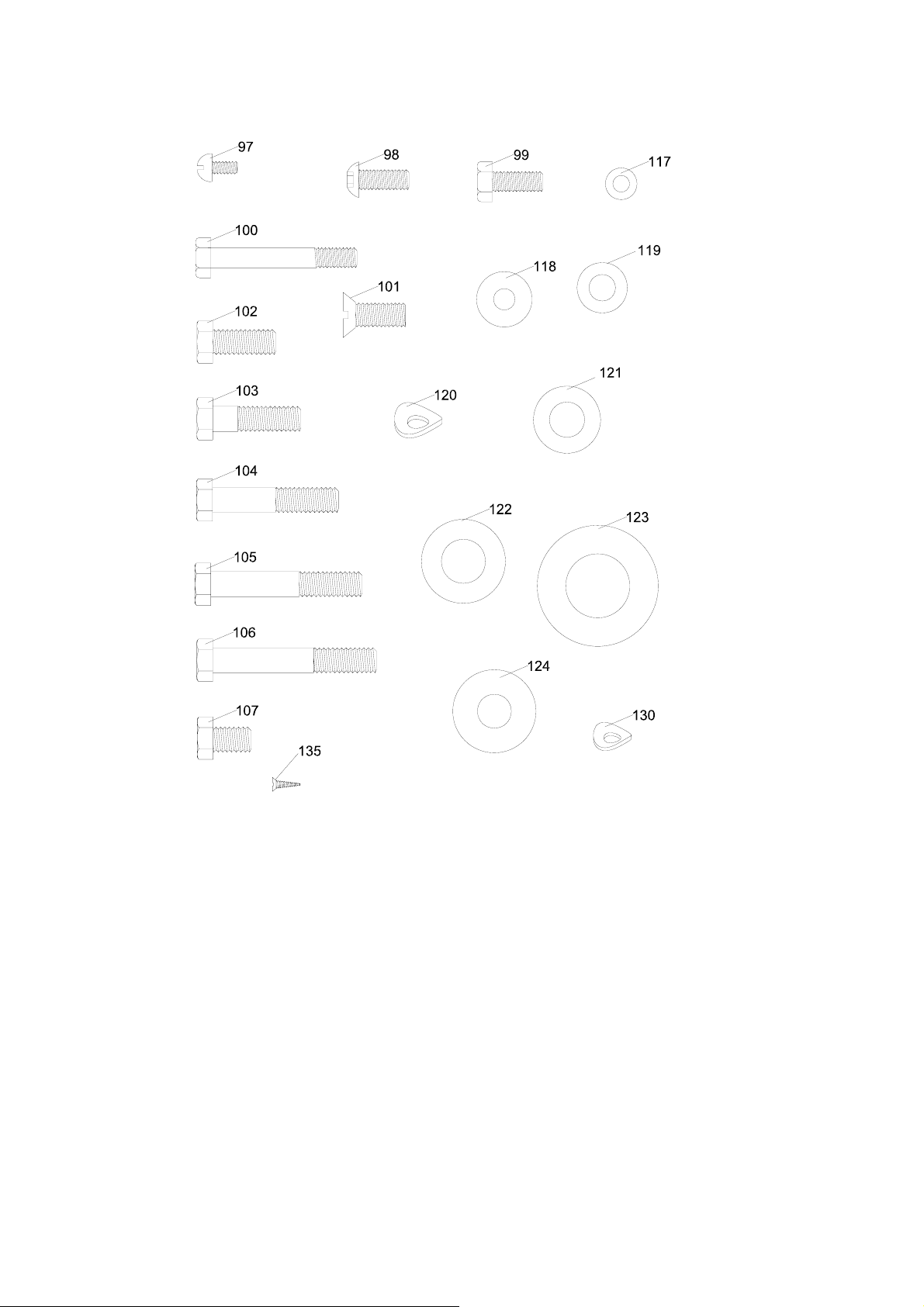

HARDWARE-1

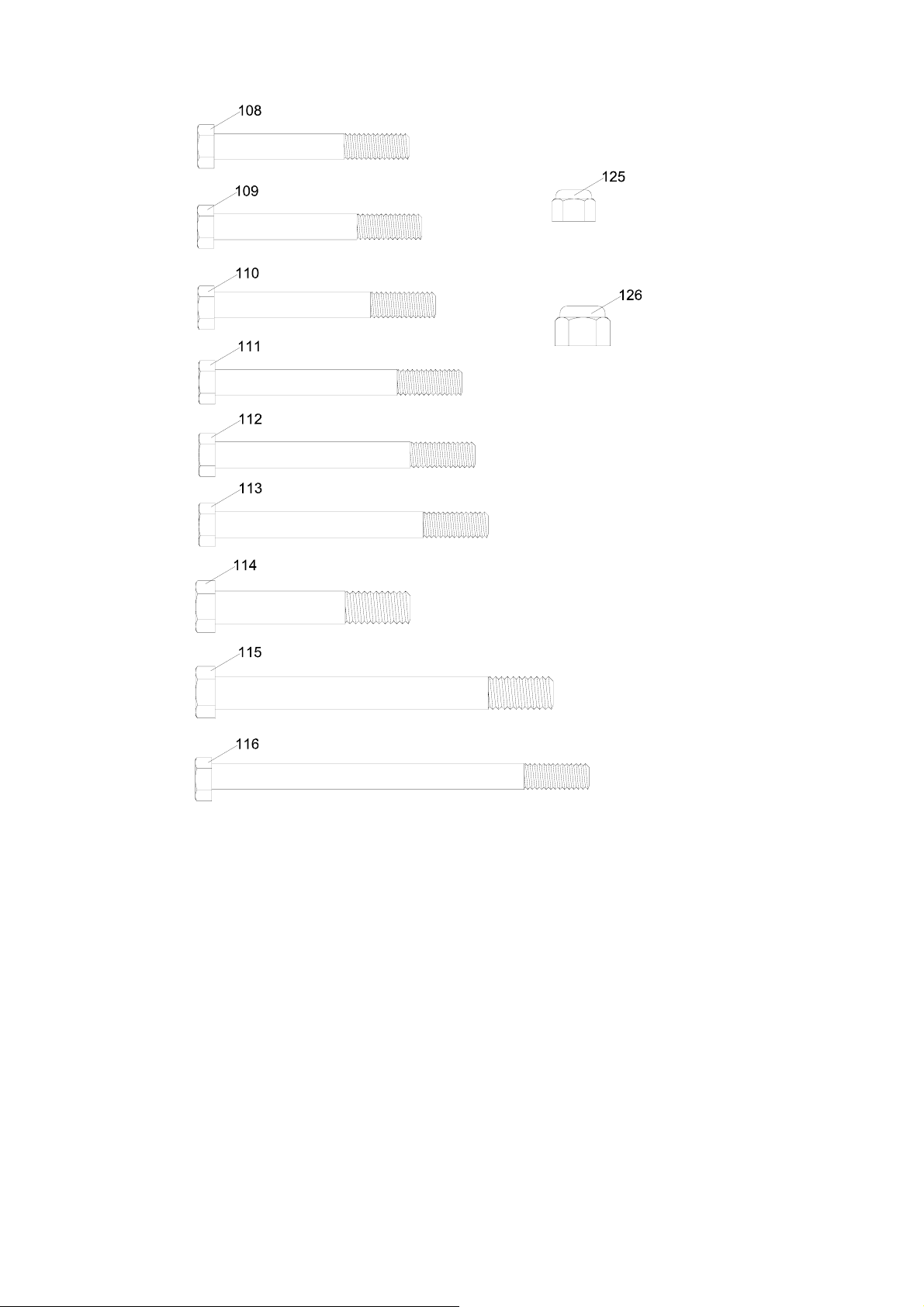

HARDWARE-2

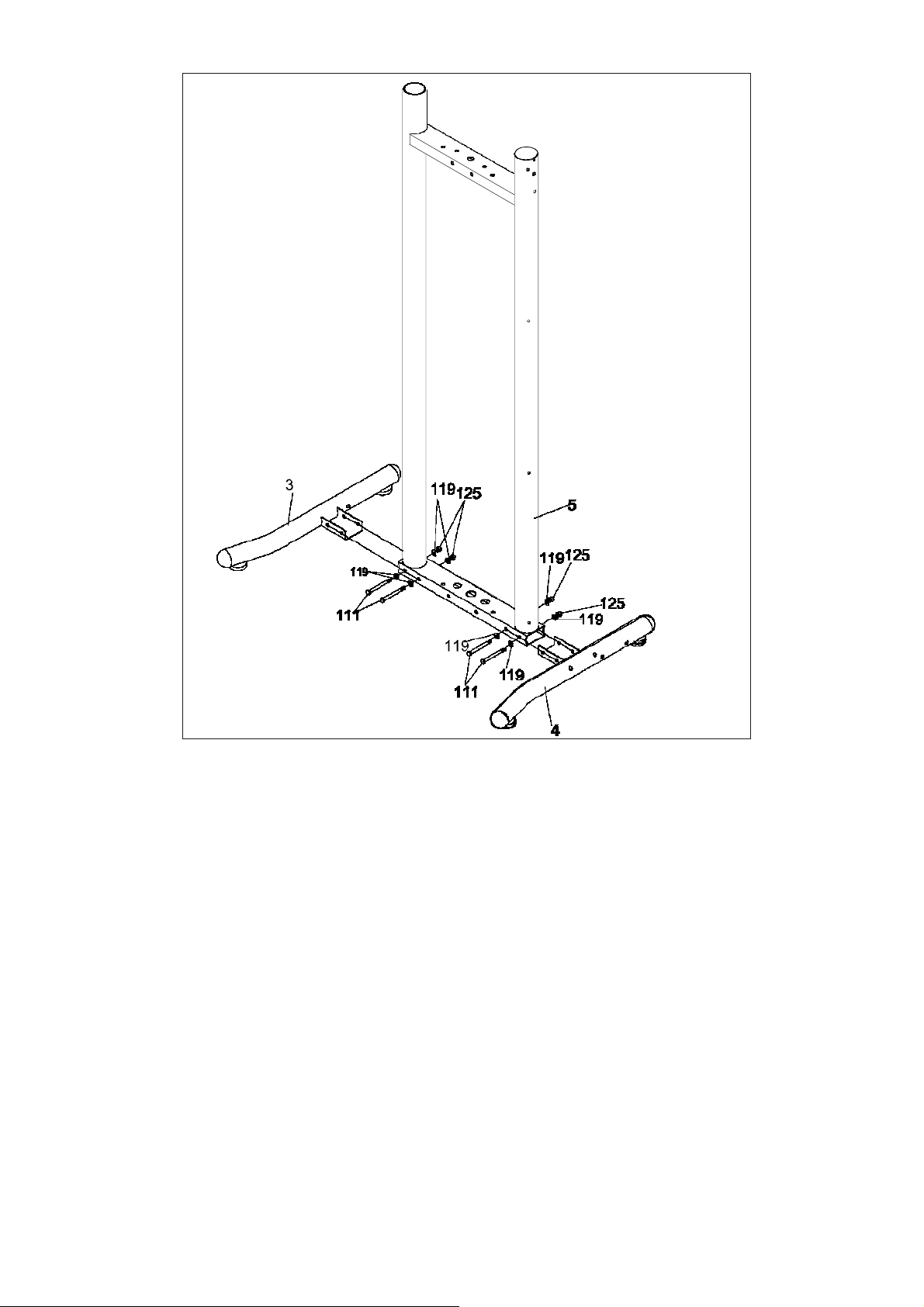

STEP-1
Fit RIGHT BASE FRAME (3) and LEFT BASE FRAME (4) into REAR MAIN FRAME (5) securing
using four M10X95MM HEX BOLTS (111), eight M10 WASHERS (119) and four M10 LOCKNUTS
(125).

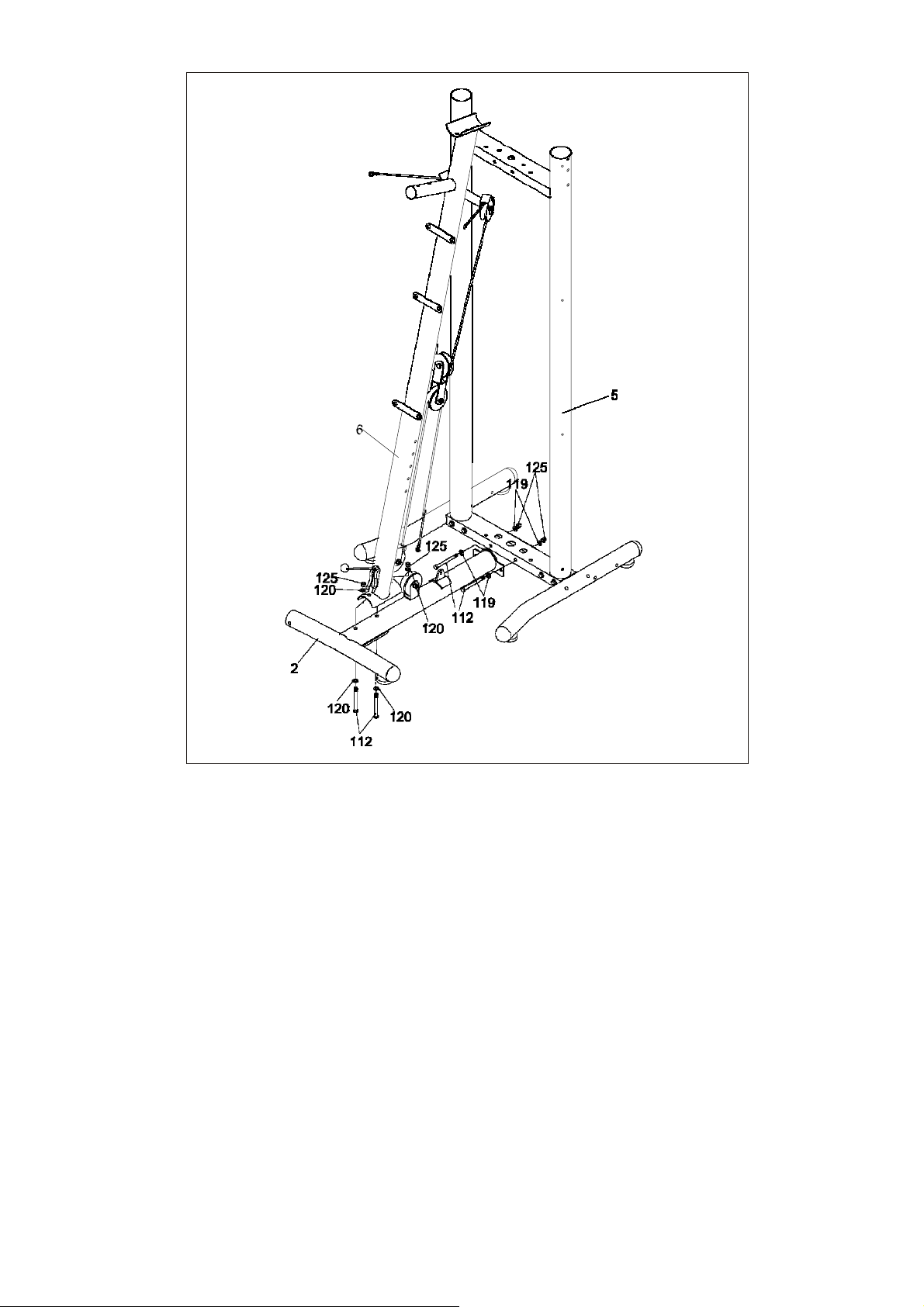

STEP-2
Fit BASE TUBE (2) to REAR MAIN FRAME (5) secure using two M10X100MM HEX BOLTS
(112), four M10 WASHERS (119) and two M10 LOCKNUTS (125).
Fit VERTICAL FRAME (6) onto BASE TUBE (2) secure using two M10X100MM HEX BOLTS
(112), four M10 ARC WASHERS (120) and two M10 LOCKNUTS (125).

STEP-3
Fit TOP BEAM (1) to REAR MAIN FRAME (5) and VERTICAL FRAME (6) secure using two
M10X105MM HEX BOLTS (113), one M10X100MM HEX BOLT (112), one M10X25MM HEX
BOLT (102), four M10 WASHERS (119), three M10 ARC WASHERS (120) and three M10
LOCKNUTS (125) as shown.

STEP-4
Fit FRONT CROSS TUBE (10) to BASE TUBE (2) secure using two M10X25MM HEX BOLTS
(102) and two M10 ARC WASHERS (120).
Fit VKR CONNECT TUBE (33) to REAR MAIN FRAME (5) and LEFT BASE FRAME (4) secure
using one M10X25MM HEX BOLT (102), one M10X95MM HEX BOLT (111), two M10X80MM
HEX BOLTS (109), seven M10 ARC WASHERS (120) and three M10 ARC WASHERS (120).

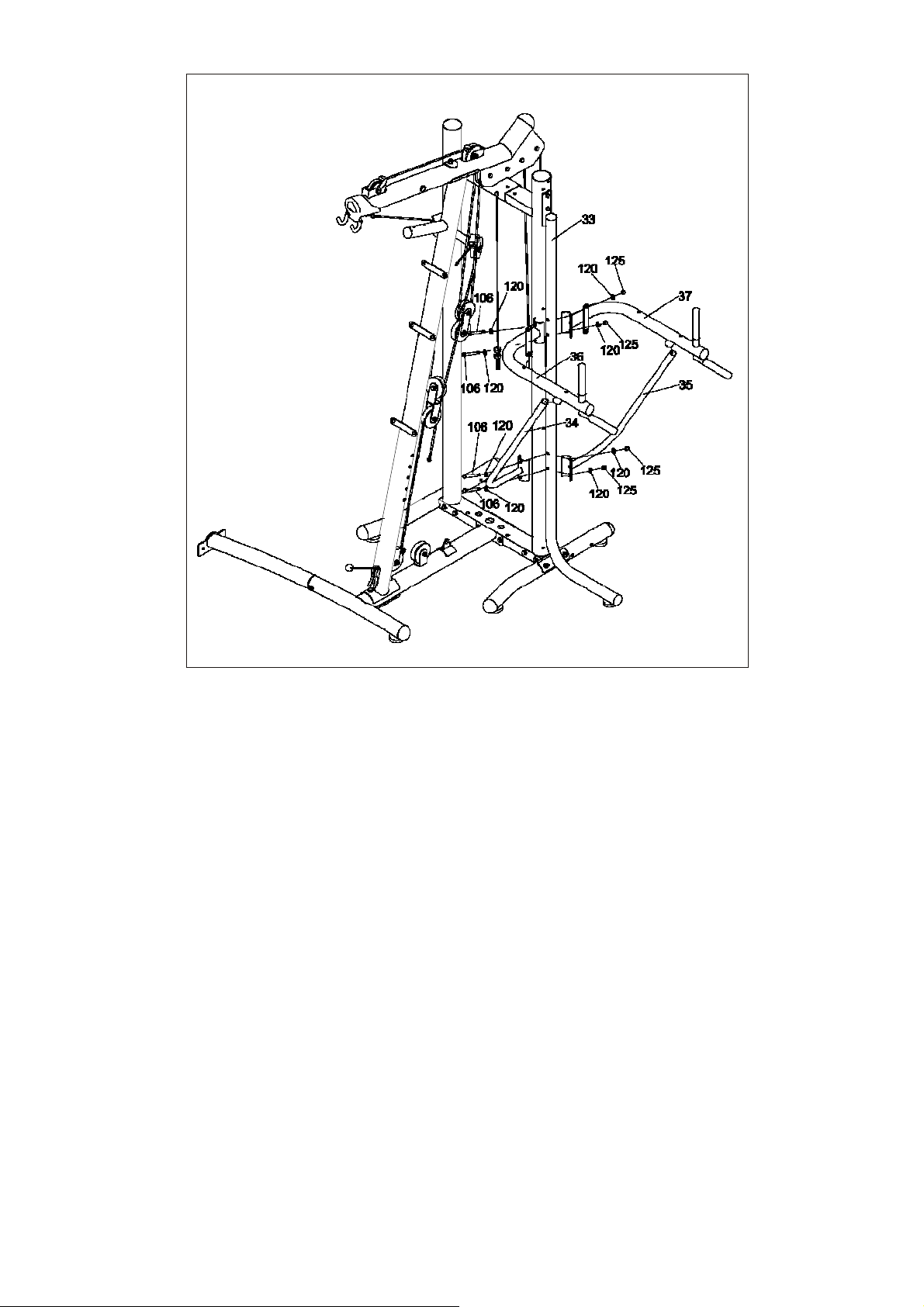

STEP-5
Fit RIGHT VKR ARM (36) and LEFT VKR ARM (37) to VKR CONNECT TUBE (33) secure using
two M10X65MM HEX BOLTS (106), four M10 ARC WASHERS (120) and two M10 LOCKNUTS
(125).
Fit RIGHT VKR SUPPORT (34) and LEFT VKR SUPPORT (35) to VKR CONNECT TUBE (33)
secure using two M10X65MM HEX BOLTS (106), four M10 ARC WASHERS (120) and two M10
LOCKNUTS (125).
Fit RIGHT VKR SUPPORT (34) and LEFT VKR SUPPORT (35) to RIGHT VKR ARM (36) and
LEFT VKR ARM (37).

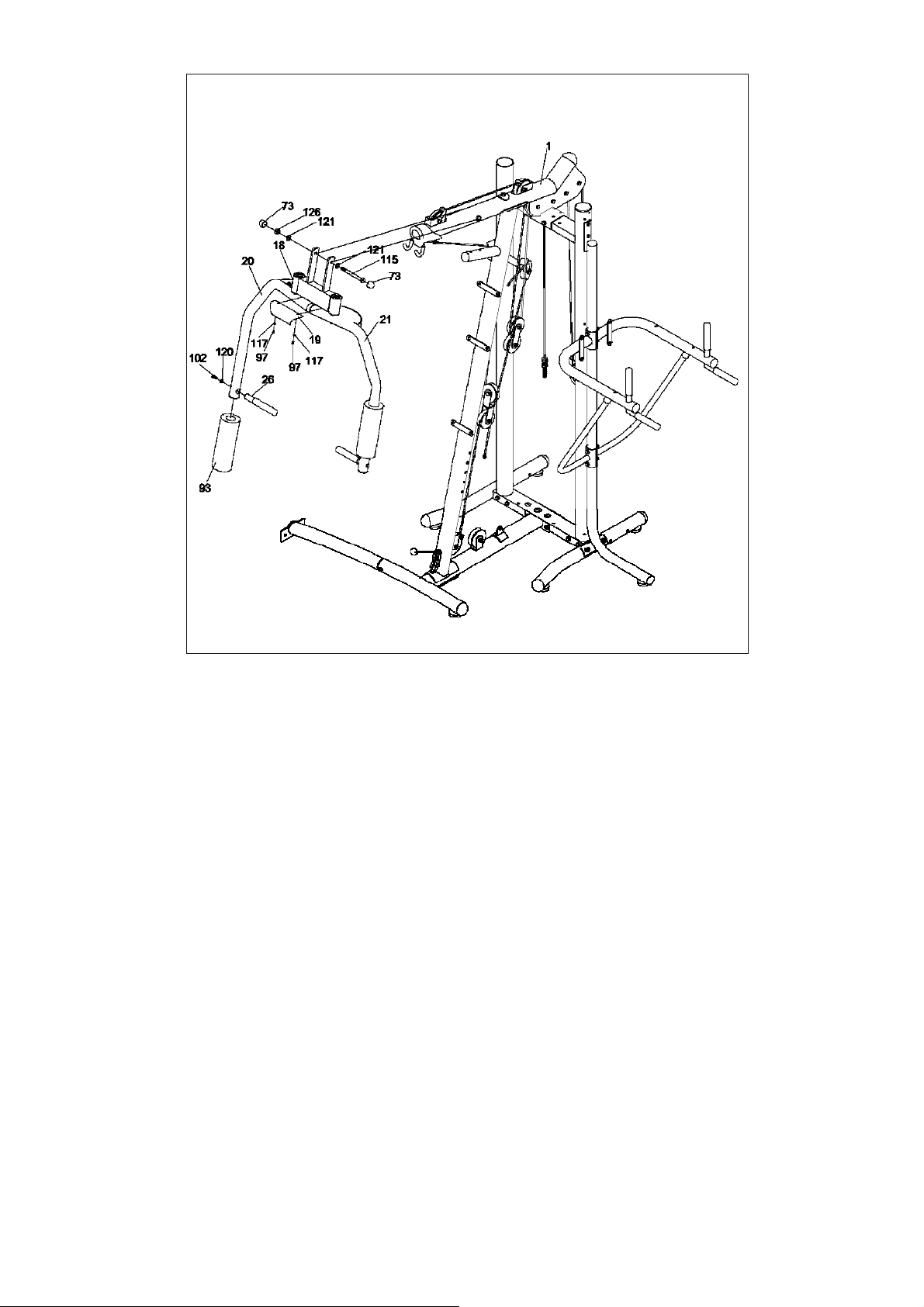

STEP-6
Fit BUTTERFLY EXTENSION (18) to TOP BEAM (1), insert one M12X130MM HEX BOLT (115)
along secure using two M12 WASHERS (121) and one M12 LOCKNUT (126). Fit two DOME
CAPS (73).
Fit ARC STEEL PIECE (19) to BUTTERFLY EXTENSION (18) with logo outward, and then
secure using two M5X10MM SCREWS (97) and two M5 WASHERS (117).
Fit BIG FOAM ROLL (93) onto RIGHT BUTTERFLY ARM (20). Fit the left side.
Fit HAND BAR (26) to RIGHT BUTTERFLY ARM (20) secure using one M10X25MM HEX BOLT
(102) and one M10 ARC WASHER (120). Fit the left side.

STEP-7
Fit SEAT SUPPORT TUBE (30) onto VERTICAL FRAME (6) as shown, insert LONG KNOB
BOLT (136 )hand tighten. Fit SEAT LOCK PIN (71).
Fit SEAT HANDLE (32) to SEAT SUPPORT TUBE (30) secure using one M10X75MM HEX
BOLT (108), one M10X70MM HEX BOLT (107), three M10 WASHERS (119) and one M10
LOCKNUT (125).
Fit SEAT CUSHION B (88) onto SEAT SUPPORT TUBE (30) secure using four M8X20MM
SCREWS (99) and four M8 WASHERS (118).

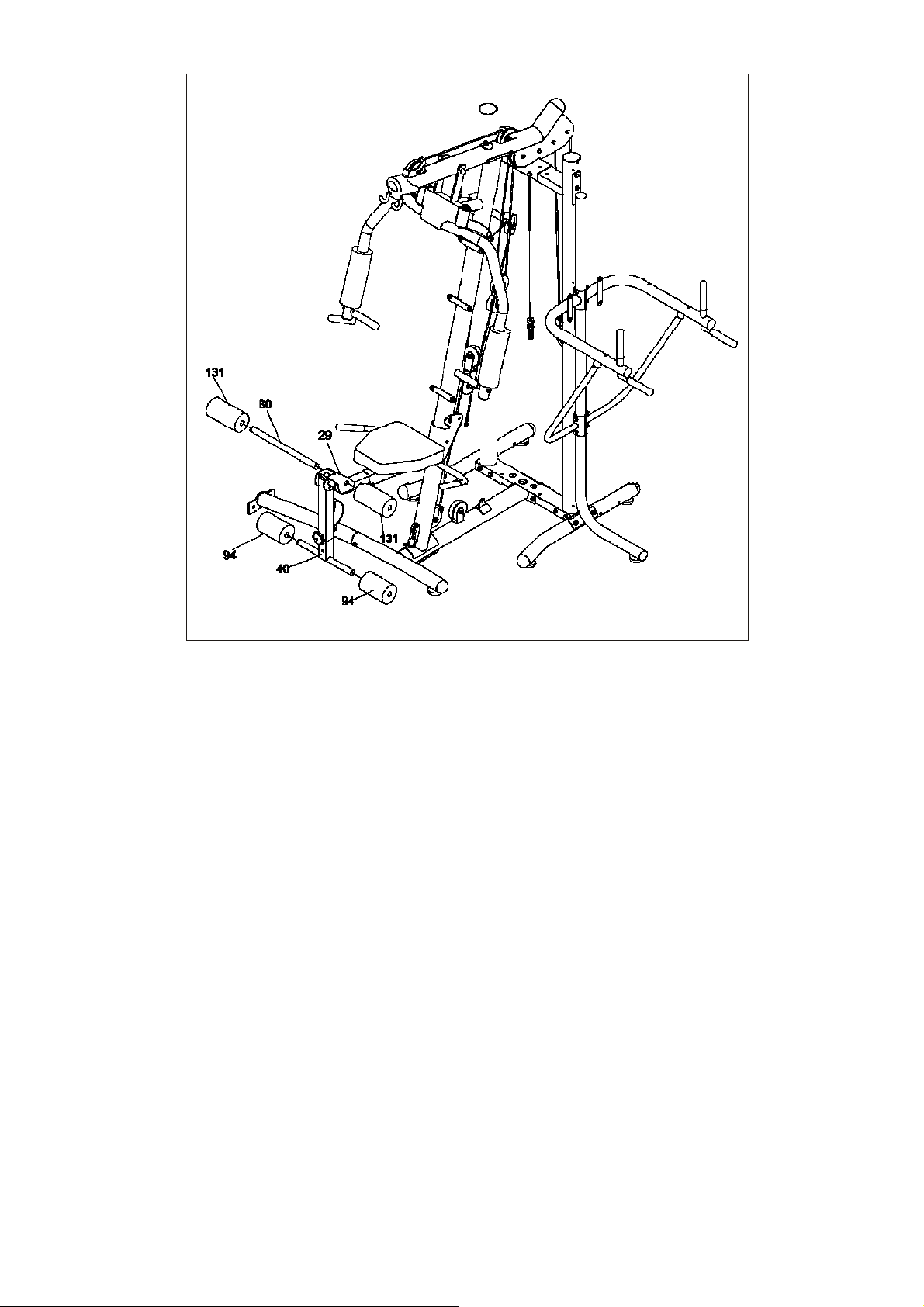

STEP-8
Insert FOAM ROD (80) along the holes of SEAT ADJUST FRAME (29) as shown. Fit two LONG
FOAM ROLLS (131) onto ends of FOAM ROD (80) as shown.
Fit two SMALL FOAM ROLL (94) onto ends rod of LEG ADJUST TUBE (40).

STEP-9
Fit REAR CONNECT TUBE (8) and REAR BASE TUBE (7) to RIGHT BASE FRAME (3) as
shown. Secure by hand using two M10X80MM HEX BOLTS (109), four M10 ARC WASHERS
(120) and two M10 LOCKNUTS (125).
Fit REAR CONNECT TUBE (8) to LEFT BASE FRAME (4) Secure by hand using two
M10X80MM HEX BOLTS (109), four M10 ARC WASHERS (120) and two M10 LOCKNUTS
(125).
Tighten the bolts securely.
