Before Use
4
Before Use
Precautions
#WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your JVC dealer to make sure that
they work with your model and in your area.
• You can select language to display menus,
audio file tags, etc. See User Interface Setup
(P.44).
• The Radio Data System or Radio Broadcast
Data System feature won’t work where the
service is not supported by any broadcasting
station.
• The unit may not function properly if the
connectors between the unit and front panel
are dirty. Detach the front panel and clean the
connector with a cotton swab gently, being
careful not to damage the connector.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth. If
the faceplate is stained badly, wipe the stain
off with a cloth moistened with neutral cleaner,
then wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the faceplate
with a hard cloth or using a volatile liquid such
as thinner or alcohol may scratch the surface or
erase screened print.
Ñ Acquiring GPS signal
The first time you turn on this unit, you must
wait while the system acquires satellite signals
for the first time. This process could take up
to several minutes. Make sure your vehicle
is outdoors in an open area away from tall
buildings and trees for fastest acquisition.
After the system acquires satellites for the first
time, it will acquire satellites quickly each time
thereafter.
How to read this manual
• The screens and panels shown in this manual are
examples used to provide clear explanations of the
operations.
For this reason, they may be different from the actual
screens or panels used, or some display patterns may
be different.
• Indication language: English indications are used
for the purpose of explanation. You can select the
indication language from the [SETUP]menu. See
User Interface Setup (P.44).
!B5A-2304-00b_KWV-M_En.indb 4 2019/04/26 10:56

Basic Operations
5English
Basic Operations
Functions of the Buttons on the Front Panel

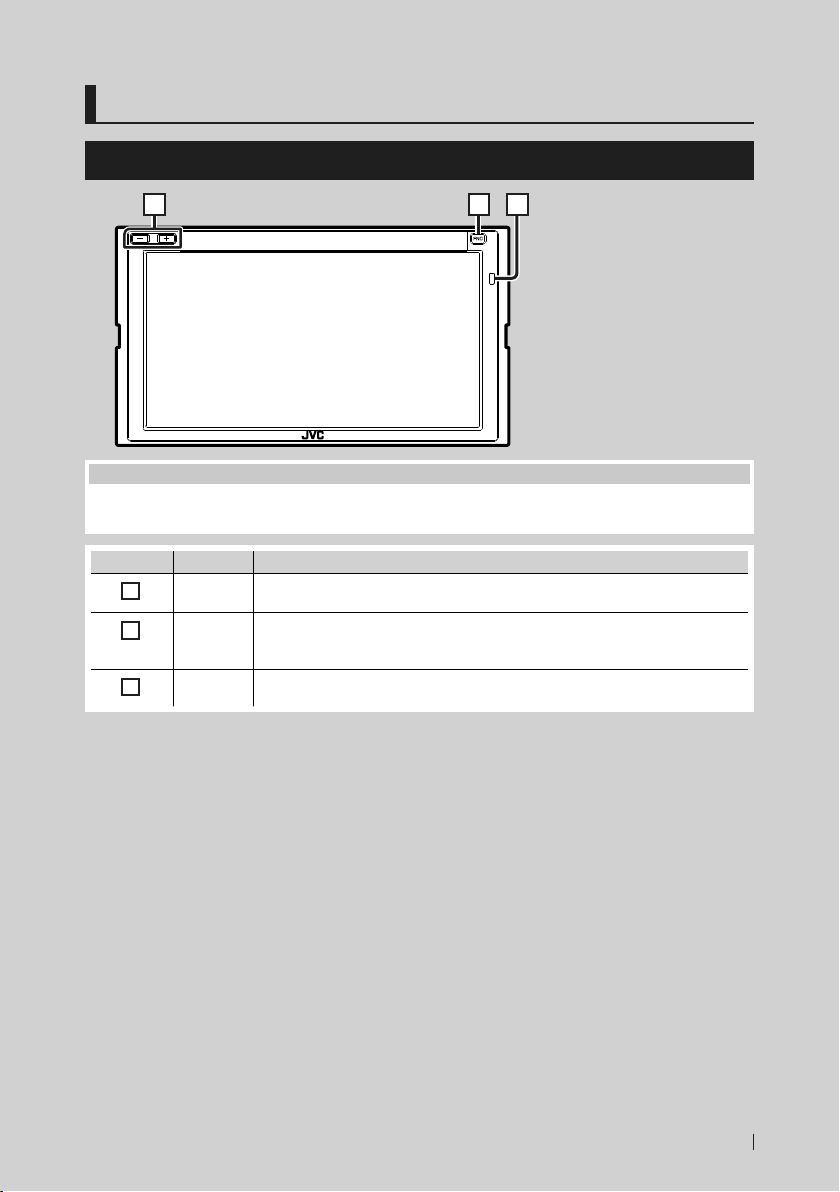

1 2 3
NOTE
• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason,
they may be different from the actual panels.
Number Name Motion
1
–, +
(Volume)
• Adjusts volume.
The volume will go up until 15 when you keep pressing [+].
2
FNC • Displays the popup menu screen.
• Pressing for 1 second displays the Voice Recognition screen (P.36).
• When the power off, turns the power on.
3
Remote
Sensor
• Receives the remote control signal.
!B5A-2304-00b_KWV-M_En.indb 5 2019/04/26 10:56

Basic Operations
6
Turning on the Unit

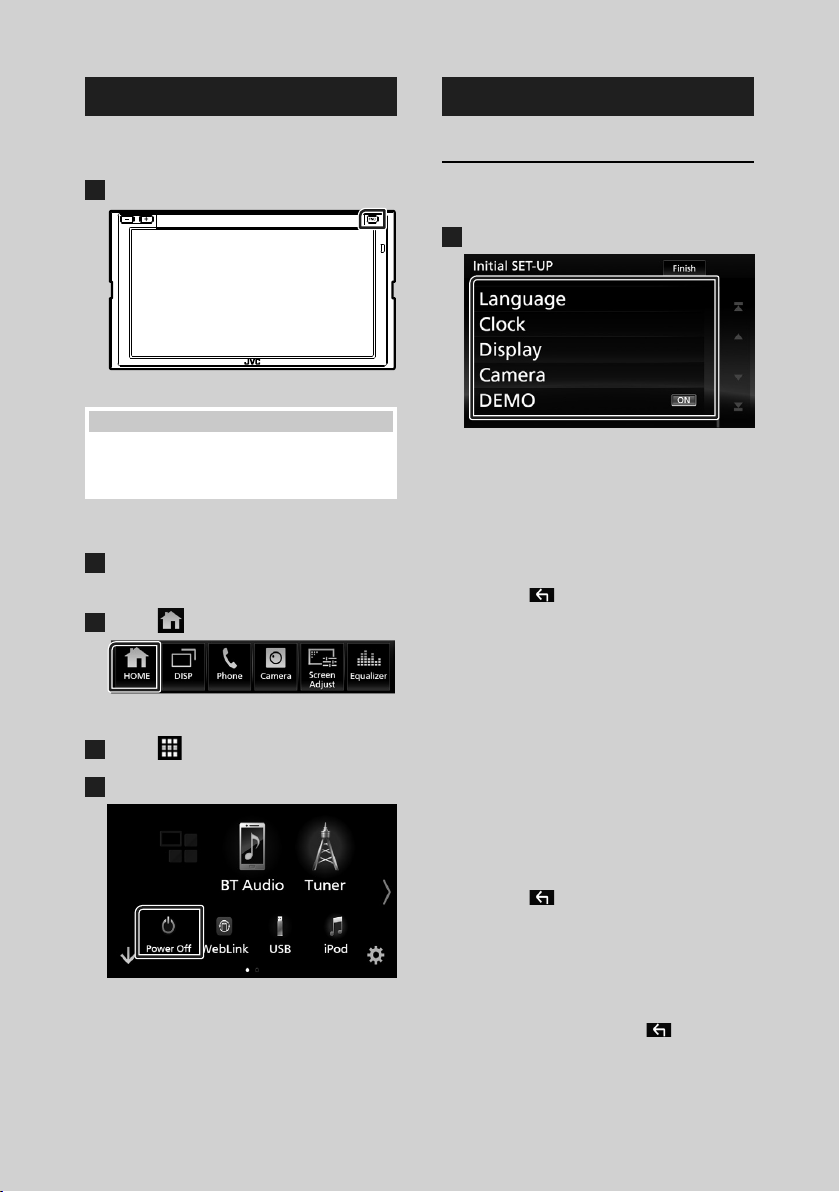

The method of turning on is different
depending on the model.

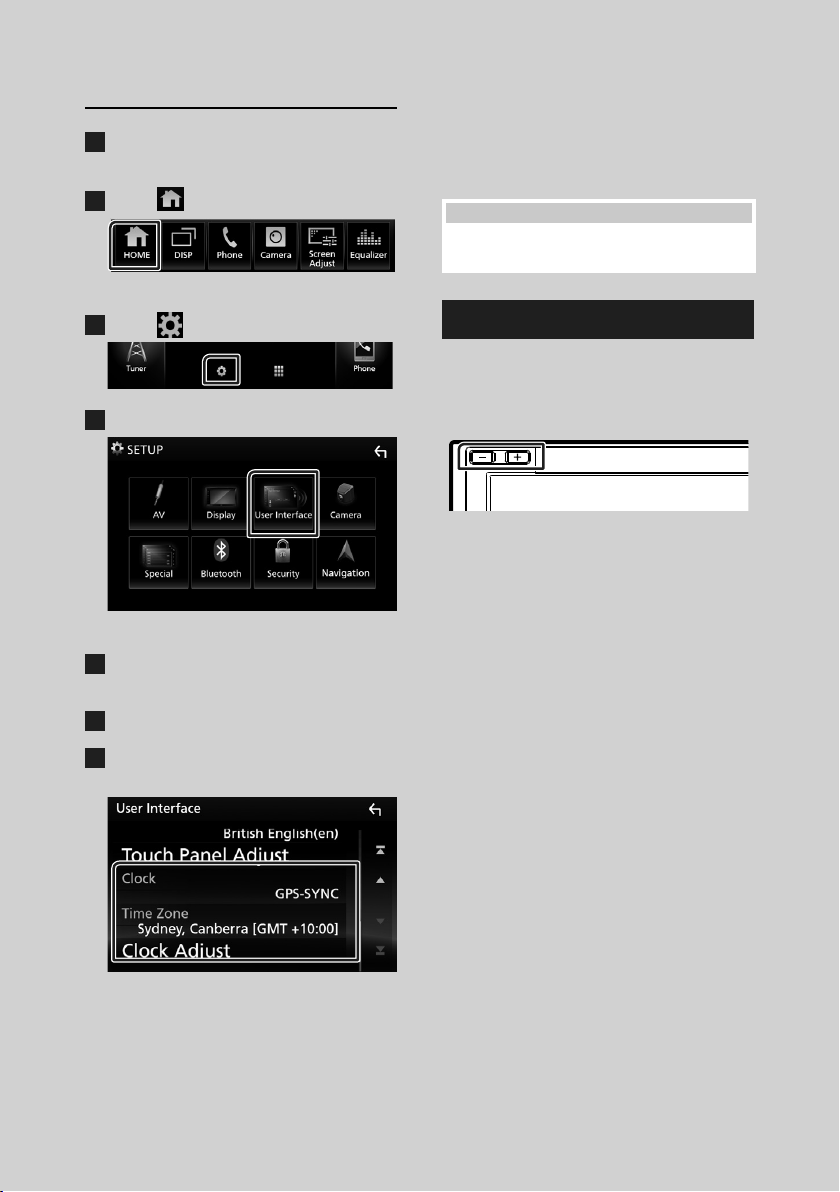

1
Press the [FNC]button.
 The unit is turned on.
NOTE
• If it is your first time turning the unit on after
installation, it will be necessary to perform Initial
setup (P.6).
●To turn off the unit:
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [Power Off].
Initial Settings
Initial setup
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■[Language]
Select the language used for the control
screen and setting items. Default is“British
English (en)”.
1Touch [Language].
2Touch [Language Select].
3Select the desired language.
4Touch [
].
For detailed operation, see User Interface
Setup (P.44).
■[Clock]
Sets the synchronization of the clock and
adjusts it.
For detailed operation, see Calendar/clock
settings (P.8).
■[Display]
If it is hard to see the image on the screen
even, adjust the viewing angle.
1Touch [Display].
2Touch [Viewing Angle].
3Select an angle
4Touch [
].
For detailed operation, see Display Setup
(P.46).
■[Camera]
Set the parameters for the camera.
1Touch [Camera].
2Set each item and touch [
].
For detailed operation, see Camera Setup
(P.40).
!B5A-2304-00b_KWV-M_En.indb 6 2019/04/26 10:56

Basic Operations
7English
■[DEMO]
Set the demonstration mode. Default is "ON".
1Touch [DEMO]and set ON or OFF.
2
Touch [Finish].
NOTE
• These settings can be set from the SETUP menu.
See Setting Up (P.43).
Security Code Setup
You can set up a security code to protect your
receiver system against theft.
When the Security Code function is activated,
the code cannot be changed and the function
cannot be released. Note the Security Code
can be set as 4 to 8-digit number of your
choice.
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [Security].
 Security screen appears.
5
Touch [Security Code Set]on the Security
screen.
 Security Code Set screen appears.
6
Enter a security code with 4 to 8-digit
number and touch [Enter].
7
Enter the same code again and touch
[Enter].
Now, your security code is registered.
NOTE
• Touch [BS]to delete the last entry.
• If you enter a different security code, the screen
returns to step 6 (for the first code entry).
• If you have disconnected the Receiver from
battery, enter the correct security code as that
you have entered in step 6 and touch [Enter]. You
can use your receiver.
To change the security code:
1
Touch [Security Code Change]on the
Security screen, then repeat step 6 and 7.
To clear the security code:
1
Touch [Security Code Cancellation]on
the Security screen.
!B5A-2304-00b_KWV-M_En.indb 7 2019/04/26 10:56

Basic Operations
8
Calendar/clock settings
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [User Interface].
 User Interface screen appears.
5
Touch [Time Zone]in the User Interface
screen.
6
Select the time zone.
7
Set each item as follows.
Scroll the page to show the item.
■[Clock]
[GPS-SYNC ](Default): Synchronizes the clock
time with the GPS.
[Manual]: Sets the clock manually.
■[Time Zone]
Select the time zone.
■[Clock Adjust]
If you select [Manual]for Clock, adjust the
date and time manually. (P.44)
NOTE
• Please set the date and time. If it is not set, it may
not work with some functions.
Adjusting the volume
To adjust the volume (0 to 40),
Press [+]to increase, and press [–]to decrease.
Holding [+]increases the volume continuously
to level 15.
!B5A-2304-00b_KWV-M_En.indb 8 2019/04/26 10:56

Basic Operations
9English

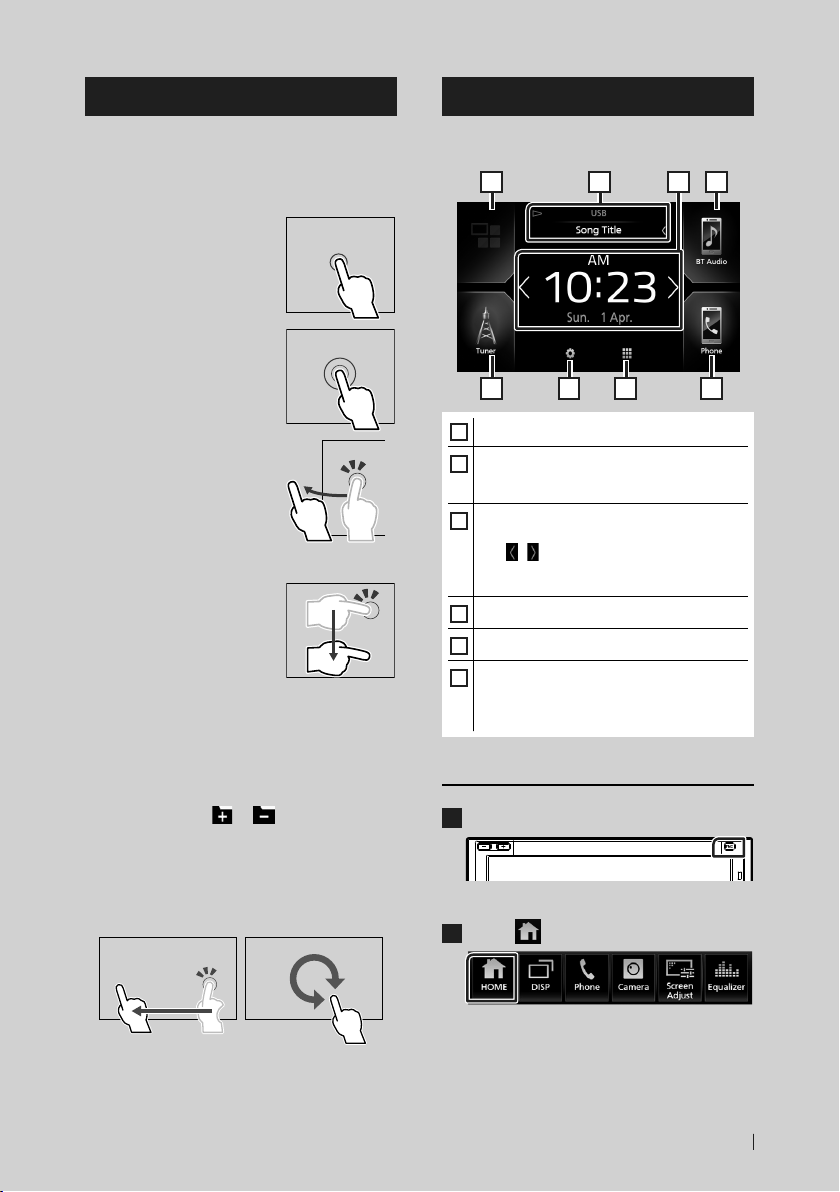

Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to
select an item, display setting menu screen or
to change the page, etc.
●Touch
Touch the screen gently to
select an item on the screen.
●Touch and hold
Touch the screen and keep
your finger in place until
the display changes or a
message is displayed.
●Flick
Slide your finger quickly
to the left or right on the
screen to change the page.
You can scroll the list screen
by flicking the screen up/
down.
●Swipe
Slide your finger up or down
on the screen to scroll the
screen.
Monitor Touch Control:
You can also control playback by moving your
finger on the touch panel as follows (for some
sources, the gesture control is not available).
• Sliding the finger towards up/down: Functions
same as pressing []/ [](Media). Tuner
Preset broadcast stations are switched.
• Sliding the finger towards left/right: Functions
same as pressing [E]/ [F].
• Moving your finger clockwise or counter-
clockwise: increases/decreases the volume.
HOME screen descriptions
Most functions can be performed from the
HOME screen.
1
1 64 5
12 3
1
• Short-cut playback source icons (P.11)
2
• Current source information.
• Touch to display the control screen of current
source.
3
• Widget
– You can change the widget by touching
[
]/[ ].
– Touch the widget to display the detailed
screen.
4
• Displays the SETUP Menu screen. (P.43)
5
• Displays the source selection screen. (P.10)
6
• Displays the Hands Free screen. (P.35)
• When connecting as Apple CarPlay or
Android Auto, it works as a phone provided
in Apple CarPlay or Android Auto.
Display the HOME
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
!B5A-2304-00b_KWV-M_En.indb 9 2019/04/26 10:56

Basic Operations
10
Source selection screen
descriptions
You can display all playback sources and
options on the source selection screen.
3 5
2
4
1
1
• Changes the playback source.
For playback sources, see P.10.
2
• Changes the page. (Touch []/[ ].)
You can also change the page by flicking left
or right on the screen.
3
• Returns to previous screen.
4
• Page indication
5
• Displays the SETUP Menu screen. (P.43)
Select the playback source
1
Touch [ ].
From the screen, you can select the
following sources and functions.
• Switches to the Android Auto/ Apple
CarPlay screen from the connected
iPhone/Android device.*1(P.14)
• Switches to the Radio broadcast.
(P.25)
• Plays a Bluetooth audio player. (P.33)
• Plays an iPod/iPhone. (P.22)
• Plays files on a USB device. (P.19)
• Switches to the Spotify. (P.18)
• Switches to an external component
connected to the AV-IN input terminal.
(P.41)
• Displays the WebLink screen. (P.17)
• Displays the Audio screen. (P.48)
• Turns off the AV source. (P.11)
• Turn off the unit. (P.6)
*1When iPhone compatible with CarPlay is
connected, [Apple CarPlay]is displayed.
When an Android device compatible with
Android Auto is connected, [Android Auto]is
displayed.
!B5A-2304-00b_KWV-M_En.indb 10 2019/04/26 10:56

Basic Operations
11English
To select the playback source on the
HOME screen
The 3 items displayed on the source selection
screen as the large icons are shown on the
HOME screen.
You can change items displayed on this area
by customizing the source selection screen.
(P.11)
To select the playback source on the
source control screen
Display source selection buttons by touching
[ ]/[ ] or flicking left or right on the source
control screen, then select a playback source.
To turn off the AV source
1
Touch [ ].
2
Touch [AV Off].

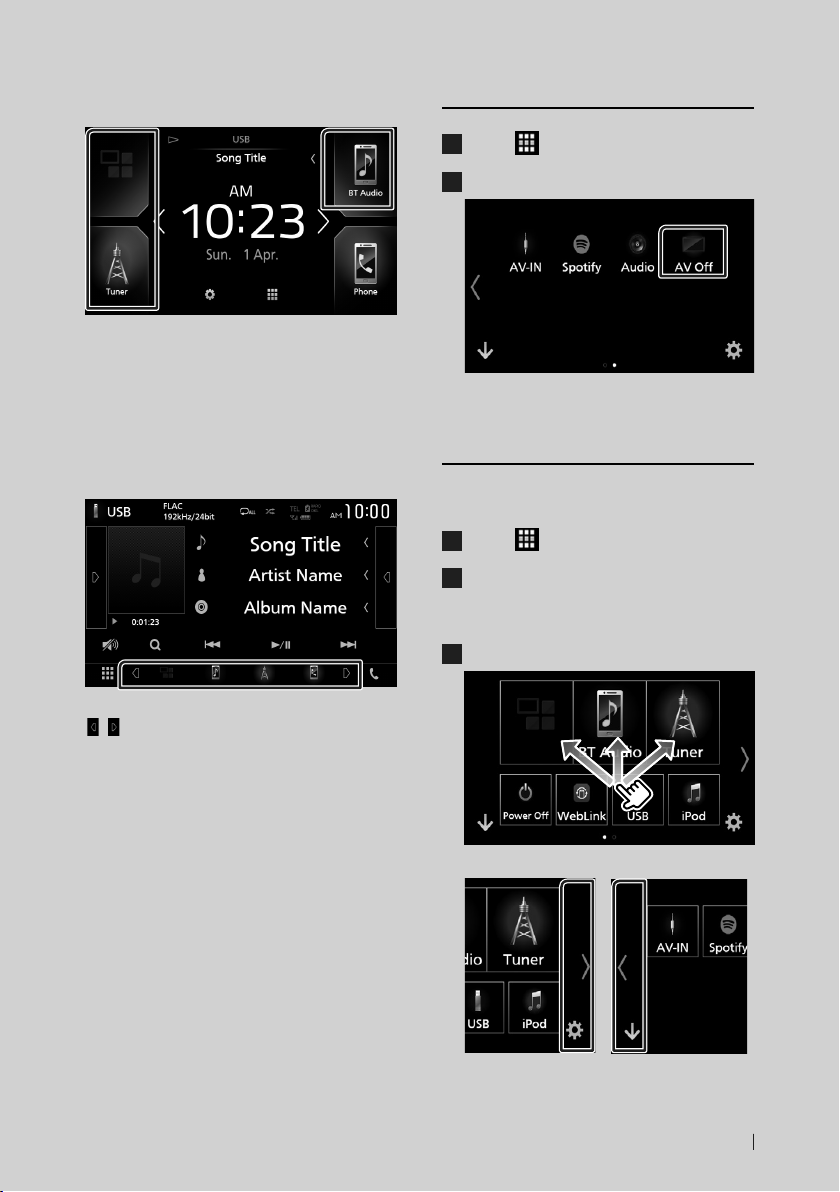

Customize Short-cut buttons on
HOME screen
You can arrange the position of the source
icons as you like.
1
Touch [ ].
2
Touch and hold the icon which you want
to move to go into the customizing
mode.
3
Drag it where you want to move.
Changes the page
!B5A-2304-00b_KWV-M_En.indb 11 2019/04/26 10:56

Basic Operations
12
Source control screen
descriptions
There are some functions which can be
operated from most screens.
Indicators
1
2 3 4
Short-cut buttons
1
• Connected Bluetooth device information.
• : Lights up when quick charging battery
of the connected iPod/ iPhone/ Smartphone.
2
All sources icon
Displays all sources.
3
Secondary screen
• [
]/[ ] : The Secondary screen changes every
time you touch it. You can also change the
Secondary screen by flicking left or right on
the screen.
• Indicators: Displays the current source
condition and so on.
– [ATT]: The attenuator is active.
– [DUAL]: The dual zone function is on.
– [LOUD]: The loudness control function is on.
• Short-cut buttons: The source changes to the
one you have set as a short-cut. For the short-
cut setting, refer to Customize Short-cut
buttons on HOME screen (P.11).
4
[Û]
Touch to display the Hands Free screen. (P.35)
When connecting as Apple CarPlay or Android
Auto, it works as a phone provided in Apple
CarPlay or Android Auto.
!B5A-2304-00b_KWV-M_En.indb 12 2019/04/26 10:56

Basic Operations
13English
Popup menu
1
Press the [FNC]button.
 Popup menu appears.
2
Touch to display the popup menu.
The contents of the menu are as follows.
• Displays the HOME screen. (P.9)
• Switches the screen.
The screen switched to depends on the
[DISP Key]setting in the [User Interface]
screen. (P.44).
• Touch and hold to turns the screen off.
• Display the Hands Free screen. (P.35)
When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
• Displays the view camera. (P.40)
• Displays the Screen Adjustment screen.
(P.43)
• Displays the Graphic Equalizer screen.
(P.51)
• Close the popup menu.
• Short-cut buttons: The source changes to
the one you have set as a short-cut. For
the short-cut setting, refer to Customize
Short-cut buttons on HOME screen
(P.11).
• Touch to display the Hands Free screen.
(P.35)
• When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
List screen
There are some common function keys in the
list screens of most sources.
61 2
3 4 5
1
Displays list type selection window.
2
Displays music/movie file list.
3
Text scroll
Scrolls the displayed text.
4
etc.
Keys with various functions are displayed here.
• : Plays all tracks in the folder containing
the current track.
• : Jump to the letter you entered
(alphabet search).
• : Moves to the upper hierarchy.
5
[ ] / [ ] / [ ] / [ ] Page scroll
You can change the page to display more items
by pressing [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to previous screen.
NOTE
• Buttons which cannot be activated from the list
screen are not displayed.
!B5A-2304-00b_KWV-M_En.indb 13 2019/04/26 10:56

APPS—Android Auto™/Apple CarPlay
14
APPS—Android Auto™/Apple CarPlay
Apple CarPlay Operation
CarPlay is a smarter, safer way to use your
iPhone in the car. CarPlay takes the things
you want to do with iPhone while driving and
displays them on the screen of the product.
You can get directions, make calls, send and
receive messages, and listen to the music
from iPhone while driving. You can also use
Siri voice control to make it easier to operate
iPhone.
For details about CarPlay, visit https://ssl.
apple.com/ios/carplay/.
Compatible iPhone devices
You can use CarPlay with the following iPhone
models.
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
Ñ Preparation
1 Connect iPhone using KS-U62 via USB
(Black) terminal. (P.64)
When iPhone compatible with CarPlay is
connected to the USB (Black) terminal, the
Bluetooth Hands-Free phone currently
connected is disconnected.
2 Unlock your iPhone.
Ñ Operation buttons and
available Apps on the home
screen of CarPlay
You can use the Apps of the connected iPhone.
The items displayed and the language used
on the screen differ among the connected
devices.
To enter CarPlay mode, touch [Apple CarPlay]
icon in the source selection screen. (P.10)
3
1
2
1
[ ]
• Displays the home screen of CarPlay.
• Touch and hold to activate Siri.
2
Application buttons
Starts the application.
3
[HOME]
Exits the CarPlay screen and displays the Home
screen.
To exit the CarPlay screen
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
!B5A-2304-00b_KWV-M_En.indb 14 2019/04/26 10:56

APPS—Android Auto™/Apple CarPlay
15English
Ñ Use Siri
You can activate Siri.
1 Press the [FNC]button for 1 second.
Press for 1 second
2 Talk to Siri.
To deactivate
1 Press the [FNC]button.

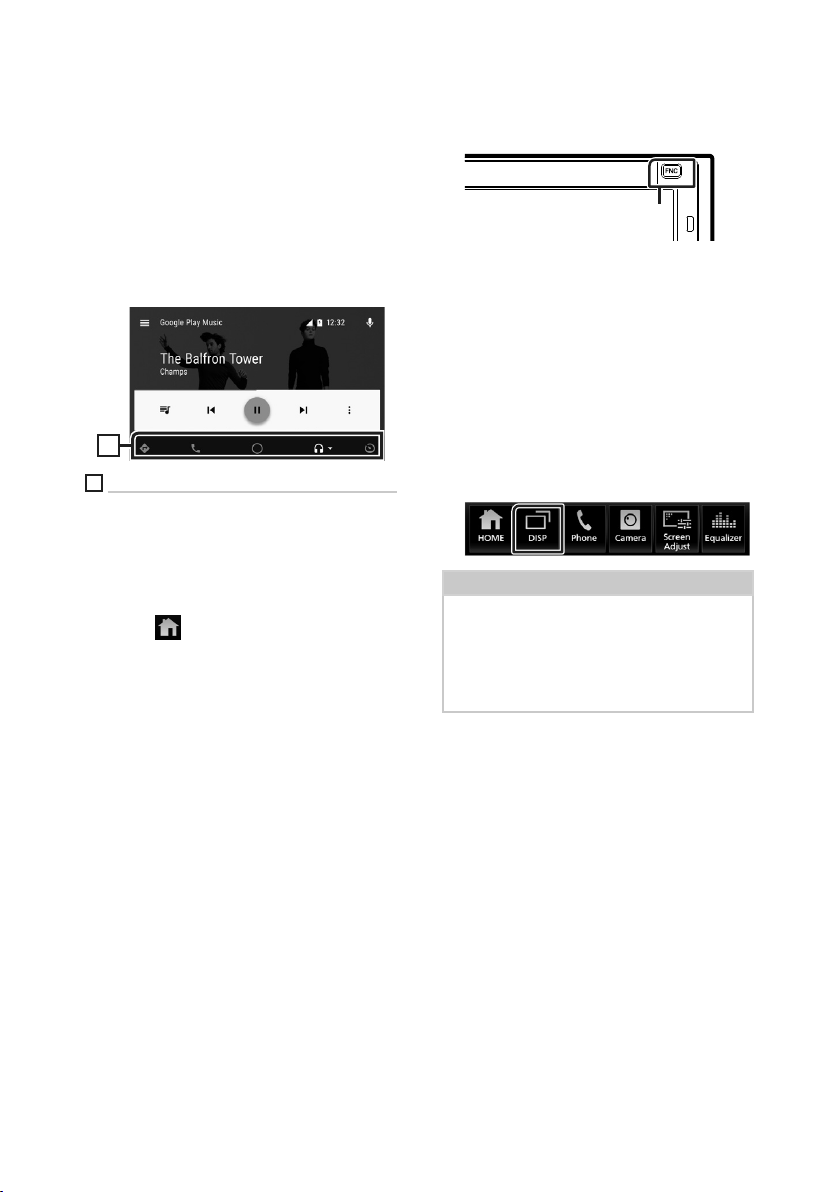

Ñ Switch to the Apple CarPlay
screen while listening to
another source
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [DISP].
NOTE
• This operation is available when [DISP Key]is set
to [Mirroring]in the [User Interface]screen.
(P.44)
• If sound is output using Apple CarPlay when the
Apple CarPlay screen is displayed, the source is
switched to Apple CarPlay.
Android Auto™ Operation
Android Auto enables you to use functions of
your Android device convenient for driving.
You can easily access route guidance, make
calls, listen to music, and access convenient
functions on the Android device while driving.
For details about Android Auto, visit https://
www.android.com/auto/ and https://support.
google.com/androidauto.
Compatible Android devices
You can use Android Auto with Android
devices of Android version 5.0 (Lollipop) or
later.
NOTE
• Android Auto may not be available on all devices
and is not available in all countries or regions.
Ñ Preparation
1 Connect an Android device via USB
terminal. (P.63)
To use the hands-free function, connect the
Android device via Bluetooth.
When an Android device compatible
with Android Auto is connected to the
USB terminal, the device is connected via
Bluetooth automatically, and the Bluetooth
Hands-Free phone currently connected is
disconnected.
2 Unlock your Android device.
!B5A-2304-00b_KWV-M_En.indb 15 2019/04/26 10:56

APPS—Android Auto™/Apple CarPlay
16
Ñ Operation buttons and
available Apps on the Android
Auto screen
You can perform the operations of the Apps of
the connected Android device.
The items displayed on the screen differ
among the connected Android devices.
To enter Android Auto mode, touch [Android
Auto]icon in the source selection screen.
(P.10)
1
1
Application/information buttons
Starts the application or displays information.
To exit the Android Auto screen
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
Ñ Using voice control
1 Press the [FNC]button for 1 second.
Press for 1 second
To cancel
1 Press the [FNC]button.
Ñ Switch to the Android Auto
screen while listening to
another source
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [DISP].
NOTE
• This operation is available when [DISP Key]is set
to [Mirroring]in the [User Interface]screen.
(P.44)
• If sound is output using Android Auto when the
Android Auto screen is displayed, the source is
switched to Android Auto.
!B5A-2304-00b_KWV-M_En.indb 16 2019/04/26 10:56

APPS—Android Auto™/Apple CarPlay
17English
WebLink™ Operation
You can display and control the App on the
unit while your smartphone is connected to
the USB terminal.
Ñ Available Apps
You can use the following Apps on this
unit. Install the Apps on your smartphone
beforehand.
WebLink™
WebLink™ enables you to use the following
Apps with the unit.
• Media player
• Yelp
• YouTube
• OpenWeatherMap
1 Connecting a smartphone
• Connect an Android device via USB
terminal. (P.63)
• Connect iPhone using KS-U62 via USB
(Black) terminal. (P.64)
• When the smartphone is connected
to the unit, a confirmation message to
communicate each other appears on the
smartphone. Touch [Allow]to establish
connection, or [Ignore]to cancel the
connection.
• You can check the connection status
on the WebLink™ screen on your
smartphone.
Ñ Operation buttons and
available Apps on the App
screen
To enter WebLink™ mode, touch [WebLink]
icon in the source selection screen. (P.10)
WebLink source screen
1
1
[ ]
Displays the main menu of the “WebLink”
source screen.
Returns to the previous screen.
2 Operate on your smartphone.
• When you are asked to communicate
between your smartphone and the unit,
touch [Allow]to proceed.
Ñ Switching to the App screen
while listening to the another
source
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [DISP].
NOTE
• This operation is available when [DISP Key]is set
to [Mirroring]in the [User Interface]screen.
(P.44)
• If sound is output using WebLink when the App
screen is displayed, the source is switched to
WebLink.
!B5A-2304-00b_KWV-M_En.indb 17 2019/04/26 10:56

APPS—Android Auto™/Apple CarPlay
18
Spotify Operation
You can listen to the Spotify on this unit by
controlling the application installed in the
iPhone or Android.
To enter Spotify source, touch [Spotify]icon in
the source selection screen. (P.10)
Preparation
• Install the latest version of the Spotify application
"Spotify" on your iPhone or Android.
iPhone: Search for "Spotify" in the Apple App
Store to find and install the most current version.
Android: Search for "Spotify" in Google play to
find and install the most current version.
• iPhones are connected on either USB or
Bluetooth.
• Android devices are connected on Bluetooth.
• To connect a smartphone via Bluetooth, register
it as the Bluetooth device and do the App (SPP)
profile setting of the connection beforehand. See
Register the Bluetooth device (P.30) and
Connect the Bluetooth device (P.32).
1
2
3
4
1
Artwork/ Playing time
• The picture data is displayed if available from
current content.
• For confirmation of play time.
2
Operation keys
• [
]: Displays the Menu screen
• [
]: New radio station that relates to the
artist of the currently playing song is selected
and playback starts.
• [
], [ ] : Skips the current song.
• [
], [ ] : Plays or pauses the content of the
current station.
• [
]: Saves currently playing song to My
Music.
• [
]: Touch to attenuates/restores the sound.
3
Content information
Displays the information of the current content
being played.
4
[]/ []/ []/ []
• []: Thumbs down to the current contents
and skip to the next contents.
• []: Registers the current contents as favorite
content.
• []: Repeats the current song.
• []: Randomly plays all song in current
playlist.
Ñ Selecting a track
1 Touch [].
 Menu screen appears.
2 Select the list type, then select a desired
item.
■Selects the category and station
Touch the category and station name in the
list.
■[Top]
Returns to the first hierarchy of the list.
■[Up]
Returns to the previous list.
About Spotify®
Note
• Ensure you are logged in to your smartphone
application. If you do not have an Spotify account,
you can create one for free from your smartphone
or at www.spotify.com.
• Because Spotify is a third-party service, the
specifications are subject to change without
prior notice. Accordingly, compatibility may
be impaired or some or all of the services may
become unavailable.
• Some functions of Spotify cannot be operated
from this unit.
• For issues using the application, contact Spotify at
www.spotify.com.
• Establish an Internet connection.
!B5A-2304-00b_KWV-M_En.indb 18 2019/04/26 10:56

USB
19English
USB
Connecting a USB device
1 Connect the USB device with the USB
cable. (P.63)
2 Press the [FNC]button.
 Popup menu appears.
3 Touch [ ].
 HOME screen appears.
4 Touch [ ].
5 Touch [USB]. (P.10)
Ñ Disconnect the USB device
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ].
4 Touch a source other than [USB].
5 Detach the USB device.
Ñ Usable USB device
You can use a mass-storage-class USB device on
this unit.
The word“USB device”appearing in this manual
indicates a flash memory device.
●About file system
The file system should be the one of the
following.
• FAT16 • FAT32 • exFAT • NTFS
NOTE
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
USB Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
Control screen
4
3
5
2
6
1
7
Open the drawer
5
4
1
CODEC / [ ] / [ ]
• When a high-resolution source is played, its
format information is displayed.
• [
]: Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
File repeat ( ), Folder repeat ( ), Repeat
all ( )
• [
]: Randomly plays all tracks in current
folder. Each time you touch the key, random
mode switches in the following sequence;
File random ( ), Random off ( )
!B5A-2304-00b_KWV-M_En.indb 19 2019/04/26 10:56

USB
20
2
Track information
Displays the information of the current file.
Only a file name and a folder name are displayed
if there is no tag information.
3
Operation keys
• 1]: Searches track/file. For details on search
operation, see Search Operation (P.21).
• E][F]: Searches the previous/next track/
file.
Touch and hold to fast forward or fast
backward.
• [DH]: Plays or pauses.
• [
]: Touch to attenuates/restores the sound.
4
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [
][ ] : Searches previous/next folder.
• [USB DEVICE CHANGE]
Switches to another USB device when two USB
devices are connected.
5
Content list
• Touch on the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
6
Indicator Items
• [VIDEO]: Identifies the video file.
• [MUSIC]: Identifies the music file.
7
Artwork/ Play mode indicator/ Playing
time
The jacket of the currently playing file is
displayed.
• D, B, etc.: Current play mode indicator
The meanings of each icon are as follows;
D(play), B(fast forward),
A(fast backward), H(pause).
Video screen
9
88
8
Searching file area (Video file only)
Touch to search the next/previous file.
9
Key display area (Video file only)
Touch to display the control screen.
!B5A-2304-00b_KWV-M_En.indb 20 2019/04/26 10:56
