SERVICE MANUAL
COPYRIGHT © 2008 Victor Company of Japan, Limited No.MA392<Rev.002>
2008/7
CD RECEIVER
MA392<Rev.002>20087SERVICE MANUAL
KD-APD89J, KD-PDR80J, KD-PDR61E,
KD-PDR61EX, KD-PDR61EY, KD-G844UI,
KD-G845U, KD-G845UN, KD-G845UT,
KD-G845UH, KD-G847EE, KD-PDR89UR,
KD-PDR62E, KD-PDR62EX, KD-PDR62EY
COPYRIGHT © 2008 Victor Company of Japan, Limited
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31
(KD-APD89)
(KD-PDR80)
(KD-PDR89)
(KD-APD89)
(KD-PDR80)
(KD-PDR89)
(KD-APD89)
(KD-PDR80)
(KD-PDR89)
(KD-PDR61)
(KD-PDR62)
(KD-G847)

1-2 (No.MA392<Rev.002>)
SPECIFICATION
KD-APD89/KD-PDR80/KD-PDR89
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Power Output 20 W RMS ×4 Channels at 4 Ωand < or = 1% THD+N
Signal-to-Noise Ratio 80 dBA (reference: 1 W into 4 Ω)
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid-range ±12 dB (500 Hz, 1.0 kHz, 1.5 kHz, 2.5 kHz)
Treble ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Line-Out Level/Impedance KD-APD89 5.0 V/20 kΩload (full scale)
KD-PDR80 2.5 V/20 kΩload (full scale)
Subwoofer-Out Level/Impedance KD-APD89 5.0 V /20 kΩload (full scale)
KD-PDR80 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Other Terminal
CD changer jack, AUX (auxiliary) input jack, USB input jack, Steer-
ing wheel remote input (only for KD-APD89), Antenna input
TUNER SECTION
Frequency Range FM
with channel interval set to 100 kHz or 200 kHz: 87.5 MHz to 107.9 MHz
with channel interval set to 50 kHz: 87.5 MHz to 108.0 MHz
AM with channel interval set to 10 kHz: 530 kHz to 1 710 kHz
with channel interval set to 9 kHz: 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
AM Tuner Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate: 192 kbps
USB SECTION
USB Standards USB 1.1, USB 2.0
Data Transfer Rate Full Speed Maximum 12 Mbps
Low Speed Maximum 1.5 Mbps
Compatible Device Mass storage class
Compatible File System FAT 32/16/12
Playable Audio Format MP3/WMA/WAV
Max. Current 500 mA/5 V
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C (32°F to 104°F)
Dimensions (W ×H ×D):
(approx.)
Installation Size 182 mm ×52 mm ×160 mm (7-3/16” ×2-1/16” ×6-5/16”)
Panel Size 188 mm ×58 mm ×6 mm (7-7/16” ×2-5/16” ×1/4”)
Mass 1.4 kg (3.1 lbs) (excluding accessories)

(No.MA392<Rev.002>)1-3
KD-PDR61/KD-PDR62
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front/Rear 50 W per channel
Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no
more than 0.8% total harmonic distortion
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid-range ±12 dB (500 Hz, 1.0 kHz, 1.5 kHz, 2.5 kHz)
Treble ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal to Noise Ratio 70 dB
Audio Output Level Line-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.5 V /20 kΩload (full scale)
Other Terminals CD changer jack, AUX (auxiliary) input jack, USB input
jack, Aerial input, Steering wheel remote input
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM MW: 522 kHz to 1 620 kHz
LW: 144 kHz to 279 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
MW Tuner Sensitivity/Selectivity 20 µV/35 dB
LW Tuner Sensitivity 50 µV
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate 320 kbps
USB SECTION
USB Standard USB 1.1, USB 2.0
Data Transfer Rate (Full Speed) Full Speed Max. 12 Mbps
Low Speed Max. 1.5 Mbps
Compatible Device Mass storage class
Compatible File System FAT 32/16/12
Playable Audio Format MP3/WMA/WAV
Max. Current 500 mA/5V
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D) Installation Size (approx.) 182 mm ×52 mm ×160 mm
Panel Size (approx.) 188 mm ×58 mm ×12 mm
Mass (approx.) 1.4 kg (excluding accessories)

1-4 (No.MA392<Rev.002>)
KD-G844
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front/Rear 50 W per channel
Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no
more than 0.8% total harmonic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid-range ±12 dB (500 Hz, 1.0 kHz, 1.5 kHz, 2.5 kHz)
Treble ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out and Subwoofer-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Other Terminal CD changer jack, AUX (auxiliary) input jack, USB input
jack, Antenna input
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity/Selectivity 20 µV/35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate 320 kbps
WMA (Windows Media ® Audio) Decoding Format Max. Bit Rate 192 kbps
USB SECTION
USB Standard USB 1.1, USB 2.0
Data Transfer Rate Full Speed: Max. 12 Mbps
Low Speed: Max. 1.5 Mbps
Compatible Device Mass storage class
Compatible File System FAT 32/16/12
Playable Audio Format MP3/WMA/WAV
Max. Current 500 mA/5 V
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D): (approx.) Installation Size 182 mm ×52 mm ×160 mm
Panel Size 188 mm ×58 mm ×6 mm
Mass 1.4 kg (excluding accessories)

(No.MA392<Rev.002>)1-5
KD-G845
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front/Rear 50 W per channel
Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no
more than 0.8% total harmonic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid-range ±12 dB (500 Hz, 1.0 kHz, 1.5 kHz, 2.5 kHz)
Treble ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out and Subwoofer-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Other Terminal CD changer jack, AUX (auxiliary) input jack, USB input
jack, Antenna input
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity/Selectivity 20 µV/35 dB
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate 192 kbps
USB SECTION
USB Standard USB 1.1, USB 2.0
Data Transfer Rate Full Speed: Max. 12 Mbps
Low Speed: Max. 1.5 Mbps
Compatible Device Mass storage class
Compatible File System FAT 32/16/12
Playable Audio Format MP3/WMA/WAV
Max. Current 500 mA/5 V
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D): (approx.) Installation Size 182 mm ×52 mm ×160 mm
Panel Size 188 mm ×58 mm ×6 mm
Mass 1.4 kg (excluding accessories)

1-6 (No.MA392<Rev.002>)
KD-G847
Design and specifications are subject to change without notice.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front/Rear 50 W per channel
Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no
more than 0.8% total harmonic distortion
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Bass ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid-range ±12 dB (500 Hz, 1.0 kHz, 1.5 kHz, 2.5 kHz)
Treble ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal to Noise Ratio 70 dB
Audio Output Level Line-Out Level/Impedance 2.5 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.5 V /20 kΩload (full scale)
Other Terminals CD changer jack, AUX (auxiliary) input jack, USB input
jack, Aerial input
TUNER SECTION
Frequency Range FM1/FM2 87.5 MHz to 108.0 MHz
FM3 65.00 MHz to 74.00 MHZ
AM MW: 522 kHz to 1 620 kHz
LW: 144 kHz to 279 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
MW Tuner Sensitivity/Selectivity 20 µV/35 dB
LW Tuner Sensitivity 50 µV
CD PLAYER SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate 320 kbps
USB SECTION
USB Standard USB 1.1, USB 2.0
Data Transfer Rate (Full Speed) Full Speed Max. 12 Mbps
Low Speed Max. 1.5 Mbps
Compatible Device Mass storage class
Compatible File System FAT 32/16/12
Playable Audio Format MP3/WMA/WAV
Max. Current 500 mA/5V
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D) Installation Size (approx.) 182 mm ×52 mm ×160 mm
Panel Size (approx.) 188 mm ×58 mm ×12 mm
Mass (approx.) 1.4 kg (excluding accessories)

1-8 (No.MA392<Rev.002>)
1.2 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.2.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.3 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

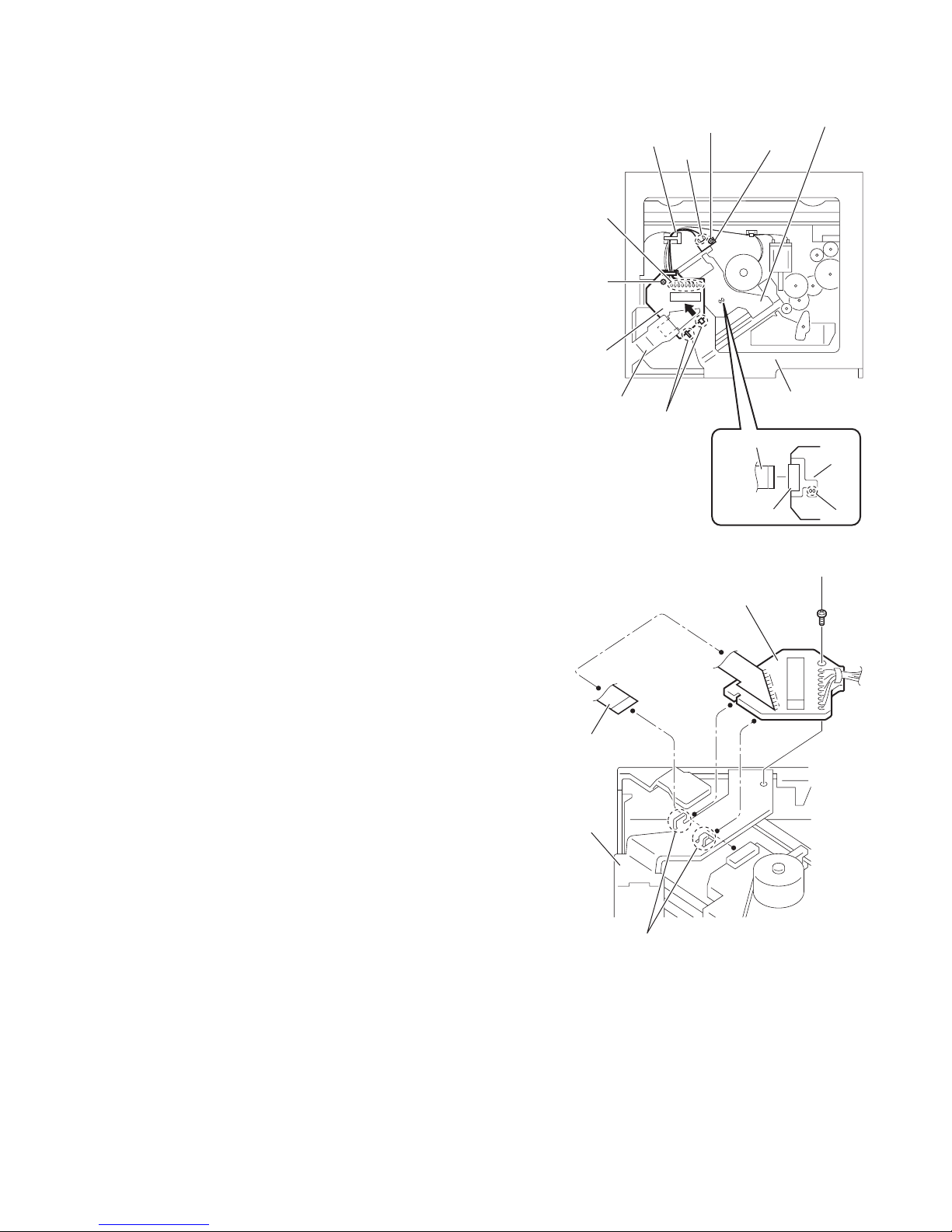

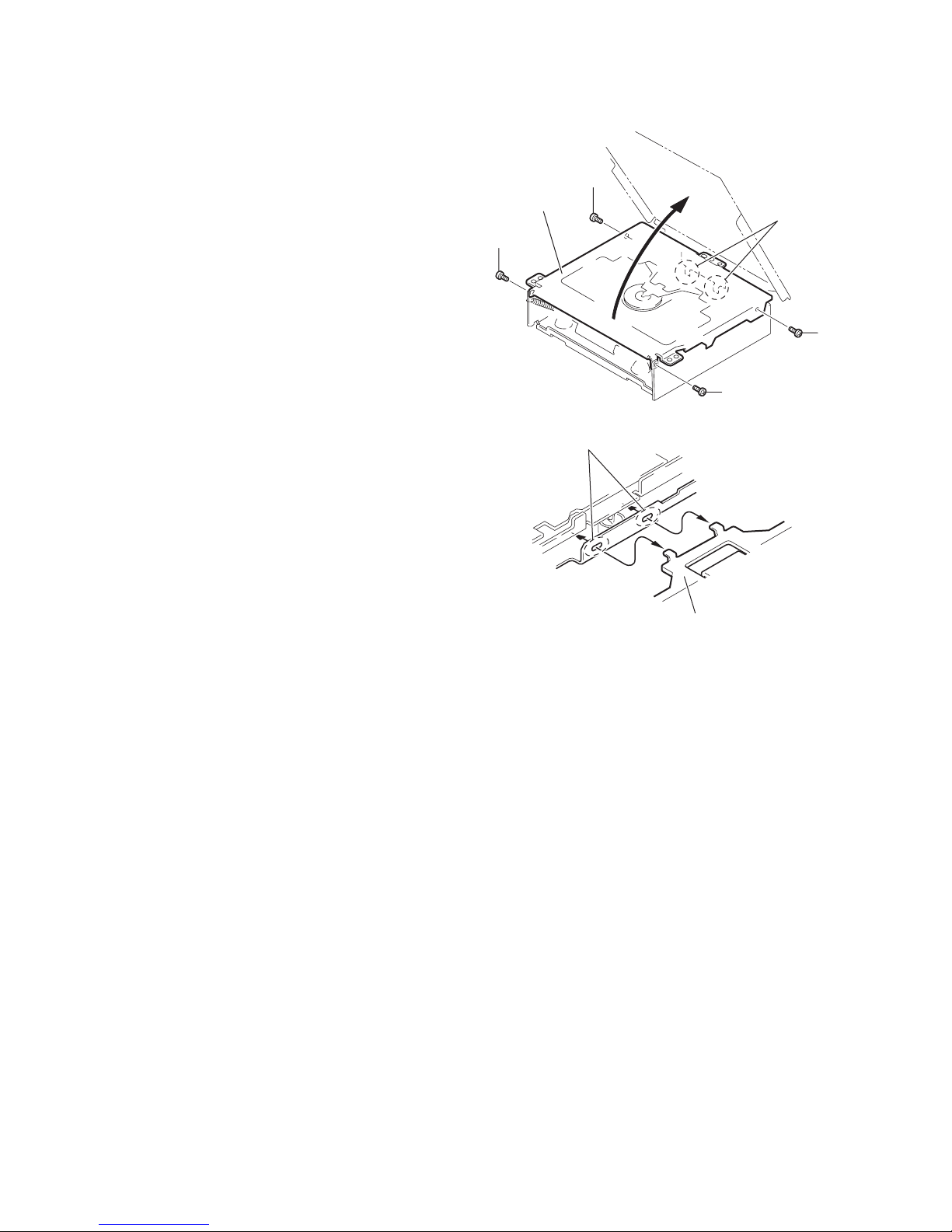

1.4 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land before the card wire is disconnected from the connector on the pickup unit.
(If the card wire is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land after connecting the card wire.
1M
(caption)
Anti-static wrist strap
Conductive material
(conductive sheet) or iron plate
B
b
Wires Push switch
Pickup
e
C
Base board
d
Pickup
c
Connector
Flexible wire
Frame CD mechanism
assembly

(No.MA392<Rev.002>)1-9
1.5 Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.

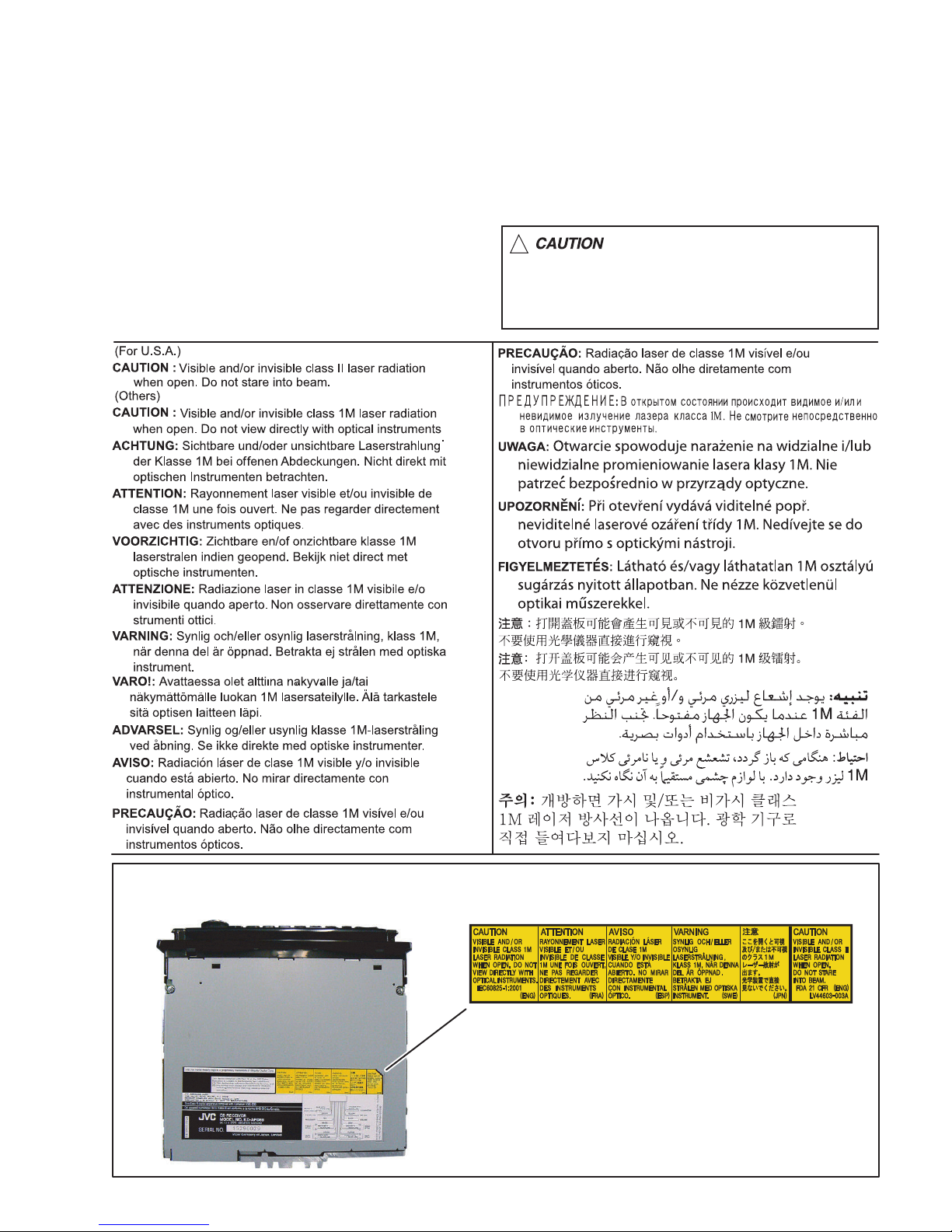

REPRODUCTION AND POSITION OF LABELS and PRINT
!Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
WARNING LABEL and PRINT

1-10 (No.MA392<Rev.002>)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY

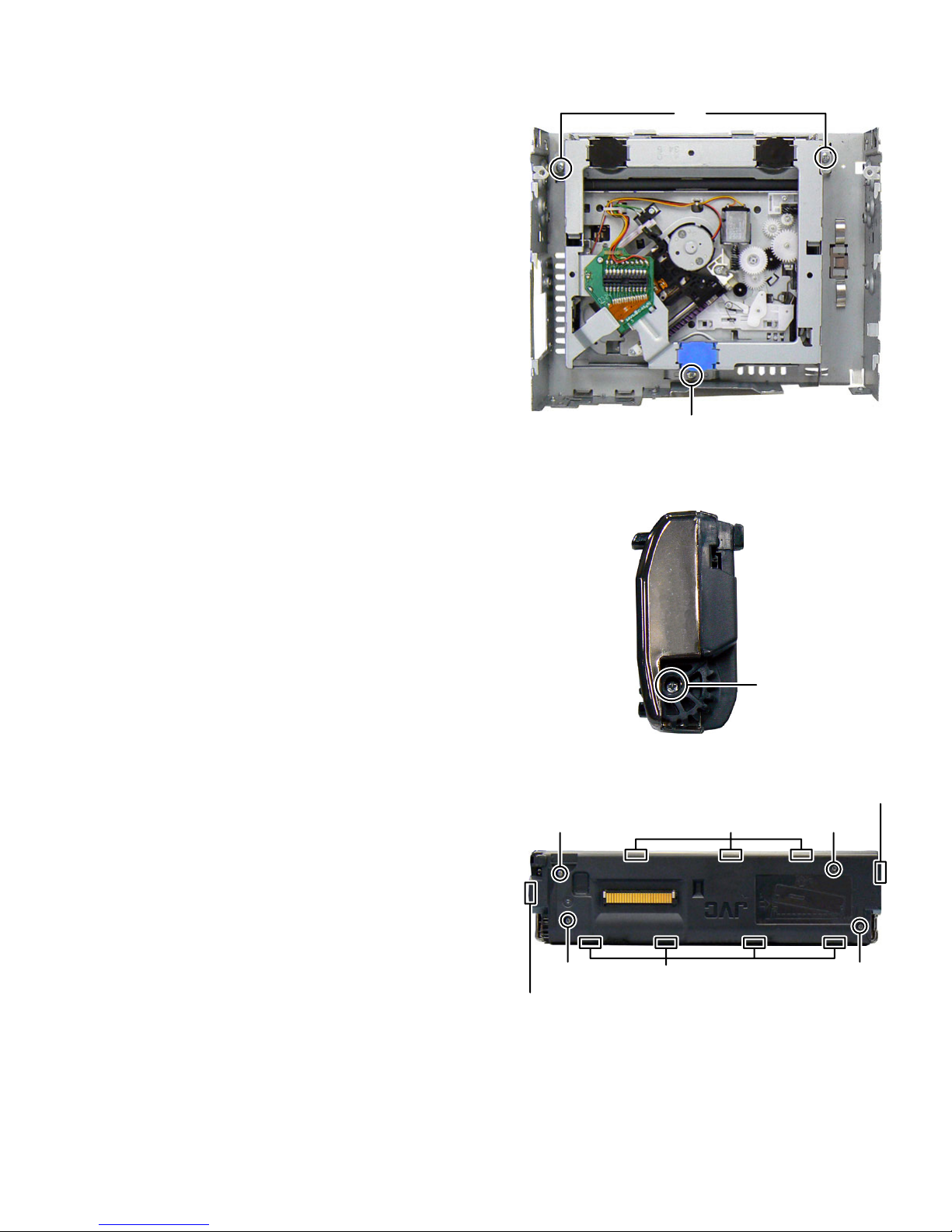

3.1 Main body (Used figure are KD-APD39)
3.1.1 Removing the Bottom chassis (See Fig.1)
(1) Remove the four screws A, two screws Battaching the
heat sink.
(2) Remove the one screw Cattaching the Bottom chassis.
(3) Slide to backward, and then take out the Bottom chassis.
Fig.1
3.1.2 Removing the Front chassis (See Fig.2, 3)
(1) Remove the two screws Dattaching the Front chassis.
(See Fig.2)
(2) Remove the two screws Eattaching the both side of Front
chassis. (See Fig.3)
(3) Disengage four hooks aengaged both side of Front chassis.
(See Fig.3)
Fig.2
Fig.3
AABA
ABC
D
E
hook a
hook a

(No.MA392<Rev.002>)1-11
3.1.3 Removing the Sub board (See Fig.4)
(1) Disconnect the connector CN741 of the Sub board from the
connector CN701 of the Main board.
Fig.4
Sub board
Main board CN701
CN741
