JVC KD-LH1100 User manual

GET0148-001A
[J/C]
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
CD RECEIVER KD-LH1150/KD-LH1100
ENGLISH
ESPAÑOL
FRANÇAIS
RECEPTEUR CD KD-LH1150/KD-LH1100
RECEPTOR CON CD KD-LH1150/KD-LH1100
For customer Use:
Enter below the Model No. and
Serial No. which are located on
the top or bottom of the cabinet.
Retain this information for future
reference.
Model No.
Serial No.
• This unit is equipped with the display demonstration. To cancel it, see page 8.
• Esta unidad está equipada con demostración en la pantalla. Para cancelarla, consulte la página 8.
• Cet appareil est équipé d’une fonction de démonstration des affichages. Pour l’annuler, référez-vous
à la page 8.
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
SOUND
VOL VOL
SOURCE
RF
U
D
ATT
Cover001AKD-LH1150_1100[J]f.p65 1/25/03, 11:23 AM3

2
ENGLISH
How to reset your unit
After detaching the control panel, press the
reset button on the panel holder using a
ball-point pen or a similar tool.
This will reset the built-in microcomputer.
Note:
Your preset adjustments—such as preset channels or
sound adjustments—will also be erased.
IMPORTANT FOR LASER PRODUCTS
Precautions:
1. CLASS 1 LASER PRODUCT
2. CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure
to beam.
3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all
servicing to qualified service personnel.
4. CAUTION: This CD player uses invisible laser radiation, however, is equipped with safety switches
to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.
5. CAUTION: Use of controls, adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Caution:
If the temperature inside the car is below 0°C (32°F), the movement of source animation and text scroll will
be halted on the display to prevent the display from being blurred. When the temperature increases, and the
operating temperature is resumed, these functions will start working again.
CAUTION on Volume Setting:
Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for
example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the
volume before playing a disc and adjust it as required during playback.
INFORMATION (For U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
EN02-04KD-LH1150_1100[J]f.p65 1/27/03, 10:55 AM2

3
ENGLISH
CONTENTS
Thank you for purchasing a JVC product. Please read all instructions carefully before operation,
to ensure your complete understanding and to obtain the best possible performance from the unit.
How to reset your unit ............................... 2
LOCATION OF THE BUTTONS ............ 4
Control panel ............................................. 4
Illumination Navigation for easy
operations ............................................... 4
Remote controller ...................................... 5
Preparing the remote controller ................ 6
BASIC OPERATIONS ....................... 7
Turning on the power ................................ 7
Canceling the display demonstration ........ 8
Setting the clock ........................................ 9
RADIO OPERATIONS ...................... 10
Listening to the radio ................................. 10
Storing stations in memory ....................... 11
Tuning in to a preset station ...................... 13
Changing the display pattern .................... 14
CD OPERATIONS ........................... 15
Playing a CD ............................................. 15
Locating a track or a particular portion
on a CD .................................................. 16
Selecting CD playback modes .................. 17
Prohibiting CD ejection ............................. 18
Changing the display pattern .................... 19
SOUND ADJUSTMENTS ................... 20
Adjusting the sound .................................. 20
Selecting preset sound modes
(iEQ: intelligent equalizer) ...................... 21
Storing your own sound adjustments ........ 22
Activating the level meter .......................... 23
OTHER MAIN FUNCTIONS ................ 24
Changing the general settings (PSM) ....... 24
Selecting the dimmer mode ...................... 28
Changing the display color ........................ 29
Assigning names to the sources ................ 31
Detaching the control panel ...................... 32
CD CHANGER OPERATIONS .............. 33
Playing discs ............................................. 33
Selecting a disc/folder/track using
the name lists ......................................... 36
Selecting the playback modes .................. 37
Changing the display information .............. 39
EXTERNAL COMPONENT OPERATIONS ... 40
Playing an external component ................. 40
ADDITIONAL INFORMATION ............. 41
TROUBLESHOOTING ...................... 42
MAINTENANCE ............................. 44
Handling discs ........................................... 44
SPECIFICATIONS ........................... 45
*Temperature inside the car....
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in the
car becomes normal before operating the unit.
BEFORE USE
*For safety....
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
EN02-04KD-LH1150_1100[J]f.p65 1/25/03, 11:16 AM3

4
ENGLISH
LOCATION OF THE BUTTONS
Control panel
1(standby/on/attenuator) button
2EQ (equalizer) button
3Control dial
4Display window
5FM/AM button
65(up) button
70(eject) button
84/¢buttons
9(control panel release) button
pSEL (select) button
qD (DISP: display) button
wNumber buttons
eM (MODE) button
rRemote sensor
tCD/CD-CH (CD changer) button
y∞(down) button
uTrim illumination
Illumination Navigation for easy operations:
If you press M (MODE), EQ (equalizer), and SEL (select), the display and some controls (such as
the number buttons, ¢/4, 5/∞, and control dial) enter the corresponding control mode,
then the controls start flashing to lead you to the next operational steps. (Illumination Navigation)
•The display show how these buttons function during this period.
Ex.: When you press number button 1 after pressing M (MODE), to operate the FM tuner.
To use these buttons for original functions again, wait until the controls stop flashing without
using these controls.
•Pressing M (MODE) or EQ (equalizer) again also restores original functions. However, pressing
SEL (select) makes the unit into a different mode.
Time countdown indicator
71 2 5
p w e
6
r9 q
8
t
3 4
y
u
EN02-04KD-LH1150_1100[J]f.p65 1/25/03, 11:16 AM4

ENGLISH
5
Remote controller 3• Selects the preset stations while listening to
the radio.
Each time you press the button, the preset
station number increases, and the selected
station is tuned in.
• While playing an MP3 disc on an MP3-
compatible CD changer;
– Skips to the previous disc if pressed
briefly.
– Skips to the previous folder if pressed and
held.
Note: While playing a CD on a CD changer, this
always skips to the previous disc.
4Functions the same as the control dial on the
main unit.
Note: These buttons do not function for the
preferred setting mode adjustment.
5Selects the sound mode (iEQ: intelligent
equalizer).
Each time you press the button, the sound
mode (iEQ) changes.
6Selects the source.
Each time you press the button, the source
changes.
7• Searches for stations while listening to the
radio.
• Fast-forwards or reverses the track/file if
pressed and held while listening to a disc.
• Skips to the beginning of the next track/file
or goes back to the beginning of the current
(or previous) tracks/files if pressed briefly
while listening to a disc.
1• Turns on the unit if pressed when the unit is
turned off.
• Turns off the unit if pressed and held for a
few seconds.
• Drops the volume level in a moment if
pressed briefly.
Press again to resume the volume.
2• Selects the band while listening to the radio.
Each time you press the button, the band
changes.
• While playing an MP3 disc on an MP3-
compatible CD changer;
– Skips to the next disc if pressed briefly.
– Skips to the next folder if pressed and
held.
Note: While playing a CD on a CD changer, this
always skips to the next disc.
SOUND
VOL VOL
SOURCE
RF
U
D
ATT
EN05-06KD-LH1150_1100[J]f.p65 1/25/03, 11:16 AM5

ENGLISH
6
Preparing the remote controller
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the main unit. Make sure there is no
obstacle in between.
• Do not expose the remote sensor to strong
light (direct sunlight or artificial lighting).
Installing the battery
When the controllable range or effectiveness of
the remote controller decreases, replace the
battery.
1. Remove the battery holder.
1) Push out the battery holder in the direction
indicated by the arrow using a ball-point
pen or a similar tool.
2) Remove the battery holder.
2. Place the battery.
Slide the battery into the holder with the +
side facing upwards so that the battery is
fixed in the holder.
Lithium coin
battery (product
number: CR2025)
Remote sensor
3. Return the battery holder.
Insert again the battery holder by pushing it
until you hear a clicking sound.
WARNING:
• Store the battery in a place where children
cannot reach.
If a child accidentally swallows the battery,
consult a doctor immediately.
• Do not recharge, short, disassemble, or heat the
battery or dispose of it in a fire.
Doing any of these things may cause the battery
to give off heat, crack, or start a fire.
• Do not leave the battery with other metallic
materials.
Doing this may cause the battery to give off
heat, crack, or start a fire.
• When throwing away or saving the battery,
wrap it in tape and insulate; otherwise, the
battery may start to give off heat, crack, or start
a fire.
• Do not poke the battery with tweezers or similar
tools.
Doing this may cause the battery to give off
heat, crack, or start a fire.
CAUTION:
DO NOT leave the remote controller in a place
(such as dashboards) exposed to direct sunlight for
a long time. Otherwise, it may be damaged.
(back side)
(back side)
EN05-06KD-LH1150_1100[J]f.p65 1/25/03, 11:16 AM6

7
ENGLISH
4 Adjust the sound as you want. (See
pages 20 – 22.)
Note:
While playing a source, you can also show the level
meter on the display. For details, see “Activating the
level meter” on page 23.
To drop the volume in a moment
Press briefly while listening to any
source. “ATT” starts flashing on the display, and
the volume level will drop in a moment.
To resume the previous volume level, press the
button briefly again.
• If you turn the control dial, you can also restore
the sound.
To turn off the power
Press and hold for more than one
second.
•If you turn off the power while listening to a
disc, disc play will start from where playback
has been stopped previously, next time you
turn on the power.
NOTICE:
The illustrations of the display used in this manual
are mainly of the initial setting when shipped from
the factory. If you have changed the display
patterns or some PSM items, the actual displays
you see will be different.
Turning on the power
1 Turn on the power.
Note on One-Touch Operation:
When you select a source in step 2 below, the
power automatically comes on. You do not have
to press this button to turn on the power.
2 Select the source.
To operate the tuner (FM or AM),
see pages 10 –14.
To play a CD,
see pages 15 –19.
To operate the CD changer,
see pages 33 –39.
To operate the external component
(LINE IN), see page 40.
3 Adjust the volume.
BASIC OPERATIONS
Volume level appears.
To increase the volume
To decrease the volume
Current sound mode (iEQ)
(see page 21)
1 3 2
EN07-09KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM7

8
ENGLISH
Canceling the display
demonstration
When shipped from the factory, display
demonstration has been activated, and starts
automatically when no operations are done for
about 20 seconds.
•It is recommended to cancel the demonstration
before you use the unit for the first time.
To cancel the display demonstration, follow
the procedure below:
1 Press and hold SEL (select) for more
than 2 seconds so that one of the
PSM items appears on the display.
(PSM: see pages 24 and 25.)
The next-step-operation
buttons start flashing.
2 Press number button 1 to select
“MOVIE”—Movie category of the
PSM settings.
The “Graphics”setting screen appears on
the display.
3 Select “Off.”
4 Finish the setting.
To activate the display demonstration, repeat
the same procedure and select “All Demo”or “Int
Demo”in step 3 .
•For more details, see “To set the movie
demonstration—Graphics”on page 26.
Off
Int DemoAll Demo
EN07-09KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM8

9
ENGLISH
Setting the clock
You can also set the clock system to either
24 hours or 12 hours.
1 Press and hold SEL (select) for more
than 2 seconds so that one of the
PSM items appears on the display.
(PSM: see pages 24 and 25.)
The next-step-operation
buttons start flashing.
2 Press number button 2 to select
“CLOCK”—Clock category of the
PSM settings.
The “Clock Hr”(hour) setting screen
appears on the display.
3 Adjust the hour.
4 Set the minute.
1Select “Clock Min”(minute).
2Adjust the minute.
12
5 Set the clock system.
1Select “24H/12H.”
2Select “24Hours”or “12Hours.”
12
6 Finish the setting.
To check the current clock time when the unit
is turned off, press D (DISP).
The power turns on and the clock time is shown
for 5 seconds, then the power turns off.
EN07-09KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM9

10
ENGLISH
RADIO OPERATIONS
Listening to the radio
You can use either automatic searching or manual
searching to tune in to a particular station.
Searching a station automatically:
Auto search
1 Select the band (FM1 – 3, AM).
Each time you press the
button, the band changes as
follows:
Note:
This receiver has three FM bands (FM1, FM2,
FM3). You can use any one of them to listen to
an FM broadcast.
2 Start searching a station.
When a station is received, searching stops.
To stop searching before a station is received,
press the same button you have pressed for
searching.
Searching a station manually:
Manual search
1 Select the band (FM1 – 3, AM).
Each time you press the
button, the band changes as
follows:
Note:
This receiver has three FM bands (FM1, FM2,
FM3). You can use any one of them to listen to an
FM broadcast.
2 Press and hold ¢or 4
until “Manual Search” starts flashing
on the display.
Selected band appears.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
To search stations of
higher frequencies
To search stations of lower frequencies
FM1 FM2 FM3 AM
FM1 FM2 FM3 AM
EN10-14KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM10

11
ENGLISH
3 Tune in to a station you want while
“Manual Search” is flashing.
• If you release your finger from the button,
the manual mode will automatically turns
off after 5 seconds.
• If you hold down the button, the frequency
keeps changing (in 200 kHz intervals for
FM and 10 kHz for AM) until you release
the button.
When an FM stereo broadcast is hard to
receive:
1Press M (MODE) while listening to an FM
stereo broadcast.
“Mode” appears on the display.
The next-step-operation buttons
start flashing.
2Press number button 1 to select “Mono On”
while “Mode” is still on the display.
Each time you press the button, “Mono On” and
“Mono Off” appears alternately.
When “Mono On” is selected, the MONO
indicator lights up on the display, the sound you
hear becomes monaural but the reception will be
improved.
To tune in to stations
of higher frequencies
To tune in to stations of lower frequencies
If the sound quality decreases and the
stereo effect is lost while listening to an
FM station
In some areas, adjacent stations may
interfere with each other. If this interference
occurs, this unit can automatically reduce this
interference noise (the initial setting when
shipped from the factory). However, in this
case, the sound quality will be degraded and
the stereo effect will also be lost.
If you do not want to degrade the sound
quality and to lose the stereo effect, rather
than to eliminate the interference noise, see
“To change the FM tuner selectivity—IF Filter”
on page 27.
Storing stations in memory
You can use one of the following two methods to
store broadcasting stations in memory.
• Automatic preset of FM stations: SSM (Strong-
station Sequential Memory)
• Manual preset of both FM and AM stations
FM station automatic preset: SSM
You can preset 6 local FM stations in each FM
band (FM1, FM2, and FM3).
1 Select the FM band (FM1 – 3) you
want to store FM stations into.
Each time you press the
button, the band changes as
follows:
FM1 FM2 FM3 AM
CONTINUED ON THE NEXT PAGE
EN10-14KD-LH1150_1100[J]f.p65 1/27/03, 10:55 AM11

12
ENGLISH
2 Start automatic preset.
1Press M (MODE).
“Mode” appears on the display.
The next-step-operation
buttons start flashing.
2Press and hold number button 5, while
“Mode” is still on the display.
Local FM stations with the strongest signals are
searched and stored automatically in the band
number you have selected (FM1, FM2, or FM3).
These stations are preset in the number buttons
—No.1 (lowest frequency) to No.6 (highest
frequency).
When automatic preset is over, the station stored
in number button 1 will be automatically tuned in.
Manual preset
You can preset up to 6 stations in each band
(FM1, FM2, FM3, and AM) manually.
Ex.: Storing FM station of 88.3 MHz into the
preset number 1 of the FM1 band.
1 Select the band (FM1 – 3, AM) you
want to store stations into (in this
example, FM1).
Each time you press the
button, the band changes as
follows:
FM1 FM2 FM3 AM
“–SSM–” appears, then disappears
when automatic preset is over.
2 Tune in to a station (in this example,
of 88.3 MHz).
3 Press and hold the number button
(in this example, 1) for more than
2 seconds.
4 Repeat the above procedure to store
other stations into other preset
numbers.
Notes:
• A previously preset station is erased when a new
station is stored in the same preset number.
• Preset stations are erased when the power supply to
the memory circuit is interrupted (for example,
during battery replacement). If this occurs, preset
the stations again.
The display pattern automatically changes
to the small animation display (see page
14). The preset number flashes for about
5 seconds, then the previous display pattern
resumes.
To tune in to stations
of higher frequencies
To tune in to stations of lower frequencies
EN10-14KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM12

13
ENGLISH
Selecting a preset station using the
preset station list
If you forget what stations are stored in what
preset numbers, you can check the preset station
list, then select your desired station.
1 Select the band (FM1 – 3, AM).
Each time you press the
button, the band changes as
follows:
2 Press and hold 5(up) or ∞(down)
until the preset station list for the
current band (FM1, FM2, FM3, or AM)
appears on the display.
Notes:
• You can show the other FM band preset station lists
(FM1, FM2, or FM3) by pressing 5(up) or ∞
(down).
• If a name has been assigned to a station (see page
31), it will be shown instead of the station
frequency.
3 Select the number (1 – 6) for the
preset station you want.
FM1 FM2 FM3 AM
Tuning in to a preset station
You can easily tune in to a preset station.
Remember that you must store stations first. If
you have not stored them yet, see “Storing
stations in memory” on pages 11 and 12.
Selecting a preset station directly
1 Select the band (FM1 – 3, AM).
Each time you press the
button, the band changes as
follows:
2 Select the number (1 – 6) for the
preset station you want.
Note:
You can also use the 5(up) or ∞(down) button on
the unit to select the next or previous preset stations.
Each time you press the 5(up) or ∞(down) button,
the next or previous preset station is tuned in.
FM1 FM2 FM3 AM
EN10-14KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM13

14
ENGLISH
Changing the display pattern
By pressing D (DISP), you can change the information shown on the display.
Each time you press the button, the display patterns change as follows:
Small animation
display 1
Small animation
display 2
Large animation display
Clock time display
If a name has been assigned to a
station it will be shown instead of
“NO NAME.”
Current sound
mode (iEQ)
(see page 21)
Clock time
EN10-14KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM14

15
ENGLISH
Playing a CD
1 Open the control panel.
Note on One-Touch Operation:
When a CD is already in the loading slot,
pressing CD/CD-CH turns on the unit and starts
playback automatically.
2 Insert a CD into the loading slot.
The unit turns on,
draws the CD and
starts playback
automatically.
3 Close the control panel by hand.
All tracks will be played repeatedly until you
stop playback.
CD OPERATIONS
Notes:
• When a CD is inserted upside down, the CD
automatically ejects (if the control panel is open).
If the control panel is closed, the source changes to
the previously selected source, “Please Eject”
flashes on the display.
• If there is no CD in the loading slot, you cannot
select CD as the source. “No Disc” flashes on the
display.
Current track and elapsed playing time
Total track number and total
playing time of the inserted disc
The display changes to show the following:
EN15-19KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM15

16
ENGLISH
To stop play and eject the CD
Press 0.
CD play stops and the control panel flips down.
The CD automatically ejects from the loading
slot. The source changes to the previously
selected source.
• If you change the source, CD play also stops
(without ejecting the CD).
Next time you select “CD” as the source, CD
play starts from where playback has been
stopped previously.
Notes:
•If the ejected disc is not removed for about
15 seconds, the disc is automatically inserted again
into the loading slot to protect it from dust.
(Disc play will not start this time.)
•You can eject the disc even when the unit is turned
off.
Locating a track or a
particular portion on a CD
To fast-forward or reverse the track
To go to the next or previous tracks
To go to a particular track directly
Press the number button corresponding to the
track number to start its playback.
• To select a track number from 1 – 6:
Press 1 (7) – 6 (12) briefly.
• To select a track number from 7 – 12:
Press and hold 1 (7) – 6 (12) for more than one
second.
To go to a track quickly
1Press M (MODE) while playing a CD.
“Mode” appears on the display.
The next-step-operation buttons
start flashing.
2Press 5(up) or ∞(down).
* The first time you press 5(up) or ∞(down)
button, the track skips to the nearest higher
or lower track with a track number of multiple
ten (ex. 10th, 20th, 30th).
Then each time you press the button, you can
skip 10 tracks (see “How to go to the desired
track quickly” on page 17).
• After the last track, the first track will be
selected, and vice versa.
Press and hold ¢,
while playing a CD, to
fast-forward the track.
Press and hold 4, while playing a CD, to
reverse the track.
Press ¢briefly, while
playing a CD, to go ahead
to the beginning of the next
track.
Each time you press the
button consecutively, the
beginning of the next tracks
is located and played back.
Press 4briefly, while playing a CD, to go
back to the beginning of the current track.
Each time you press the button consecutively,
the beginning of the previous tracks is located
and played back.
To skip 10 tracks* forwards to
the last track
To skip 10 tracks* backwards to
the first track
EN15-19KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM16

17
ENGLISH
To play back tracks repeatedly
(Track Repeat Play)
You can play back the current track repeatedly.
1Press M (MODE) while playing a CD.
“Mode”appears on the display.
The next-step-operation buttons
start flashing.
2Press number button 2, while “Mode”is still on
the display.
Each time you press the button, “Repeat
Track”or “Repeat Off”appears alternately.
When track repeat play is turned on, the
(track repeat) indicator lights up on the display.
The current track starts playing repeatedly.
To cancel track repeat play, select “Repeat Off”
by pressing number button 2 repeatedly or press
number button 4 in step 2.
How to go to the desired track quickly
•Ex. 1: To select track number 32 while
playing track number 6
•Ex. 2 : To select track number 8 while
playing track number 36
Selecting CD playback modes
To play back tracks at random
(Disc Random Play)
You can play back all tracks on the CD at
random.
1Press M (MODE) while playing a CD.
“Mode”appears on the display.
The next-step-operation buttons
start flashing.
2Press number button 3, while “Mode”is still on
the display.
Each time you press the button, “Random
Disc”or “Random Off”appears alternately.
When disc random play is turned on, the
(disc random) indicator lights up on the display. A
track randomly selected starts playing.
To cancel disc random play, select “Random
Off”by pressing number button 3 repeatedly or
press number button 4 in step 2.
(Three times) (Twice)
Track 6 \10 \20 \30 \31 \32
Track 36 \30 \20 \10 \9 \8
(Three times) (Twice)
EN15-19KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM17

18
ENGLISH
Prohibiting CD ejection
You can prohibit CD ejection and can lock a CD
in the loading slot.
While pressing CD/CD-CH, press and
hold for more than 2 seconds.
“No Eject”flashes on the display for about
5 seconds, and the CD is locked and cannot be
ejected.
To cancel the prohibition and unlock the CD
While pressing CD/CD-CH, press and hold
again for more than 2 seconds.
“Eject OK”flashes on the display for about
5 seconds, and the CD is unlocked.
To play back only intros (Track Intro Scan)
You can play back the first 15 seconds of each
track sequentially.
1Press M (MODE) while playing a CD.
“Mode”appears on the display.
The next-step-operation buttons
start flashing.
2Press number button 1, while “Mode”is still on
the display.
Each time you press the button, “Intro Track”
or “Intro Off”appears alternately.
When track intro scan is turned on, the
(track intro) indicator lights up on the display. The
first 15 seconds of each track is played
sequentially.
To cancel track intro scan, select “Intro Off”by
pressing number button 1 repeatedly or press
number button 4 in step 2.
EN15-19KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM18

19
ENGLISH

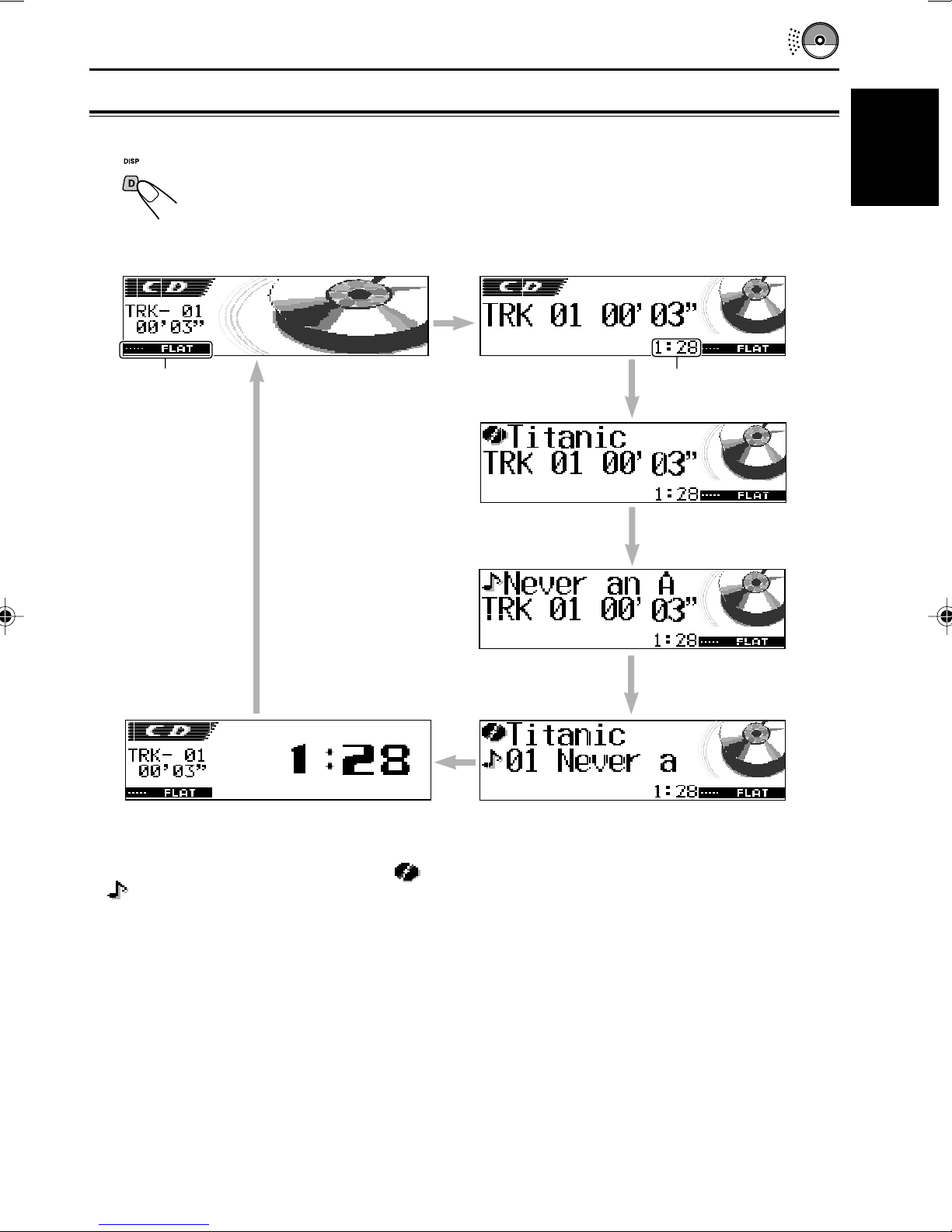

Changing the display pattern
By pressing D (DISP), you can change the information shown on the display.
Each time you press the button, the display patterns change as follows:
Notes:
•When the disc title/performer is shown, the (disc) indicator lights up. When the track title is shown, the
(track) indicator lights up.
•If the information cannot be shown at a time, it will scroll on the display.
Some characters or symbols will not be shown (will be blanked or substituted) on the display.
•If no name is assigned to the conventional CD, “NO NAME”will appear.
To assign a name to a conventional CD, see page 31.
•If no disc title/performer or no track title is recorded for the CD Text, “NO NAME”will appear.
Small animation
display 2
Small animation display 1Large animation display
Small animation
display 3
Small animation
display 4
Clock time
display
Current sound
mode (iEQ)
(see page 21)
Clock time
EN15-19KD-LH1150_1100[J]f.p65 1/25/03, 11:17 AM19

20
ENGLISH
SOUND ADJUSTMENTS
Adjusting the sound
You can adjust the sound characteristics to your
preference.
• “Vol Adj” setting is required for each source
except FM. Before starting “Vol Adj,” select an
appropriate source for which you want to make
an adjustment.
1 Select the item you want to adjust.
The next-step-operation
buttons start flashing.
Each time you press SEL
(select), the adjustable items
change as follows:
Indication To do: Range
Fad*1Adjust the front R06 (Rear only)
and rear speaker |
balance. F06 (Front only)
Bal Adjust the left L06 (Left only)
and right speaker |
balance. R06 (Right only)
Sub Out*2Adjust the 00 (min.)
subwoofer output |
level and cutoff 12 (max.)
frequency level. Low/Mid/High
Vol Adj*3Adjust and store –12 (min.)
the input level |
of each source. +12 (max.)
*1If you are using a two-speaker system, set the fader
level to “00.”
*2Only for KD-LH1150:
This takes effect only when a subwoofer is
connected.
*3By adjusting the input level to match it to the FM
sound level, you will not need to adjust the volume
level each time you change the source. This
adjustment is memorized for each source except
FM.
2 Make adjustments.
• To adjust fader and balance—Fad, Bal:
You can make these two adjustments at
the same time, by referring to the
indication on the display.
• Press 5(up) or ∞(down)
to adjust the fader.
• Press ¢or 4
to adjust the balance.
• To adjust subwoofer output—Sub Out:
(only for KD-LH1150)
You can also set an appropriate cutoff
frequency level according to the subwoofer
connected.
• Press ¢or 4to select “Low,”
“Mid,” or “High.”
Low: Frequencies higher than 50 Hz are
cut off to the subwoofer.
Mid: Frequencies higher than 80 Hz are
cut off to the subwoofer.
High: Frequencies higher than 115 Hz
are cut off to the subwoofer.
Fad (Fader)
Bal (Balance)
Vol Adj
(Volume Adjustment)
Canceled
Sub Out
(Subwoofer Output)
only for KD-LH1150
To decrease the level
To increase the level
Canceled
Only for KD-LH1150
EN20-23KD-LH1150_1100[J]f.p65 1/25/03, 11:18 AM20
