JVC RX-8010RBK User manual

For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT0618-004A
[B]
RX-8010RBK / RX-8012RSL
AUDIO/VIDEO CONTROL RECEIVER
CONTROL +
−+ −+ −
231
564
89
7/P
0+1010
LINEDIF.ECT BOOST EFFECT
MENU
ENTER
SIZE
ROOMBASS
MODE TEST CTRTONE
LIVENESS
MIDNIGHT
SOUND ∗SUBWFR
∗DIGITALEQ ∗REAR L ∗REARR
∗L/R BAL ∗CENTER
MUTING
CH/∗LEVEL TVVOL
PLAY
STOP
/REW FF/
EXIT
∗BALL
∗BALR
VOLUME
CATV/DBS
CONTROL
TV/VIDEO
MENU
TEXT
REC
DISPLAY
PAUSE
PAUSE
SET
RETURN FMMODE 100+
CONTROL
A/V CONTROL RECEIVER
CATV/DBS VCR 1 TV AUDIO
DSP
MODE INPUTON/OFF
DVD MUILTIDVD
USB
CD
CDR
TAPE/MD
TV/DBS VIDEO PHONO
FM/AM
VCR 1 VCR 2
SURROUND
ANALOG/DIGITAL SLEEP
PTY–PTY SEARCH–PTY
DISPLAY
MODE
INSTRUCTIONS
EON TA / NEWS / INFO DISPLAY MODE
PTY SEARCH
CONTROL
DOWN UP
EFFECT SETTING
DIGITAL
EQ
TV SOUND/DBSVIDEOVCR 2VCR 1DVDDVD MULTI
MIDNIGHT MODEDSP MODE
S-VIDEO VIDEO
VIDEO
L—AUDIO—R
SURROUND ON/OFF
SUBWOOFER OUT ON/OFF
SPEAKERS ON/OFF
FM/AM TUNING FM/AM PRESET FM MODE
MEMORY
PHONES
1
STANDBY
USB AUDIO
PUSH OPEN
INPUT
ANALOG/DIGITAL
INPUT ATT
FM / AMUSB AUDIOTAPE / MDCDRCDPHONO
LEVEL
ADJUST
AUDIO/VIDEO CONTROL RECEIVER
LINE DIRECT
BASS BOOST
MASTER VOLUME
DIGITAL
SURROUND DIGITAL
2
SOUCE NAME
SOUCE NAME
STANDBY/ON
DIGITAL
RX-8010&8012R[B]COVER_f 01.3.19, 2:01 PM1

G-1
Warnings, Cautions and Others
IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment. If the plug
fitted is not suitable for the power points in your home or the
cable is too short to reach a power point, then obtain an
appropriate safety approved extension lead or consult your
dealer.
BE SURE to replace the fuse only with an identical approved
type, as originally fitted.
If nonetheless the mains plug is cut off ensure to remove the
fuse and dispose of the plug immediately, to avoid a possible
shock hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug then follow
the instructions given below:
IMPORTANT.
DO NOT make any connection to the terminal which is marked
with the letter E or by the safety earth symbol or coloured green
or green-and-yellow.
The wires in the mains lead on this product are coloured in
accordance with the following code:
Blue : Neutral
Brown : Live
As these colours may not correspond with the coloured
markings identifying the terminals in your plug proceed as
follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
Caution –– switch!
Disconnect the mains plug to shut the power off completely.
The switch in any position does not disconnect the mains
line. The power can be remote controlled.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get
out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
• When discarding batteries, environmental problems must
be considered and local rules or laws governing the
disposal of these batteries must be followed strictly.
• Do not use this apparatus in a bathroom or places with
water. Also do not place any containers filled with water or
liquids (such as cosmetics or medicines, flower vases,
potted plants, cups, etc.) on top of this apparatus.
RX-8010&8012R[B]SAFETY_f 01.3.19, 2:00 PM1

G-2
SAFETY INSTRUCTIONS
“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be
taken if you are to obtain the best results and safety is to be assured.
Do read the operating instructions before you attempt to use the equipment.
Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are
properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing
connections.
Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
Do be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way–switch off, withdraw
the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages.
DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has
a standby mode.
Switch off using the switch on the equipment and make sure that your family know how to do this.
Special arrangements may need to be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch
television whilst driving.
DON’T listen to headphones at high volume as such use can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.
Overheating will cause damage and shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved
stand or legs with the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or moisture.
ABOVE ALL
— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case -this could result in a fatal
electrical shock.;
— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

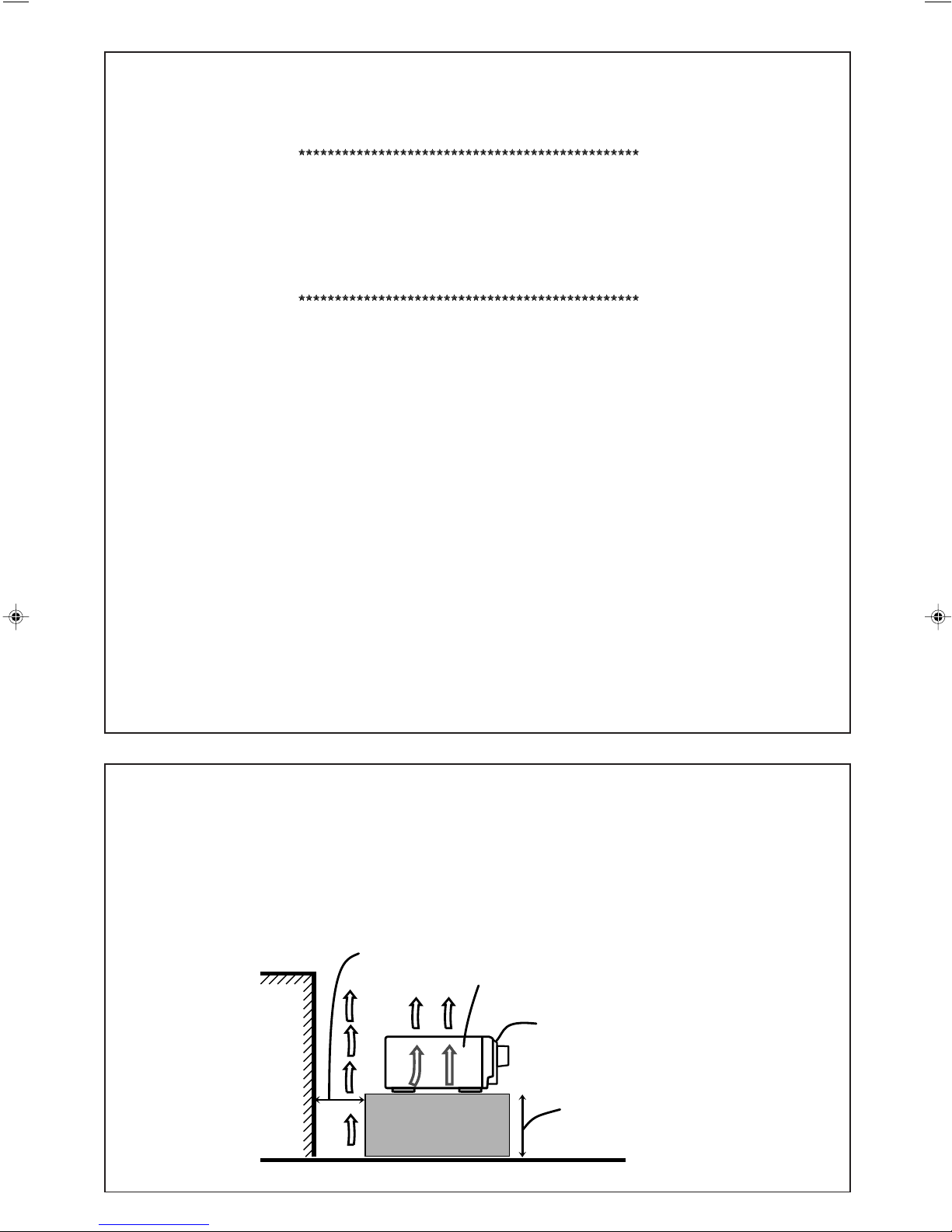

Wall or obstructions
Caution: Proper Ventilation
To avoid risk of electric shock and fire and to protect from damage.
Locate the apparatus as follows:
Front: No obstructions open spacing.
Sides: No obstructions in 10 cm from the sides.
Top: No obstructions in 10 cm from the top.
Back: No obstructions in 15 cm from the back
Bottom: No obstructions, place on the level surface.
In addition, maintain the best possible air circulation as illustrated.
Floor
Spacing 15 cm or more
Front
Stand height 15 cm or more
RX-8010RBK/
RX-8012RSL
RX-8010&8012R[B]SAFETY_f 01.3.19, 2:00 PM2

1
Table of Contents
Creating a Surround Field in Your Room....... 28
7Surround modes.................................................................... 28
7DSP modes ........................................................................... 28
Reproducing the Sound Field .................................................... 29
Available DSP ModesAccording to the SpeakerArrangement .. 30
Adjusting the Surround Modes ................................................ 31
Adjusting the DAP Modes ....................................................... 32
Adjusting the Surround Modes with the DAP Modes.............. 34
Adjusting the 5 CH/4 CH Stereo Mode ................................... 36
Adjusting the 3D-PHONIC Modes .......................................... 37
Using the DVD MULTI Playback Mode .......... 39
Activating the DVD MULTI Playback Mode .......................... 39
Using the On-Screen Menus........................ 40
7Showing the MENU on the TV Screen ................................ 40
7Activating the Surround Modes ............................................ 40
7Activating the DSP Modes ................................................... 40
7Selecting the Analog or Digital Input Mode........................... 40
7Adjusting the Equalization Pattern ....................................... 41
7Adjusting the Surround and DSP Modes.............................. 41
7Adjusting the DVD MULTI Playback Mode........................ 42
7Listening at Night — Midnight Mode.................................. 42
7Attenuating the Input Signal................................................. 42
7Selecting the Line Direct Function....................................... 43
7Selecting the Bass Boost Function ....................................... 43
7Activating the Subwoofer Sound .......................................... 43
7Operating the Tuner .............................................................. 43
7Storing the Preset Stations.................................................... 44
7Setting the Basic Setting Items............................................. 44
COMPU LINK Remote Control System ......... 45
TEXT COMPU LINK Remote Control System .. 46
7Showing the Disc Information on the TV Screen................. 47
7Searching for a Disc (Only for the CD player) .................... 48
7Entering the Disc Information .............................................. 49
Operating JVC’s Audio/Video Components ... 51
Operating Audio Components.................................................. 51
Operating Video Components .................................................. 53
Operating Other Manufacturers’ Video
Equipment ............................................ 54
Troubleshooting......................................... 57
Specifications............................................ 59
Parts Identification...................................... 2
Getting Started........................................... 3
Before Installation ...................................................................... 3
Checking the Supplied Accessories ........................................... 3
Connecting the FM and AM (MW/LW) Antennas..................... 3
Connecting the Speakers ............................................................ 4
Connecting Audio/Video Components....................................... 5
7Analog Connections ............................................................... 5
7Digital Connections ................................................................ 8
7USB Connection..................................................................... 9
Connecting the Power Cord ..................................................... 10
Putting Batteries in the Remote Control .................................. 10
Basic Operations ....................................... 11
Turning the Power On and Off (Standby) ................................ 11
Selecting the Source to Play..................................................... 11
Adjusting the Volume ............................................................... 12
Selecting the Front Speakers .................................................... 13
Muting the Sound ..................................................................... 13
Listening at Night — Midnight Mode ..................................... 13
Activating the Subwoofer Sound ............................................. 14
Reinforcing the Bass ................................................................ 14
Attenuating the Input Signal .................................................... 14
Selecting the Line Direct Function .......................................... 14
Adjusting the Equalization Patterns ......................................... 15
Using the Sleep Timer .............................................................. 15
Recording a Source .................................................................. 15
Basic Settings........................................... 16
Adjusting the Front Speaker Output Balance........................... 16
Changing the Source Name...................................................... 16
Setting the Subwoofer Information .......................................... 17
Adjusting the Subwoofer Output Level.................................... 17
Setting the Speakers for a Surround Field................................ 17
Digital Input (DIGITAL IN) Terminal Setting ......................... 19
Selecting the Analog or Digital Input Mode ............................ 20
Showing the Text Information on the Display ......................... 22
Basic Setting and Adjustment — Auto Memory...................... 22
Receiving Radio Broadcasts ........................ 23
Tuning in Stations Manually .................................................... 23
Using Preset Tuning ................................................................. 23
Selecting the FM Reception Mode........................................... 24
Using the RDS (Radio Data System) to
Receive FM Stations .......................................................... 25
Searching for a Program by PTY Codes .................................. 25
Switching to a Broadcast Program of
Your Choice Temporarily................................................... 27
EN01_10.RX-8010&8012R_f 01.3.19, 2:04 PM1

2

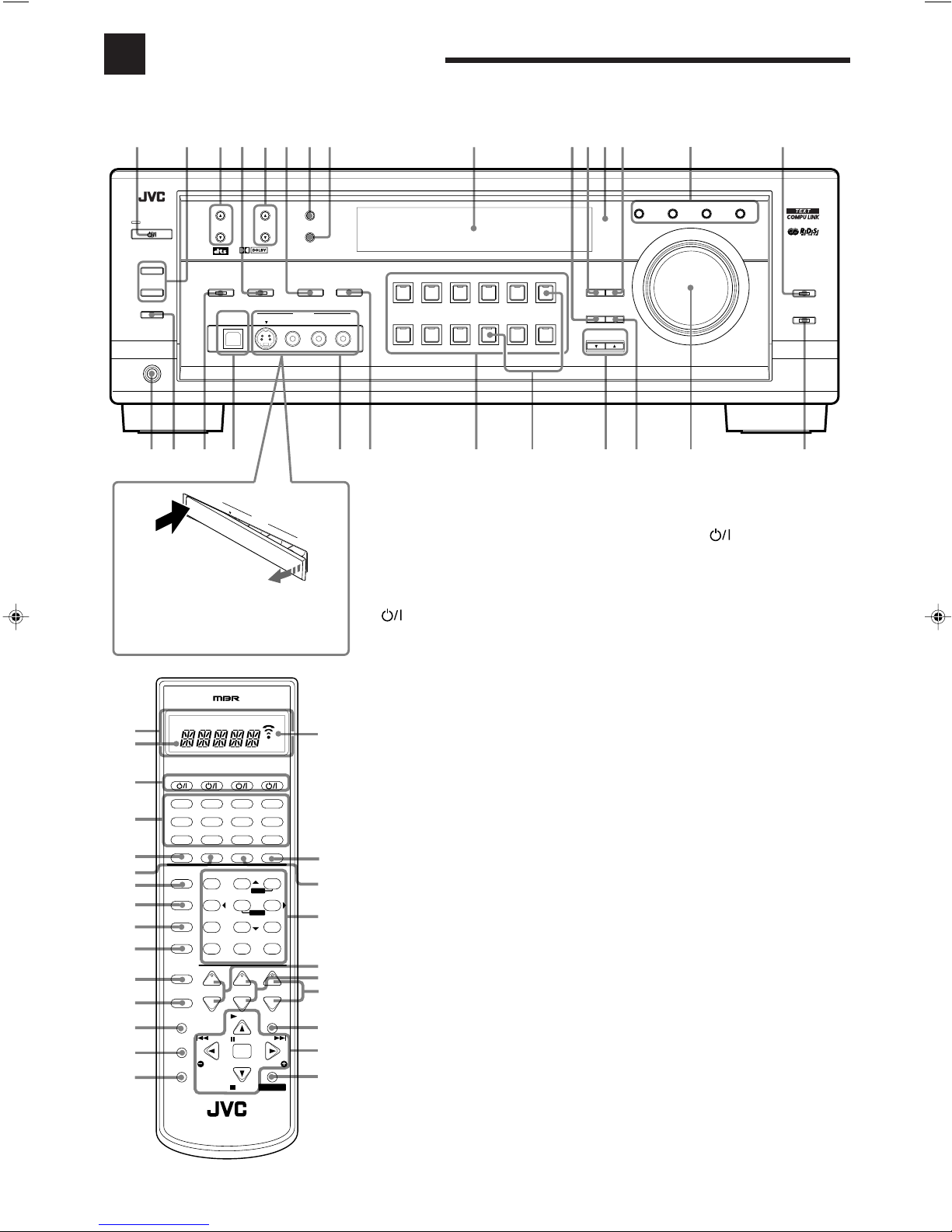

Parts Identification
Become familiar with the buttons and controls on the receiver before use.
Refer to the pages in parentheses for details.
Front Panel
1STANDBY/ON button and STANDBY
lamp (11)
2• SPEAKERS ON/OFF 1 button (13)
• SPEAKERS ON/OFF 2 button (13)
3FM/AM TUNING 5/∞buttons (23)
4DSP MODE button and lamp (30, 32 – 37 )
5FM/AM PRESET 5/∞buttons (23, 24)
6• INPUT ANALOG/DIGITAL button (20)
• INPUTATT button (14)
7FM MODE button (24)
8MEMORY button (23)
9Display (11)
pEFFECT button (32 – 38)
qDIGITAL EQ button (15)
wRemote sensor (10)
eLEVEL ADJUST button (16, 17, 32 – 39)
rRDS operation buttons (25 – 27)
EON, PTY SEARCH, TA/NEWS/INFO,
DISPLAY MODE
tLINE DIRECT button and lamp (14)
yPHONES jack (13)
uSUBWOOFER OUT ON/OFF button (14)
iSURROUND ON/OFF button and lamp (30, 32,
35)
oUSB AUDIO terminal (9)
;VIDEO input terminals (7)
aMIDNIGHT MODE button (13)
sSource selecting buttons and lamps (11)
DVD MULTI, DVD,VCR 1, VCR 2, VIDEO, TV
SOUND/DBS, PHONO, CD, CDR, TAPE/MD,
USB AUDIO, FM/AM
dSOURCE NAME buttons (16)
fCONTROL UP 5/DOWN ∞buttons
gSETTING button (17 – 19, 22)
hMASTER VOLUME control (12)
jBASS BOOST button and lamp (14)
*These buttons function only after pressing
10 keys on the remote control which are
marked with an asterisk (*).
Remote Control
1Display window (11)
a. Remote control operation mode indicator
b. Signal transmission indicator
Lights up when transmitting the remote
control signal.
2buttons (11, 53 – 56)
CATV/DBS, VCR 1, TV, AUDIO
3Source selecting buttons (11)
DVD,DVDMULTI,CD,FM/AM,TV/DBS,VIDEO,
CDR, PHONO,VCR 1,VCR 2, TAPE/MD, USB
4SURROUND ON/OFF button (30, 31, 34)
5DSP MODE button (30, 33 – 38)
6LINE DIRECT button (14)
7MIDNIGHT MODE button (13)
8SOUND button (14 – 17, 31 – 39, 51)
9MUTING button (13)
0CATV/DBS CONTROL button (55)
-TV/VIDEO button (53, 54)
=MENU button (40 – 44)
~TEXT DISPLAY button (47 – 50)
!REC PAUSE button (52, 53, 55)
@SLEEP button (15)
#ANALOG/DIGITAL INPUT button (21)
$• 10 keys for selecting preset channels (24)
• 10 keys for adjusting sound (14 – 17, 31 – 39,
51)
• 10 keys for operating audio/video components
(51 – 56)
%• LEVEL +/– buttons*(15, 17, 31 – 39)
• BAL L and BAL R buttons*(16)
• CH +/– buttons (53 – 55)
^TV VOL +/– buttons (53, 54)
&VOLUME +/– buttons (12)
*EXIT button (40 – 44, 47 – 49)
(• RDS operation buttons (25 – 27, 51)
PTY SEARCH, PTY +/–, DISPLAY MODE
• On screen operation buttons (40 – 44, 47– 50)
• Operating buttons foraudio/video components
(51 – 56)
)CONTROL button (51 – 53)
;
o
iy
2
134578 9pqwer
uasd
6
g
fj
h
t
CONTROL
DOWN UP
EFFECT SETTING
DIGITAL
EQ
TV SOUND/DBSVIDEOVCR 2VCR 1DVDDVD MULTI
MIDNIGHT MODEDSP MODE
S-VIDEO VIDEO
VIDEO
L—AUDIO—R
SURROUND ON/OFF
SUBWOOFER OUT ON/OFF
SPEAKERS ON/OFF
FM/AM TUNING FM/AM PRESET FM MODE
MEMORY
2
PHONES
STANDBY
USB AUDIO
INPUT
ANALOG/DIGITAL
INPUT ATT
FM / AMUSB AUDIOTAPE / MDCDRCDPHONO
LEVEL
ADJUST
AUDIO/VIDEO CONTROL RECEIVER
LINE DIRECT
BASS BOOST
MASTER VOLUME
DIGITAL
SURROUND
DIGITAL
1
SOURCE NAME
SOURCE NAME
STANDBY/ON
EON TA / NEWS / INFO DISPLAY MODE
PTY SEARCH
S-VIDEO VIDEO
VIDEO
L—AUDIO—R
USB AUDIO
PUSH OPEN
When using the VIDEO input terminals
and/or USB AUDIO terminal on the front
panel, detach the terminal cover.
DISPLAY
MODE
PTY–PTY SEARCH–PTY
CONTROL +
−+ −+ −
231
564
89
7/P
0+1010
LINEDIF.ECT BOOST EFFECT
MENU
ENTER
SIZE
ROOMBASS
MODE TEST CTRTONE
LIVENESS
MIDNIGHT
SOUND ∗SUBWFR
∗DIGITALEQ ∗REARL ∗REARR
∗L/RBAL ∗CENTER
MUTING
CH/∗LEVEL TVVOL
PLAY
STOP
/REW FF/
EXIT
∗BALL
∗BALR
VOLUME
CATV/DBS
CONTROL
TV/VIDEO
MENU
TEXT
REC
DISPLAY
PAUSE
PAUSE
SET
RETURN FMMODE 100+
CONTROL
A/V CONTROL RECEIVER
CATV/DBS VCR 1 TV AUDIO
DSP
MODE INPUTON/OFF
DVD MUILTIDVD
USB
CD
CDR
TAPE/MD
TV/DBS VIDEO PHONO
FM/AM
VCR 1 VCR 2
SURROUND
ANALOG/DIGITAL SLEEP
5
6
7
8
9
&
^
%
$
#
@
!
=
-
1
4
3
)
*
(
0
2
~
b
a
EN01_10.RX-8010&8012R_f 01.3.19, 2:04 PM2

3
Getting Started
This section explains how to connect audio/video components and speakers to the receiver, and how to connect the
power supply.
ANTENNA
AM
EXT
AM
LOOP
FM 75
COAXIAL
AM
LOOP
ANTENNA
AM
EXT
FM 75
COAXIAL
AM
LOOP
ANTENNA
AM
EXT
FM 75
COAXIAL
B
Outdoor FM Antenna Cable
A

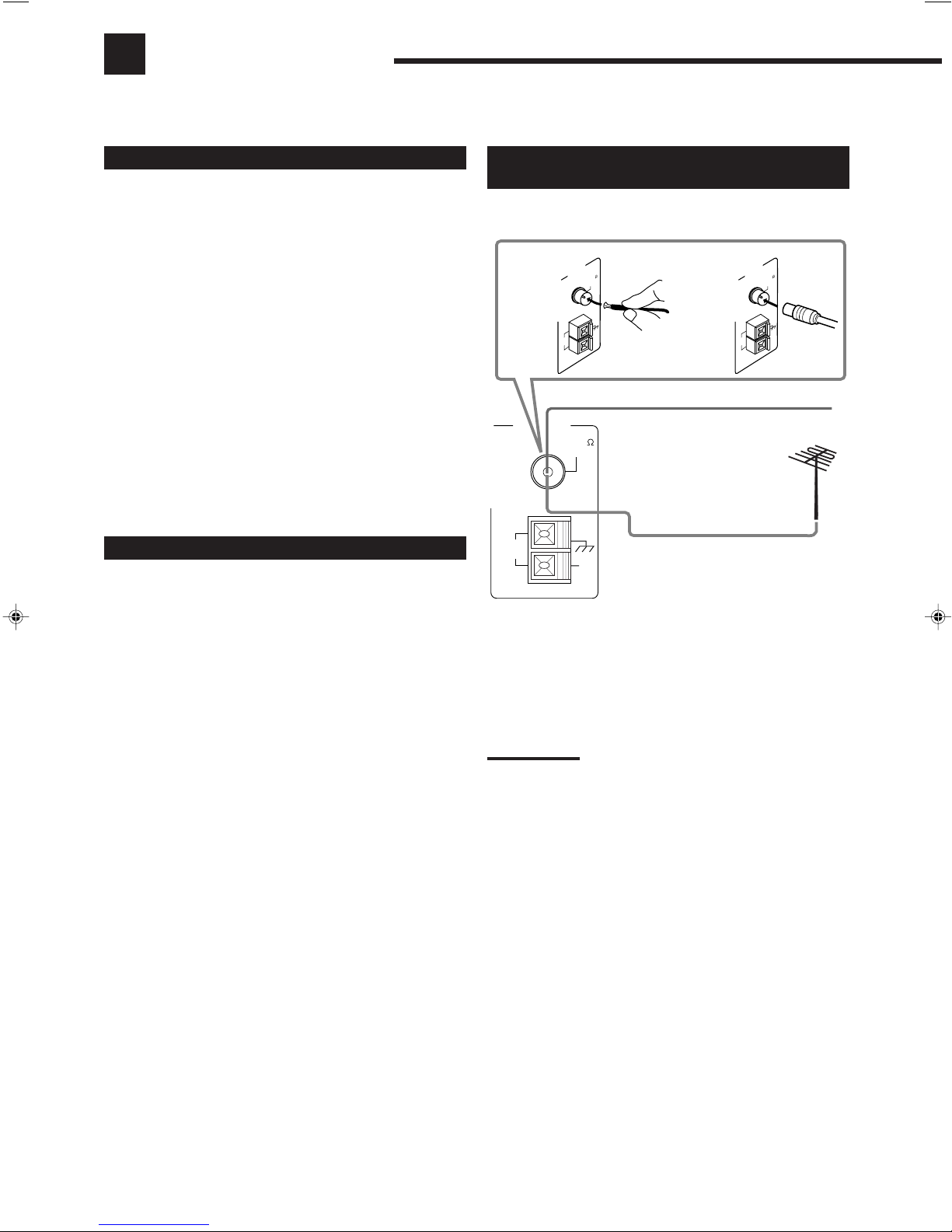

Connecting the FM and AM (MW/LW)
Antennas
FM Antenna Connections
Before Installation
General
• Be sure your hands are dry.
• Turn the power off to all components.
• Read the manuals supplied with the components you are going to
connect.
Locations
• Install the receiver in a location that is level and protected from
moisture.
• The temperature around the receiver must be between –5˚ C and
35˚ C (23˚ F and 95˚ F).
• Make sure there is good ventilation around the receiver. Poor
ventilation could cause overheating and damage the receiver.
Handling the receiver
• Do not insert any metal object into the receiver.
• Do not disassemble the receiver or remove screws, covers, or
cabinet.
• Do not expose the receiver to rain or moisture.
Checking the Supplied Accessories
Check to be sure you have all of the following items, which are
supplied with the receiver.
The number in the parentheses indicates quantity of the pieces
supplied.
• Remote Control (1)
• Batteries (2)
• AM (MW/LW) Loop Antenna (1)
• FM Antenna (1)
If anything is missing, contact your dealer immediately.
Extend the supplied FM antenna horizontally.
FM Antenna
A. Using the Supplied FM Antenna
The FM antenna provided can be connected to the FM 75 Ω
COAXIAL terminal as temporary measure.
B. Using the Standard Type Connector (Not Supplied)
A standard type connector (IEC or DIN45325) should be
connected to the FM 75 ΩCOAXIAL terminal.
Note:
If reception is poor, connect the outdoor antenna.
Before attaching a 75 Ω coaxial cable (the kind with a round wire
going to an outdoor antenna), disconnect the supplied FM antenna.
EN01_10.RX-8010&8012R_f 01.3.19, 2:04 PM3

4
Basic connecting procedure
1 Cut, twist and remove the insulation at the end of
each speaker signal cable (not supplied).
2 Turn the knob counterclockwise.
3 Insert the speaker signal cable.
4 Turn the knob clockwise.
Connecting the front speakers
You can connect two pairs of front speakers (one pair to the FRONT
SPEAKERS 1terminals, and another pair to the FRONT
SPEAKERS 2terminals).
Snap the tabs on the loop into the
slots of the base to assemble the
AM (MW/LW) loop.
1
AM (MW/LW) Antenna Connections
AM (MW/LW)
Loop Antenna
234
Turn the loop until you have the best reception.
Notes:
• If the AM (MW/LW) loop antenna wire is covered with vinyl,
remove the vinyl by twisting it as shown in the diagram.
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord.This could cause poor
reception.
• If reception is poor, connect an outdoor single vinyl-covered wire to
the AM EXT terminal. (Keep the AM (MW/LW) loop antenna
connected.)
Connecting the Speakers
You can connect the following speakers:
• Two pairs of front speakers to produce normal stereo sound.
• One pair of rear speakers to enjoy the surround effect.
• One center speaker to produce more effective surround effect (to
emphasize human voices).
• One subwoofer to enhance the bass.
IMPORTANT:
After connecting the speakers listed above, set the speaker
setting information properly to obtain the best possible
Surround and DSP effect. For details, see page 17.
For each speaker (except for a subwoofer), connect the (+) and (–)
terminals on the rear panel to the (+) and (–) terminals marked on
the speakers. For connecting a subwoofer, see page 5.
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.
ANTENNA
AM
EXT
AM
LOOP
FM 75
COAXIAL
23
1
Outdoor single vinyl-covered wire (not supplied)
Right speaker
Left speaker
Right speaker FRONT SPEAKERS 2
Left speaker
RIGHT LEFT RIGHT LEFT
+
–
CAUTION : SPEAKER IMPEDANCE
: 8 16
1
2
2
1OR
: 16 32
2
1AND
FRONT SPEAKERS
FRONT SPEAKERS 1
EN01_10.RX-8010&8012R_f 01.3.19, 2:04 PM4

5

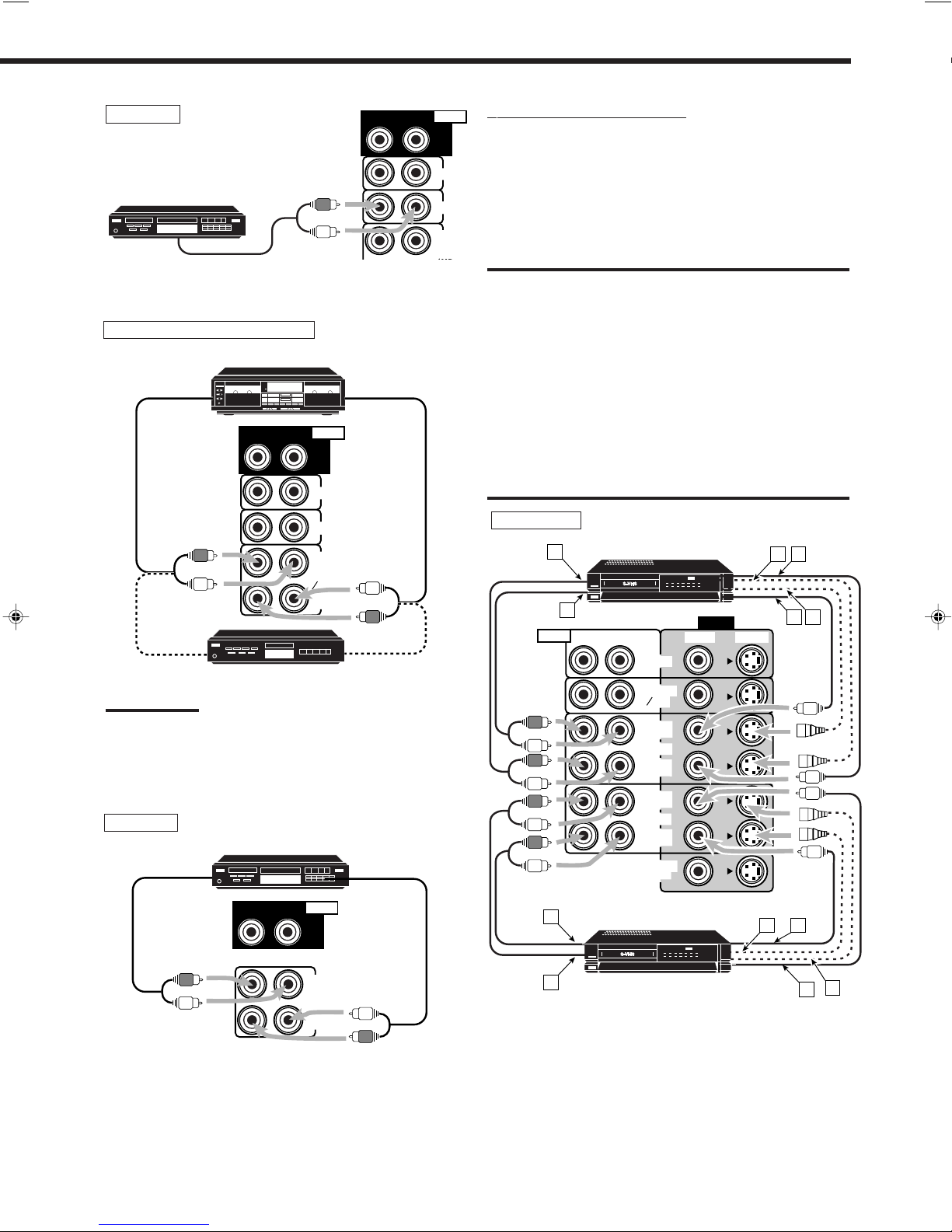

Connecting Audio/Video Components
You can connect the following audio/video components to this
receiver. Refer also to the manuals supplied with your components.
Audio Components Video Components
• Turntable • DVD player*
• CD player*•TV*
• Cassette deck or • DBS tuner*
MD recorder*• VCR(s)
• CD recorder*• Video camera
• Personal computer (PC)
* You can connect these components using the methods described in
“Analog connections” (below), or in “Digital connections” (see page
8).
Analog Connections
Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the
audio right jack.
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.

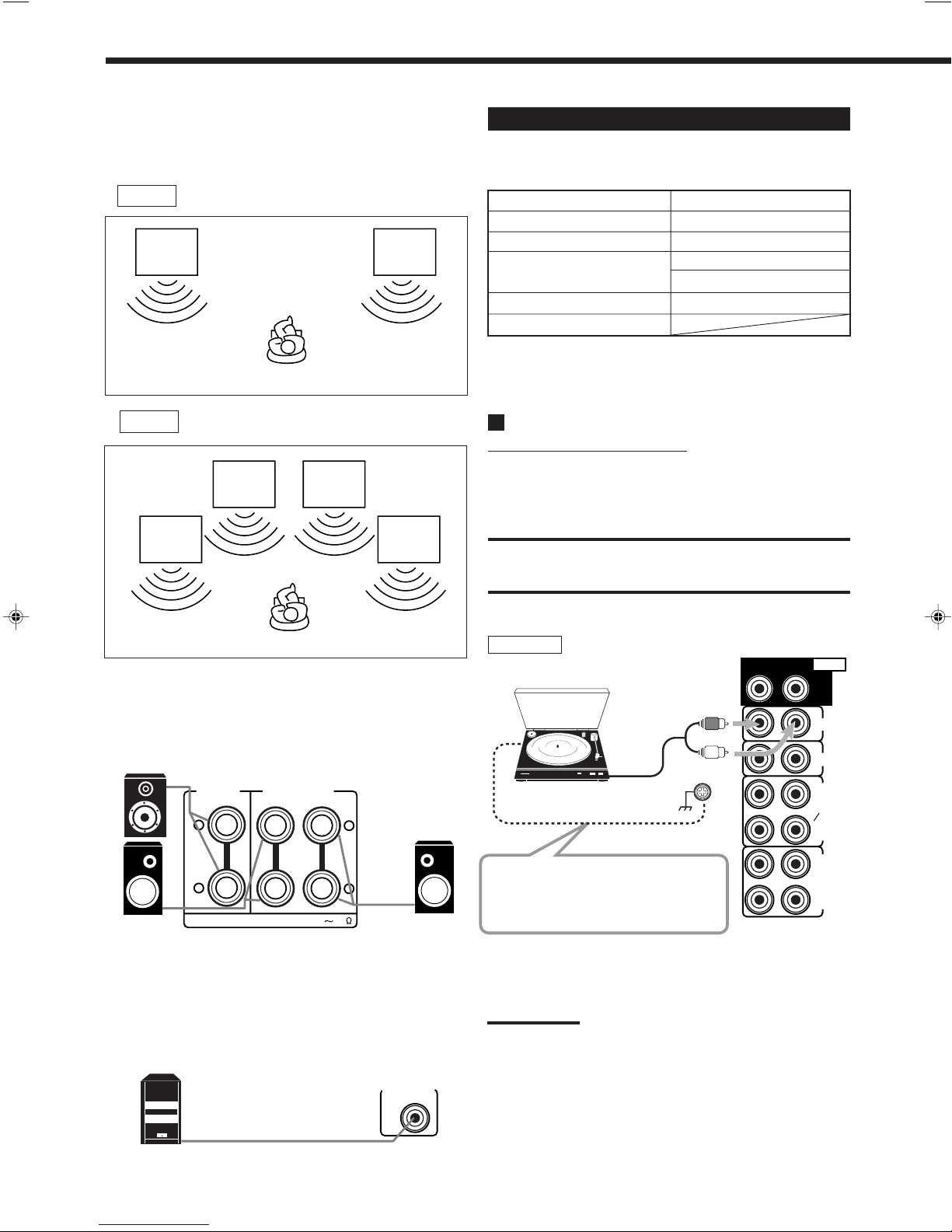

About the speaker impedance
The required speaker impedance of the front speakers does differ
depending on whether both the FRONT SPEAKERS 1and FRONT
SPEAKERS 2terminals are used or only one of them is used.
CASE 1 When you connect only one pair of front speakers
Front
speaker
1
Front
speaker
1
Use front speakers with 8 Ω– 16 Ωimpedance.
CASE 2 When you connect two pairs of front speakers
Use front speakers with 16 Ω– 32 Ωimpedance. Turntable
Turntable
To audio output
OUT
(REC)
IN
(PLAY)
IN
(PLAY)
OUT
(REC)
RIGHT LEFT
REAR
AUDIO
PHONO
TAPE
MD
CDR
CD
If an earth cable is provided for your
turntable, connect the cable to the
screw marked (H) on the rear panel.
Ex.: This connection is for the
turntable with an MM (moving-
magnet) type cartridge.
Note:
Any turntables incorporating a small-output cartridge such as an MC
(moving-coil) type must be connected to this receiver through a
commercial head amplifier or step-up transformer. Direct connection
may result in insufficient volume.
Front
speaker
2
Front
speaker
2
SUBWOOFER
OUT
Powered subwoofer
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with RCA
pin plugs (not supplied).
Connecting the rear and center speakers
Connect rear speakers to the REAR SPEAKERS terminals and a
center speaker to the CENTER SPEAKER terminals.
CENTER
SPEAKER REAR SPEAKERS
RIGHT LEFT
+
–
+
–
816
CAUTION : SPEAKER IMPEDANCE
Center speaker
Front
speaker
1
Front
speaker
1
Right rear
speaker Left rear
speaker
EN01_10.RX-8010&8012R_f 01.3.19, 2:04 PM5

6
Video component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the
audio right jack, and the yellow plug to the video jack.
If your video components have S-video (Y/C-separation) terminals,
connect them using S-video cables (not supplied). Connecting these
video components through the S-video input/output terminals will
give you better picture playback (or recording) quality.
IMPORTANT:
This receiver is equipped with both the composite video and S-video
input/output terminals for connecting video components.
You do not have to connect both the composite video and S-video
terminals.
However, remember that the video signals from the composite
video input terminals are output only through the composite
video output terminals, while the ones from the S-video input
terminals are output only through the S-video output terminals.
Therefore, if a recording video component and a playing video
component are connected to the receiver through the different video
terminals, you cannot record the picture from the playing component
on the recording component. In addition, if the TV and a playing video
component are connected to the receiver through the different video
terminals, you cannot view the playback picture from the playing
component on the TV.
A
BEF
A
B
D
E
VIDEO
FRONT
RIGHT LEFT
DVD
TV SOUND
DBS
OUT
(REC)
IN
(PLAY)
VCR1
OUT
(REC)
IN
(PLAY)
VCR2
MONITOR
OUT
S-VIDEOVIDEO
AUDIO
DC
F
C
S-VHS (or VHS) VCR
ÅTo left/right channel audio output
ıTo left/right channel audio input
ÇTo S-video output
ÎTo composite video output
‰To composite video input
ÏTo S-video input
S-VHS (or VHS) VCR
If your audio components have a COMPU LINK or TEXT
COMPU LINK jack
• See also page 45 for detailed information about the connection and
the COMPU LINK remote control system.
• See also page 46 for detailed information about the connection and
the TEXT COMPU LINK remote control system.
OUT
(REC)
IN
(PLAY)
RIGHT LEFT
REAR
AUDIO
CDR
To audio output
To audio input
CD recorder
CD recorder
To audio output
OUT
(REC)
IN
(PLAY)
IN
(PLAY)
OUT
(REC)
RIGHT LEFT
REAR
AUDIO
PHONO
TAPE
MD
CDR
CD
CD player
To audio output
To audio input
To audio input
IN
(PLAY)
OUT
(REC)
RIGHT LEFT
REAR
AUDIO
PHONO
TAPE
MD
CD
To audio output
Cassette deck
MD recorder
Cassette deck or MD recorder
Note:
You can connect either a cassette deck or an MD recorder to the
TAPE/MD jacks.When connecting an MD recorder to the TAPE/MD
jacks, change the source name, which will be shown on the display
when selected as the source, to “MD.” See page 16 for details.
CD player
VCR(s)
EN01_10.RX-8010&8012R_f 01.3.19, 2:04 PM6

7
VIDEO
FRONT
RIGHT LEFT
DVD
TV SOUND
DBS
OUT
(REC)
IN
(PLAY)
VCR1
OUT
(REC)
IN
(PLAY)
VCR2
MONITOR
OUT
S-VIDEOVIDEO
AUDIO
Video camera
TV and/or DBS tuner
When connecting the TV to the AUDIO jacks (TV SOUND/
DBS), DO NOT connect the TV’s video output to these
video input terminals.
Note:
Use a TV of PAL- or multi-color system.
VIDEO
FRONT
RIGHT LEFT
DVD
TV SOUND
DBS
S-VIDEOVIDEO
AUDIO
DBS
DBS tuner
To S-video output
Note:
When connecting the DBS tuner to the TV SOUND/DBS jacks,
change the source name, which will be shown on the display when
selected as the source, to “DBS.” See page 16 for details.
To composite
video output
To audio
output
TV
To composite video input
To S-video input
To audio output
Connect the TV to the
MONITOR OUT terminal to
view the playback picture
from the other connected
video components.
The VIDEO input terminals on the front panel are convenient when
connecting and disconnecting the equipment frequently.
To audio
output To S-video output
To composite
video output
S-VIDEO VIDEO
VIDEO
L—AUDIO—R
DVD
AED
BCF
VIDEO
DVD FRONT
SUB
WOOFER CENTER RIGHT LEFTRIGHT LEFT
REAR
AUDIO
DVD
S-VIDEOVIDEO
DVD player
• When you connect the DVD player with stereo output jacks:
DVD player
ÅTo front left/right channel audio output (or to audio mixed
output if necessary)
ıTo composite video output
ÇTo S-video output
DVD
A
B
C
VIDEO
FRONT
RIGHT LEFT
DVD
TV SOUND
DBS
S-VIDEOVIDEO
AUDIO
DVD player
• When you connect the DVD player with its analog discrete output
(5.1 CH reproduction) jacks:
ÅTo subwoofer output
ıTo center channel audio output
ÇTo rear left/right channel audio output
ÎTo front left/right channel audio output
‰To composite video output
ÏTo S-video output
EN01_10.RX-8010&8012R_f 01.3.19, 2:04 PM7
