Könner & Söhnen HEAVY DUTY KS 9200HDE ATSR User manual

Please, read this manual
carefully before use! Owner’s Manual
DIESEL GENERATOR
KS 9200HDE ATSR
KS 11-2DE ATSR
KS 13-1DEW 1/3 ATSR
KS 13-2 DEW ATSR
KS 13-2 DEW 1/3 ATSR
KS 14-1 DE ATSR
KS 14-2 DE ATSR
KS 14-2 DE 1/3 ATSR
ENG
CONTACTS

1
TABLE OF CONTENTS
1. Preface _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
2. Safety Precautions for Diesel Generator Operation _ __ _ _ _ _ 3
3. Safety Symbols _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
4. Diesel Generator Overview and Components _ _ _ _ _ _ _ _ _ _ 6
5. Scope of Supply _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
6. Generator Specications _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ __ 10-12
7. Terms of Use of Diesel Generator_ _ _ _ _ __ _ _ _ _ _ _ _ _ _ 13
8. Check Before Getting Started _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14

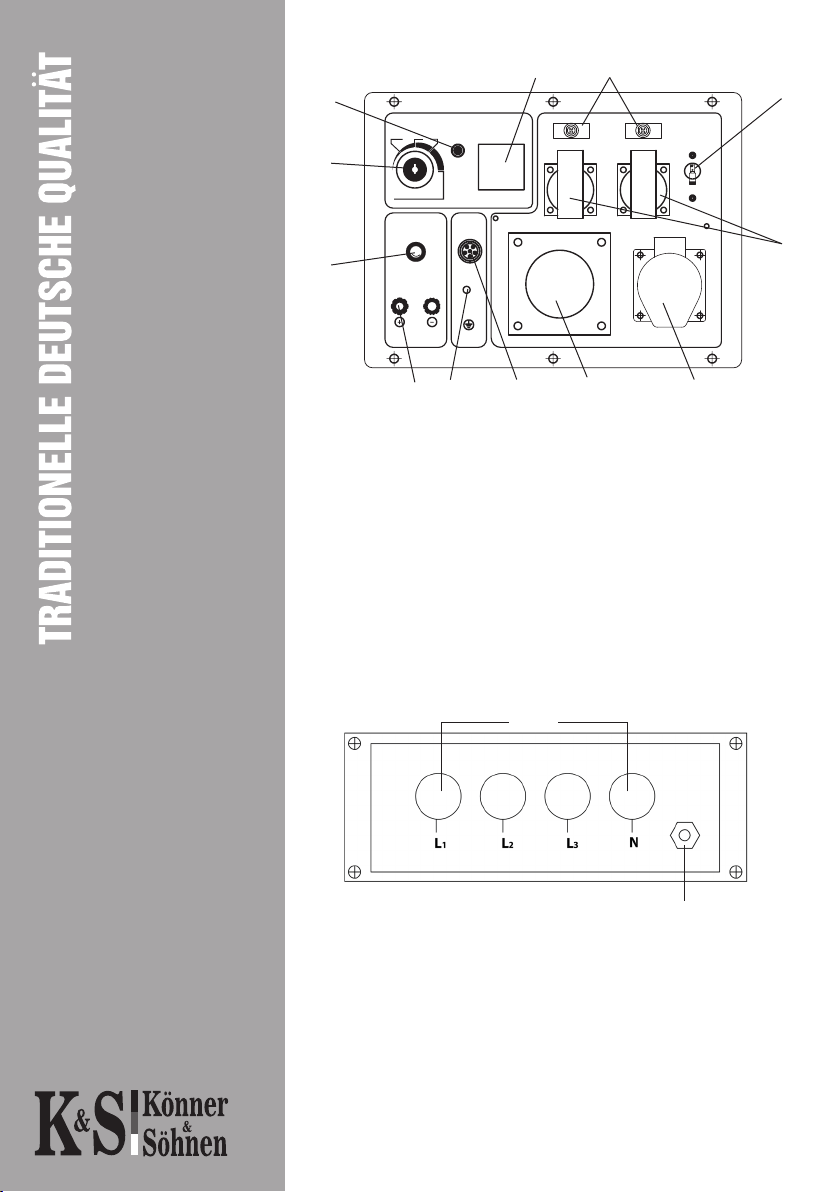

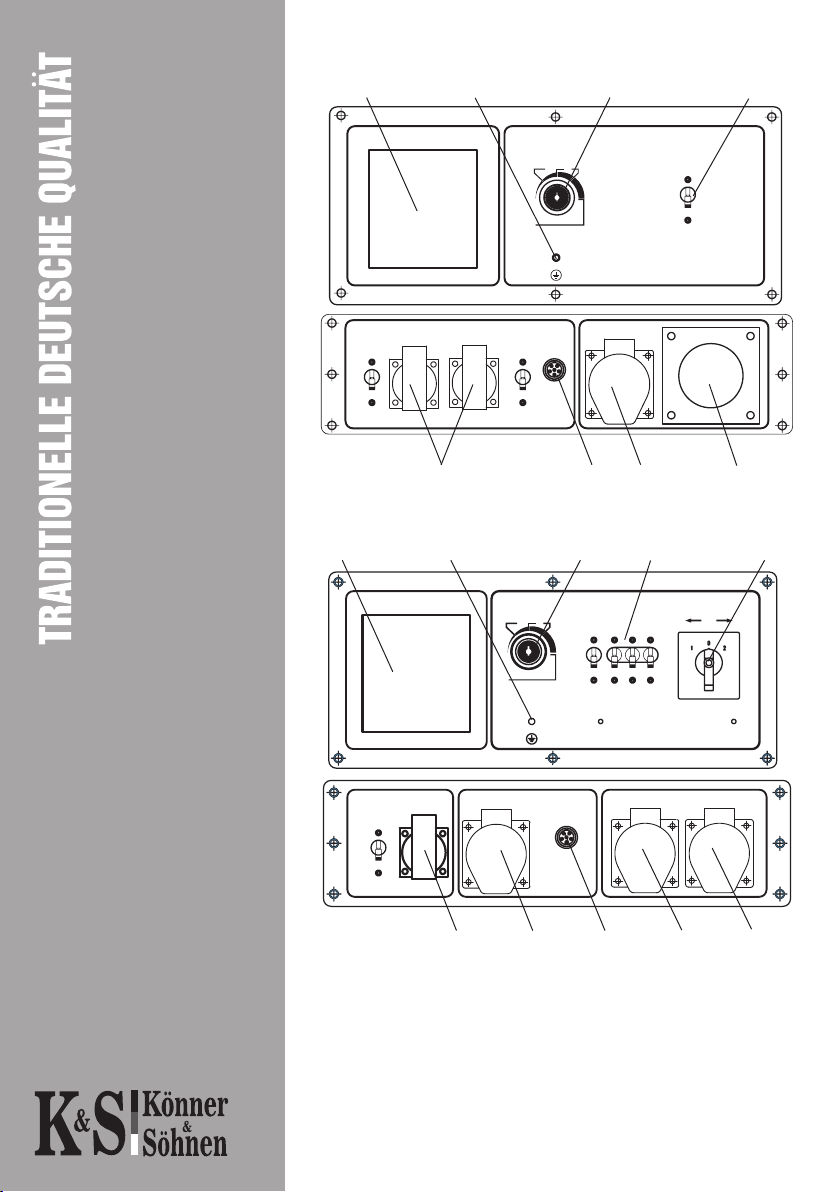

9. Control Panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15-19
10. LED-display _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 20
11. Multifunction Control Unit _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 20
12. Getting Started _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 25
13. Maintenance _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 29
14. Maintenance Schedule _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 30
15. Recommended Oils _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ 31
16. Air Filter Maintenance_ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ 32
17. Fuel Filter Replacement and Cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 33
18. Battery Maintenance and Charging _ _ _ _ _____ _ ______ 34
19. Generator Storage _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _34
20. Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 35
21. Average Power Consumption of Devices _ _ _ _ _ _ _ __ _ _ _ 37
22. WarrantyTerms _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ 38
Abbreviations and acronyms:
KS Electric generator
D Diesel
E Electric start
S Soundproof housing
1/3 Single-and three-phase operation
HD HEAVY DUTY

2
1. PREFACE
Thank you for your purchase of  Könner & Söhnen «HEAVY DUTY» series
diesel generator.It is professional machinery with an increased service life and
is therefore suitable for heavy-duty operation.
HEAVY DUTY series diesel generator engines have a service life of more
than 3,000 operating hours subject to observance of the rules of generator
operation and the maintenance schedule.
This manual contains safety instructions, a description of the use and
commissioning of Könner & Söhnen generators and procedures for their
maintenance.
The generator manufacturer may make some modications that may not be
reected in this manual.
The manufacturer reserves the right to make changes in the product design,
conguration and construction. The images and drawings in this manual are
for reference only and may dier from the actual components and inscriptions
on the products.
Contact information that you are free to use in case of any problems can be
found at the end of this manual. All information in this manual is correct to the
best of our knowledge and belief at the date of its publication.
In order to ensure equipment integrity and avoid possible injuries,
we recommend that you read this manual before operating the
generator.
The current list of service centers can be found on the ocial importer’s
website:
www.ks-power.de/en/
NOTE!
Do not operate single-phase and three-phase circuit breakers at the
same time to prevent electrical shock and avoid damage to your
electrical devices and the generator!
(Circuit breakers are shown in Figs. 3 and 4)

3
2. SAFETY PRECAUTIONS FOR DIESEL
GENERATOR OPERATION
Read this manual carefully
before operating the generator.
WORK AREA
- Do not use the generator near ammable gases, liquids or dust. During
operation of the generator, its exhaust system becomes very hot. This may cause
re or explosion of these materials.
- The work area work should have adequate lighting and be clean
- Keep unauthorized persons, children and animals away from the running
generator.
ELECTRICAL SAFETY
- The generator produces electricity that can cause electric shock in the event
of failure to observe safety precautions.
- Avoid operating the generator in high-humidity environments. Do not allow
moisture to enter the generator, as this increases the risk of electric shock.
- Avoid direct contact with grounded surfaces (pipes, radiators, etc.).
- Be careful when working with the power cord. Replace it immediately in
case of damage, as damaged power cord increases the risk of electric shock.
- All generator connections to the mains supply must be carried out by a
certied electrician in accordance with all electrical codes and regulations.
- Connect the electric generator to the protective ground before operation.
- Do not connect/disconnect the generator to/from power consumers while
standing in water, on wet or damp soil.
- Do not touch live parts of the generator.
- Only connect the generator to the power consumers that correspond to the
electrical specications and power rating of the generator.
- Keep all electrical equipment dry and clean. Replace damaged or worn
wiring.Worn, damaged, or rusted terminals must be replaced as well.

4
PERSONAL SAFETY
- Do not operate the generator when you are tired or under the inuence of
potent drugs, alcohol or medication. During operation, inattention can cause
serious injury.
- Avoid inadvertent start-up. Make sure the power switch is set to OFF when
turning o the generator.
- Make sure there are no foreign objects on the generator when it is turned on.
- Always keep proper footing and balance when starting the generator.
- Do not overload the generator, use it for its intended purpose only.
- Do not operate the generator in areas with poor ventilation. Exhaust gases
contain poisonous carbon monoxide, which is life threatening!
OPERATING AND MAINTAINING THE GENERATOR
- Prior to checking the generator before operation, make sure it is placed on a
at, level surface and the engine switch is in the OFF position.
- Check the connection of moving parts, inspect for damaged parts that aect
the operation of the generator. Eliminate damage before use.
- Use only recommended oils and fuels for maintenance and repair. The use of
other oils, consumables and spare parts deprives you of the right to warranty
service.
- The generator must be maintained by trained and qualied personnel only. For
the nearest service center, please contact your local dealer or refer to the current
list of service centers on the importer’s ocial website:
www.ks-power.de/en/
- Store the generator in a dry, well-ventilated area if you are not using it.
The generator runs on diesel fuel. Do not use gasoline or
kerosene as fuel!
NOTE!
Do not operate single-phase and three-phase circuit breakers at the
same time to prevent electrical shock and avoid damage to your
electrical devices and the generator!

5

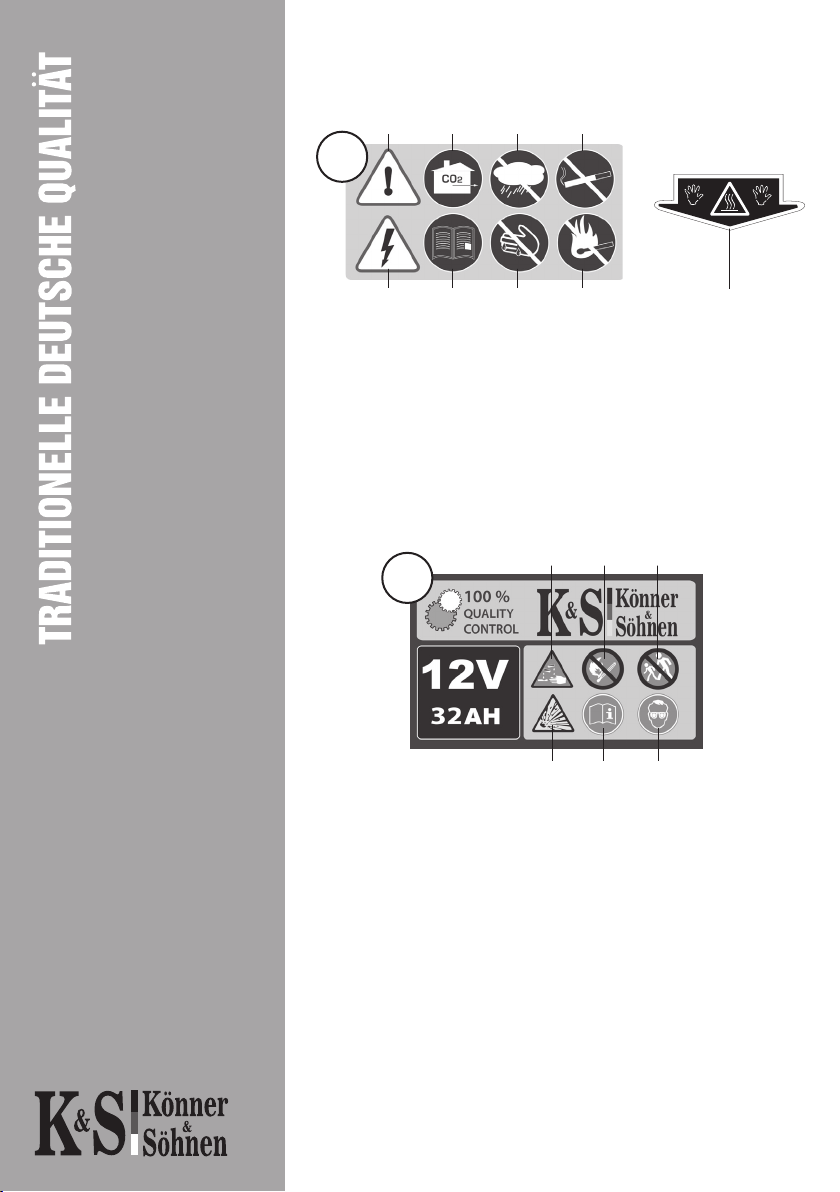

3. SAFETY SYMBOLS
a b c d
e f g h
a. Be careful when operating the device! Observe
the safety instructions in this manual.
b. Operate the generator only in well-ventilated
indoor spaces or outdoors. Exhaust gases contain
2, whose vapors are life threatening.
c. Do not operate or store the device in high-
humidity environments.
d. Do not smoke while operating the generator!
e. The device generates electricity.
Observe safety precautions to avoid electric
shock.
f. Read this owner’s manual carefully before
operating the device.
g. Do not touch the generator with wet or dirty
hands.
h. Observe re safety regulations, do not operate
the generator near open ame.
i. Do not touch! The generator dampener
becomes hot during operation.
a b c
fed
a. Wear protective rubber gloves when handling
the battery. The battery contains a dangerous
acid electrolyte. If electrolyte comes into contact
with skin or face, rinse immediately with plenty
of water and seek medical advice.
b. Do not operate the generator near open ame.
c. Keep children away from the generator work
area.
d. Note! The battery releases explosive hydrogen
while charging!
e. Read this owner’s manual carefully before
operating the device.
f. Wear safety goggles when operating the
battery.
i
1
2
DESCRIPTION OF SAFETY SYMBOLS WHEN OPERATING THE GENERATOR

6
4. DIESEL GENERATOR OVERVIEW AND
COMPONENTS
Fig. 1
3
11
4
2
1
9
10
11 5, 6, 7, 8
1. Reinforced frame
2. Fuel tank
3. Damper
4. Anti-vibration mounts
5. Fuel lter
6. Oil lter
7. Oil dipstick
8. Oil drain valve
9. Control panel
10. Soundproof anti-vandal housing
11. Transport kit
3
9
Model KS 13-1DEW 1/3 ATSR, KS 14-1DE ATSR 1/3 ATSR
Model KS 9200 HDE ATSR, KS 11-2DE ATSR

7
1
10
9
2
3, 8
4, 5, 6, 7,12
The manufacturer reserves the right to make changes in the product design,
conguration and construction. Illustrations in this manual are for reference
only and may dier from actual components and inscriptions on the products.
11

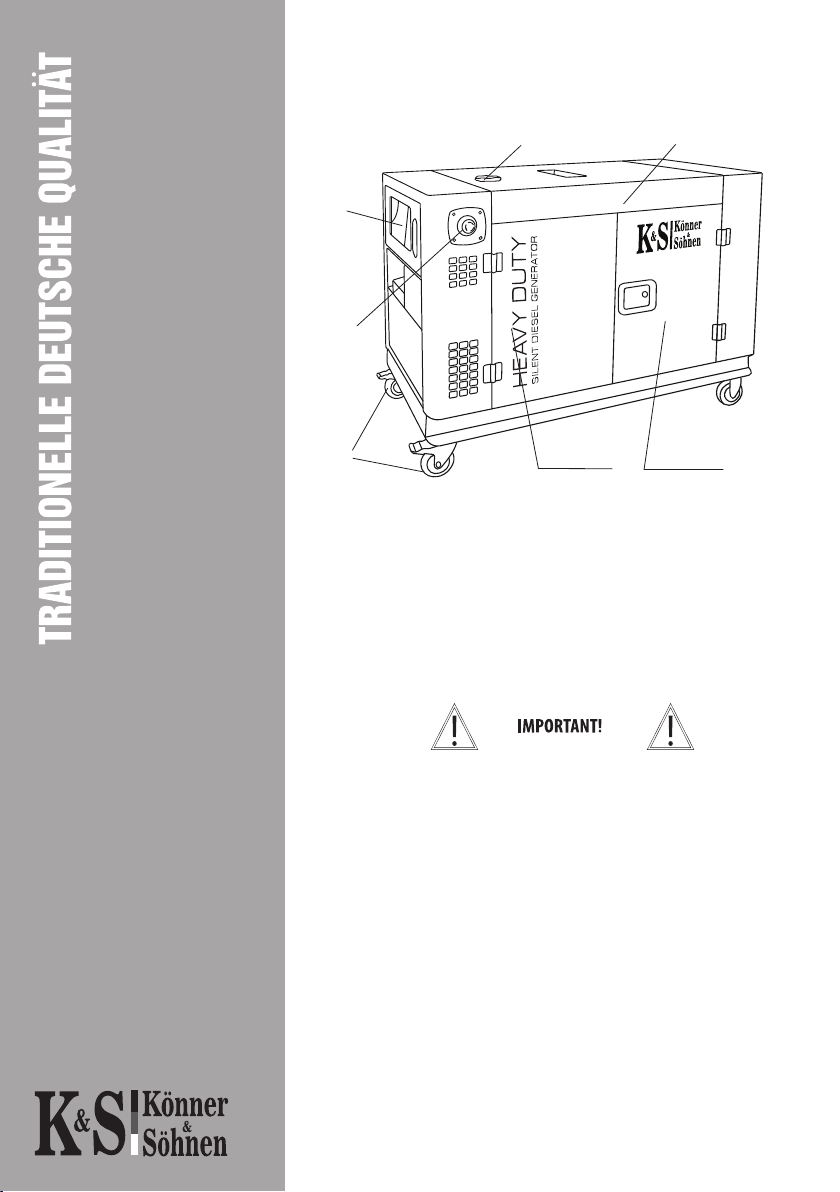

Model KS 13-2DEW ATSR, KS 13-2DEW 1/3ATSR,
KS 14-2DE ATSR, KS 14-2DE 1/3ATSR
1. Fuel tank
2. Soundproof anti-vandal housing
3. Fuel lter
4. Air lter
5. Oil lter
6. Oil dipstick
7. Oil drain hole
8. Battery
9. Transport kit
10. Engine emergency stop button
11. Control panel
12. Coolant drain hole
Fig. 2

8
Fig. 3

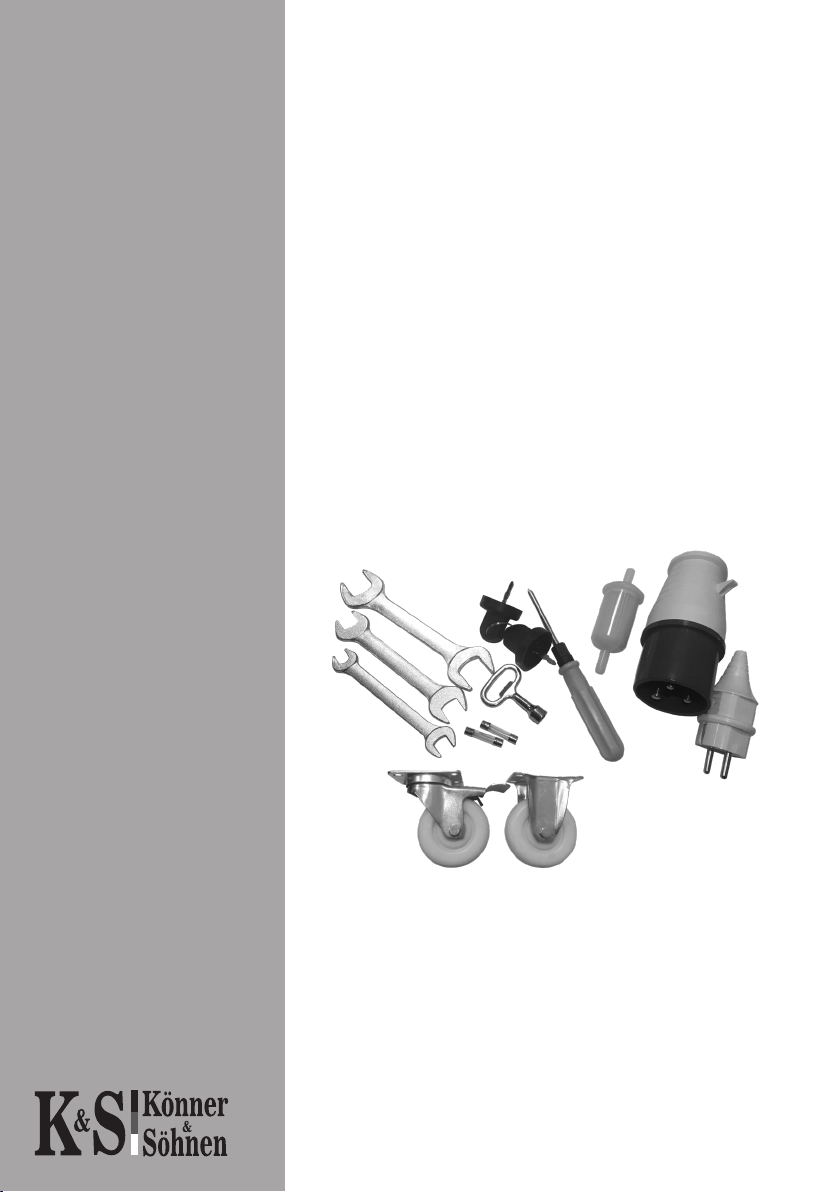

ACCESSORIES
Depending on the generator model, accessories may have dierent
conguration
- Screwdriver;
- Portable plugs (plugs correspond to
the number, power and voltage of the
generator outlets);
- 2 x start keys;
- Top cover key;
- Fuel lter;
- Fuses;
-1012 mm open end wrench;
- 417 mm open end wrench;
- 1316 mm open end wrench;
- Set of screws;
- Wheels (4 pcs).
For models KS 9200 HDE ATSR, KS 11-2 DE ATSR:
1. Generator
2. Packaging
3. Owner’s manual
4. Accessories
5. SCOPE OF SUPPLY

9

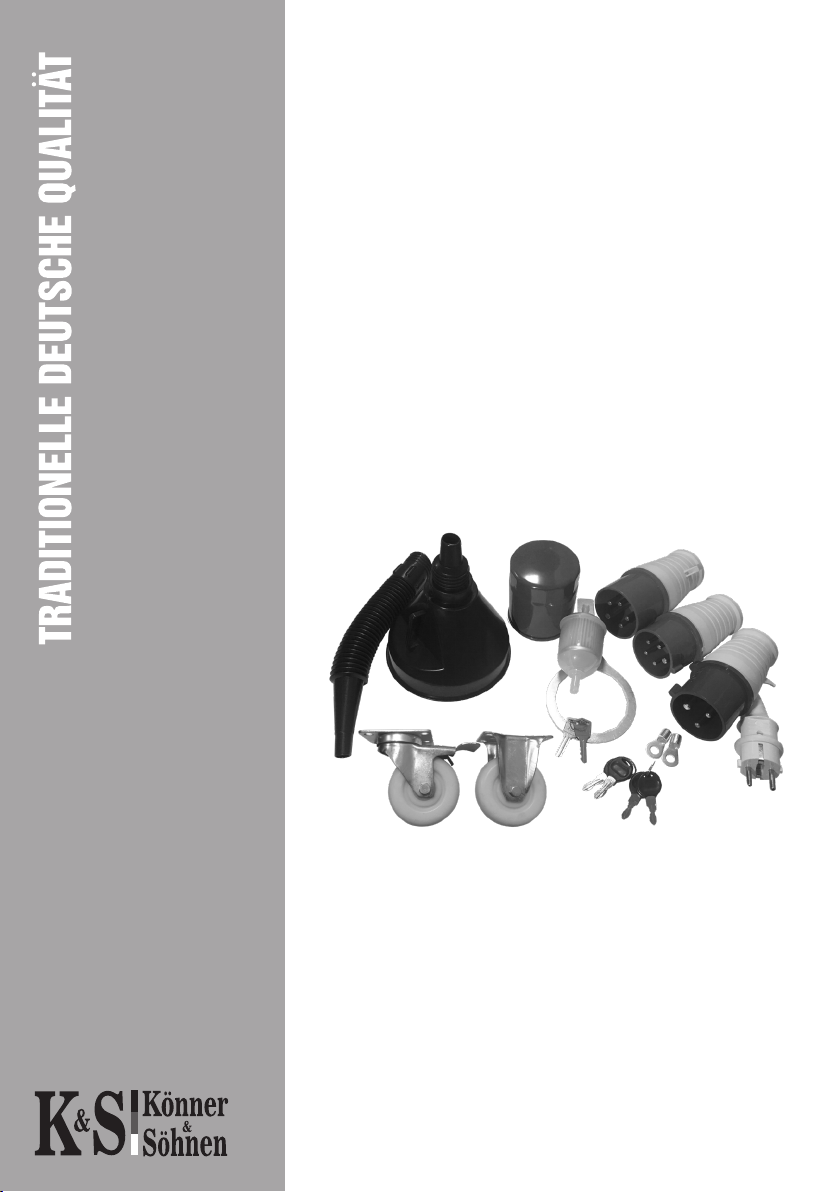

- Portable plugs (plugs correspond to
the number, power and voltage of the
generator outlets);
- 2x start keys;
- Fuel lter;
- Oil lter;
- Fuel and oil drain funnel;
- Stationary terminals;
- Oil lter key;
- Door keys;
- Set of screws;
- Wheels (4 pcs).
For models KS 13-1 DEW 1/3 ATSR, KS 13-2 DEW ATSR, KS 13-2 DEW 1/3 ATSR:
- Oil lter key;
- Air lter;
- Fuel lter;
- Oil lter;
- 2x start keys;
- Door keys;
- Portable plugs (plugs correspond to the
number, power and voltage of the generator
outlets);
- Fuel and oil drain funnel;
- Set of screws;
- Wheels (4 pcs)
For models KS 14-1 DE ATSR, KS 14-2 DE ATSR, KS 14-2 DE 1/3ATSR:
Fig. 4

10
6. GENERATOR SPECIFICATIONS
Model KS 9200HDE ATSR KS 11-2DE ATSR
Voltage (V) 230 230
Maximum power (kW) 6.8 8.0
Nominal power (kW) 6.5 7.5
Frequency (Hz) 50 50
Current, A (max.) 29.57 34.78
Outlets 132 (230 V), 116 (230 V)
Emergency stop button - +
Display operating hours, frequency, voltage
Noise level Lpa/Lwa (dB) 69 / 94 69 / 94
Output 12V (A) 12/8.3 12/8.3
Engine model KS 540HD KS 690HD
Engine type diesel powered one-cylinder, four-stroke
air-cooled
Engine power (HP) 14 15
Crankcase volume (cm3) 1.65 2.2
Engine olume (cm3) 531 668
Power output controller Intelligent AVR
Engine start Electric Electric
Power factor (cosφ) 1 1
Battery (Ah) 30 36
ATS output (universal 5-pin) + +
Net dimensions (L*W*H) (mm) 890x520x690 1100x600x750
Gross dimensions (L*W*H) (mm) 950x565x750 1150x650x850
Net weight (kg) 170 216
Gross weight (kg) 180 230
Protection class IP23M
Nominal voltage tolerance - max. 5%

11
GENERATOR
SPECIFICATIONS
Model KS 13-1DEW 1/3
ATSR
KS 13-2DEW
ATSR
KS 13-2DEW 1/3
ATSR
Voltage (V) 230 400 230 230 400
Maximum power 8.1 kW 11.25 kVA 9.0 kW 8.1 kW 11.25 kVA
Nominal power 7.7 kW 10.63 kVA 8.5 kW 7.7 kW 10.63 kVA
Frequency (Hz) 50 50 50
Current, A (max.) 36.96 16.26 39.13 36.96 16.26
Outlets
1x32A (230V)
1x16A (230V)
1x32A (400V)
1x16A (400V)
1x63A (230V)
1x32A (230V)
2x16A (230V)
Contact strip
1x32A(230V)
1x16A(230V)
1x32A(400V)
1x16A(400V)
Contact strip
Emergency stop button + + +
Display operating hours,
frequency, voltage
SmartGen multifunction digital control
unit
Noise level Lpa/Lwa (dB) 73/98 69/94 69/94
Output 12V (A) + - -
Engine model KS 820HD KS 820HD KS 820HD
Engine type diesel powered two-cylinder,
four-stroke air-cooled
Engine power (HP) 18 18 18
Crankcase volum, l 3,3 3,3 3,3
Engine volume (cm3) 794 794 794
Coolant volume, l 3,5 3,5 3,5
Power output controller Intelligent AVR
Engine start Electric Electric Electric
Power factor (cosφ) 1 0,8 1 1 0,8
Battery (Ah) 36 36 36
ATS output + + +
Net dimensions (L*W*H) (mm) 1050x640x700 1250x650x760 1250x650x760
Gross dimensions (L*W*H) (mm) 1100x680x820 1300x700x880 1300x700x880
Net weight (kg) 220 320 320
Gross weight (kg) 240 345 345
Protection class IP23M
Nominal voltage tolerance - max. 5%

12
GENERATOR
SPECIFICATIONS
Model KS 14-1DE
ATSR
KS 14-2DE
ATSR
KS 14-2DE
1/3 ATSR
Voltage (V) 230 230 230 400
Maximum power 11.0 kW 11.0 kW 10.0 kW 13.75 kVA
Nominal power 10.5 kW 10.5 kW 9.5 kW 13.1 kVA
Frequency (Hz) 50 50 50
Current, A (max.) 47.83 47.83 43.48 19.87
Outlets
1x63A (230V)
1x32A (230V)
2x16A (230V)
1x63A (230V)
1x32A (230V)
2x16A (230V)
Contact strip
1x32A(230V)
1x16A(230V)
1x32A(400V)
1x16A(400V)
Contact strip
Emergency stop button + + +
Display operating hours,
frequency, voltage
SmartGen multifunction digital control
unit
Noise level Lpa/Lwa (dB) 74/99 70/95 70/95
Output 12V (A) + - -
Engine model KS 1020HD KS 1020HD KS 1020HD
Engine type diesel powered two-cylinder,
four-stroke air-cooled
Engine power (HP) 21 21 21
Crankcase volume, l 2,8 2,8 2,8
Engine volume, (cm3) 997 997 997
Power output controller Intelligent AVR
Engine start Electric Electric Electric
Power factor (cosφ) 1 1 1 0,8
Battery (Ah) 36 36 36
ATS output (universal 5-pin) + + +
Net dimensions (L*W*H) (mm) 1050x640x700 1250x650x760 1250x650x760
Gross dimensions (L*W*H) (mm) 1100x680x820 1300x700x880 1300x700x880
Net weight (kg) 220 320 320
Gross weight (kg) 240 345 345
Protection class IP23M
Nominal voltage tolerance - max. 5%

13
To ensure reliability and increase the engine service life, peak powers may be
slightly limited by circuit breakers.
The optimal operating conditions are ambient temperature of 17-25 °C,
barometric pressure of 0.1MPa (760mmHg), and relative humidity of 50-60%.
Under these environmental conditions, the generator can provide maximum
performance in terms of the declared specications.
In the event of deviations from these environmental indicators, the generator
performance may vary.
Please note that in order to preserve the long service life of the generator,
continuous loads of more than 80% of the nominal power are not recommended.
It is recommended to ground the generator before operating it for the rst time.
Before starting the device, remember that the total power of the connected power
consumers should not exceed the nominal power of the generator.
TYPES OF POWER CONSUMERS AND STARTUP CURRENT
There are two types of power consumers (electrical devices connected to the
generator): active and reactive. Active power consumers include all power
consumers whose power input is converted into heat (heaters).
Reactive power consumers include all power consumers equipped with an
electric motor. When starting an engine, start-up currents occur briey whose
magnitude is based on the engine design and purpose of electrical appliance.
The magnitude of occurring start-up currents should be considered when
selecting a generator.
Most electrical appliances have a start-up current ratio of 2-3. This means that
the operation of such appliances requires a generator, the power of which is 2-3
times the power of the connected power consumer. Power consumers such as
compressors, pumps, washing machines have the highest start-up current ratio.
To avoid electric shock due to poor-quality electrical appliances or improper
use of electricity, the generator must be earthed using a high-quality insulated
conductor.
NOTE!
Do not operate single-phase and three-phase circuit breakers at the
same time to prevent electrical shock and avoid damage to your
electrical devices and the generator!
7.TERMS OF USE OF DIESEL
GENERATOR

14
CHECKING THE FUEL LEVEL
1. Unscrew the fuel cap and check the fuel level in the tank.
2. Fill the fuel tank to the fuel lter level.
3. Tighten the fuel cap securely.
Fig. 5
1. Unscrew the oil dipstick and wipe it
out with a clean cloth.
2. Insert the dipstick without screwing
it in.
3. Check the oil level by a mark on the
oil dipstick.
4. Add oil if its level is below the mark
on the oil dipstick.
5. Screw on the dipstick.
Wipe up spilled fuel immediately with a clean, dry, soft cloth, as the
fuel may harm painted surfaces or plastic parts.
Fuel tank volume: see specications table.
CHECKING THE OIL LEVEL
The generator is transported free of motor oil. Do not start the engine until it is
lled with sucient amount of motor oil.
Recommended motor oil: SAE 10W30, SAE 10W40.
Recommended motor oil grade: API Service SG type or higher.
Motor oil quantity: see specications table.
Be sure to charge the battery before operating the models equipped with
electric starters. Charge the battery with an optional charger (not included),
or allow the generator to operate at 50% load for at least one hour when
operating for the rst time.
8. CHECK BEFORE GETTING STARTED
CHECKING THE COOLANT LEVEL
Before the rst start of the generator, ll the coolant through the dedicated hole
on the top of the station. Change the coolant every 2 years, unless otherwise
specied in the coolant specications. If you have any questions, contact the
manufacturer’s authorized representative or an authorized dealer in your area.
FILL TO
HERE

15

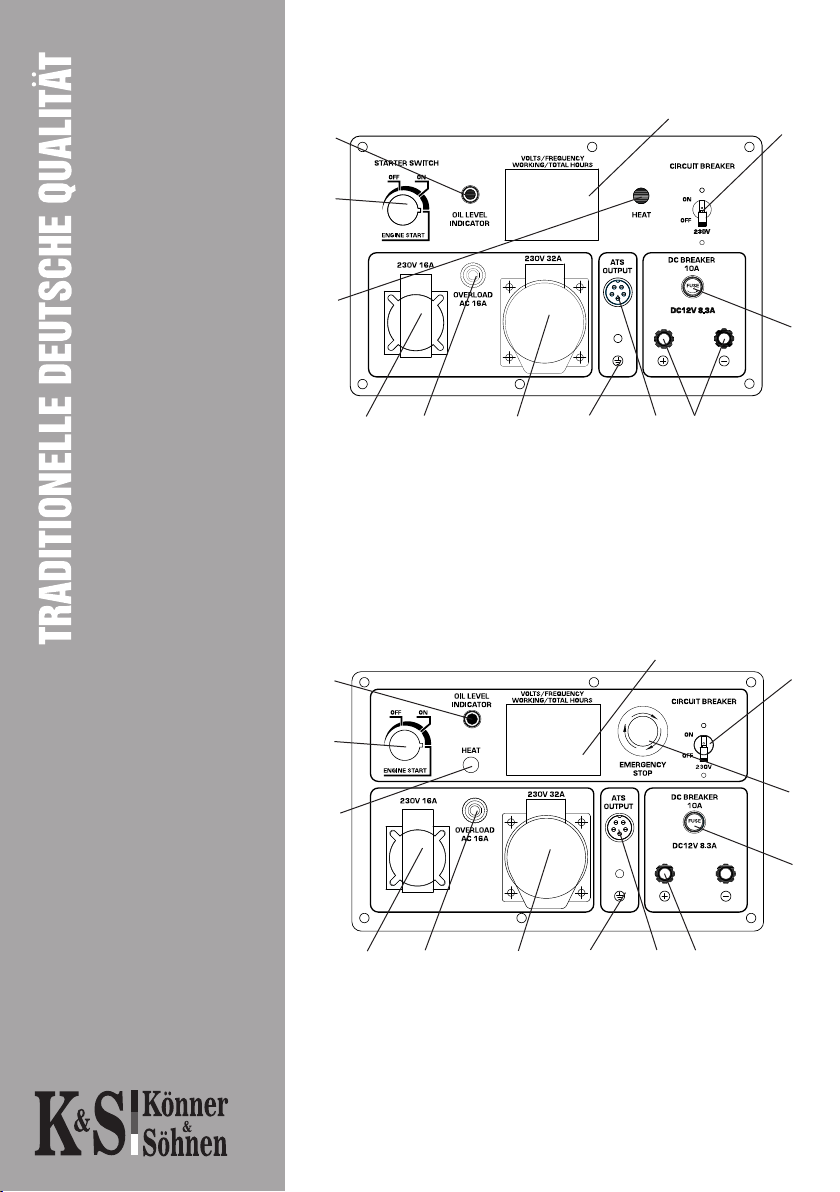

9. CONTROL PANEL
1. Start switch
2. Oil level indicator
3. LED-display
4. Circuit breakers
5. Engine emergency stop button
6. Fuse for 12V connector
7. 12/8 DC terminals
8. ATS output (universal 5-pin)
9. Grounding connector
10. 230 V 1*32 outlet
11. Circuit breaker for 16A outlets
12. 230 V 1*16 outlet
13. Air heater
Fig. 6
Control panel for model KS 9200HDE ATSR
Control panel for model KS 11-2DE ATSR
34
1
2
12 11
3
5
6
13
5
910 8
Fig. 7
7
11 10 976
12
1. Start switch
2. Oil level indicator
3. LED-display
4. Circuit breakers
5. Fuse for 12V connector
6. 12V/8 DC outlet
7. ATS output (universal 5-pin)
8. Grounding connector
9. 230 V 1*32 outlet
10. Circuit breaker for 16A outlets
11. 230 V 1*16 outlet
12. Air heater
1
2
4
8

16
1. Start switch
2. LED-display
3. Circuit breaker for 16A outlets
4. 230 V 16 outlet
5. Circuit breakers
6. VTS system (single-/three-phase
switch (position 1 - 230V, position 0
(OFF) - disabled, position 2 - 400 V)
7. 400 V 1*16 A, 1*32  outlets
8. 230 V 1*32 outlet
9. ATS output
10. Grounding connector
11. 12V/8 DC terminals
12. Fuse for 12V connector
13. Engine overtemperature indicator
14. Oil level indicator
230V 32A
DC 12V 8.3A
OIL LEVEL
INDICATOR
STARTER SWITCH
VOLTS/FREQUENCY
WORKING/TOTAL HOURS
TEMP ALARM
LAMP
230V 16A
400V 16A 400V 32A
400V
CIRCUIT BREAKERAC400V
AC
AC230V
OVER LOAD
AC 16A
230V
ATS
OUTPUT
HEAT OFF ON
ENGINE START
Fig. 8Control panel for model KS 13-1DEW 1/3ATSR
125
11 8 9
4
3
12
13
14
6
10 77

17
ON
OFF 230V
ON
OFF 230V
230V 16A 230V 16A
230V 32A
230V 63A
CIRCUIT
BREAKER
ATS
OUTPUT
CIRCUIT
BREAKER
CONTROL DEVICE
STARTER SWITCH
ON
OFF 230V
CIRCUIT BREAKER
L N
230V
HEAT OFF ON
ENGINE START
Fig. 9
Control panel for model KS 13-2DEW ATSR
1 4
910 6
3
2
1. Multifunction control unit
2. Grounding connector
3. Start switch
4. Circuit breakers
5. VTS system (single-/three-phase
switch (position 1 - 230V, position 0
(OFF) - disabled
6. 230 V 1*63 outlet
7. 400 V 1*16 outlet
8. 400 V 1*32 outlet
9. 230 V 1*32 outlet
10. ATS output
11. 230 V 1*16 outlet
ATS
OUTPUT
CONTROL DEVICE
ON
OFF
230V 400V
STARTER SWITCH
CIRCUIT BREAKER AC400V
AC
AC230V
ON
OFF 230V
CIRCUIT
BREAKER
230V 32A
230V 16A
400V 16A 400V 32A
L N
230V
HEAT OFF ON
ENGINE START
230V 32A
1
10
11 7
3
2
Control panel for model KS 13-2DEW 1/3 ATSR
5
4
98
11

18
OIL LEVEL
INDICATOR
VOLTS/FREQUENCY
WORKING/TOTAL HOURS
DC 12V 8.3A
FUSE
DC BREAKER
10A
ATS
OUTPUT
230V 63A 230V 32A
230V 16A
OVERLOAD
AC 16A
230V 16A
ON
OFF 230V
CIRCUIT BREAKER
STARTER SWITCH
HEAT OFF ON
ENGINE START
Fig. 10
Control panel for model KS 14-1DE ATSR
Contact strip for models:
KS 13-2DEW ATSR , KS 13-2DEW 1/3 ATSR
KS 14-2DE ATSR, KS 14-2DE 1/3 ATSR
3
5
10 97
12
1. Start switch
2. Oil level indicator
3. LED-display
4. Circuit breakers for 16A outlets
5. Circuit breaker
6. 230 V 2*16 outlet
7. 230 V 1*32 outlet
8. 230 V 1*63 outlet
9. ATS input (universal 5-pin)
10. Grounding connector
11. 12V/8 DC terminals
12. Fuse for 12V connector
1
2
811
4
6
230V
Grounding
1. L - Phase
2. N - Neutral

19
CONTROL DEVICE
N
230V
L
ON
OFF
230V
STARTER SWITCH
HEAT OFF ON
ENGINE START
ON
OFF 230V
230V 16A 230V 16A
230V 32A
230V 63A
CIRCUIT
BREAKER
CIRCUIT
BREAKER
ATS
OUTPUT
ON
OFF 230V
CIRCUIT
BREAKER
Fig. 11Control panel for model KS 14-2DE ATSR
1 4
11 10 6
3
2
Control panel for model KS 14-2DE 1/3 ATSR
CONTROL DEVICE
N
230V
ATS
OUTPUT
ON
OFF 230V
CIRCUIT
BREAKER
230V 32A
230V 16A
400V 16A 400V 32A
L
ON
OFF
230V 400V
CIRCUIT BREAKER AC400V
AC
AC230V
STARTER SWITCH
HEAT OFF ON
ENGINE START
13
245
9
10
11
1. Multifunction control unit
2. Start switch
3. Grounding connector
4. Circuit breakers
5. VTS system (single-/three-phase
switch (position 1 - 230V, position 0
(OFF) - disabled
6. 230 V 1*63 outlet
7. 400 V 1*16 outlet
8. 400 V 1*32 outlet
9. 230 V 1*32 outlet
10. ATS output (universal 5-pin)
11. 230 V 16 outlets
987
