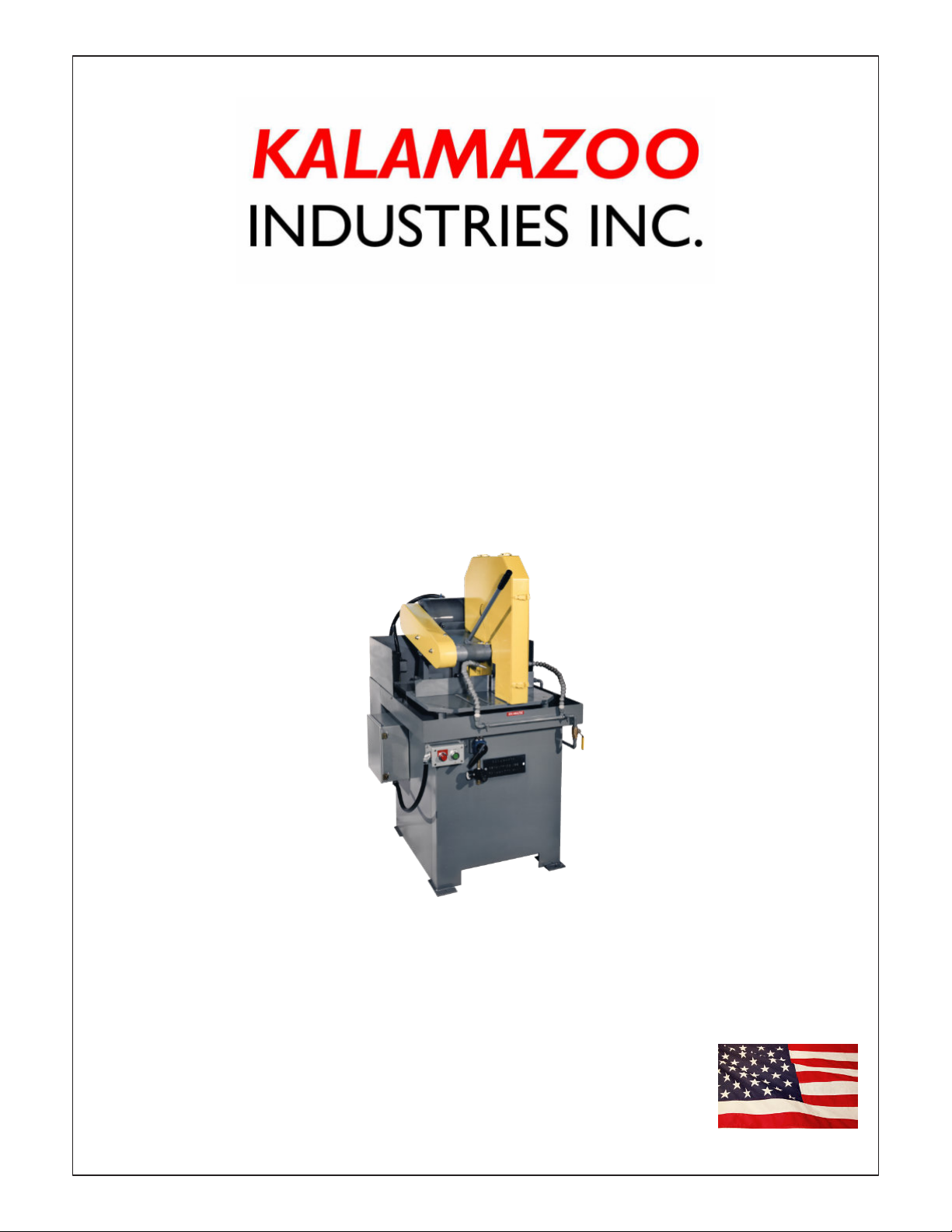

K20SW-15 ABRASIVE SAW
MANUAL
MADE IN USA

WARNING!
TO REDUCE THE RICK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN, ANY LIQUID OR MOISTURE.
INSPECTION
If these goods are damaged in transit, the DELIVERING TRANSPORTATION COMPANY is required by law to make notation of damages on
the freight bill. If in your opinion, there may be concealed damage, they are required to make an inspection after goods are unpacked. Transportation
rates are made in proportion to damage. Therefore, the carrier and NOT the shipper should be charged with any loss or damage. Any claim should
be led with the delivering Transportation Company. PLEASE DO NOT RETURN GOODS TO US WITHOUT OUR RGA NUMBER AND
SHIPPING INSTRUCTIONS.
Electrical: CAUTION: Voltage changes require wiring changes at drive motor. WARRANTY DOES NOT COVER unauthorized wiring
changes/failures. Consult an electrician an electrician if your not familiar with electrics.
K20SW SETUP
• BEFORE STARTING OR CONNECTING ELECTRICAL VERIFY THE PHASE AND VOLTAGE OF THE UNIT.
• BE SURE MACHINE IS BALANCED CORRECTLY SO IT WILL TIP OVER.
• TO GUARD AGAINST CONCEALED DAMAGE, STAND CLEAR AND OBSERVE UNIT FOR THE FIRST FEW MINUTES OF
OPERATION. GUARDS MUST NEVER BE REMOVED.
• BEFORE INSTALLING THE ABRASIVE WHEEL CONFIRM THAT THE CUTOFF WHEEL IS DESIGNED TO RUN AT 4800 SFPM
(MOS). YOU CAN FIND THIS INFORMATION DIRECTLY ON THE THE SIDE OF YOUR CUTOFF WHEEL. IT
ABRASIVE SAW SAFETY
• NEVER REMOVE SAFETY GUARDS FROM MACHINE. DISCONNECT MACHINE FROM POWER SOURCE BEFORE MAKING
ANY MACHINE ADJUSTMENTS.
• DO NOT USE AROUND FLAMMABLE MATERIALS OR LIQUIDS.
• MACHINES SHOULD BE OPERATED IN VENTILATED AREAS.
• ALWAYS WEAR SAFETY GLASSES OR A FULL FACE SHIELD FOR PROTECTION.
• DO NOT USE TOOTHED BLADE WITH THIS SAW AND DO NOT ATTEMPT TO USE STEEL BLADES ON THIS SAW.
• KEEP HANDS CLEAR OF THE CUTTING AREA.
• DO NOT WEAR GLOVES OR LOOSE FITTING CLOTHES WHEN OPERATING THIS MACHINE.
• ALWAYS KEEP HAIR TIED BACK OR COVERED.
• ALWAYS KEEP FLANGES CLEAN AND TIGHT AGAINST CUTTING WHEEL.
• MANUALLY TIGHTEN AND LOOSE SPINDLE NUT.
• DO NOT USE IMPACTED GUN TO LOOSEN OR TIGHTEN SPINDLE NUT.
• ALWAYS KEEP WHEEL GUARD IN THE DOWN POSITION.
• BE SURE WORK PIECE IS CLAMPED SECURELY IN VISE BEFORE CUTTING.
WARNING!!!!
IMPROPER USE MAY CAUSE BREAKAGE AND SERIOUS INJURY.
DO
1. DO always handle and store wheels in the vertical position.
2. DO visually inspect all wheels before mounting for possible
damage.
3. DO check machine speed against the established maximum safe
operating speed marked on the wheel.
4. DO check mounting anges for equal and correct diameter.
5. DO use mounting blotters when supplied with wheel.s
6. DO always use a safety guard covering a least one-half of the
abrasive wheel.
7. DO allow newly mounted wheels to run at operating speed, with
guard in place, for at least one minute before cutting.
8. DO always wear safety glasses or some type of eye protection
when cutting.
9. DO tie back hair.
DON'T
1. DON'T use a cracked wheel or one that has been dropped or has
become damaged.
2. DON'T force a wheel onto the machine or alter the size of the
mounting hole if wheel won't r the machine.
3. DON'T ever exceed maximum operating speed established for
the wheel.
4. DON'T use mounting anges on which the bearing surfaces are
not clean, at and free of burrs.
5. DON'T tighten the spindle nut excessively.
6. DON'T start the machine until the wheel guard is in place.
7. DON'T jam work into wheel.
8. DON'T force cutting so that motor slows noticeable or work gets
hot.
9. DON'T wear gloves and or have loose clothing when operating
machine.
10. DON'T use tooth blade on saw.

BASIC OPERATION
IMPORTANT
15HP 3PH 230V and or 460V
Electrics: Be sure of incoming AC power and verify machine power is the same as
incoming AC power. CAUTION: IF NOT FAMILIAR WITH ELECTRICAL, CONSULT AN
ELECTRICIAN!!! FOLLOW ALL SAFETY PROCEDURES. SEE THE ABRASIVE SAFETY SHEET!!!
1. Start: Rotate the selector switch to SAW to start the saw blade, and rotate the switch
to PUMP to use the coolant pump without running the saw blade to wash the
machine down.
2. STOP: Pull out the red button to engage the circuit; PUSH in the red button to STOP.
3. Coolant: The ball valve controls coolant ow.
4. Air chain vise: Rotate the valve to tighten/loosen the chain vise.
5. Coolant lines: Adjust coolant ow lines on either side of the abrasive blade
6. Chain vise: SEE BELOW
7. NEMA electrical enclosure: SEE BELOW
8. DOWN STOP: Adjust the threaded rod with the new blade to stop the blade from
cutting into the saw top. Adjust the threaded rod down as the blade wears.
K20SW-15HP in 230V and or 460V uses a magnetic switch. Drill and punch NEMA
enclosure to accept seal tite tting and input power to L1, L2, L3 on the contactor.
CAUTION: VOLTAGE CHANGES REQUIRE WIRE LEAD CHANGES AT THE MOTOR,
TRANSFORMER, AND FUSES. IF YOU ARE NOT FAMILIAR WITH ELECTRICS, CONSULT AN
ELECTRICIAN!!! CHANGES FROM FACTORY SETTINGS ARE NOT COVERED UNDER
WARRANTY UNLESS AUTHORIZED BY THE FACTORY
Cutting: Be sure you hold the material securely while cutting. NO MOVEMENT of the
material should occur when cutting or wheel failure will result. Use constant steady
manual pressure when pulling down the saw head. Too lite of pressure will cause the
loading of the abrasive wheel to. Be sure no ammable material is nearby to cause a
re. Follow ALL safety procedures like safety glasses, face shields, etc. Use the correct
abrasive blade for the material that you're cutting. Not all cutoff blades are the same.
Consult your blade dealer for abrasive blade selection.
Chain vise: Pull the chain over the material as tight as possible, and insert the closest
chain link into the clevis on the back of the fence (#53). Use the vise open and close
valve to tighten the chain around the material. Do not allow material to move during
cutting!! Wheel breakage will occur. Input shop air 0-100 PSI into the regulator to
operate the vise.
Coolant: Use a rust inhibiting grinding type coolant. Consult your dealer for coolant.
Maintenance: Keep the drive V-belts tight (1/2" of a squeeze). Don't over-tighten. After
initial start-up and use re-check the V-belt tension. All bearings are sealed and no
attention is needed. Keep the machine and area clean of abrasive dust.

BB
D
D
1
69
49
FRONT VIEW
66
12
X 4 PLACES
67
66 12
X 2 PLACES
71
1
2
20
25
67
49
69
67
F
1
69
51
RIGHT SIDE VIEW
53
52
70
70
70
70
53
5 22 22 6 15
53 52
59
60
X 4 PLACES
66 12
X 2 PLACES
68 12
X 4 PLACES
67
71
C
1
BACK VIEW
59
60
68 12
X 2 PLACES
66
12
X 6 PLACES
66 12
X 2 PLACES
66 12
X 2 PLACES
67
1
49
69
LEFT SIDE VIEW
68 12
X 4 PLACES
66 12
X 2 PLACES
66
12
X 2 PLACES
65
67
71
AA
K
2
3
X 9 PLACES
8
36
40
66
12
80
51
SECTION A-A
INTERNAL OF SPINDLE
7 1919
9
9
16 17
18
23
24
46 46 46 46
41
SECTION B-B
SCALE 1 : 10
3
X 9 PLACES
4 4
5 6
5 6
X 4 PLACES
X 4 PLACES
37
6
36
32
28
2626
30
29 29
33
38
X 2 PLACES
51 37 6 22
X 4 PLACES
54 55
58
DETAIL C
COOLANT PUMP
DETAILS
60
59
61
62
63
64
77 79
79
78
E
II
SECTION D-D
INTERNAL LEFT SIDE VIEW
8
20
4
10
23
36
57
56
25
30
26
31
33
34
35
49
G
H
DETAIL E
SCALE 2 : 5
DETAILS OF
BELTS AND PULLEYS
2
8
20
23
5756
22 6 27
X 4 PLACES
25
26
31
30
33
34
35
46 39
44
45
42
43
X 4 PLACES
DETAIL F
AIR REGULATOR
DETAILS
12 66
X 2 PLACES
76 74
75
REGULATOR BRACKET
IS LOCATED AND
MOUNTED DURING
ASSEMBLY
DETAIL G
SCALE 4 : 5
TRUNNION CAP
BOTH SIDES
4
11
12
10
15
14
13
11
12
DETAIL H
SCALE 4 : 5
MOTOR MOUNT
DETAILS
20
21
22
22
6
15
X 4 PLACES
SECTION I-I
ATTACHMENT OF
OUTER BELT GUARD
22
22
6
15
48
22
6
50
40
22
6
15
47
22
6
50
49
DETAIL K
ROTARY HAND
VALVE DETAILS
72
73
73
ROTARY HAND VALVE
IS LOCATED AND
MOUNTED DURING
ASSEMBLY
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
716-019W
STAND ASSEMBLY FOR K20SW SAW
1
2
556-037
PLATE, TOP FOR K20SW
1
3
FSCA050024
1/2-13 X 1-1/2 FSHCS
9
4
831-002
TRUNNION, LEFT AND RIGHT SET
FOR K16-18, AND K20SSF
2
5
HHC5037040
3/8-16 X 2-1/2 HHCS GR5 Z
13
6
SLWZ037
3/8 SPLIT L/W Z
37
7
700-002
PIN, TRUNNION FOR K16- 18 AND
K20SSF (OLD STYLE)
1
8
002-005
SAW ARM FOR K16-18, KM16-18,
AND K20SSF SAW
1
9
044-004
K20 SPINDLE BEARING
2
10
641-002
TRUNNION CAP FOR K16-18 AND
K20-22
2
11
HHC5025016
1/4-20 X 1 HHCS GR5 Z
4
12
SLWZ025
1/4 SPLIT L/W Z
40
13
ZERK012000
1/8-27 X 11/16 STRT LUBE FITTING
2
14
SSCA031016
5/16-18 X 1 SOC SET CONE PT
2
15
FHN5037
3/8-16 FHN GR5 Z
14
16
701-010
SPINDLE W TIGHT FLANGE FOR
K16-18, K20SSF, K20E SAWS
1
17
292-011
LOOSE FLANGE FOR K16-20,
KM16-18, KM20-22
1
18
537-027
SPINDLE NUT FOR K16-20
1
19
SSKA031006
5/16-18 X 3/8 SOC SET KNURL PT.
2
20
486-010
MOTOR MOUNT PLATE FOR K16-
20 ASSEMBLY
1
21
HHC5037020 3/8-16 X 1-1/4 HHCS GR5 Z
8
22
UFWZ037
3/8 USS F/W Z
38
23
696-029
MOTOR PLATE TENSION SCREW
FOR K16-K20 SAWS
1
24
FJNZ050
1/2-13 F H JAM NUT Z
1
25
486-020
15HP MOTOR FOR K20SSF-15,
K20SW-15, KM20-22/15, K20FS,
K20E
1
26
041-076ASSY
BRACKET AND BUSHING FOR
CHAIN TAKE-UP FOR K20SW- 2
REQUIRED
2
27
HHC5037024
3/8-16 X 1-1/2 HHCS GR5 Z
4
28
700-015
SHAFT, CHAIN TAKE UP, FOR
K20W
1
29
123-016
S6 IDLER PULLEY LOCK COLLAR
2
30
002-015
ARM PIVOT, CHAIN VISE FOR
K20SW
1
31
560-036
CHAIN VISE PULLEY FOR K20SW
SAW
1
32
SSKA025006
1/4-20 X 3/8 SOC SET KNURL PT.
2
33
041-109
MOUNTING BRACKET K20W AND
K20E AIR CHAIN VISE CYLINDER
1
34
2000DVS-6.00-2
2000DVS-600-2 2X6 DA AIR
CYLINDER FOR KM20-22 (AIR
CHAIN VISE FOR K20SW, K20E,
KM20-22)
1
35
M94
M94 CLEVIS WITH PIN FOR
2000DVS-6.00-2
1
36
BP-19C
BP-19C PIVOT BRACKET
1
37
HHC5037016
3/8-16 X 1 HHCS GR5 Z
7
38
SHCA037020
3/8-16 X 1-1/4 SHCS
2
39
342-121
INNER BELT GUARD (NEW STYLE)
FOR K20E, K20SW, AND K20
SERIES 20HP SAWS
1
40
0.75DIAX0.875LONG
CRS
7/8 LONG OF 3/4 ROUND
CR1018
1
41
049-116
SPACER BUSHING FOR K20 SERIES
SPINDLE
1
42
560-020
MOTOR PULLEY SHEAVE FOR
K20SW-15HP, SPINDLE PULLEY
SHEAVE FOR KM20-22W-15HP &
K20E
1
43
049-003
MOTOR PULLEY BUSHING FOR
FOR K16-18, KM16-18, K20SSF-15,
K20RS-15, K20SW-15,
KM20-22-15HP, KM20-22W-15
FOR K16-18, KM16-18, K20SSF-15,
K20RS-15, K20SW-15,
KM20-22-15HP, KM20-22W-15
1
44
560-046
MOTOR PULLEY SHEAVE FOR
K16-18, KM16-18, K20SSF-15,
KM20-22/15, KM20-22W/15
(K20SSF 7 1/2 HP), SPINDLE
PULLEY SHEAVE FOR K20SW-15HP
& 20HP
1
45
049-018
SPINDLE PULLEY BUSHING FOR
K20SSF-20HP, K20SW-15 & 20HP,
K20E, KM20-22 20HP, KM20-22W-
15HP
1
46
051-012
V-BELT FOR KM20-22/20HP
AND 15HP
4
47
RND-0.375-
16THRDRODX6.25
6-1/4 INCHES OF RND-3/8-16
THREADED ROD
1
48
RND-0.375-
16THRDRODX5.375
5-3/8 INCHES OF RND- 3/8-16
THREADED ROD
1
49
342-122
OUTER BELT GUARD (NEW STYLE)
FOR K20E, K20SW, AND K20
SERIES 20HP SAWS
1
50
CPNZ037
3/8-16 CAP NUT NICKEL
2
51
342-013
STANDARD WHEEL GUARD FOR
K20SSF
1
52
293-014
FENCE, RIGHT HAND FOR K20SW
1
53
293-013
FENCE, LEFT HAND FOR K20SW
1
54
053-011
BLOCK, CHAIN ANCHOR FOR
KM20-22, K20SW
1
55
053-011T-NUT
T-NUT FOR K20 SERIES CHAIN
ANCHOR BLOCK
1
56
709-003
STOP, DOWN FOR K16-18 AND
K20SSF SAWS
1
57
FHN5075
3/4-10 FHN GR5 Z
1
58
SHCA037016
3/8-16 X 1 SHCS
1
59 K20ERESERVOIR-
ASSEMBLY
K20E RESERVOIR TANK
1
60
577-002
1/4HP COOLANT PUMP AND
MOTOR
1
61
HHC5031016
5/16-18 X 1 HHCS GR5 Z
4
62
UFWZ031
5/16 USS F/W Z
4
63
SLWZ031 5/16 SPLIT L/W Z
4
64
FHN5031
5/16-18 FHN GR5 ZINC
4
65
041-112
SWITCH BRACKET FOR E2PB
BUTTON ENCLOSURE
1
66
HHC5025008
1/4-20 X 1/2 HHCS GR5 Z
26
67
342-150
SPLASH GUARD ASSEMBLY FOR
K20SW
1
68
HHC5025012
1/4-20 X 3/4 HHCS GR5 Z
10
69
381-009
HANDLE WITH GRIP FOR K16-20
ABRASIVE SAW
1
70
441-015
907B-2500-1.00S 1/4
THUMBSCREW 1-1/2 DIA
2
71
389-011
COOLANT HOSE MOUNTING
BRACKET ASSEMBLY W FLEXIBLE
HOSE & FITTINGS FOR K20 WET
SERIES SAWS
1
72
912-014
ROTARY HAND VALVE
1
73
SHCA025020
1/4-20 X 1-1/4 SHCS
2
74
P32KA00MR
P32 ANGLE BRACKET
1
75
641-021
P32RB92BNNP PARKER
REGULATOR 1/4" 125PSI
RELIEVING MODULAR
REGULATOR
1
76
18-013-212
18-013-212 1.5- 1/8 CBM-O-160
1
77
050CL40BLN
050CL40BLN 1/2 BLACK CLOSE
NIPPLE
1
78
05015BLTTI
1/2" BLACK PIPE TEE
1
79
BN54
BN54 108-1008 HOSE BARB 5/8H
X 1/2MNPT
2
80
342-030
INNER WHEEL GUARD FOR K16-
18, K20SSF SAWS
1
A A
B B
C C
D D
E E
F F
G G
H H
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
20" WET CUT-OFF
SAW/ NO OSC
DO NOT SCALE DRAWING
K20SW
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:5
WEIGHT:
REV
DWG. NO.
E
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH
BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARYAND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
