Katherm HK Baseboard - Cross-flow fan convection with compact EC motor 1.43
Ready-to-install baseboard convectors
Installation instructions
Explanation of symbols:
Caution! Danger!
Non-adherence to this
manual can result in
serious injury or damage
to persons or property.
Danger of
electrocution!
Non-adherence to this
manual can result in
serious injury or damage
to persons or property
by electrocution.
Please read this manual
prior to commencing
installation of these
units!
All persons involved in
the installation,
commissioning and use
of this product are
obliged to pass this
manual onto other
trades working in
parallel or subsequently
on this equipment up to
and including the end
user or operator of the
equipment. Please retain
this manual until the
equipment is finally
decommissioned!
Amendments can be
made to the content or
design of this manual
without prior
notification!
Table of contents
1. Correct and proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Assembly and waterside connections . . . . . . . . . . . . . . . . . . . 6
4. Water connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6. Electrical connection/electromechanical controls . . . . . . . . . . 12
6.1 Wire electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.2 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.2.1 Electromechanical control system . . . . . . . . . . . . . . . . . . 13

4
1.43 Katherm HK Baseboard - Cross-flow fan convection with compact EC motor
Ready-to-install baseboard convectors
Installation instructions
1. Correct and proper use
Kampmann Katherm HK Baseboard units are manufactured in accordance
with the state of the art and recognised safety regulations. The use of these
units can nevertheless result in danger to persons or damage to the
equipment orother property if they are not installed and operated correctly
and properly or are not used correctly.
Katherm HK Baseboard units are intended solely for use indoors (for instance
in residential properties, offices, showrooms etc). They should not be used
indamp areas, like swimming pools or outdoors. The units should be
prevented from becoming wet or damp during installation. If in doubt,
please contact the manufacturer. Any use beyond the aforementioned
useshall be deemed to be improper and any damage resulting from this will
be the sole responsibility of the operator of the equipment. Correct and
proper use also includes adherence to the installation instructions given
inmanual.
The installation of this product requires technical knowledge of
heating, cooling and electronics. This knowledge is generally taught as part
of acourse in one of the vocational fields listed in section 2 and is not
described separately here. Connection faults or modifications can lead to
damage to the unit! The manufacturer shall not be liable for any damage
due to any faulty connection or/and improper handling.
Katherm HK Baseboard
1
Compact EC cross-flow fan
2
High-output convector Cu/Al
3
casing
4
Flow connection, 1/2“, Eurokonus
5
Return connection, 1/2“, Eurokonus
6
Pipe and cable entries
7
Terminal strip
2
3
1
4
7
5
6

5
Katherm HK Baseboard - Cross-flow fan convection with compact EC motor 1.43
Ready-to-install baseboard convectors
Installation instructions
Openings are provided on the floor duct for a potential
balancing line.
2. Safety information
The installation and assembly, as well as maintenance of electrical
equipment should only be performed by a qualified electrician
in accordance with VDE guidelines. The units should be wired in
accordance with applicable VDE regulations and guidelines issued
by the relevant power supply company. Non-adherence to these
regulations and the information contained in the installation manual
can result in malfunctions with consequential damage and danger
to personnel. There is a risk of fatal injury if the wires are swapped
when connecting the units! Disconnect all parts of the system from the
mains prior to wiring and servicing the units and prevent them from
being reconnected! The unit should only be connected to fixed cables.
Please read this manual in full to ensure correct and proper
installation.
It is imperative that the following safety information is adhered to:
• Disconnect all parts of the system that you are working on from the
mains power supply.
• Ensure that the equipment cannot be accidentally re-connected!
• Before commencing with the installation/servicing of the unit,
wait until the fan has reached a standstill after the unit has been
switched off.
• Attention! Pipes, casings and fittings can become very hot
depending on the operating mode!
• Personnel should be qualified and possess adequate knowledge of
the following:
• Safety prevention and accident prevention
• Guidelines and recognised technical regulations, such as VDE
guidelines
• DIN and EN standards
• Accident prevention regulations VBG, VBG4, VBG9a
• DIN VDE 0100, DIN VDE 0105
• EN 60730 (Part 1)
• Technical regulations issued by the relevant power supply
companies
Modifications to the equipment
Do not perform any modifications, conversions or additions to
Katherm HK Baseboard units without consulting the manufacturer, as
this could impair the safety and correct operation of the units.
Do not carry out any work on the equipment that is not described in
this manual. Fittings and cabling should be appropriate for the system!

6
1.43 Katherm HK Baseboard - Cross-flow fan convection with compact EC motor
Ready-to-install baseboard convectors
Installation instructions
3. Assembly and waterside connections
lRemove outer film and packaging cardboard.
Fig. Katherm HK Baseboard in correct assembly position
•
Place the Katherm HK Baseboard unit against the wall as shown.
Fig. Loosening the screws
• Loosen the screws on the front of the casing.

7
Katherm HK Baseboard - Cross-flow fan convection with compact EC motor 1.43
Ready-to-install baseboard convectors
Installation instructions
lThen fit the flow and return pipework.
lPerform a pressure test.
lMount the casing back on the mounting frame in reversed order.
lEnsure that this manual is clearly visible to subsequent trades on
this equipment.
Fig. Demounting of the casing
•
Pull the casing towards you and lift it carefully.
Fig. Fastening points of the mounting frame.
• Fix the mounting frame to the floor on the left and right hand side.

8
1.43 Katherm HK Baseboard - Cross-flow fan convection with compact EC motor
Ready-to-install baseboard convectors
Installation instructions
4. Water connections

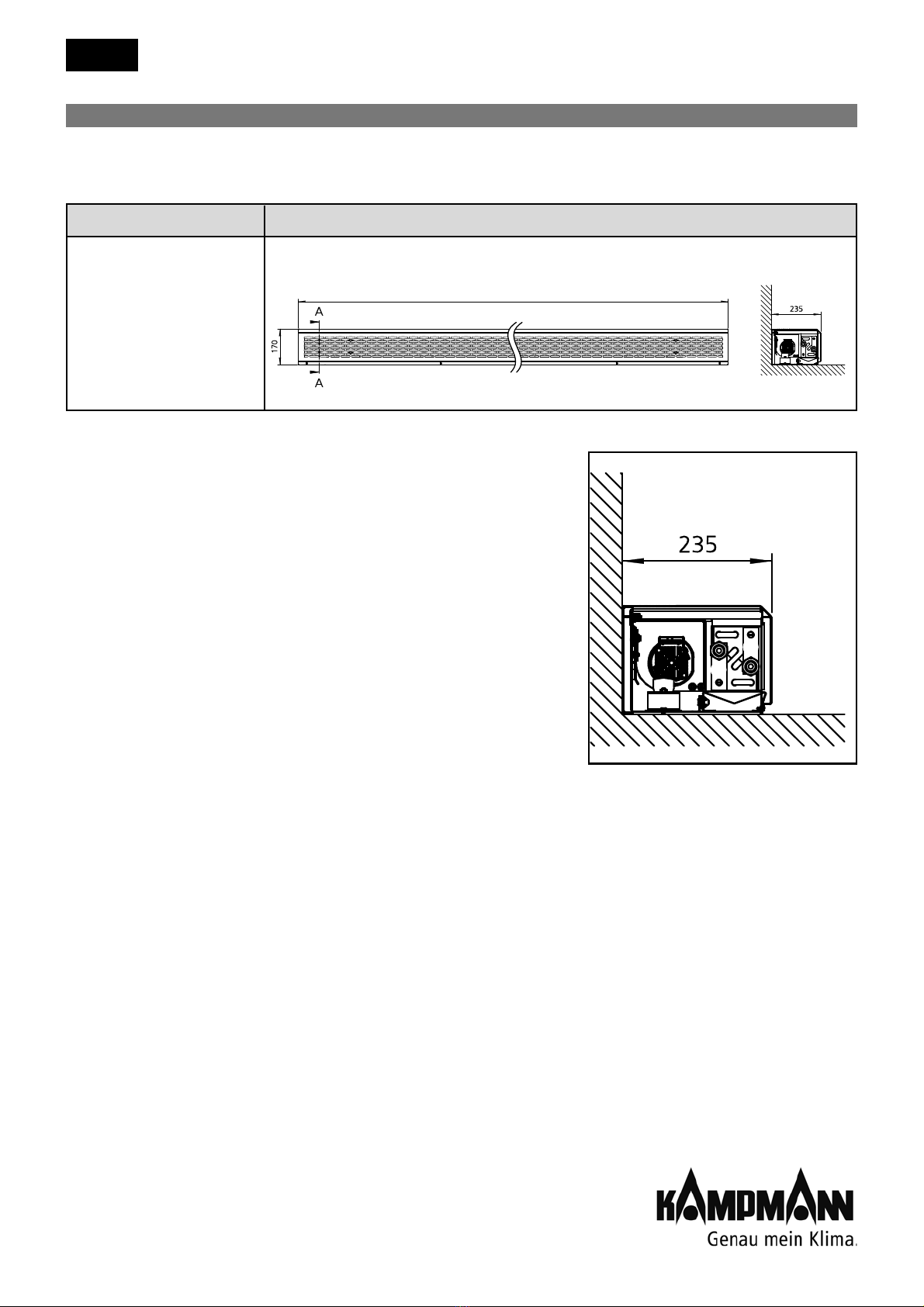

Katherm HK Baseboard
Design
Katherm QK Baseboard
1
Flow
2
Return
Room-side pipe connections
A-A
1200/1700/2600
2
Detail
1

9
Katherm HK Baseboard - Cross-flow fan convection with compact EC motor 1.43
Ready-to-install baseboard convectors
Installation instructions
5. Maintenance
Important note
Katherm HK Baseboard units ducts should only be maintained and
serviced by trained and qualified personnel and noting the
information provided in the installation and operating manual, as
well as all applicable regulations. Regular servicing and maintenance is
needed to ensure the correct operation and performance of
Katherm
HK
Baseboard units.
Fans
lCheck the crossflow fans every six months for dirt and damage
(visual inspection).
lClean the fan cylinder carefully with a cloth if dirty.
Heat exchanger
lCheck the integral heat exchanger every six months for dirt and
possible damage. A visual inspection will suffice here too.
lIf dirty, carefully vacuum the heat exchanger.

10
1.43 Katherm HK Baseboard - Cross-flow fan convection with compact EC motor
Ready-to-install baseboard convectors
Installation instructions
Condensate drip tray
lRemove the drain hose from the condensate drip tray.
Fig. Pulling out the condensate drip tray
•
Carefully pull out the condensate drip tray.
Fig. Tilting of the condensate drip tray
• Tilt the condensate drip tray as shown to fully remove the
condensate drip tray.
• Inspect the condensate drip tray and clean it if necessary.

11
Katherm HK Baseboard - Cross-flow fan convection with compact EC motor 1.43
Ready-to-install baseboard convectors
Installation instructions
Fig. Snap joint connection of the condensate drip tray
•
Reinsert the condensate drip tray in reversed order. When
reinserting the condensate drip tray, make sure to click the snap
joint connection into place.

12
1.43 Katherm HK Baseboard - Cross-flow fan convection with compact EC motor
Ready-to-install baseboard convectors
Installation instructions
6. Electrical connection/electromechanical controls
6.1 Wire electrical connections

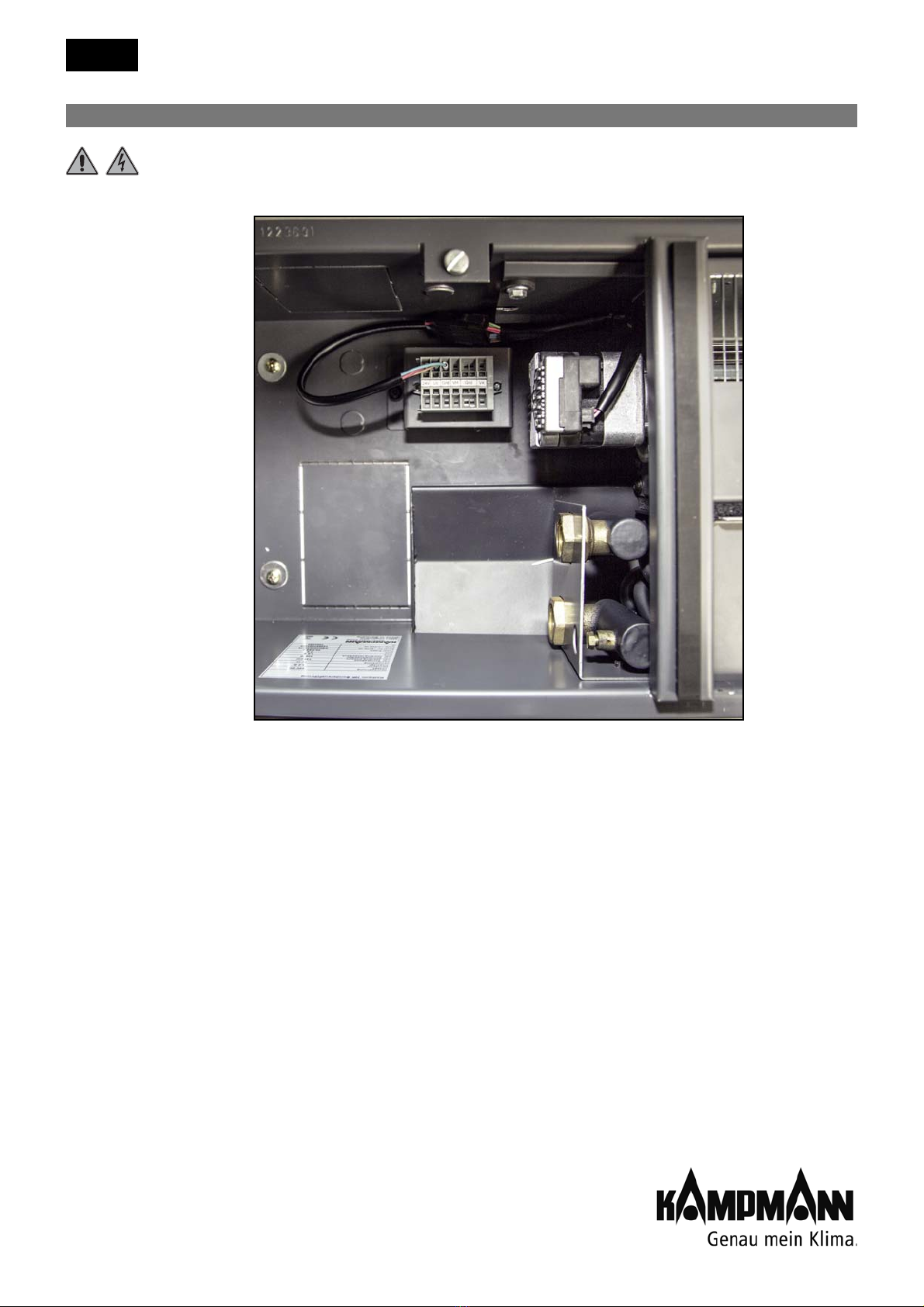

Fig. Katherm HK Baseboard with terminal strip:
• Connect up the cables according to the wiring diagram (provided with the
unit).

13

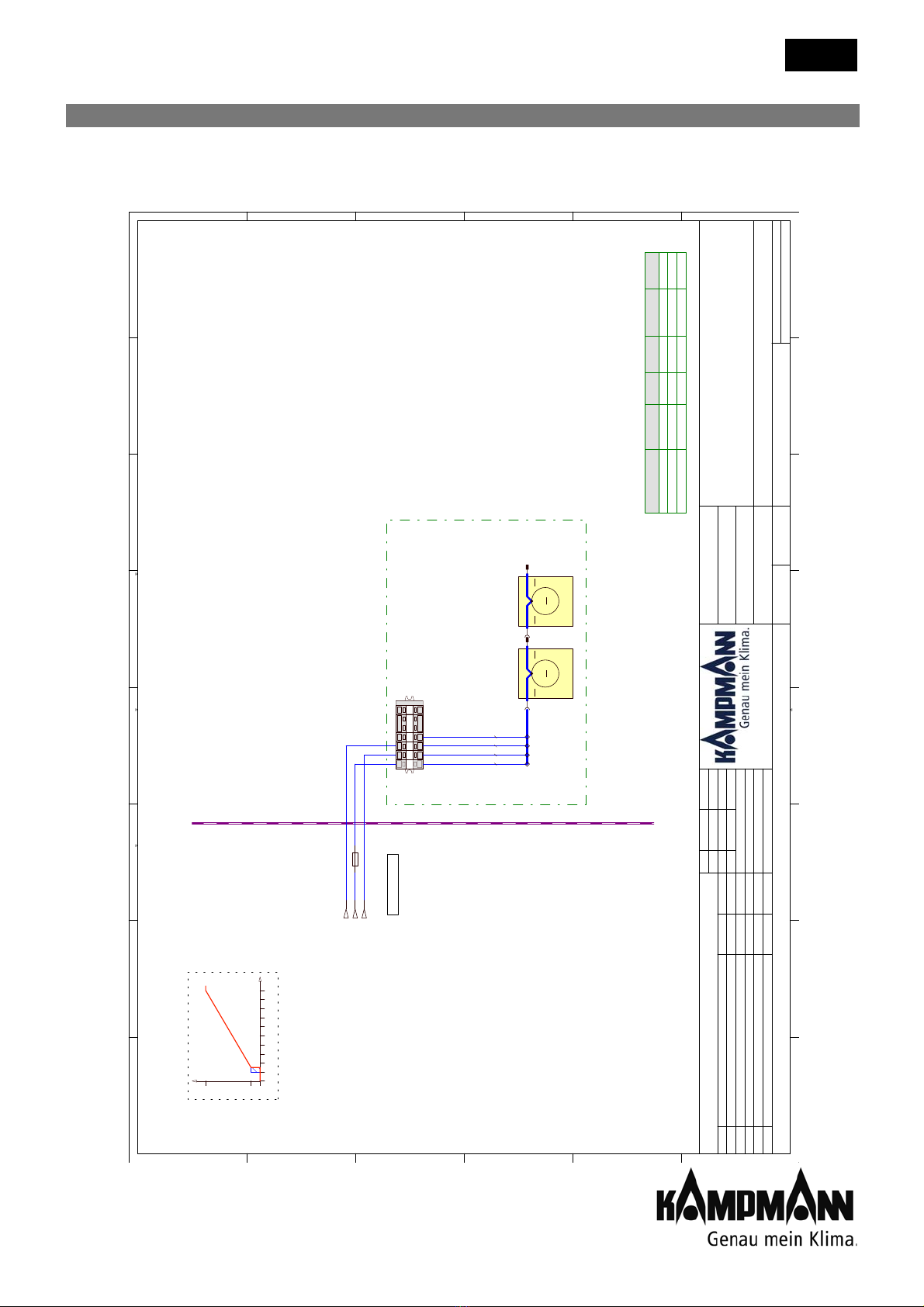

6.2 Wiring diagram
6.2.1 Electromechanical control system
