Venkon EC Fan Coil 1.48
Assembly and Installation Instructions
Keep these instructions in a safe place for future use!

Venkon EC 115 V
2
2

3
Venkon EC 115 V
3
1 General .........................................6
1.1 About these Instructions .....................6
1.2 Explanation of Symbols ......................6
1.3 Copyright Protection ........................8
1.4 Customer Service ...........................8
2 Safety ..........................................9
2.1 Intended Use ..............................9
2.2 Fundamental Dangers ......................10
2.2.1 Danger from Electrical Energy ...............11
2.3 Responsibility of the Operator ...............11
2.4 Instruction ................................12
2.5 Personnel Requirements ....................12
 2.5.1 Qualications .............................12

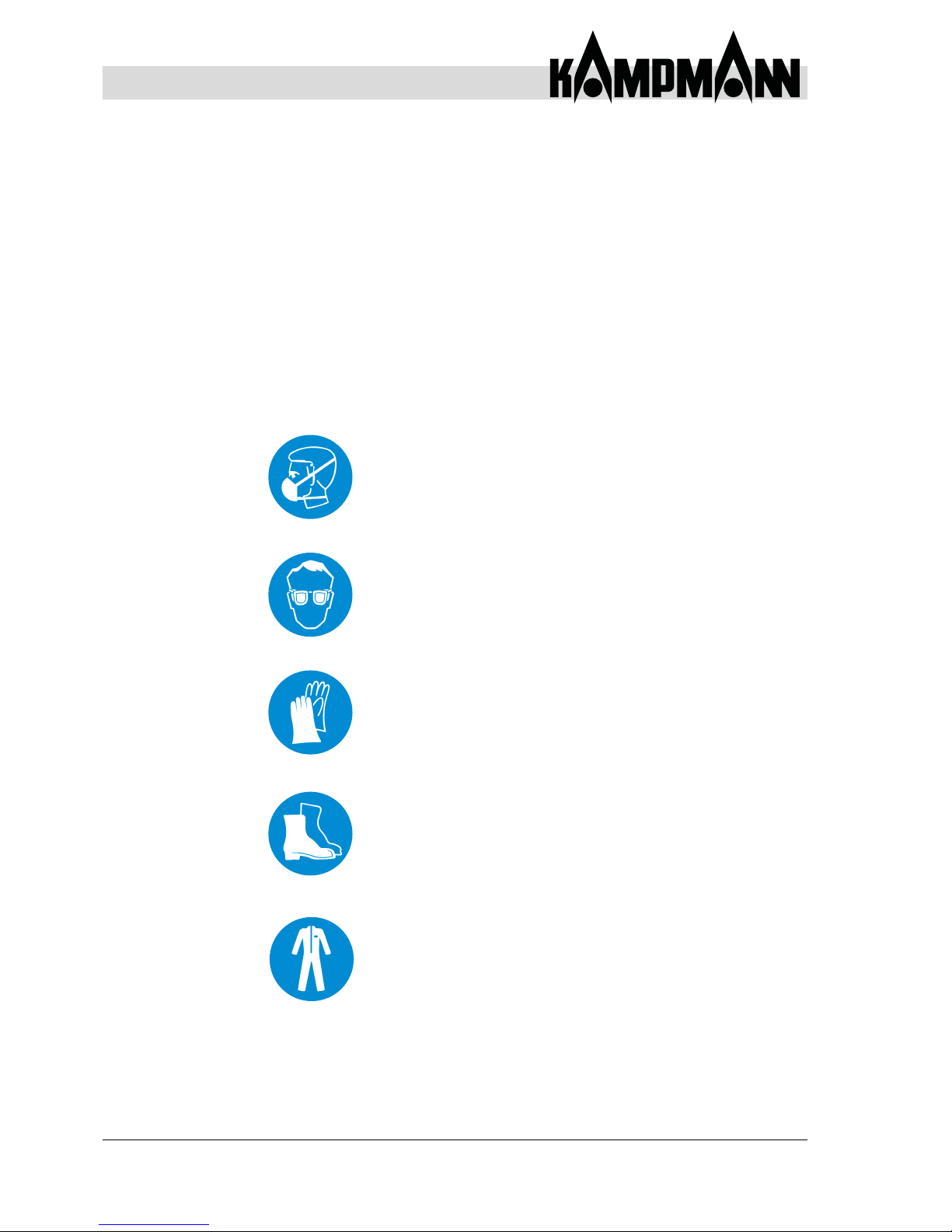

2.6 Personal Protective Equipment ...............14
3 Technical Data ..................................15
3.1 Main Dimensions ..........................15
3.2 Connection Dimensions .....................18
3.3 Weights ..................................19
3.4 Connection Values .........................19
3.5 Operating Data ...........................19
3.6 Sound Values .............................20
3.7 Limit Values for the Medium ................20
3.8 Operating Conditions ......................21
3.9 Typeplate.................................21
3.10 Wear Parts ...............................22
4 Construction and Function ........................23
4.1 Overview .................................23
4.2 Brief Description ..........................24
4.3 Unit Components ..........................24
4.3.1 Heat Exchanger ...........................24
4.3.2 Fan Unit .................................25
4.3.3 Air Vent .................................25
4.3.4 Junction Box ..............................25
4.3.5 Main Condensate Tray ......................25
4.4 Accessories................................26
4.4.1 Air-side Steel Accessories ....................26
4.4.2 Water Connection Accessories (Control) ........29
4.4.3 Water Connection Accessories (Valves, Actuator) 30
4.4.4 Condensate Accessories .....................31
4.5 Display and Operating Elements .............32
4.6 Operating Modes ..........................33
Table of Contents
Table of Contents

Venkon EC 115 V
4
4
5 Transport, Packing and Storage ...................34
5.1 Safety Information for Transport .............34
5.2 Scope of Delivery ..........................35
5.3 Transport Inspection .......................35
5.4 Packaging ................................36
5.5 Symbols on the Packaging ..................36
5.6 Transport of Pallets ........................37
5.7 Storage ..................................38
6 Installation and Connection .......................39
6.1 Requirements Governing the Installation Site ...39
6.2 Minimum Clearances .......................39
6.3 Installation (General) .......................41
6.4 Installing the Basic Unit .....................42
6.4.1 Wall-mounted Basic Unit ....................42
6.4.2 Ceiling Basic Unit ..........................43
6.4.3 Free-standing Basic Unit ....................43
6.5 Installing the Casing .......................44
6.6 Changing the Air Outlet Direction ............45
6.7 Installing Accessories .......................46
6.8 Hydraulic Connection ......................48
6.9 Connection to the Mains Pipework ...........50
6.10 Valve Dimensions ..........................51
6.11 Condensate Drain ..........................53
6.12 Pipe Sealing ..............................54
6.13 Condensate Pumps ........................55
6.14 Connecting the Condensate Pump ............56
6.15 Electrical Wiring ...........................58
6.16 Controls Overview .........................59
7 Operation and Commissioning .....................60
7.1 Pre-Commissioning Checks ..................60
7.2 Venting the Heat Exchanger .................62
7.3 Switching On..............................62
8 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
8.1 Securing Against Reconnection ...............63
8.2 Maintenance Schedule .....................64
8.3 Maintenance Work.........................66
8.3.1 Changing Filters ...........................67
8.3.2 Visual Inspections ..........................70
8.3.3 Cleaning .................................72
8.3.4 Other Maintenance Work ...................75
Table of Contents

5
Venkon EC 115 V
5
9 Faults ..........................................76
9.1 Fault Tables ..............................77
 9.2 Start-upAfterRecticationofFault...........78
10 Dismantling and Disposal .........................79
10.1 Safety Information for Dismantling
and Disposal ..............................79
10.2 Dismantling...............................79
10.3 Disposal ..................................80
Table of Contents

Venkon EC 115 V
6
6
General
Explanation of Symbols
1 General
1.1 About These Instructions
  Theseinstructionsensurethesafeandefcienthandlingof
this equipment. These instructions form an integral part of the
equipment and have to be kept in the direct vicinity of the
equipment and available to personnel at all times
All personnel must have carefully read through these
instructions prior to commencing all work on the equipment.
A fundamental prerequisite for safe working is compliance
with all the stated safety instructions and other instructions
contained in this manual.
In addition all local occupational health and safety at work
regulations apply, as do general safety provisions governing
the use of the equipment.
Illustrations in this guide are intended to provide a basic
understanding and may differ from the actual model.
1.2 Explanation of Symbols
Safety Information Symbols are used in the manual to draw attention to safety
information. Attention is drawn to safety information by signal
words that express the severity of the hazard.
DANGER!
This combination of symbol and signal word
indicates an immediately dangerous situation,
which will cause death or serious injury if not
avoided.
WARNING!
This combination of symbol and signal word
indicates a possible dangerous situation,
which can cause death or serious injury if not
avoided.
CAUTION!
This combination of symbol and signal word
indicates a possible dangerous situation,
which can cause minor or slight injury if not
avoided.

7
Venkon EC 115 V
7
General
Explanation of Symbols
Hints and recommendations
Special safety information The following symbols are used in the safety information to
drawattentiontospecichazards:
Other label The following labels are used in this manual to highlight
instructions, results, listings, references and other
elements:
IMPORTANT NOTE!
This combination of symbol and signal word
indicates a possible dangerous situation,
which can cause material and environmental
damage if not avoided.
This symbol highlights useful hints,
recommendations and information for efcient and
trouble-free operation.
DANGER!
This combination of symbol and signal word
indicates an imminently hazardous situation
caused by electric current. If this information is
ignored, the situation will result in serious injury
or death.
ExplanationLabel
Step-by-step instructions
Results of actions 
AuistungenohnefestgelegteReihenfolge 
Listswithoutspeciedsequence.Referencetosections
of the manual and other applicable documents

Operating element (e.g. button, switch),
Display element (e.g. indicator light)
[Button]
screen elements (e.g. buttons,
assignment of function keys)
„Display“

Venkon EC 115 V
88
General
Customer service
1.3 Copyright Protection
The contents of this manual are protected by copyright.
Their use is permitted when using the product. Any further
use is not permitted without written permission from the
manufacturer.
1.4 Customer Service
Our Customer Service team is available is available for technical
information:
Kampmann GmbH
Friedrich-Ebert-Str. 128–130
49811 Lingen (Ems)
[phone]Phone
[email protected]E-Mail
[phone]Fax
www.kampmann.caWebsite
Address

9
Venkon EC 115 V
9
Safety
Intended Use
2 Safety
This section provides an overview of all important safety
aspects to ensure optimum protection of personnel as well
as safe and trouble-free operation. Additional order-related
safety information is contained in the sections covering the
individual phases of the product‘s life.
2.1 Intended Use
Intended use of the unit also includes adherence to these
instructions.
Any use beyond or other than the stated intended use is
considered misuse.
Check the application with the manufacturer in case of any
doubt.
Information regarding EN60335-1
This equipment can be used by children from the age of
eight 8 years and by persons with reduced limited, sensory
or mental capabilities or a lack of experience and/or
knowledge, if they are supervised or have been instructed
in the safe use of the device and understood the resulting
dangers. Do now allow children to play with the equipment.
Do not allow children to clean or maintain the equipment
without supervision.
The equipment is not designed for operation about
2.000 m.a.s.l.
The equipment is not designed for permanent connection to
the mains water network.
There needs to be a suitable overpressure protection
mechanismttedtothewaternetworktowhichthe
equipment is connected.
Version1(Venkon):
Make sure that the basic unit cannot be accessed by the
general public. Make sure that the basic unit can only be
operated with a casing that prevents the general public
having access to the equipment.
Version2(Katherm):
Make sure that the equipment cannot be accessed by the
general public. Make sure that the equipment can only
be operated with a grille that prevents the general public
having access to the equipment.
Max. operating pressure 10 bar [1000 kPa]
Min. operating pressure 1 bar [100 kPa]
The fan coil is only intended to be used for heating, cooling
andlteringairinfrost-freeanddryrooms.Withintheroom,
the unit needs to be connected to the building‘s heating/
cooling/ventilation system and to the building‘s sewage,
water and power network.

Venkon EC 115 V
10
10
Safety
Fundamental Dangers
2.2 Fundamental Dangers
The following section lists residual risks that can be generated
by the unit even when operated as intended.
Observe the following safety instructions and the safety
information in the other sections of this manual to reduce the
risk of injury and damage to property and avoid dangerous
situations.
WARNING!
Warning of misuse!
Misuse of the fan coil can lead to dangerous
situations.
– Never operate the unit in humid areas, such as
swimming pools, wet areas etc.
– Never operate the unit in rooms with an
explosive atmosphere.
– Never operate the unit in rooms with a high dust
content.
– Never operate the unit in rooms that contain
high-temperature gases.
– Never operate the unit in rooms with an
aggressive atmosphere.
– Never operate the unit above electrical
equipment, such as switch cabinets, computers
or other electrical units, or contacts that are not
drip-proof.
– Never operate the unit outdoors.
– Keep windows closed during operation.
– Only operate the unit fully assembled and
connected to the relevant supply networks
(waste water, heating/cooling, electricity)
– Never operate the unit beyond its technical
specication( Chapter 3 „Technical Data“ on
page 15ff). Kapitel 3
– Install the unit away from heaters or other
heating equipment.
– Ensurethattheairowcancirculatefreely.
– Never place any objects on the unit.
– Never cover the unit.
– Always note the requirements for the installation
site ( Chapter 6.1 „Requirements Governing the
Installation Site“ on page 39f).

11
Venkon EC 115 V
11
Safety
Responsibility of the Operator
2.2.1 Danger from Electrical Energy
Electric current
2.3 Responsibility of the Operator
Operator The operator is the person who operates the unit for
commercial or business purposes himself or arranges for a
third party to use it and bears the legal product responsibility
for protection of the user, personnel or third parties during its
operation.
Duties of the operator The unit is operated in the commercial sector. The operator of
the unit is therefore subject to the legal obligations concerning
occupational health and safety.
In addition to the safety instructions in these operating
instructions, the valid safety, accident prevention and
environmental protection regulations must be observed for the
area of use of the unit.
Thefollowingappliesinparticular:
The operator must be aware of the applicable health and
safety regulations and determine in a risk assessment other
hazards that may arise from the special working conditions
at the site of operation. He then has to implement this in
the form of operating instructions for the operation of the
unit.
The operator must regulate and specify the responsibilities
for installation, operation, troubleshooting, maintenance
and cleaning.
The operator must ensure that all staff who work on
the unit have read and understood these instructions. In
addition, he must also train personnel and inform them of
the possible dangers at regular intervals.
It is the responsibility of the operator to provide
maintenance and repair personnel with the necessary
personal protective equipment and advise them of the
necessity to wear it.
DANGER!
Risk of fatal injury from electrocution!
Contact with live parts will lead to fatal injury
from electrocution. Damage to the insulation or
individual components can lead to a fatal injury.
–Onlypermitqualiedelectricianstoworkonthe
electrics
– Immediate disconnect the system and repair in the
event of damage to the insulation.
– Keep live parts away from moisture. This can
cause a short circuit.
– Properly earth the unit.

Venkon EC 115 V
12
12
Safety
Personnelrequirements>Qualications
Furthermore, the operator is responsible for ensuring that the
equipment is always in perfect condition.
  Thefollowingthereforeapplies:
The operator must ensure that the maintenance intervals
described in this manual are adhered to.
Hygiene requirements Theoperatormustcomplywiththespecicationsinlinewith
the pertinent legal standards and guidelines relating to hygi-
ene applicable at the installation site. This includes ensuring
that
fresh and waste water are hygienically separated
the pertinent maintenance and test intervals are complied
with,
the requirements for air ducts and diffusers are complied with,
thepredenedltergradesarecompliedwith.
2.4 Instruction
The manufacturer offers training for users. For contact details
please refer to chapter 1.4 „Customer Service“ on page 8.
2.5 Personnel Requirements
2.5.1 Qualications
The various tasks described in these instructions place different
demandsonthequalicationsofpersonnelentrustedwith
these tasks.
Only permit personnel to carry out work if they can be
expected to carry out this work reliably. People with impaired
reactions, possibly due to drugs, alcohol or medication, are not
permitted to carry out work.
Theseinstructionsoutlinebelowtherequisitequalications
personnelneedtoperformthevarioustasks:
Qualiedelectrician
Qualiedelectriciansarepersonnel,who,onaccountoftheir
professional training, knowledge and experience, as well as
knowledge of the pertinent standards and regulations, are
capable of properly carrying out work on electrical installations
and of independently recognising and avoiding possible
dangers.
Qualiedelectricianshavebeentrainedforthespecic
environment in which they work and understand the pertinent
standards and regulations.

13
Venkon EC 115 V
13
Safety
Installation personnel
Installation personnel
Installation personnel have been trained in the assigned tasks
and hazards associated with improper conduct by documented
instruction by assembly personnel. This training provides
installation personnel with the technical knowledge and
experience, as well as knowledge of the pertinent regulations,
needed to carry out the assigned tasks and independently
recognise possible dangers. Installation personnel have all the
necessary equipment and tools.
Caretakers/users
Caretakers/users have been instructed by the manufacturer in
the tasks assigned to them and possible dangers of improper
conduct. Caretakers/users are only permitted to carry out tasks
thatgobeyondnormaloperationifthisisspeciedinthis
manual.

Venkon EC 115 V
14
14
Safety
Personal Protective Equipment
Safety shoes
Safety shoes protect feet against crushing, falling objects and
sliding on slippery surfaces.
Protective clothing
Protective clothing is used to protect the clothing of personnel
andalsotoprotectpersonnelfromexternalinuencesharmful
to health.
2.6 Personal Protective Equipment
Personal protective equipment is used to protect people from
impaired safety and health when working with the unit. The
applicable accident prevention regulations at the place of use
apply in all cases.
Personnel have to wear personal protective equipment, about
whichspecicmentionismadeincertainsectionsofthis
manual, during maintenance and troubleshooting on and with
the unit.
Description of personal  Personalprotectiveequipmentisexplainedindetailbelow:
protective equipment
Lightweight breathing protection
Lightweight breathing protection is used to protect users
against harmful dust.
Goggles
Gogglesareusedtoprotecttheeyesfromyingpartsand
splashing liquid..
Protective gloves
Protective gloves are used to protect the hands against friction,
abrasion, punctures or deeper injuries, as well as contact with
hot surfaces.

15
Venkon EC 115 V
15
Technical Data
Main Dimensions
Fig. 1: Basic unit
Fig. 2: Casing, wall-mounted
Basic unit
Casing, wall-mounted without
intake grille
3 Technical data
3.1 Main Dimensions
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
A [mm] 620 770 920 1070 1220 1370 1770
The basic wall-mounted and ceiling unit is identical. The
different versions of heat exchanger do not affect the main
dimensions.
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
B [mm] 850 1000 1150 1300 1450 1600 2000
C [mm] 628 778 928 1078 1228 1378 1778

Venkon EC 115 V
16
16
Main Dimensions
Fig. 3: Casing, wall-standing
Casing, wall-mounted with intake
grille
Technical Data
Fig. 4: Ceiling casing
Ceiling panel with air intake grille
and end panel
Mod 1 Mod 2 Mod 3 Mod 5 Mod 5 Mod 6 Mod 7
B [mm] 850 1000 1150 1300 1450 1600 2000
C [mm] 628 778 928 1078 1228 1378 1778
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
B [mm] 850 1000 1150 1300 1450 1600 2000
C [mm] 628 778 928 1078 1228 1378 1778

17
Venkon EC 115 V
17
Main Dimensions
Technical Data
Fig. 5: Free-standing casing
Free-standing casing without air
intake grille with rear panel
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
B [mm] 850 1000 1150 1300 1450 1600 2000
C [mm] 628 778 928 1078 1228 1378 1778

Venkon EC 115 V
18
Vorlauf 1/2“
Heizen
Rücklauf 1/2“
Heizen
Rücklauf *
Kühlen
Vorlauf *
Kühlen
Vorlauf *
Rücklauf *
Vorlauf *
Rücklauf *
18
Technical Data
Connection Dimensions
3.2 Connection Dimensions
Abb. 6: Anschlussabmessungen
2-pipe, 3-row
2 Leiter, 4 Rohrreihen
4 Leiter, 4 Rohrreihen
Flow
Flow
Flow 1/2“
Heating
Return
Return
Flow *
Cooling
Return *
Cooling
Return 1/2“
Heating
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
Condensate connection on
main condensate tray [mm] Ø
15
Condensate connection on
pump
(ifcondensatepumptted)
[mm] Ø
6
Connectordimensions:
2-pipe heat exchanger
(heating or cooling)
[inches] 1/2“ 1/2“ 1/2“ 1/2“ 3/4“ 3/4“ 3/4“
4-pipe heat exchanger
(Heating connection 1-row)*
(Cooling connection 3-row)*
[inches] 1/2“ 1/2“ 1/2“ 1/2“ 1/2“ 1/2“ 1/2“
[inches] 1/2“ 1/2“ 1/2“ 1/2“ 3/4“ 3/4“ 3/4“
IMPORTANT NOTE!
Ifthevalvekitispre-assembled,theowandreturn
can be swapped if space is tight within the casing.
See Chapter 6.10 page 51f.

19
Venkon EC 115 V
19
Technical Data
Operating data
3.4 Connection Values
3.5 Operating Data
3.3 Weights
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
Weight
(basic unit without casing) [kg] 18,5 21 24 27 32 36 46
Weight
(basic unit with casing) [kg] 26,5 30 34 41 48 57 69
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
Mains voltage [V] 115
Mains frequency [Hz] 60
Protection class Protection class IP 20
Protection class Protection class 1
Basic unit* [W] 100 110 65 68 71 168 136
Max. current consumption
Basic unit* [A] 1,5 1,7 1,0 1,0 1,1 2,5 2,1
Number of motors 1 1 1 1 1 2 2
Number of fans 1 1 2 2 2 3 4
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
Air volume (min. - max.) m3/h 240
-
800
255
-
840
300
-
1150
320
-
1110
340
-
1170
560
-
1910
640
-
2220
Max. operating temperature [°C] 90
Min. cooling water
temperature [°C] 4
Minimum −Maximium
operating Pressure [bar] 0 −10
Minimum −Maximium
operating pressure [kPa] 0 −1000
Max. air intake temperature [°C] 40

Venkon EC 115 V
20
20
Technical Data
Limits for tap water
3.6 Sound Values
3.7 Limits of the Medium (LPHW and CHW)
The sound levels change depending on the fan speed.
The sound pressure levels were calculated at an assumed room
insulation of 8 dB(A). This corresponds to a distance of 2 m,
a room volume of 100 m³ and a reverberation time of 0.5 s
(in accordance with VDI 2081).
Only use water or a water-glycol mixture with up to 50%
glycol as the heating or cooling medium! Pay attention to the
suitability of the components on site, such as valves, boilers etc.
Usenon-corrosiveandnon-ammableliquidsastheheating
and cooling medium.
Media limits
Use water or water/glycol (max. 50%) as the medium. The
limits shown alongside for the medium apply to operation.
Mod 1 Mod 2 Mod 3 Mod 4 Mod 5 Mod 6 Mod 7
Sound pressure level LP,A
[db(A)]
min. <20 <20 20 20 20 <20 21
Max. 52 52 44 44 44 53 47
Sound power level LW,A
[db(A)]
min. 24 24 26 26 26 27 29
Max. 60 60 52 52 52 61 55
Media limits
Parameter Unit Value
pH value (at 20 °C) 7,5 - 9
Conductivity (at 20 °C) µS/cm < 700
Oxygen content mg/l < 0,1
Total hardness °dH 1 - 15
Dissolved sulphur undetectable
Sodium mg/l < 100
Iron mg/l < 0,1
Manganese mg/l < 0,05
Ammonium content mg/l < 0,1
Chloride mg/l < 100
Sulphate mg/l < 50
Nitrite mg/l < 50
Nitrate mg/l < 50
