Kanto T3760 User manual

User Manual
T3760 TV Mount
Supporting your digital lifestyle™
TILTING FLAT PANEL TV MOUNT
English
+10°/-5°
100 x 50
600 x 400
VESA
-
150 lb
(68 kg)

Introduction
Table of Contents
Table of Contents / Introduction . . . . . . . . . . . . . 2
Supplied Parts & Hardware . . . . . . . . . . . . . . . . . 3
Setup - Step 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setup - Step 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setup - Steps 3 and 4. . . . . . . . . . . . . . . . . . . . . . . 6
Setup - Steps 5 and 6. . . . . . . . . . . . . . . . . . . . . . . 7
Other Kanto Products . . . . . . . . . . . . . . . . . . . . . . 8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2
Thank you for choosing a Kanto AV Systems tilting wall mount. The T3760 is designed to mount flat panel televisions
weighing up to 150 lbs (68 kg) within less than 2” of your wall. This mount will tilt your TV +10º / –5º.
Read these instructions fully before installation of this mount. If you do not understand these directions, or have
any doubts about the safety of the installation, please consult a qualified installation contractor to install this mount.
Make sure there are no defective or missing parts. Do not use defective parts. If you are uncertain whether the part
is defective call Kanto AV Systems directly at 1-888-848-2643 or [email protected]. Kanto AV Systems can not be
liable for property damage or injury caused by incorrect mounting, incorrect assembly, lifting or incorrect use of this
product.
This product should not be mounted on steel stud walls or cinder block walls. Consult a qualified installation contrac-
tor if you are unsure about the type of wall you may have. We make every effort to ensure all necessary hardware is
included. If there is hardware missing please call Kanto AV Systems directly at 1-888-848-2643 or support@kantoav.
com.
CAUTION
The wall you plan to affix the Kanto mount to must be able to support more than 5 times the weight of
the television and the wall mount combined. Do not use this product for any purpose other than to mount a
flat panel TV on a vertical surface as outlined in this manual. Improper installation may cause damage to your
TV or serious injury. This product should not be mounted to steel stud walls, cinder block or old concrete walls.
Consult a qualified installation contractor if you are unsure about the type of wall you may have.
CAUTION
The maximum loading weight is 150 lbs (68 kg). This wall mount is intended for use only within the
maximum weight restrictions indicated. Use with products heavier than the maximum weights indicated may
result in instability causing possible injury. Recommended TV Size: 37 inch to 70 inch.
See installation video online at:
www.kantoliving.com

• 3/16” Wood drill bit
• 7/16” Masonry bit (for concrete installs)
• Socket set
• Phillips screwdriver
• Hammer (for concrete installs)
• Carpenter’s level
• Stud finder
Required Tools
Supplied Parts and Hardware Wall Plate
A: M5 x 15mm
Bolt
C: M6 x 15mm
Bolt
B: M5 x 25mm
Bolt
E: M8 x 20mm
Bolt
G: M8 x 50mm
Bolt
L: Lag Bolt
O: Plastic CapM: Concrete Anchor
x4 x4 x4
x4 x4
I: Lag Bolt Washer
x4
J: 5mm K: 10mm
x4 x4 x4
H: Washer
x4
x4
x2
P: Quick-Lock TV Bracket
x2
N: M5 x 10mm Bolt
x2
D: M6 x 25mm
Bolt
x4
F: M8 x 35mm
Bolt
x4
Supporting your digital lifestyle™3

WARNING
Never over-tighten a bolt into the back of your flat panel TV.
Do not lay the TV face down on its glass front. Use a wall or a TV stand.
Step 1: Attach TV Brackets
Step 1.1 Select the correct size of bolt.
Kanto provides 3 bolt diameters (Metric sizes M5, M6
and M8) in various lengths.
Part items: A,B,C,D,E,F or G.
Select the correct diameter bolt and hand screw into the
back of the TV to determine the correct length.
Use the washer (H) for bolts A-D(sizes M5 and M6).
The washer will work for both bolt sizes. The washer is
not required for M8 size bolts (E,F & G). If your TV has
a curved back or the mounting holes are recessed, you
can use the spacers (J, K).
Step 1.2 Attach TV bracket arms to the back of the TV
Now that you have selected the correct bolt length and
spacers if necessary, it’s time to attach the arms (P) to
the TV, as shown in Diagram A.
Diagram A
Washer (H) used
with bolts A thru D
Bolts (A thru G)
There are a wide variety of TVs available offering an assortment of bolt sizes. We provide a selection of mounting
bolts to fit most TVs. If you have any concerns about this mounting hardware or installation call us direct at
1-888-848-2643 or email at [e-mail].
Quick-Lock TV brackets (P)
Spacer (J, K), depending on
length of bolt and depth of
recess
4

I
L
I
L
M
Supporting your digital lifestyle™
Step 2: Mount Wall Plate
Wood Stud Wall
The Wall Plate must be mounted to two wood studs. Use
a stud sensor to locate the two studs, clearly marking
the outer edges of the studs (see Diagram B). Use a long
level to ensure the two holes are level at the desired
height.
Pre-drill two upper holes in the center of your studs, and
attach the Wall Plate to the wall using 2 Lag Bolts (L) and
Lag Bolt Washers (I) (see Diagram B). Do not over-tighten
lag bolts (L). Make sure the Wall Plate is flat against the
wall surface. Using the Wall Plate as template, pre-drill
the bottom 2 holes, and secure using 2 Lag Bolts (L) and
2 Lag Bolt Washers (I), taking care not to over-tighten.
Brick or Concrete Wall
Using the Wall Plate as a template, mark four holes
toward the outer edge of the Wall Plate at your desired
height (see Diagram C). Adjust the Wall Plate position to
be clear of mortar joints, keeping in mind that the mount
provides minor horizontal shift along the length of the
Wall Plate. Use a long level to ensure the four holes are
level and at the desired height.
Pre-drill four holes, and insert a Concrete Anchor (M)
into each of the holes flush with the concrete wall
surface and not flush with the surface covering, such as
drywall.
Attach the Wall Plate using 4 Lag Bolts (L) and Lag Bolt
Washers (I) (see Diagram C). Make sure the Wall Plate
is flat against the wall surface. Do not over-tighten
Lag Bolts (L).
CAUTION
Make sure the supporting surface will support
the load limits outlined in the Caution at bottom
of page two. Tighten Lag Bolts until the Wall Plate is snug
flat against the wall. Do not over tighten Lag Bolts (L).
Each Lag Bolt must be located in the center of a wood
stud.
CAUTION
Make sure the concrete or brick wall is at least
3.5” thick. Make sure the anchor is seated completely
flush with the concrete surface even if there is another
layer of material, such as drywall. If drywall is over 5/8”
thick custom lag bolts must be used. Concrete must be
a minimum of 2000psi in density.
Diagram B Diagram C
Wood Concrete
3/16”
(5 mm)
3” (75 mm) 3” (75 mm)
7/16”
(11mm)
O O
Attach the two plastic end caps (O) to the Wall Plate.
Supporting your digital lifestyle™5

Step 3: Attach TV to Wall Plate
With the TV brackets firmly secured to the TV, use two people to lift the TV into position and hook the TV brackets
onto the wall plate, as shown in Diagram D.

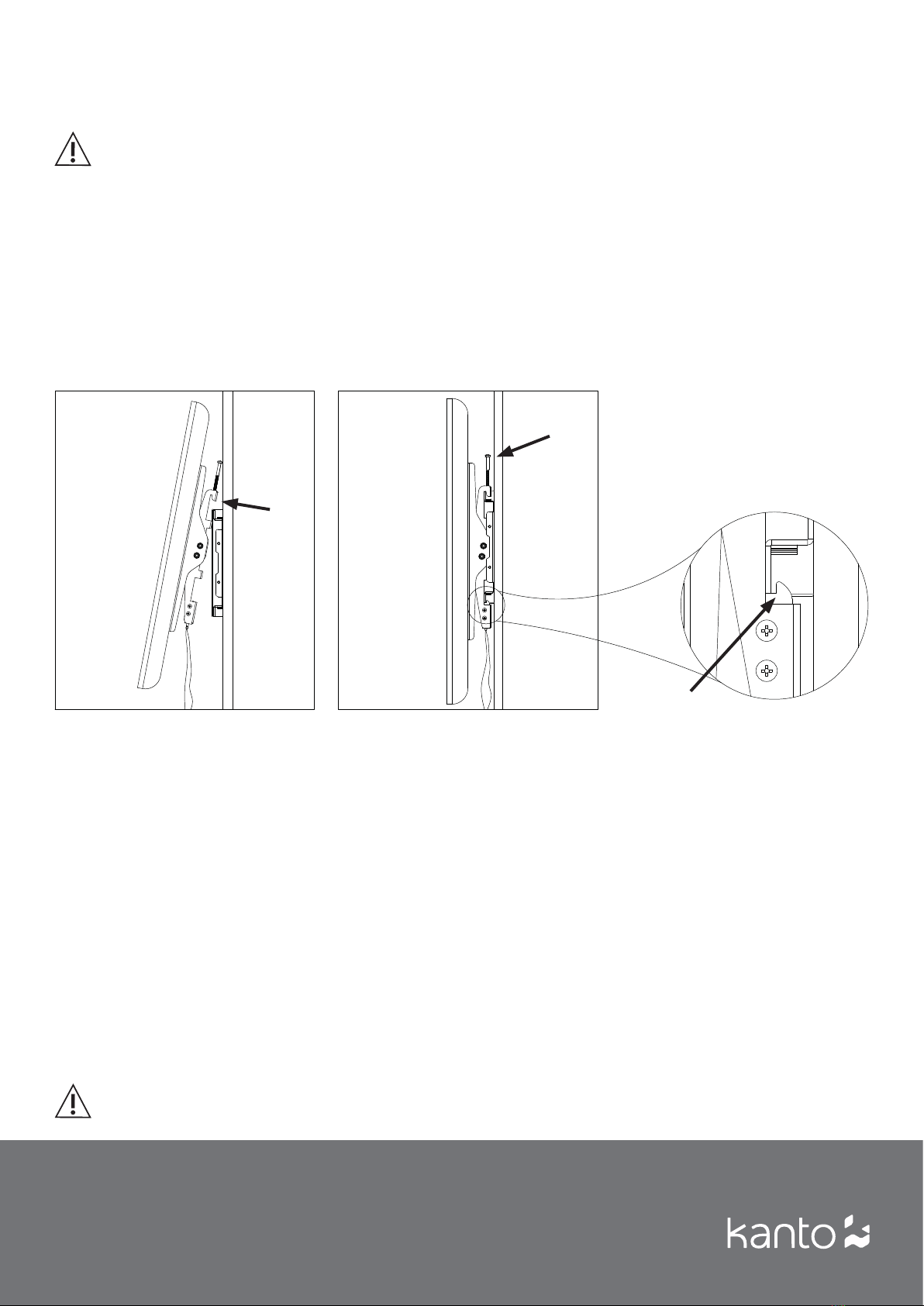

Swing the bottom of the television towards vthe wallplate, and the Quick-Lock bracket will lock into place.
CAUTION
Read this section carefully prior to install.
WARNING
Use two people to lift and position the TV onto the Wall Plate.
Diagram D Diagram E
Hook
Quick-
Lock
Level
Step 4: Level the Television

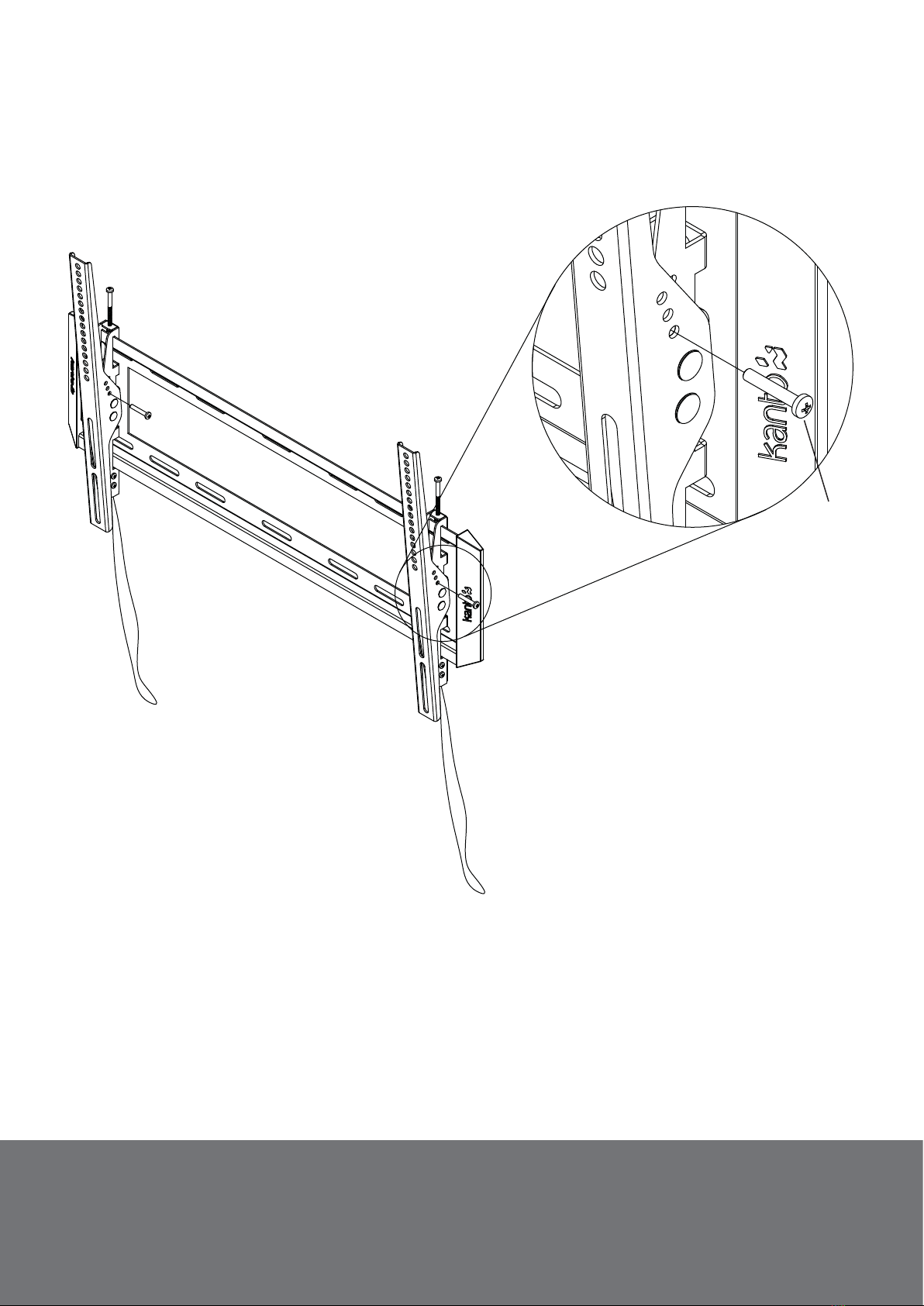

For minor level adjustment, tighten the two top screws using a Phillips screwdriver to ensure the TV hangs level, as
shown in Diagram E. You may need to pull down slightly on the Quick-Lock release cord to relieve pressure.
6

Supporting your digital lifestyle™7
Step 5: Tilt the TV
Your Kanto tilting mount features a unique Magic TiltTM system that is pre-tensioned at the factory. With your TV mounted to
the wall plate, simply tilt the TV to your desired viewing angle, between +10° and −5°, and your installation is complete.
As an added feature, the T3760 can be locked into position at three tilt positions, as shown in Diagram F. Use the M5 x
10mm bolts (N) supplied to lock the tilt arm in place at either -5°, 0° or +5°. Bolt holes are on the right side of each tilt arm.
Step 6: Remove the TV
To remove the TV from the wallplate, pull down on the
cords to release the Quick-LockTM mechanisms. Use two
people to pull the bottom of the TV away from the wall and
lift it offthe wallplate.
Diagram F
N

Check out more great products from Kanto!
18-A
www.kantoliving.com
[email protected]
Tel [phone]
To learn more about all our products, visit www.kantoliving.com
par
SP26
+
+
+
Kanto Living @kantoliving kantoliving
Kanto Living Kanto Living
• Check out our full line of bookshelf and desktop speaker systems
• Available in a stunning array of colors
• Visit kantospeakers.com for more!
Kanto Speakers
• Full line of Audio and Video Cables
• White or Black Cables available
• HDMI, Optical, Mini-jack, RCA, USB
• Switchers, Hubs, and Adapters
• Visit kantoliving.com
Limited Warranty to Original Purchaser
Kanto Distribution Inc. (Kanto) warrants the equipment it manufactures to be free from defects in material and workmanship for the following
limited warranty period of: 5 years parts and labour
If equipment fails because of such defects and Kanto or an authorized dealer is notified within 5 years from the date of shipment with proof of
original invoice, Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications. Equipment that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the repair. Such repairs are warranted for 90 days from the day of reshipment to the original purchaser. This warranty
is in lieu of all other warranties expressed or implied, including without limitation, any implied warranty or merchantability or fitness for any
particular purpose, all of which are expressly disclaimed. Customers will be responsible for obtaining a Return Authorization as well as shipping
costs to return product to a Kanto location or authorized depot listed on the website. If the equipment is covered under the warranty provisions
above, Kanto will repair or replace, and be responsible for return shipping to the customer. Please keep the original packaging so products will
not be damaged during shipping, and we recommend you insure your shipment. If equipment fails outside the warranty provisions, customers
will be quoted repair and return shipping costs prior to work being performed.
The information in the owner’s manual has been carefully checked and is believed to be accurate. However, Kanto assumes no responsibility for
any inaccuracies that may be contained in the manual. In no event will Kanto, be liable for direct, indirect, special, incidental, or consequential
damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
Warranty
