Kapro Prolaser 852 User manual

Prolaser®Cross Line Laser
Model No. 852
User Manual
Manual del usuario
Manuel d'utilisation
Руководство по эксплуатации

2
Thank you for purchasing Kapro’s 852 Prolaser®Cross Line.
You now own one of the most advanced laser tools available.
This manual will show you how to get the most out of your laser
tool.
APPLICATIONS
The 852 Prolaser®Cross Line is innovatively designed for a
very broad range of professional and DIY jobs, including:
• Aligning tiles, cabinets, borders, moldings and trimmings
• Doors and windows installation
• All types of DIY jobs, including hanging shelves, pictures and
more
NOTE
Keep this user manual for future reference.
EN

3
• Features 4
• Safety instructions 5-6
• Battery installation & Safety 7-8
• Overview 9
• Operating instructions 10-12
• Maintenance 13
• Field calibration test 14-19
• Specifications 20
• Warranty 21
CONTENTS

4
• Automatically determine the horizontal and vertical plains
• Intersecting horizontal and vertical line projection
• Self-level in automatic mode when the laser is positioned
within its self-leveling range
• Visual “out of leveling range” warning
• Pulse mode - emits pulses that can be detected by a detector
• The max. detectable range of the laser in pulse mode is
40m (130’)
• Manual mode allows angular layout/marking
• Locking mechanism to protect the pendulum during
transportation
• 1/4" tripod adaptor
• Shock resistant rubberised casing
• Compact size – ts in your toolbox
NOTE
This device contains precision components
sensitive to external shock, impact or falls
that may compromise its functionality. Handle
with care to maintain its accuracy.
FEATURES

5
This product is emitting radiation that is classified
As class II according to EN 60825 -1
The laser radiation can cause serious eye injury
• Do not stare into the laser beam
• Do not position the laser beam so that it unintentionally
blinds you or others.
• Do not operate the laser level near children or let children
operate the laser level.
• Do not look into a laser beam using magnifying optical
devices such as binoculars or a telescope, as this will
increase the level of eye injury.
WARNING: This product contains lead in solder and
certain Electrical parts contain chemicals which are
known to the State of California to cause cancer, birth
defects or other Reproductive harm.
(California Health & Safety Code Section 25249.6- Proposition 65)
NOTE
The red goggles are intended to enhance the
visibility of the laser beam. They will not pro-
tect your eyes against laser radiation.
SAFETY INSTRUCTIONS
WARNING

6
• Do not remove or deface warning labels on the laser level
• Do not disassemble the laser level.Laser radiation can
cause serious eye injury
• Do not drop the laser
• Do not use solvents to clean the laser
• Do not use in temperatures below -10°C or above 45°C
(14°F / 113°F)
• Do not operate the laser in explosive atmospheres such as
ammable liquids, gases or dust sparks from the tool can
cause ignition
• When not in use, turn off the power, engage the pendulum
lock and place the laser in the carrying pouch
• Make sure the pendulum lock mechanism is engaged
before transporting the laser
NOTE
If the pendulum lock mechanism is not
engaged before transportation, internal
mechanical damage may occur.

7
1.Press down on the latch to open the battery cover.
2.Insert a fully charged Li-Ion
battery according to the polarity
diagram on the inside of the
battery cover.
3.Close the battery cover.
4.Can be charged with any 5V
charger and Type-C USB cable.
1. Press down on the latch and open the battery cover.
2. Insert 3 new AA batteries of the same brand according to
the polarity diagram on the inside of the battery cover.
3. Close the battery cover.
Lithium-Ion Battery (optional) Installation
BATTERY INSTALLATION & SAFETY

8
WARNING: Batteries can deteriorate, leak or explode, and
can cause injury or re.
1. Do not shorten the battery terminals.
2. Do not charge Alkaline batteries.
3. Do not mix old and new batteries.
4. Do not dispose of batteries into household waste.
5. Do not dispose batteries in re.
6. Defective or dead batteries must be disposed according to
local regulations.
7. Keep the batteries out of reach of children.
NOTE
If the laser level will not be used for a long
period, remove the batteries from the battery
compartment. This will prevent batteries from
leaking and corrosion damage.

9
1. On/Off Locking Switch
2. Keypad
a. Pulse Mode button
b. Beam Selector button
c. Manual Mode button
3. Laser output window
4. Battery cover
5. ¼” tripod mount
OVERVIEW

10
Working in Automatic mode (self-leveling):
In automatic mode the laser level will level itself in the range
of ± 3° and will project a horizontal line, vertical line or both
lines simultaneously.
1. Remove the laser from its case and place it on a solid, at,
vibration free surface or on a tripod.
2. Slide the locking switch #1 to the ON position. The laser
level will generate the crossed horizontal and vertical lines.
3. Choose the beams that you want to work with by pressing
the H/V button.
4. If the initial slope of the laser is beyond ± 3° and the
automatic mode is activated, the laser lines will ash.
In this case, reposition the laser on a leveled surface.
5. Before moving the laser level, switch the laser to OFF.
This will lock the pendulum and protect your laser.
OPERATING INSTRUCTIONS

11
Working in Manual mode:
In Manual mode, the 852’s self-leveling mechanism is disabled and
the laser lines can be set at any slope required. The laser beams will
ash every 3 seconds to let you know that you are working without
the self-leveling and the beams may not be leveled.
1. Press the Manual push button mode M. The laser will project
the cross lines.
2. Choose the beams that you want to work with by pushing
the Beam Selector push button H/V.
3. To mark a slope, tilt the laser using to reach the required angle.
4. To turn the manual mode off, press again the Manual
push button M.
5. While in Manual mode sliding the locking switch #1 from
OFF to ON will turn off the Manual mode. The automatic self –
leveling will be activated if the laser level is within the self –
leveling range.

12
Working in Pulse mode with a detector:
For outdoor work under direct sunlight, or bright light
conditions, and for extended indoor ranges up to 40 meters,
use the Pulse mode with a detector.
When the pulse mode is activated, the laser lines will ash at
a very high frequency (invisible to the human eye). This will
allow the detector to detect the laser lines. The pulse mode
can be activated in both Automatic and Manual modes.
1. To turn the Pulse mode on , press the Pbutton.
2. When activated, a slight reduction in laser line brightness
will occur.
3. To turn the Pulse mode off, press the Pbutton again.
4. Laser lines brightness will return to previous brightness.

13
To maintain the accuracy of your project, check the accuracy
of your laser level according to the eld calibration tests
procedures.
• Change the batteries when the laser beams begin to dim.
• Wipe the aperture lens and the body of the laser level with a
clean soft cloth. Do not use solvents.
• Although the laser level is dust and dirt resistant to a certain
degree, do not store in dusty places as a long term exposure
may damage internal moving parts.
• If the laser level is exposed to water, dry the laser level
before returning it to the carrying case to prevent corrosion
damages.
• Remove the batteries if the laser level is not used for a long
period of time to prevent corrosion damages.
MAINTENANCE

14
BA
a1
0.5 m
x
This laser level left the factory fully calibrated.
Kapro recommends that the user will check the accuracy of the
laser periodically, or if the unit falls or is mishandled.
To do so rst check the height accuracy of the horizontal line,
then check the levelling accuracy of the horizontal line, and
nally check the leveling accuracy of the vertical line.
Checking the Height Accuracy of the Horizontal Line.
(Up and down deviation)
1) Set up the laser on a tripod or on a solid surface between
two walls Aand B, approximately 5 meters apart.
2) Position the laser level approximately 0.5 meter from wall A
3) Unlock the pendulum and press the button to project the
horizontal and the vertical cross lines towards wall A.
4) Mark on the wall the center of the cross lines as a1

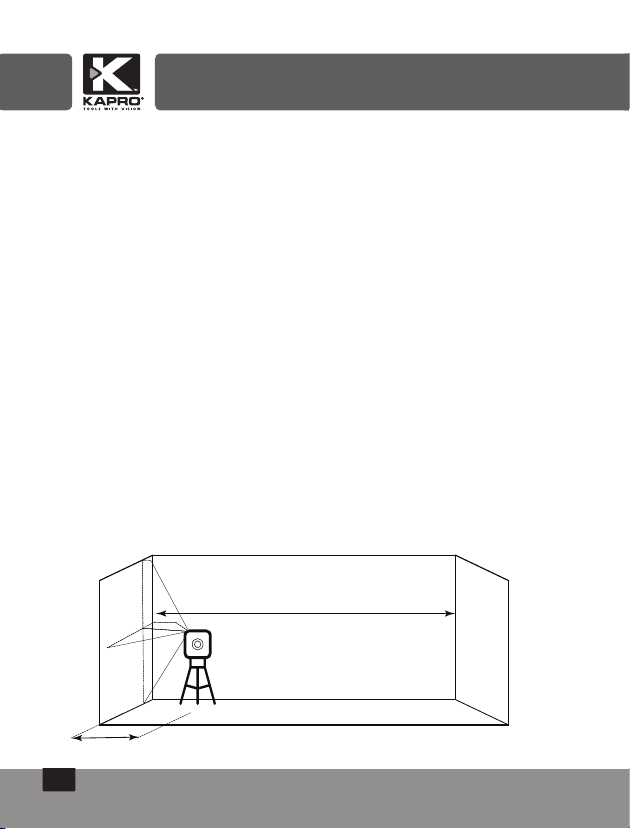

(see gure # 1).
approximately 5m
Figure # 1
FIELD CALIBRATION TEST

15
BA
a1
b2
x
b1
x
x
0.5 m
BA
a1
b1
x
x
180°
5) Turn the laser 180° towards wall B, and mark on the wall

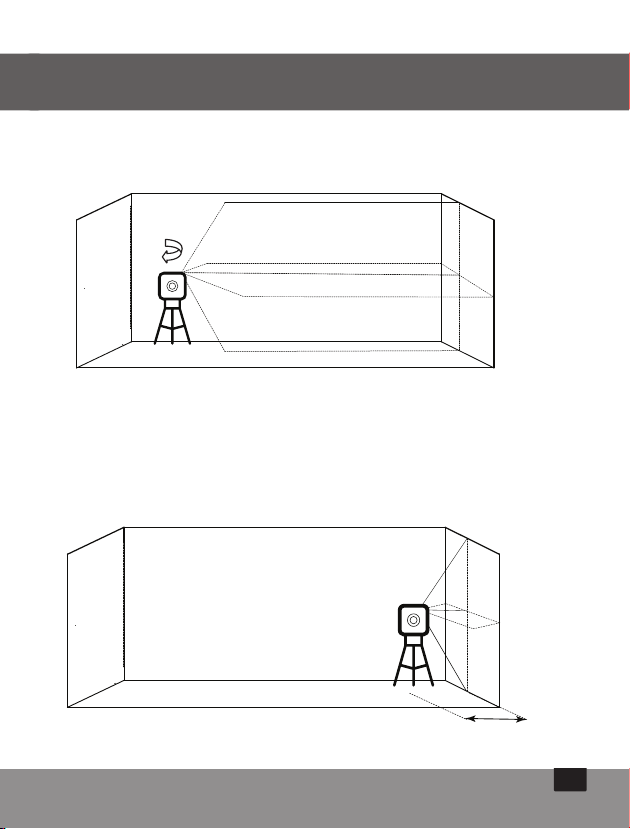

the center of the cross lines as b1 (see gure 2).
6) Move the laser level towards wall Band position it
approximately 0.5 meter from wall B.
7) Mark on wall Bthe center of the cross lines as b2
(see gure 3).
Figure # 2
Figure # 3

16
8) Turn the laser 180° towards wall A, and mark on the wall the
center of the cross lines as a2 (see gure 4).
9) Measure the distances:
Δa= |a2-a1|
Δb= |b1-b2|
10) The difference | Δa – Δb| should not be more than 3 mm,
otherwise to send the laser level to a qualied technician
for repairs.
Checking the Level Accuracy of Horizontal Line.
(Side to side inclination)
1) Set up the laser on a tripod or on a solid surface at a distance
of approximately 1.5 meters from a wall 5 meter long.
2) Unlock the pendulum and press the button to project the
horizontal and the vertical cross lines towards the wall.
BA
a1
b1
x
b2
x
x
a2
x
180°
Figure # 4

17
3) Mark point a1 on the wall, in the middle of the horizontal line
at the left edge of the horizontal line (see gure 5).
4) Turn the laser level counterclockwise until the right edge of
the horizontal line reach’s near a1, mark a point a2 on the wall
in the middle of the horizontal line (see gure 6).
1.5 m
a1
x
x a1
x a2
approximately 5m
Figure # 5
Figure # 6

18
5) The distance between a1 and a2, should not be more than
1.5mm otherwise to send the laser level to a qualied
technician for repairs.
Checking the Accuracy of the Vertical line.
1) Hang approximately 4 meter plumb line on a wall.
2) After the plumb line has settled, Mark point a1 on the wall
behind the plumb line near the plumb cone. (see gure 7).
3) Set up the laser on a tripod or on a solid surface in front of the
wall at a distance of approximately 2 meters.
4) Unlock the pendulum, and press the button to project the
vertical line toward the plumb line.
5) Turn the laser so that the vertical line will merge with the
plumb line below the hanging point.
a1 x
approximately 4m
Figure # 7

19
6) Mark point a2 on the wall, in the middle of the vertical line at
the same height of a1. (see gure 8).
7) The distance between a1 and a2, should not be more than
1.5mm, otherwise to send the laser level to a qualied technician
for repairs.
2 m
a1
a2
x
x
x
Figure # 8

20
Laser beams
output pattern Vertical and horizontal cross lines Horizontal line
Vertical line
Laser range • Indoor - up to 15m (50ft)
• Outdoor with detector up to 40m (130ft)
Accuracy ±0.3mm/m (±0.0003in/in)
Fan angle 120° ±5°
Self-leveling range ±3°
Laser line width 2 mm±0.5mm/5m
(0.10” ±0.02” at 20’ )
Wavelength 635 ±5nm - Laser Class II
Power supply 3 AA batteries
3.7V Li-Ion battery pack (optional)
Battery life up to 25 hours of continuous operation
Li-Ion battery pack – up to 7hr
Operating temp -10° C + 45° C (14°F +113°F)
Storage temp -20° C +60° C ( -4°F +140°F)
Water & dust proof IP54
Dimensions 8.6cm x 6.4cm x 6.6cm
(3.4" x 2.5" x 2.6")
Weight with
batteries 280gr±10gr (0.6lbs ±0.35oz )
SPECIFICATIONS
