Owners Manual
RGB3C5
WaterGlow Lighting
Kasco Marine, Inc.
800 Deere Rd.
Prescott, WI 54021
PH [phone]
kascomarine.com
Rev 2-18-20

2
Table of Contents
Important Safety pg 2
Parts Included pg 3
Mounting Instructions pg 4 - 6
RGB Control Panel Installation & Operation pg 7
Maintenance & Warranty pg 8
Repair pg 9
Troubleshooting Tips pg 10-11
Replacement Parts pg 12
Important Safety:
Please read and follow these important instructions to help ensure your safety and the quality performance of your Kasco
equipment.
•Caution should be used when dealing with any electrical and/or moving equipment.
•Under NO CIRCUMSTANCE should anyone enter the water with the electrical equipment plugged in and/or in
operation.
•Kasco WaterGlow lighting kits are intended for use with a Listed control panel having a GFCI protected receptacle, or
field wiring terminals and disconnect switch, or a timer with a disconnect for use with a GFCI receptacle. They are
intended to be mounted on a floating fountain or aerator for use in a natural or man-made body of water to comply
with NEC Article 682.
•Kasco WaterGlow lighting kits have not been evaluated for use in swimming pools, spas or stationary fountains.
•RGB3C5 controller is 120Vac and MUST be plugged into a GFCI protected receptacle or GFCI protected field
terminal connections.
•RGB3C5 fixtures MUST be properly submerged (approx. halfway) to avoid overheating; insufficient submersion or
operation out of water will damage fixtures and void warranty.
•Extreme caution should be used around water, especially cold water, as in Spring, Fall, and Winter, which poses a
hazard in and of itself.
•NEVER lift or drag the equipment by the power cords. If you need to pull the unit to the side of the pond, use the
anchoring ropes.
•Do not use boats that tip easily for lighting kit installation and follow all boating safety rules and regulations, including
wearing a PFD (Personal Flotation Device). Do not use waders in deep ponds/lakes or ponds/lakes with drop-offs,
drastic slopes, or soft bottom material.
•For more information regarding your control panel instructions, refer to your equipment owner’s manual. A control
panel must be installed a minimum of 5 feet (3m in Canada) from the body of water unless separated from the body
of water by a fence, wall, or other permanent barrier that will make the unit inaccessible to persons in the water. A
complete list of control panels can be found in the Accessories section of kascomarine.com.

3
Parts Included
Mounting Method for 2HP and larger fountains (8400JF/VFX/AF and larger)
Alternate Mounting Method

4
Mounting Instructions
Step 1
Attach the bracket (F) to the light fixture (A) by fitting the head of the 10-32 x 1/2’’ hex screw (G) into the tabs on each side of
the fixture. Place one bracket O-ring (E), one #10 lock washer (D), and one thumb nut (C) on each #10 screw outside the
bracket. Tighten the thumb screws on each side hand tight only. Repeat this step for all fixtures.

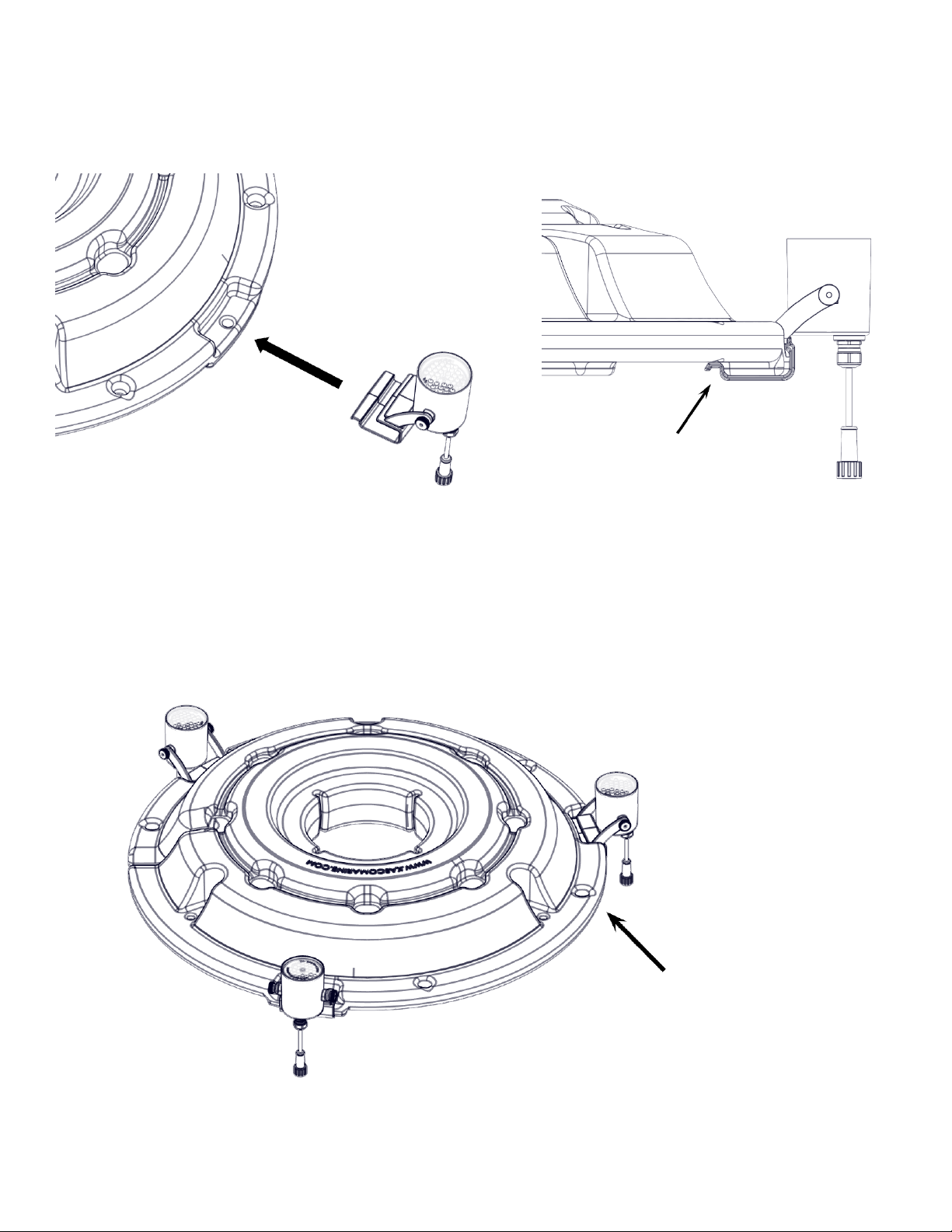

Step 2
Slide bracket into the top flange on the snap-on clip (H) until it clicks into place and is secure.

5
Step 3
After attaching unit to the float according to fountain/aerator instructions, push clips into recesses on float until an audible click is heard
and fixture is secure.
Ensure clip is fully
seated on float
Step 4
Repeat for remaining fixtures, spacing evenly around the float. Adjust angle of lights using thumb nuts if desired, being sure that the
same angle is used for all fixtures. Cable ties can be used to attach fixture cords to float to decrease play and ensure protection. Cable
tie light kit power cord to float opposite the fountain power cord for balance and to prevent damage from fountain.
Secure light kit power
cord to float using
supplied cable tie

6

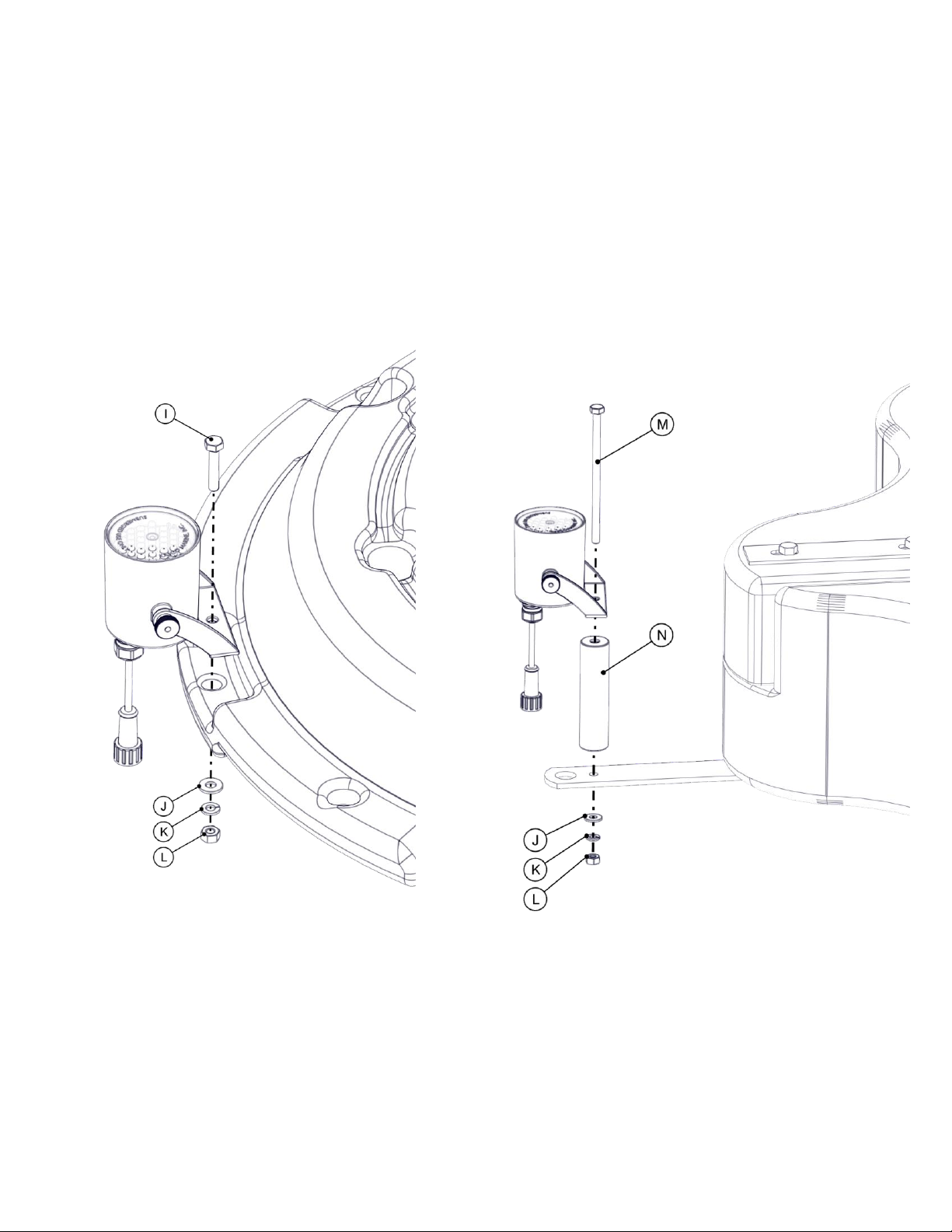

Alternate Mounting Instructions
For 3400/4400 JF/VFX/AF units:
Included with the RGB3C5 Kit is optional hardware for use
instead of the snap-on light clip. Assemble parts I, J, K, and L
as shown in the diagram below. 7/16’’ socket and wrench
required.
For 8400 JF/VFX/AF and larger units:
Included with the RGB3C5 Kit is required hardware for use
instead of the snap-on light clip. Assemble parts M, N, J, K, and
L as shown in the diagram below. 7/16’’ socket and wrench
required.

7

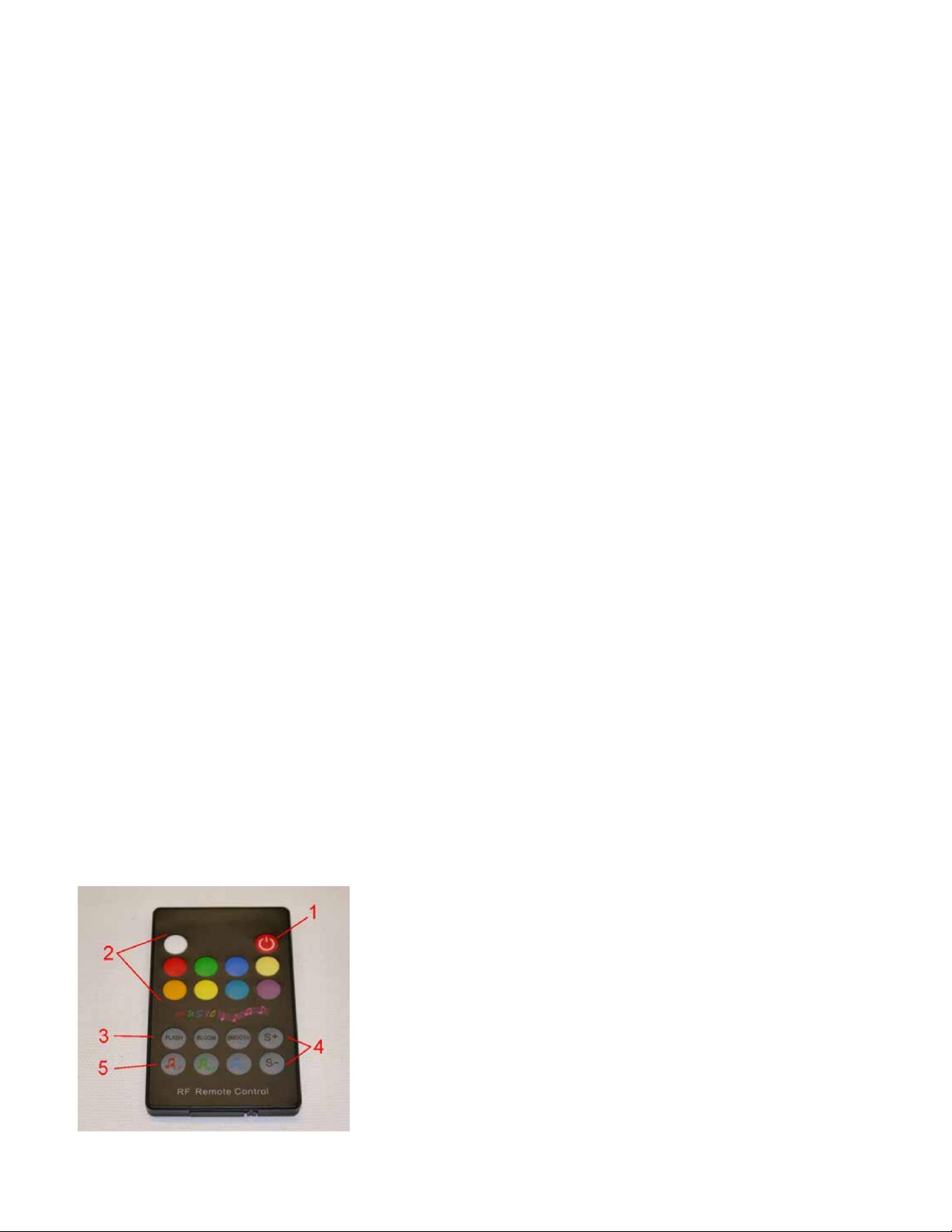

Button Function
1. Power On/Off: press the button once to turn on, again to turn off.
2. 9 static color modes: White, Red, Green, Blue, Warm White, Amber,
Yellow, Cyan, Magenta. Repeatedly pressing the color will cycle the
intensity at 100%, 50%, 25%, 12%, 6% and back to 100%.
3. Automatic color sequencing modes: Flash –jump to next color; Bloom-
transition from color to color; Smooth –smooth transition from color to
color
4. S+, S- button slow down or speed up the color transitions of the 3
automatic modes
5. Music input control: The RGB controller is capable of changing colors
based on sound input. The controller has a 3.5mm audio jack, and a
microphone built into the controller. The microphone input is adjustable
with a level sensitivity dial.
Step 5
Open the control box and remove the operating instruction sheet, remote control, and battery. Insert the battery into the remote
control. If the battery is already inserted, remove the plastic battery guard from the remote to active the battery connection.
RGB Control Panel Installation & Operation
Step 6
The RGB control box is ready to mount next to your Kasco fountain control box (mount a minimum of 5ft from water) using two
exterior-grade wood screws; one for the top and one for the bottom hanger. Tighten the top screw to prevent the box from lifting
off the screws. Mount close enough for the power cord to reach the receptacle or terminals labeled “Lights” in the fountain control
box.
Note: Do NOT power on RGB control box at this time.
Step 7
Once mounted, connect the RGB light kit power cord to the field terminal connections in the RGB control box. Connect: White to
White, Green to Green, Red to Red, and Black to Black.
Step 8
For 120V fountain control box: Plug the RGB control box into the “Lights” receptacle in the fountain control box. This will allow the
C-25 control panel to control the lights and the fountain through the timer. To energize the C-25 light receptacle, the photoeye of
the C-25 will need to be covered (to simulate nighttime conditions). Refer to your C-25 instructions.
For 240V or 3phase fountain control box: If you have a Kasco C-85, C-95 or 3phase control panel, you will need to hardwire the
RGB controller power cord to the light terminals in your fountain control panel. Refer to your fountain owner’s manual for
connection information. The Kasco C-85, C-95, and 3phase control panels use a timer for controlling the light output. Ensure the
light timer is set as required. Refer to your fountain owner’s manual for timer setting instructions.
Step 9
With the RGB controller door open, a red LED “Power” indicator on the RGB control module will be seen. If this indicator is not
on, then power is not being sent to the RGB control box.
Step 10 –RGB Operation
The RGB controller is operated with the included remote control. The controller will operate in the last mode set until it is changed
with the remote. Before use, remove the clear plastic tab at the base of the remote. The figure below details the remote control’s
functions. The green signal indicator (on the RGB controller) will flash while the remote is communicating to the controller.

8
Under NO CIRCUMSTANCE should anyone enter the water while a fountain is operating.
The following maintenance procedures can be utilized to ensure many years of quality performance from your Kasco Fountain and
Light Kit and reduce the need for more costly repair work.
PROPER INSTALLATION: Proper installation of Kasco equipment will include a power source with ground fault protection. The control
panel included with the equipment has built-in ground fault protection for both the fountain and the lighting kit. Ground fault interrupters
are a safety feature that can also alert you to electrical leaks in the equipment. If you have repeat, consistent trips of the ground fault
device, the equipment should be disconnected and removed from the water. The power cord should be inspected for damage and you
should contact your distributor or contact Kasco Marine at 715-262-4488 or [e-mail] for further instructions. A
complete list of control panels can be found in the Accessories section of kascomarine.com.
OBSERVATION: Operating equipment should be observed on a regular basis (daily, if possible) for any reduction or variation in
performance. If a change in performance is observed, the equipment should be disconnected from power and inspected.
WINTER STORAGE: In regions where there is significant freezing in the wintertime, the light kit should be removed from the water to
protect it from the expansion pressure of ice. Storage over winter is best in a location that is out of the sun and cool, but above 32° F.
CLEANING: Light kits should be removed from the water at least once per year (at the end of the season in cold climates) to clean the
exterior of the system. The light fixture surfaces dissipate heat into the water and any algae, calcium, or other build-up will become an
insulator that blocks heat transfer and may lead to overheating and damage. Keeping the lenses clean will also ensure the brightest
light possible.
Warranty Policy
Warranty period: RGB3C5, RGB6C5 = 2 year Limited Warranty: Kasco® Marine, Inc. warrants this Light Kit to be free from defects in
material or workmanship under normal use and service. The Kasco Marine, Inc. obligation under this warranty is limited to replacing or
repairing free of charge any defective part within the warranty period from the date of shipment. Customer shall pay shipping charges
for returning the unit to Kasco.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND ANY OTHER OBLIGATION OR
LIABILITY WHATEVER ON THE PART OF KASCO MARINE, INC. AND IN NO EVENT SHALL KASCO MARINE, INC. BE LIABLE
FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES. (Warranty Policy continued on next page)
Music Control
The remote control has 3 automatic music modes:
•FT –Fast track, color change is fast change
•MT –My track, color change is medium changing speed
•CT –Cool track, color change is slower and smoother than FT, and MT.
The audio input jack is compatible with the headphone jack on a smartphone, MP3 player, or a pre-amp type output via an “aux”
style 3.5mm connection. Do not connect to a line level (amplified speaker) output. Kasco recommends a 3.5mm “Y”adapter to allow
for connection of the audio source to the RGB controller and a stereo amplifier simultaneously if desired.
Maintenance Recommendations
Warranty

9
Warranty is void if:
•The Light Kit is not maintained properly according to the Maintenance Recommendations supplied in this Owner’s Manual.
•The lights, control box, or power cord are altered in any way from original shipment. Cuts in the power cord are not covered
under warranty.
•The Light Kit is damaged by unauthorized tampering.
Warranty Claim Procedure: The best method for establishing warranty period is by keeping your original receipt and registering the
equipment online at kascomarine.com under the Warranty Information section.
Once warranty coverage has been established, the light kit may be sent to Kasco Marine or any Kasco Authorized Repair Center for
evaluation and repair.
Note: The LED light fixtures are sealed and do not require any physical maintenance other than cleaning. If a fixture fails to operate it
can be removed and the included sealing cap installed onto the waterproof connector of the power cord. This will allow you to continue
to operate your light kit with two fixtures while a replacement fixture is procured. Utilize caution when removing the shrink tube from the
connector. Only perform this removal/replacement with all equipment disconnected from the power source.
Any required repairs must be performed by Kasco Marine. Any alterations or changes made to Kasco units by an unauthorized source
will void the warranty. This includes tampering with the unit, power cord, and/or control box.
A physical Kasco Repair Form must be included with any equipment sent to Kasco or an Authorized Repair Center. This form can be
found under the Product Support section of kascomarine.com. If no Repair Form is available, include your name and physical address
for return delivery of the repaired Light Kit and a daytime phone number and/or e-mail address for correspondence regarding the
warranty claim.
Note: Visually inspect the power cord for any cuts, rodent chews, etc. to determine if it should be included in the repair shipment. The
cord may be needed by the shop to diagnose the failure.
Once warranty coverage has been established, the equipment may be sent to any Kasco Authorized Repair Center or to Kasco at:
Kasco Marine, Inc.
800 Deere Rd.
Prescott, WI 54021
Attn: Repairs
Non-Warranty Repairs: Most failed equipment can be repaired at substantially lower costs than replacement with new. If your light kit
requires repair and is no longer covered under warranty, please contact Kasco Marine or your local distributor for available options.
Please ship according to the instructions above.
•Kasco Marine does estimates on repairs at the request of the customer. The request for estimate should be included in the
letter that accompanies the returned unit and must include a daytime phone number and/or e-mail address. We will contact
the customer with a total after the unit has been evaluated, but before the work is performed.
•All estimates that are rejected for repair will be destroyed unless otherwise directed by the customer. Rejected equipment can
be returned at the customer’s expense for shipping and handling charges.
Billing: All non-warranty repairs will be returned and billed to the customer unless otherwise directed. Kasco Marine accepts Visa and
MasterCard credit card payments. Kasco Marine will call for credit card information upon completion of the estimate at the customer’s
request.
Please see the Product Support section of kascomarine.com for more information about warranty and repairs. Contact Kasco Marine at
715-262-4488 or [e-mail] for additional information and your closest Authorized Repair Center.
Repair

10
The following is provided to help diagnose a probable source of trouble. It is a guideline only and may not show all causes for all
problems. For additional troubleshooting help, contact your local distributor or visit kascomarine.com for additional guidance. Note: you
may need to refer to your owners manual that was provided with your fountain for additional control panel settings and adjustments.
“My light kit is installed and wired but will not turn on.”
Ensure control panel is connected to the electrical circuit. Verify circuit breakers, timers, and/or interlock switches are turned on and
functional. Refer to your owners manual that was provided with the fountain.
It may not be dark enough for the photo eye on the control panel to activate.
•C-25 control panel: The control panel has a photo eye on the left side of the enclosure exterior. This photo eye measures
ambient light. To activate, the photo eye must not measure any ambient light for at least several minutes. Also, the C-25 timer
must be turned on (fountain operating) to allow the light circuit to energize. Covering the photo eye with black electrical tape
will activate the photo eye for testing.
•C-85, or C-95 control panel with GFCI outlet and photo eye control: The control panel has a photo eye on the left side of the
enclosure exterior. This photo eye measures ambient light. To activate, the photo eye must not measure any ambient light for
at least several minutes. Also, the fountain timer must be turned on (fountain operating) to allow the light circuit to energize.
Covering the photo eye with black electrical tape will activate the photo eye for testing. While the photo eye is covered, the
GFCI outlet can be reset if tripped.
The timer may not be set properly.
•C-85, or C-95 control panel (and all 3phase fountain control panels) with terminal connections and timer control for light kit:
The control panel has a second timer for controlling the lights (no photo eye). Ensure the light timer is set to operate the lights.
The timer has a built in Hand-Off-Auto switch. Ensure the switch is set properly. Ensure the fountain is turned on. The light
timer will not energize the light kit unless the fountain circuit is energized.
The GFCI may be tripped.
•C-25 control panel: Reset the GFCI. If the GFCI does not reset it could be a ground fault in the fountain wiring, or the light kit
wiring. Unplug both the fountain and light kit and reset the GFCI. If it resets, plug fountain then light kit back in and see which
one trips the GFCI. If the GFCI does not reset with both unplugged, then the GFCI may be defective.
•C-85, or C-95 control panel with GFCI outlet and photo eye control: To reset the GFCI outlet the fountain timer must be turned
on, and the photo eye must be activated. (black electrical tape can be wrapped around the photo eye to activate it). Once
these are on, the GFCI reset button can be pressed. (unplug the light kit prior). Plug the light kit in and see if it operates. If the
GFCI trips again then the light kit may be damaged. If the GFCI does not reset (with light kit unplugged) then it may be
defective, or the photo eye is not activated to send power to the outlet.
•C-85, or C-95 control panel with terminal connections and timer control for light kit: For panels with a GFCB (ground fault
circuit breaker) and timer-controlled lights, simply reset the two-pole breaker. This will turn the fountain and light kit back on if
the timers are set to on! If it trips again, disconnect the light kit from the terminals and reset. WARNING! You must turn off
power to the panel before disconnecting any wiring from the terminals! If the breaker trips with the light kit disconnected, then
disconnect the fountain as well and reset. If the breaker continues to trip it may be a defective GFCB. If the breaker resets,
then reconnect the fountain then the light kit to see which one trips the GFCB.
•3phase fountain control panels: 3phase fountain panels have a ground fault sensing module that will trip if either the light kit or
fountain has a ground fault. To reset the module, simply press the reset button in the panel. This will turn the fountain and light
kit back on if the timers are set to on! If it trips again, disconnect the light kit from the terminals and reset. WARNING! You
must turn off power to the panel before disconnecting any wiring from the terminals! If the GFI module trips with the light kit
disconnected, then disconnect the fountain as well and reset. If the GFI module continues to trip it may be a defective module
Troubleshooting Tips

11
or an internal wiring issue with the panel. If the module resets, then reconnect the fountain then the light kit to see which one
trips the module.
“My lights work, but they are not as bright as they were when fist installed.”
Dirty lenses may be to blame.
•Turn off power to the control panel and disconnect power cords to the fountain and the light kit. Bring the fountain to the shore
and inspect the light kit lenses. Over time, algae growth and hard water deposits on the lenses can block light output. Clean
the lenses with a soft brush and the light should be bright again.
“I’ve connected my audio device to the controller with an aux cord, but my lights are not changing color.”
The wrong setting or a low input signal could be the problem.
•Be sure that one of the 3 automatic music modes are enabled.
•Turn up the volume of the audio source.

12
Replacement Parts
Mounting Method for 2HP and larger fountains (8400JF/VFX/AF and larger)
Alternate Mounting Method

13
800 Deere Rd
Prescott, WI 54021
Phone: 715‐262‐4488 Fax: 715‐262‐4487
www.Kascomarine.com [e-mail]
Repair Contact Form
❖Kasco requires all Repairs sent in MUST be accompanied by this form and marked to Repairs
attention. (ex. Attn: Repairs)
❖Repairs returned should include upper pump housing or wire basket for Aerators and De‐Icers. These
parts protect the motor during shipping.
❖Kasco is NOT responsible for shipping damage accrued in return shipment.
❖It is the responsibility of customer to ship and pay freight to Kasco.
❖Do not ship float or control panel with unit, unless otherwise instructed
❖A fee of $60 per hour will be assessed for cleaning excessively dirty units and float disassembly
❖Refer to the Owner’s manual for easy‐to‐follow troubleshooting rule out site issue.
Note: Contact Information Should be that of the person or company to contact for repair.
Company
First Name
Last Name
Address
City
State
Zip code
Phone #
Alternate Phone #
Email Address
Preferred method of contact (Circle)
Phone Email
Purchase order #
Additional notes for technician.
Submersible Pump Information (Complete if
sending unit)
Parts Included (For office use)
Light kit Information (complete if sending lights)
Model #
Model #
Unit
Serial #
Serial #
Cord
Cord Length:
Cord Length:
Light Kit
Purchased from:
Purchased From
Float
Purchase Date:
Purchase Date:
Control Panel
