Congratulations on the purchase of your new Keiser M3i Indoor Group Cycle and welcome to the Keiser family. Your new
resistance system is a revolutionary way to exercise providing a smoother, quieter, and more predictable workout. We commend
you on your decision to work toward your health and wellness goals. For your safety, and to ensure the best experience and
maximum gains, it is critical that you read and understand this manual before you begin using the M3i. If you have any questions
regarding assembly and/or operation after reading this manual, our Keiser Customer Support team will be happy to assist by
telephone at 1 559 256 8000 or via live chat at keiser.com/support (Monday—Friday, 9 am to 5 pm Pacic Time), or by email
at [e-mail].
Yours in Health,
Keiser Corporation
GENERAL INFORMATION
INTRODUCTION
Register your M3i to stay informed of safety notications
and for faster, more accurate warranty service.
Scan the QR Code to the right to access the interactive online
warranty registration form or visit:
https://www.keiser.com/forms/warrantyregistration
SCAN
REGISTER YOUR PURCHASE
Please take a moment at this time to record the serial number
in the space provided below.
Serial No.:
RECORD YOUR SERIAL NUMBER
Serial Number Information
AManufacturer name, logo, and address
BCountry of manufacture
CPatent information notication
DWEEE Directive mark
EQuality management ISO standard
FCE mark
GTÜV SÜD mark
HMaximum User Weight Limit
IIC Identier
JFCC Identier
KEuropean Authorized Representative
LSerial number and date of manufacture
MModel number and product description
NDirective and standards compliance
H I J K
E
F
G
L
M
A
N
C
D
B005506XXX
88888-88888
Figure 1. Serial Number Location and Information
Serial Number Location

M3iINDOOR GROUP CYCLE 04
ItisthesoleresponsibilityofthepurchaserofKeiserCorporation
equipment to instruct all individuals, whether they are the
end user or supervising personnel, on proper usage of the
equipment. Keiser Corporation recommends that all users of
its equipment be informed of the following information prior
to use.
1. Read these instructions. Keep these instructions.
2. Heed all warnings. Follow all instructions.
3. Use the Keiser M3i Indoor Group Cycle (herein referred
to as “bike”) for its intended purpose as described in this
manual. Do no use attachments/accessories that have
not been recommended by the manufacturer.
4. Maximum user weight limit: 350 lbs (159 kg). User height
range: 58–84 inches (1,473–2,134 mm).
5. Consult your physician before beginning any exercise
program.
6. Heartratemonitoringsystemsmaybeinaccurate.Over-
exercising may result in serious injury or death. If you
feel faint, stop exercising immediately and consult your
physician.
7. The bike is intended for use in training areas of
organizations where access and control are specically
regulated by a person responsible for determining the
suitability of use and maintenance.
8. Wear proper shoes. Dress shoes, sandals, slippers, or
bare feet are not suitable for use on the bike. Quality
athletic shoes are recommended for proper support
and comfort. Do not wear clothing that might catch on
any moving parts. Tie long hair back.
9. Distractions,suchas watching television, reading,using
a computer device, or talking on the telephone while
using the bike affect the ability of the user to safely
exercise on the bike. Pay attention to and focus on your
exercise while using the bike.
10. Routinelycheckandpayspecialattentiontocomponents
most susceptible to wear. Refer to the “Preventative
Maintenance Schedule” (page 22) for further instruction.
11. Immediatelyreplacedamaged,worn,orbrokenpartsand
do not usethe bike until all repairshave been completed
and tested by a Keiser-certied technician.
12. Only use replacement parts recommended by Keiser
Corporation. Attempting to repair or replace any
damaged, worn, or broken parts on your own is not
recommended. A Keiser certied technician should be
consulted.
13. Properposture andbodypositionisnecessaryto achieve
a safe, comfortable,and effective workout. Correct foot
placement and arm reach must always be maintained
during every workout.Refer to the sections under“How
to Exercise on the Bike” (page 19) for further instruction
and safety information.
14. The cycle is not designed with a freewheel, but a xed
gear system. When the ywheel is in motion, the pedals
willalsobeinmotion.Forthisreason,neverremoveyour
feet from the Pedals while the Flywheel is in motion as
serious user injury may occur.
15. Always secure your feet on the Pedals with the clip-in
system or the Pedal Cage before your workout.
16. Itisrecommendedthatthebikebepedaledintheforward
direction.
17. The Resistance Lever also functions as an Emergency
Brake, allowing you to safely slow or stop the motion of
theFlywheel. Move the ResistanceLeverforwardtoslow
the motion of the Flywheel. Move the Resistance Lever
to the most forward position to engage the Emergency
Brake.
18. Donotmakeadjustmentsduringexercise.UsethePedals
or the Resistance Lever to slowly bring the Flywheel to
a controlled stop prior to making adjustments.
19. Before dismounting thebike, push the Resistance Lever
to the most forward position to engage the Emergency
Brake. Wait until the Pedals come to a complete stop
before dismounting.
20. Pedaling at high speeds or in the reverse direction
or pedaling while standing are considered advanced
techniquesandshouldonlybe performed when theuser
has reached an advanced level or under supervision by
a person that has reached an advanced level.
21. The bike is not a toy. Children shall not play with the
bike. Children under14 years old should notuse the bike.
Keep children and pets clear from the bike at all times,
especially while in use. Cleaning and user maintenance
shall not be performed by children.
22. Thebikecan be usedbychildren age 14yearsand above.
Persons with mental disabilities, reduced physical,
mental, or sensory capabilities, or lack of experience
or knowledge should not use the bike without constant
supervision by a spotter/supervisor.
23. The bike should not be positioned in direct sunlight, in
areas of extreme temperature and humidity, or where
the bike may be splashed with water or uids. The bike
is intended for indoor use only.
24. The minimum amount of free area around the bike is
24 inches (610 mm) on all sides. Refer to the “Training
Space” section (page 6) for further placement direction.
25. The bike is suited for both home and commercial use.
To ensure your safety and to help prevent damage to
the bike, read all instructions before operating. Seek
professionalinstallation techniciansifyouarenotableto
safelyperformtheworknecessarytounpack,assemble,
and set the bike in a desired exercise location.
26. Failure to perform the “Proper Operation Check” (page 14)
prior to normal use of the bike will void your warranty and
could result in serious injury.
27. The use of any exercise equipment, including, without
limitation, Keiser’s strength training equipment in which
resistancecanbechangedatanytimeduringtherepetition,
and any xed gear bike, including, without limitation, the
Keiserbike,without properinstruction and/orsupervision
IMPORTANT SAFETY INFORMATION

M3iINDOOR GROUP CYCLE 05
violates the terms of the agreement for purchase of such
products. The ability to add resistance anytime during a
repetition, including, without limitation, the ability to do a
heavy negative may be dangerous, especially for anyone
that does not recognize or respect the potential danger.
The inability to stop pedaling on a xed gear bike before
the ywheel stops may also be dangerous to anyone riding,
especially anyone that does not recognize or respect the
potential danger.
28. Users, agents, and/or anyone directing the use of the
bike shall determine the suitability of the bike for its
intended use, and said parties are specically put on
notice that they shall assume all risk and liability in
connection herewith.
29. Ifyou haveanyquestionsregardingbikeinstallation and/
or operation after reading this manual, contact Keiser
Customer Support:
CONVENTIONS USED
This manual contains the following marks:
WARNING: Indicates a hazardous situation that, if not
avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation that, if not
avoided, could result in minor or moderate injury.
HEAVY OBJECT: Indicates help is required during lifting
to avoid muscle strain and/or back injury.
TWO-PERSON PROCEDURE: Indicates help is required
to safely and successfully complete installation.
IMPORTANT: Indicates information considered critical,
but not hazard-related.
SAFETY AND SERIAL NUMBER LABELS
Maintain safety and serial number labels. Do not remove
labels for any reason. They contain important information.
If unreadable or missing, contact Keiser Corporation for a
replacement (see contact info on this page).
WARNING: Incorrect or excessive exercise may cause injury. If you experience any kind of pain,
including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising
immediately and consult your physician before continuing.
IMPORTANT SAFETY INFORMATION (CONTINUED)
Heart rate monitoring systems
may be inaccurate. Over
exercise may result in serious
injury or death. If you feel faint
stop exercising immediately.
555376
WARNING
555387
Consult a physician prior to use
and stop if you feel faint, dizzy,
or exhausted.
Refer to User Manual for
additional warnings and safety
information.
This machine must be used in a
supervised environment.
Keep children away.
Keep body, clothing, and
accessories clear from all
moving parts.
Inspect machine prior to use.
Immediately report worn, loose,
or damaged parts and refrain
from using the machine.
Always ride in control. Stop in a
controlled manner as flywheel
momentum will keep pedals
turning.
Do not attempt to dismount bike
or remove feet from pedals until
pedals have come to a complete
stop.
Maximum user weight limit:
350 lbs (159 kg)
●
●
●
●
●
●
●
●
●
Seat/Handlebar
Height Adjustment
Instructions
Read the User Manual, follow
all instructions prior to use.
Ensure proper instruction is
attained prior to using this machine.
IMPROPER USE OF THIS MACHINE
CAN RESULT IN SERIOUS INJURY.
WARNING
1 559 256 8000
[e-mail]
keiser.com/support
Telephone and Live Chat
Monday—Friday 9 am to 5 pm PST
005506XXX
88888-88888

M3iINDOOR GROUP CYCLE 06
Figure 2. Training Space Illustration
The minimum amount of free area space around the bike is 24 inches (610 mm) on all sides (refer to Figure 2). When M3i
cycles are positioned adjacent to each other, the free area may be shared.
Height: 49 in (1,245 mm)
Depth: 51 in (1,296 mm)
Width: 26 in (661 mm)
Weight: 92 lbs (42 kg)
Power: 1.5V AA Alkaline Batteries (quantity two,
Keiser PN 966502)
Maximum user weight limit: 350 lbs (159 kg)
User height range: 58–84 inches (1,473–2,134 mm)
The Keiser M3i Indoor Group Cycle is categorized per
ISO/EN 20957-1 as Accuracy Class A (High Accuracy)
and Usage Class S (Studio, commercial use) product
for use in a controlled environment such as sports or
tness facilities under the supervision of a trainer.
EQUIPMENT SPECIFICATIONS
TRAINING SPACE
51 in
(1,296 mm)
24 in
(610 mm)
24 in
(610 mm)
24 in
(610 mm)
24 in
(610 mm)
26 in
(661 mm)
FREE AREA TRAINING AREA

M3iINDOOR GROUP CYCLE 07
ASSEMBLY
• To help prevent damaging parts during assembly,
do not use power tools.
• Substitution or modication of any part or
component, other than what is provided by Keiser,
will void your warranty.
• Left-hand side Pedal is marked “CR-L” and right-
hand side Pedal is marked “CR-R.”
• Keep the packing materials until you successfully
nish all assembly steps.
• Keiser Corporation is not responsible for
damage or injury caused by incorrect assembly/
installation, use, or improper care/maintenance.
BEFORE ASSEMBLY...
AFTER ASSEMBLY...
Protect your investment and ensure longer equipment life. Apply a quality rust and corrosion inhibitor to the following
parts and areas after assembly, annually thereafter:
• Left Bottom Bracket Bearing
• Clip-in area of each Pedal
See "Proper Operation Check" on page 14 for application locations. For complete equipment care information, refer
to the "Preventative Maintenance Schedule" on page 22.
TOOLS AND MATERIALS REQUIRED
UNPACKING
• Scissors
• Cutting Pliers
• 1/2-inch (13 mm) Wrench
if Shipping Board is present
ASSEMBLY
• #2 Phillips Screwdriver
• Two 10 mm Open-end Wrenches
• 15 mm Open-end Wrench
• 15 mm Crowfoot
• 16 mm Open-end Wrench
• 16 mm Crowfoot
• Ratchet
• 6-inch Ratchet Extension
• Torque Wrench
up to 35 ft-lbs / 47 Nm
• 5 mm Hex Key
• 6 mm Hex Socket Bit (long bit recommended)
MATERIALS
• Clean Cloth
• Rust and corrosion inhibitor
Note for in-home users: The M3 Series Tool Kit (PN 550887, sold separately) contains all the assembly tools listed
above, including tools for unpacking (1/2-inch Wrench only), seat adjustment (14 mm Socket), and battery replacement
(#1 Phillips Screwdriver).
UNPACKING
IMPORTANT: AVOID EQUIPMENT DAMAGE, DO NOT USE BOX CUTTERS.
Place all parts in a cleared area and check for missing parts (refer to the Parts List and Hardware & Fittings sections in
the following pages). Parts damaged in shipping or missing? Contact Keiser Customer Support (see back page for contact
information).
HEAVY OBJECT: HELP REQUIRED WHEN LIFTING.

M3iINDOOR GROUP CYCLE 08
Figure 3. Parts List
PARTS LIST
Familiarize yourself with the parts below before you continue to the assembly procedure.
QtyDescription Keiser Part Number
1Flywheel 555003
1Handlebar 550844
1Hubcap 555005
1Keiser®M Series Bike Pedal Set 555473
1Media Tray 555085
1Base 550814
6
8
4
5
1
3
7
1M3i Main Frame and Computer Display 550820XXC, 550853X
1Flywheel Guard 550845
2
1
6
2
7
3
4
58

M3iINDOOR GROUP CYCLE 09
HARDWARE & FITTINGS
Description Qty Keiser Part Number
Socket Head Cap Screw (M6X1X20 SS) 5 9502
C
Hex Head Cap Screw (M6X1X45 SS) 1 9525
D
EHex Nut (M6X1 SS) 1 9508
Flywheel Guard Clamp 2 555025
F
Loctite®242 Threadlocker 1 105550
G
Display Mount Cover 1 555080
H
Acorn Nut (7/16-20 SS) 4 555022
A
Handlebar Slide 1 555026
I
Washer (FW-ACFT 7/16 SS) 4 9384
B
L-Handle Assembly 1 550828
K
Hub Cover Decal* 5 555379
L
Handlebar Spacer 1 555031
J
A
B
G
I
E
F
J
K
L
C
H
D
Figure 4. Hardware and Fittings
* Hub Cover Decal will be shipped with, and are to be installed on, the M3i sold within the European Union only.

M3iINDOOR GROUP CYCLE 10
(a) Position the front of the Main Frame facing the
Transport Wheels, then carefully lower the Main Frame
onto the Base over the Base Studs.
(b) Install one Washer and one Acorn Nut (Items B and A)
onto each Base Stud. Tighten Acorn Nuts using a 16 mm
(5/8 inch) Open-end Wrench. Torque to 35 ft-lbs (47 Nm)
using a 16 mm (5/8 inch) Crowfoot and Torque Wrench.
Prepare Base and Main Frame.
(a) Remove the Mount Screw using a #2 Phillips
Screwdriver. Carefully release the Computer Display
from the packing material.
(a) Slide the Computer Mount up and under the Mount
Tabs. Align the screw holes and install the Mount Screw
(removed in Step 3) using a #2 Phillips Screwdriver.
(b) Tightly coil the Communication Wire into the
Computer Mount Cavity.
(b) Remove the two screws along the side of the Sweat
Guard (#2 Phillips Screwdriver). Next, slide the Mount
Cap (Item H) into position. Install with the two original
screws.
Pull Caps off Base Studs
Screws (x2)
HOW TO ASSEMBLE THE M3i BIKE
1
3
2
4
Mount Cover
Computer Display
Computer Mount
Cavity
If present, release Shipping
Board from Main Frame
(Tool: 1/2-inch Wrench)
HEAVY OBJECT:
HELP REQUIRED.
TWO-PERSON
PROCEDURE
REARREAR
FRONTFRONT
A
B
Transport Wheels
IMPORTANT:
Do not pull wire,
handle with care.
IMPORTANT:
Do not pull wire,
handle with care.
Mount Screw
Mount Tabs
Computer Mount
Communication
Wire
Mount Screw

M3iINDOOR GROUP CYCLE 11
Prepare for Flywheel Guard Installation.
(a) Install the Clamps to the Flywheel Guard, nger-tight
(Items D, E, and F).
(b) Place the open end of the Flywheel Guard onto the
Mount Stud, then pivot the Flywheel Guard into position.
Prepare for Flywheel installation.
It is recommended to remove x2
Flywheel Guard Mount Screws
and Washers from the Base for
easy installation later in the
assembly procedure (Tool: 5 mm
Hex Key).
Align and secure the Flywheel Guard.
(a) Attach the Clamps to the Base using x2 Mount Screws
and Washers (removed in Step 5), nger-tight. Align the
Flywheel Guard to the Flywheel.
(b) Once the Flywheel Guard is aligned, tighten x2 Mount
Screws using a 5 mm Hex Key. Complete installation by
tightening the Bolt and Nut (Items D and E) using two
10 mm Wrenches.
5
7
(a) Pivot the Flywheel
into the folded paper
and onto the Hub. Push
the Flywheel against
the Hub until it is fully
seated. Align the screw
holes, and discard the
folded paper.
(b) Place the Hub Cap
onto the Hub. Align the
screw holes. Start ve
SHC Screws (Item C).
(c) Tighten the screws
in a star pattern until
snug using a 5 mm Hex
Key.
DO NOT OVERTIGHTEN
MAY DAMAGE THREADS.
6
8
IMPORTANT: Failure to follow these instructions can
lead to cosmetic damage to the Flywheel.
Move Shifter to the down position. Wedge a
piece of paper between the Magnets.
Hub Cap
C
(align screw holes)
Magnets
Paper
Shifter
D
E
D
E
F
HOW TO ASSEMBLE THE M3i BIKE

Bikes sold in the European Union: Apply Hub Cover Decals over each
of the screw holes (Item L, not shown).
Hub
Flywheel
Paper
Flywheel Guard
Mount Stud

M3iINDOOR GROUP CYCLE 12
Tab
9
11
(a) Clean the Pedal threads
using a clean cloth and apply
Loctite®242 (threadlocker,
Item G) to the leading threads.
(b) Install the Pedals into the
Crank Arms:
• Start the Pedals into the Crank Arms by hand.
• NOTE: The LEFT Pedal is reverse-threaded.
• Restart if you feel resistance or if the Pedal does
not drive straight into the Crank Arm.
• Tighten the Pedals (Tool: 15 mm Open-end Wrench).
• Torque the Pedals to 35 ft-lbs/47 Nm (Tool: Torque
Wrench with 6-inch extension and 15 mm Crowfoot).
Handlebar Slide installation.
a) Remove the four Screws from the Handlebar Tube
using a 6 mm Hex Socket Bit and Ratchet (NOTE: Anti-
seize lubricant on the Screws can create messy work;
handle with care).
b) Position the Handlebar Slide (Item I) onto the
Handlebar Tube; numbers face up, screw holes aligned.
c) Install the four Screws, hand-tight only (use a 6 mm
Hex Socket Bit for easier reach). Then, torque the Screws
to 18–20 ft-lbs (25–27 Nm) in a crisscross pattern using
a 6 mm Hex Socket Bit and Torque Wrench. Repeat the
torque procedure (crisscross pattern) to ensure proper
installation.
Install the Media Tray by wedging it in between the
Handlebar.
Assembly is now complete. Continue to “Set Up and
Operation” on the following page.
Be sure to perform the “Proper Operation Check”
(page 14) before use.
10
12
Handlebarinstallation.
HOW TO ASSEMBLE THE M3i BIKE
WARNING: Failure to follow these instructions will
result in mechanical failure and can cause serious injury.
Torque: 18–20 ft-lbs
(25–27 Nm)
Crisscross Pattern
Handlebar Slide
Handlebar Tube
Four Screws
(a) Disassemble the L-Handle
(Item K) by removing the
Screw using a 5 mm Hex Key.
(b) Insert the Stud through the Handlebar Spacer (tab
pointing down and facing toward the bike), through the
Handlebar Slide slot, and screw into the Handlebar.
(c) Place the L-Handle onto the Stud, pointing away
from the Bike. Re-install the Screw and Washer using a
5 mm Hex Key. Finish with Cap.
L-Handle Assembly
Screw
Handlebar
Handlebar
Spacer
Stud
Loctite®242
Right Pedal Left Pedal
R
Pedal
L
Pedal
15 mm Wrench
Crank Arm
Torque Wrench
with Extension and
15 mm Crowfoot
L Handle
Washer and
Screw
Cap

M3iINDOOR GROUP CYCLE 13
SET UP AND OPERATION
Take this time to familiarize yourself with the bike by reviewing the Product Overview below.
PRODUCT OVERVIEW
Figure 5. M3i Indoor Group Cycle
Computer Display with Bluetooth® smart
1
Seat Height Adjustment Knob
5
Water Bottle Holder
16
Resistance Lever / Emergency Brake
2Media Tray
12
Flywheel Guard
6
Pedals
17
Seat
3Handlebar
13
Handlebar Depth Adjustment L-Handle
14
Flywheel
7
Transport Wheels
18
Crank Arms
19
Pulley
20
Seat Depth Adjustment L-Handle
4
Handlebar Height Adjustment Knob
15
11 Stretch Pads
9Base Stabilizer
10 Base
Belt Guard
8
13
12
2
5
4
3
17
15
16
14
18
11
10
6
7
8
9
20 19
1
*Computer Display is Bluetooth®smart enabled and is compatible with POLAR®heart rate sensors with coded GymLink.

M3iINDOOR GROUP CYCLE 14
Apply a rust and corrosion inhibitor to the Left Bottom Bracket Bearing and to the clip-in
area of each Pedal (recommended after assembly and annually thereafter, see Figure 6).
When all assembly requirements have been met, and you have read and understood
the Important Safety Instructions, test ride the bike. Fine-tune and adjust the Seat and
Handlebar height/depth and Base Stabilizer as needed. It is recommended that the bike
be pedaled in the forward direction.
Proper Operation Check:
• All Screws are tightened or torqued properly (refer to “How to Assemble the M3i Bike”
section, beginning on page 10, Steps 2 — 12).
• The Computer Display powers ON (pedal one full revolution) and the Resistance Lever
cycles GEAR 1—24 (GEAR 88 = Emergency Brake).
• Bike is properly stabilized, level to the oor (refer to “Base Stabilizer” section below).
• The Seat and Handlebar height/depth are properly set (refer to “Seat/Handlebar Height
Adjustment Knob” and “Seat/Handlebar Depth Adjustment L-Handle” sections, page 15).
Figure 6. Rust & Corrosion
Inhibitor Application
Figure 7. Transporting the Bike
PROPER OPERATION CHECK
TRANSPORT
BASE STABILIZER
To position the bike at the desired location refer to Figure 7 and
follow the instructions below:
Be sure there is a minimum of 24 inches (610 mm) free space
for the bike on all sides before placement.
1. Grasp the Handlebar with both hands.
2. Tilt the bike toward you until the Transport Wheels contact
the oor.
3. Roll the bike to the desired location; tilt it slowly away from
you to set down.
The bike must be placed on a at, level surface. If the sub-oor is not
level, the Base Stabilizer allows for stabilization.
To stabilize the bike, refer to Figure 8 and follow the instructions
below:
1. Hold the Seat steady, then with your foot, swipe the Base
Stabilizer counter-clockwise to drive it back into the base. This
will un-stabilize the bike.
2. Slightly push across the Seat, until the Base Feet at all three
corners contact the oor, then hold.
3. With the three Base Feet making contact with the oor, swipe
the Base Stabilizer clockwise with your foot until the Base
Stabilizer makes contact with the oor. This will stabilize the
bike.
Test for stability. The bike should sit at without rocking. Adjust and
ne-tune the Base Stabilizer as needed.
NOTE: The bike should not be used until it is stabilized. If the bike is
moved to a different location, adjust the Base Stabilizer as needed
to stabilize the bike.
WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual
and all warnings on the bike before operation. Failure to perform the Proper Operation Check prior to operation of
the bike will void your warranty and could result in serious injury.
Figure 8. Base Stabilizer Adjustment


21
3
Floor

M3iINDOOR GROUP CYCLE 15
RESISTANCE LEVER
EMERGENCY BRAKE
SEAT/HANDLEBAR HEIGHT ADJUSTMENT KNOB
SEAT/HANDLEBAR DEPTH ADJUSTMENT L-HANDLE
PEDAL CAGE STRAP ADJUSTMENT
Resistance is controlled by the Resistance Lever. The Resistance
Lever can be set to any gear from 1 to 24. The higher the gear
number setting, the greater the resistance (refer to Figure 9).
Move the Resistance Lever to the most forward position to engage
the Emergency Brake. This will stop the motion of the Flywheel
within one revolution. Wait until the Pedals come to a complete
stop before dismounting (refer to Figure 9).
Set the Seat height to align with the top of your hip when standing beside the
bike. Refer to Figure 10 and follow the instructions below:
1. Loosen the Adjustment Knob by turning it counterclockwise 1/4 to 1/2
turn.
2. Pull the Knob outward and hold with one hand.
3. With your other hand, slide the Seat to the desired height position.
4. Release the Adjustment Knob. Ensure it locks into the desired position
hole.
5. Turn the Adjustment Knob clockwise until it is hand-tight to secure the
Seat.
The Handlebar Height Adjustment Knob (not shown) operates in the same manner.
Handlebar height set at, or slightly above, the Seat height is recommended.
Set the Seat depth (horizontal adjustment) to where the distance between
the Seat and Resistance Lever is approximately the same distance between
your elbow and ngertips. Refer to Figure 11 and follow the instructions below:
1. Loosen the L-Handle by turning it clockwise (view from above).
2. Slide the Seat forward/backward.
3. Tighten the L-Handle by turning it counterclockwise (view from above).
The Handlebar Depth Adjustment L-Handle (not shown) operates in the same
manner. Handlebar depth set to where a slight bend at the elbows are present
is recommended.
Figure 10. Seat Height Adjustment
Figure 11. Seat Depth Adjustment
Always secure your feet onto the Pedals using the Pedal Cage before your
workout. Refer to Figure 12 and follow the instructions below:
1. Place the widest part of foot over the Pedal.
2. Pull up on the Pedal Strap to tighten the Pedal Cage, snug to t.
3. After workout, push down on the buckle to release the Pedal Strap tension.
Cycling Shoes: clip in cleats at the opposing side of the Pedal Cage.
The bike is not designed with a freewheel, but a xed gear system. When
the Flywheel is in motion, the Pedals will also be in motion. Stop by reducing
pedaling frequency in a controlled manner or by using the Emergency Brake.
CAUTION: Do not exceed maximum Seat height adjustment mark
“STOP.” Tighten all adjustment knobs before bike use.
Figure 9. Resistance Lever and
Emergency Brake Positions
Resistance Lever
Gear 1 to 24
Emergency Brake
Gear 88
Figure 12. Pedal Cage Straps Adjustment
2
1
3

M3iINDOOR GROUP CYCLE 16
BACKLIGHT SENSOR While the computer is awake, the backlight sensor automatically detects ambient light levels in the
room and turns on the backlight display when needed.
RPM (CADENCE) The RPM displays the revolutions per minute of the crank arm—also known in the cycling world as cadence—
and is roughly the speed at which the cyclist is pedaling.
POWER AND ENERGY The power output is displayed in Watts (currently generating) and Kilocalories (total value for the
workout). The computer toggles back and forth between Watts for eight seconds and Kilocalories for two seconds. The rated
accuracy for power between 30 and 160 RPM is ±5 Watts for power below 50 Watts, and ±10% for power above 50 Watts.
HEART RATE If there is no Heart Rate signal, a steady heart symbol and a zero will be displayed. If a user is wearing a Heart
Rate strap, once the computer locks onto the signal, the heart symbol will blink and display the heart rate.
Only POLAR®with coded GymLink heart rate sensors are compatible with Keiser M Series indoor cycles.
ELAPSED TIME The number shown reports the total workout time spent and will reset to zero after 60 seconds of inactivity
or if the computer is reset using the gear shifter.
GEAR Gears from 1 to 24 are displayed on the bottom left hand of the screen.
ODOMETER/TRIP DISTANCE When the computer is activated, the Odometer “ODO” will display the distance accrual of the
bike for the rst eight seconds. This feature is for service and maintenance purposes only. After approximately eight seconds
the Odometer “ODO” will disappear to display the Trip units for two seconds (“USA” = Miles, “EURO” = Kilometers), followed
by the Trip Distance for the remainder of the workout. Trip is a calculated distance value (at road run) based on power
production (Note: To change the Trip units, follow the instructions within the “Bluetooth®smart” procedure on page 18).
1
2
3
4
5
6
7
OVERVIEW
DISPLAY FEATURES
WORKOUT DATA
To view averages: RPM, Power, and Heart Rate, at any point in the workout, stop pedaling for three seconds. This will ash
your averages until you start pedaling again or until the computer goes to sleep after 60 seconds.
INTERVAL TRAINING
To initiate an interval, starting from a high gear drop the Resistance Lever to “GEAR 1” for 1/4 of a second and lift it up to
a higher gear immediately. “inL #” will display conrming the interval has started.
Repeat the above steps to end the interval (“inL End” will display) and the averages for that interval will blink.
Note: The averages displayed at the end of your workout when pedaling has stopped are inclusive of all pedaling times and
intervals that have taken place during your workout.
Bluetooth®sMArt ENABLED
The Bluetooth®smart enabled computer allows Bluetooth®smart Ready devices such as cellphones, tablets, and computers
to gather information about your workout. M3i compatible apps allow data to be stored to track progress over time and
make the data available to other tness applications. Classrooms are able to utilize real time performance tracking programs
which give the entire class an opportunity to see their performance compared with other participants in the class.
To receive and download workout information from your M3i, a Bike ID number is required, which identies your M3i for
individual or group Bluetooth discovery. The Bike ID number is viewable within the rst eight seconds (displayed as “bid”
and followed by any number 1 to 200, see Figure 14). To assign a Bike ID to your M3i, see “Bluetooth®smart” procedure on
page 18. Note: Bike ID set to “0” may not be discovered by Bluetooth devices.
COMPUTER DISPLAY

M3iINDOOR GROUP CYCLE 17
Figure 13. Computer Overview
Figure 14. Computer Start-up Display
RPM
WATTS
GEAR TRIP
1
2
3
4
5
67
WARNING: Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or
death. If you feel faint stop exercising immediately.
RPM
WATTS
GEAR TRIP
RPM
WATTS
GEAR TRIP
ODOGEAR
Bike ID
“bid”
TripTrip UnitOdometer

M3iINDOOR GROUP CYCLE 18
Conrm the Trip Unit setting:
“USA” = miles
“EURO” = kilometers
Save the Trip Unit: Set GEAR to any
number between 8 and 16 and allow
the computer to sleep (1 minute est.
time). For Bluetooth®smart setup,
continue to Step 9 (Trip Unit will be
saved with the Bike ID in Step 9).
NOTE: “Err#” = incorrect gear setting within
Steps 3–5. Restart the procedure from Step 1
after the computer shuts down (1 minute est.
time).
Set Bike ID (“bid”):
increases “bid” number
decreases “bid” number
Set the “bid” number to any number
between 1 and 200.
Save the “bid” number: Set ----- to any
number between 8 and 16 and allow the
computer to sleep (1 minute est. time).
NOTE: The computer must be allowed to
sleep to save the “bid” number and Trip
Unit, and exit the Bluetooth®smart set up.
87
To receive and download workout information from your M3i to any Bluetooth®smart device, a Bike ID number (displayed
as “bid”) is required. Perform the following one-time procedure to set both the “bid” and the Trip Unit (miles or kilometers)
at once. NOTE: Steps 1 through 7 must be completed within one minute.
Begin with the computer off and pull
Resistance Lever all the way down
towards you. This is GEAR “1” position.
Pedal 1 full revolution to change the
TIME value to “2”.
Pedal 1 full revolution to change the
TIME value to “1”.
Shift the Resistance Lever to GEAR “19”
for Miles, or GEAR “21” for Kilometers.
Shift the Resistance Lever to GEAR “21”
for Miles, or GEAR “19” for Kilometers.
Pedal 1 full revolution to change the
TIME value to “3”.
1 2 3
4 6
9
GEAR 1 to 7
DECREASES
“bid” number
GEAR 8 to 16
HOLDS
“bid” number
GEAR 17 to 24
INCREASES
“bid” number
5
M3iBLUETOOTH® smart
6x6x
GEAR “88”
GEAR “1”
Bike ID
“bid”
set between
1 - 200
Trip Unit
1x1x
1x1x 1x1x
Shift the Resistance Lever from top to
bottom (GEAR “88” to GEAR “1”) for a
total of 6 times.
NOTE: If the computer shuts down at any
time before Step 8, the procedure has
timed out. Restart the procedure from
Step 1 at a time when the procedure may
be completed within one minute.

M3iINDOOR GROUP CYCLE 19
HOW TO EXERCISE ON THE BIKE
Start Your Exercise:
1. Set the Resistance Lever down and set the Pedal that
corresponds to your leading leg pointing forward.
2. Clip in, or step in, to the Pedal with your leading leg,
followed by your trailing leg to mount the bike.
3. Check that the cleats are properly secured to the Pedals,
or pull up on the Pedal Strap to tighten the Pedal Cage
(snug to t), before you start your exercise.
End Your Exercise:
1. Bring the Flywheel to a complete stop using the Pedals
or the Resistance Lever/Emergency Brake.
2. Kick your heel away from the bike to clip out. Pedal Cage
Riders: push down on the buckles to release the Pedal
Strap tension.
3. Step off of the higher Pedal rst, then the lower one, to
dismount.
The M3i cycle is intended for cardiovascular workout. Special programs have been designed for group exercise environments.
The bike must always be used in a supervised area under control of a trained and authorized instructor. The following
pages are a brief overview for the safe and proper operation of the bike.
POSTURE
RIDE SET UP
WARNING: To prevent injury, always wait until the
Flywheel comes to a complete stop before you attempt to
dismount the bike.
CAUTION: Ensure ride set up supports proper body positioning and all adjustments are secure before your ride. Be
sure to stretch and warm up prior to your ride to help avoid injury. Add time to cool down and stretch after your ride to
reduce stiffness/soreness. Failure to follow this instruction may result in injury.
Set the three points of contact on the bike to support proper body positioning:
SEAT Set the Seat height to align with the top of your hip when standing beside the bike.
HANDLEBAR Set the Handlebar height at, or slightly above, Seat height.
PEDALS Place the widest part of the foot on the Pedal, or clip in with cycling shoe cleats (SPD). Set the Resistance Lever
to a lighter gear and begin pedaling. Slow or stop pedaling and check your ride set up:
• Knee — A slight knee bend must be present when the foot is at the lowest position. The knee must not be locked (i.e., the
seat is too high) or have too much exion (i.e., the seat is too low).
• Handlebar Depth — Ensure setting supports a comfortable riding position: slight bend at the elbows, neutral spine
position, and shoulder blades drawn back and down.
• Seat Depth — The front of the knee should be in line with the widest part of the foot when the Pedal is positioned at three
o’clock (away from Flywheel).
Get off the bike before you make any adjustments.
1
2
3
As in any activity, proper posture is important. The preferred
riding posture is to:
• Maintain a neutral spine and slightly hinge forward
from the hips.
• Keep a natural curve in the low back.
• Activate the core (midsection; deep abdominal
muscles).
• Open up across the collarbones.
• Draw the shoulder blades back and down.
• Keep the elbows slightly bent when the hands are
placed on the handlebar.
• Maintain good lower body alignment from the hip to
the knee, down to the second toe. Figure 15. Proper Riding Posture
Neutral Spine
Core Activation
Hip Hinge

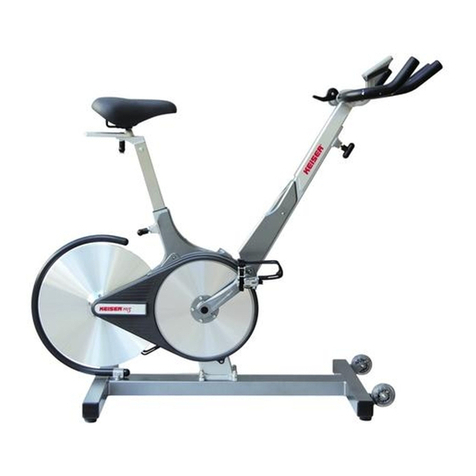

M3iINDOOR GROUP CYCLE 20
BASIC
Cadence: 60–110 RPM
Distribute body weight evenly between the Seat, Handlebar,
and Pedals. The basic posture serves as a point of reference
for all other riding positions.
• Keep your upper body relaxed with
your shoulder girdle and neck in
neutral alignment.
• Engage the core (midsection, deep
abdominal muscles) with the pelvis
in a neutral position.
• Knees are parallel and in line with
the second toe.
• Avoid seat discomfort by ensuring
your glutes shift back into the seat.
NOTE: Fine-tune the Seat or Handlebar
settings for comfort and to support the
basic ride position.
Observe the following suggested ride and hand positions for your desired workout. Include a variety of hand positions
in combination with the cycling postures to add variety and to help prevent wrist and hand discomfort. Maintain proper
ride positioning with control of both the upper and lower body for optimal cycling experience.
SEATED CLIMB
Cadence: 60–90 RPM
Add moderate to heavy resistance to simulate a hill climb. This
naturally shifts the rider slightly towards the back of the seat.
• Focus on maintaining a steady cadence; avoid side-to-side
body rocking by keeping even pedal strokes.
• The upper body remains relaxed; keep core engaged.
• Keep a light grip on the handlebar; hand position 1 or 2
complements the seated climb.
STANDING CLIMB
Cadence: 60–90 RPM | Heavy 60-75 RPM | Faster 75-90 RPM
Gear up to a higher resistance and transition to a standing position.
There is a natural and slight body sway to create momentum and
to power each pedal stroke.
• Keep each pedal stroke smooth and uid.
• The center of gravity is low in the body with very minimal
body weight on the handlebar; hand position 2 or 3
complement the standing climb.
• A cadence of 60–90 RPM is recommended for climbing;
varying from heavy to light resistance
• Heavy climbs: shift weight back, 60–75 RPM.
• Faster climbs: shift weight slightly forward and over the
middle of the seat at 75–90 RPM.
RIDE POSITIONS
Figure 17. Basic Ride
Position
Figure 18. Seated Climb Position
Figure 19. Standing Climb Position
Figure 16. Hand Position Illustrations
Overhand Front
1
Hook/Middle
2
Extended
3
Time Trialing
4
